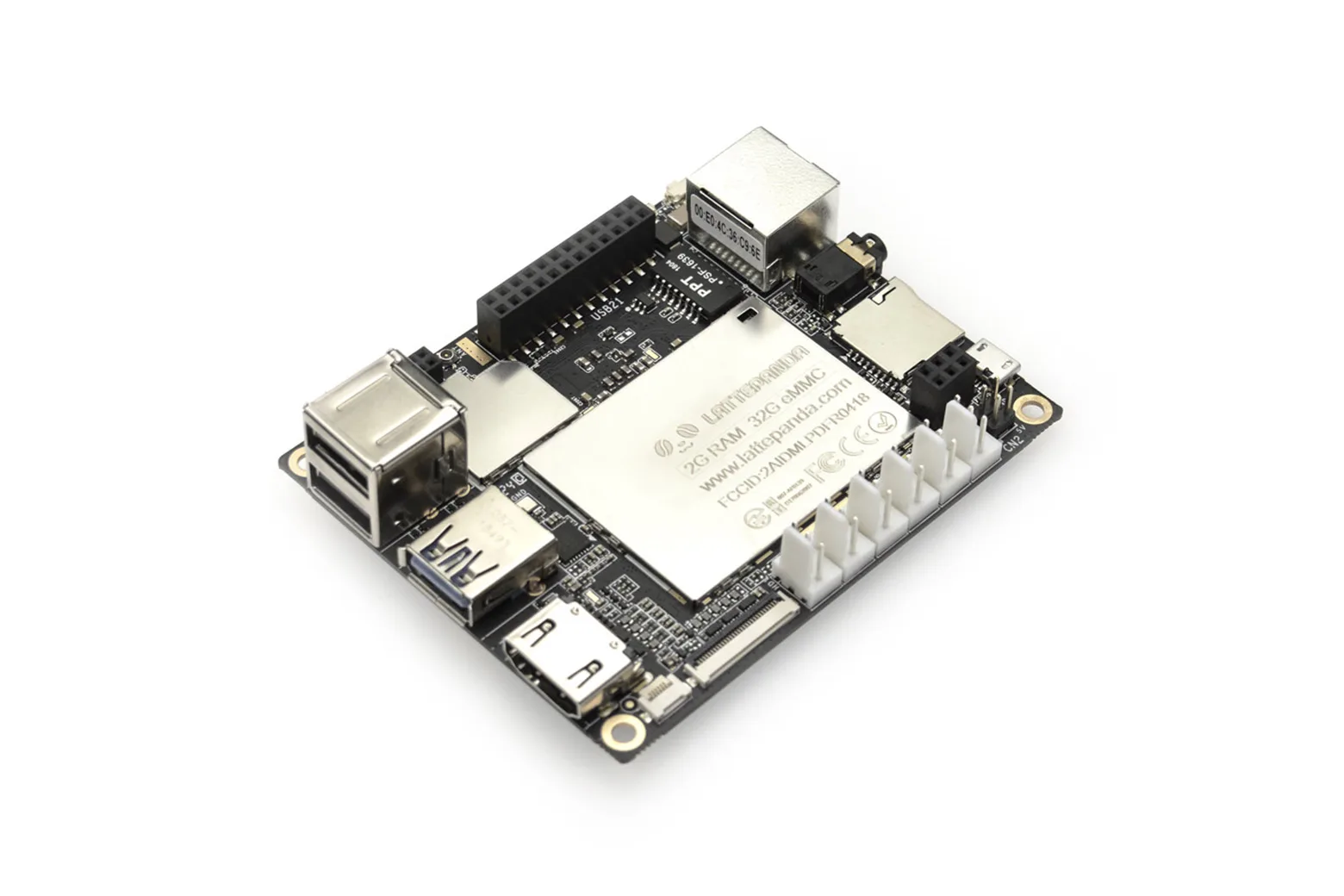

LattePanda V1 - The Smallest Windows 10 Single Board Computer (Unactivated, 2GB/32GB)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The LattePanda V1 is an ultra-compact x86 single board computer powered by an Intel Cherry Trail quad-core processor and an onboard Arduino co-processor. Featuring 2GB of DDR3L RAM and 32GB of onboard eMMC storage, it brings full desktop computer functionality to an embedded footprint. It is ideal for makers, educators, and developers building IoT, robotics, and interactive projects.

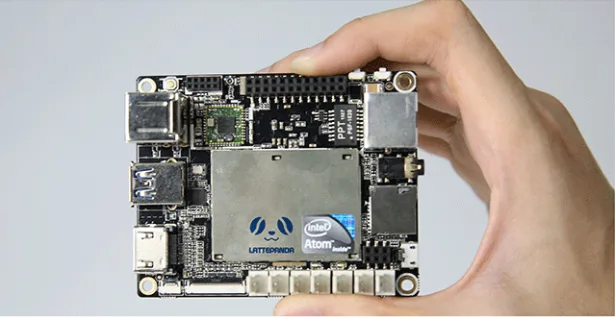

Pocket-sized x86 computing

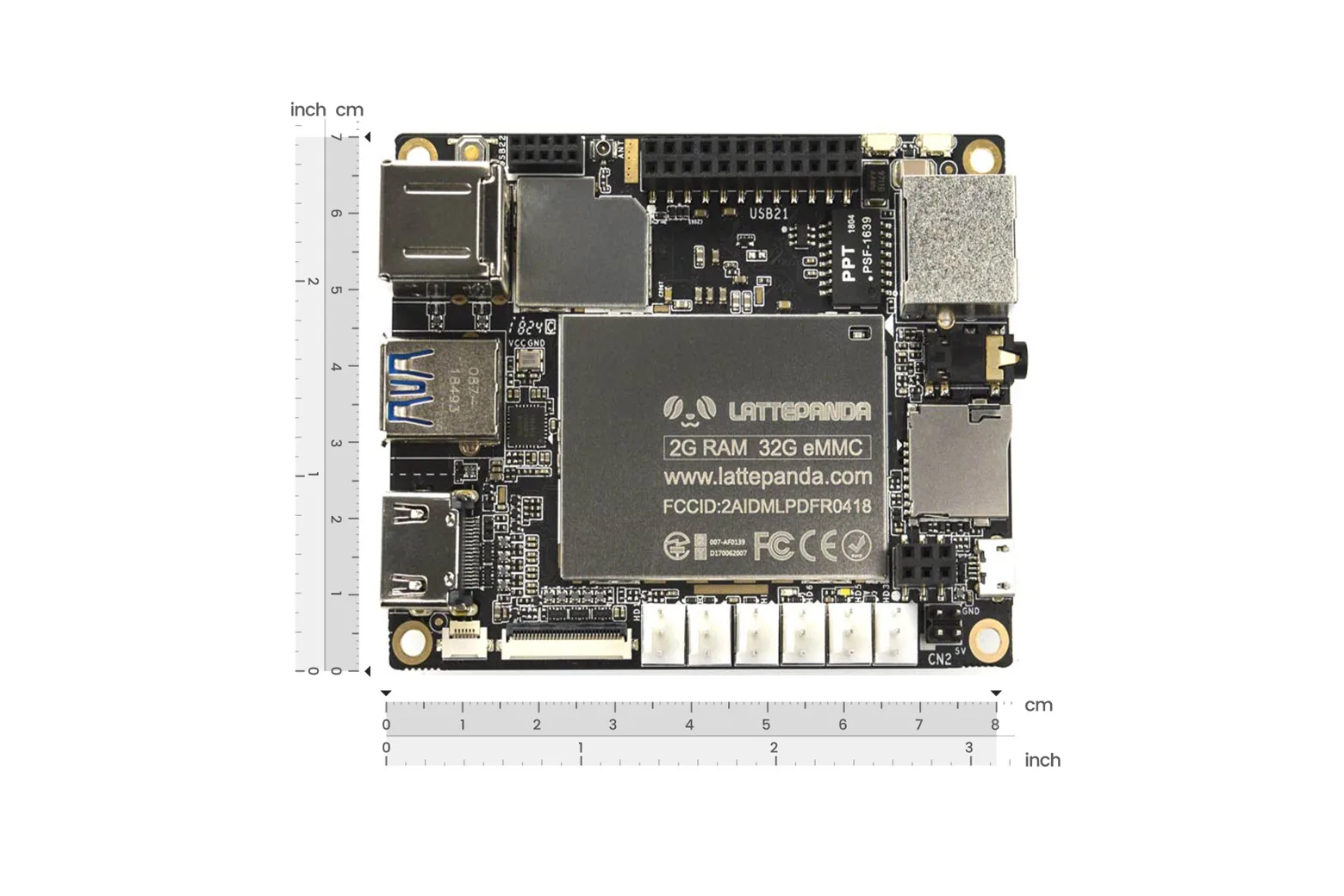

Measuring just 88 x 70 mm, this board delivers the functionality of a standard personal computer in an embedded form factor. It easily handles regular desktop tasks, document creation, and HD media playback on the go.
Intel quad-core processor
Powered by an Intel Cherry Trail Z8350 quad-core processor reaching burst speeds of up to 1.92GHz, the board provides responsive performance for desktop and edge computing applications. Integrated Intel HD Graphics supports dual display output via HDMI and MIPI-DSI ports.

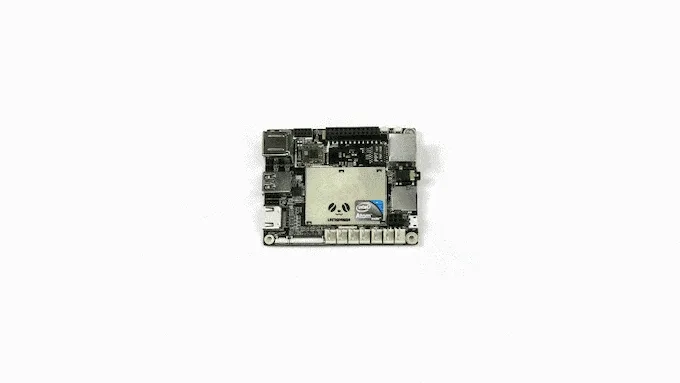

Integrated Arduino co-processor

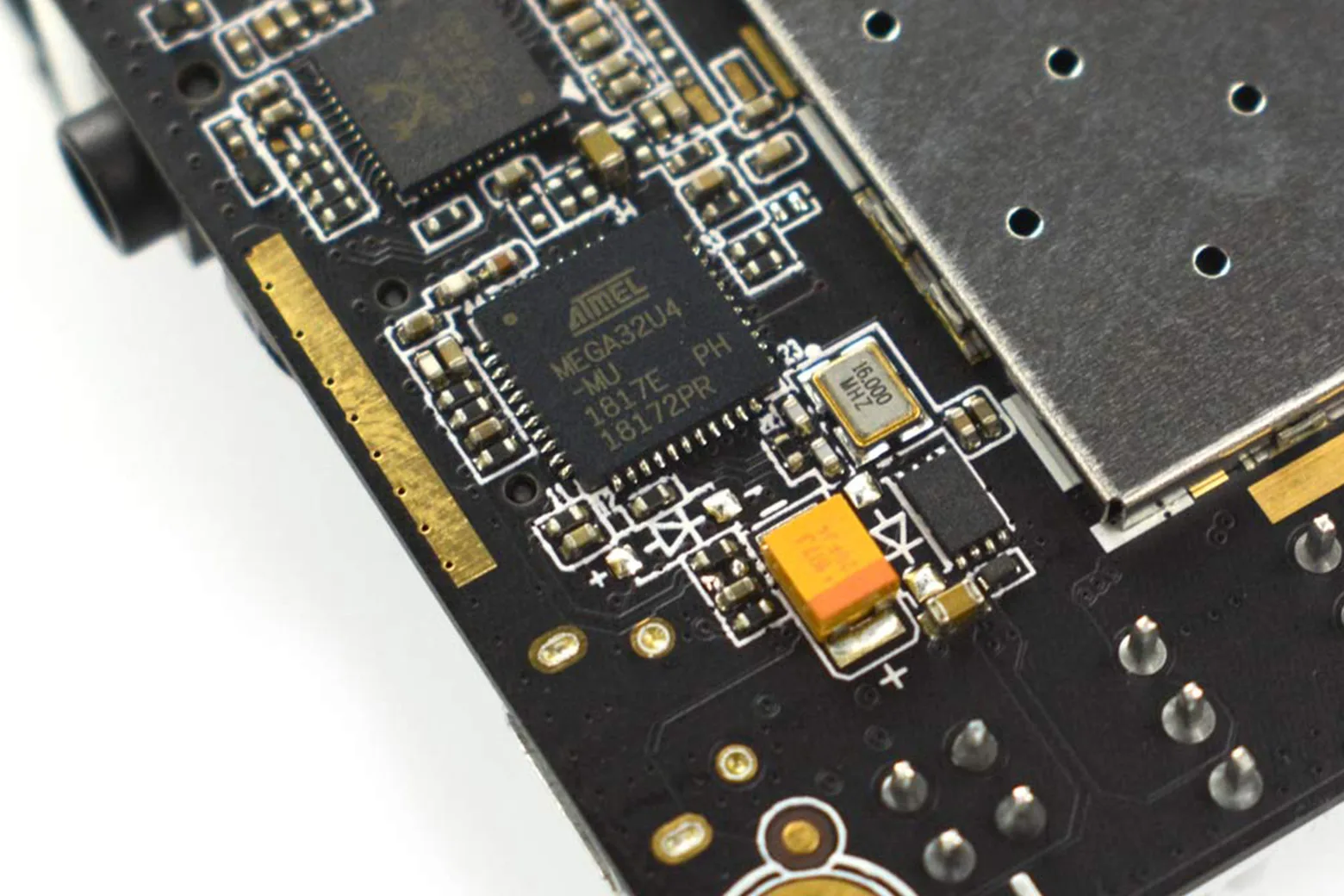

An onboard ATmega32u4 microcontroller enables seamless physical computing without requiring external development boards. It features 20 ATmega GPIO pins and 6 Gravity interface connectors for direct sensor and actuator integration.
Broad operating system support
The board comes pre-installed with an unactivated edition of Windows 10 Home and is also compatible with Ubuntu, Raspberry Pi Desktop, and Android x86. You can develop solutions directly on the board using tools like Visual Studio, Node.js, and Processing.
Reliable onboard eMMC storage

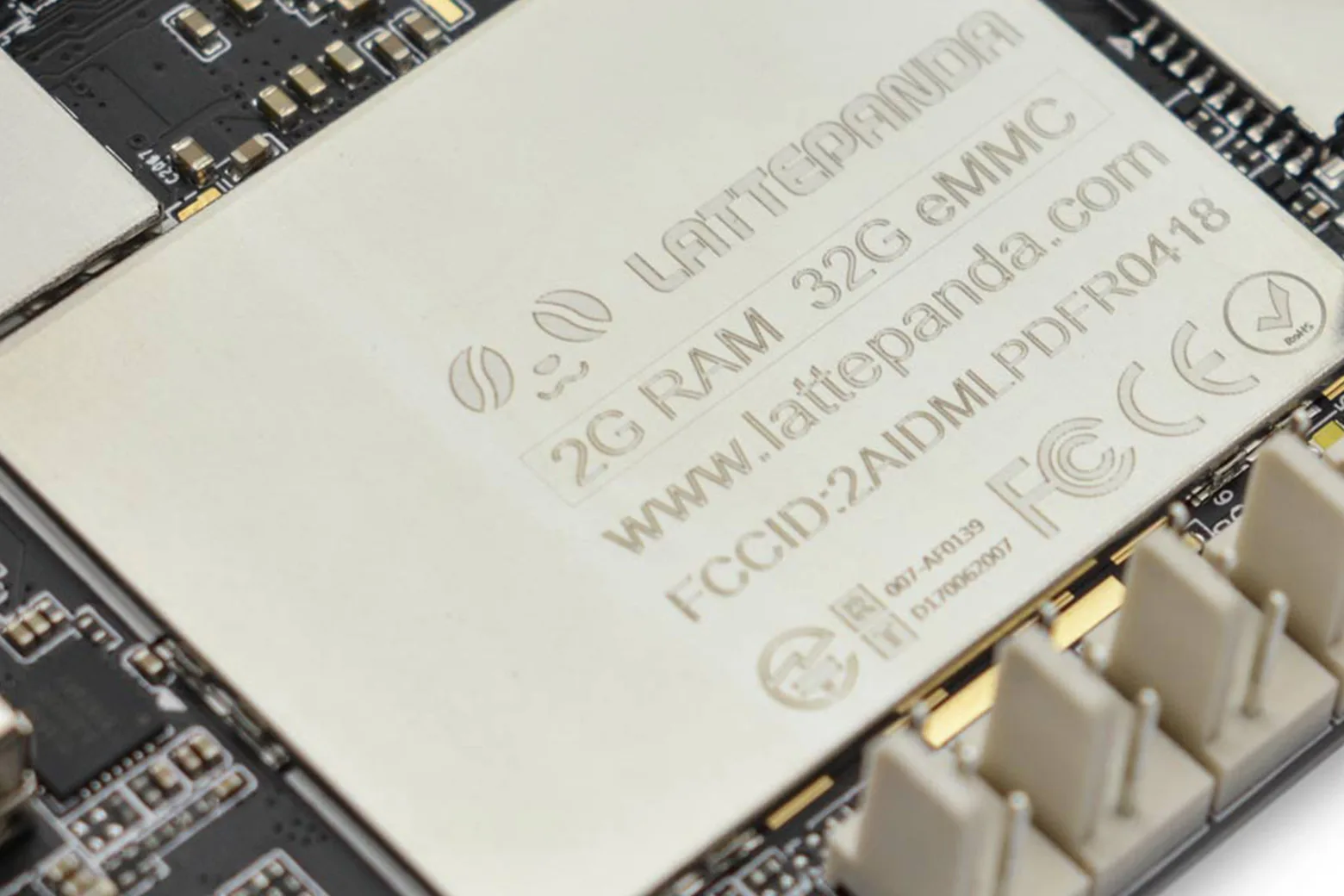

With 32GB of integrated eMMC memory, the LattePanda provides higher data reliability and a longer operational lifespan than typical memory cards. An onboard touch panel overlay connector and 2GB of DDR3L RAM support robust embedded deployments.
Versatile connectivity options
The system includes one USB 3.0 port, two USB 2.0 ports, 100Mbps Ethernet, 2.4GHz 802.11n Wi-Fi, and Bluetooth 4.0. Standard PC peripherals such as cameras, flash drives, and interactive controllers connect without extra configuration.
Video
Downloads & documentation
Specifications
| Base Frequency | 1.44GHz (1.92GHz Burst Frequency) |
| Operating System | Windows 10 Home Edition (Unactivated) |
| RAM | 2GB DDR3L |
| Storage Capacity | 32GB |
| GPU | Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory |
| Integrated Arduino Co-processor | ATmega32u4 (Arduino Leonardo) |
| Video output | HDMI and MIPI-DSI |
| Voltage | 5V@2A |

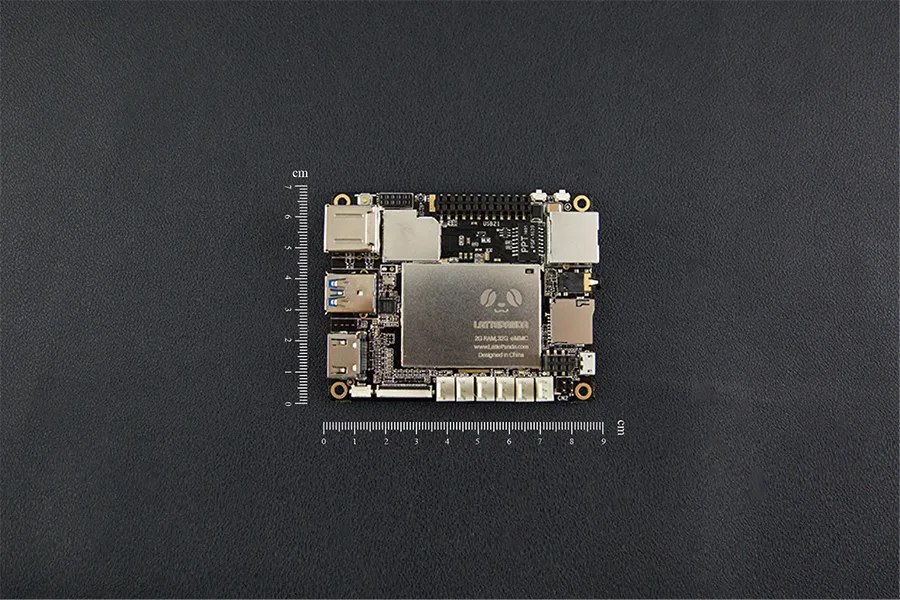

| Board Dimensions | 88 x 70mm / 3.46 x 2.76" |
| Package Dimensions | 110 x 94 x 30 mm/4.33 x 3.70 x 1.18" |
| NET Weight | 55g |
| Gross Weight | 100g |

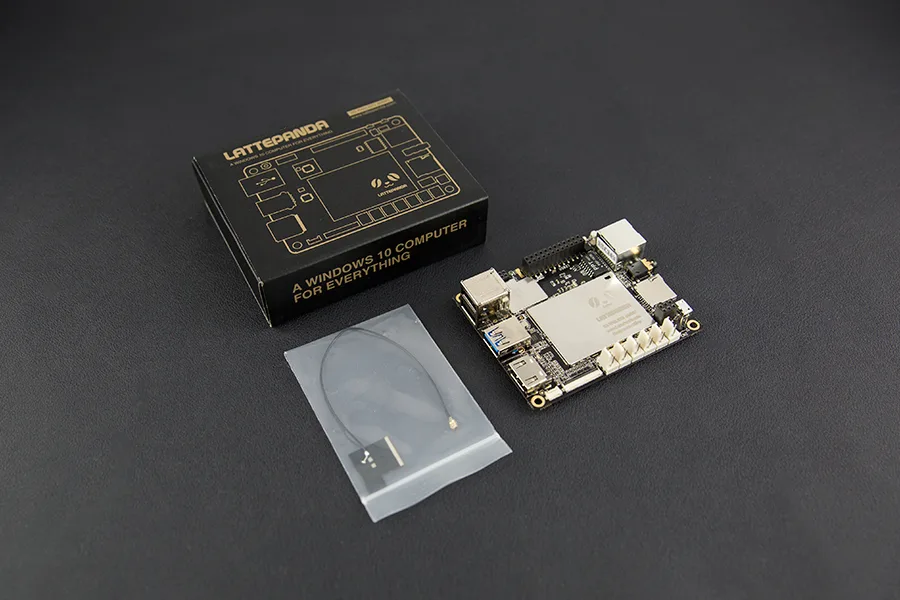

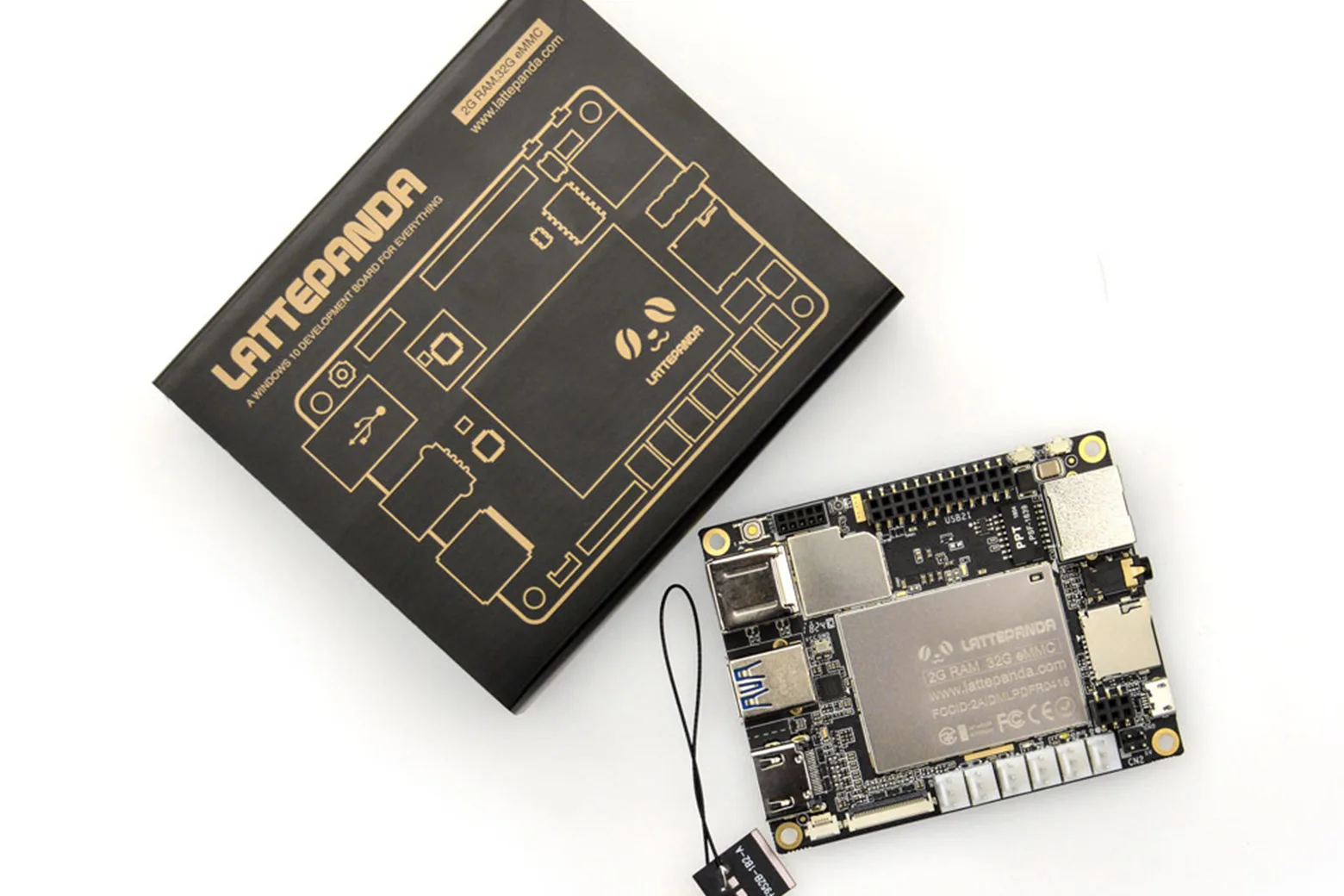

In the box
| LattePanda 2G/32GB | 1 |
| WiFi Antenna | 1 |
| Printed Safety Precautions | 1 |
