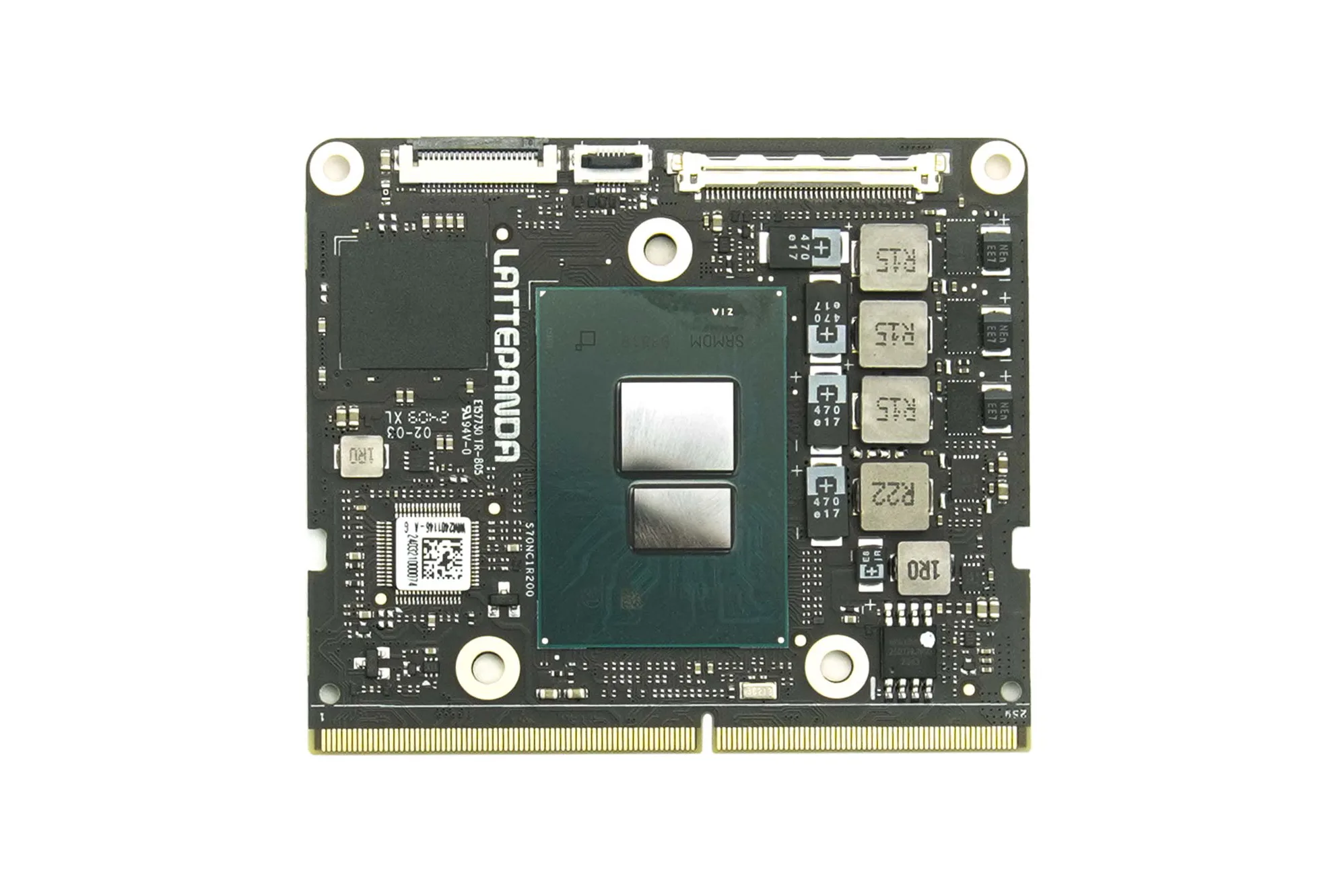

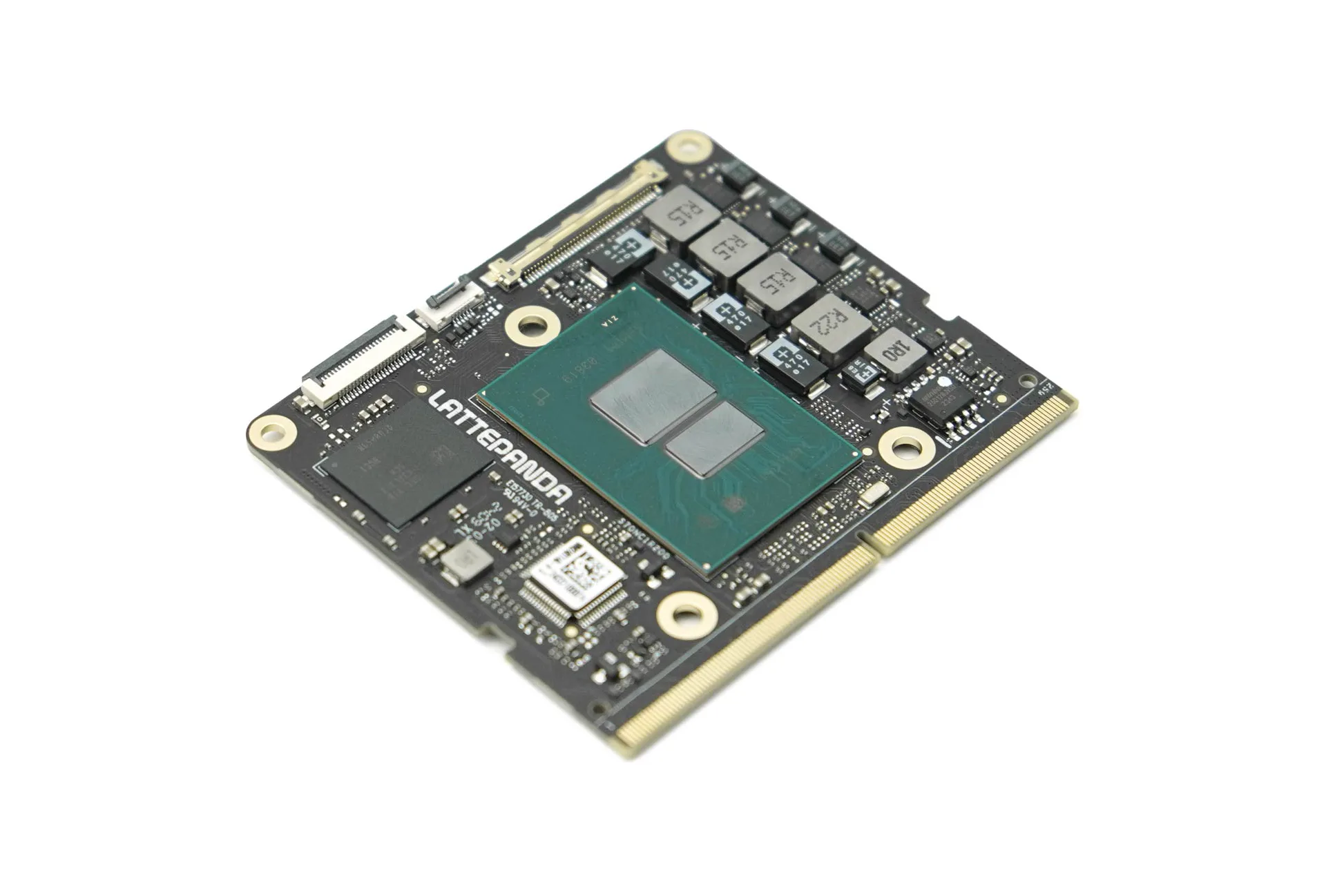

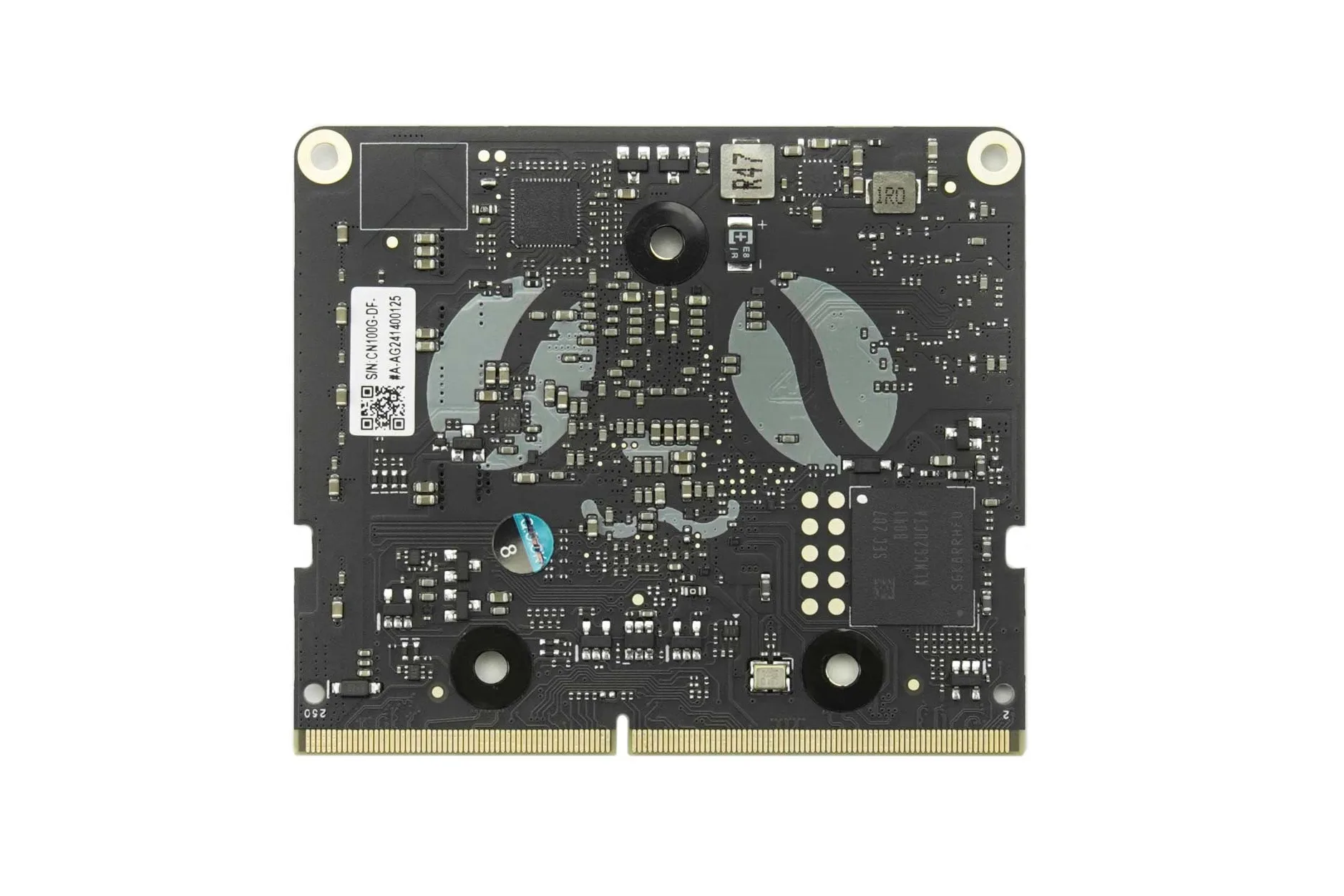

LattePanda Mu - A Micro x86 Compute Module (N100 CPU, 16GB RAM, 64GB eMMC)

The LattePanda Mu is a micro x86 compute module powered by an Intel N100 quad-core processor with 16GB of LPDDR5 RAM and 64GB of eMMC storage. Designed for embedded systems, prototyping, and bespoke hardware designs, it suits makers, engineers, and educators needing full desktop-class computing in space-constrained projects.

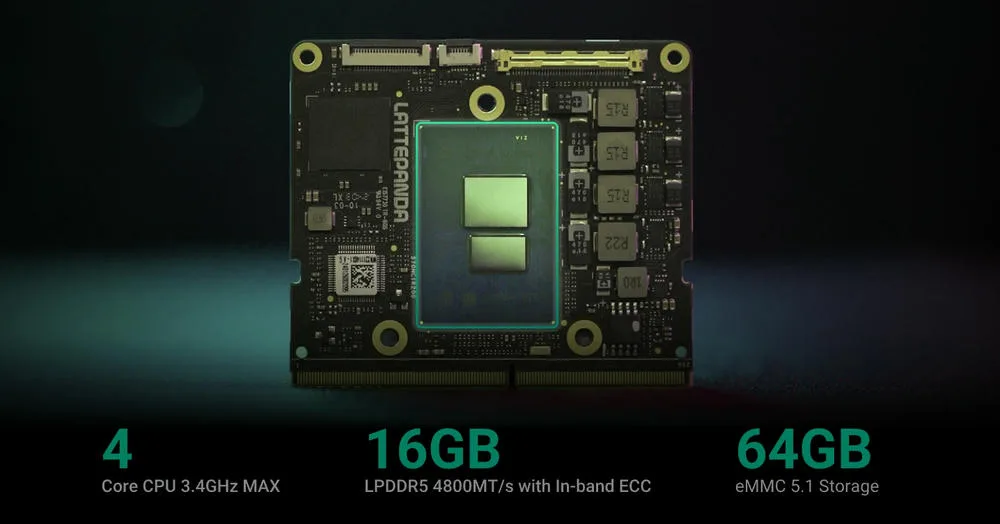

Quad-core Intel N100 performance

The Intel Processor N100 features 4 cores running at up to a 3.4GHz turbo frequency, delivering a Geekbench 6 multi-core score of 3115 and single-core score of 1217. This architecture delivers approximately double the CPU performance of a Raspberry Pi 5 for multitasking and demanding edge computing.

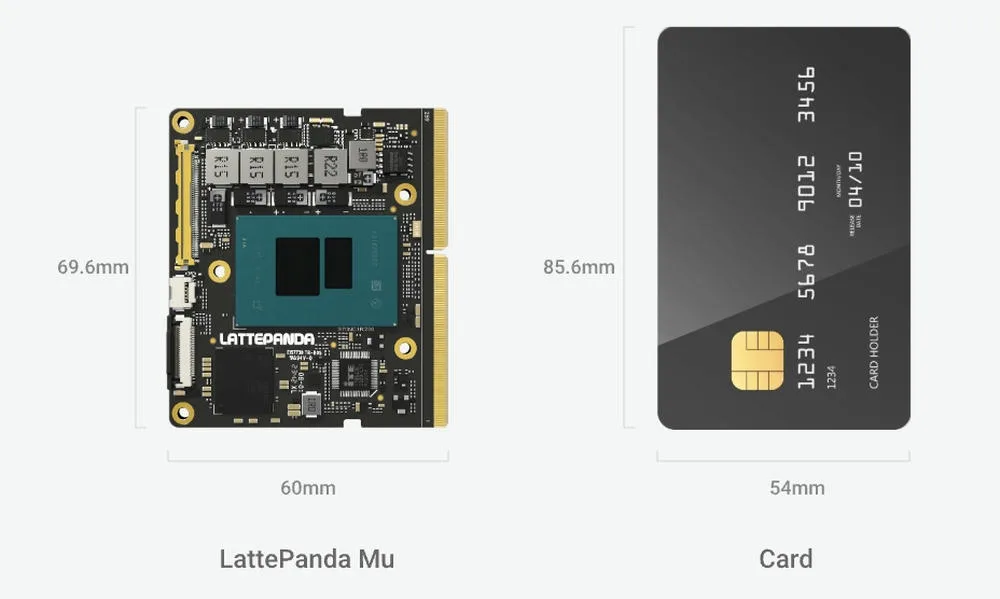

Compact card-sized form factor

Measuring just 69.6mm by 60mm, this computer-on-module fits high-performance x86 computing capability into an ultra-compact footprint. Its small dimensions make it straightforward to integrate into portable equipment and space-limited installations.

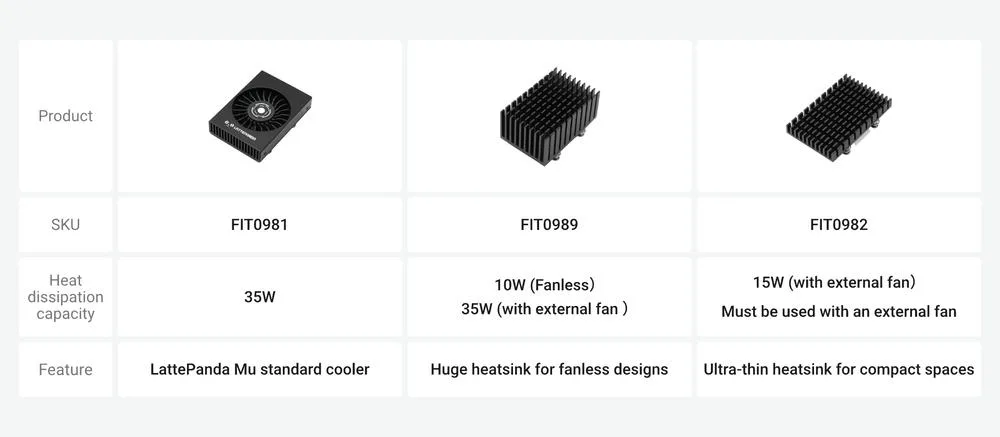

Configurable thermal design power

The processor thermal design power is adjustable between 6W and 35W to suit specific energy and thermal requirements. Operating at 6W enables silent passive cooling, whilst scaling up to 35W provides maximum processing throughput with active cooling.

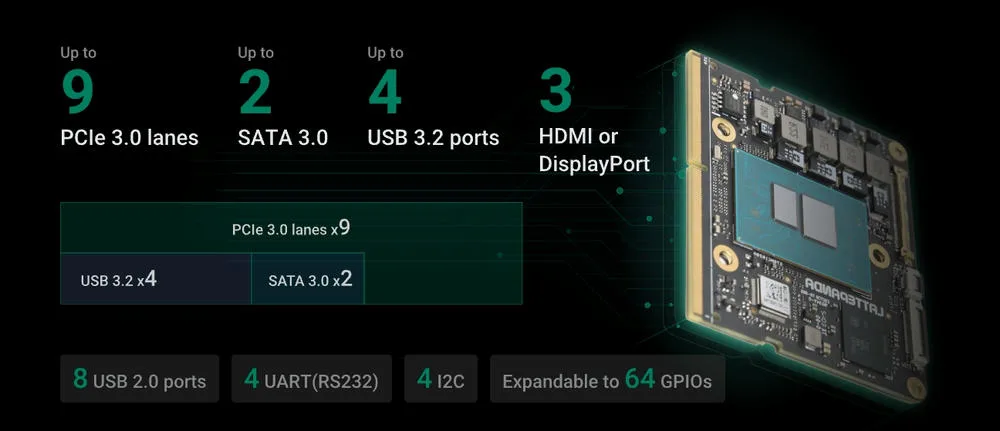

Comprehensive peripheral and expansion interfaces

The module exposes up to 9 PCIe 3.0 lanes, 3 display outputs supporting 4K at 60Hz, 4 USB 3.2 ports, 8 USB 2.0 ports, 2 SATA 3.0 ports, and 64 GPIOs. This broad pinout provides unmatched flexibility for custom carrier designs and peripheral connectivity.

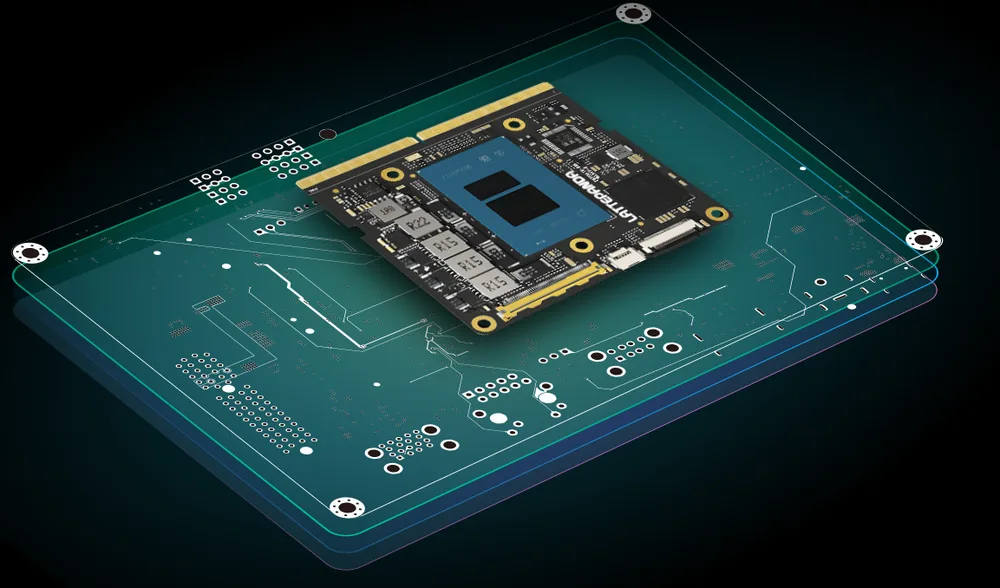

Open-source carrier board design files

Open-source KiCAD carrier board files and hardware libraries are available to accelerate your custom carrier PCB development. Compatible hardware options include a compact lite development carrier and a full-function evaluation board.

Flexible operating system support

The LattePanda Mu natively supports standard x86 software environments including Windows 10, Windows 11, and Ubuntu. This ensures compatibility with a broad array of standard development tools, industrial stacks, and desktop software workflows.
