Description

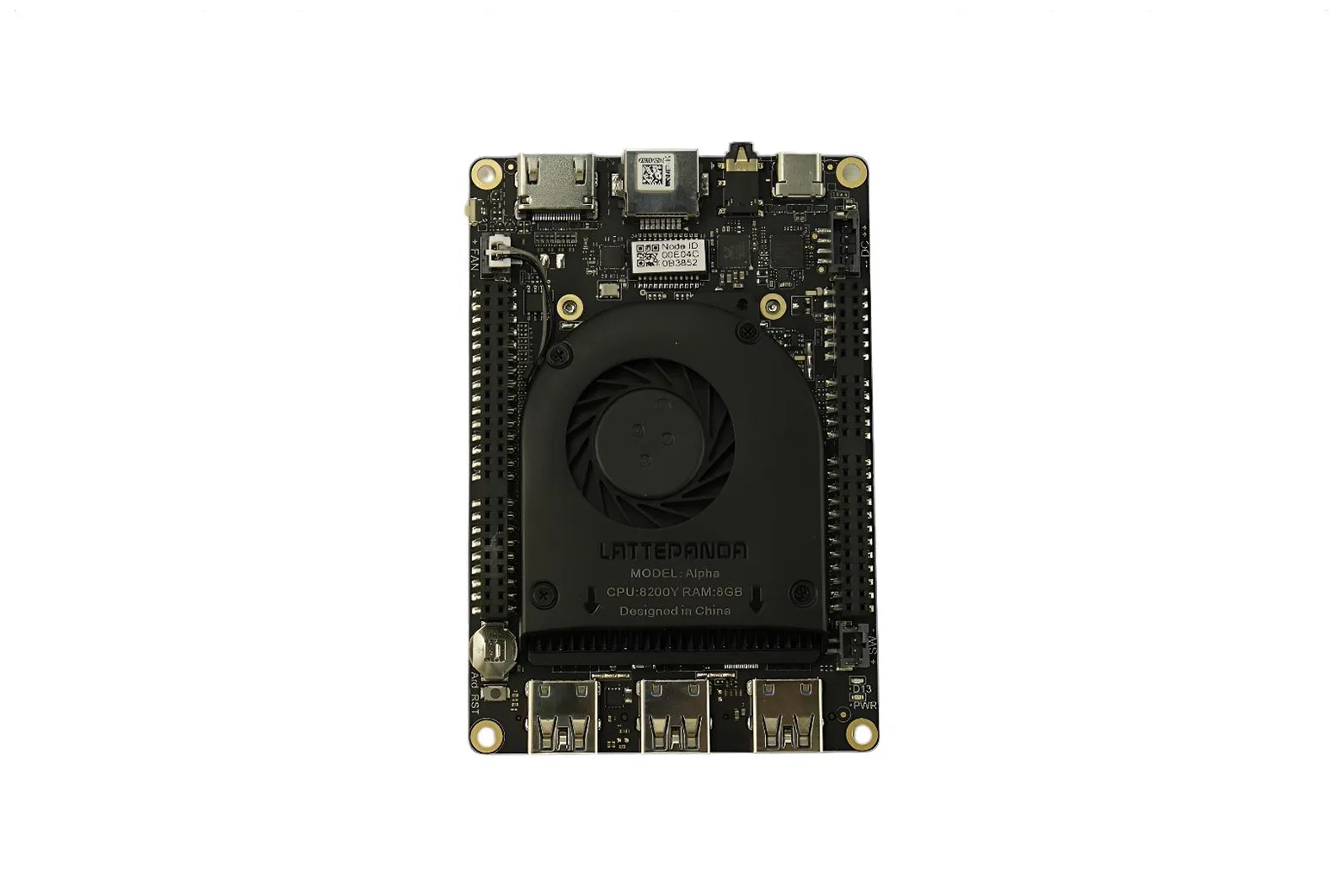

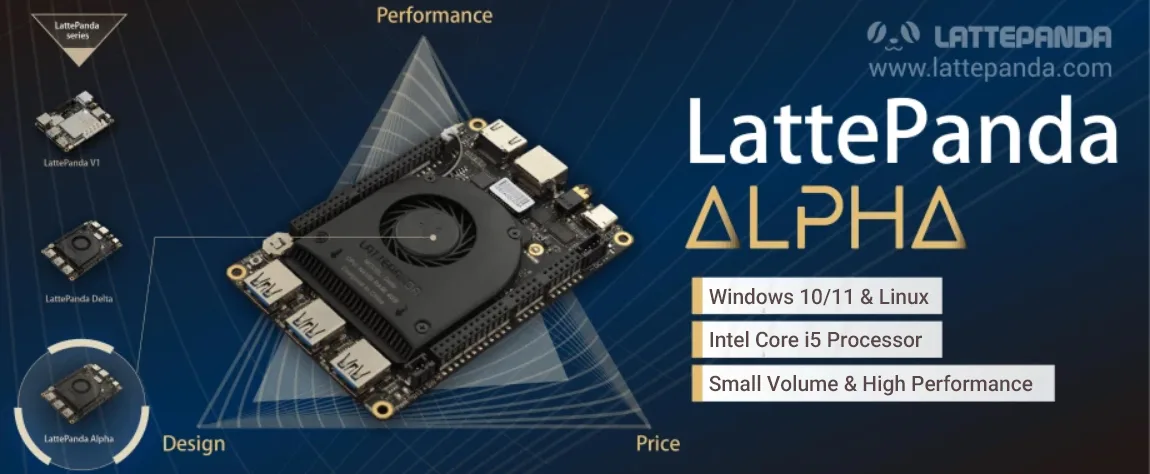

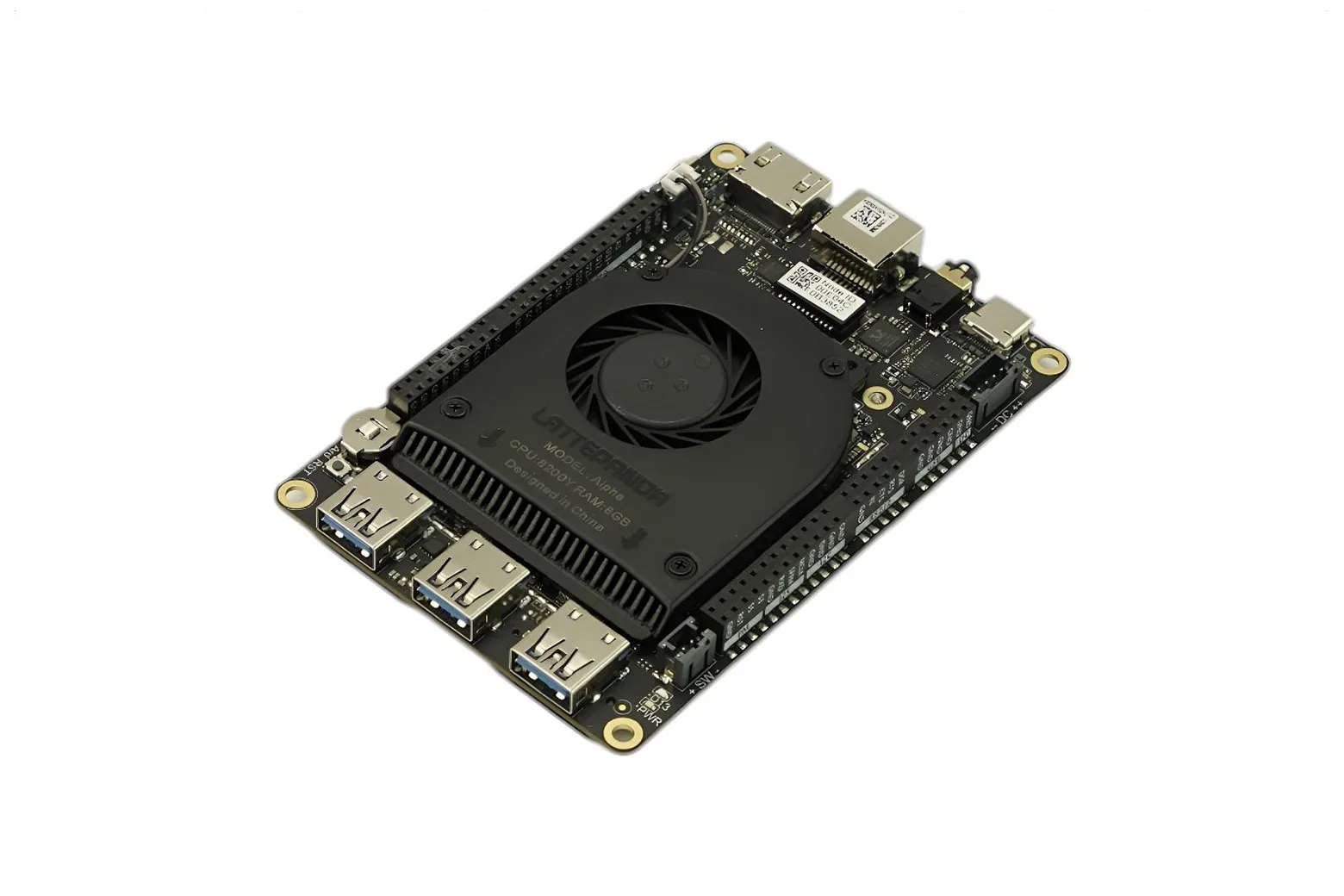

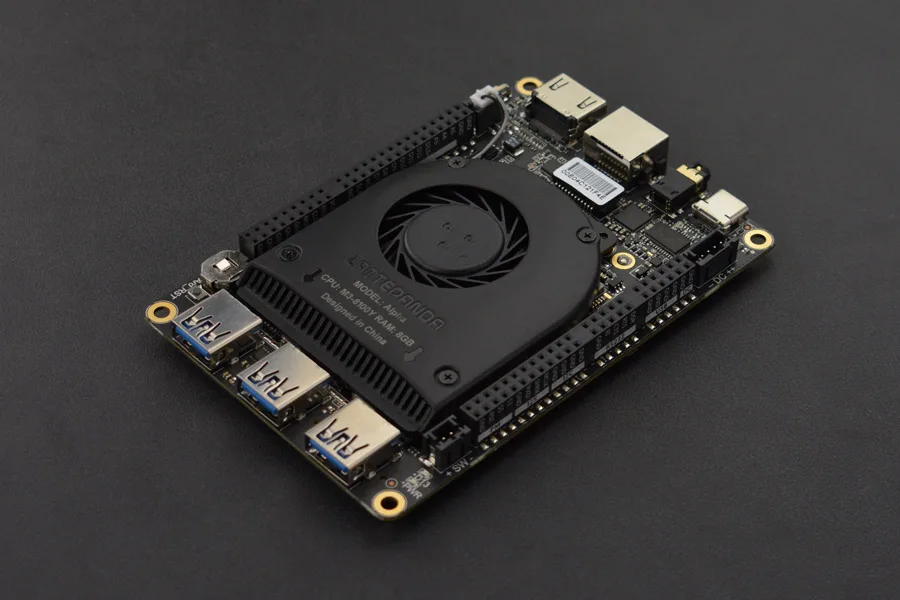

The LattePanda 2 Alpha 864s starter kit is a compact, high-performance x86 single-board computer bundle equipped with an Intel Core processor, 8GB RAM, and 64GB of eMMC storage. Accompanied by a Titan protective case, streaming cable, and a 7-inch touch display, it is designed for DIY makers, IoT developers, and edge computing integrators requiring desktop-grade capability in an embedded format.
Complete starter kit hardware

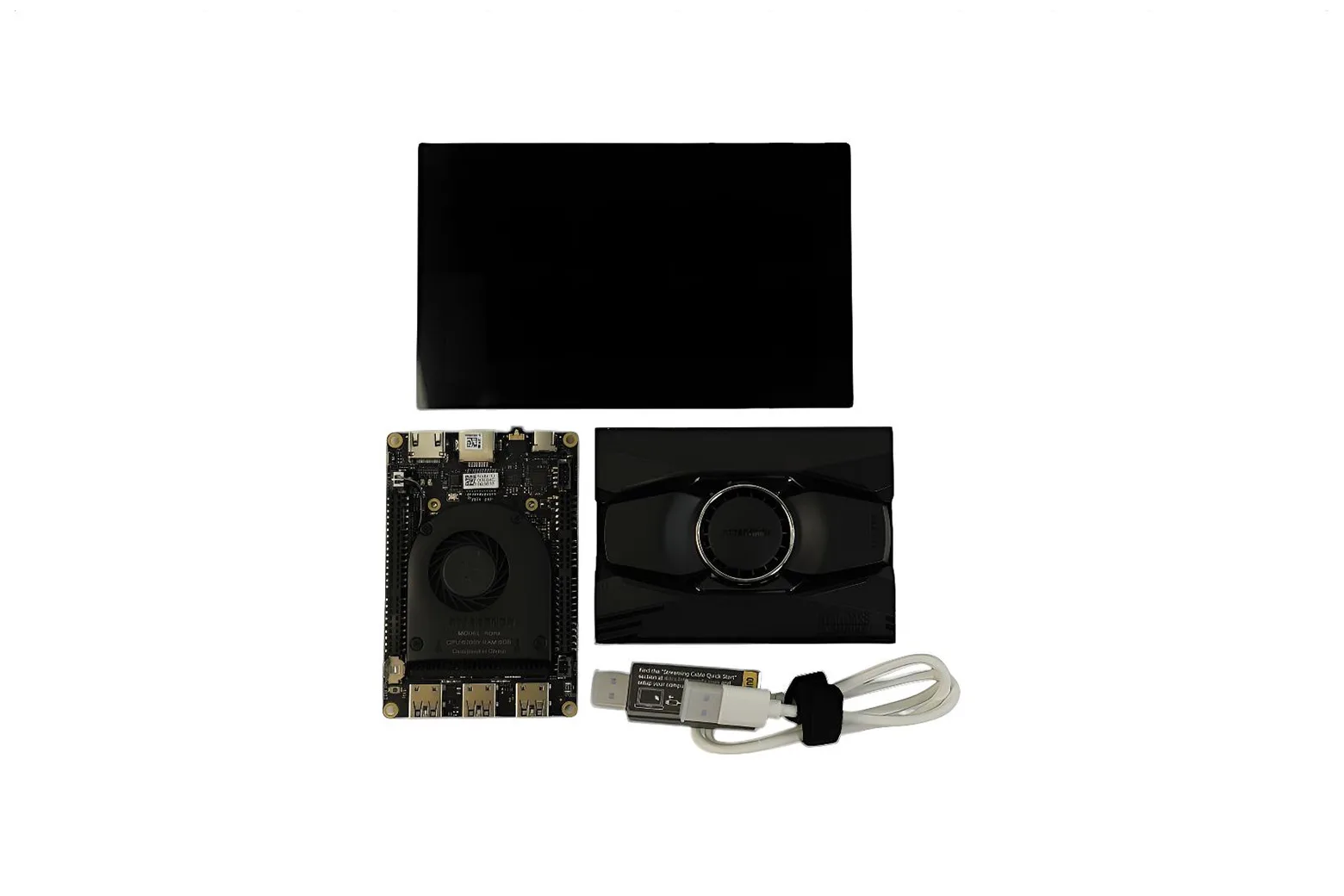

This all-in-one bundle includes the LattePanda Alpha 864s single-board computer, a dedicated Titan protective case, a streaming cable, and a 7-inch eDP touch display. It also comes with an assembled active cooling fan, dual-band antennas, and a 45W USB PD power adapter for immediate deployment.

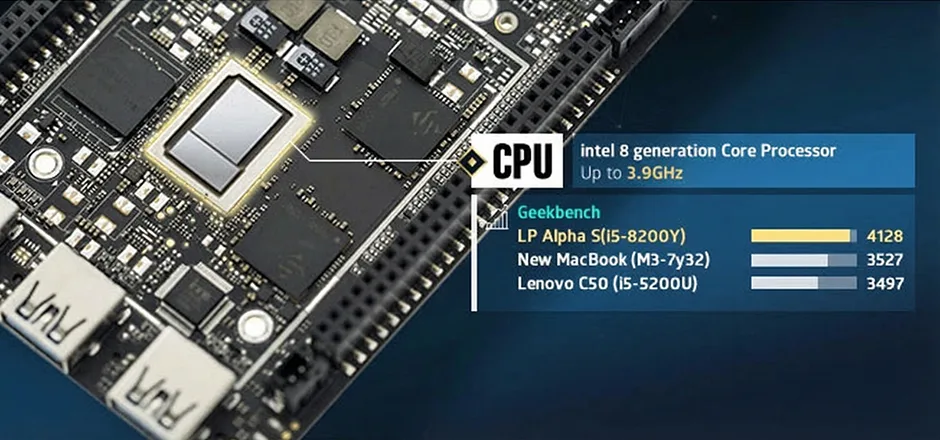

High-performance dual-core processing
Powered by an Intel Core i5 8200Y dual-core processor with burst speeds up to 3.9GHz and integrated Intel UHD Graphics 615, the board provides fast data processing and 4K Ultra HD video playback. Backed by 8GB of LPDDR3 memory, it effortlessly handles demanding computing workloads.
Broad operating system support
The system runs full desktop operating systems including Windows 10, Windows 11, and Linux Ubuntu, as well as Android. This flexibility allows developers to run standard x86 software stacks and tools directly on the embedded board.

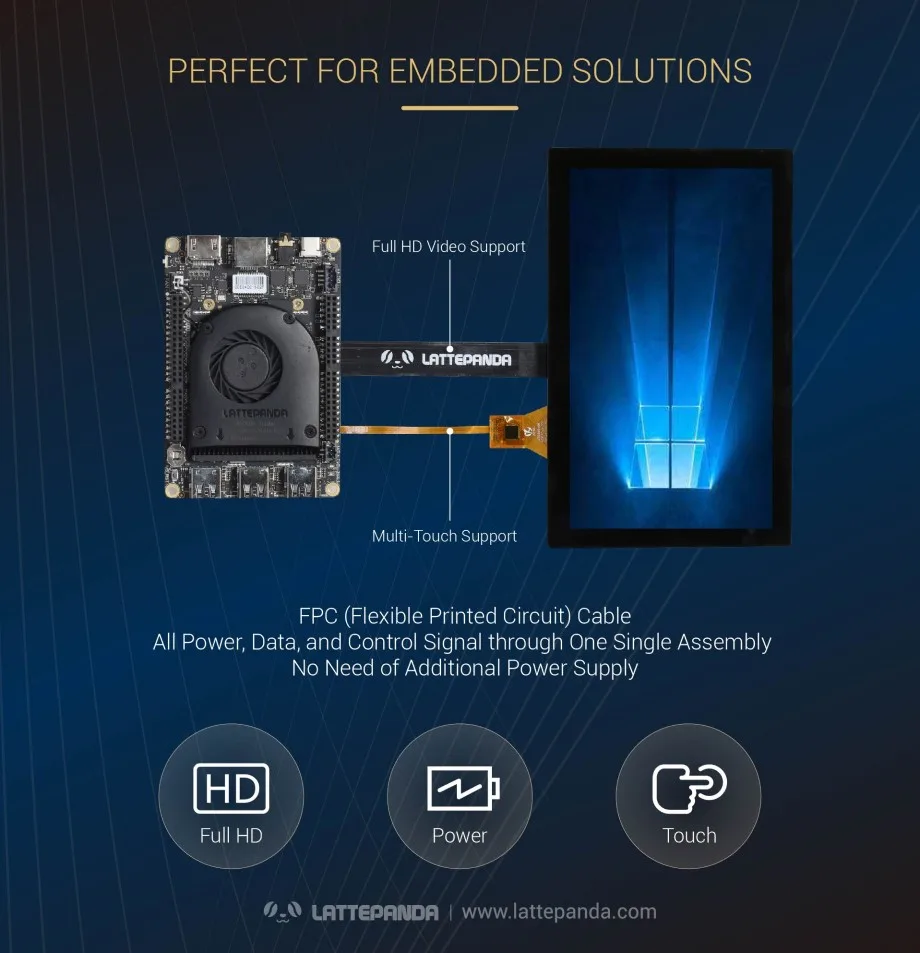

Direct eDP touch display connection
The integrated Embedded DisplayPort interface utilises digital VESA protocols for high-speed, high-resolution transmission using streamlined cabling. It allows the bundled 7-inch touch display to connect directly to the board without bulky external driver converters.

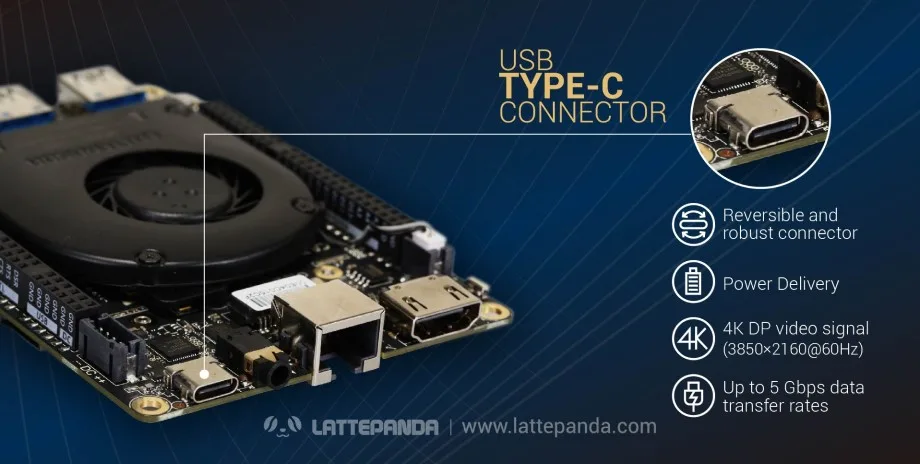

Versatile Type-C connectivity and power
A multi-function USB Type-C port supports high-speed data transfer, Power Delivery input, and 4K DisplayPort video output over a single connection. The board can also be powered using a 12V DC input or a 7.4V battery pack for portable applications.
PCIe expandability and high-speed networking

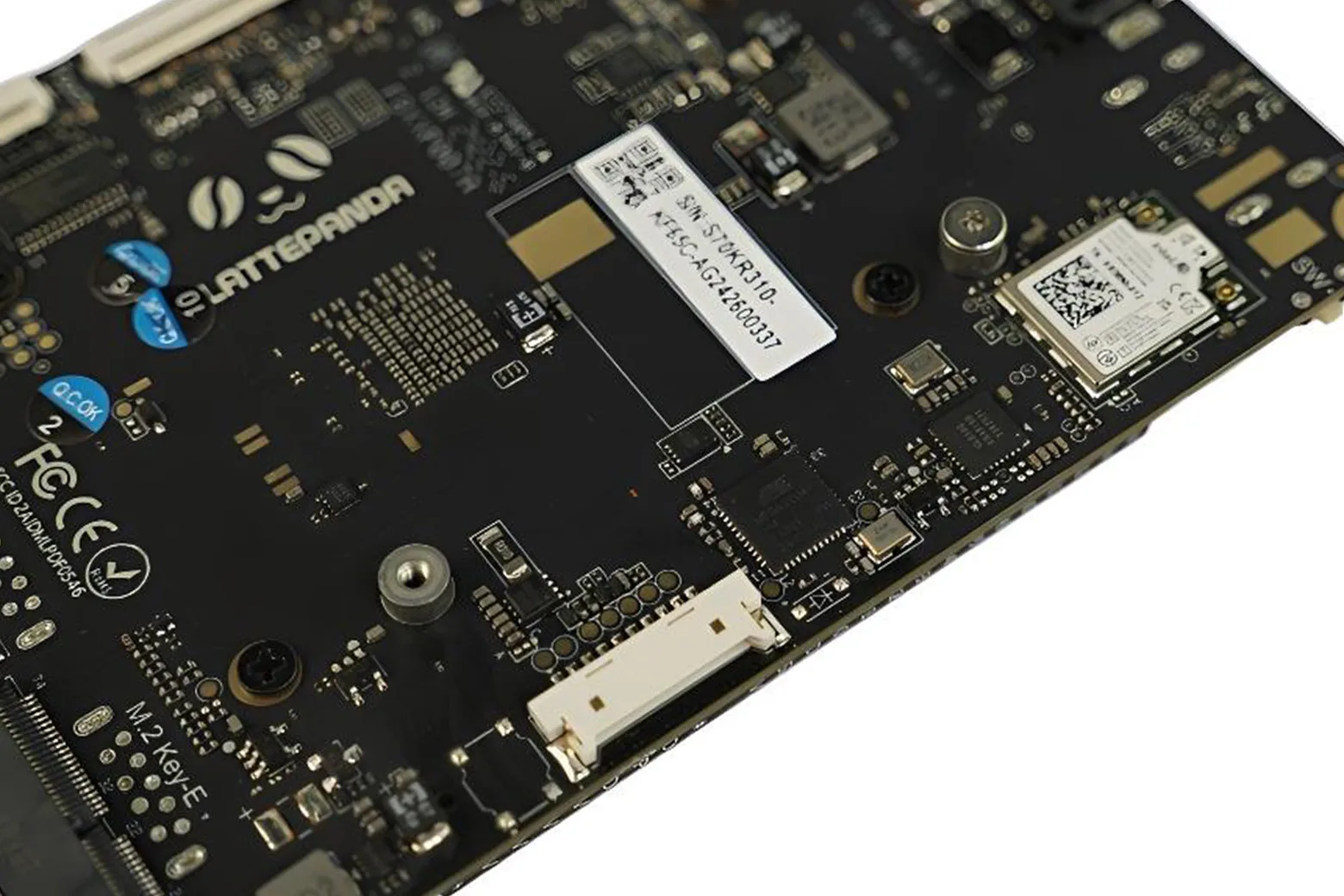

Dual M.2 PCIe slots (M Key and E Key) support NVMe and SATA solid-state drives as well as expansion cards. Networking and peripheral connectivity include dual-band Wi-Fi, Bluetooth 4.2, Gigabit Ethernet, and three independent USB 3.0 Type-A ports.
Integrated Arduino Leonardo coprocessor
An onboard ATmega32U4 microcontroller provides seamless hardware prototyping compatible with the Arduino ecosystem. Dual 50-pin GPIO headers expose I2C, I2S, UART, RS232, and power management pins for direct physical computing and sensor interfacing.
Specifications
| CPU | Intel Core i5 8200Y |
| Core | 1.3~3.9GHz Dual-Core, Four-Thread |
| Benchmark (PassMark) | Up to 4128, double computing power compared with same price range products in the market |
| Graphics | Intel HD Graphics 615,0.3~0.95GHz |
| RAM | 8GB LPDDR3 |
| Co-processor | Arduino Leonardo |
| GPIO & Other Features | 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need |

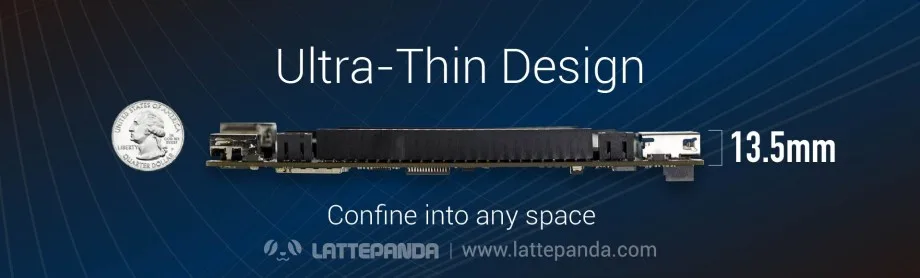

| Dimension | 115mm * 78mm * 14 mm |

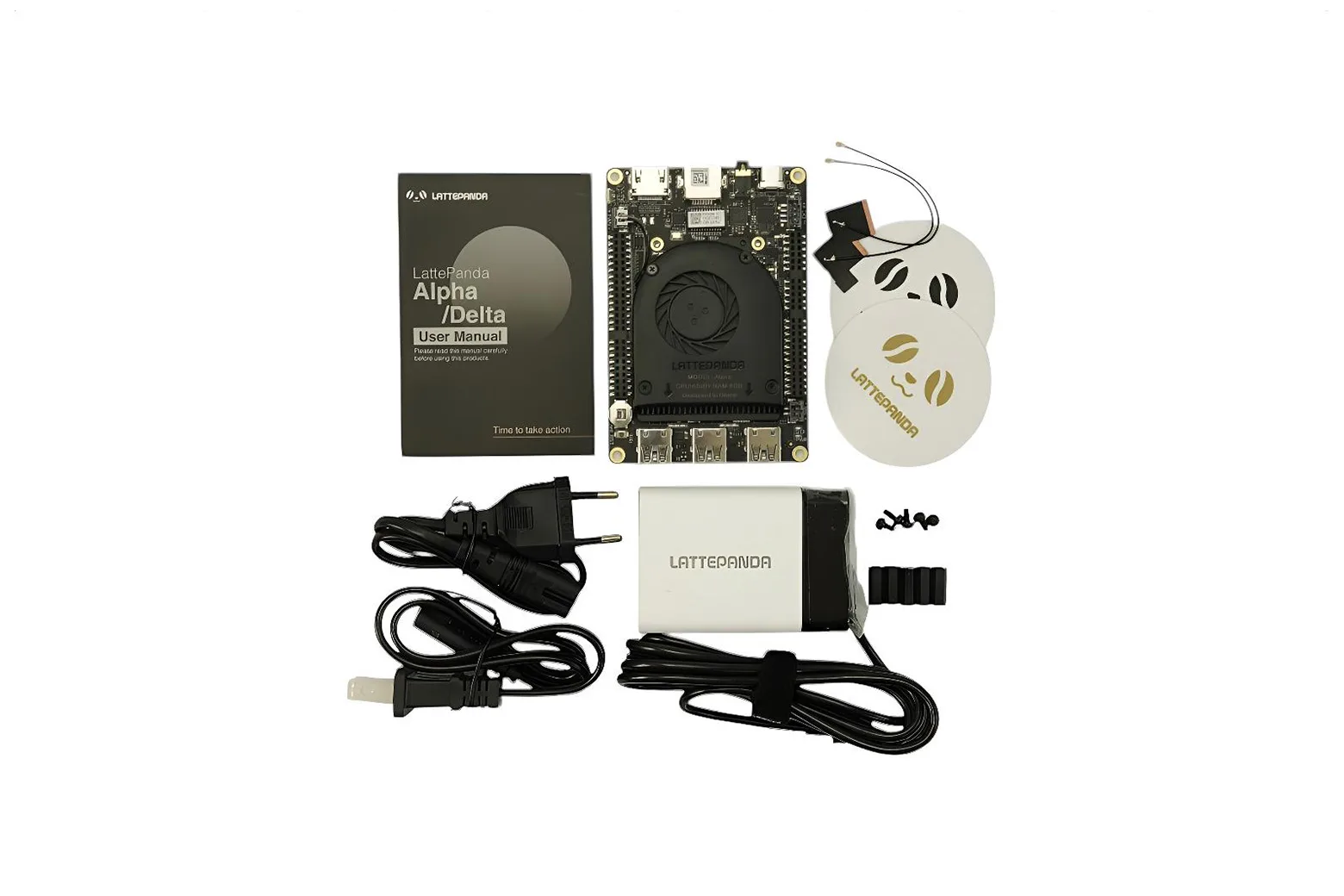

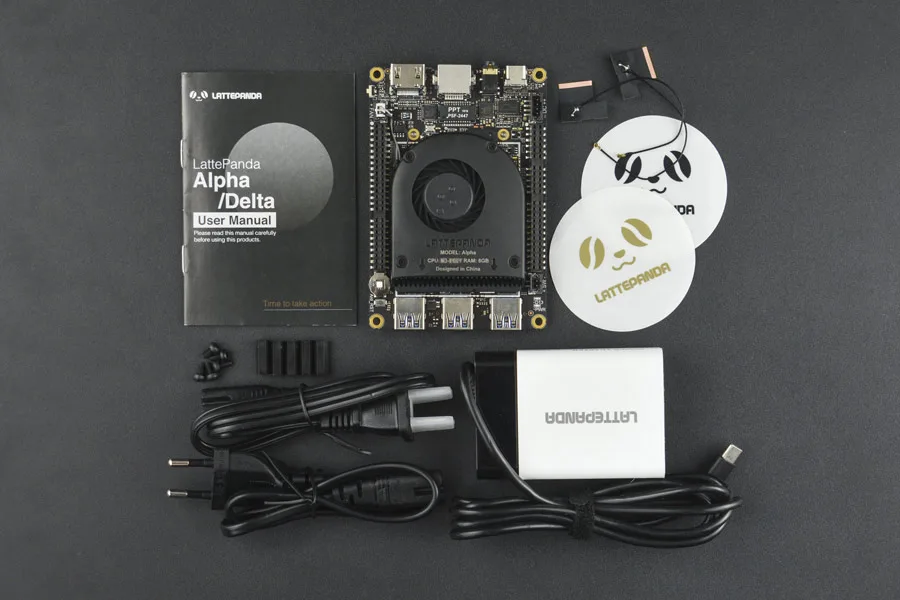

In the box
| LattePanda Alpha 864s | 1 |
| Streaming Cable | 1 |
| Titan case | 1 |
| 7”eDP Touch Display | 1 |

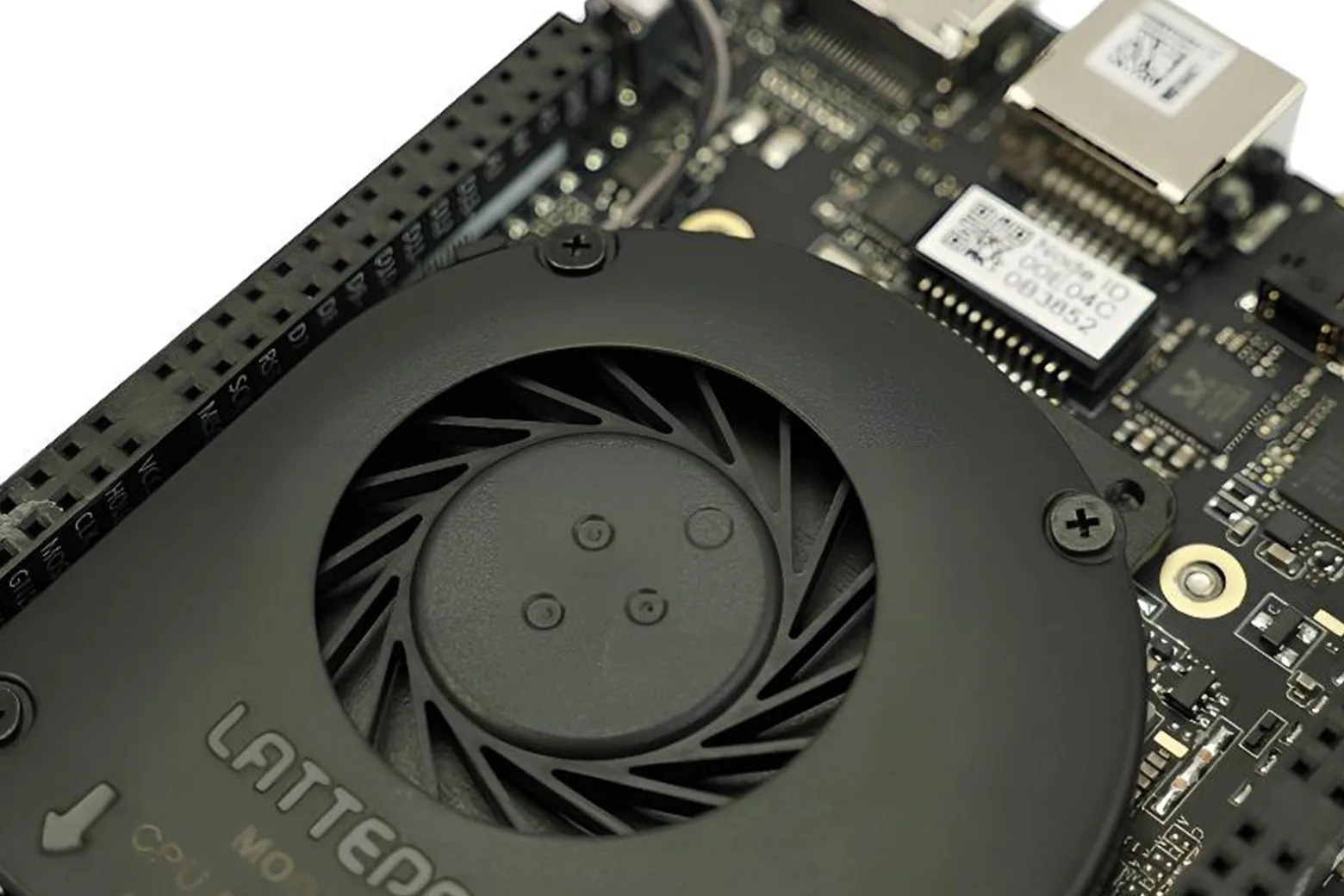

| Active cooling fan (Assembled) | 1 |
| 45w PD Power adapter (with EU & US standard power cord) | 1 |
| Dual-band antenna | 2 |
| RTC Battery (Assembled） | 1 |
| User Manual | 1 |
