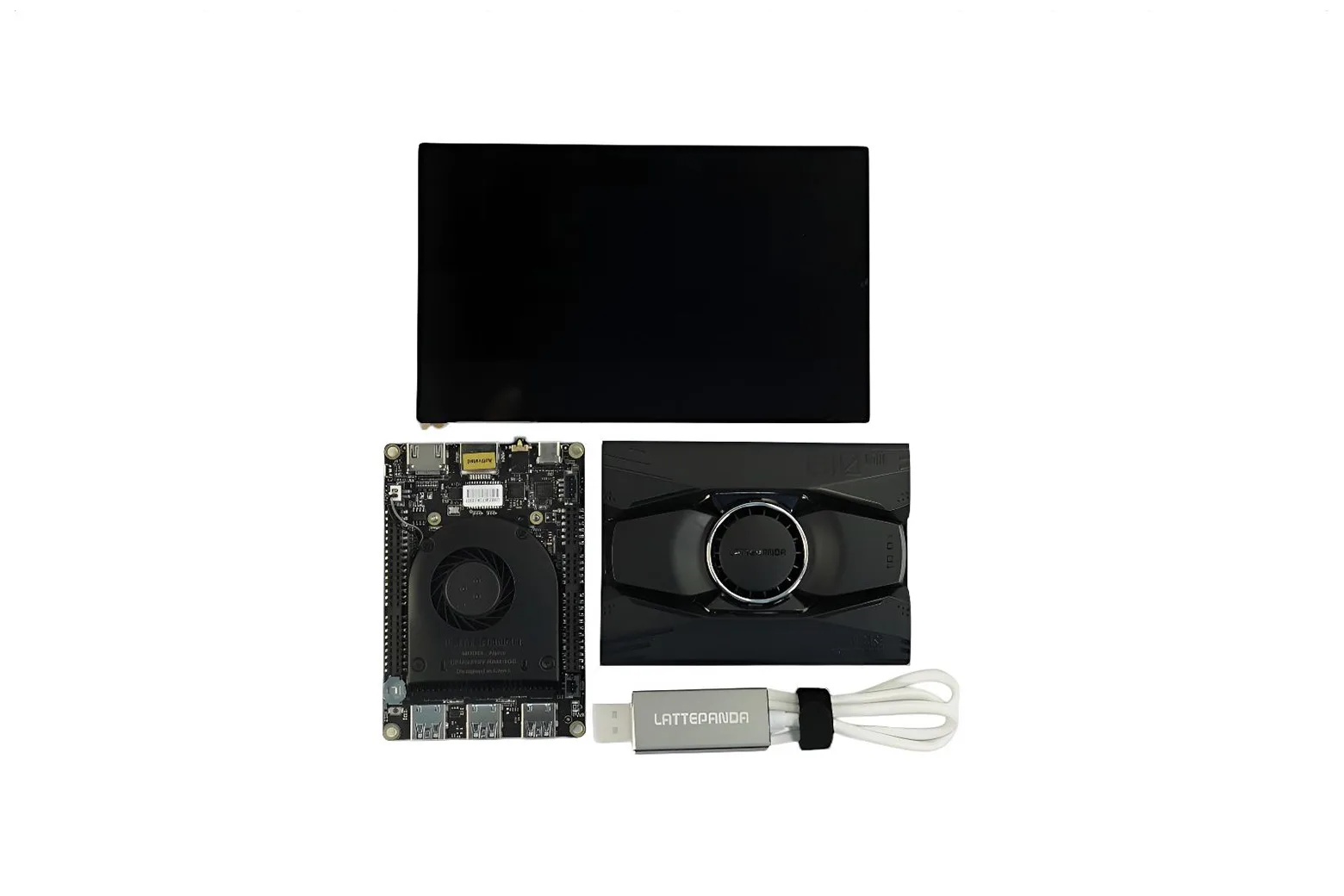

LattePanda 2 Alpha 864s (Win11 Pro activated) with Case & Streaming Cable & Touch Display
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

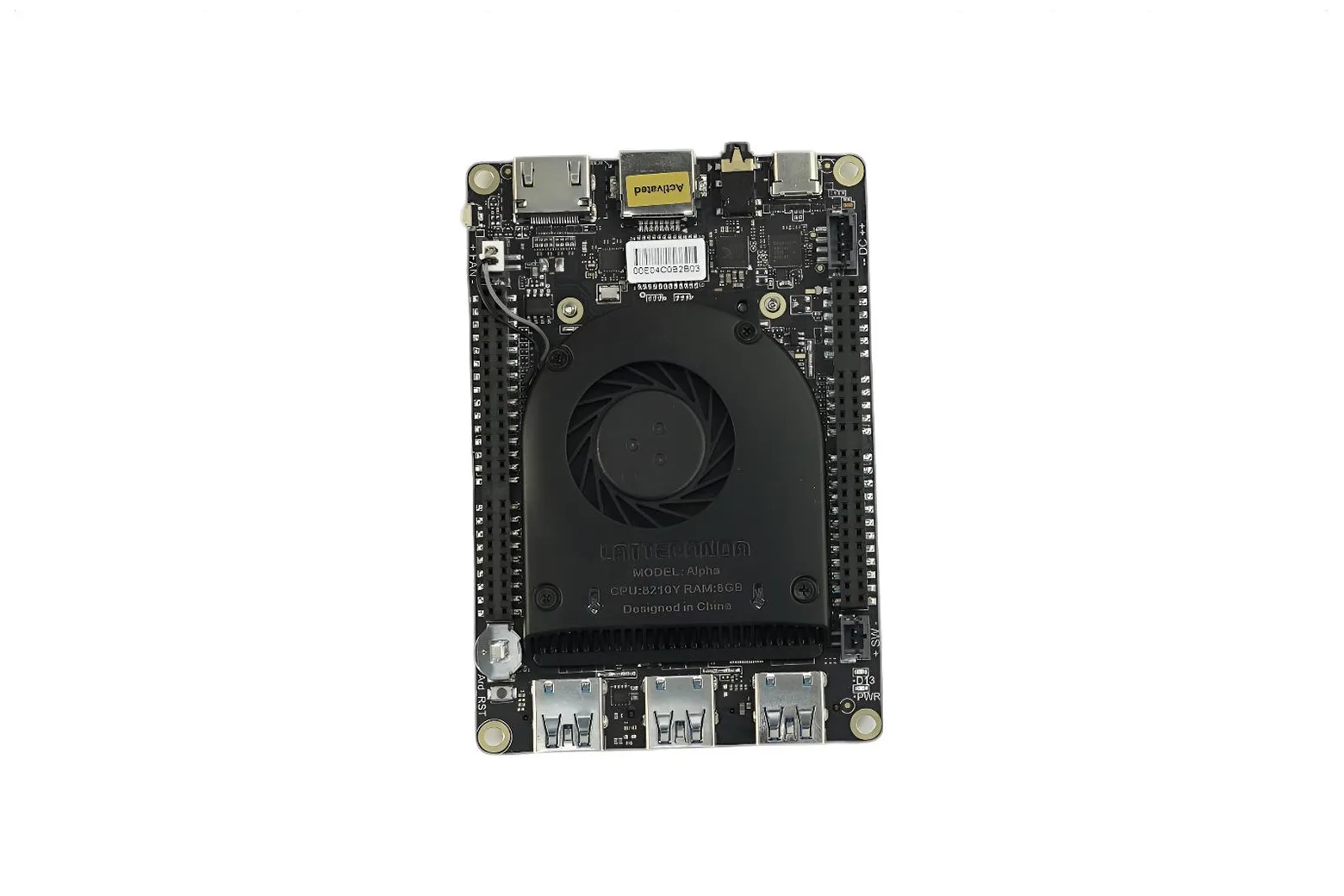

The LattePanda 2 Alpha 864s starter kit is a compact, high-performance x86 single board computer powered by an Intel Core i5-8200Y dual-core processor with 8GB RAM and 64GB eMMC storage. Pre-activated with Windows 11 Pro and bundled with a Titan Case, streaming cable, and 7-inch touch display, it provides a comprehensive desktop-class platform for makers, educators, and edge computing developers.
Complete hardware starter kit

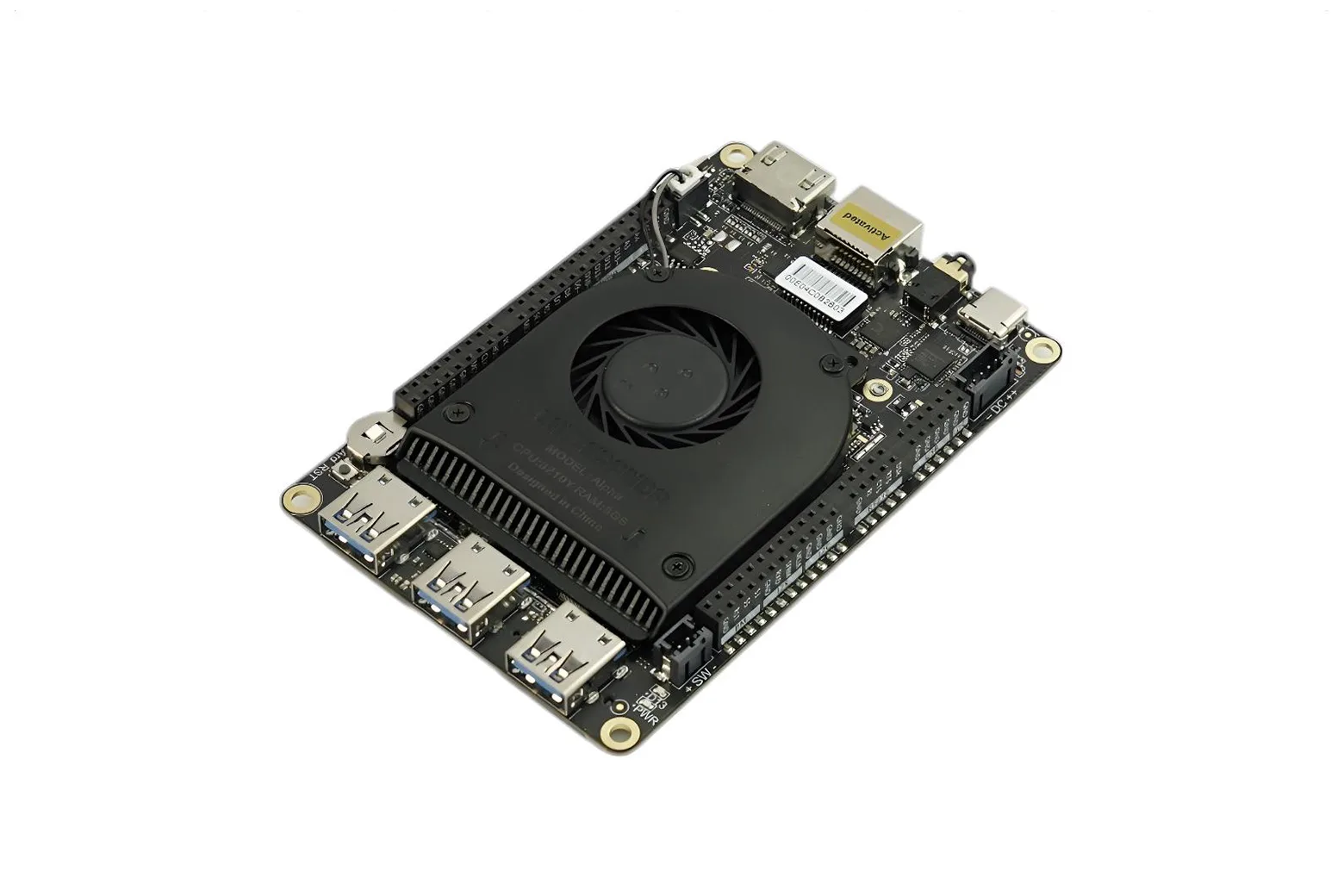

This all-in-one package includes the LattePanda Alpha 864s board, a protective Titan case, a streaming cable, and a 7-inch eDP touch display. It also comes equipped with an active cooling fan, dual-band Wi-Fi antennas, an RTC battery, and a 45W USB PD power adapter.

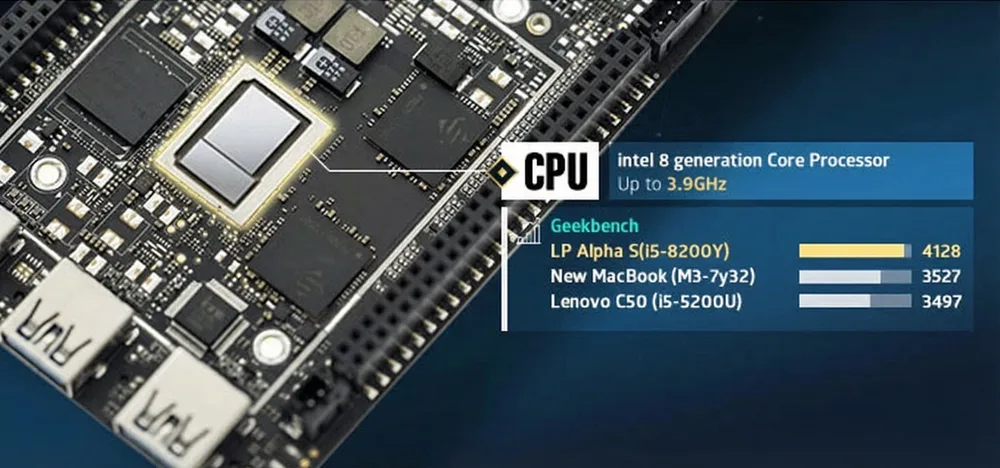

Dual-core Intel processing power
Featuring an Intel Core i5-8200Y processor with boost speeds up to 3.9GHz and 8GB of LPDDR3 RAM, this board delivers rapid desktop-class performance. Integrated Intel UHD Graphics 615 provides smooth media conversion, fast frame rates, and 4K Ultra HD video capabilities.

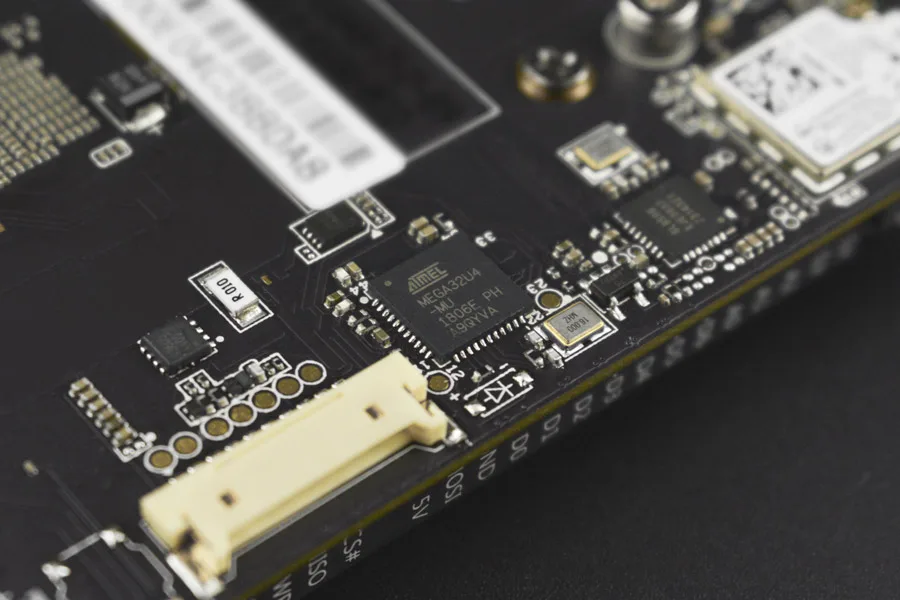

Integrated Arduino coprocessor

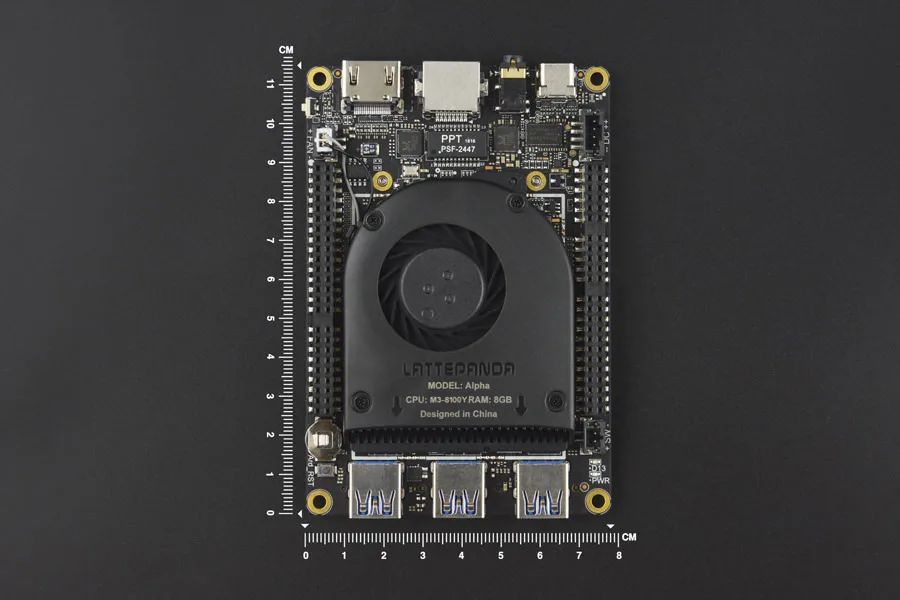

Measuring only 115mm by 78mm, the board integrates an ATmega32u4 Arduino Leonardo coprocessor alongside the primary x86 CPU. Dual 50-pin GPIO headers break out I2C, I2S, USB, RS232, UART, and power management lines for hardware prototyping.
Pre-activated Windows 11 Pro
The system arrives with Windows 11 Pro pre-activated and also supports Linux Ubuntu and Android operating systems. This allows users to deploy standard x86 development environments, industrial automation software, and desktop applications immediately.

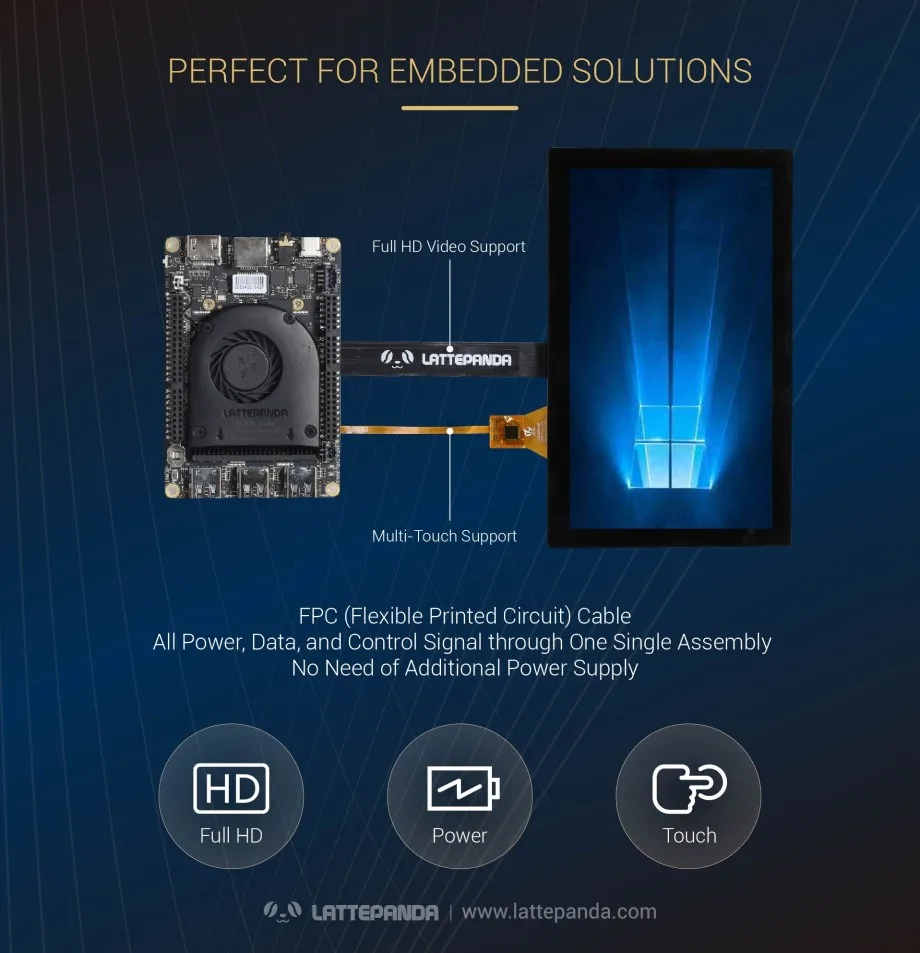

Embedded DisplayPort interface
An onboard eDP connection delivers high-speed digital video using simplified connectors to link directly with the included touch screen. Users can also output video simultaneously via HDMI and DisplayPort over USB Type-C.
High-speed expansion and connectivity

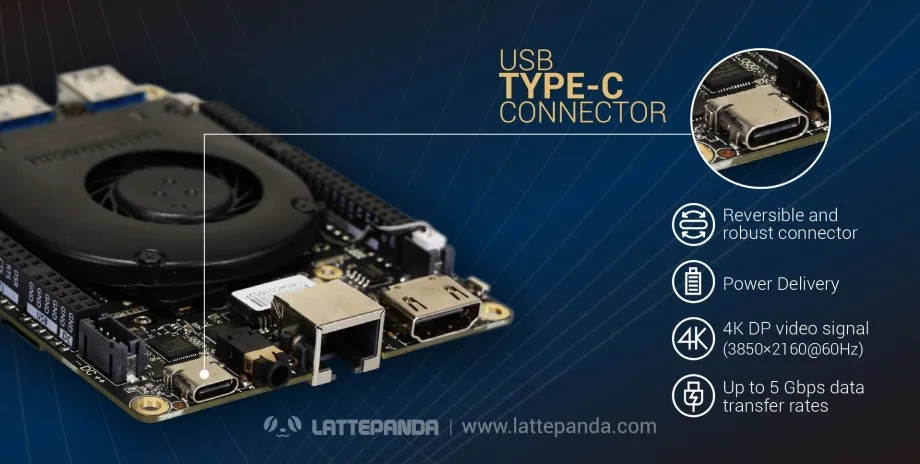

Two M.2 PCIe slots support NVMe/SATA SSD storage and additional communication modules alongside Gigabit Ethernet and three USB 3.0 ports. The multi-function USB Type-C port manages high-speed data transfer, 4K display output, and USB Power Delivery input through a single connection.
Specifications
| CPU | Intel Core i5 8210Y / 8200Y |
| Core | 1.6~3.6GHz / 1.3~3.9GHz Dual-Core, Four-Thread |
| Benchmark (PassMark) | Up to 4128, double computing power compared with same price range products in the market |
| Graphics | Intel HD Graphics 617 / 615, 0.3~1.05GHz / 0.3~0.95GHz |
| RAM | 8GB LPDDR3 |
| Co-processor | Arduino Leonardo |
| GPIO & Other Features | 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC, Power Management, Extendable power button, everything you need |
| Dimension | 115mm * 78mm * 14 mm |

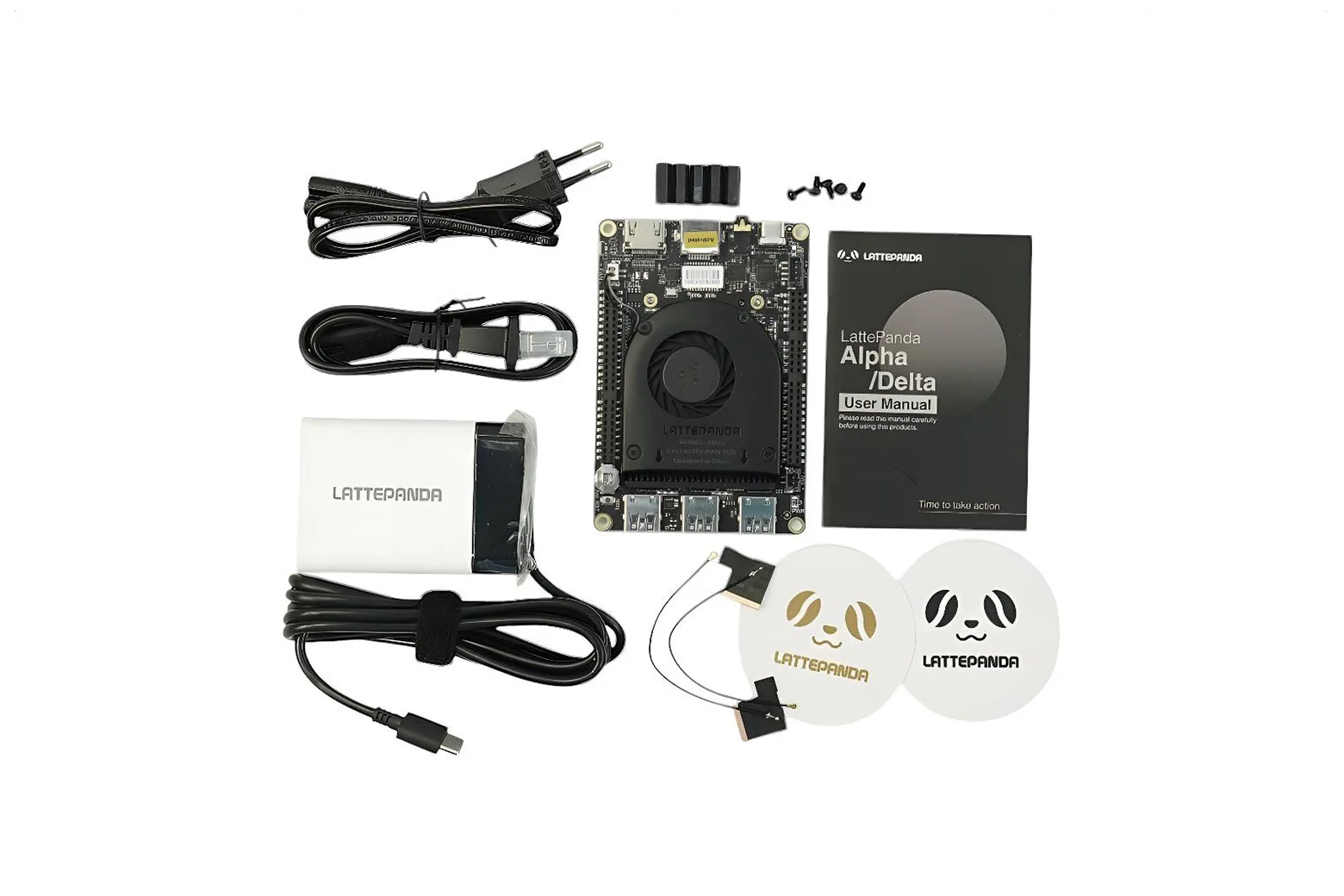

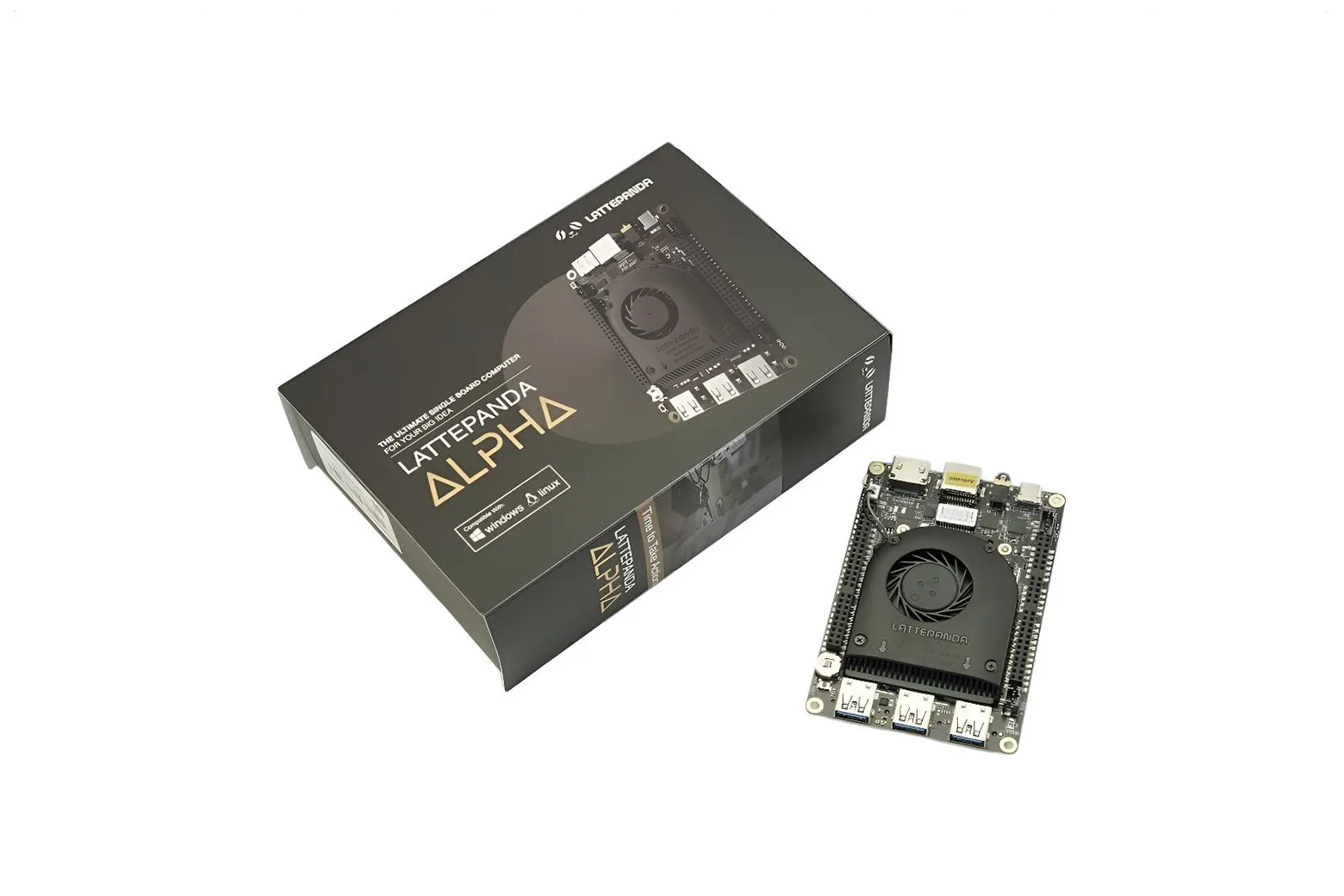

In the box
| LattePanda Alpha 864s (Win10 Pro activated) | 1 |
| Streaming Cable | 1 |
| Titan case | 1 |
| 7”eDP Touch Display | 1 |
| Active cooling fan (Assembled) | 1 |
| 45w PD Power adapter (with EU & US standard power cord) | 1 |
| Dual-band antenna | 2 |
| RTC Battery (Assembled） | 1 |
| User Manual | 1 |
