LattePanda 2 Alpha 864s - A Pocket-sized Powerful Windows/Linux Single Board Computer (8GB RAM/64GB eMMC)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

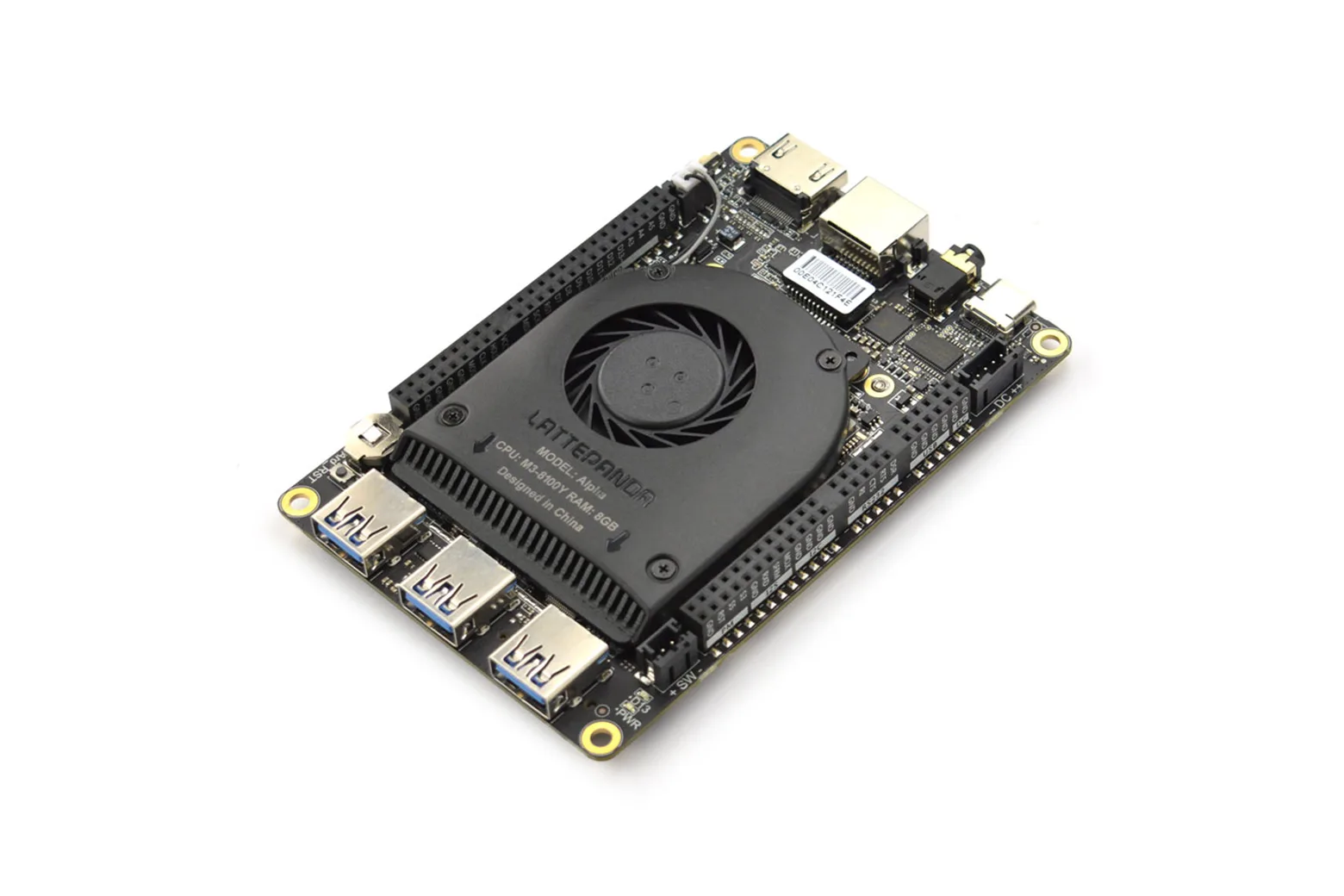

The LattePanda 2 Alpha 864s is a pocket-sized x86 single board computer powered by an Intel Core i5 dual-core processor with 8GB RAM and 64GB onboard eMMC storage. It runs full desktop operating systems including Windows and Linux, making it ideal for makers, edge computing developers, and IoT system integrators.

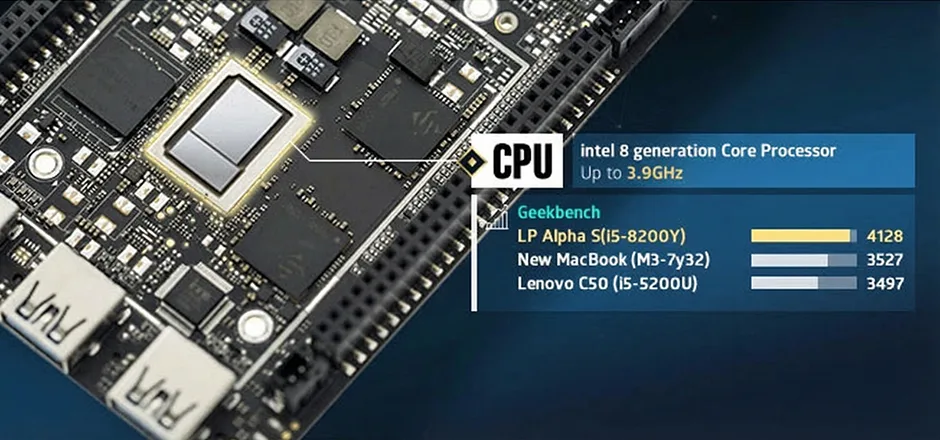

Intel Core i5 dual-core performance
Powered by an Intel Core i5 8200Y dual-core processor bursting up to 3.9GHz with integrated Intel UHD Graphics 615, the board provides fast media processing and 4K Ultra HD video output.
Pocket-sized form factor

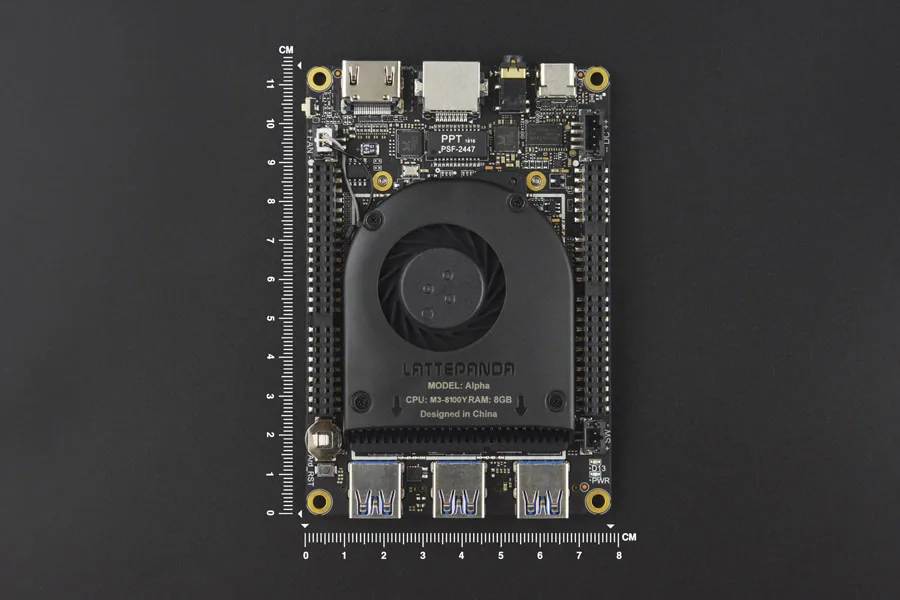

Measuring only 115mm by 78mm by 14mm, this compact board packs desktop-class computing power into a discrete footprint that easily integrates into tight embedded enclosures.
Multi-OS support with integrated Arduino

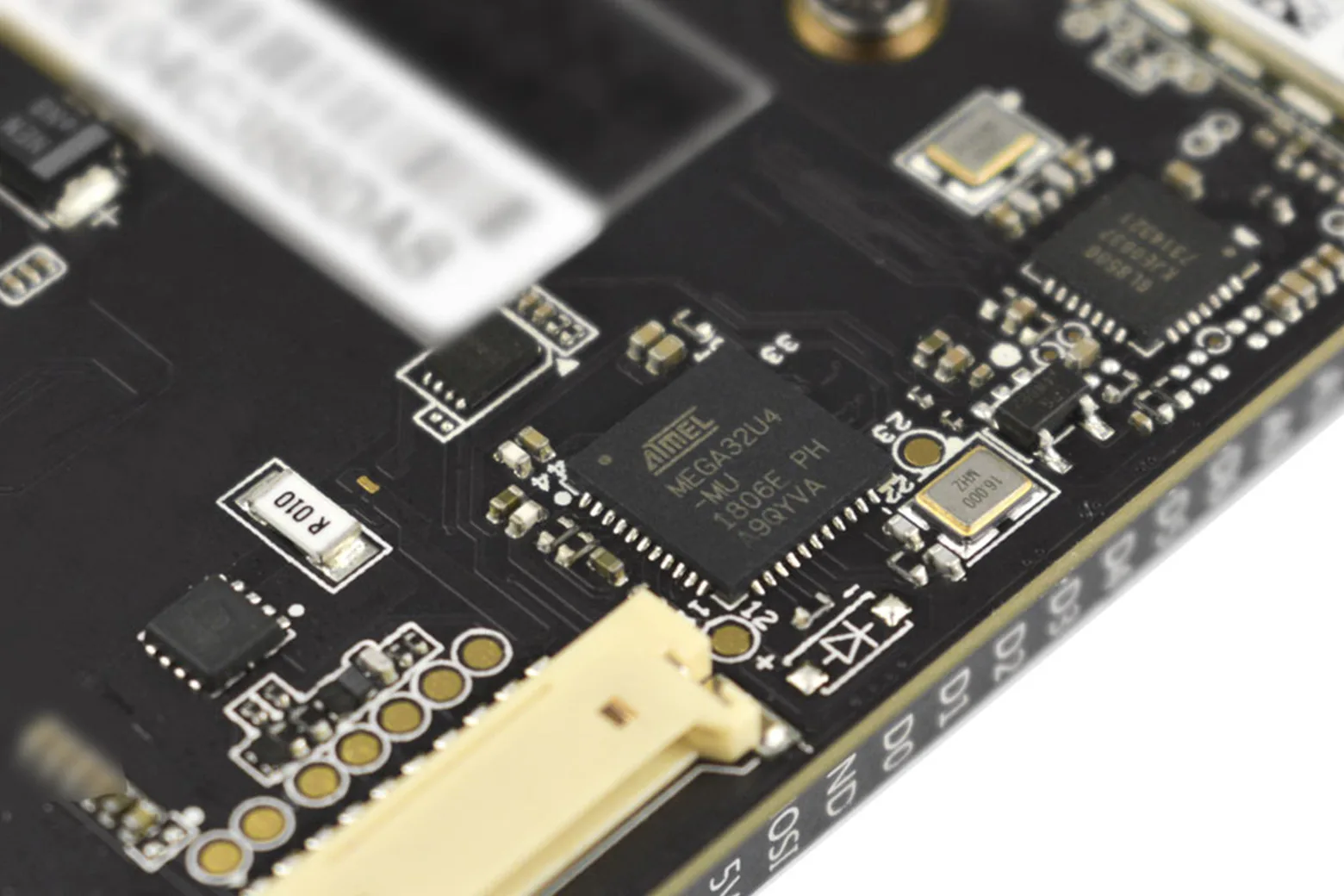

The board supports Windows 10, Windows 11, Linux Ubuntu, and Android operating systems. It also includes an onboard ATmega32U4 Arduino Leonardo coprocessor for direct hardware interaction.

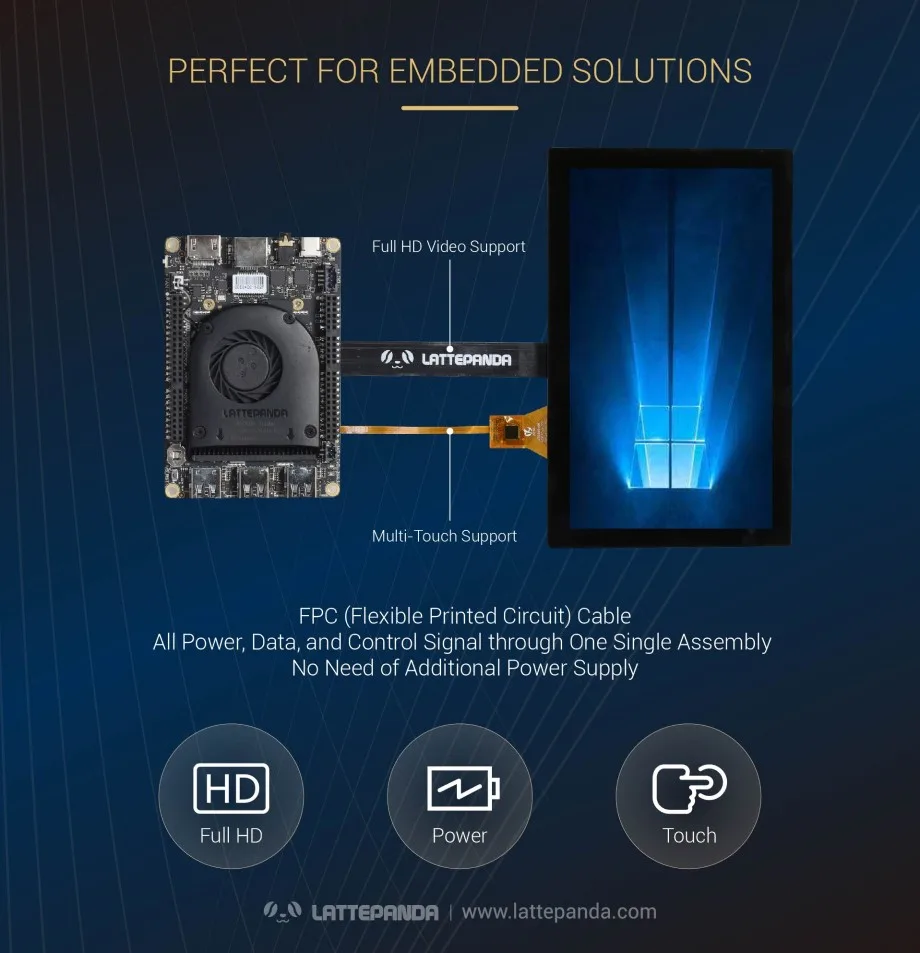

Direct eDP display support
An onboard Embedded DisplayPort interface enables direct connection to LCD panels with high-resolution digital signalling, complementing the dedicated HDMI output.

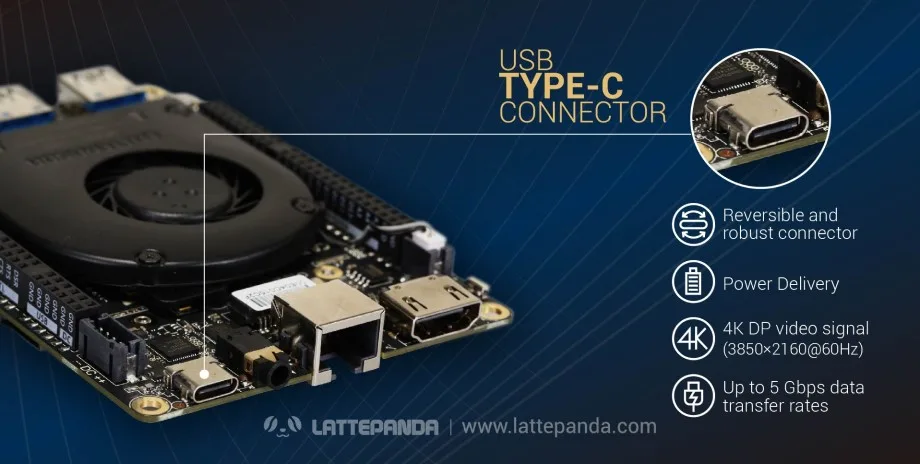

All-in-one USB Type-C connectivity
The versatile USB Type-C port supports Power Delivery, high-speed data transfer, and 4K DisplayPort video output to simplify desktop wiring and peripheral connections.

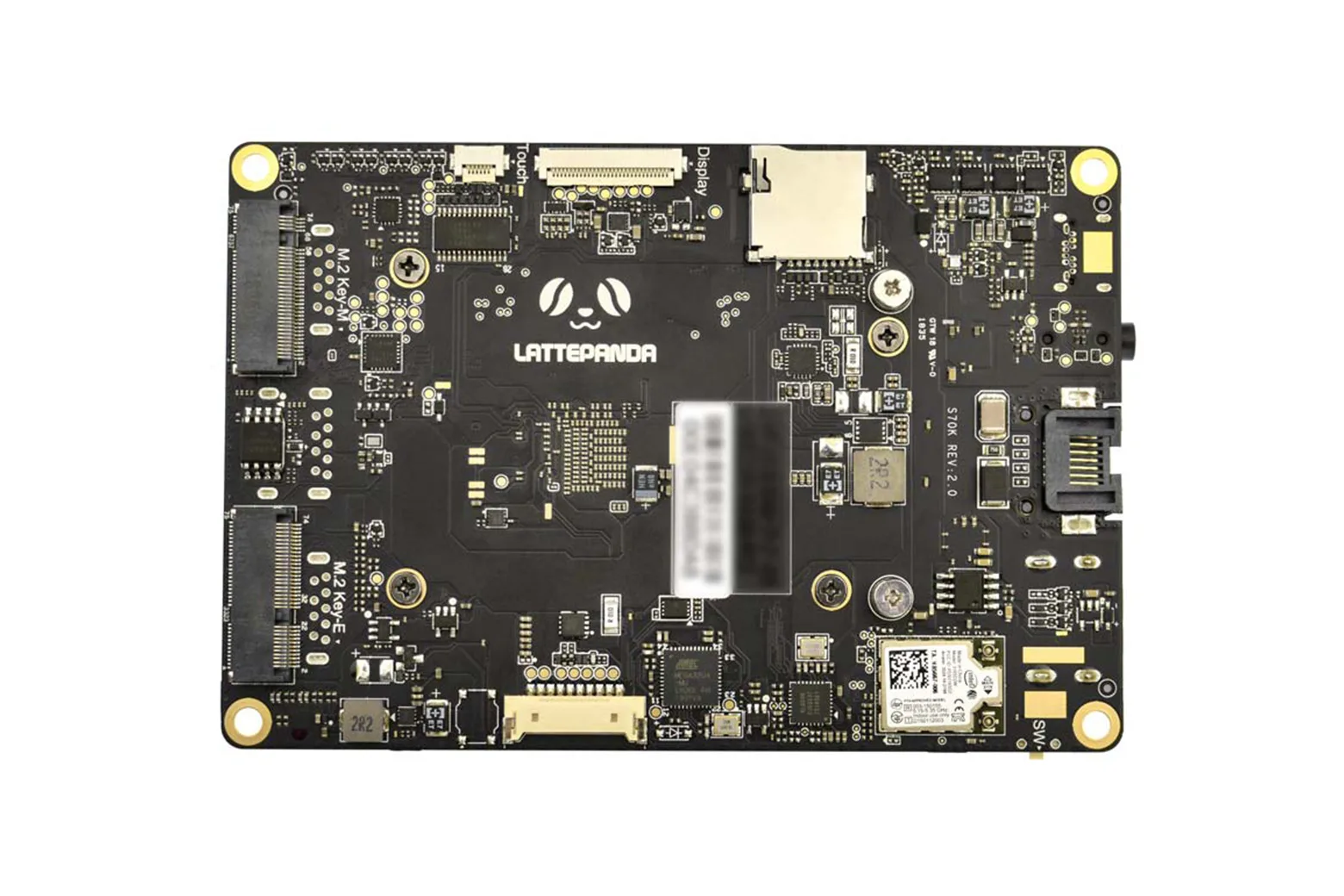

Dual M.2 PCIe expansion and GPIO
Two M.2 slots support NVMe or SATA SSD storage alongside network cards, while dual 50-pin headers provide access to I2C, I2S, UART, RS232, and general-purpose I/O.
Specifications
| CPU | Intel Core i5 8200Y |
| Core | 1.3~3.9GHz Dual-Core, Four-Thread |
| Benchmark (PassMark) | Up to 4128, double computing power compared with same price range products in the market |
| Graphics | Intel HD Graphics 615,0.3~0.95GHz |
| RAM | 8GB LPDDR3 |
| Co-processor | Arduino Leonardo |
| GPIO & Other Features | 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management, Extendable power button, everything you need |

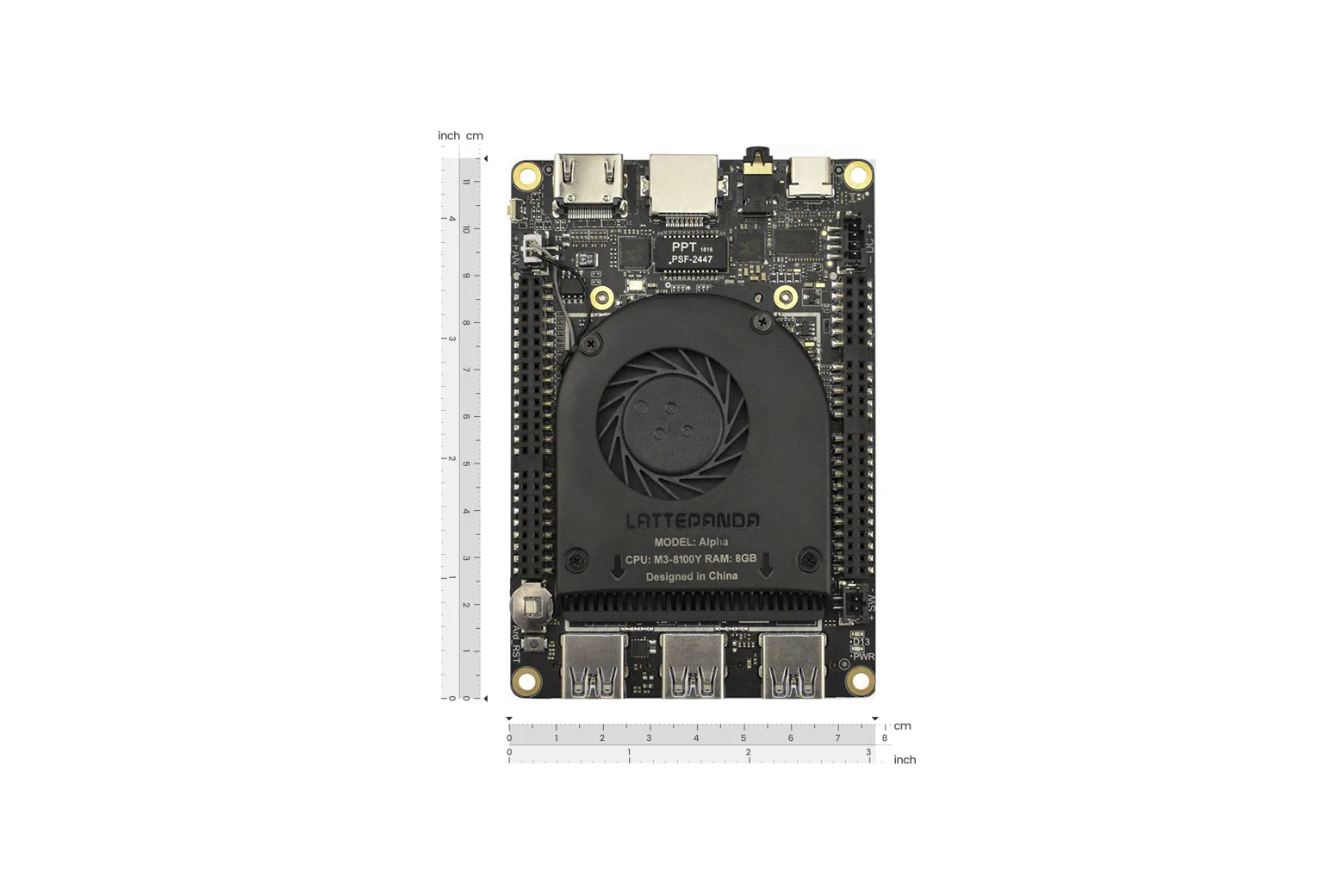

| Dimension | 115mm * 78mm * 14 mm |

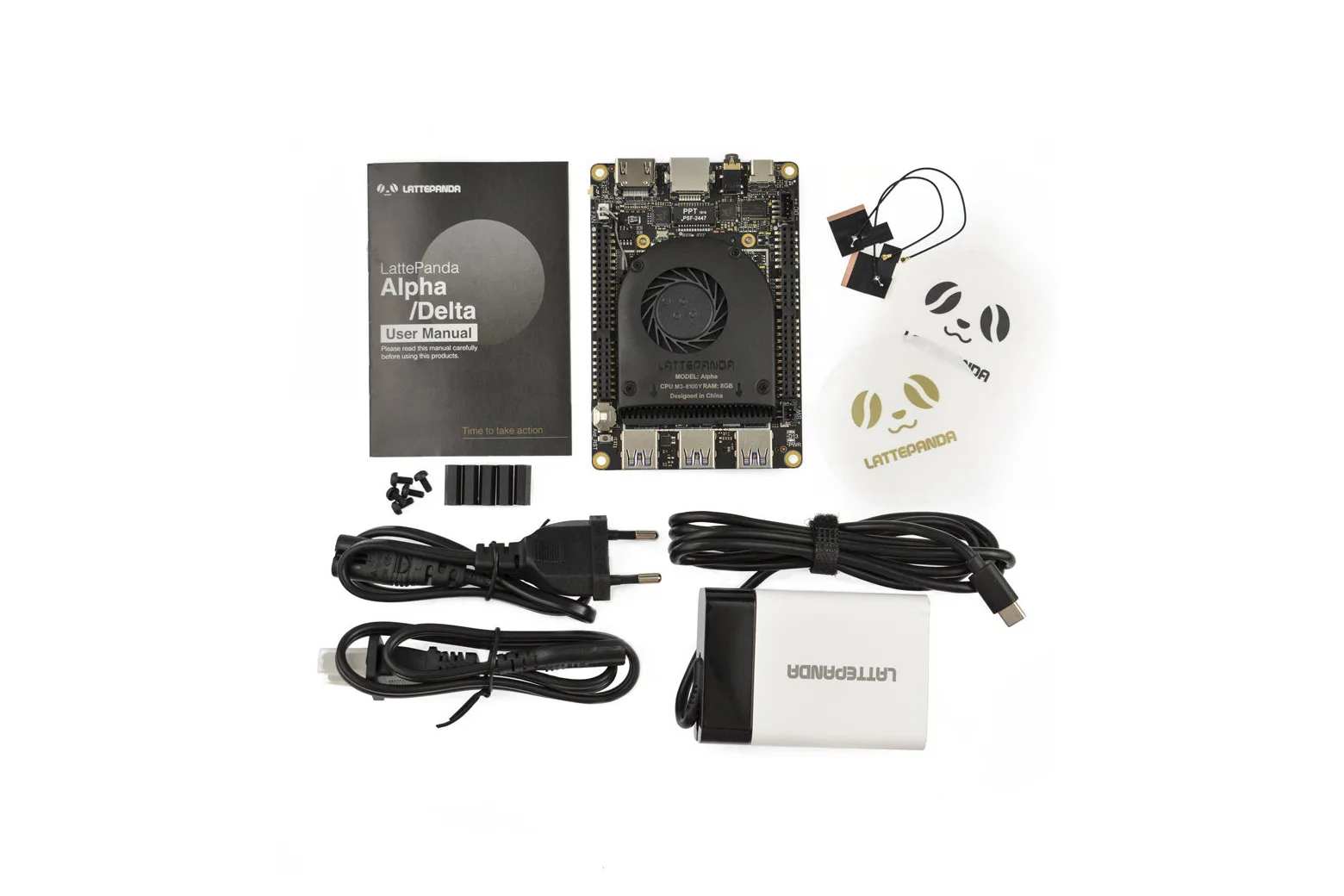

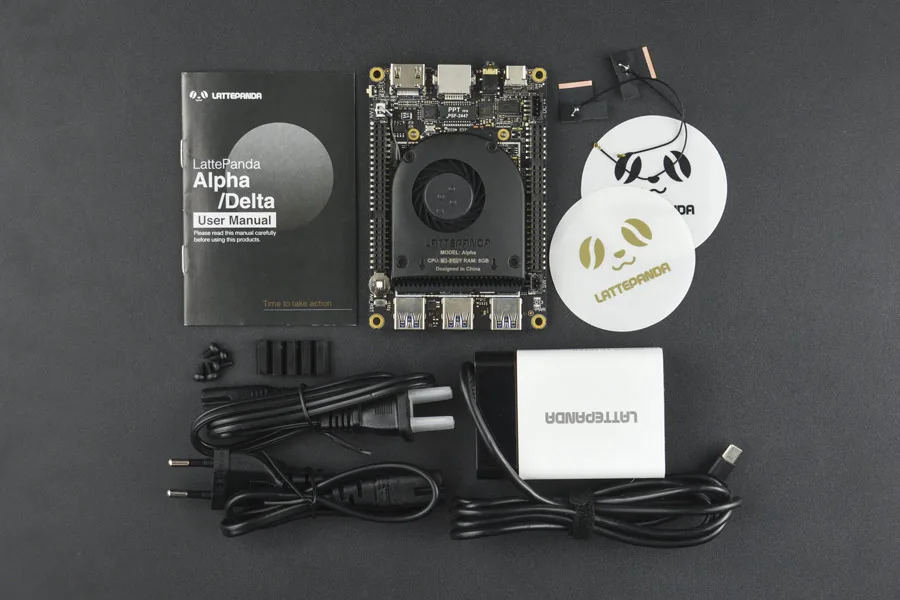

In the box
| LattePanda Alpha 864s | 1 |
| Active cooling fan (Assembled) | 1 |
| 45w PD Power adapter (with EU & US standard power cord) | 1 |
| Dual-band antenna | 2 |
| RTC Battery (Assembled） | 1 |
| User Manual | 1 |
