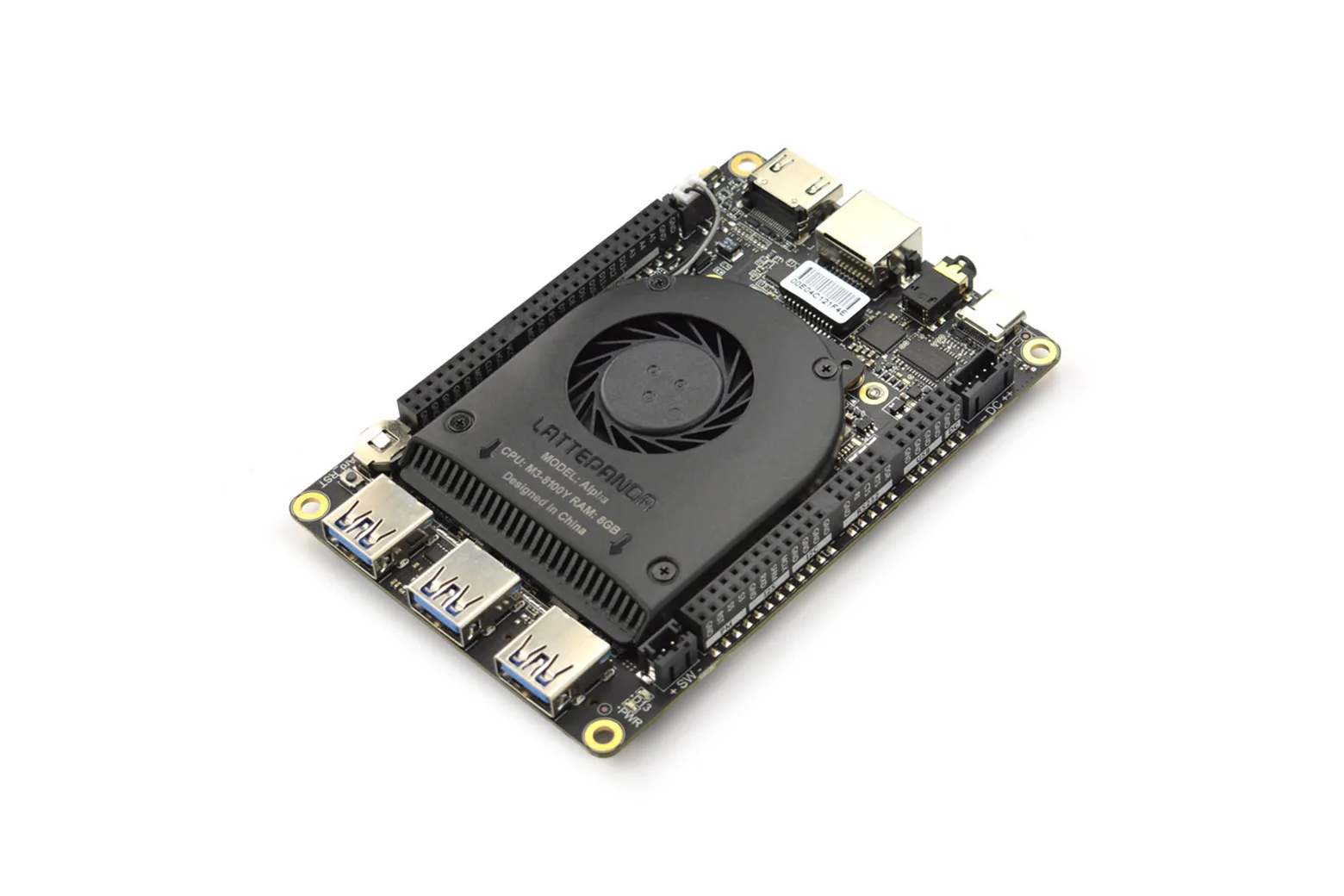

LattePanda 2 Alpha 864s - A Pocket-sized Powerful Windows / Linux Single Board Computer (Win11 Pro Activated, 8GB/64GB)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The LattePanda 2 Alpha 864s is a high-performance, pocket-sized x86 single board computer powered by an Intel Core i5-8200Y processor with 8GB of RAM and 64GB of onboard storage. It comes with an activated Windows 11 Pro licence and features an integrated Arduino coprocessor. This board is ideal for makers, IoT developers, and engineers deploying edge computing or industrial automation projects.

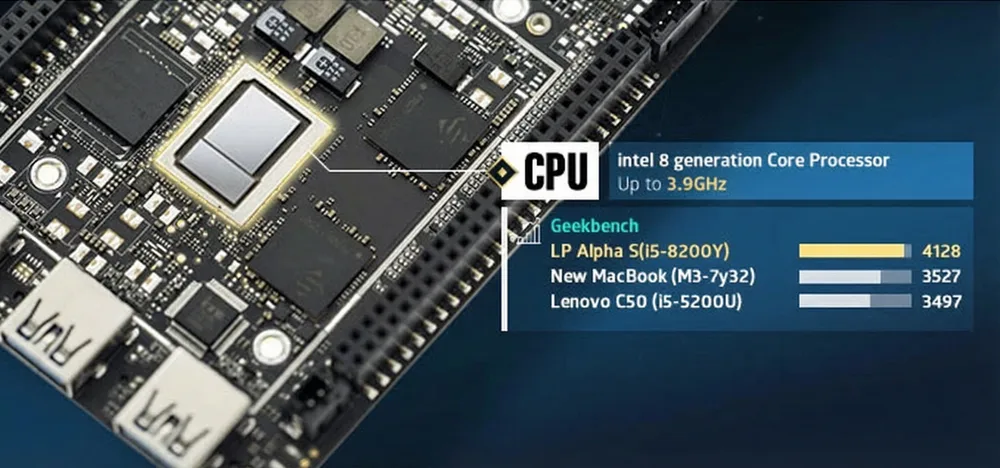

Intel Core i5 processing power
Driven by a dual-core Intel Core i5-8200Y processor bursting up to 3.9GHz, the board delivers responsive desktop-class performance. Integrated Intel UHD Graphics 615 provides smooth 4K Ultra HD video playback, enhanced media conversion, and fast frame rates.
Pocket-sized design for embedded systems
Measuring only 115mm by 78mm by 14mm, this compact SBC is easily embedded into standalone hardware. It is suited for applications such as digital signage, edge computing, smart vending, and IoT deployments.
Pre-activated Windows 11 and Arduino coprocessor

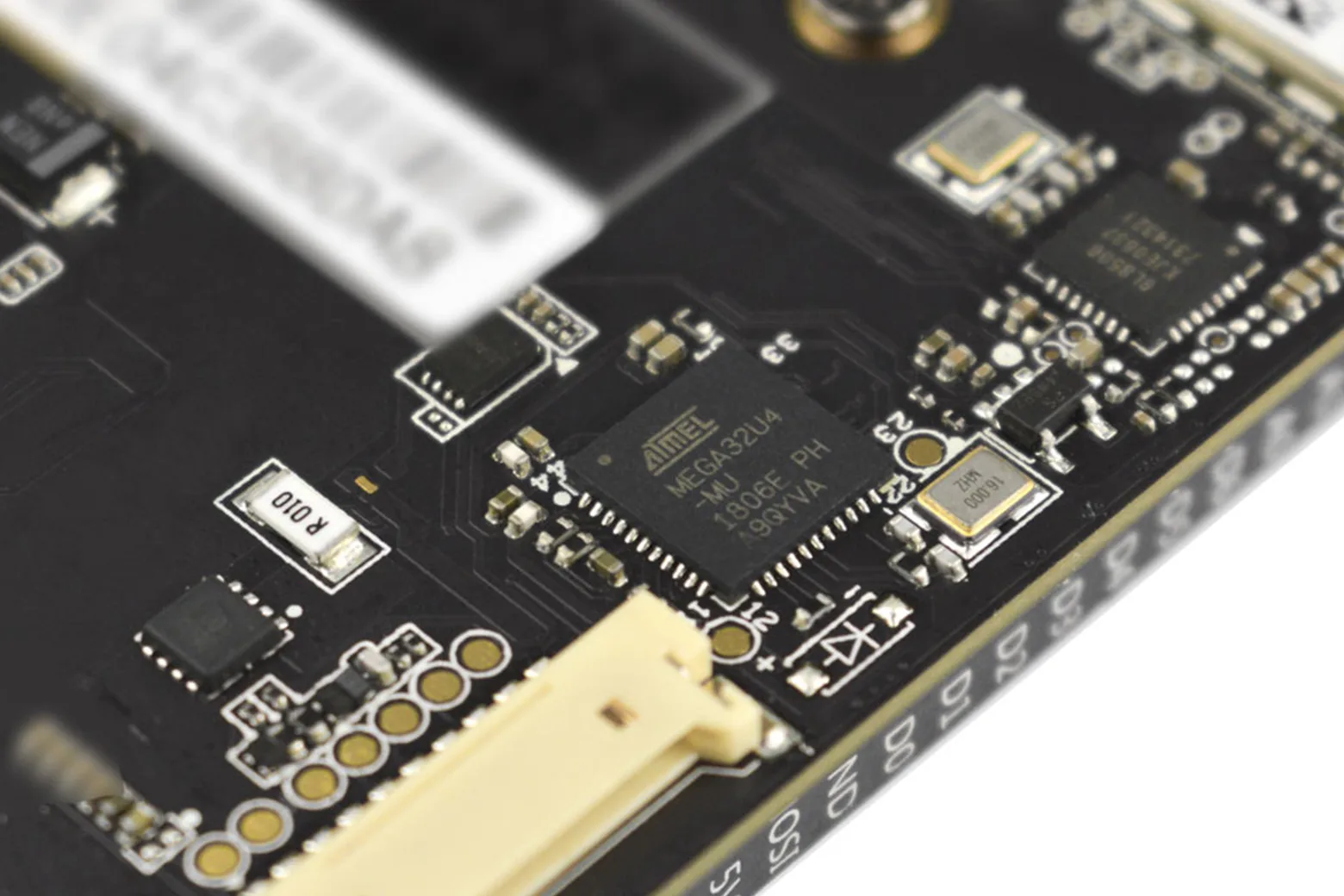

The board arrives with activated Windows 11 Pro pre-installed and provides support for Linux Ubuntu and Android. An integrated ATmega32U4 Arduino Leonardo coprocessor and dual 50-pin GPIO headers allow direct control of external sensors and actuators.

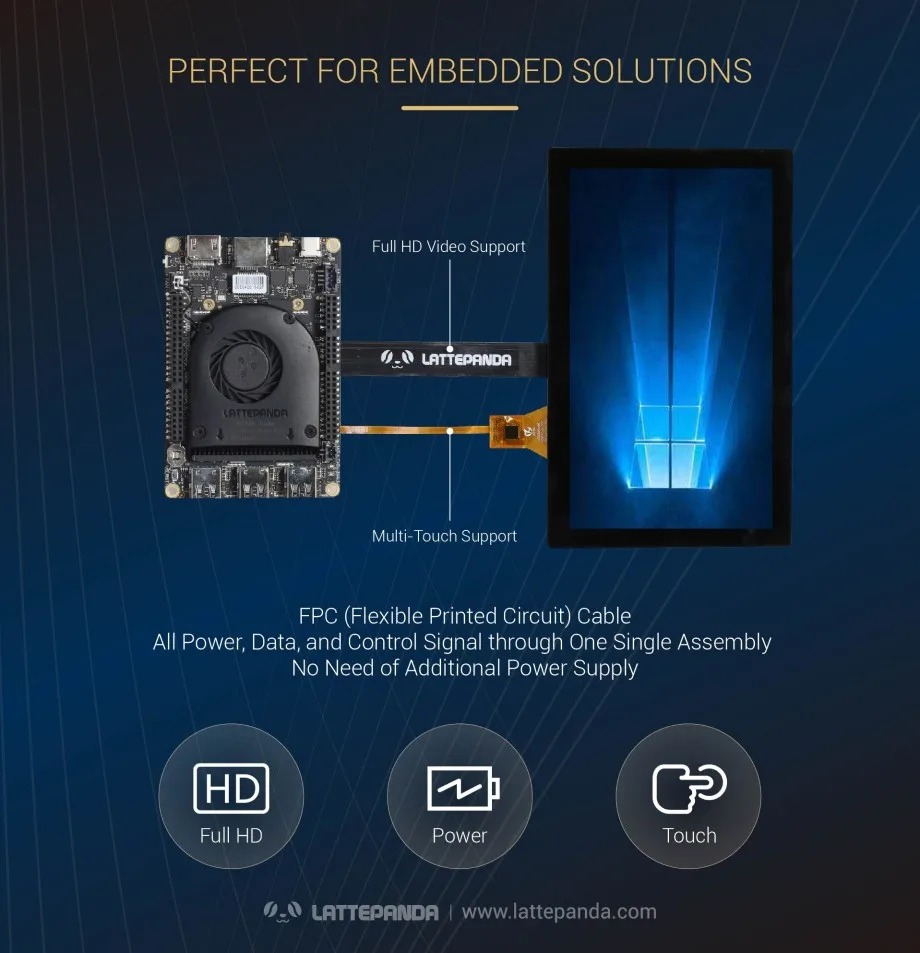

Embedded DisplayPort and multi-screen support

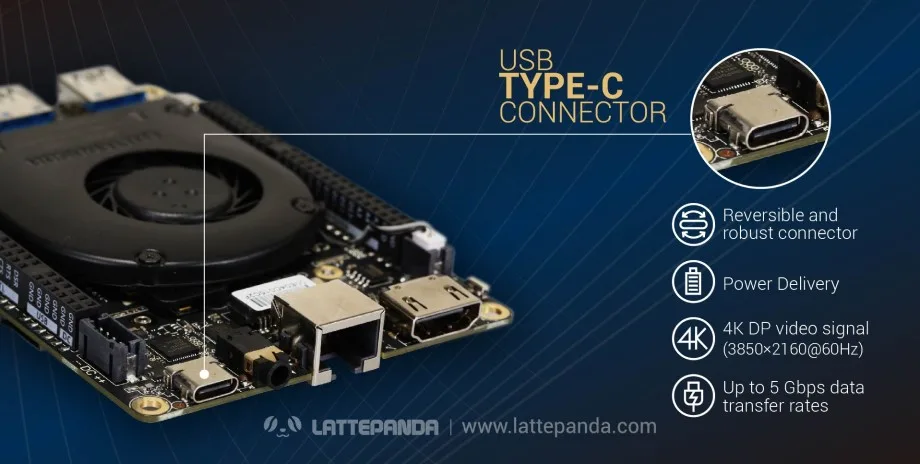

An onboard Embedded DisplayPort (eDP) connector enables direct connection to compatible LCD touch panels with simplified cabling. Standard HDMI and DisplayPort over USB Type-C provide straightforward connections to external monitors.
M.2 PCIe expansion and versatile connectivity

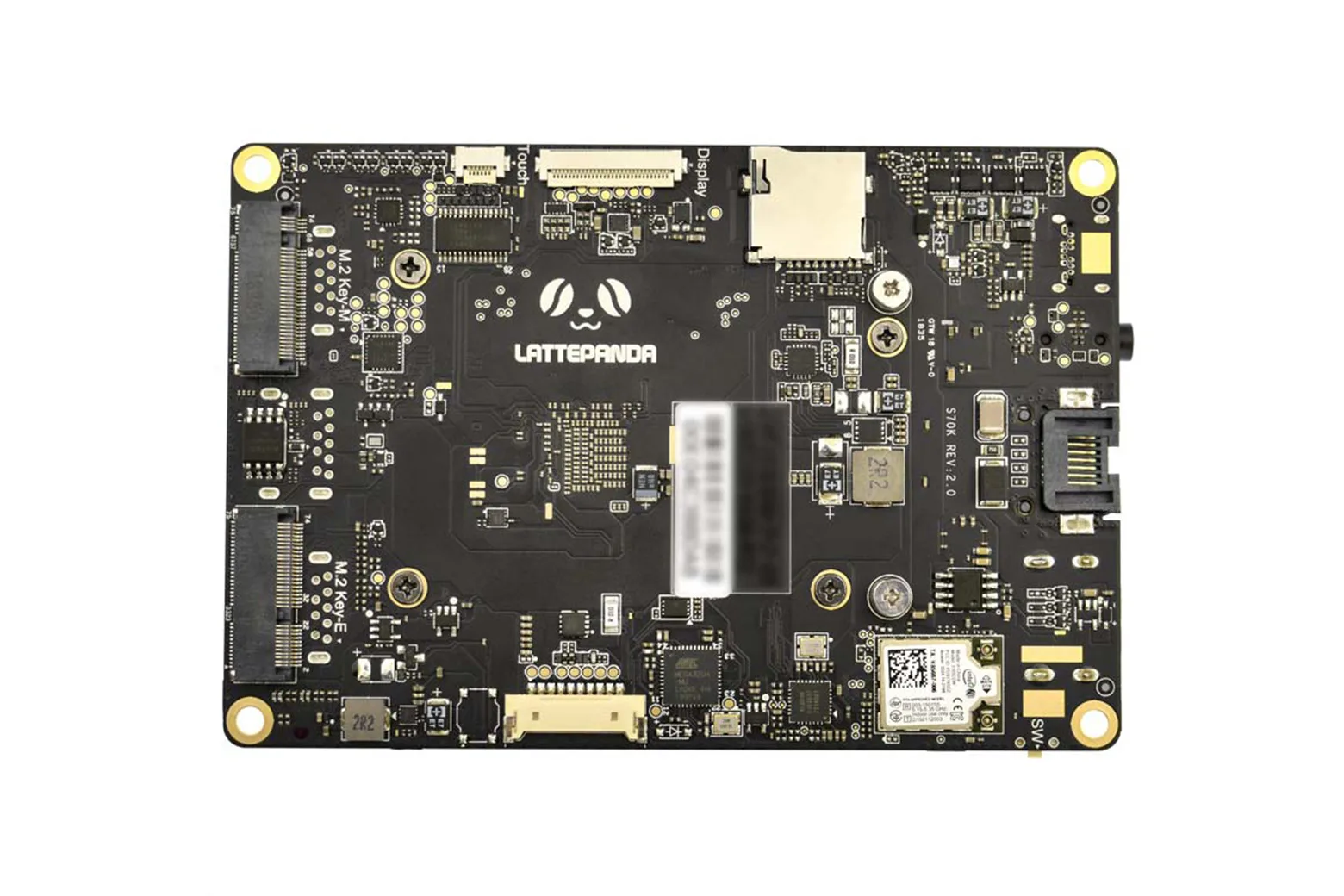

Dual M.2 PCIe slots (M Key and E Key) allow for NVMe SSD storage upgrades and expansion modules. High-speed connectivity includes three USB 3.0 Type-A ports, a multi-function USB Type-C port, Gigabit Ethernet, dual-band Wi-Fi, and Bluetooth 4.2.
Specifications
| CPU | Intel Core i5 8200Y |
| Core | 1.3~3.9GHz Dual-Core, Four-Thread |
| Benchmark (PassMark) | Up to 4128, double computing power compared with same price range products in the market |
| Graphics | Intel HD Graphics 615,0.3~0.95GHz |
| RAM | 8GB LPDDR3 |
| Co-processor | Arduino Leonardo |
| GPIO & Other Features | 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC, Power Management, Extendable power button, everything you need |

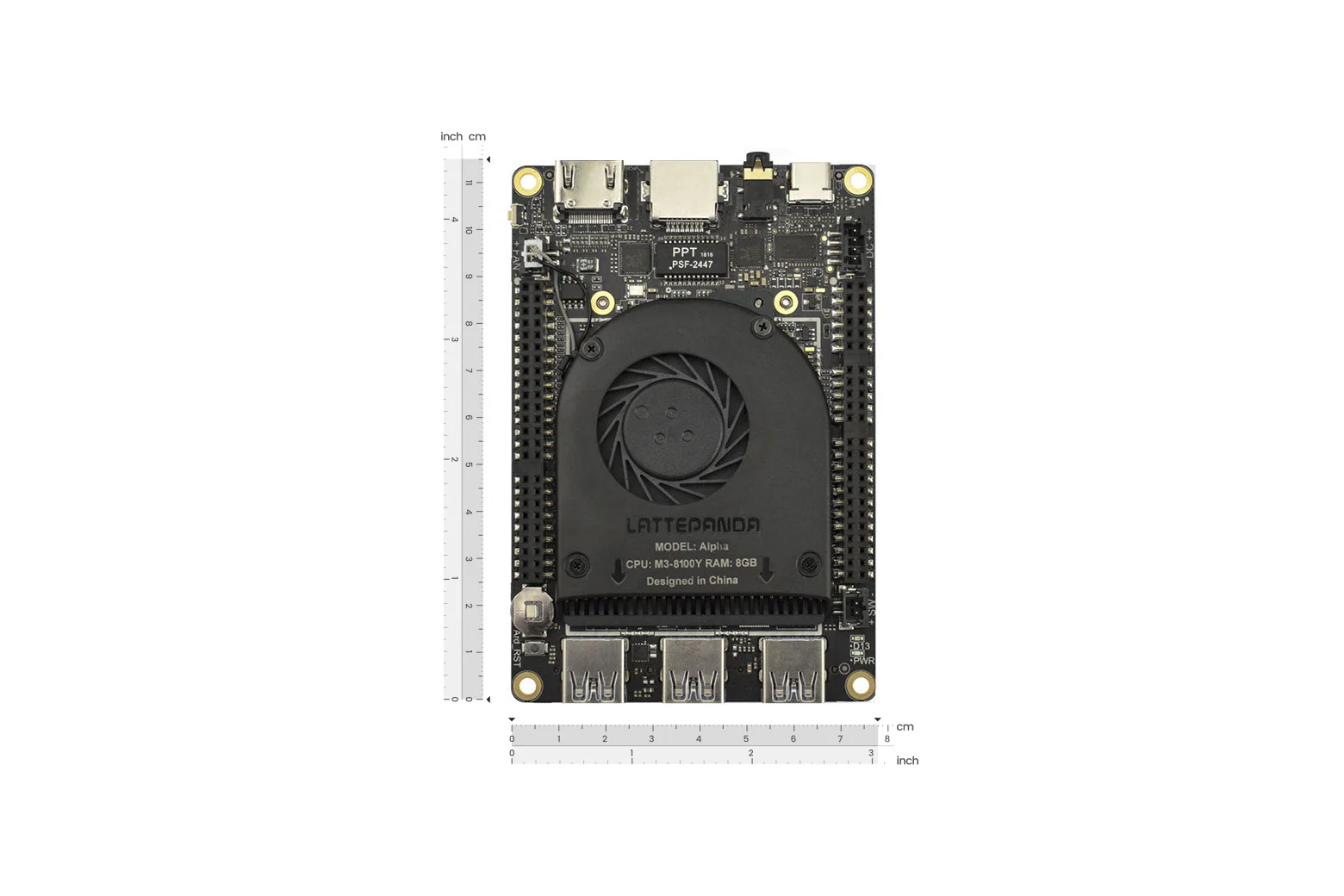

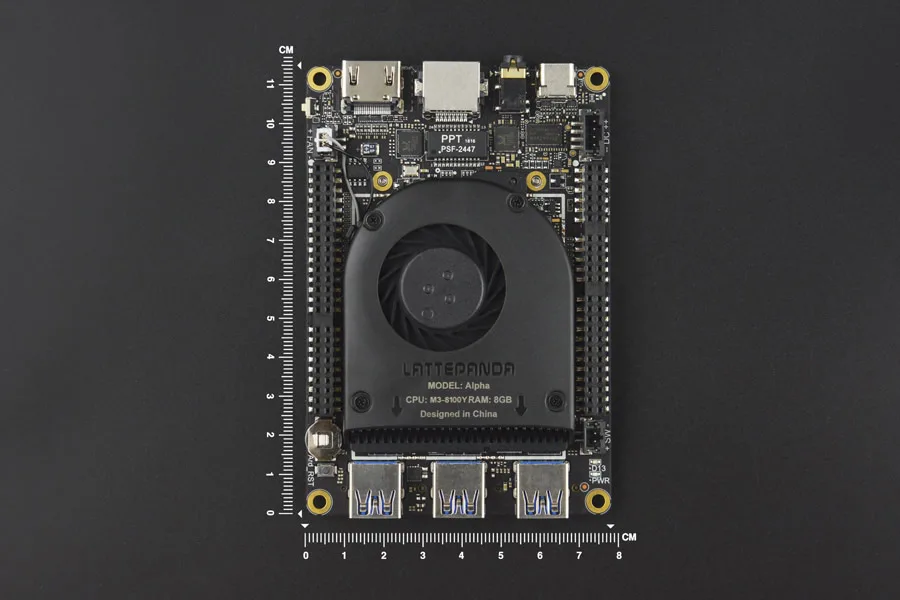

| Dimension | 115mm * 78mm * 14 mm |

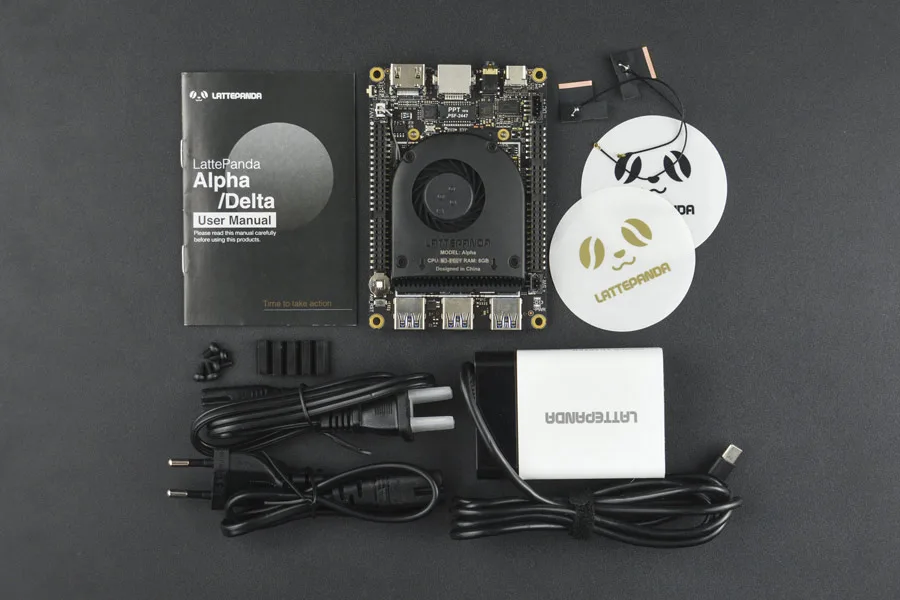

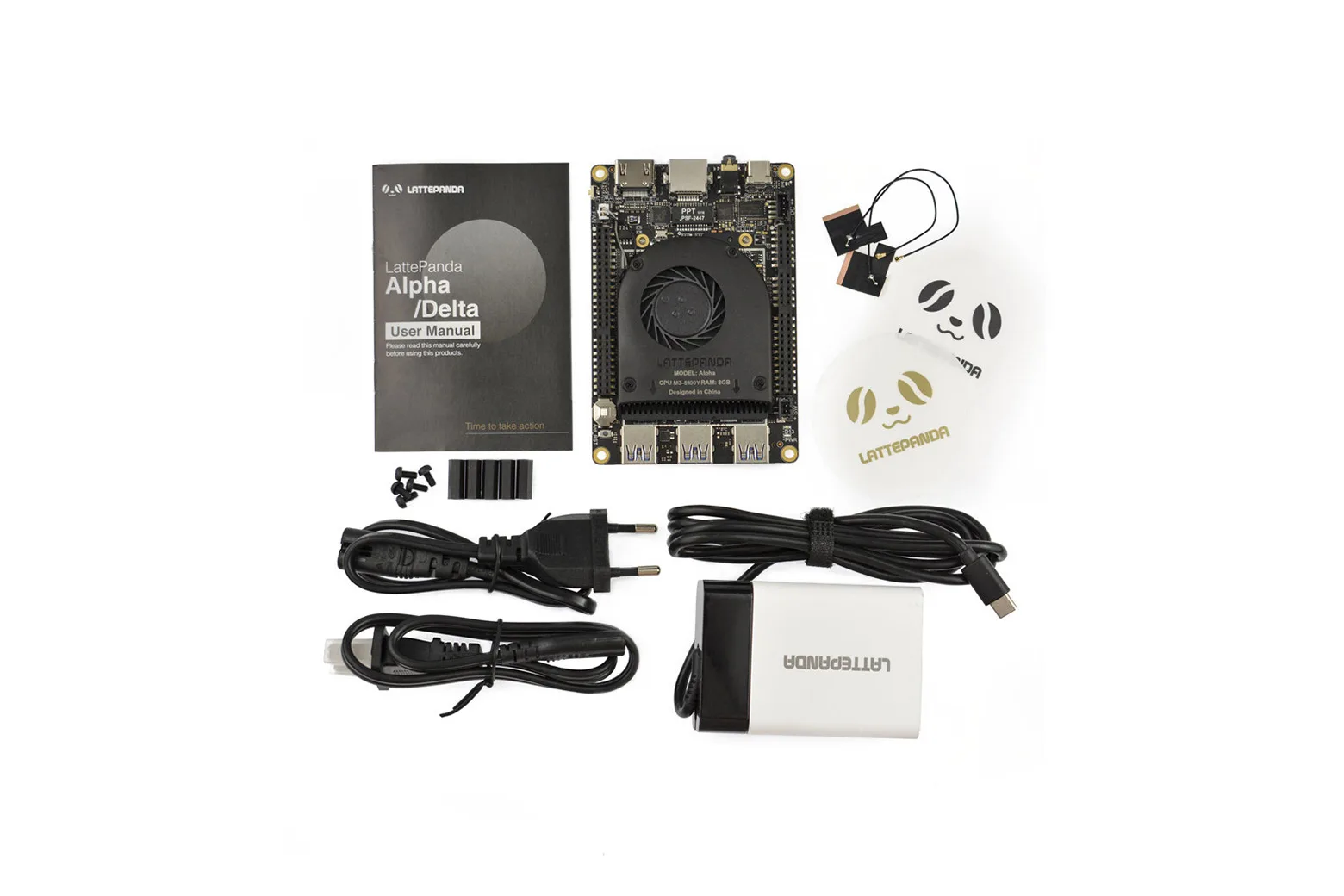

In the box
| LattePanda Alpha 864s (Win11 Pro activated) | 1 |
| Active cooling fan (Assembled) | 1 |
| 45w PD Power adapter (with EU & US standard power cord) | 1 |
| Dual-band antenna | 2 |
| RTC Battery (Assembled） | 1 |
| User Manual | 1 |
