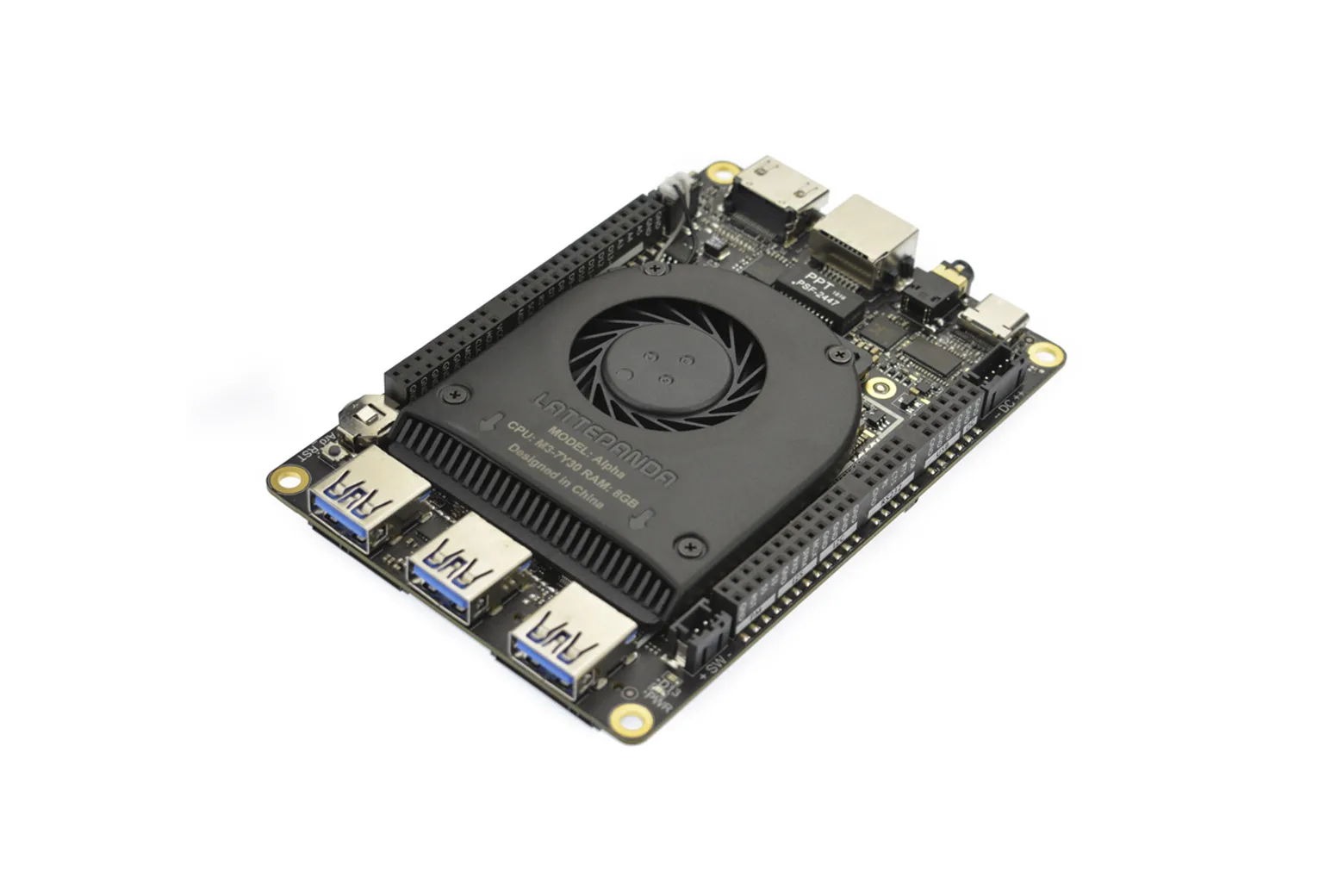

LattePanda 2 Alpha 800s - A Pocket-sized Powerful Windows/Linux Single Board Computer (8GB RAM)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The LattePanda 2 Alpha 800s is a pocket-sized x86 single board computer powered by an Intel Core m3-8100Y dual-core processor and 8GB of RAM. It delivers desktop-grade computing while running full Windows 10, Linux, or Android, making it an ideal choice for robotics controllers, IoT edge devices, and portable maker projects.

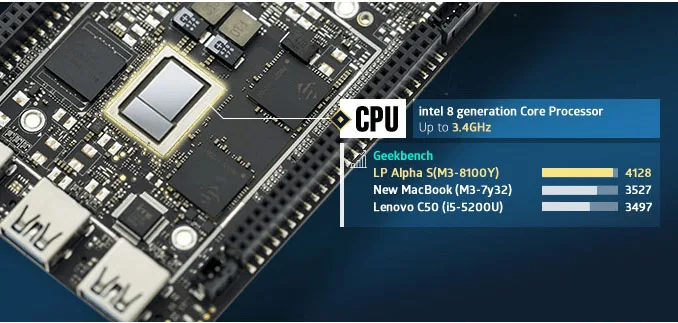

Dual-core Intel Core m3 processor
Powered by an Intel Core m3-8100Y processor clocking between 1.1GHz and 3.4GHz, the board includes integrated Intel UHD Graphics 615 to deliver fast frame rates and 4K Ultra HD video playback. All of this computing capability operates with an energy-efficient 8W power dissipation.

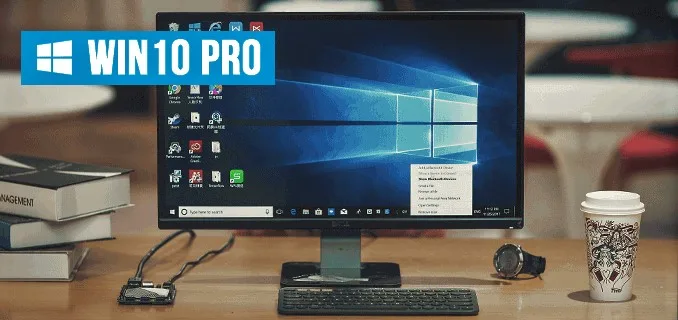

Versatile operating system support
The board provides broad operating system compatibility, supporting 64-bit Windows 10, Ubuntu Linux, and Android. This allows developers to deploy standard desktop applications, development environments, and embedded software without recompiling for ARM architectures.

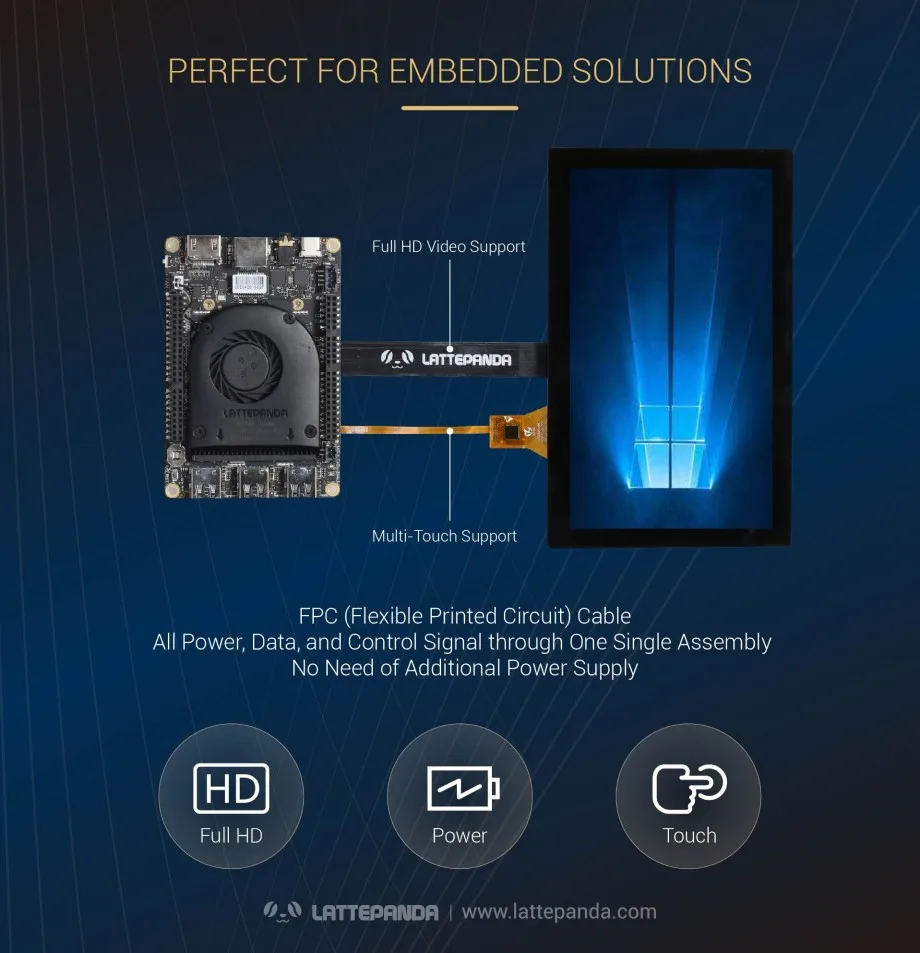

Embedded DisplayPort direct screen interface
An onboard Embedded DisplayPort (eDP) interface enables direct connection to high-resolution LCD panels and touch displays. This digital standard simplifies cabling and eliminates the need for bulky external display converter boards.

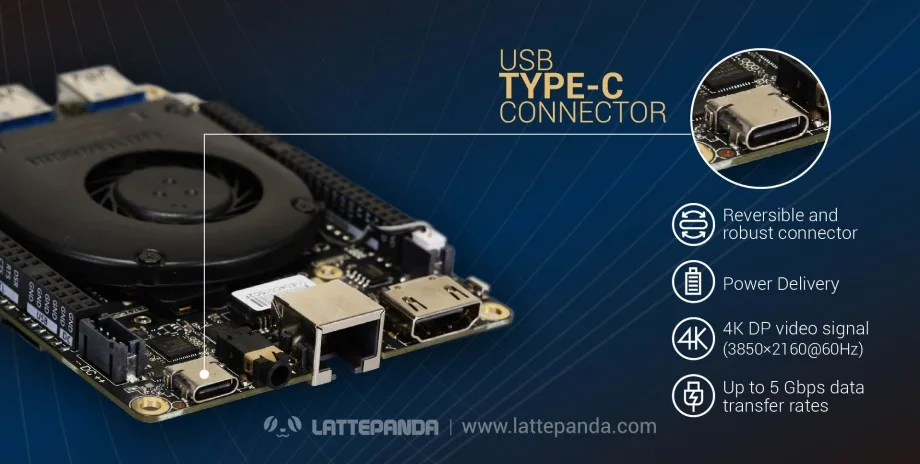

Multifunction USB Type-C port
The onboard Type-C connector supports Power Delivery (PD) input, high-speed data transfer, and 4K DisplayPort video output. This allows single-cable docking setups and versatile power options using standard PD adapters, 12V DC sources, or 7.4V battery packs.

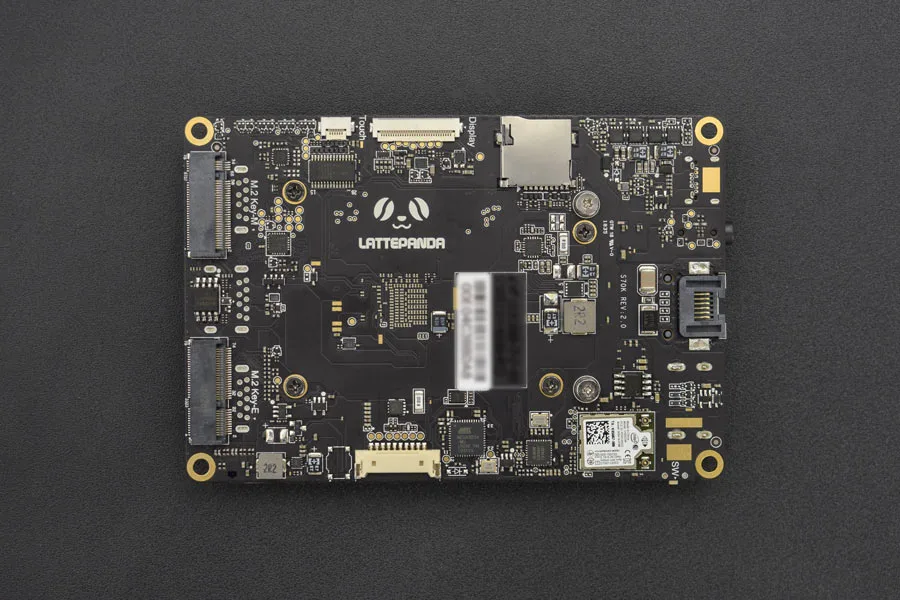

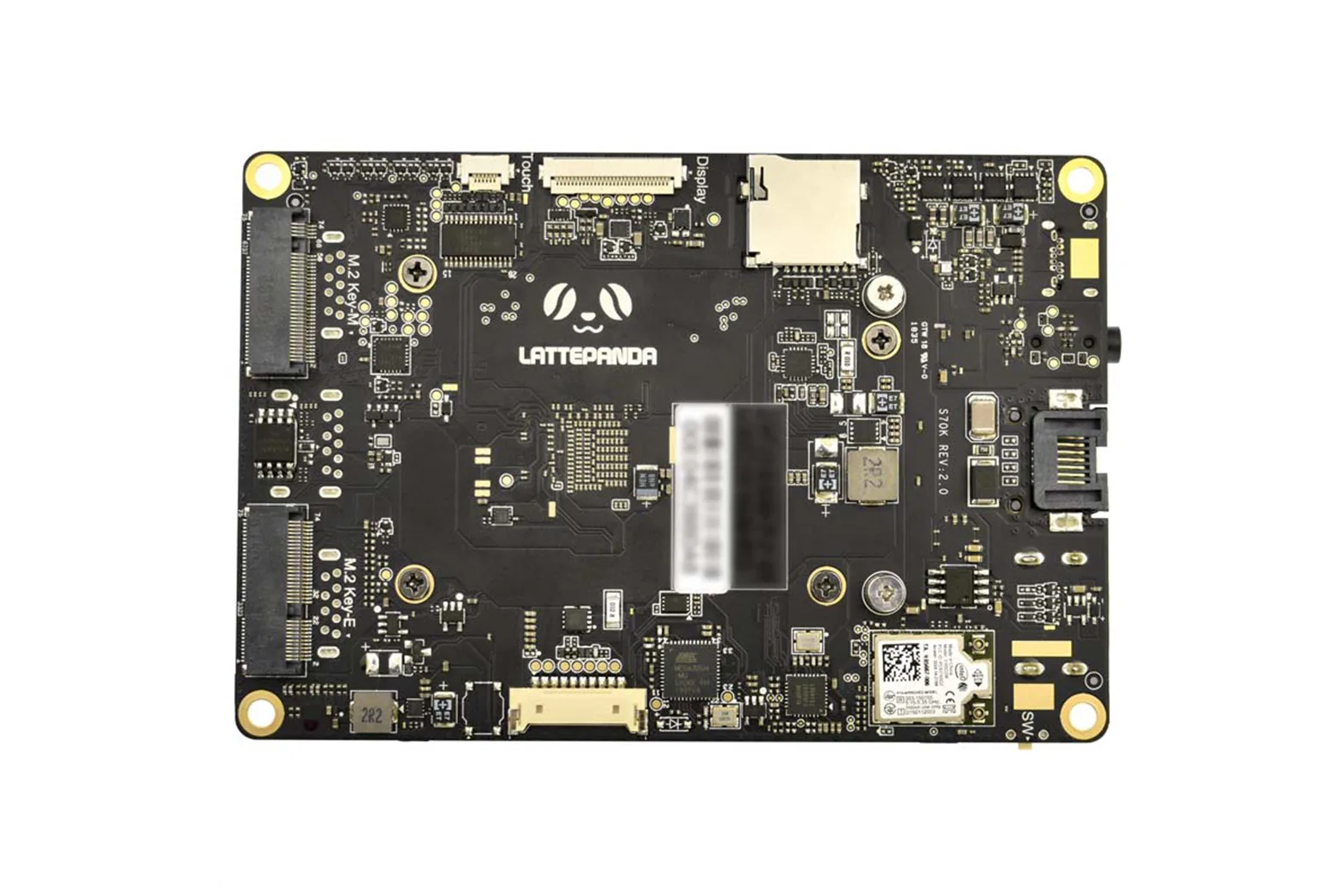

Dual M.2 PCIe expansion slots
Two M.2 expansion slots (supporting M Key and E Key interfaces) allow seamless integration of high-speed NVMe or SATA SSD storage, dedicated graphics cards, and wired or wireless communication modules.

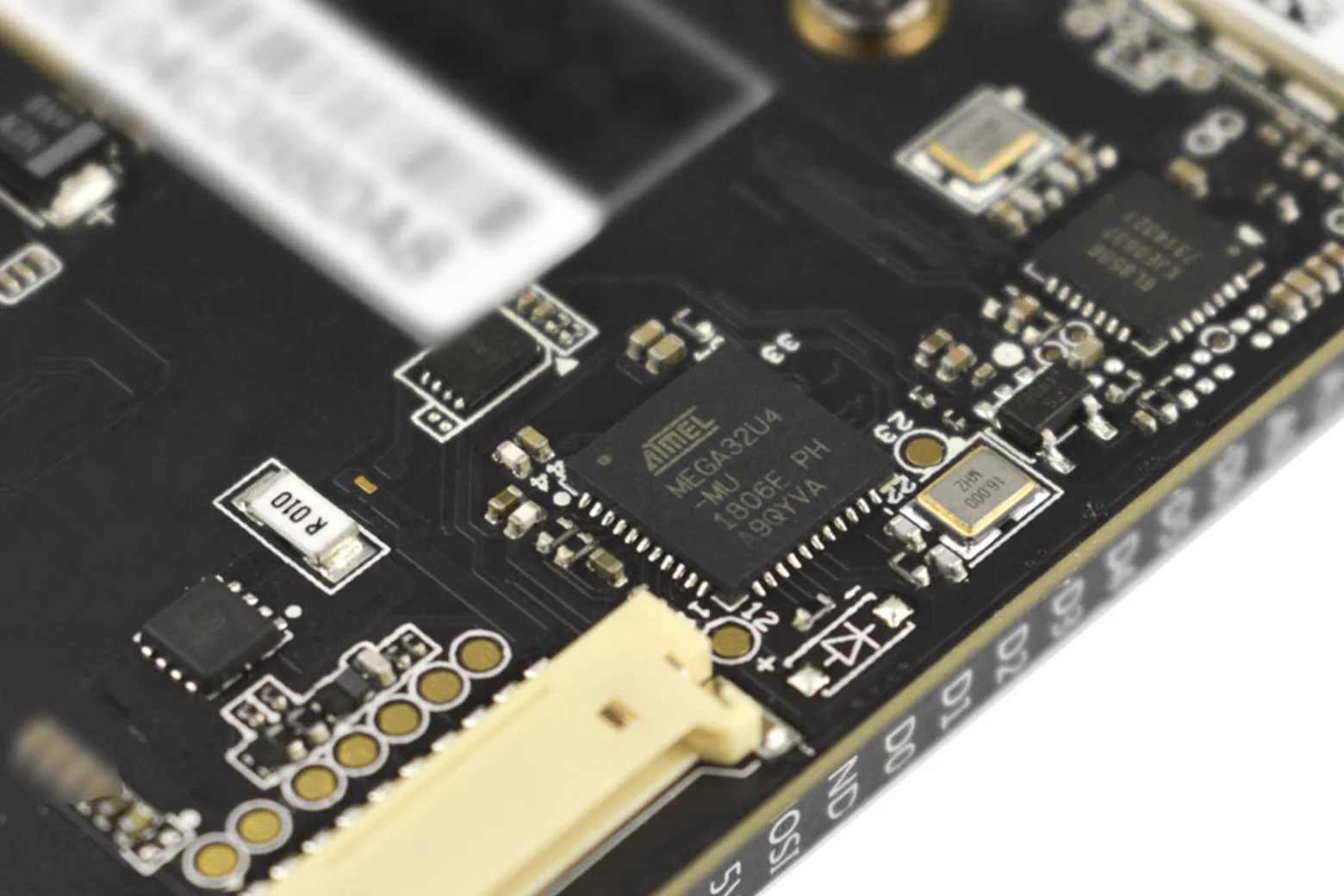

Integrated Arduino Leonardo coprocessor
A built-in ATmega32U4 Arduino coprocessor connects directly to dual 50-pin GPIO headers, providing standard pinouts for I2C, I2S, RS232, and UART hardware control without tying up main CPU resources.
Specifications
| CPU | Intel Core m3-8100y |
| Core | 1.1-3.4GHz Dual-Core, Four-Thread |
| Benchmark (PassMark) | Up to 4128, double computing power compared with same price range products in the market |
| Graphics | Intel HD Graphics 615, 300-900MHz |
| RAM | 8GB LPDDR3 |
| Co-processor | Arduino Leonardo |
| GPIO & Other Features | 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC, Power Management, Extendable power button, everything you need |

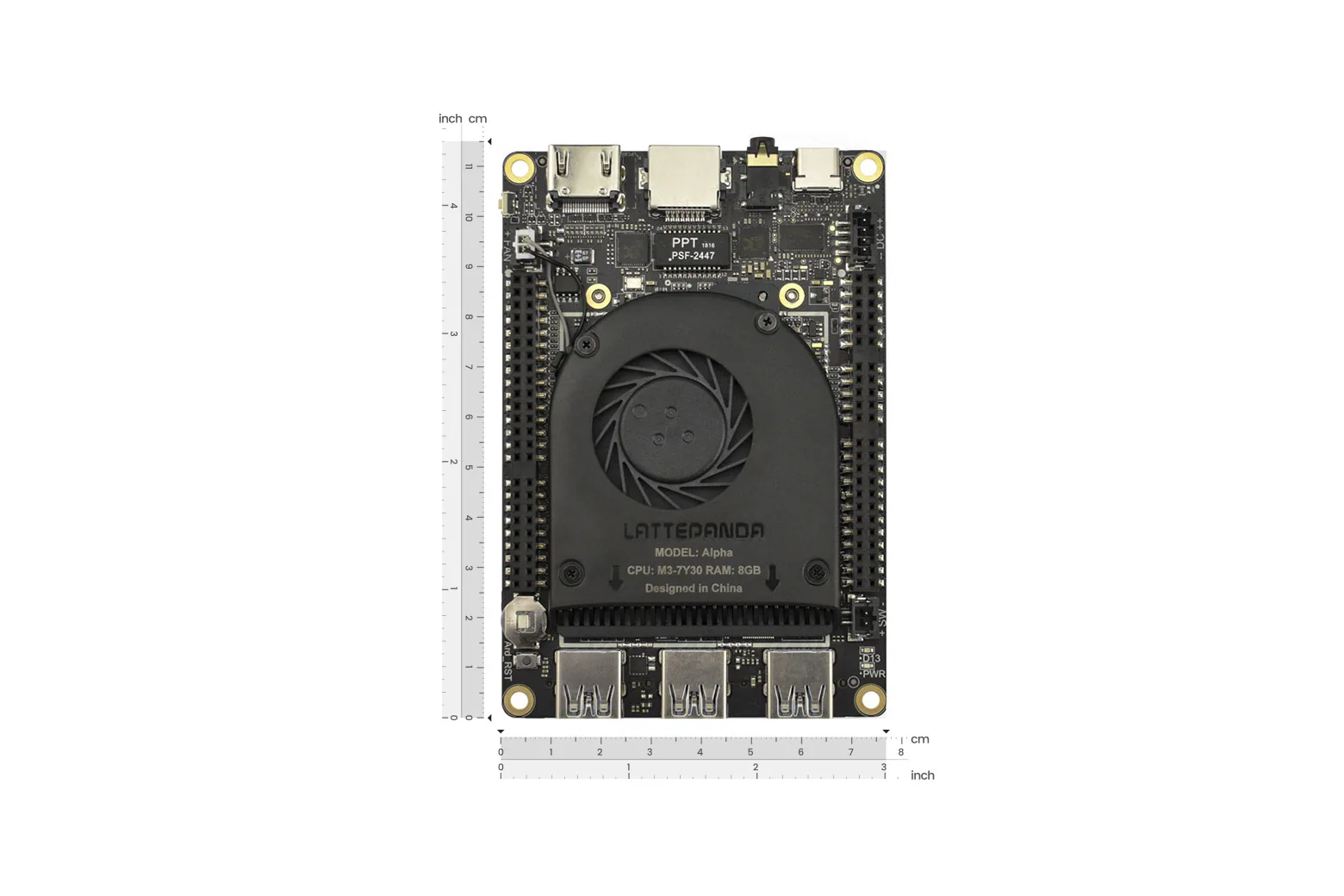

| Dimension | 115mm * 78mm * 14 mm |

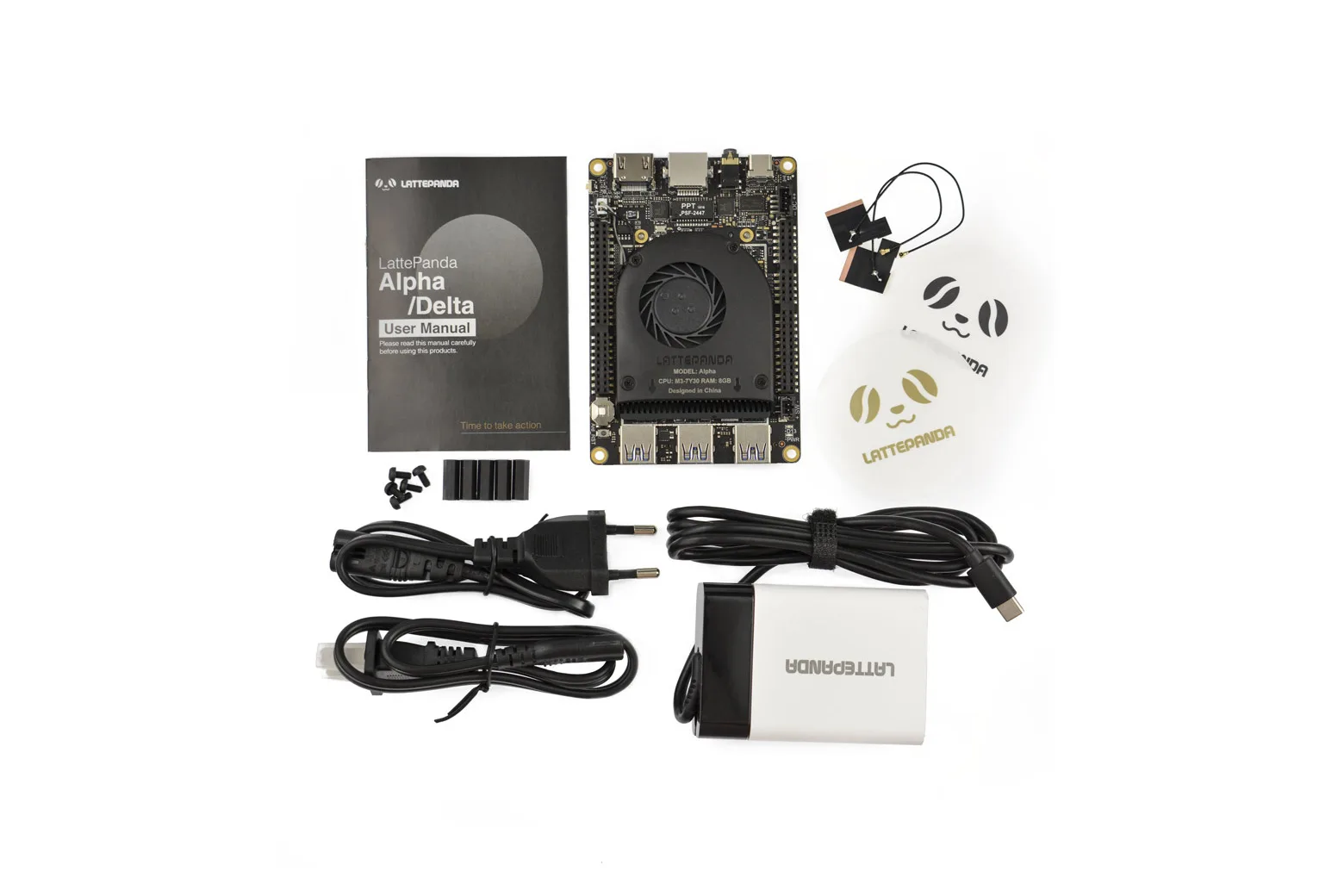

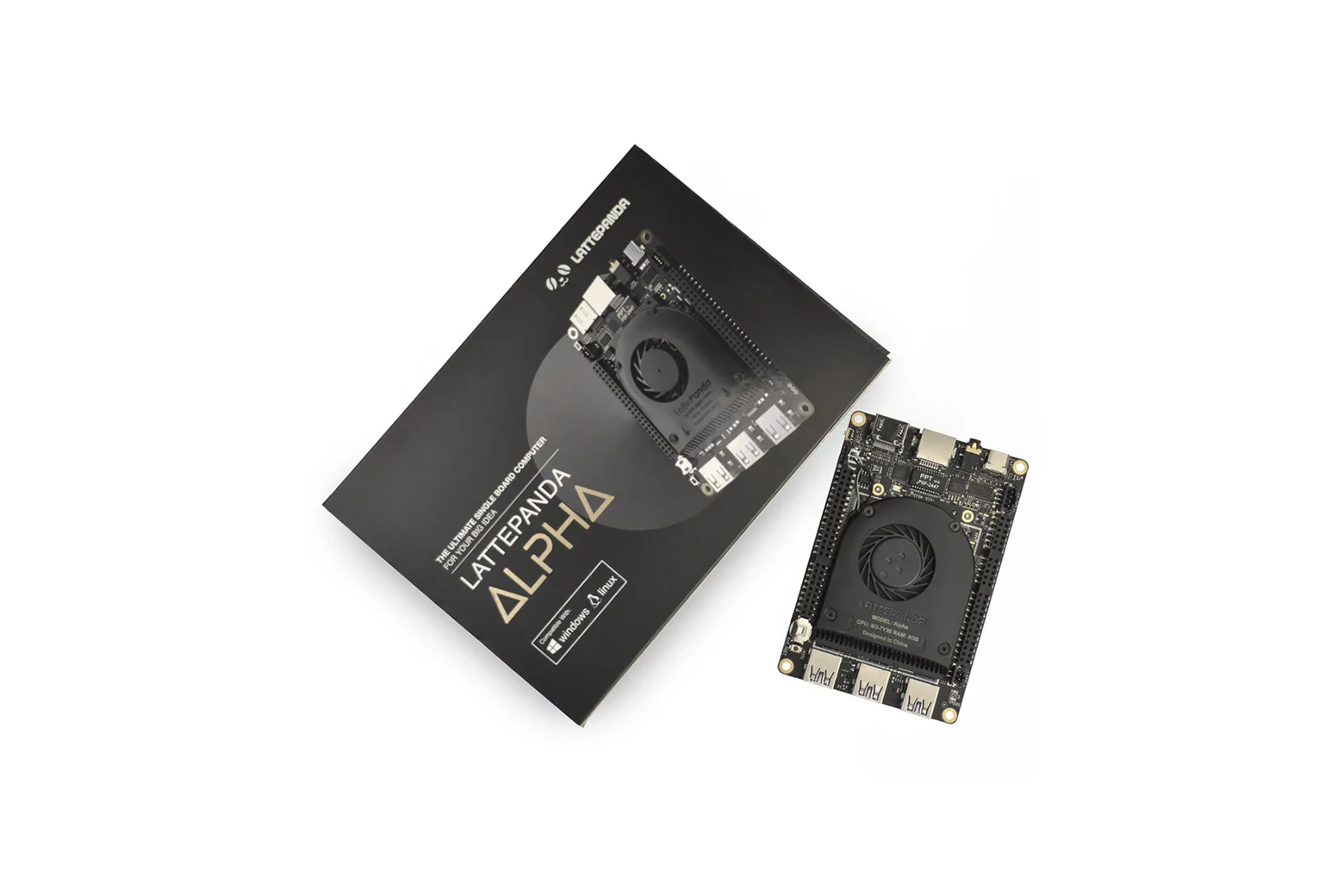

In the box
| LattePanda Alpha 800s | 1 |
| Active cooling fan (Assembled) | 1 |
| 45w PD Power adapter (with EU & US standard power cord) | 1 |
| Dual-band antenna | 2 |
| RTC Battery (Assembled） | 1 |
| User Manual | 1 |
