Keyestudio Vibration Motor Module for Arduino UNOR 3

The Keyestudio Vibration Motor Module is a compact actuator designed to convert electrical signals into physical mechanical vibrations. It is an ideal choice for students, makers, and educators looking to add tactile haptic feedback to wearable smart devices or interactive projects.

Haptic feedback for interactive projects

This module utilises a high-quality vibration motor to convert electrical signals into physical movement. It is perfect for building vibration-sensitive interactive creations and wearable smart technology.

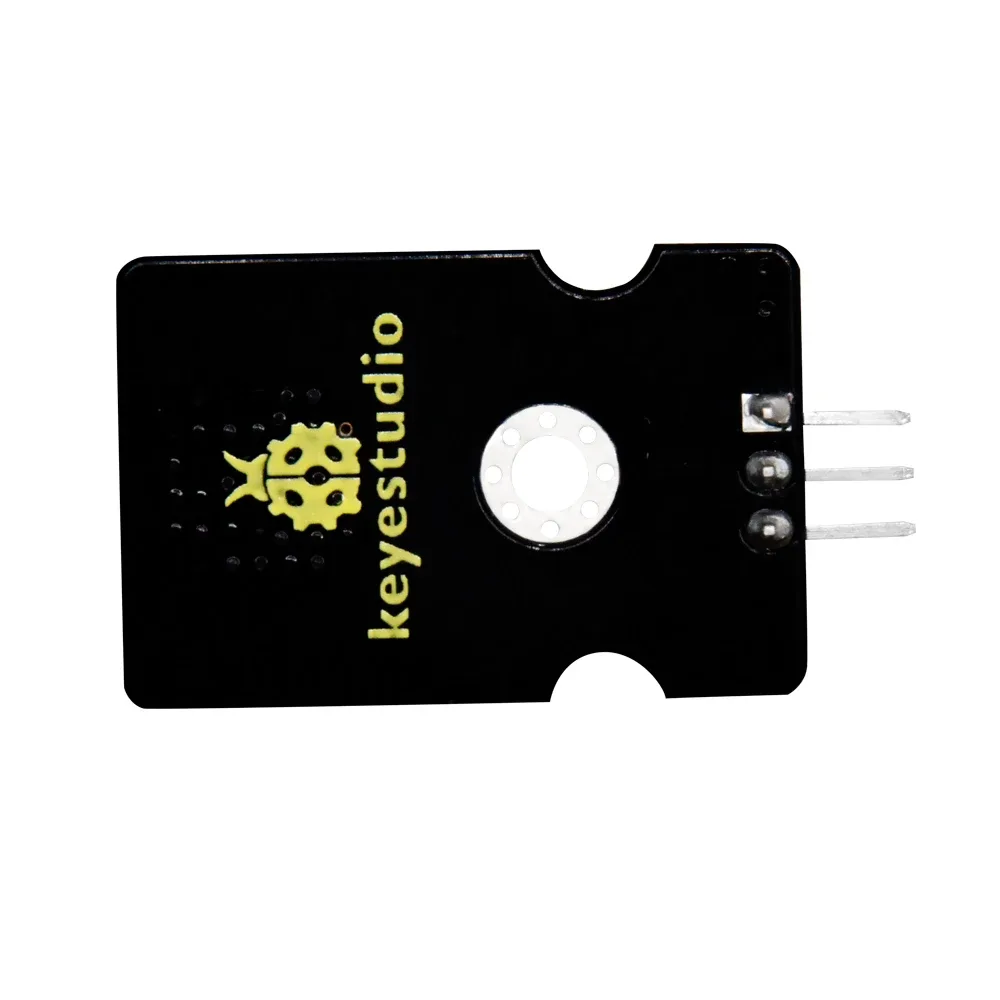

Simple digital and PWM control

You can trigger the motor directly using a digital pin on your Arduino microcontroller, setting it HIGH to start vibrating and LOW to stop. Alternatively, control the vibration intensity precisely by connecting it to an Arduino PWM pin.

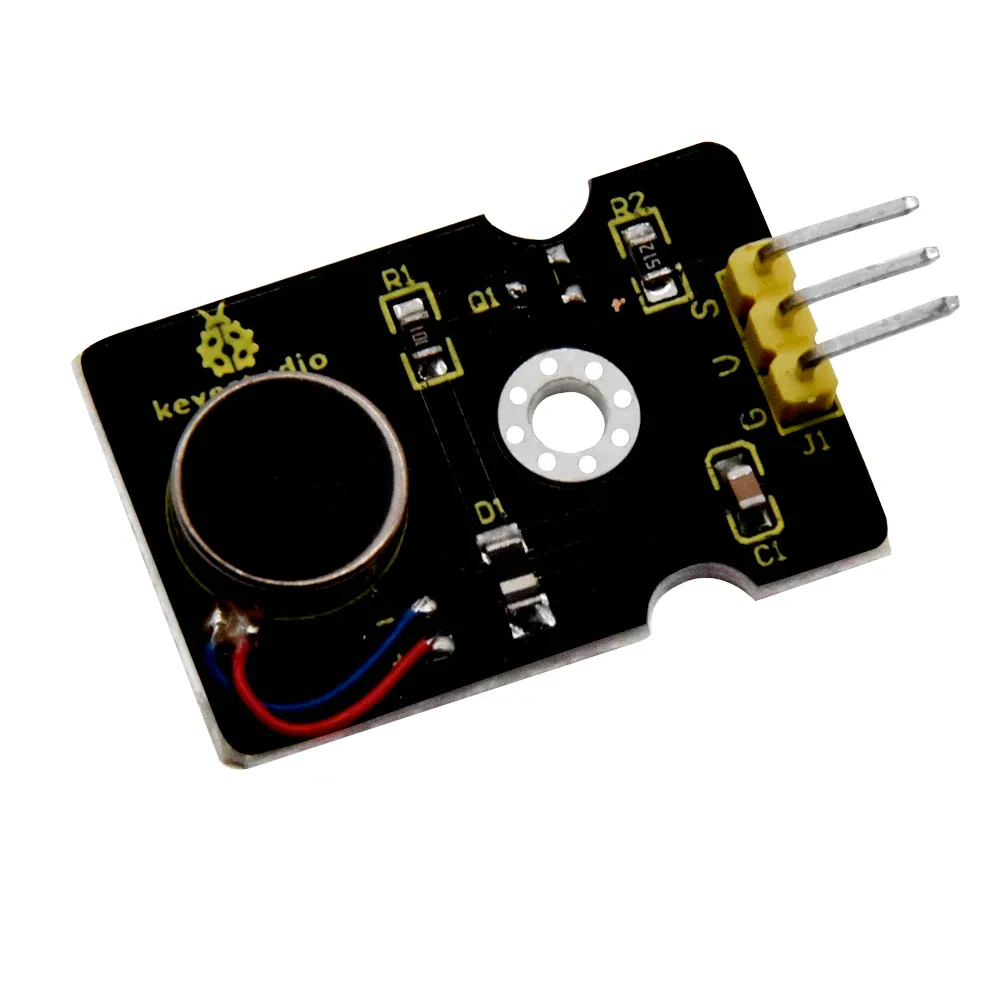

Low power consumption profile

Operating at a standard DC 5V voltage, the module draws a maximum current of 35mA with a power consumption of just 0.5W. This makes it highly efficient for battery-powered wearable projects.

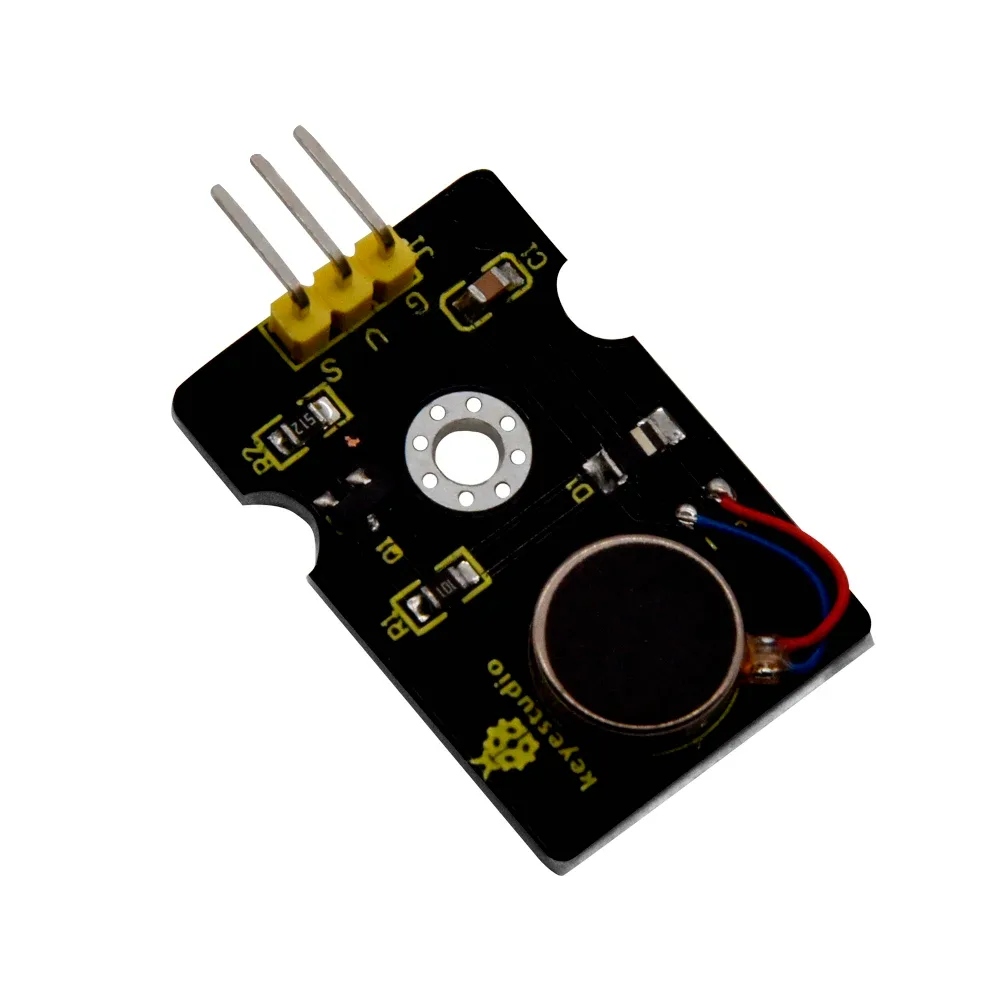

Compact and easy to mount

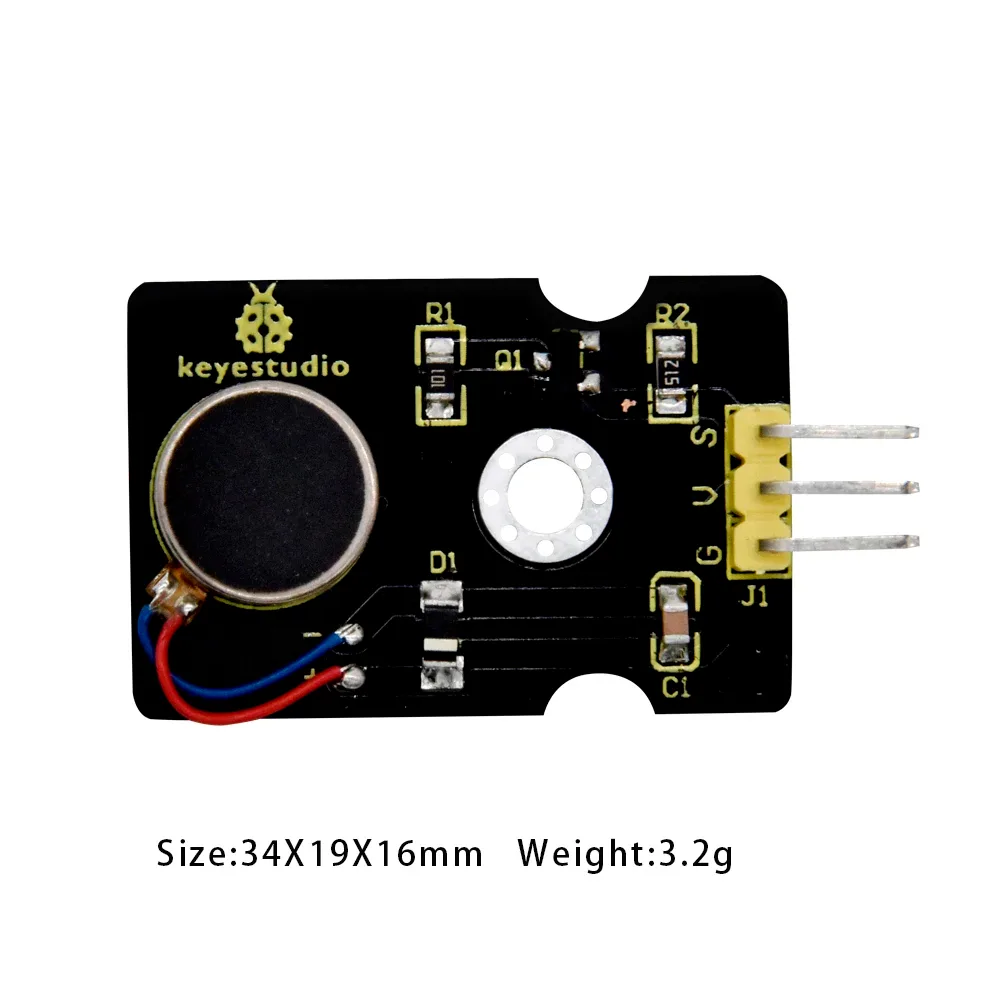

Measuring just 34mm by 19mm by 6mm and weighing a lightweight 3.2g, this compact board integrates seamlessly into tight spaces. A built-in 3mm fixing hole allows you to secure the module firmly to your chassis or wearable enclosure.

Standard interface and environmental compliance

The board features a standard 3-pin interface with a 2.54mm pitch for easy breadboard or jumper wire connections. It is ROHS compliant and rated to operate reliably in temperatures ranging from -25 degrees Celsius up to 65 degrees Celsius.
