Keyestudio UNO R3 Development Board TB6612FNG Motor/Servo Drive Shield with PS2 Socket

The Keyestudio UNO R3 TB6612FNG Motor and Servo Drive Shield is a versatile expansion board designed to simplify robotics projects for students, educators and makers. It fits onto your UNO R3 or Keyestudio Plus development board, providing dedicated interfaces for motors, servos and wireless controllers. This shield eliminates wiring clutter, making it an ideal choice for building custom robotic chassis and robotic arms.

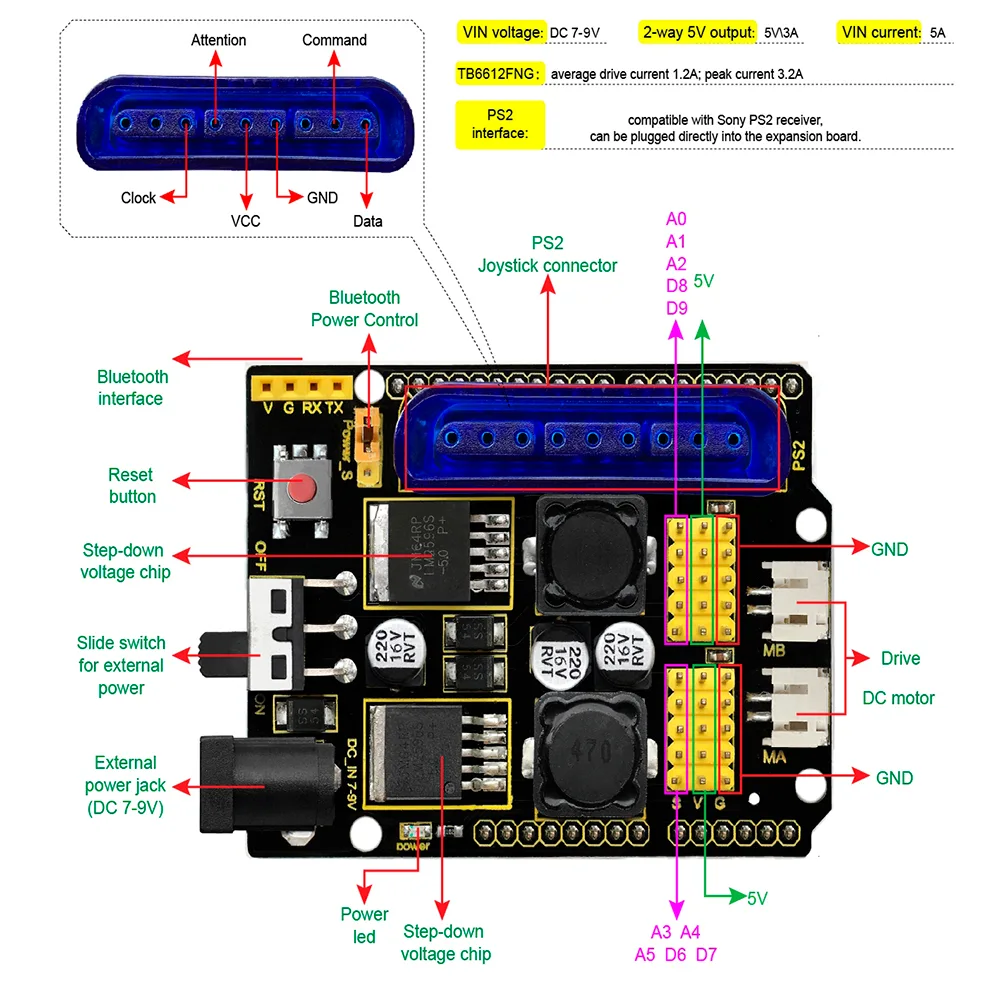

Dual motor control with TB6612FNG

The onboard TB6612FNG motor driver IC allows you to easily control two DC motors. Connections are made simple and secure using the dedicated PH2.0MM-2P motor interfaces.

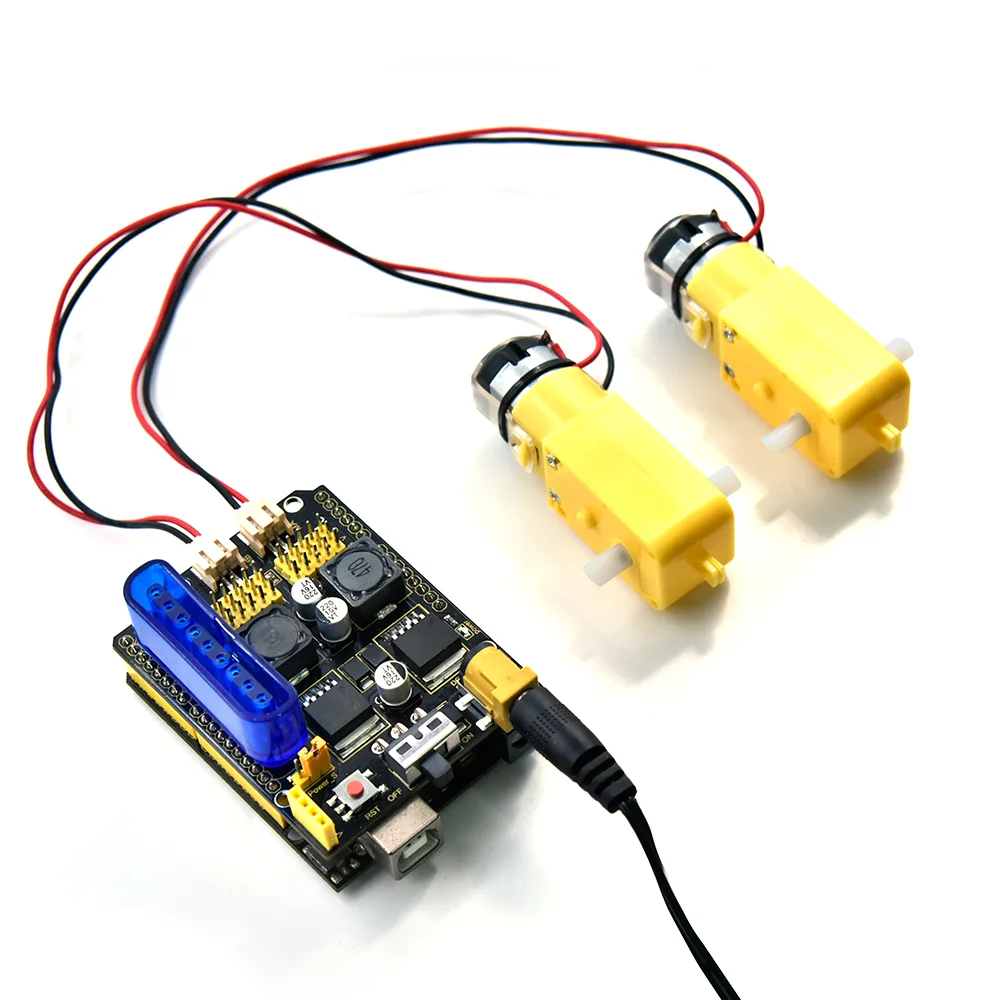

Dual LM2596S step-down regulators

Equipped with two LM2596S-5.0V DC-DC step-down modules, this shield provides stable 5V power to drive multiple servos simultaneously. This ensures your microcontroller is not strained during high-current operations.

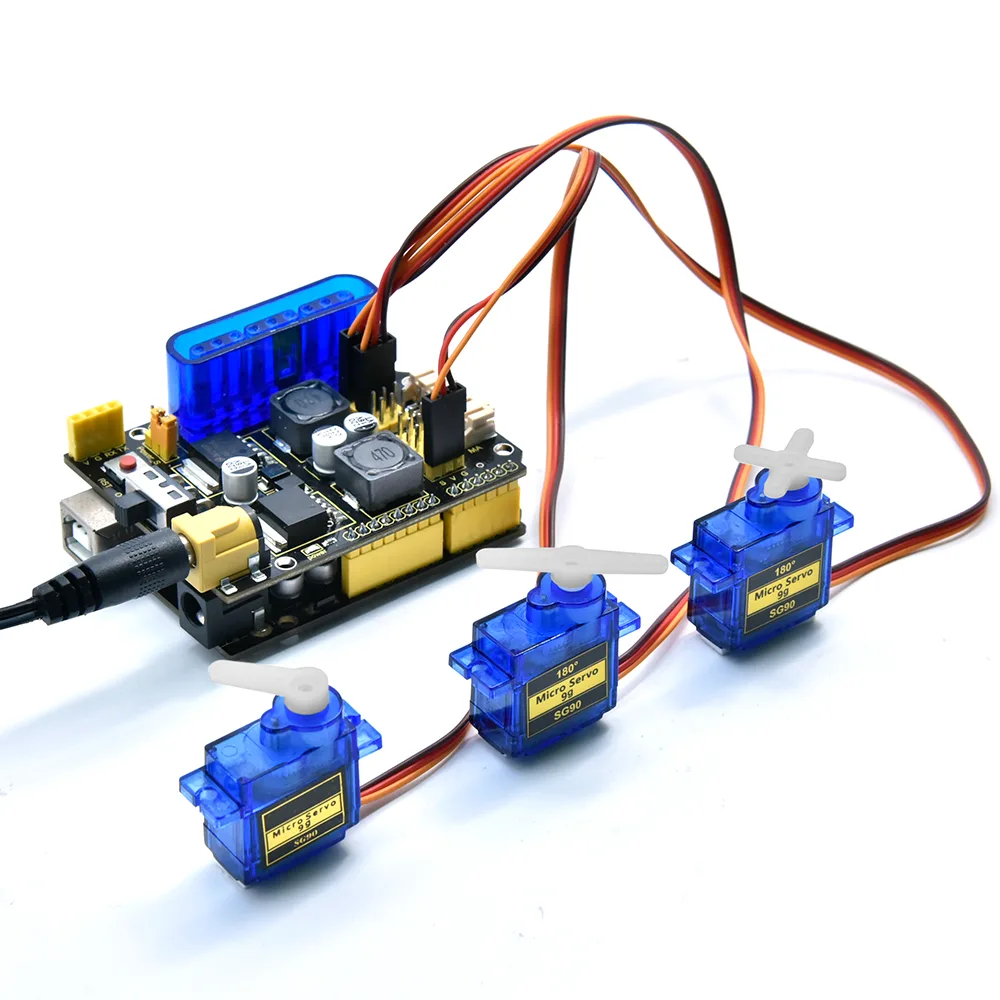

Simplified servo wire sequence

The board extends standard pin ports into a dedicated servo wire sequence layout. This design provides plenty of VCC and GND ports, eliminating the need for messy breadboards or custom power distribution rails.

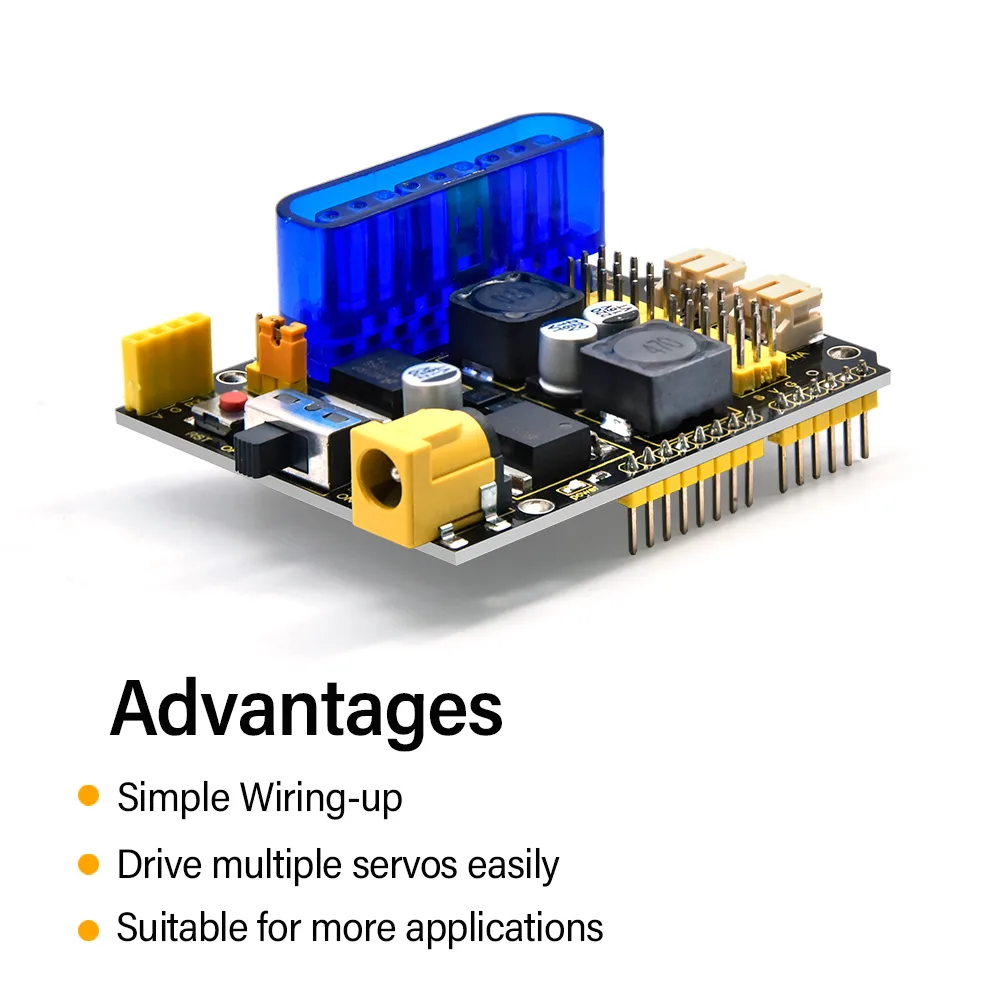

Integrated PS2 receiver socket

A dedicated PS2 socket is onboard, allowing you to plug in a wireless PS2 controller receiver directly. This makes it incredibly easy to build remote-controlled robots and vehicles.

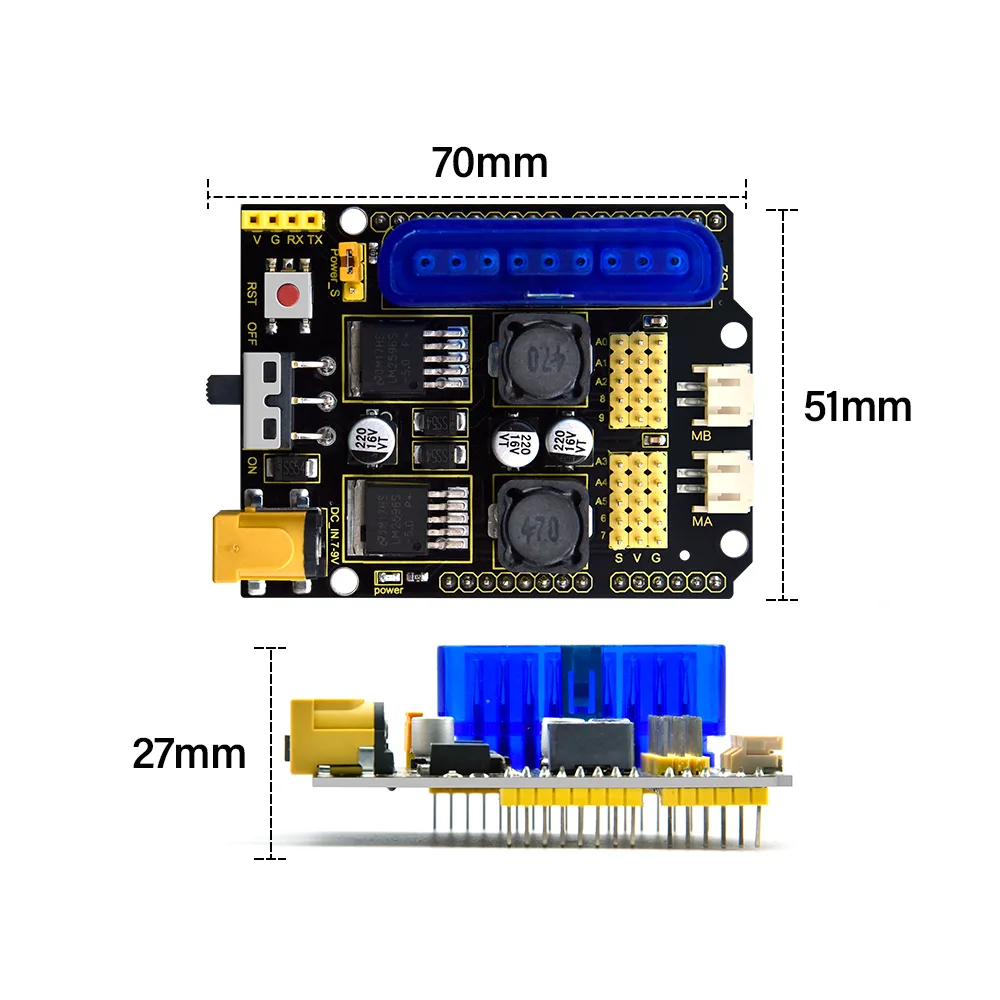

Onboard serial communication interface

The shield features a dedicated serial communication port to facilitate easy data transfer with other modules or sensors. This expansion capability ensures your robotic projects can scale with your learning requirements.

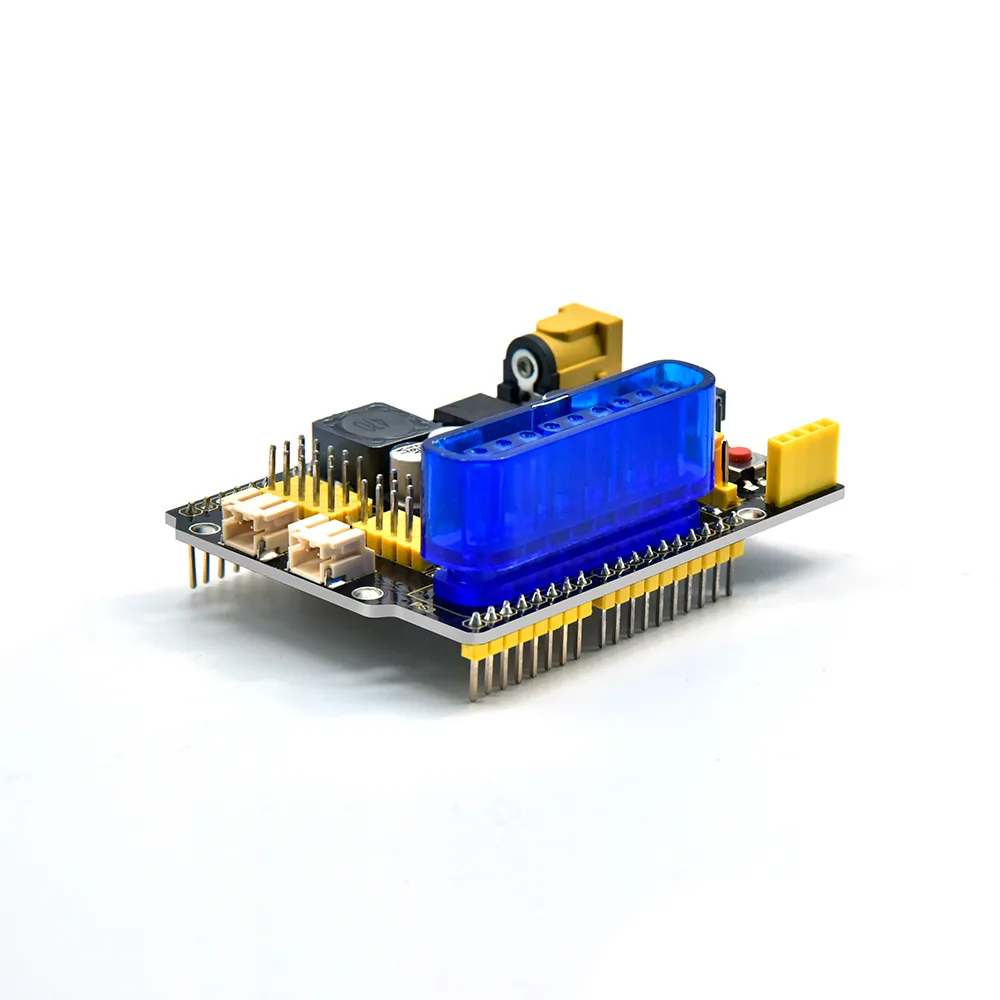

Designed for UNO R3 form factors

This expansion shield is fully compatible with the standard Keyestudio UNO R3 and Keyestudio Plus development boards. It stacks directly on top of your microcontroller to save space and reduce external wiring.
