Keyestudio L9110 Fan Motor Control Module For Arduino

The Keyestudio L9110 Fan Motor Control Module is a compact, high-efficiency propeller module designed for Arduino-based projects. Ideal for students, hobbyists, and educators, it provides an easy way to control fan rotation and direction. It is a perfect addition to robotics kits, especially for those building fire-fighting robots.

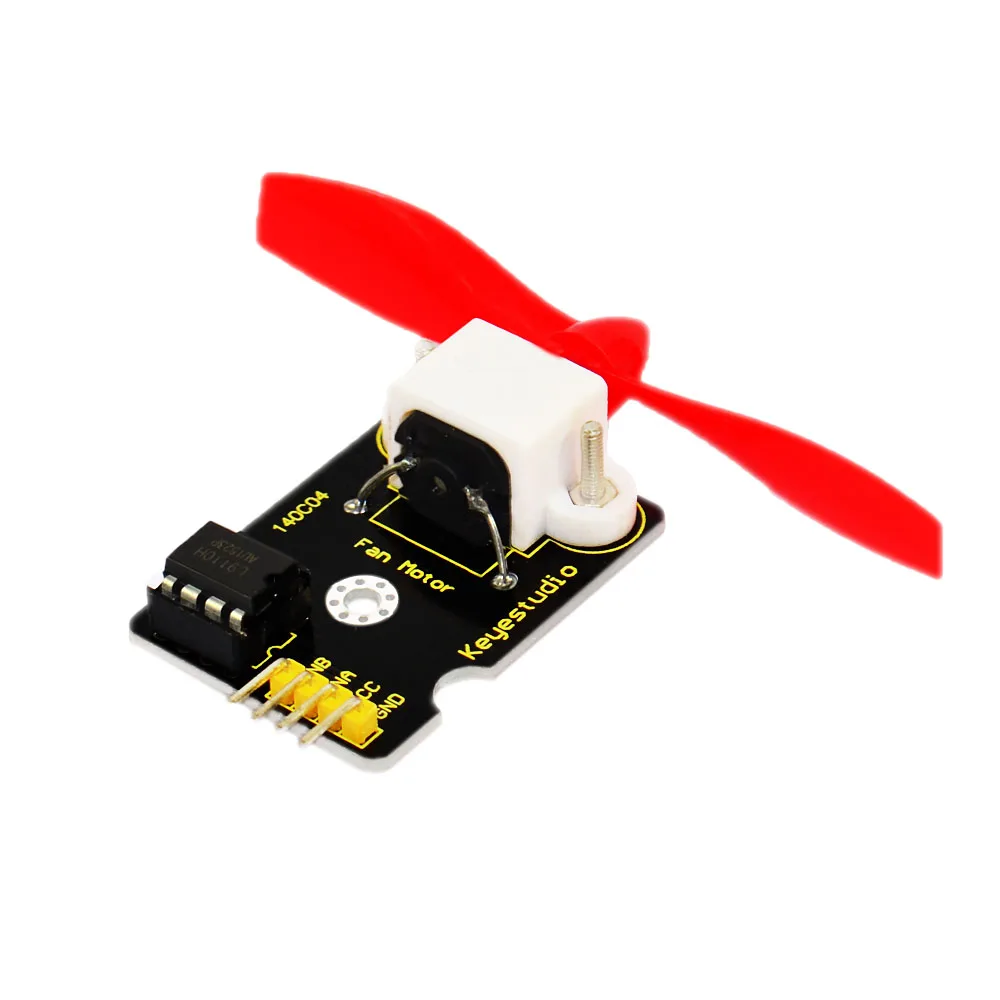

L9110 motor driver chip

Powered by the L9110 motor control chip, this module allows you to easily control the rotation direction of the attached fan. It operates efficiently at a working voltage of 5V, making it highly compatible with standard microcontrollers.

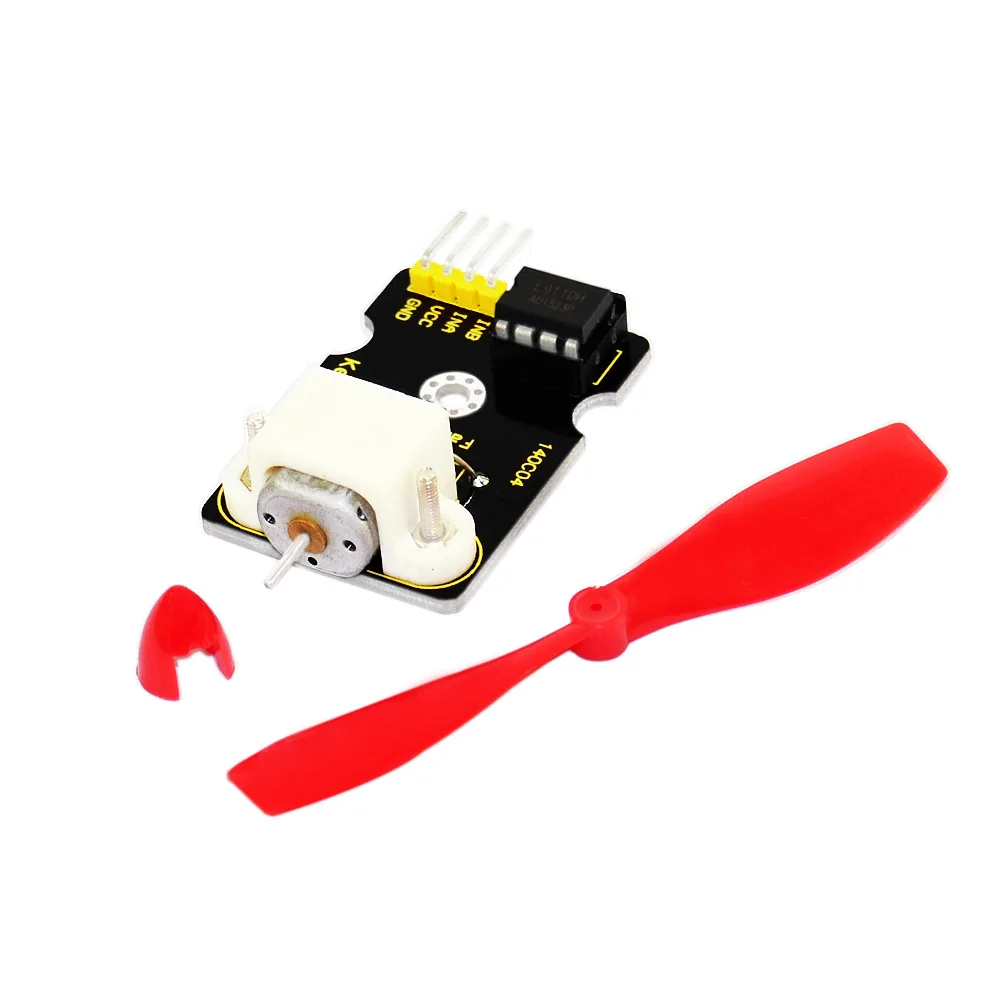

Fire-fighting robot applications

With its high-efficiency design and quality propeller, this module can easily blow out a flame from a distance of up to 20cm. This makes it an essential component for students and makers developing autonomous fire-fighting robots.

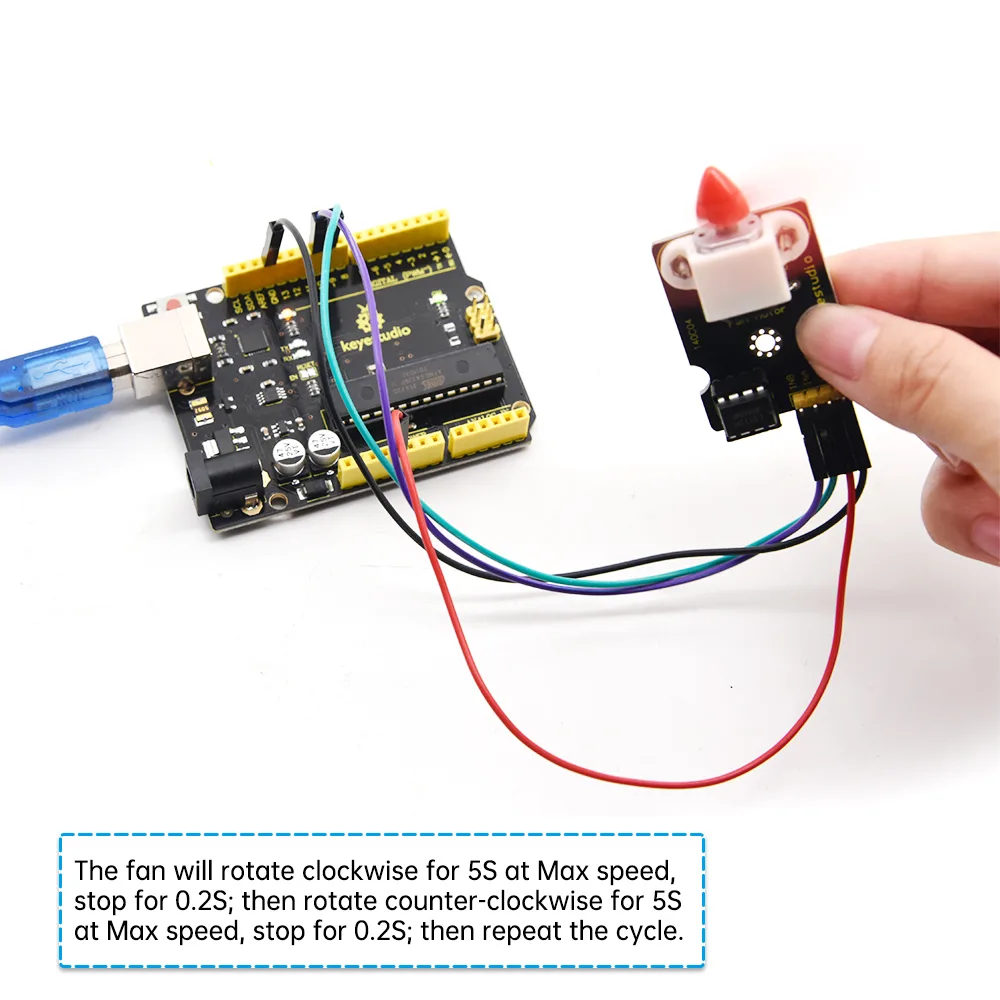

Mounting and servo compatibility

The board features a built-in mounting hole, making it easy to secure to your robot chassis. The design is also compatible with standard servo motor control setups for directional steering.

Compact dimensions and specifications

Measuring just 50 x 26 x 15mm with a 75mm fan diameter, this module easily fits into tight spaces on mobile robot platforms. It runs on a 5V working voltage, ensuring simple integration with your existing power rails.
