Keyestudio EASY plug( Servo Module +Micro Servo )For Arduino Robot

The Keyestudio EASY plug Servo Module and Micro Servo kit is an all-in-one package designed to simplify motion control in your Arduino robotics projects. Perfect for students, educators, and hobbyists, this kit eliminates complex wiring by using a simple RJ11 connection system. It is ideal for anyone looking to learn or teach PWM-based servo control without messy breadboards.

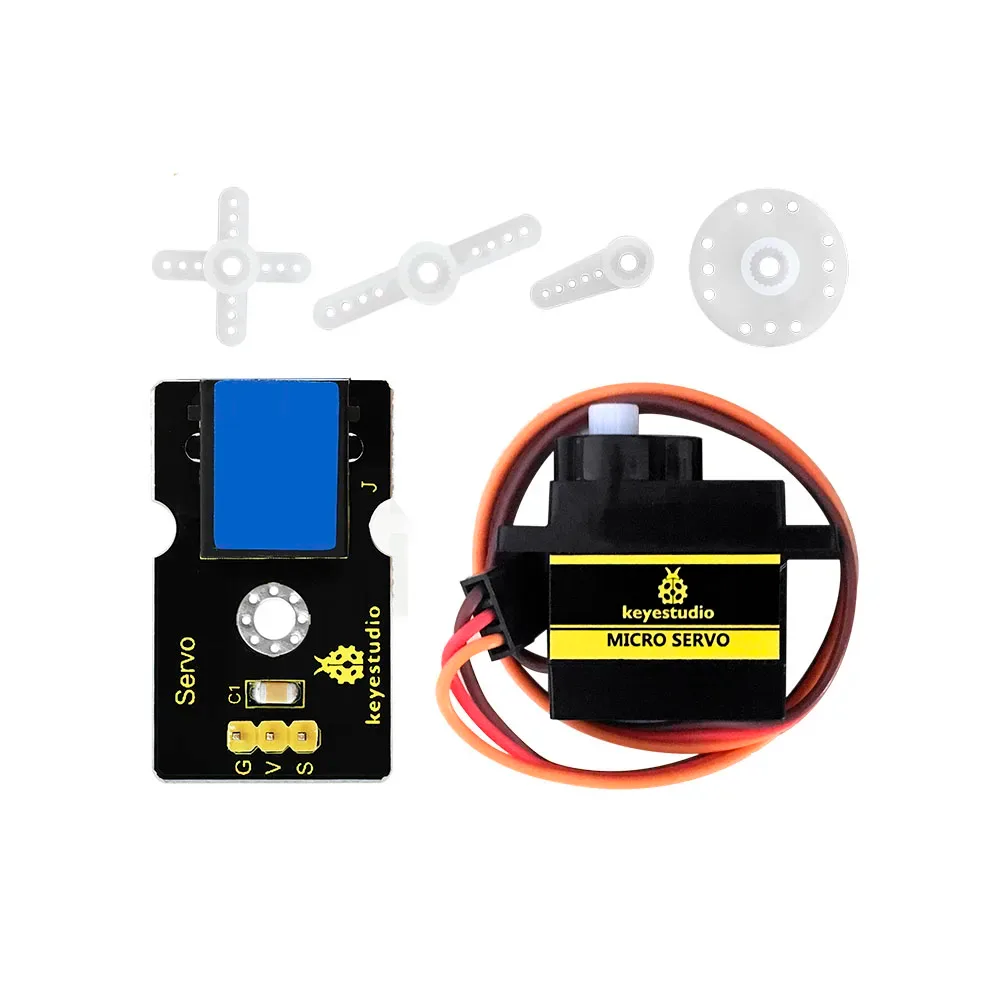

Tool-free RJ11 connection

The EASY plug servo module converts standard servo pins into a Registered Jack interface. This allows you to connect the module to an EASY PLUG control board using a single RJ11 cable, keeping your workspace tidy and secure.

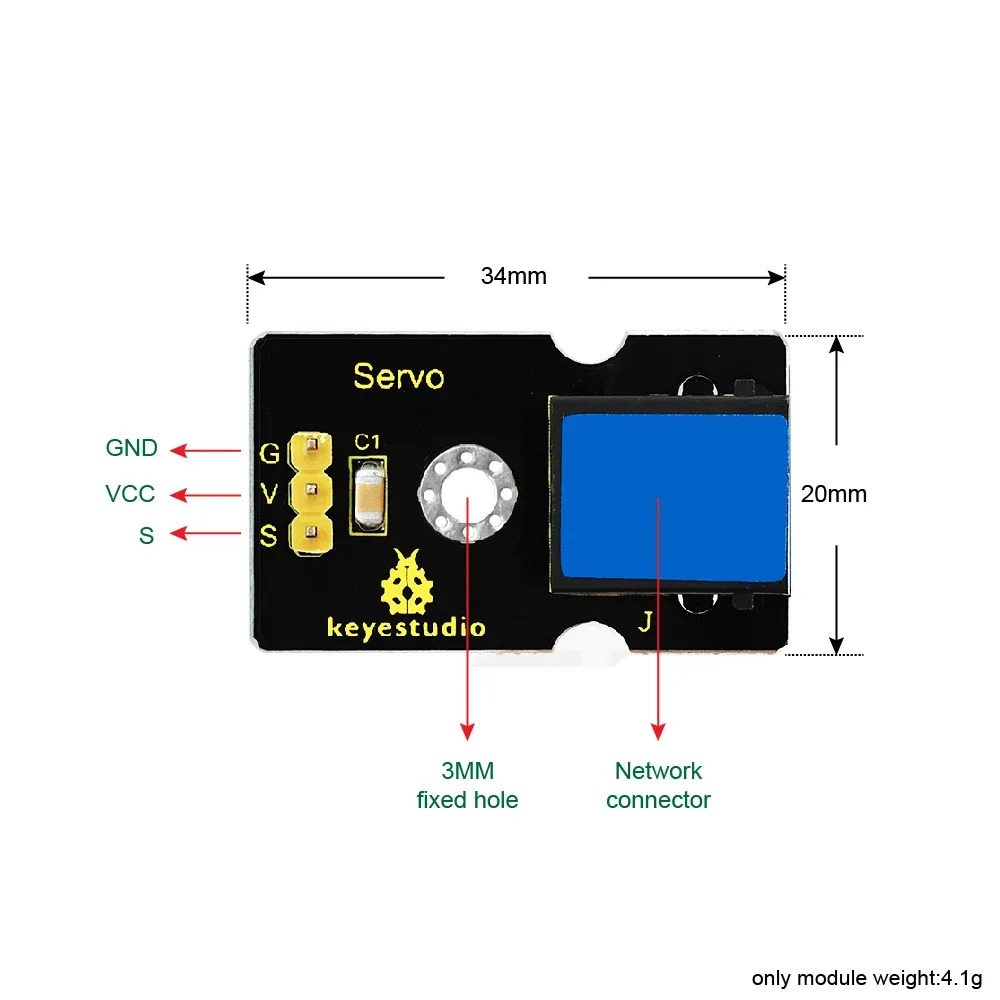

Standard three-pin pitch

Featuring a 2.54mm pin pitch, the extension module is fully compatible with standard servo connectors. The included micro servo features clearly colour-coded wires, with brown for ground, red for positive power, and orange for the signal line.

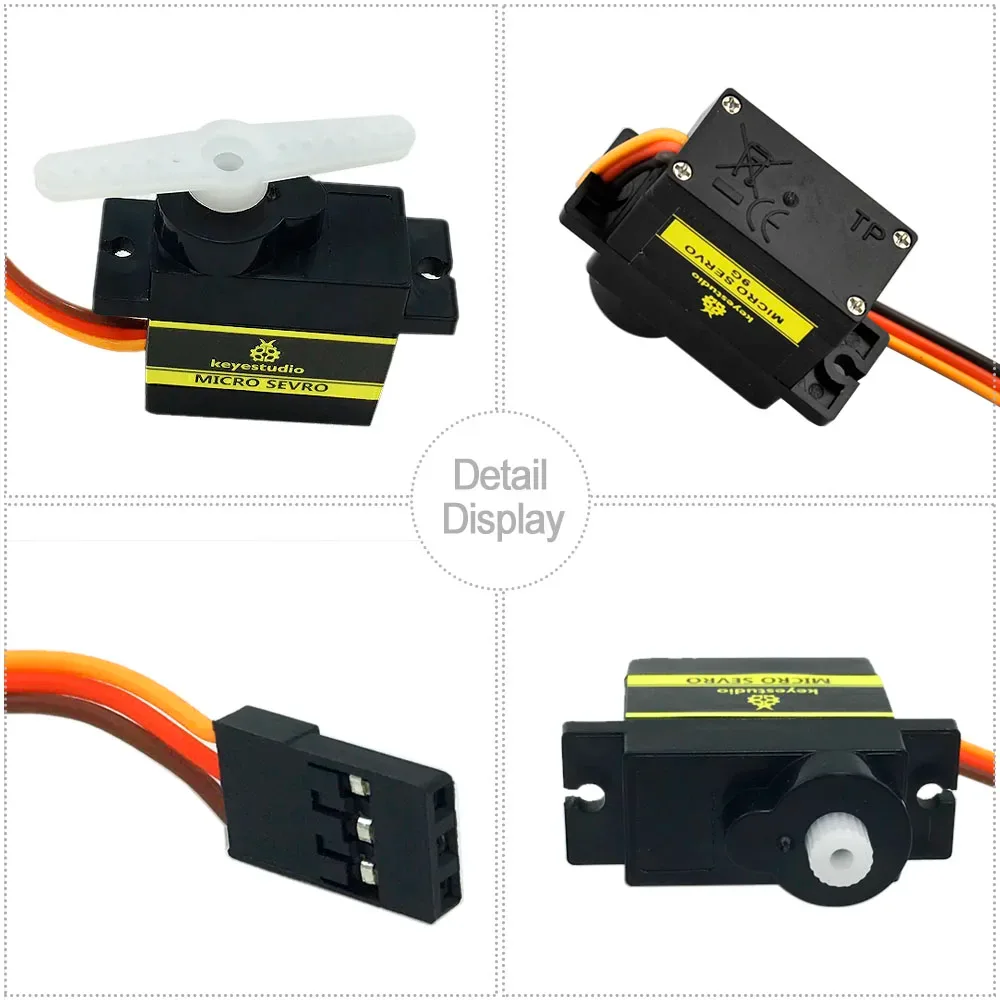

Precise 180-degree rotation

The micro servo operates over a 180-degree angle range, controlled by adjusting the duty cycle of a standard 50Hz PWM signal. The pulse width ranges from 500 to 2500 microseconds to map accurately from 0 to 180 degrees.

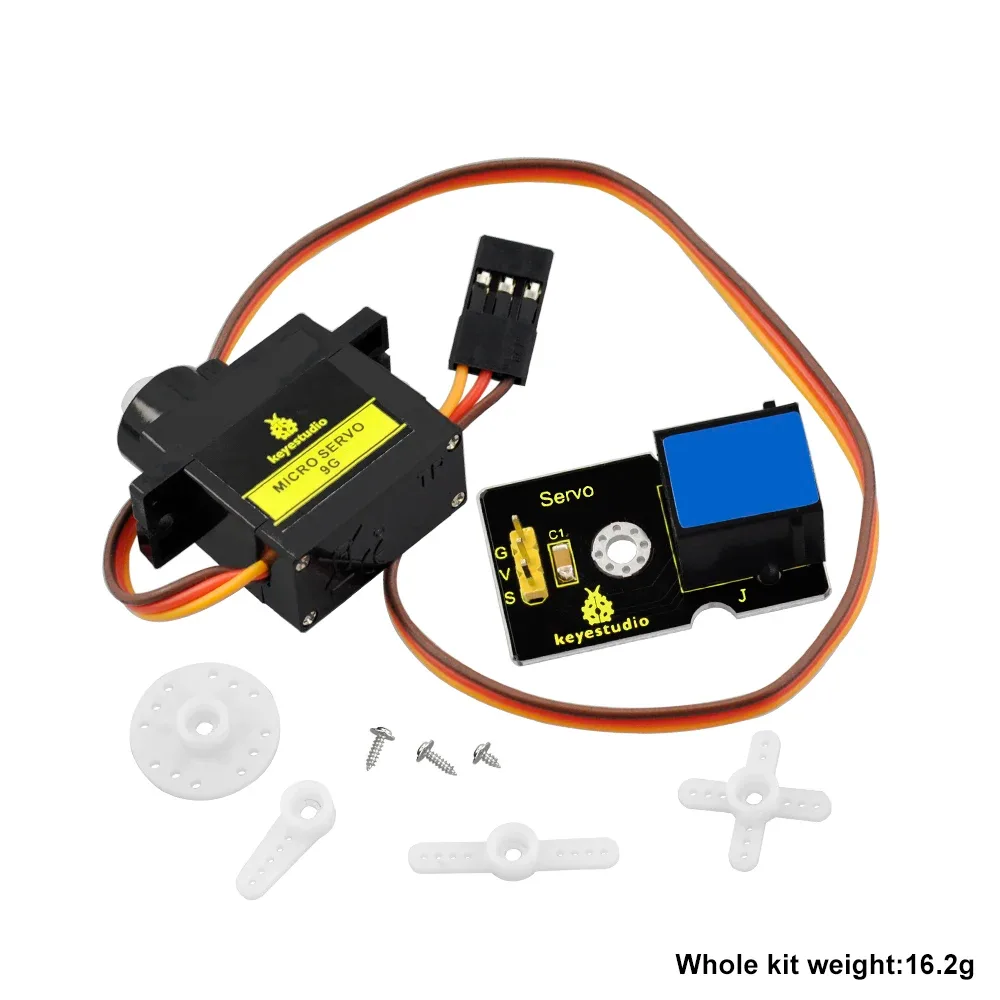

Included motor mounts

The package includes a variety of white motor mounts that connect directly to the servo shaft. These horns act as visual aids to track rotation and provide physical attachment points for your robotic linkages.

Dual voltage performance specifications

Operating between DC 4.8V and 6V, this micro servo delivers a stop torque of up to 1.5 kg/cm at 6V. It achieves a no-load speed of 0.1 seconds per 60 degrees at 6V, making it highly responsive for small-scale robotics.
