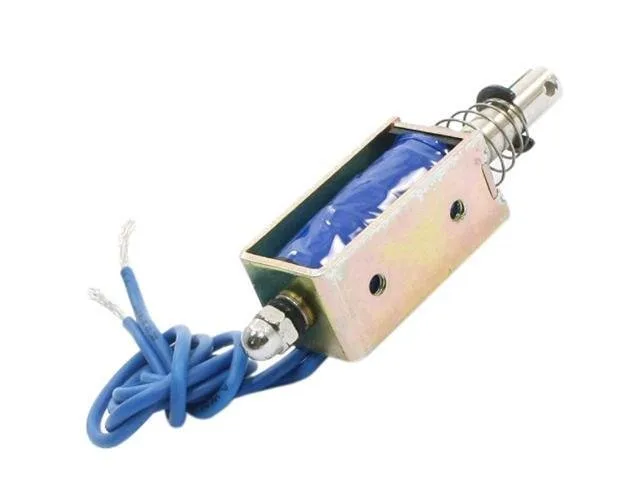

JF-0530B Push-Pull DC Solenoid Electromagnet, 12V, 5N, 10mm
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The JF-0530B is a compact 12V DC push-pull linear solenoid electromagnet delivering 5N of force across a 10mm stroke. When energised, it produces linear motion to push or pull an attached object, returning via plunger action. It is well suited to makers, students, and hobbyists building actuated mechanisms and automated locks.
Linear push-pull actuation
This unit operates as a linear motion DC solenoid electromagnet featuring plunger return. When power is applied, it exerts pulling or pushing force on joined mechanical components.
Operating duty cycle
This solenoid is designed for short-duration activation. It should only be powered for brief intervals of around 2 seconds rather than continuously.
Typical applications
It is commonly used in vending machines, transport equipment, office facilities, household appliances, and general mechanical systems.
Specifications
| Device | Solenoid |
| Type | JF-0530B | Push Pull |
| Rated Voltage | DC 12V |
| Rated Current | 1A |
| Force & Stroke | 5N/10mm |
| Body Size | 30x16x15mm |
| Plunger Bar Size | 6x58mm |
| Mounting Hole Dia | 2.5mm |
| Cable Length | 20cm |
| Material | Metal, Electronic Parts |
