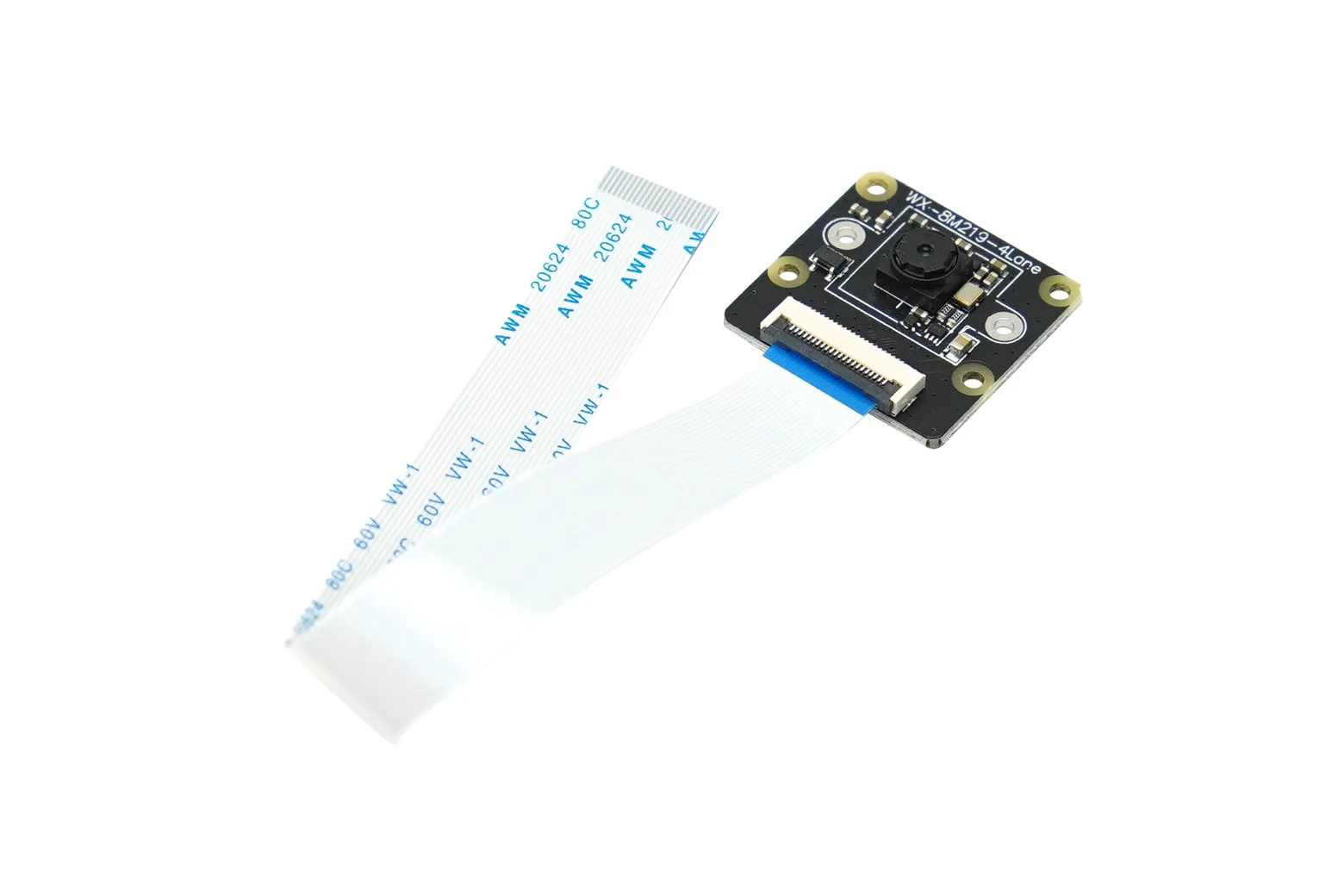

IMX219-77-4Lane 8MP Camera Module for Raspberry Pi 5 (3280x2464 Resolution, FOV 79°)

The IMX219-77-4Lane 8MP Camera Module is a high-resolution vision sensor engineered specifically for the Raspberry Pi 5. Powered by an 8-megapixel Sony IMX219 chip with a 4-lane MIPI CSI interface, it delivers detailed 3280x2464 imagery with low distortion. It is well suited to robotics developers, students, and makers building real-time machine vision and object recognition systems.

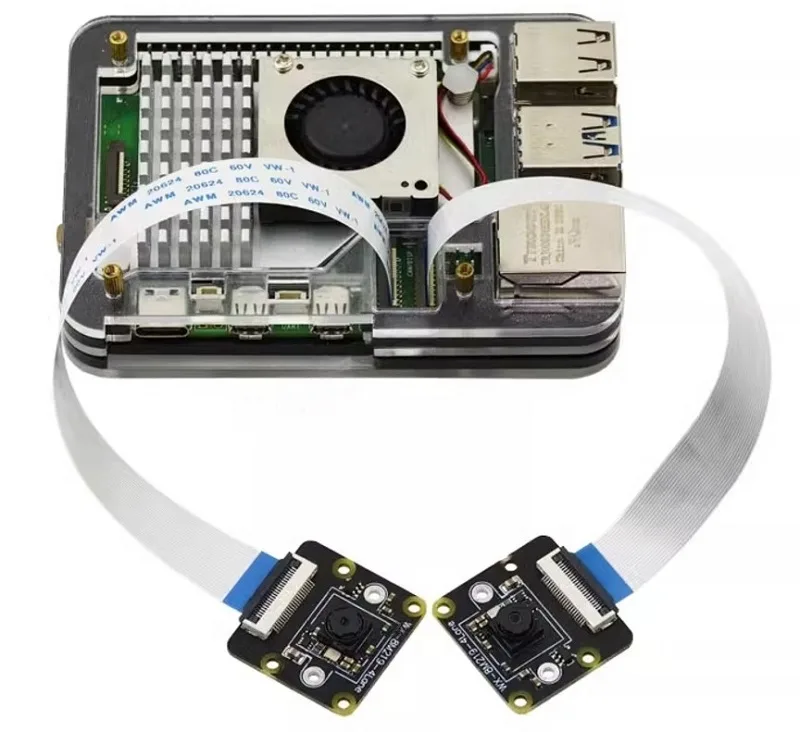

Direct Raspberry Pi 5 compatibility

The module connects directly to the Raspberry Pi 5 using the included 22-pin 0.5mm pitch FPC ribbon cable. This out-of-the-box hardware integration ensures reliable communication and simple setup in Raspberry Pi-based vision projects.

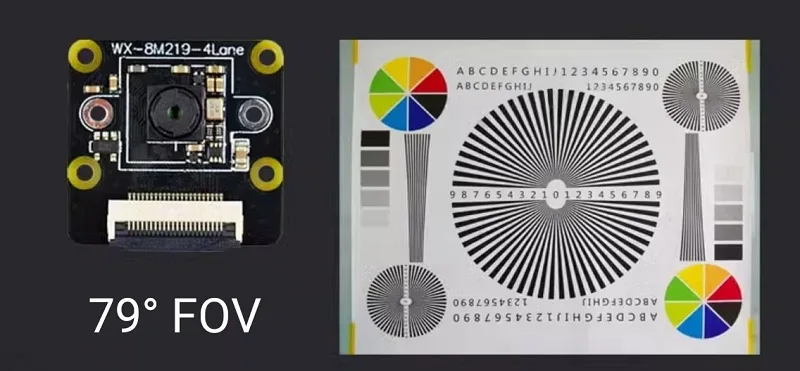

Sharp 8MP Sony imaging

Built around a 1/4-inch Sony IMX219 sensor, the camera delivers full 3280x2464 resolution stills and video. Its fixed-focus 2.85mm lens provides a 79.3-degree field of view with under 1% optical distortion for crisp, accurate visuals.

High-bandwidth 4-lane MIPI interface

By utilising a MIPI-CSI-4Lane interface, this camera module achieves higher frame rates than conventional 2-lane alternatives. The boosted data throughput ensures fluid real-time video feeds for dynamic tracking and machine vision applications.

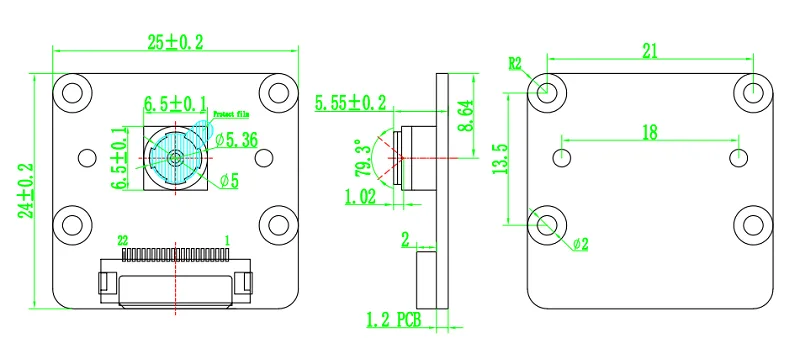

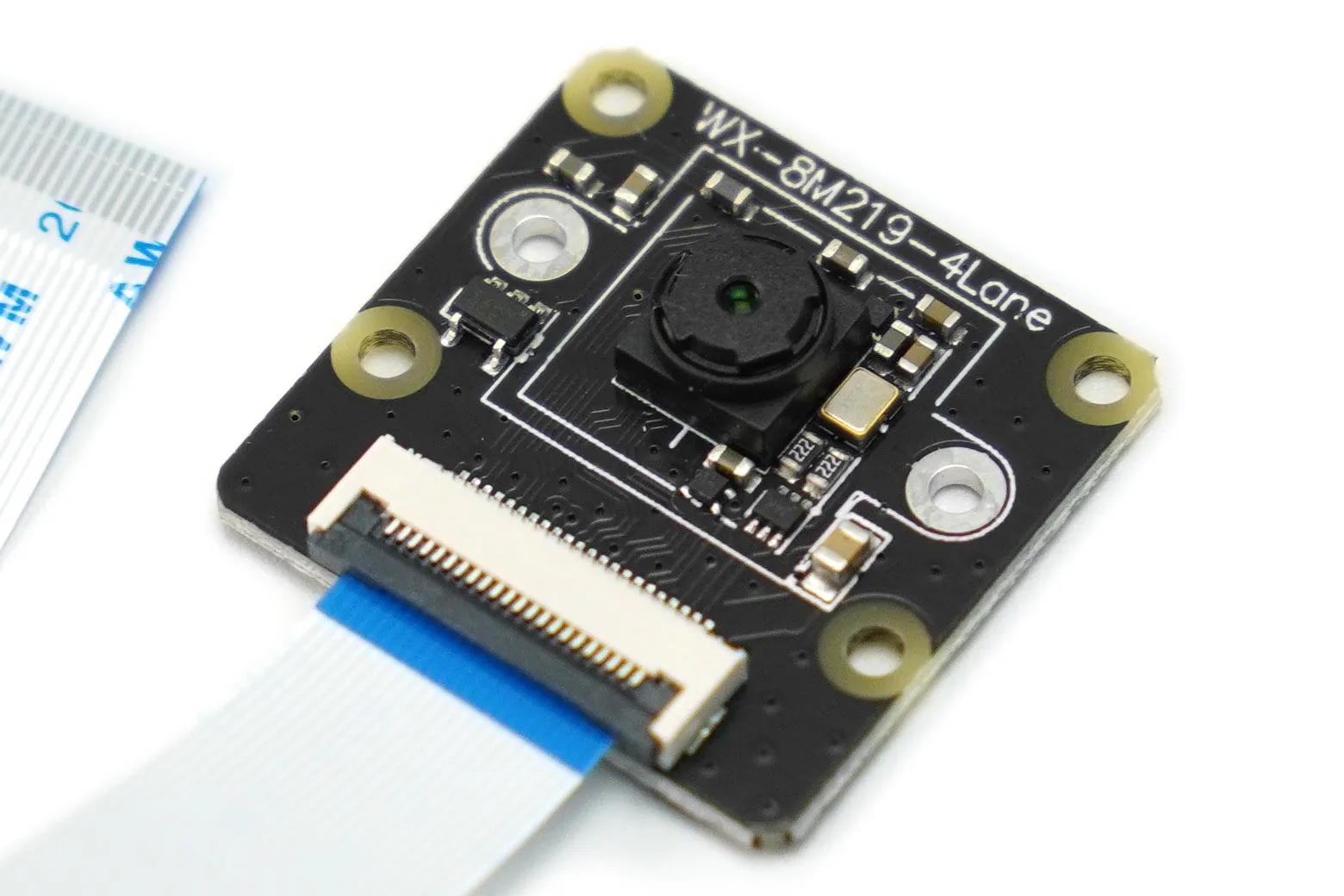

Compact physical footprint

Featuring a PCB size of 25 x 24 mm and a 6.5 x 6.5 mm lens assembly, this lightweight board fits easily into tight enclosures and robotic assemblies. The fast F2.0 aperture ensures effective light intake in diverse ambient lighting environments.

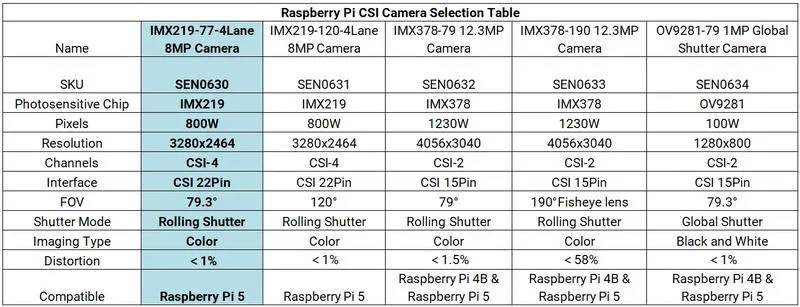

Focused field of view for precision tasks

The 79-degree field of view concentrates pixel density across a focused target area rather than a wide span. This design is optimised for close-range optical inspections, industrial automation, and high-accuracy object classification.

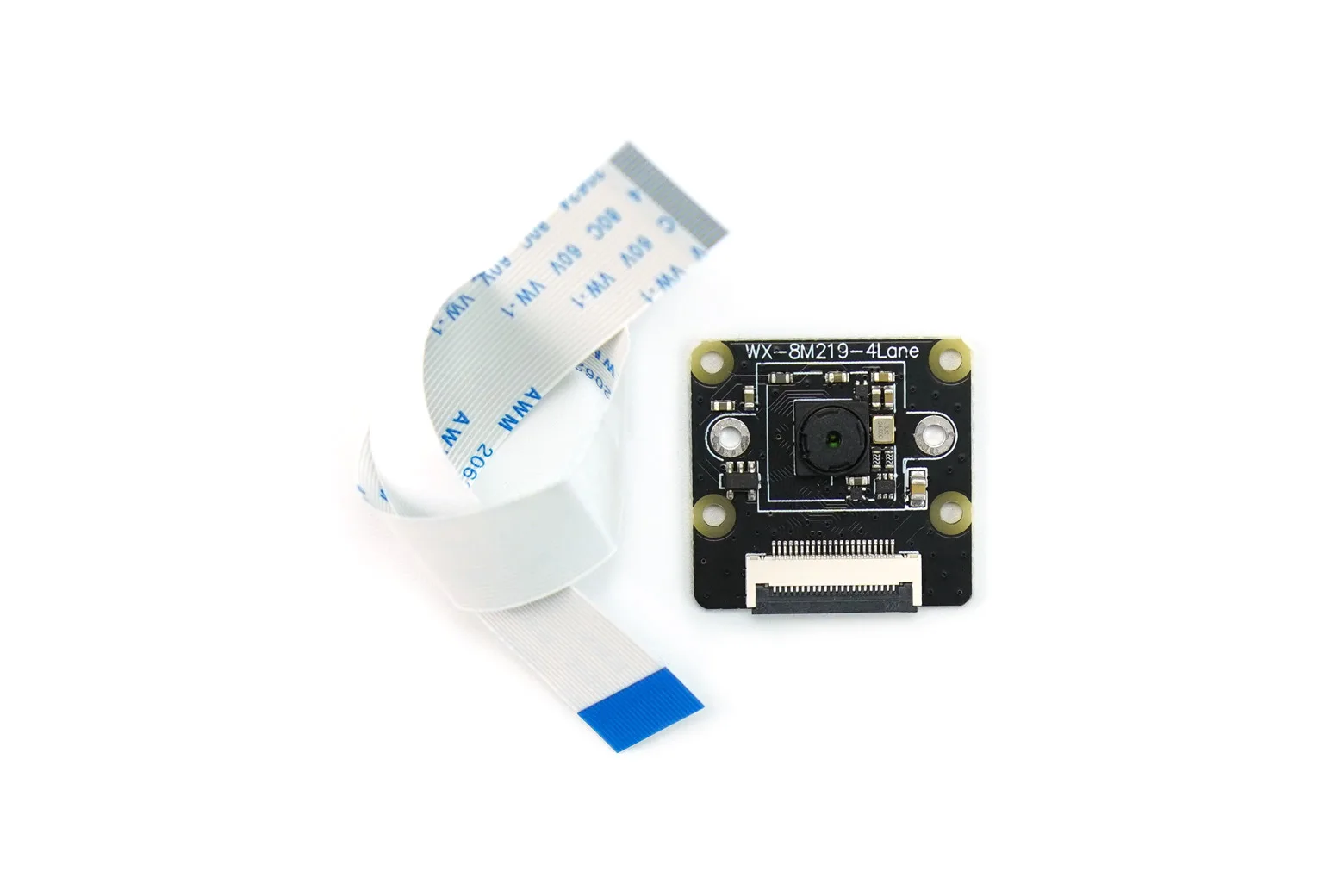

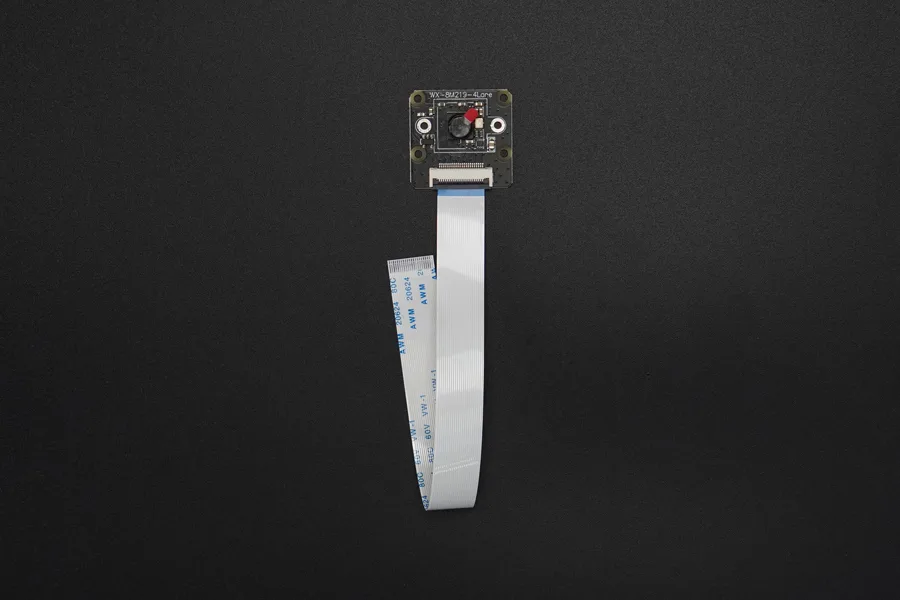

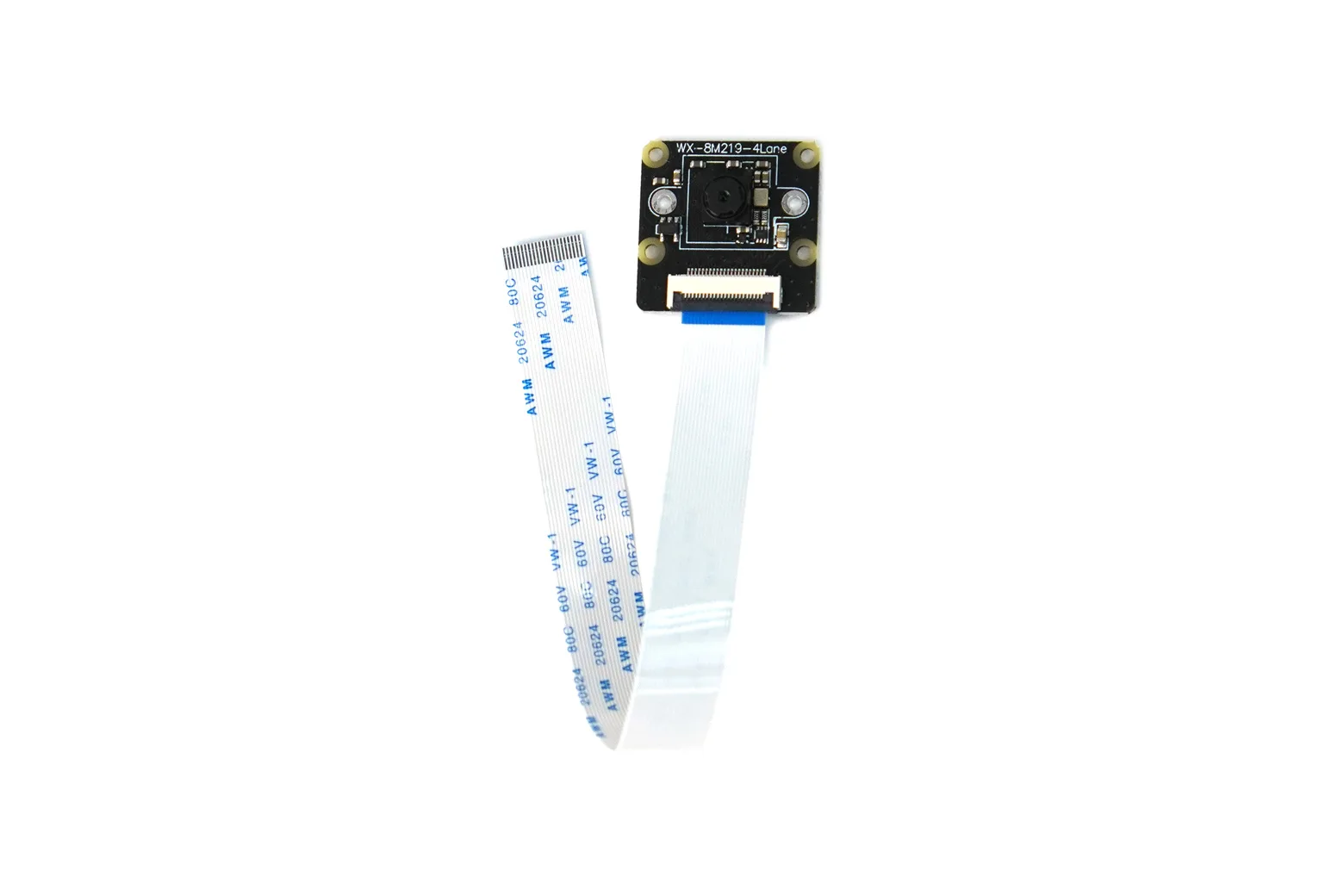

Included package contents

The kit includes one IMX219-77-4Lane 8MP camera module and one compatible 22-pin FPC cable ready to link with your Raspberry Pi 5.
