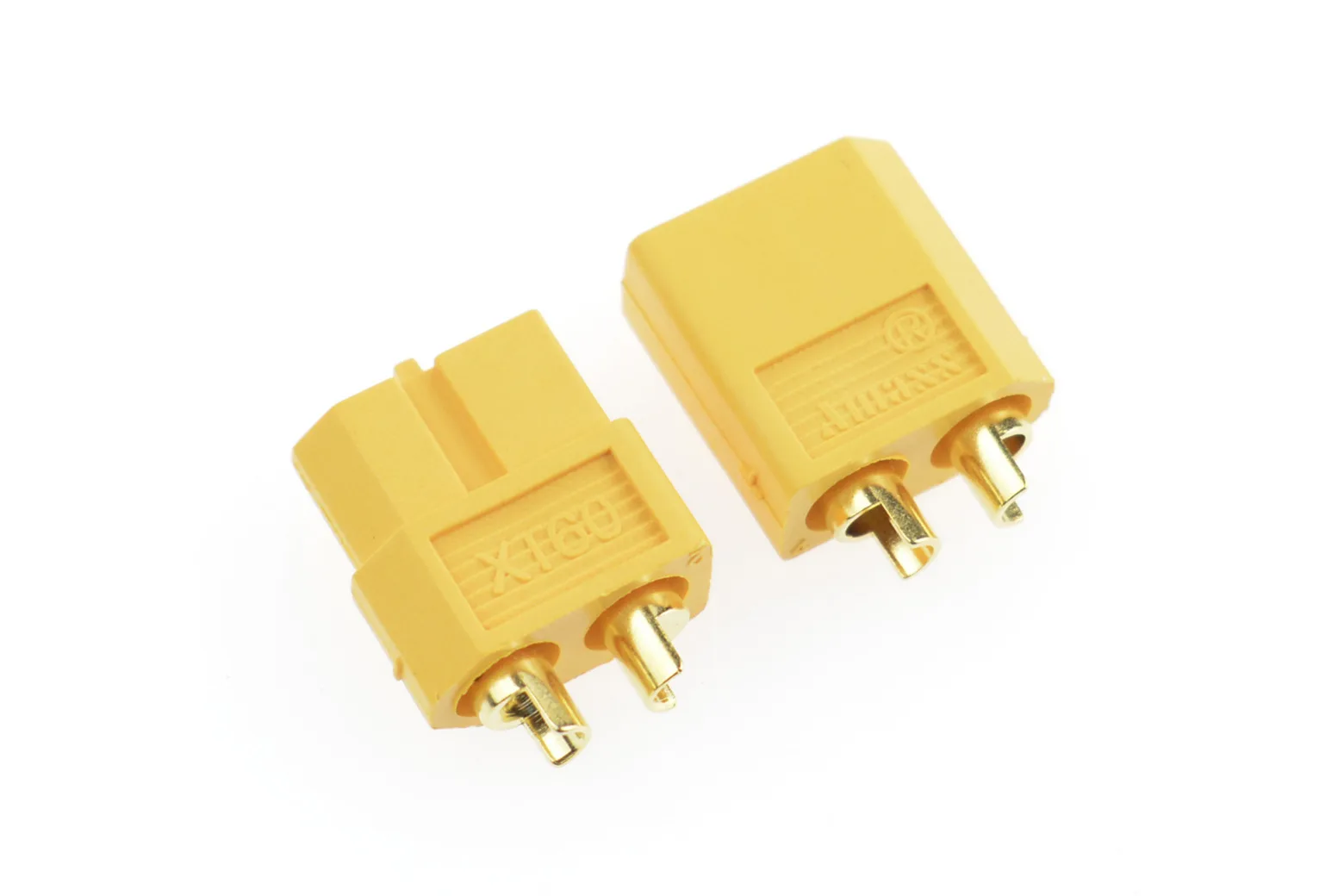

High Quality Gold Plated XT60 Male & Female Bullet Connector

This CE- and UL-certified XT60 male and female bullet connector pair provides a compact, low-resistance power link for robotics projects and battery setups. Designed for makers, students, and hobbyists, it delivers reliable high-current power handling in a durable form factor.

High current and low resistance

Featuring gold-plated copper contacts with a cross-recessed banana design, the connector maintains a low 0.55 milliohm contact resistance. It handles a continuous 30A current and peak bursts up to 60A at a rated DC 500V.

Flame-retardant polyamide housing

The insulating PA shell is rated UL94 V0 for flame retardancy, resisting ignition and automatically extinguishing once removed from a flame source.

Durable integrally cast assembly

Internal metal inserts are cast directly into the plastic casing for a tight fit rated for up to 1,000 mating cycles across operating temperatures from -20°C to 120°C.

Ergonomic soldering and handling

The housing includes non-slip grip profiling, a groove card slot, and humanised solder terminals suited for 12AWG wire gauge connections.
