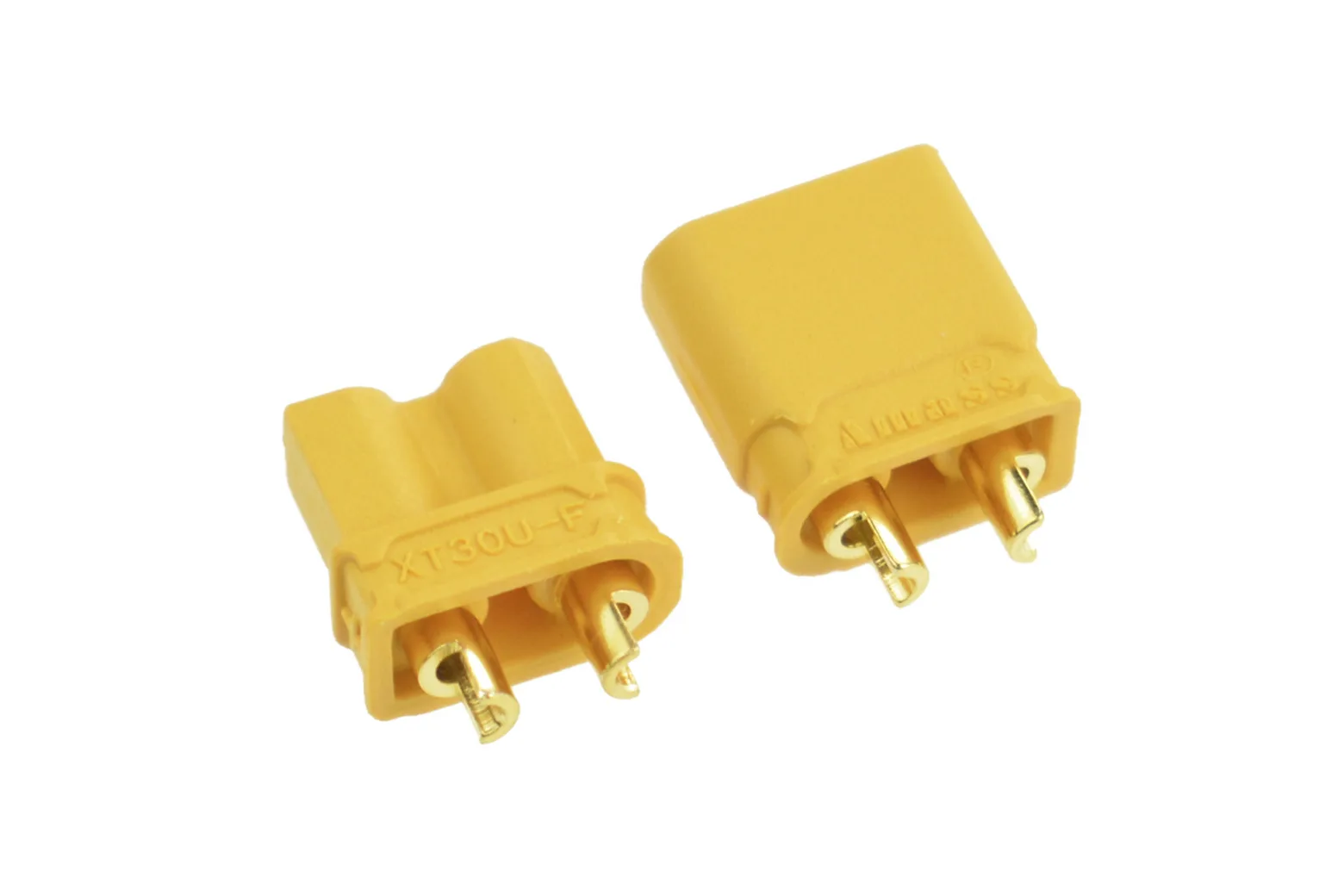

High Quality Gold Plated XT30 Male & Female Bullet Connector
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This high-quality gold-plated XT30 male and female connector pair provides reliable, low-resistance power distribution in a compact form factor. Rated for 15A continuous and 30A instantaneous current, it is ideal for robotics builders, RC hobbyists, and makers working with space-constrained DC power systems.
High-current gold-plated contacts

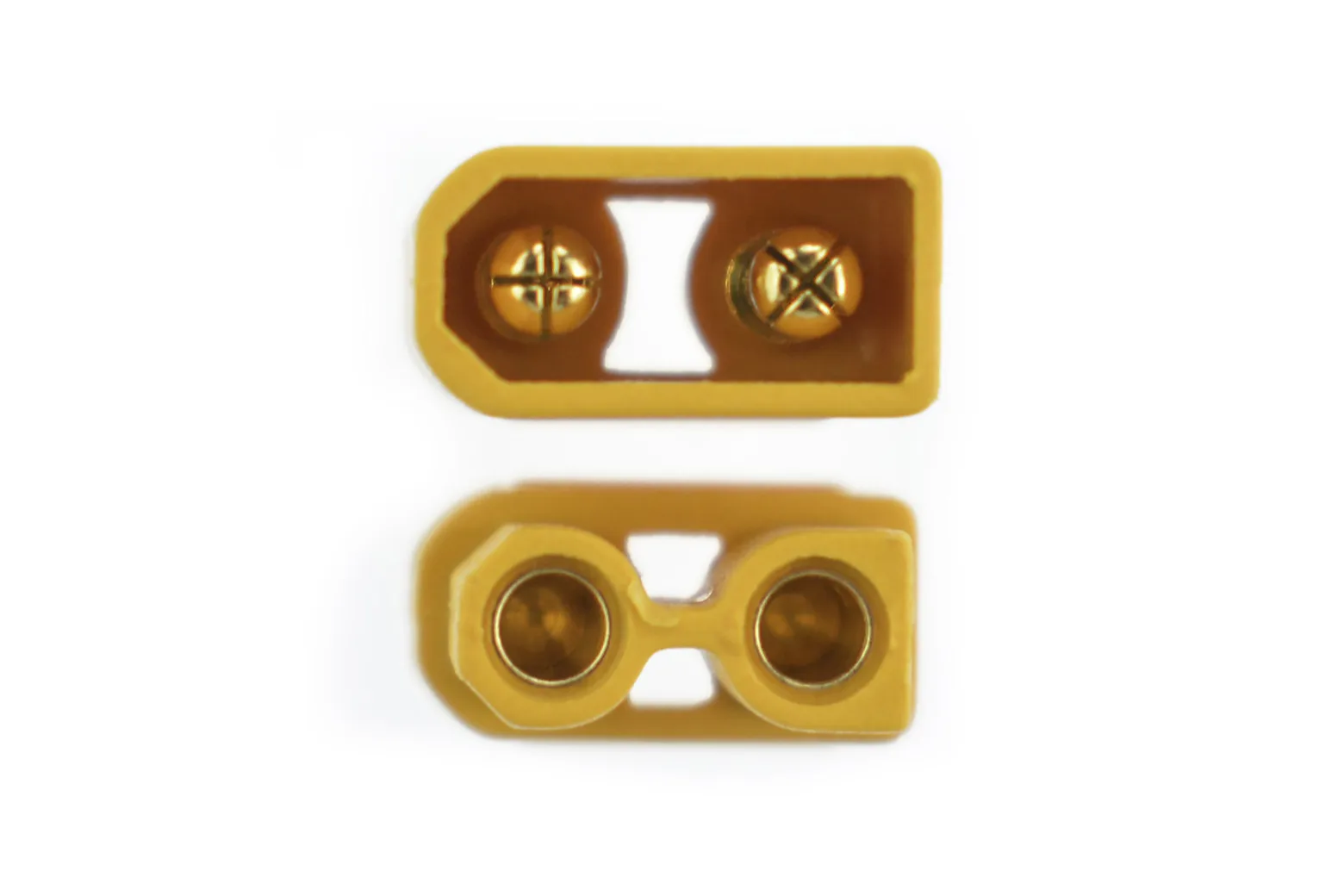

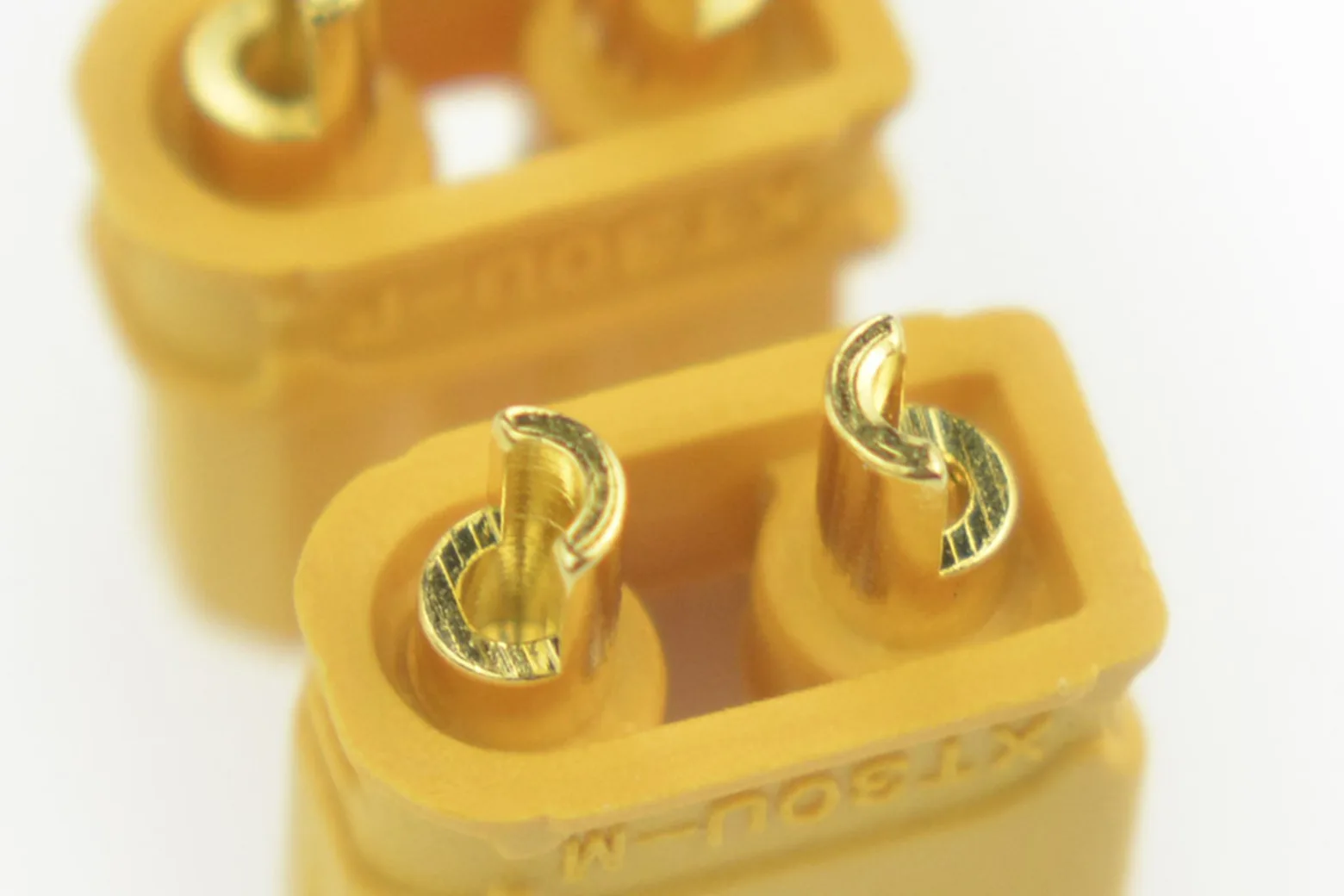

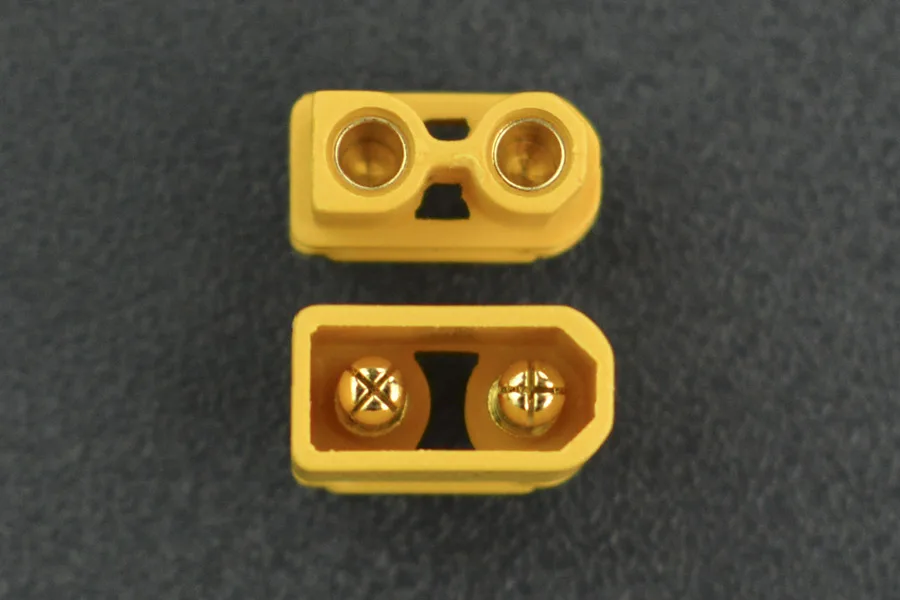

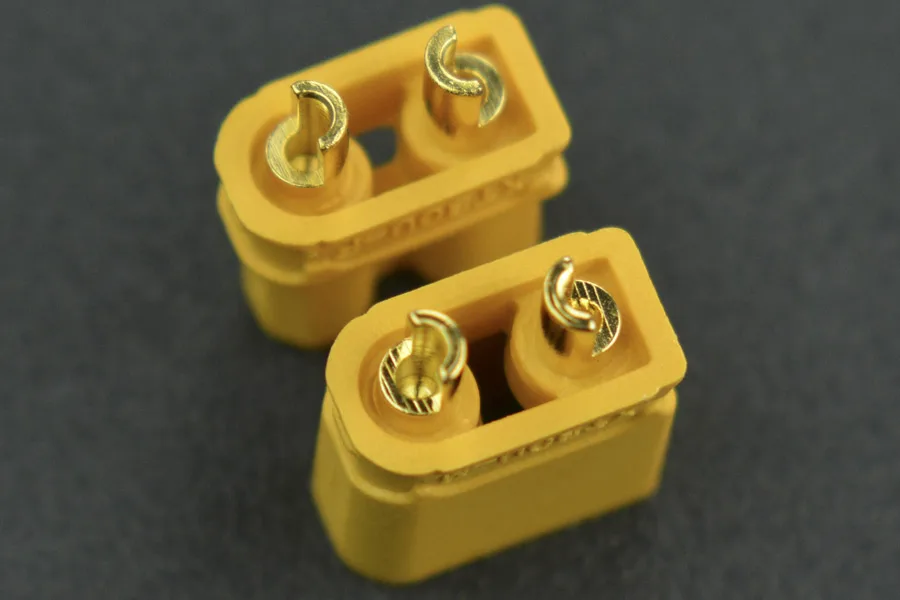

The copper banana connectors feature true gold plating and a cross-slot design to maximise contact surface area. This ensures a low contact resistance of 0.70 milliohms while supporting 15A continuous current and 30A peak bursts at DC 500V.
Flame-retardant insulating shell
Moulded from durable polyamide (PA), the connector housing achieves a UL94 V0 flame-retardant rating. The material self-extinguishes once removed from an open flame, offering improved thermal safety during soldering and under sustained electrical loads.
Compact and durable design
The mini XT30 footprint takes up minimal space inside tight robot chassis and battery bays. Built for repeated use, the connectors are rated for up to 1,000 mating cycles across a wide temperature range of -20°C to 120°C.
Wiring and safety standards
This connector pair is recommended for use with 18AWG wiring and carries both CE and UL safety certifications.
What is included
Includes one XT30 male bullet connector and one XT30 female bullet connector.
Specifications
| Type | XT30 |
| Rated voltage | DC500V |
| Rated current | 15A |
| Instantaneous current | 30A |
| Insulation shell material | PA |
| Metal head material | copper plated |
| Flame retardant rating | UL94 V0 |
| Recommended wire gauge | 18AWG |
| Contact resistance | 0.70 milliohm |
| Number of uses | 1000 times |
| Working environment temperature | -20 ° C ~ 120 ° C |
| Safety certification | UL/CE |
In the box
| High Quality Gold Plated XT30 Male & Female Bullet Connector | 1 |
