Gravity: PH2.0-Male DuPont Line with Tag (30cm, 5 Pack)

This five-pack of 30cm PH2.0 to male DuPont cables features tagged pin labels for fast and accurate circuit connections. Designed to eliminate wiring mistakes in complex setups, they are ideal for students, educators, and makers working with breadboards and DFRobot Gravity modules.

Labelled I2C and UART pins

Each cable features dedicated pin tags that simplify line identification during assembly and troubleshooting. This helps prevent wiring errors caused by difficult-to-read onboard silkscreen labels.

Standard Gravity colour coding

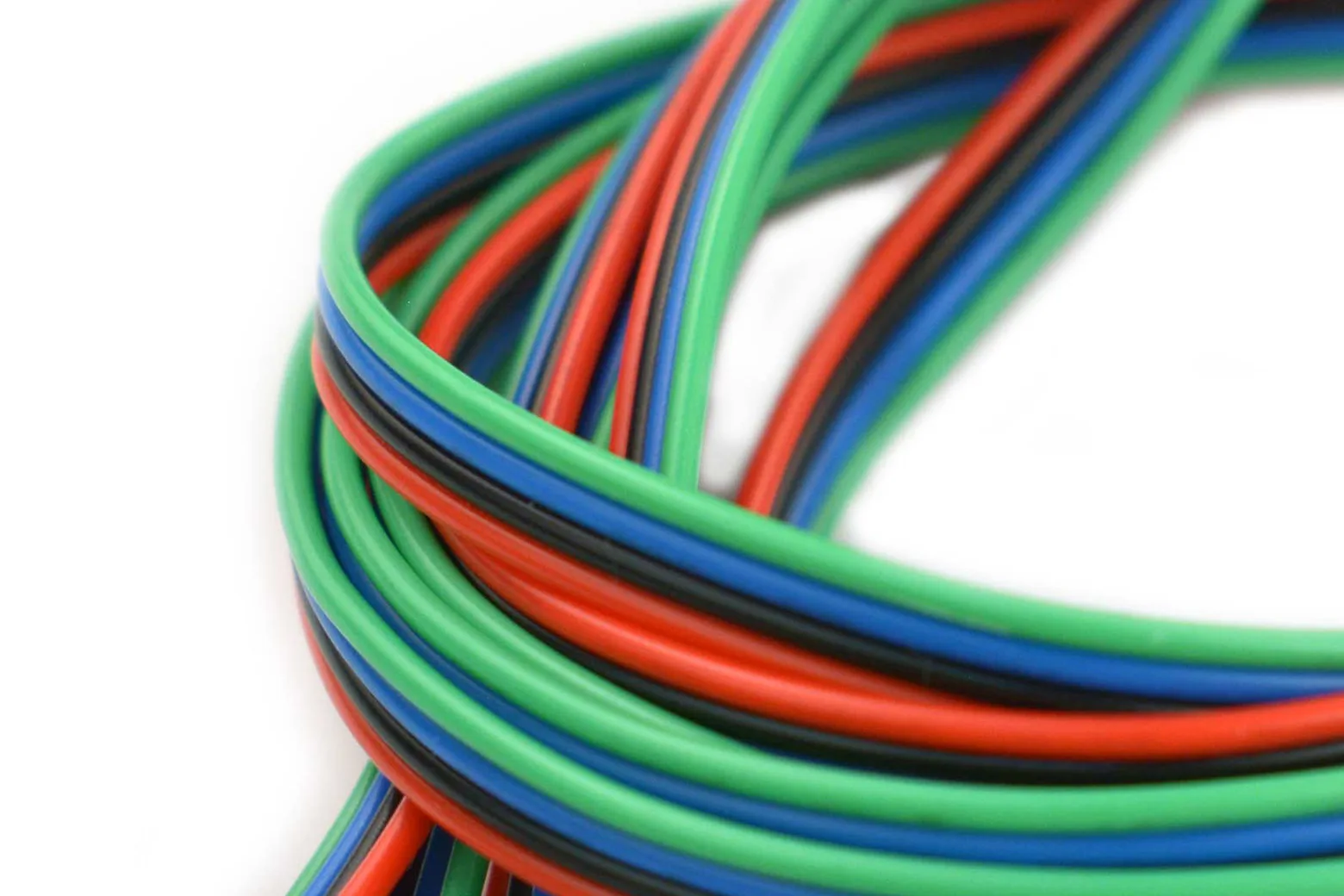

The wire sequence matches the DFRobot Gravity I2C and UART standard, using red for VCC/+, black for GND/-, blue for SCL/RX, and green for SDA/TX. Both ends maintain the same pin sequence for consistent hookups.

PH2.0 to DuPont male interface

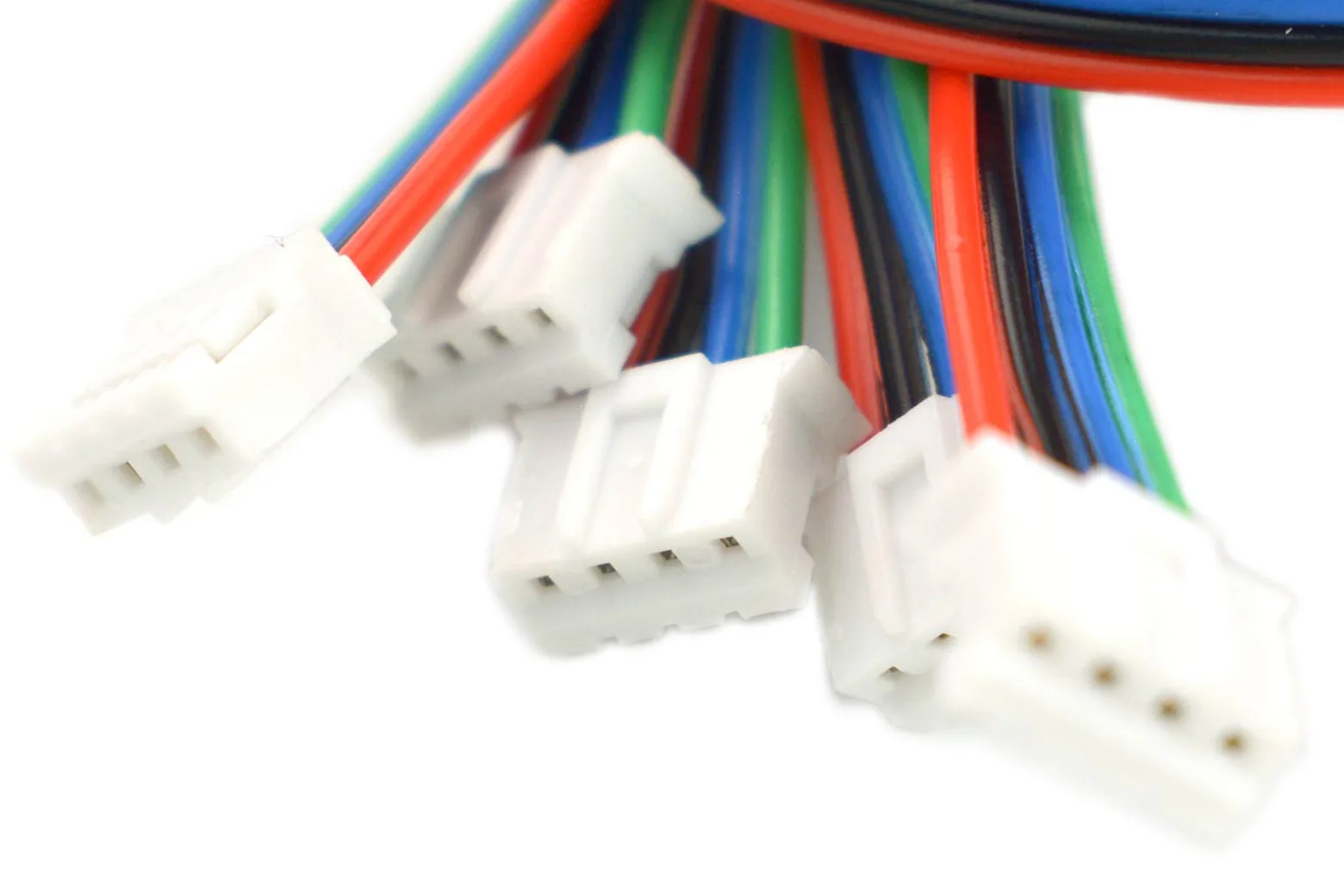

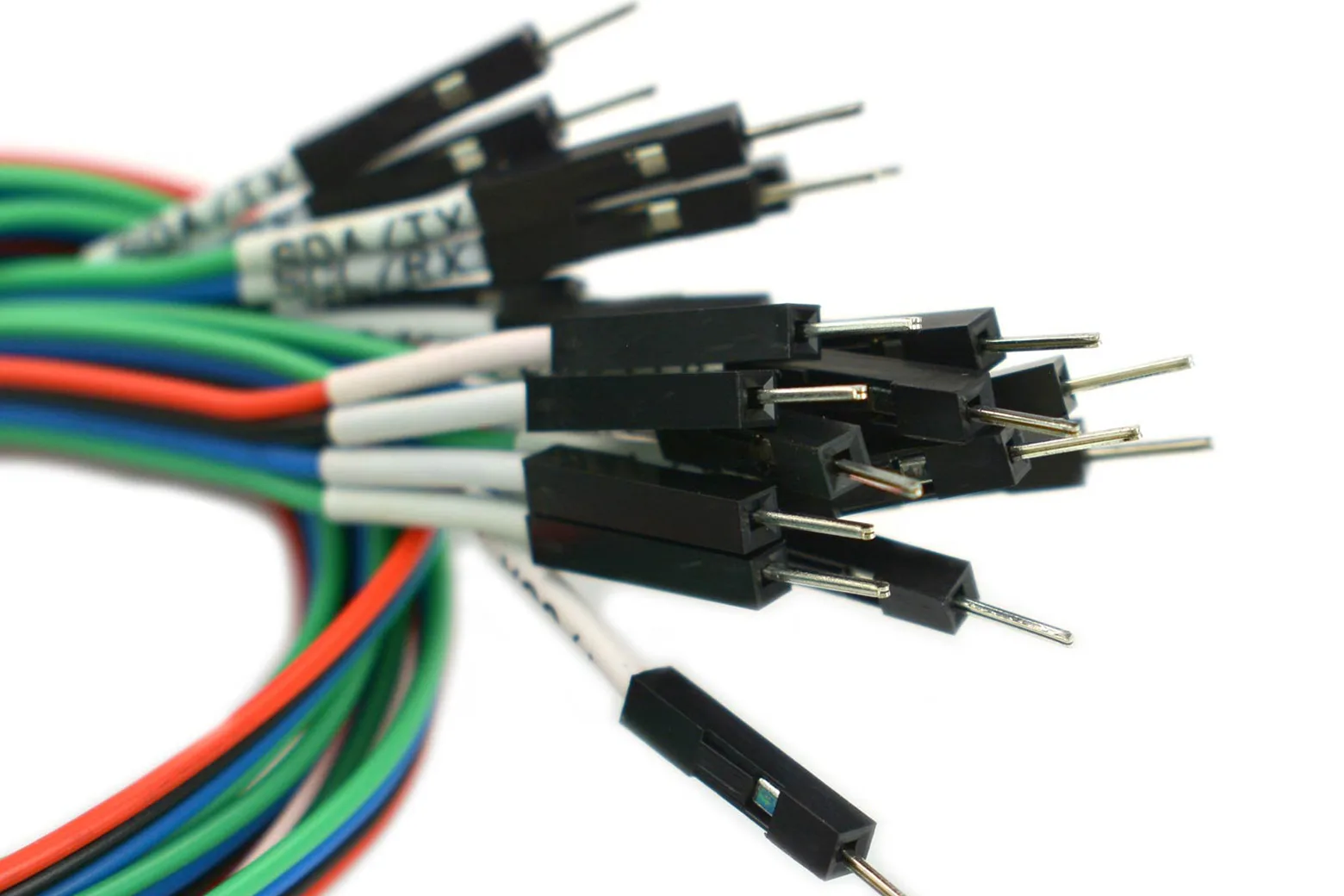

Terminated with a 4-pin PH2.0 socket on one end and 2.54mm male DuPont pins on the other, these 30cm leads bridge Gravity sensors directly to breadboards and development headers.

Voltage and current ratings

These RoHS-compliant cables are rated for a withstand voltage under 50V and a maximum withstand current of less than 1000mA.

Convenient five-piece bundle

Supplied as a pack of five 30cm cables, this set provides ample connectivity for STEAM classrooms and multi-sensor prototyping projects.
