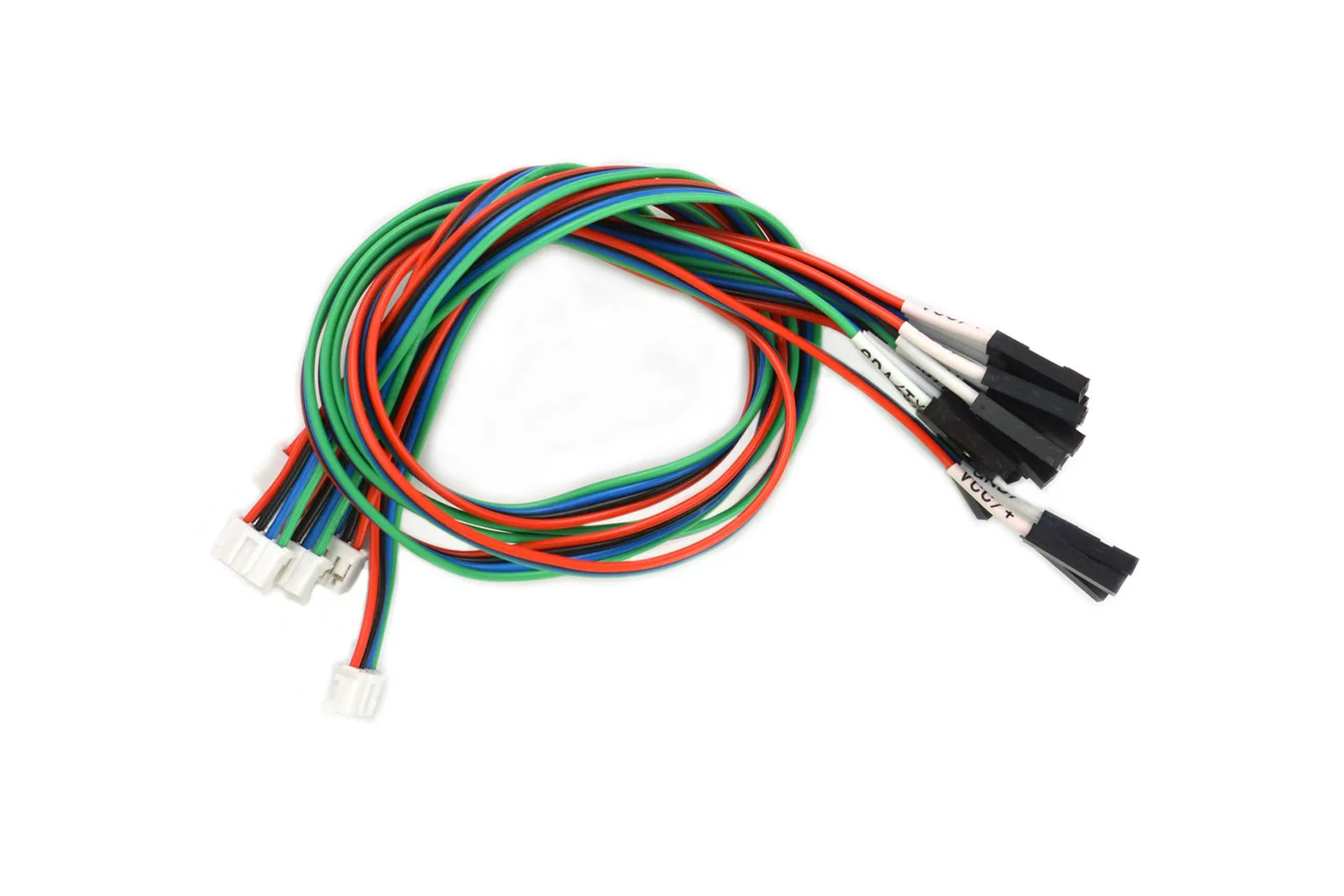

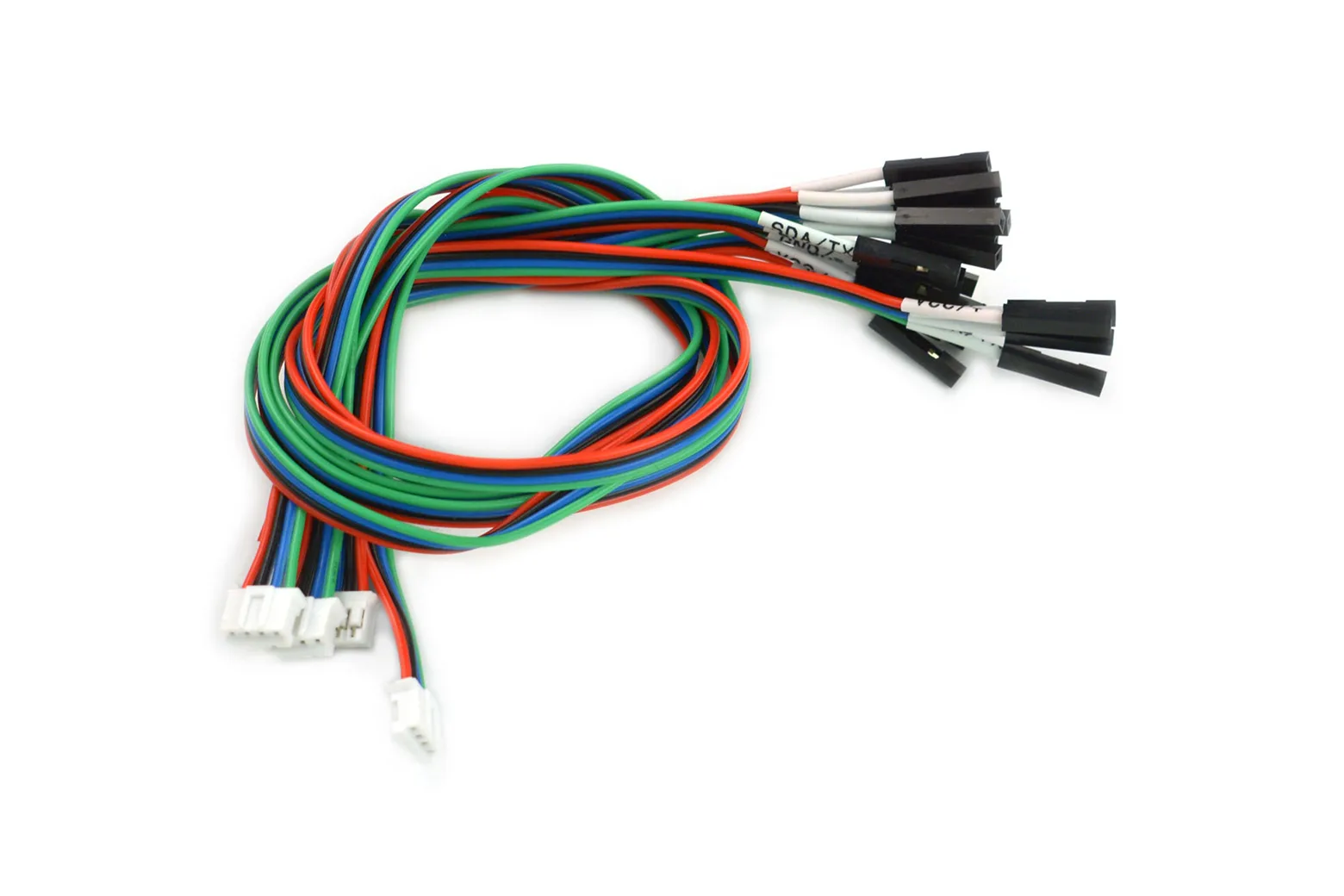

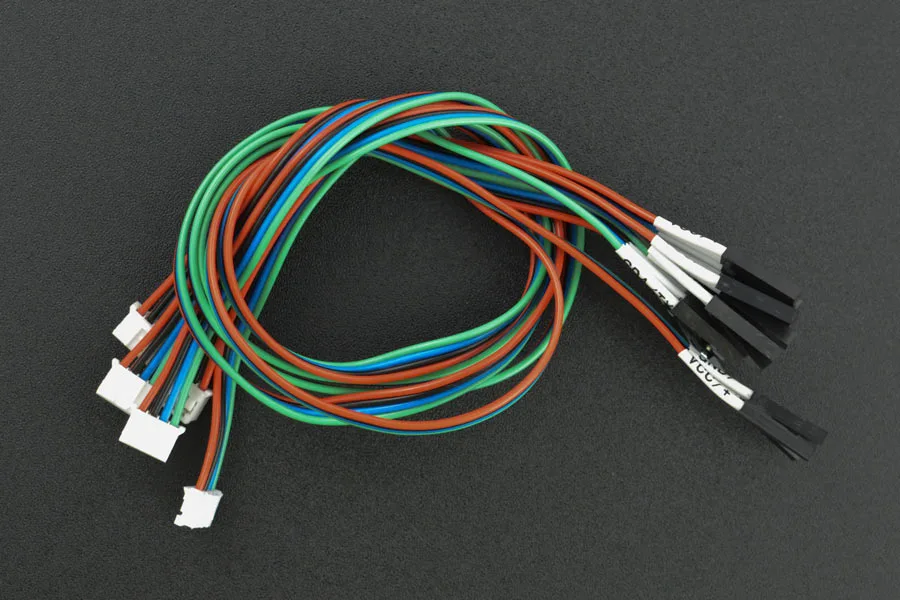

Gravity: PH2.0-Female DuPont Line with Tag (30cm, 5 Pack)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Gravity PH2.0-Female DuPont Line with Tag (30cm, 5 Pack) features clearly labelled interconnect cables designed to simplify circuit wiring and debugging. It is ideal for students, educators, and makers connecting Gravity sensors and modules to breadboards and development boards.
Clear I2C and UART pin labels
Integrated tags clearly mark the I2C and UART pin functions on each wire, eliminating confusion caused by tiny or faded board silkscreens during complex builds.
Standardised Gravity pin sequence

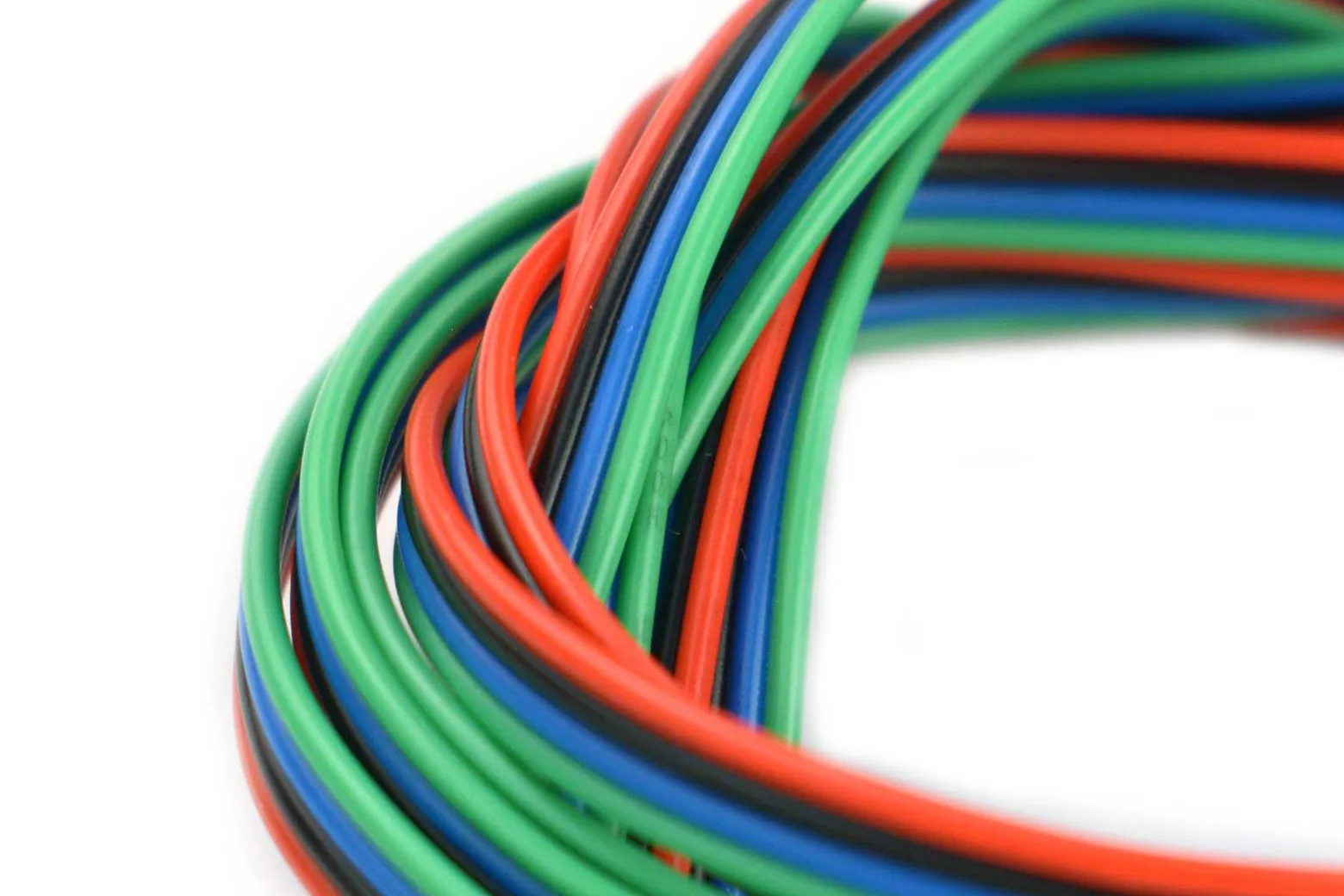

The wire sequence matches standard Gravity interfaces: red for VCC/power, black for GND, blue for SCL/RX, and green for SDA/TX.

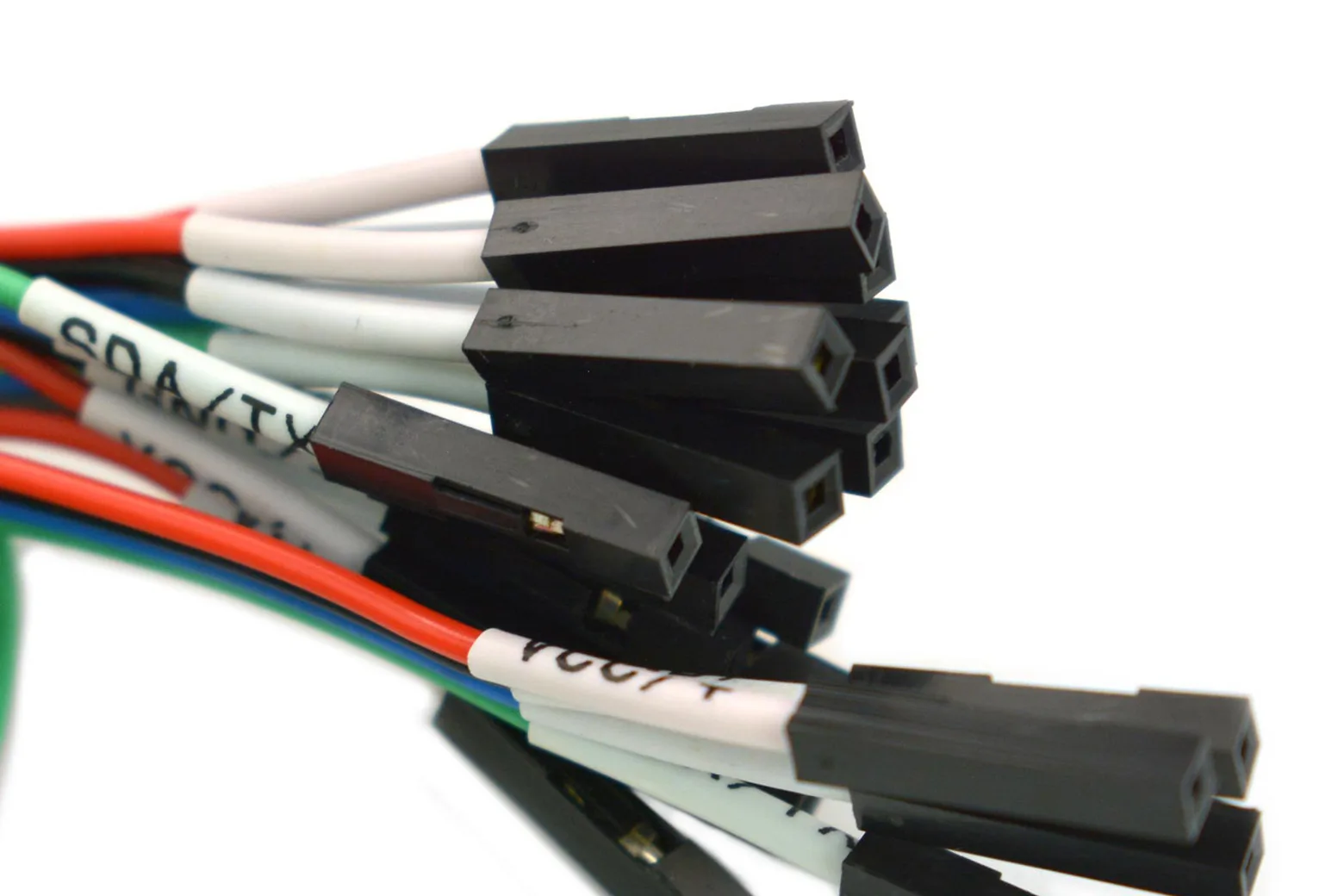

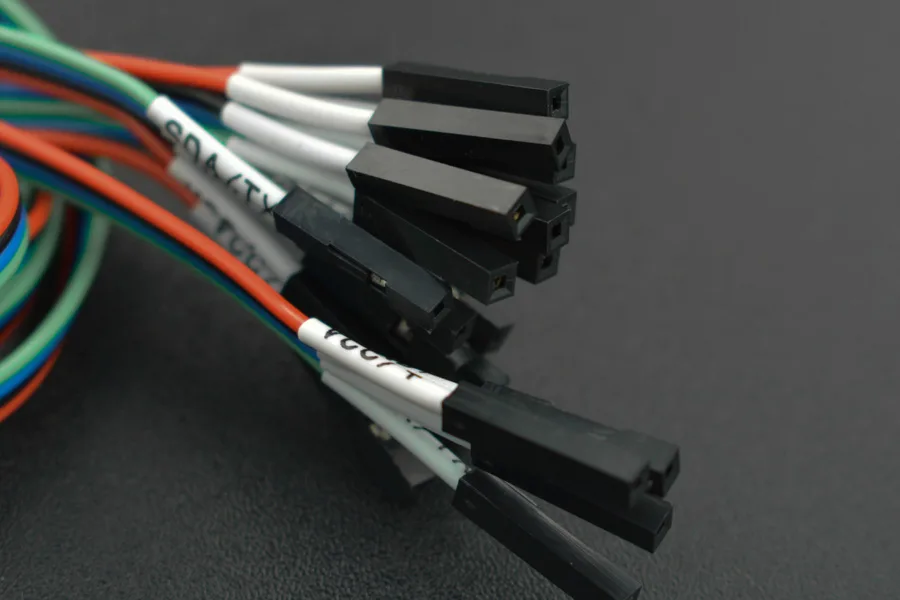

PH2.0 to female DuPont interface
Each 30cm cable connects a 4-pin PH2.0 socket to standard 2.54mm female DuPont headers, making it easy to bridge modules directly to breadboards or male pin headers.
Electrical specifications and compliance
These RoHS-compliant cables are rated for a withstand voltage under 50V and a current under 1000mA, providing safe and reliable power and signal connections.
Five-cable multi-pack
Supplied as a pack of five 30cm cables, this set provides ample leads for multi-sensor electronics projects and STEAM classroom kits.
Specifications
| Interface | PH2.0-DuPont 2.54 (Female) |
| Length | 30cm |
| Withstand Voltage | ＜50V |
| Withstand Current | ＜1000mA |
In the box
| Gravity: PH2.0-Female DuPont Line With Tag (30cm) × 5 | 1 |
