Description

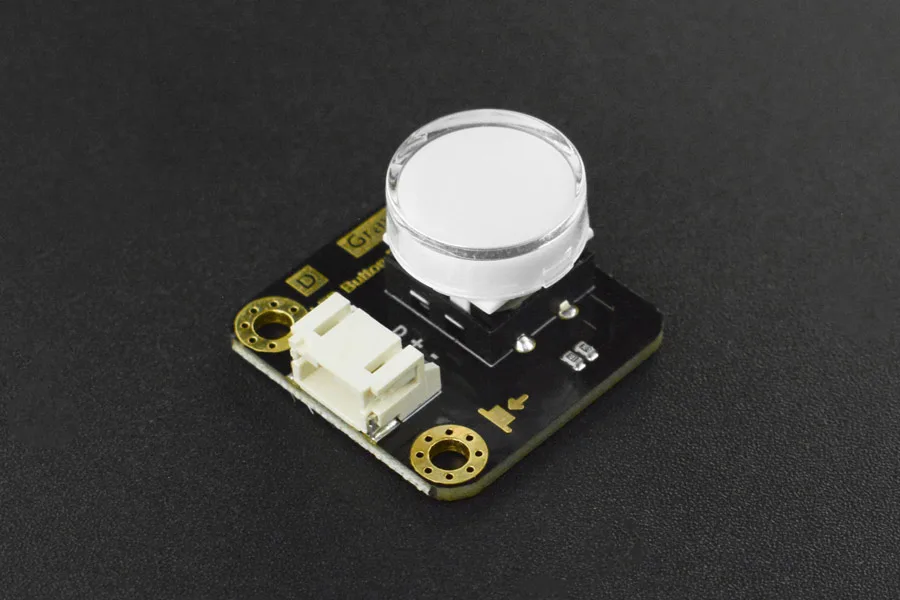

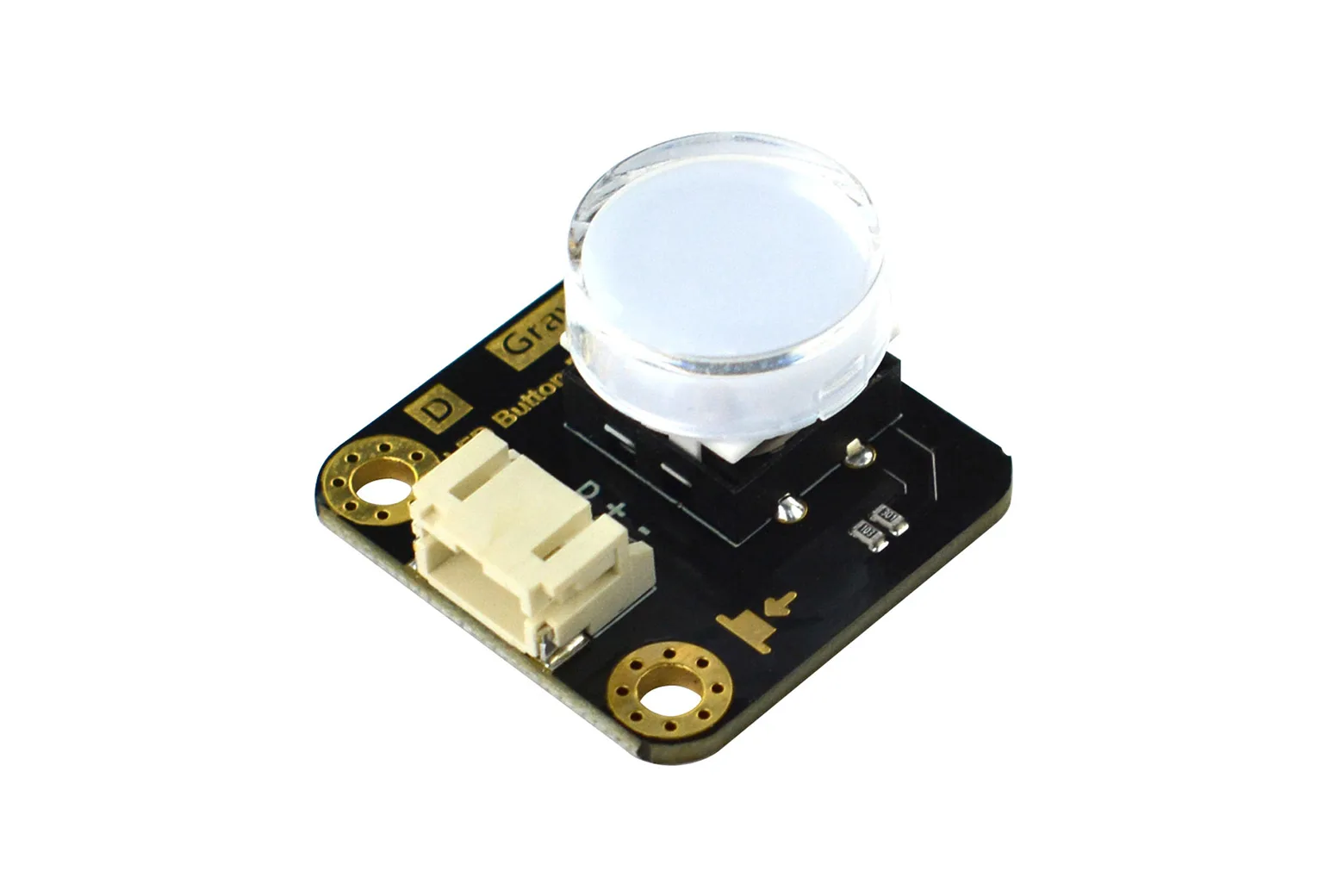

The Gravity: LED Button (Yellow) is an illuminated momentary switch topped with a transparent cap that provides instant visual feedback when pressed. Designed for micro:bit, Arduino, and other microcontroller platforms, it is ideal for students, hobbyists, and makers building interactive electronics projects.
Visual feedback on press

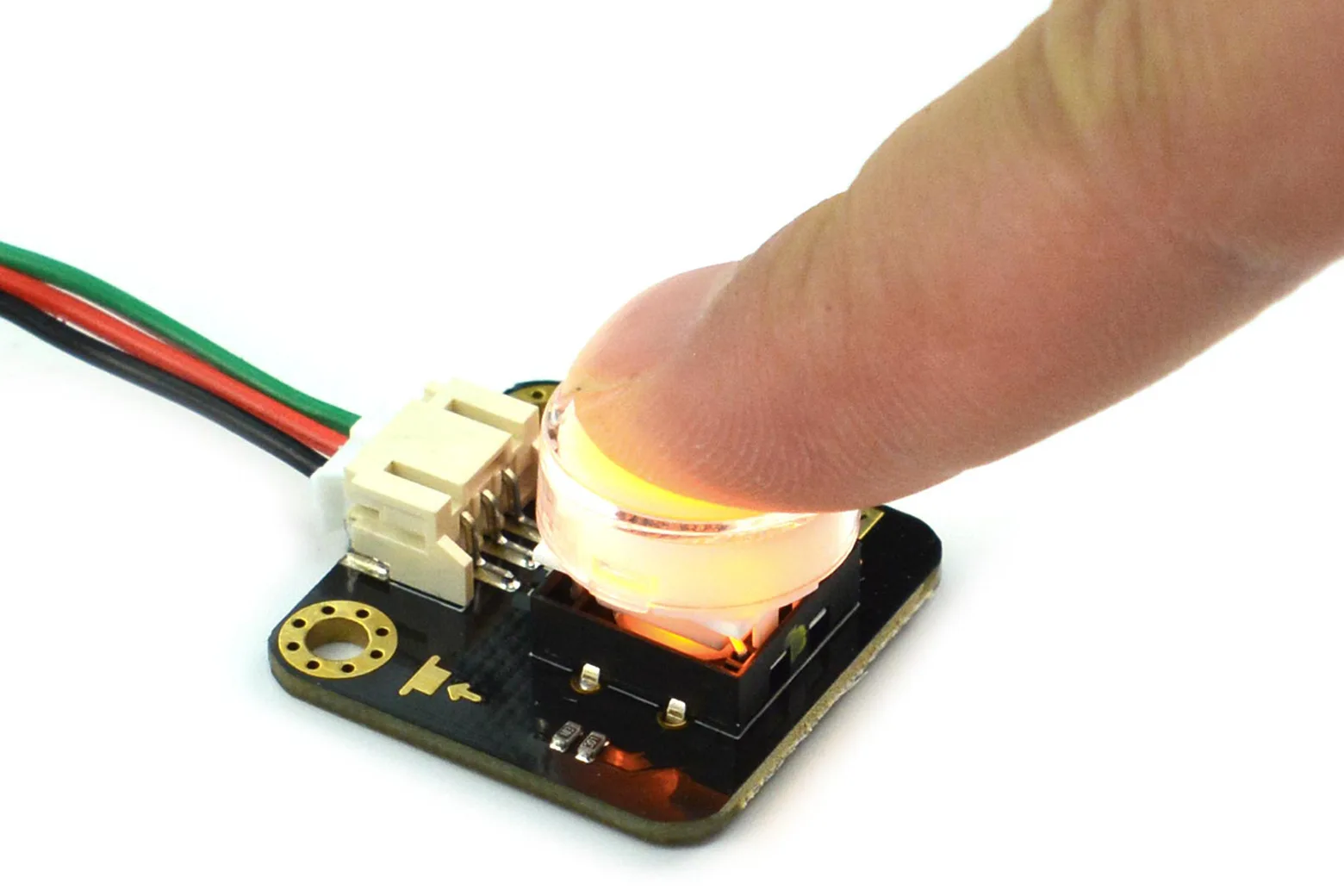

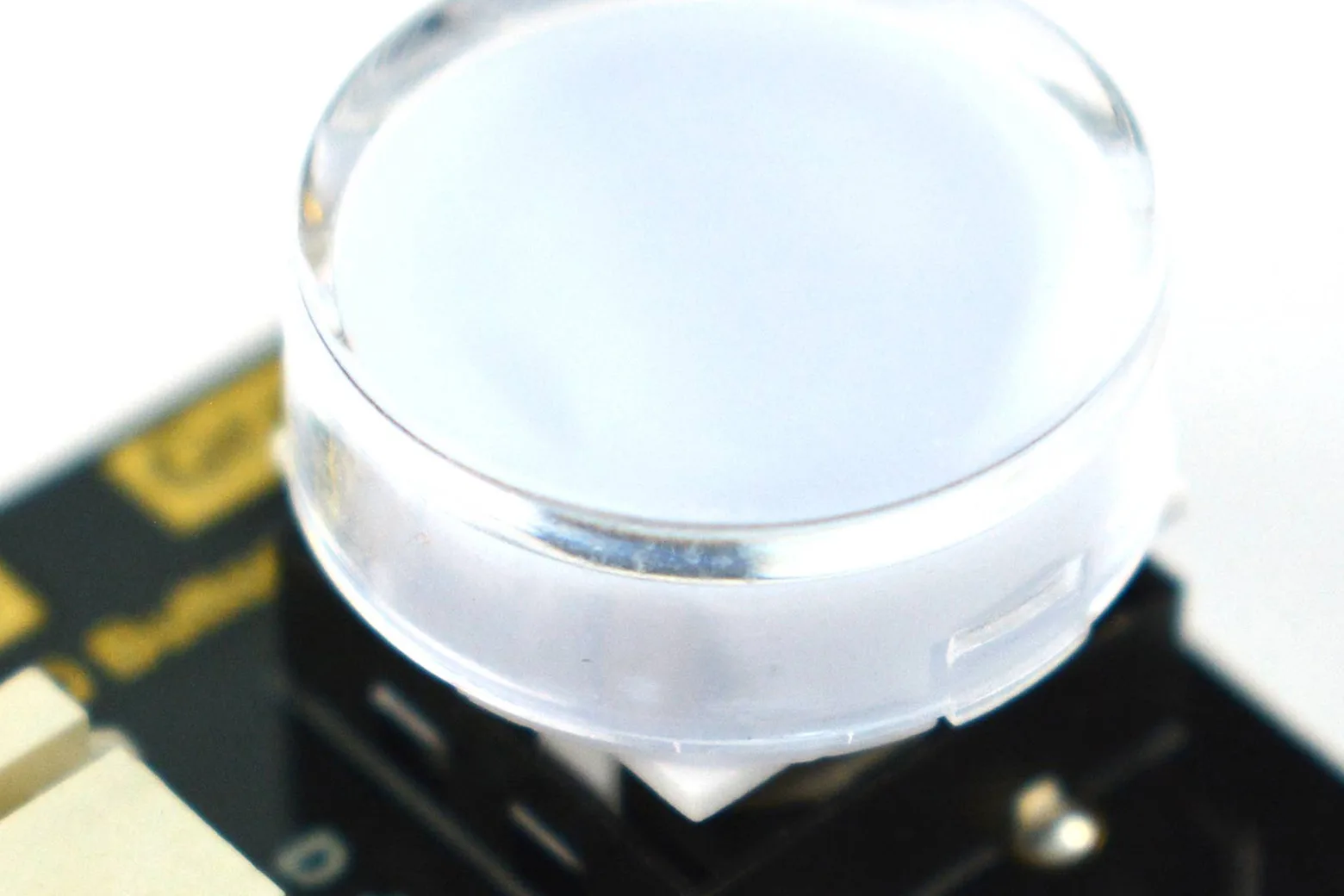

The module features an integrated yellow LED under a transparent cap that illuminates automatically whenever the button is pushed. When the button is released, the LED turns off.
Simple digital signal logic
The switch outputs a digital High signal while pressed down and switches to Low upon release. This straightforward logic simplifies code development across beginner and advanced setups alike.
Operating voltage and form factor

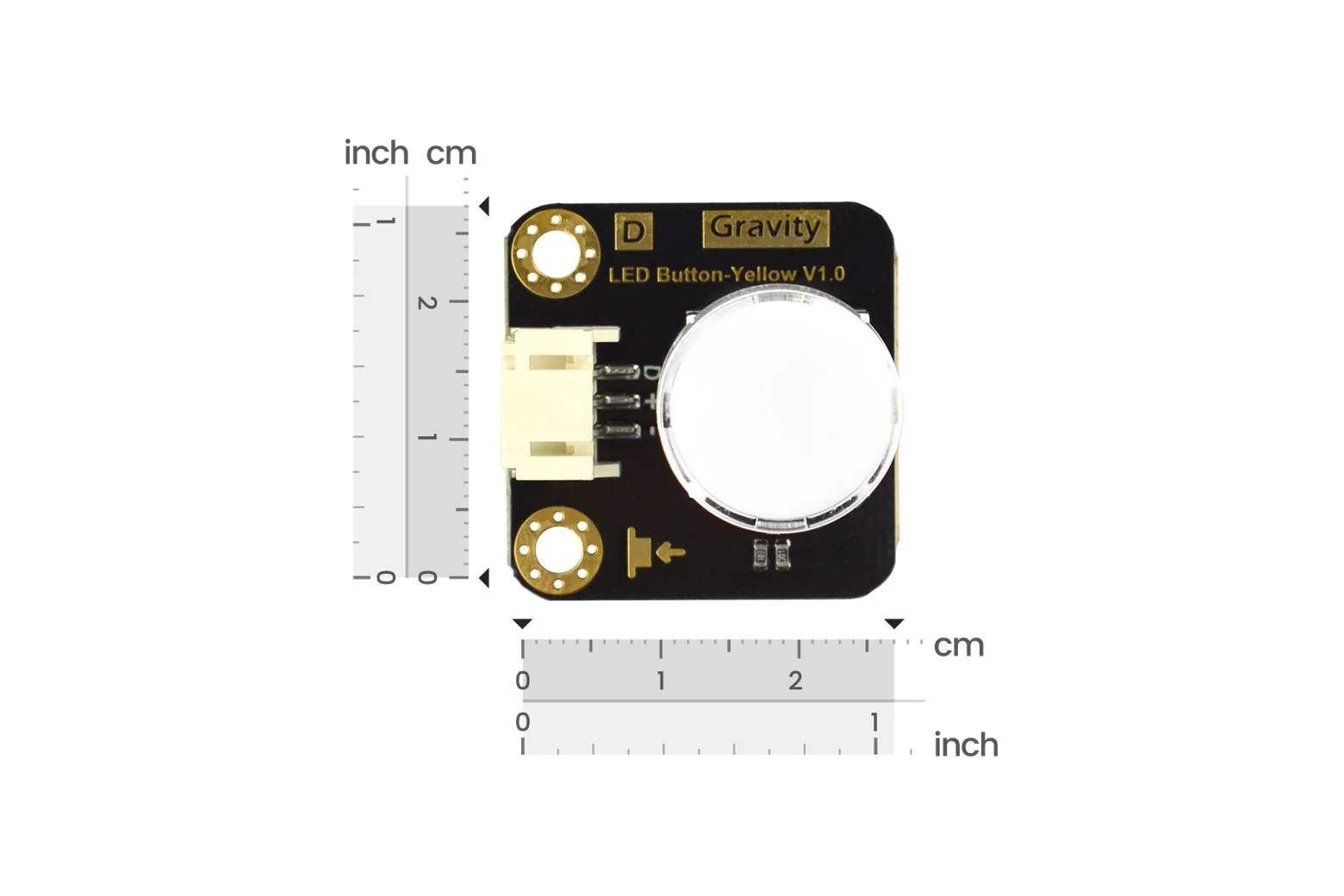

Operating at +3.3V to 5V (with 3.3V recommended), the compact board measures 27 x 26.5mm. It is fitted with a standard PH2.0-3P Gravity connector for reliable wiring.
Included package contents

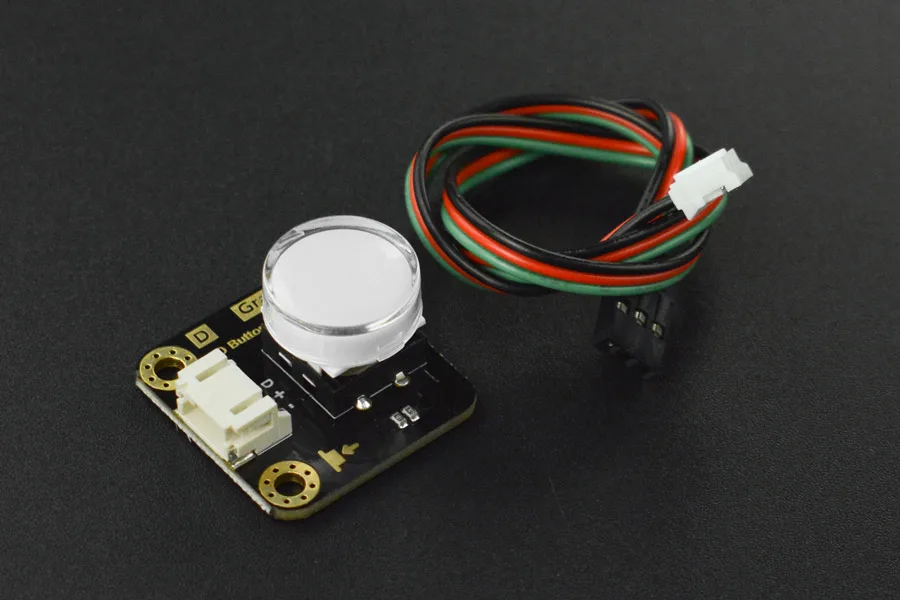

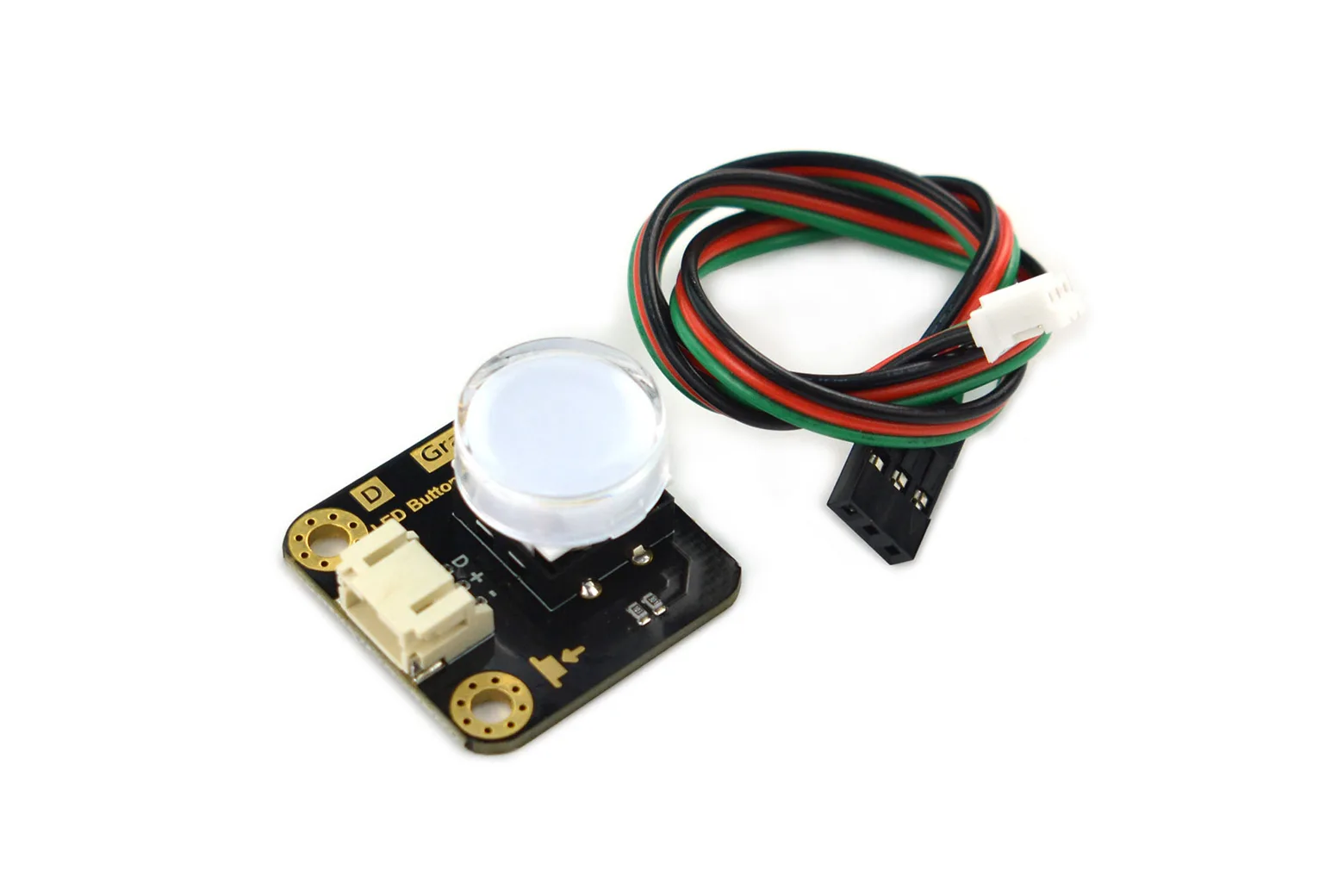

Each pack includes one yellow Gravity LED button module and one matching digital sensor connector cable.
Downloads & documentation
Specifications
| Operating Voltage | +3.3-5V (3.3V is recommended) |
| Output | digital |
| Connector | PH2.0-3P |
| Dimension | 27×26.5mm/1.06×1.04” |
| Colors Available | red, yellow, green, blue, white |
In the box
| Gravity: LED Button - Yellow | 1 |
| Digital Sensor Connector | 1 |
