Gravity: IO Expansion & Motor Driver Shield
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

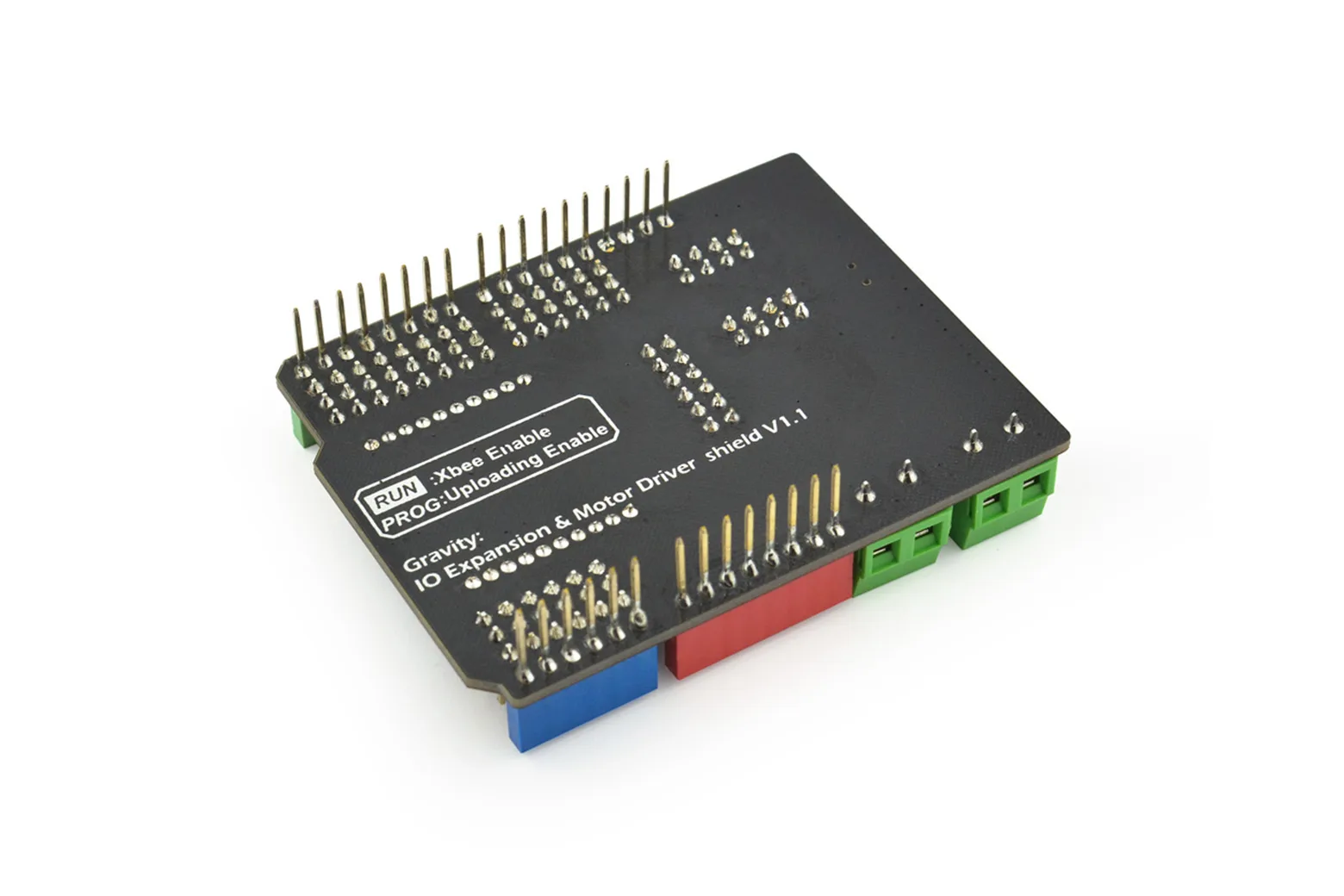

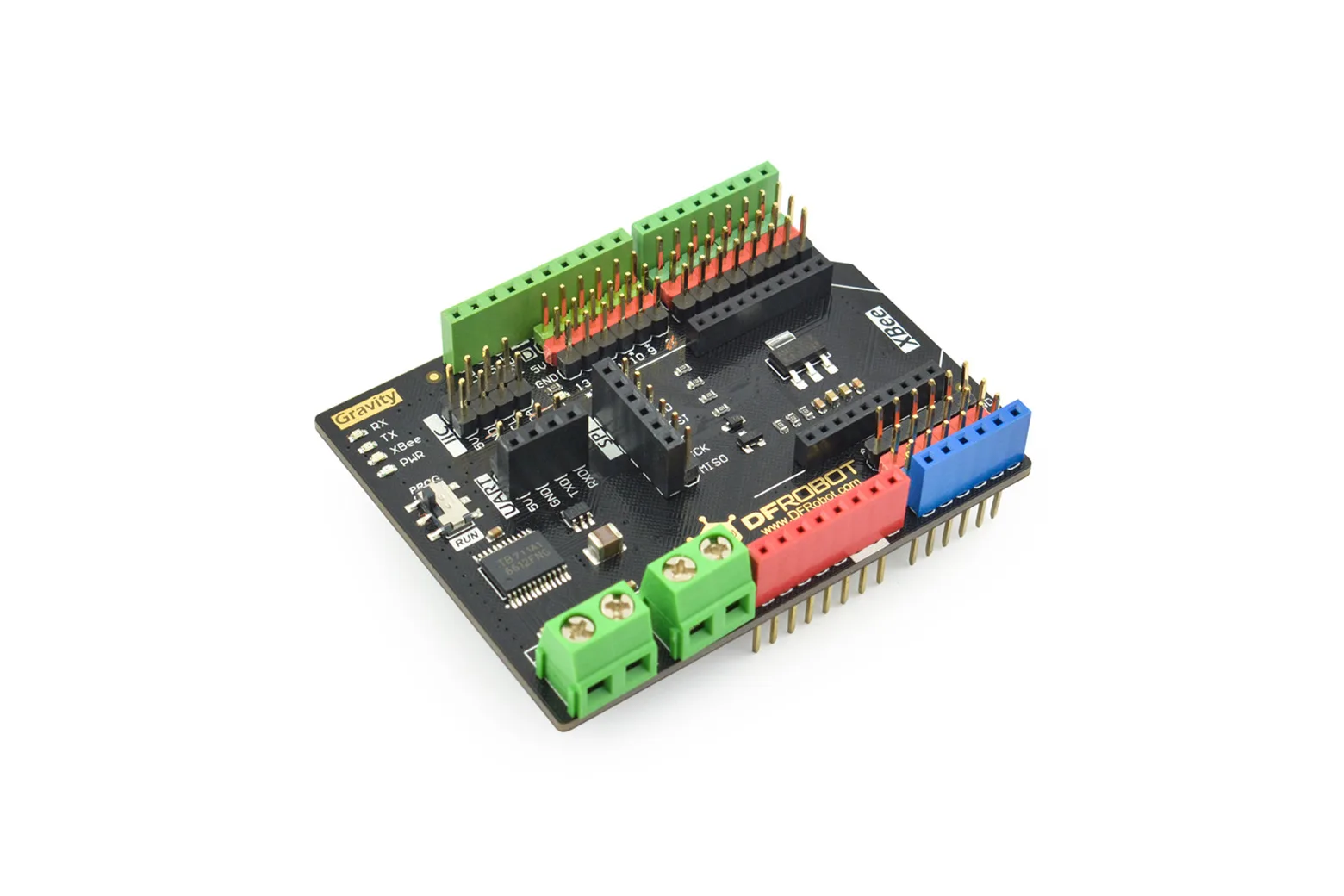

The Gravity: IO Expansion & Motor Driver Shield combines standard IO breakout connectivity and a dual DC motor driver into a single Arduino-compatible board. It is an ideal all-in-one platform for students, makers, and hobbyists building small robotic vehicles and automated projects.
Integrated dual DC motor driver

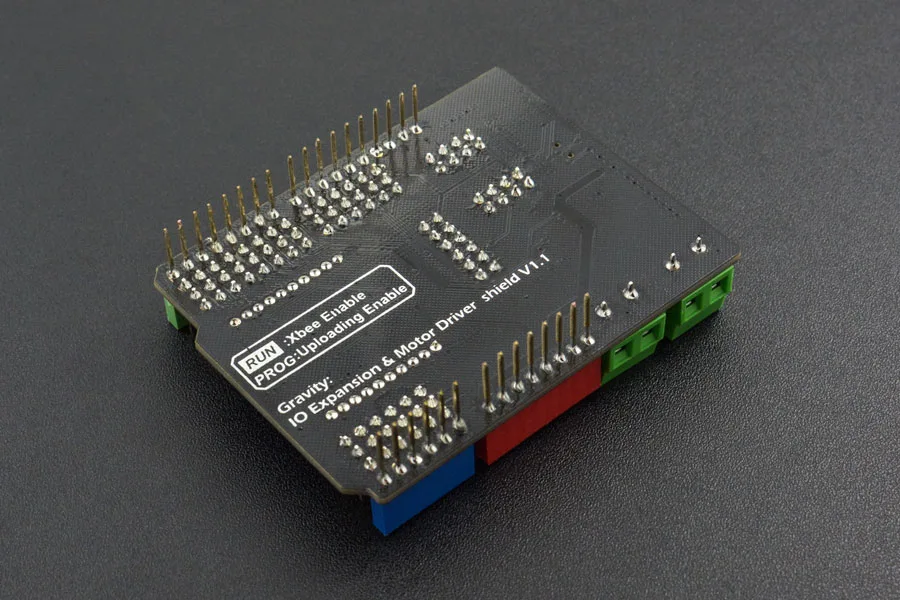

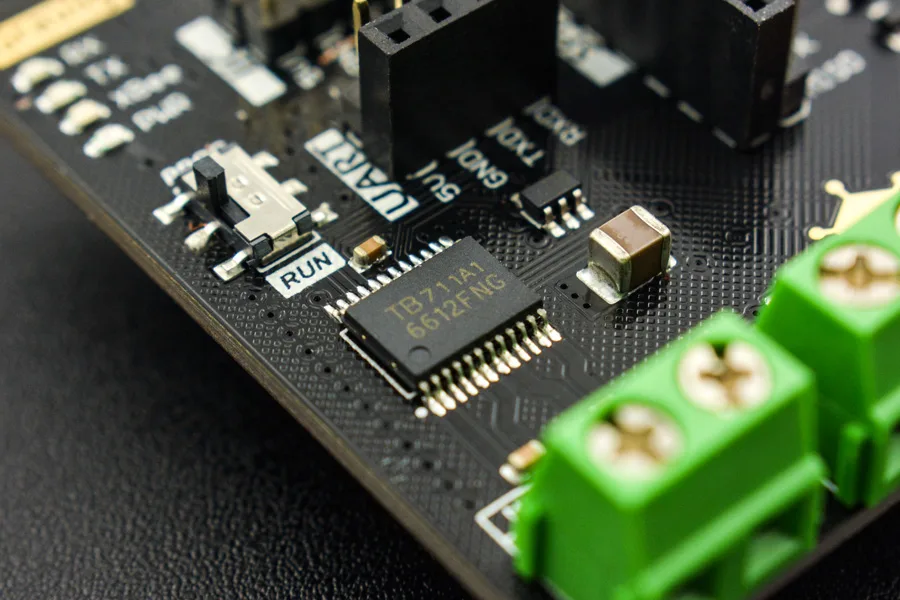

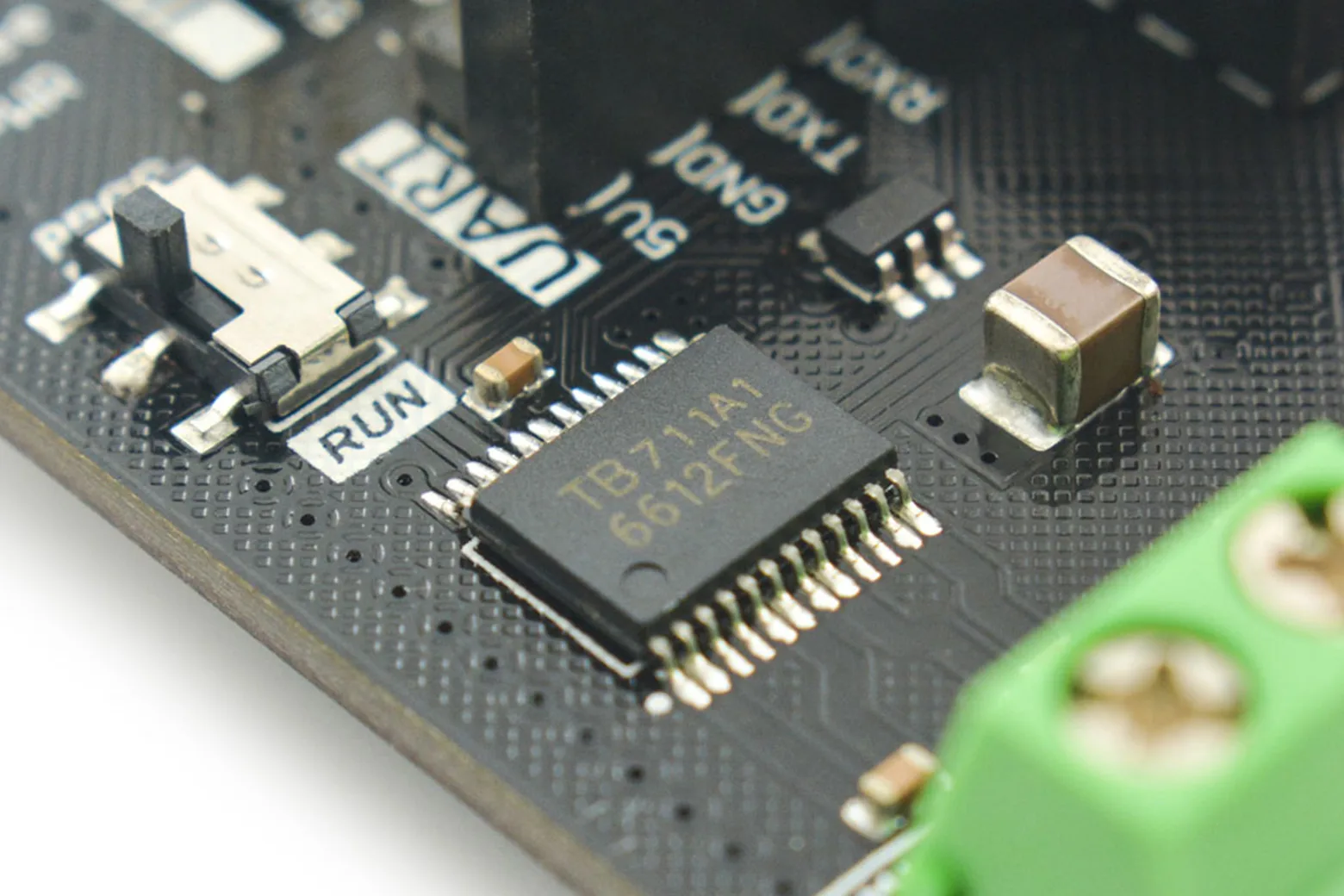

Powered by an onboard TB6612FNG driver, this shield runs two DC motors simultaneously with PWM speed control using pins D4 through D7. Each channel supports 1.2A continuous current with a peak current up to 3.2A, drawing power directly from the Vin port up to a 12V maximum.
Gravity plug-and-play sensor breakout

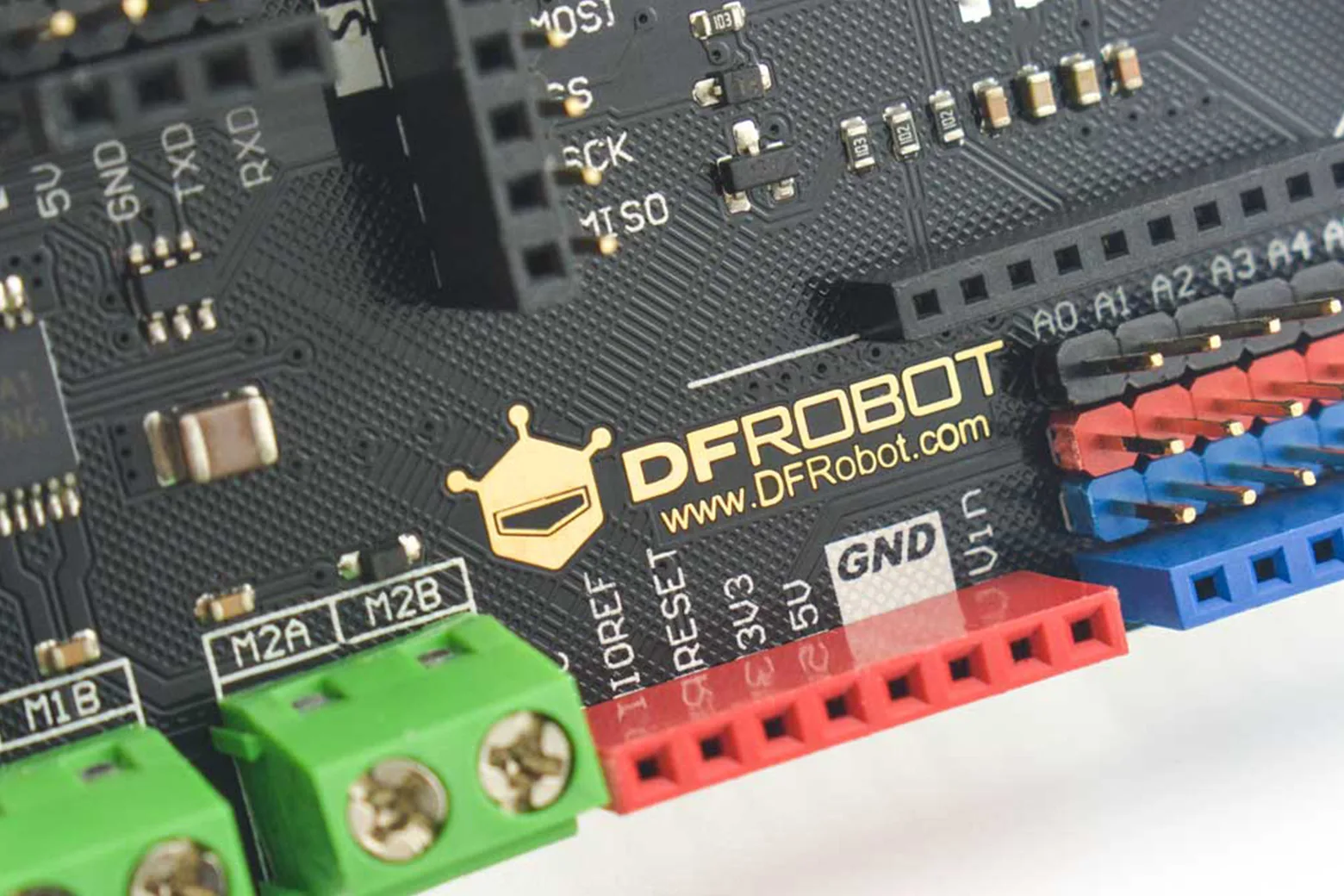

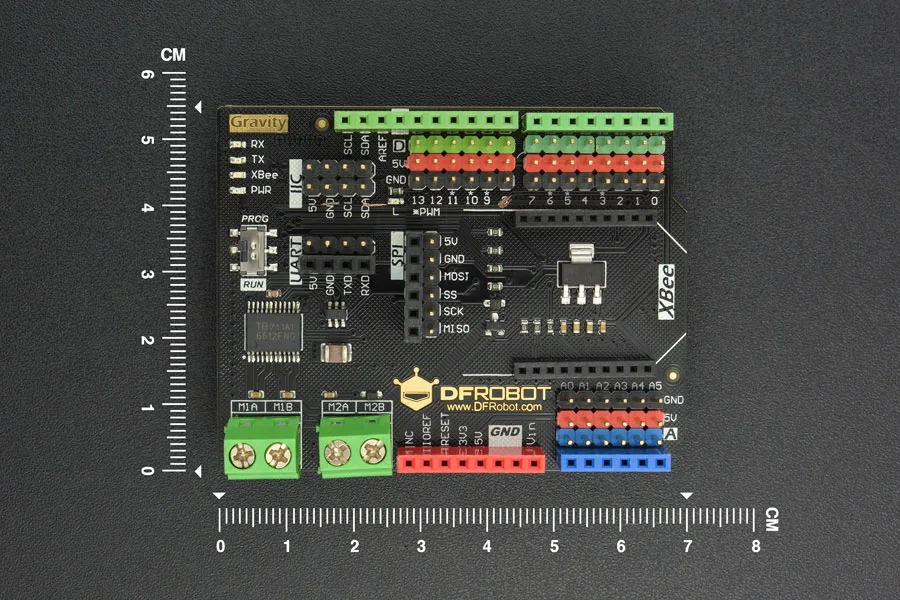

The board breaks out 14 digital interfaces and 6 analog interfaces using colour-coded Gravity 3-pin headers. It also includes 2 I2C ports, 2 SPI ports, and a dedicated UART serial connection for connecting standard sensors and peripherals without breadboards.
Wireless module expansion slot
An integrated XBee socket allows direct connection of wireless modules, including standard XBee, WiFi Bee, and Bluetooth Bee units. This simplifies the addition of remote control and telemetry to mobile robotic platforms.
Dedicated program download switch
An onboard programming switch isolates the serial line to avoid communication conflicts during code uploads to an Arduino UNO or Mega. This eliminates the need to remove wireless modules or disconnect serial peripherals whenever you flash new firmware.
Standard form factor and specifications
Designed to match the Arduino UNO R3 pinout, the shield measures 68.5mm by 53.3mm and weighs 36g. It provides a compact, unified footprint suitable for standard mobile robot chassis.
Downloads & documentation
Specifications
| Digital interface | 14 |
| Analog interface | 6 |
| I2C interface | 2 |
| Serial port | 1 |
| XBee Slot | 1 |
| Output Current | 1.2A single channel continuous driving current |
| Start/ Peak Current | 2A (continuous pulse)/ 3.2A (monopoles) |
| Input Voltage | 12V (peak value) |
| Occupying Pins | D4, D5, D6, D7 (caution: the pin is occupied when control the motor) |

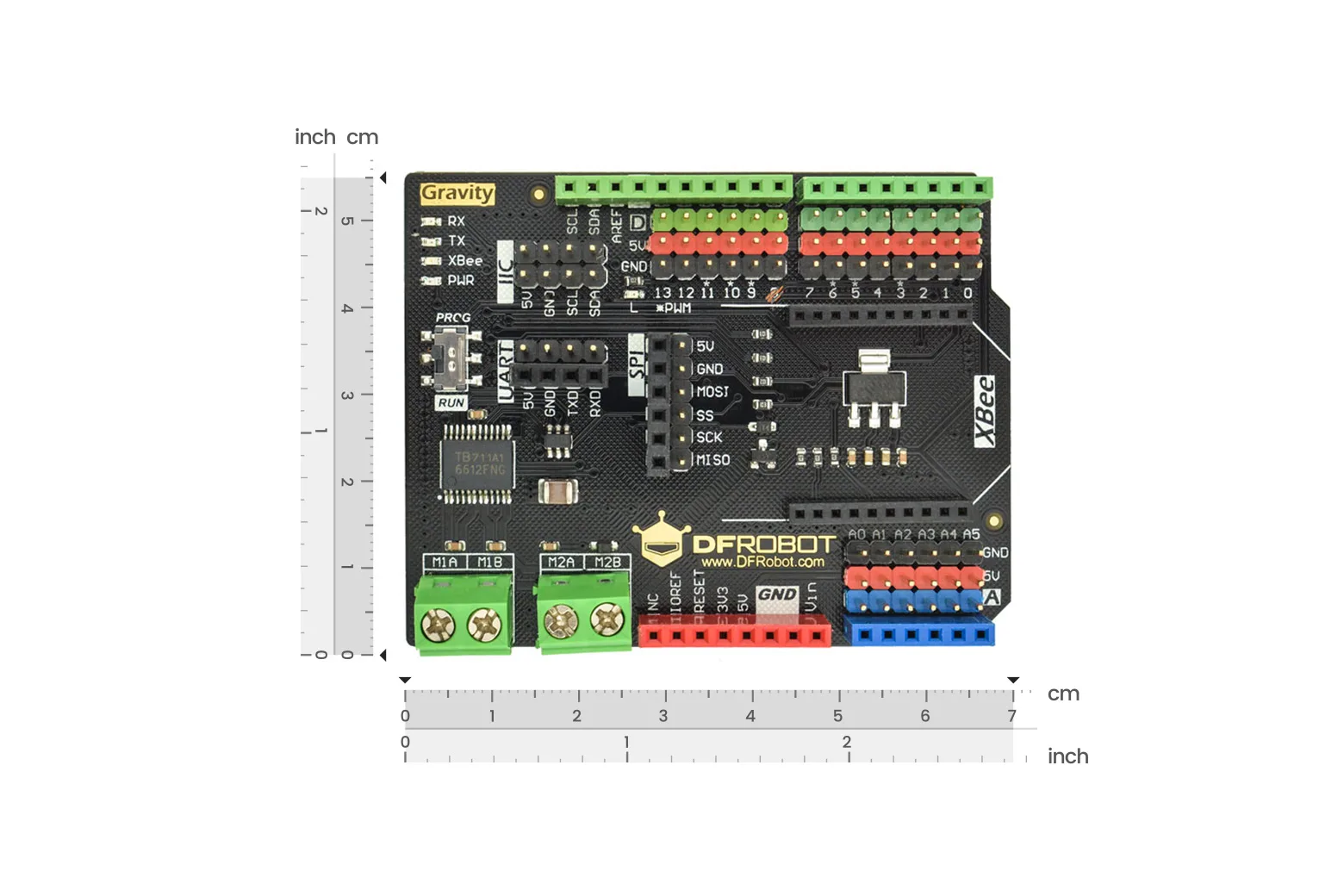

| Size | 68.5mm×53.3mm (2.7 inch×2.1 inch) |
| Weight | 36 |
In the box
| Gravity: IO Expansion & Motor Driver Shield | 1 |
Reviews
No reviews yet — be the first to review this product.
