Gravity: Industrial Analog EC / Electrical Conductivity Meter Kit for Water Quality Monitoring (K=1, IP68)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Gravity Industrial Analog EC Meter Kit is a rugged water quality monitoring solution featuring an IP68-rated probe with an integrated PT1000 platinum resistance thermometer. Designed for continuous 24/7 immersion, it allows accurate electrical conductivity measurements with real-time temperature compensation. It is well suited to hobbyists, educators, and makers developing automated hydroponics, aquaculture, or environmental monitoring systems.
Continuous 24/7 liquid monitoring

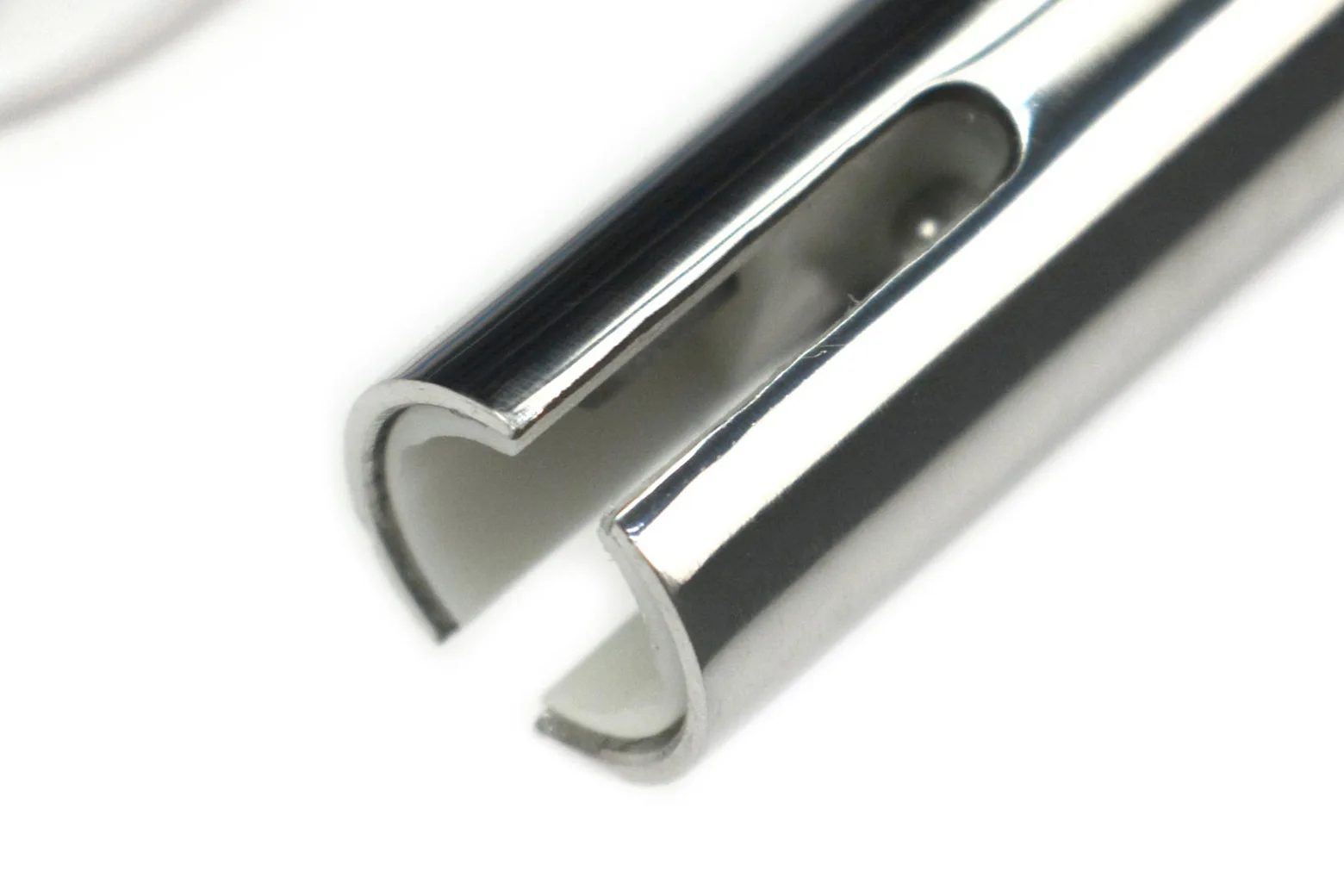

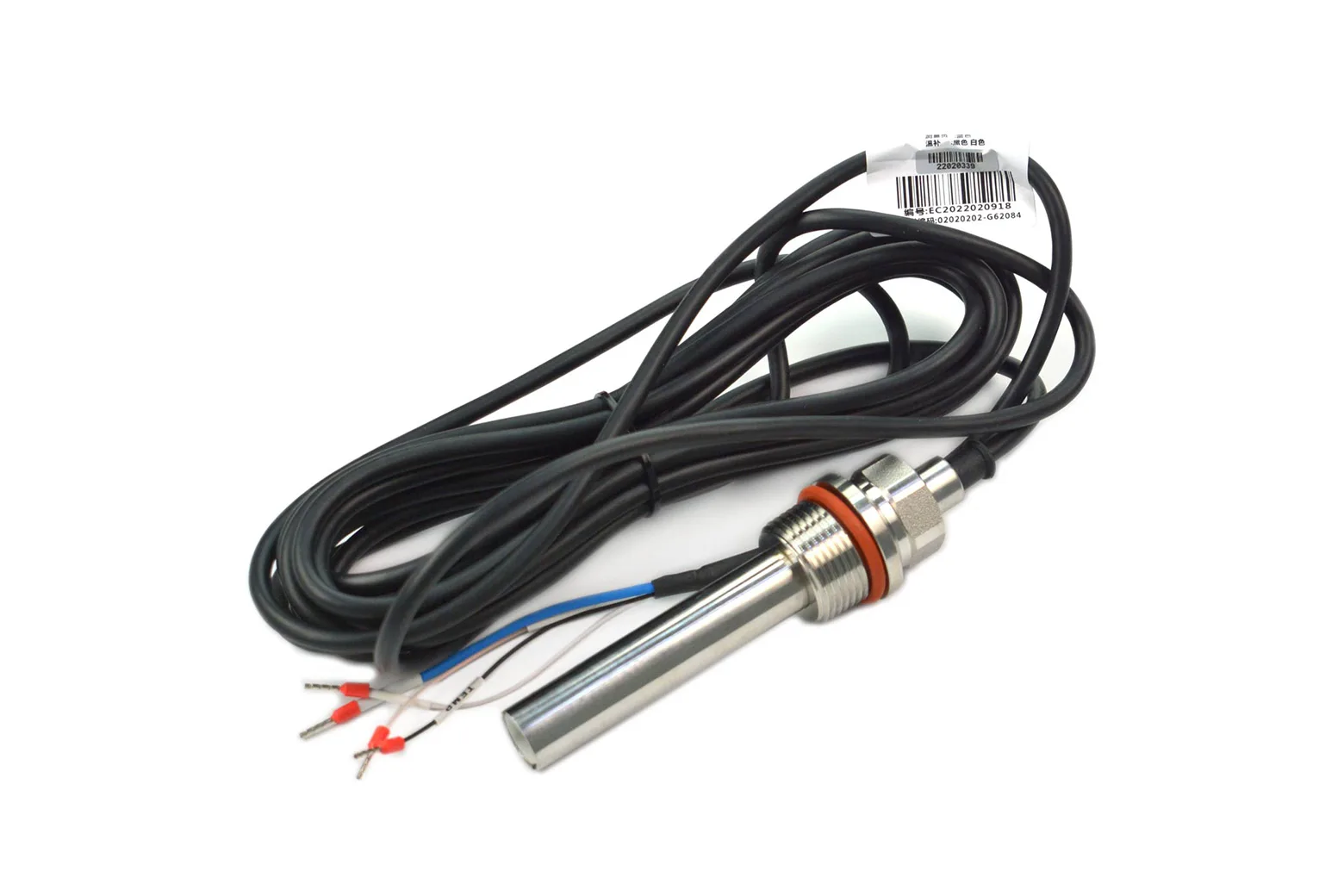

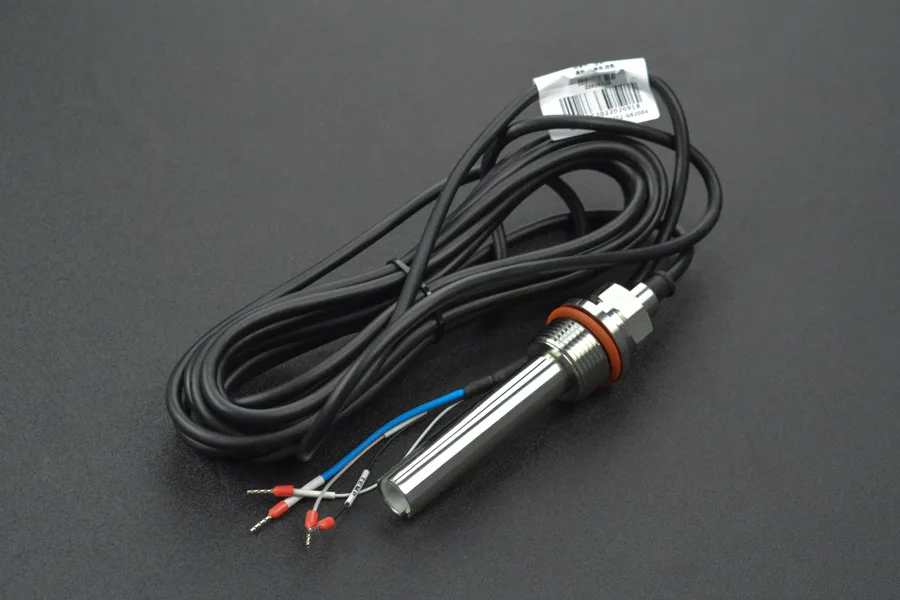

Featuring an industrial-grade IP68 probe, this sensor is built for long-term immersion in aqueous solutions without degradation. It is pressure-resistant up to 0.5MPa and operates reliably across temperatures from 0 to 50 degrees Celsius.
Integrated PT1000 temperature compensation
An embedded PT1000 platinum resistance thermometer measures fluid temperature directly at the probe. This integrated design simplifies gathering compensated temperature data to maintain high measurement consistency.
Low-polarisation AC excitation signal
The signal conversion board employs an AC excitation source that significantly reduces probe polarisation, prolonging sensor lifespan and enhancing precision. Hardware filtering delivers a stable, low-jitter 0 to 3V analogue output across a practical measurement range of 100 to 2000 microsiemens per centimetre.
Plug-and-play controller compatibility
Supporting a wide input voltage of 3.3V to 5.0V, the sensor boards connect directly to 3.3V and 5V main control boards such as Arduino. The standard Gravity interface and software calibration library allow quick, solderless setup.
Comprehensive hardware and calibration kit

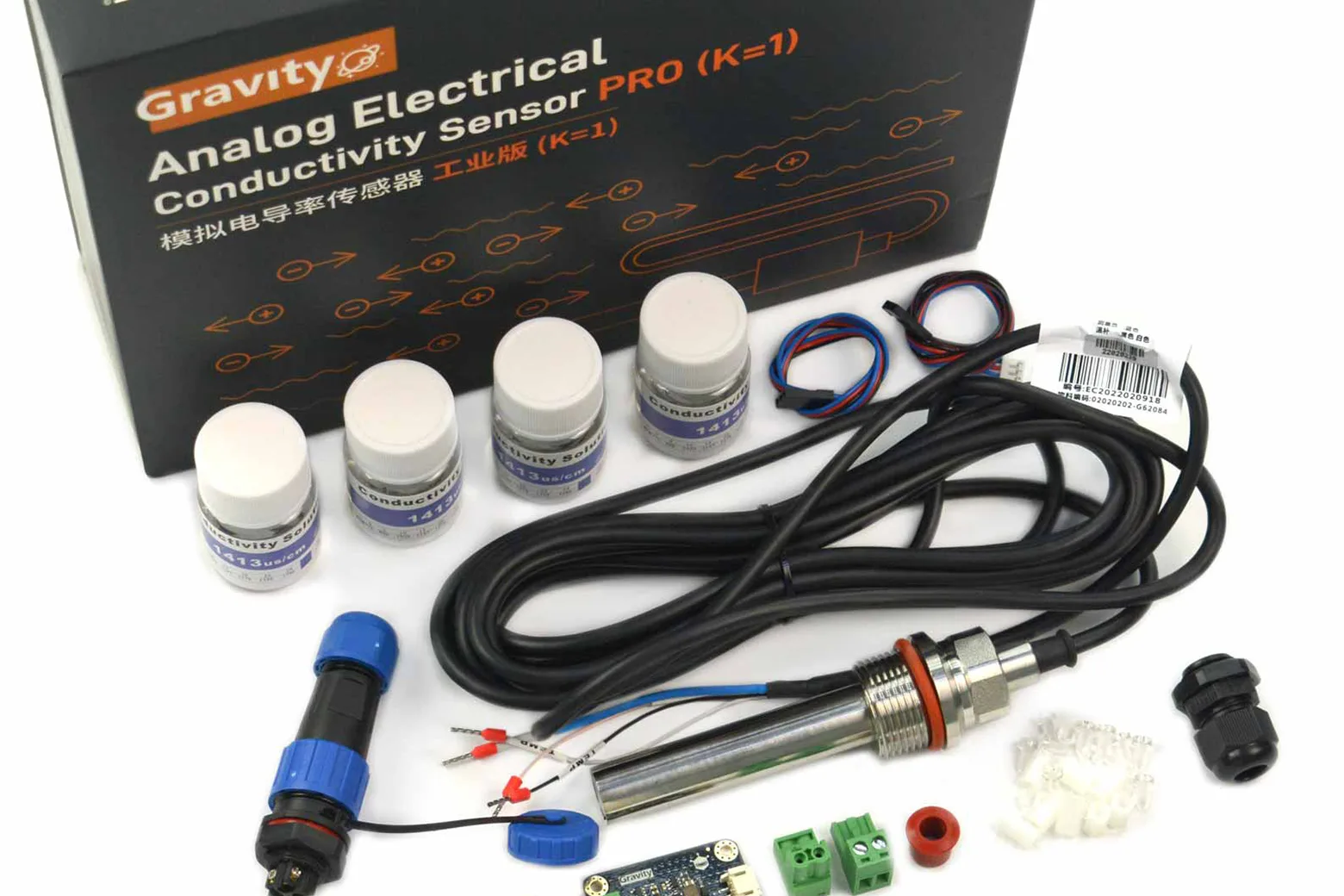

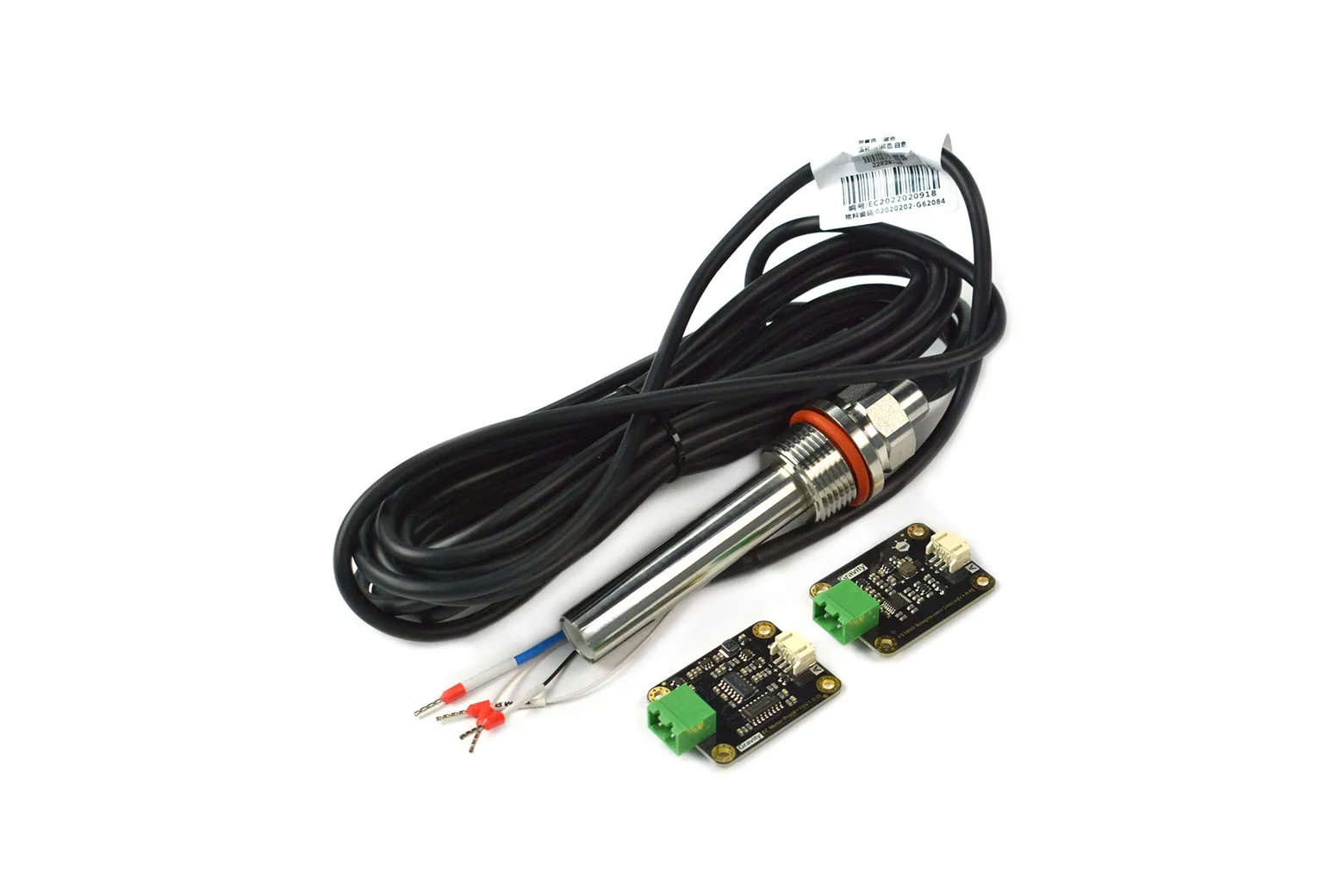

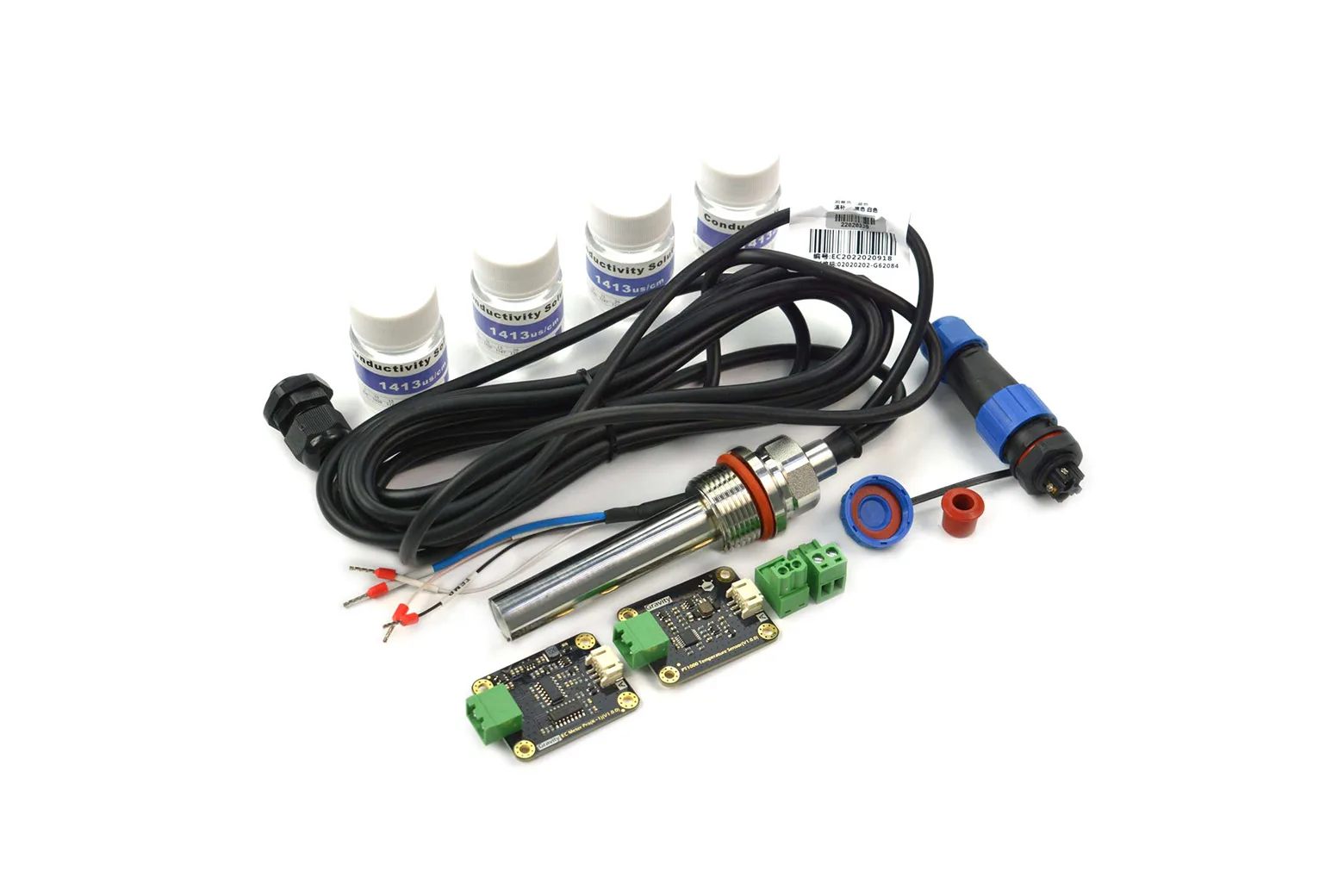

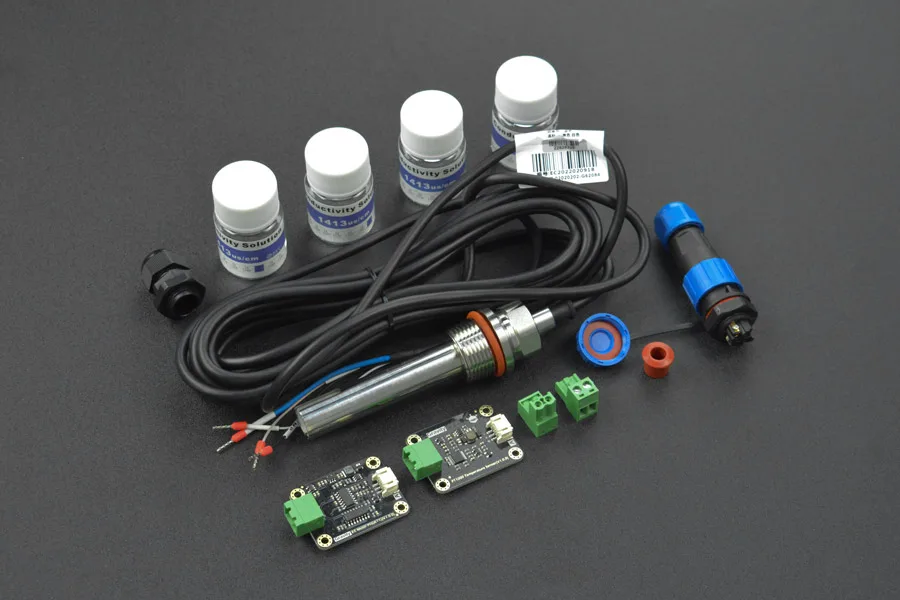

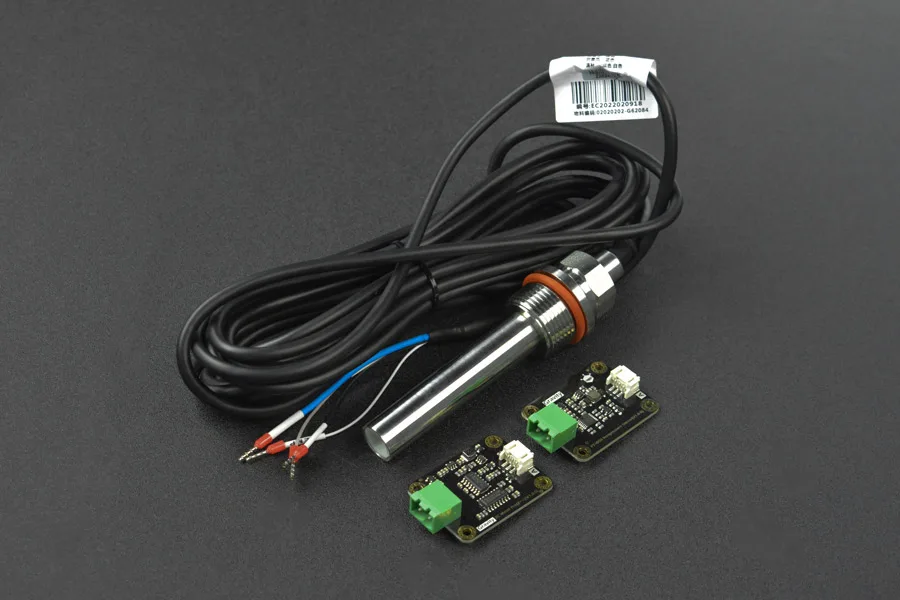

The kit includes the industrial conductivity probe with a 5-metre cable, dual conversion boards for EC and RTD signals, Gravity cables, and waterproof connectors. Four bottles of 1413 microsiemens per centimetre standard calibration solution are also provided for fast deployment.
Downloads & documentation
Specifications
| Supply Voltage | 3.3-5.0V |
| Output Signal | 0-3V |
| Probe Type | Industrial Grade |
| Cell Constant | K=1 |
| Temperature Detector | PT1000 platinum resistance thermometer |
| Maximum Range | 1-2200μs/cm |
| Practical Range | 100-2000μs/cm |
| Operating Temperature | 0-50℃ (non-freezing) |
| Pressure Resistant | 0.5MPa |
| Waterproof Level | IP68 |
| Cable Length | 5m |
In the box
| Electrical Conductivity Probe | 1 |
| Electrical Conductivity Signal Conversion Board (Industrial Grade) | 1 |
| PT1000 RTD Signal Conversion Board | 1 |
| Gravity Sensor Cable | 2 |
| Waterproof Joint | 1 |
| Waterproof Aviation Connector | 1 |
| Electrical Conductivity Calibration Standard Solution 1413µs/cm | 4 |
| Nylon Pillar Screws Kit | 1 |
