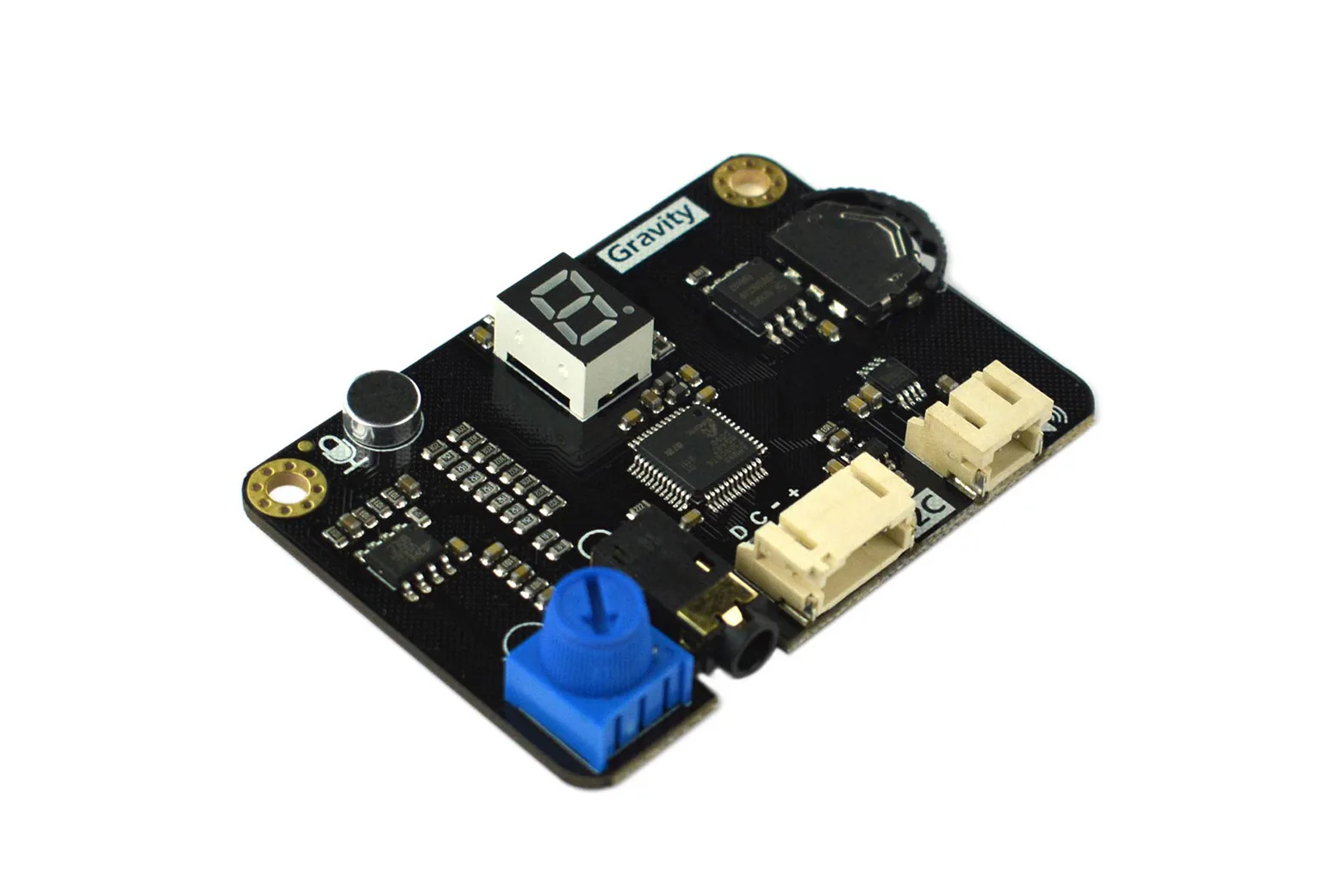

Gravity: I2C Voice Recorder Module EDU
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

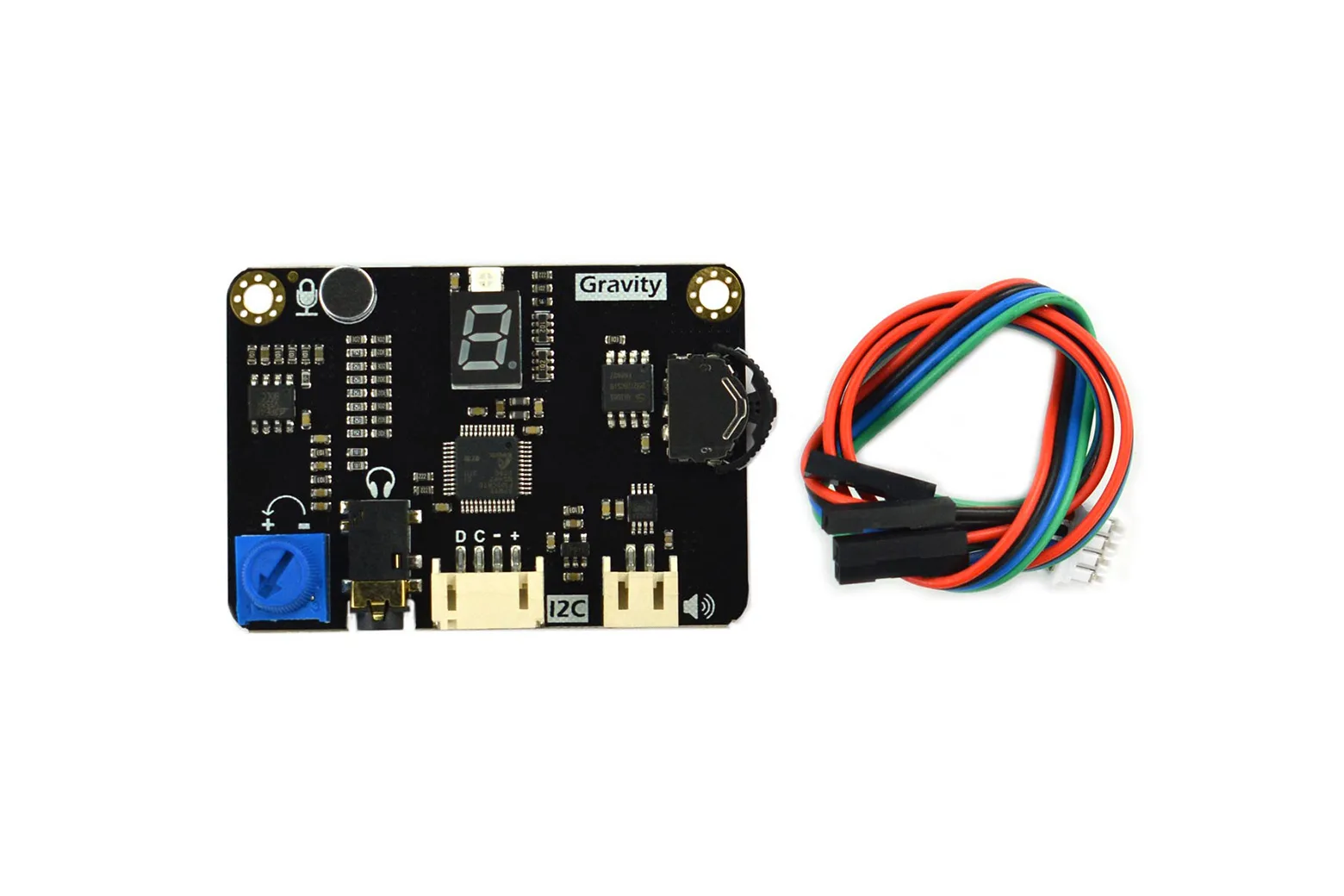

The Gravity: I2C Voice Recorder Module EDU is an all-in-one voice interaction board that combines sound recording, audio playback, and number synthesis reading. It is an ideal addition for students, educators, and makers looking to introduce audible prompts and speech interactions to their robotics and electronics projects.

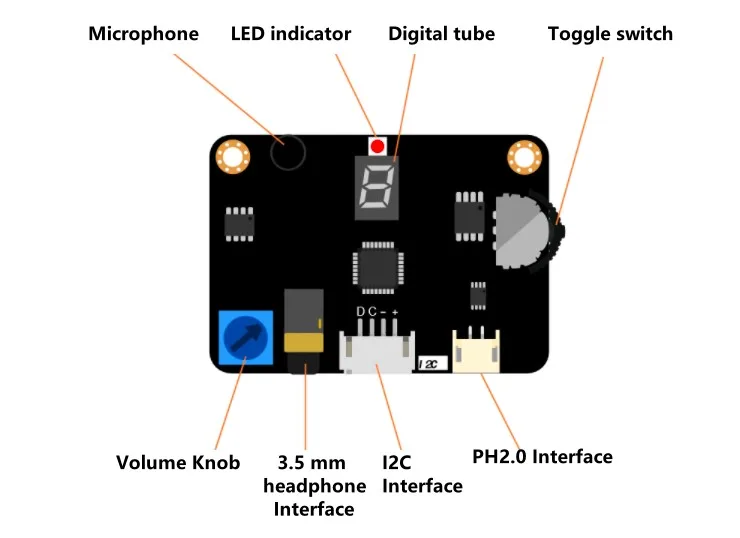

Flexible audio recording and playback
This module allows quick manual recording using an onboard single button, as well as full recording and playback control via the Gravity I2C interface. It can store up to 10 distinct audio segments of 100 seconds each.
Built-in number speech synthesis
The module features a number synthesis reading function supporting values from -999999999.999999999 to 999999999.999999999. This allows your microcontroller to easily broadcast live sensor readings such as temperature, humidity, voltage, and time without pre-recording every number.
Dual audio output options

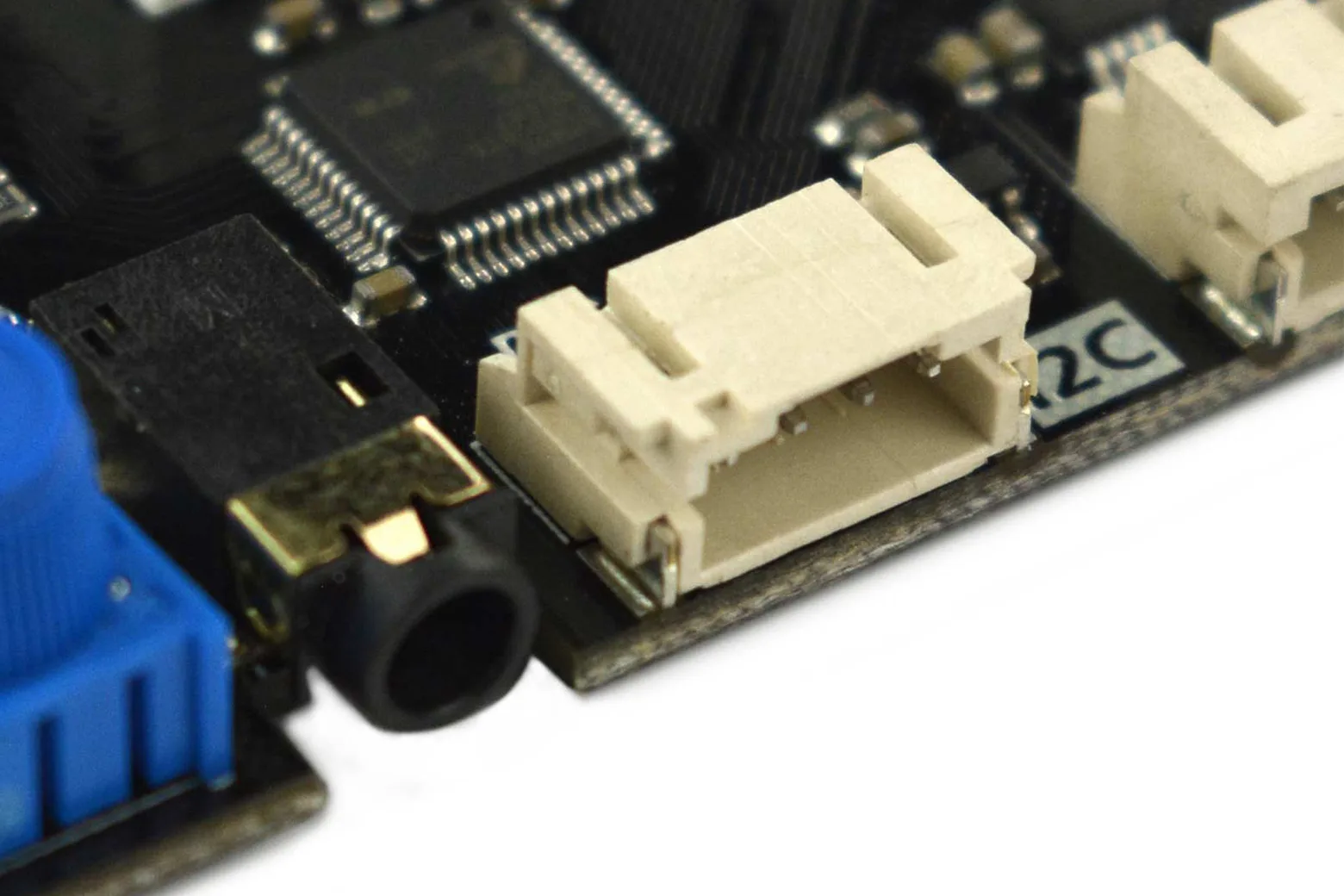

Equipped with an onboard audio amplifier, the board provides plug-and-play sound output. It includes a 3.5mm headphone socket alongside a PH2.0 speaker connector for direct connection to external speakers.
Broad development board compatibility

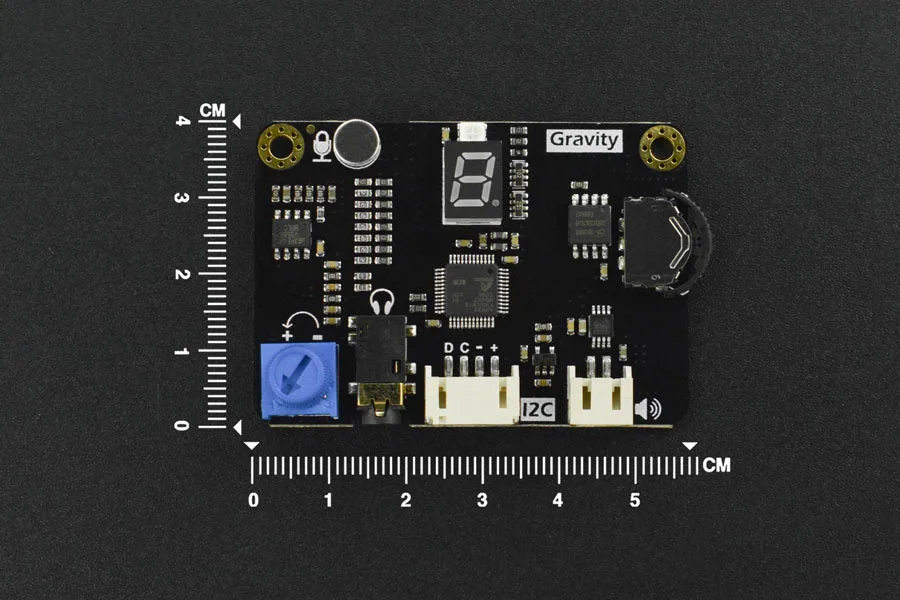

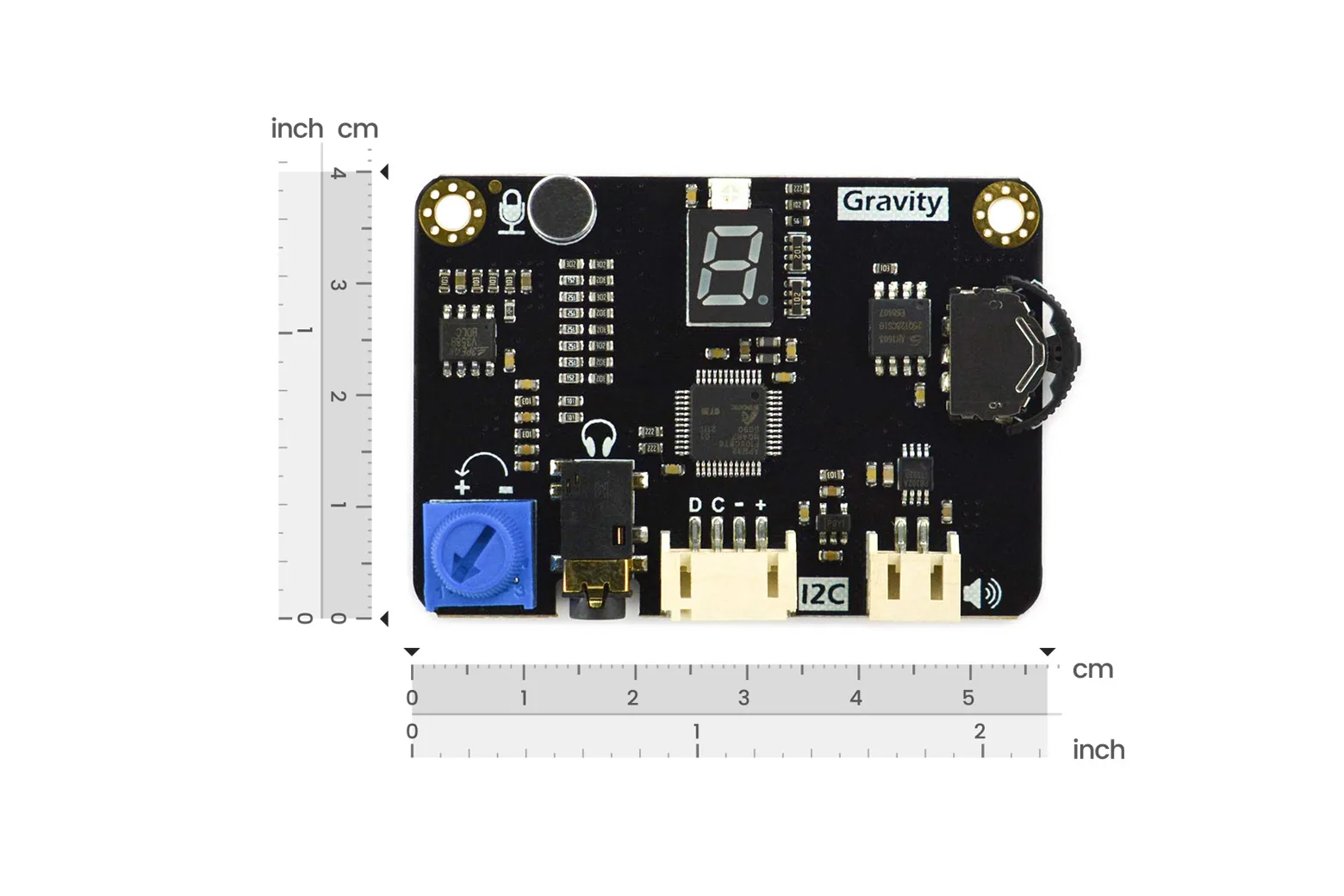

The module operates from 3.3V to 5V and is compatible with Arduino AVR, BBC micro:bit, mPython, and FireBeetle-ESP32 development boards. It features an adjustable I2C address ranging from 0x30 to 0x39 on a compact 57x40mm footprint.
Video
Downloads & documentation
Specifications
| Operating Voltage | 3.3~5V |
| Communication Interface | Gravity I2C |
| I2C Address | 0x30~0x39 (Adjustable) |
| Recording Function | Can store up to 10 segments of 100s audio |
| Speech Synthesis | -999999999.999999999 to 999999999.999999999 (Number Synthesis Reading Function) |
| Audio Output 1 | 3.5mm Headphone Port |
| Audio Output 2 | PH2.0 Speaker Port |
| Dimension | 57x40mm |
In the box
| Gravity: I2C Voice Recorder Module EDU | 1 |
