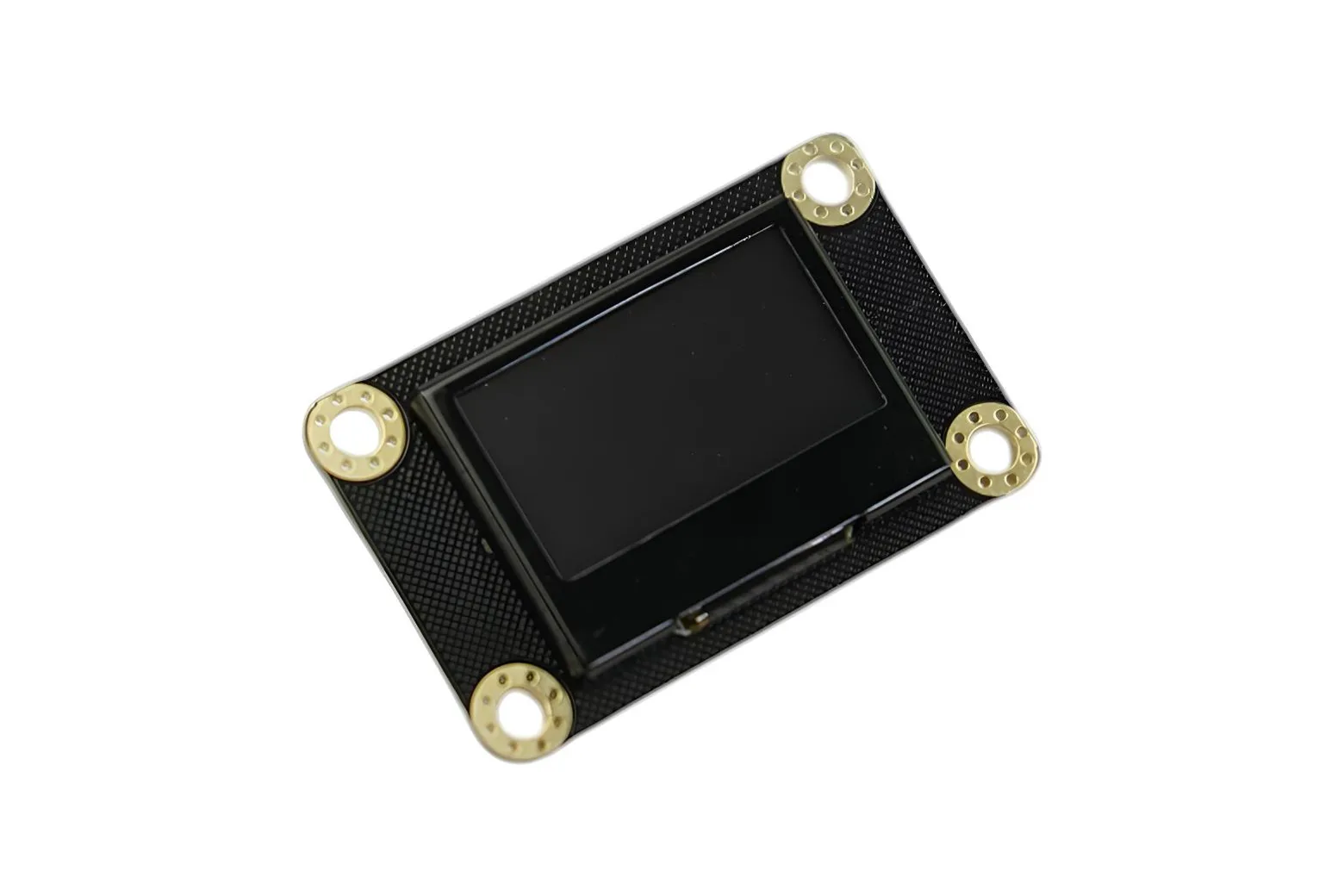

Gravity: I2C OLED-128x64 Display
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Gravity: I2C OLED-128x64 Display is an Arduino-compatible 0.96-inch self-luminous display module driven by the SSD1306 IC. Featuring a protective aluminium alloy bezel and standard Gravity I2C connectivity, it is ideal for students, makers, and hobbyists designing compact wearables and portable electronics.
Self-luminous high-contrast display
The 0.96-inch OLED screen delivers 128x64 pixel resolution on a blue background, offering faster response speeds, thinner profiles, lower power consumption, and better shock resistance than traditional LCDs. It provides a typical brightness of 60 cd/m2 with refresh rates reaching up to 60 fps.

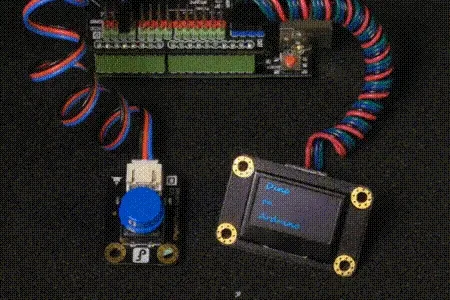

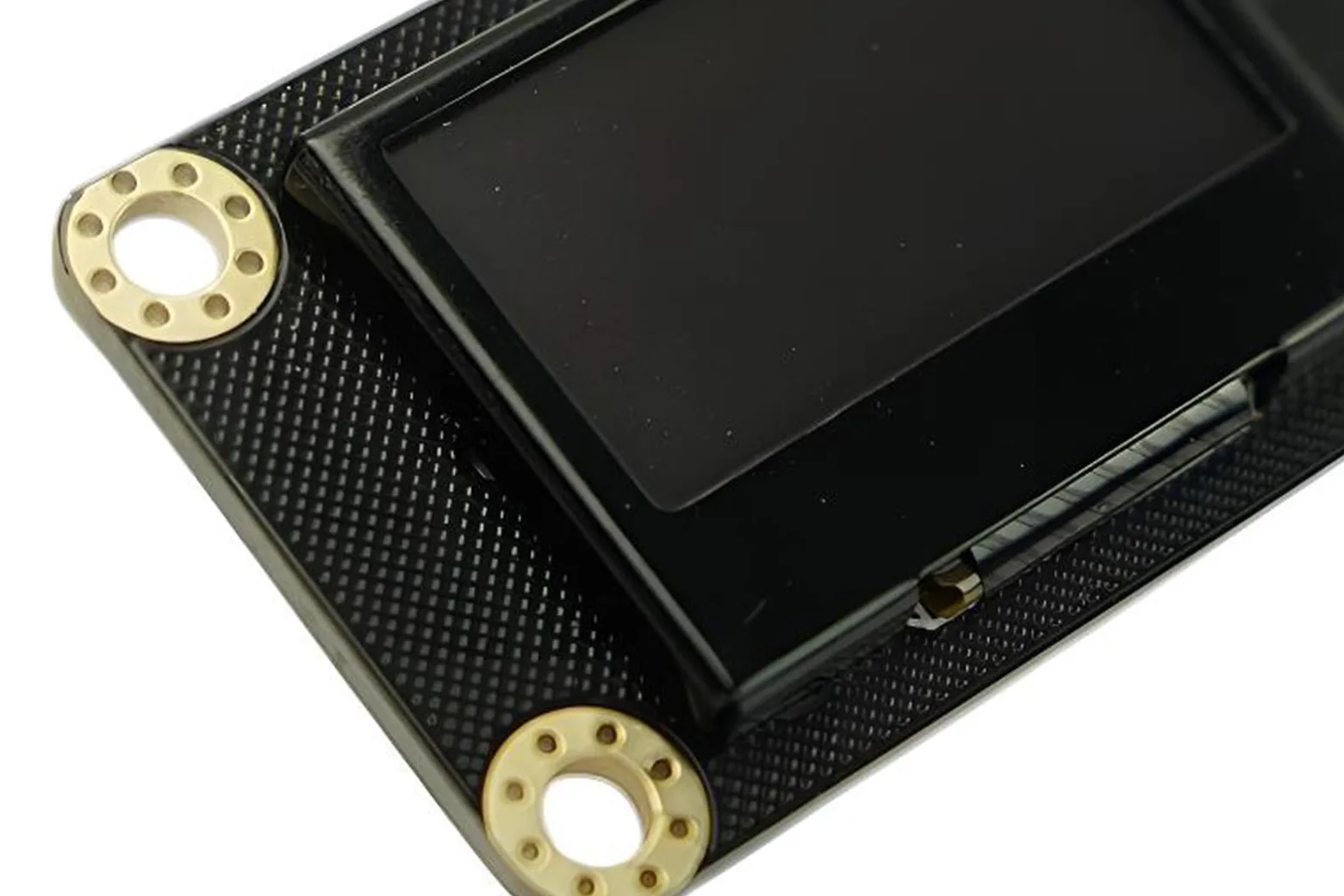

Protective aluminium alloy bezel
An integrated aluminium alloy frame protects the delicate display glass from scratches, impacts, and mechanical damage during everyday project use.

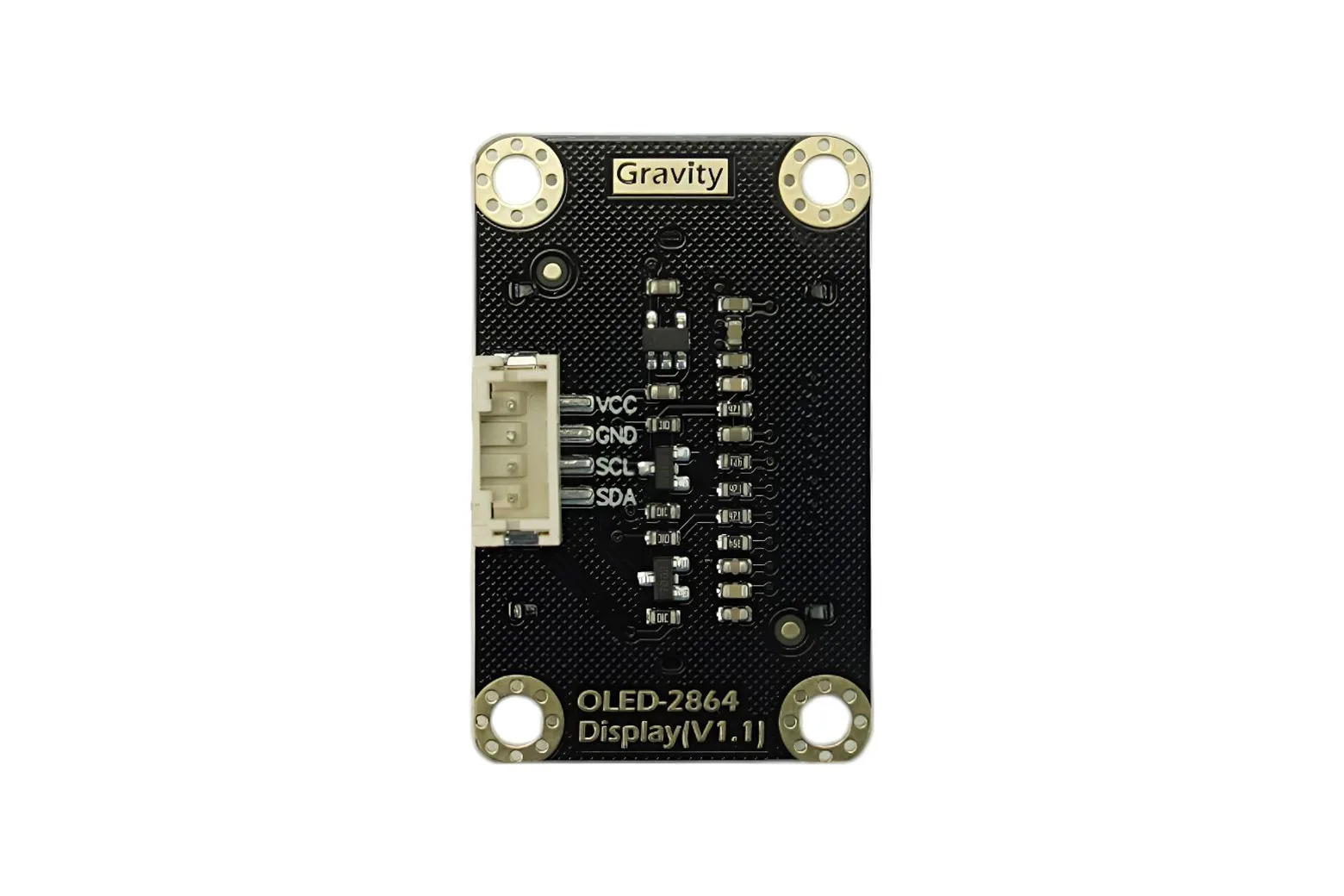

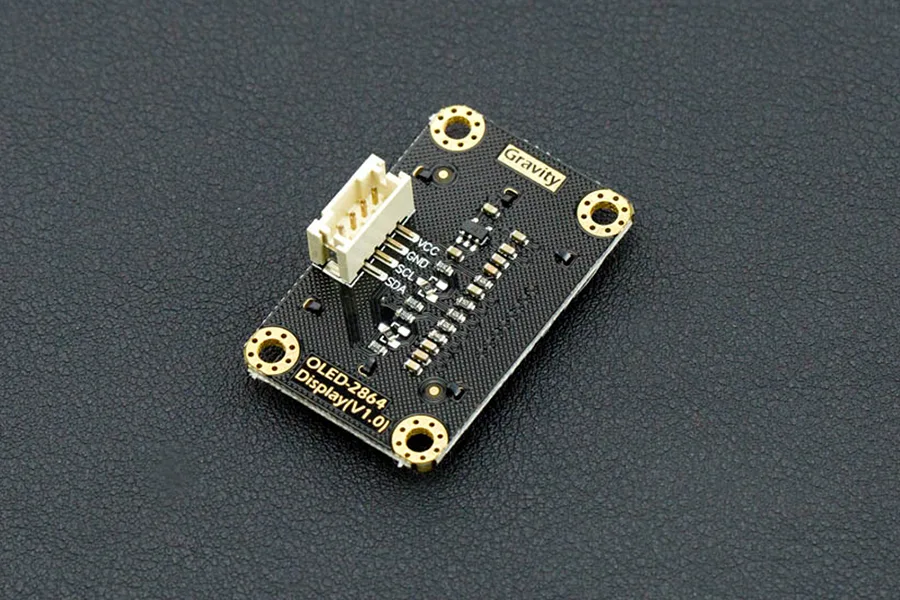

Standard Gravity I2C interface
The module uses the standard Gravity I2C pinout for plug-and-play wiring with Arduino and Genuino 101 development boards. It operates across a wide 3.3V to 5V voltage range and consumes approximately 22.75mA at full-screen illumination.

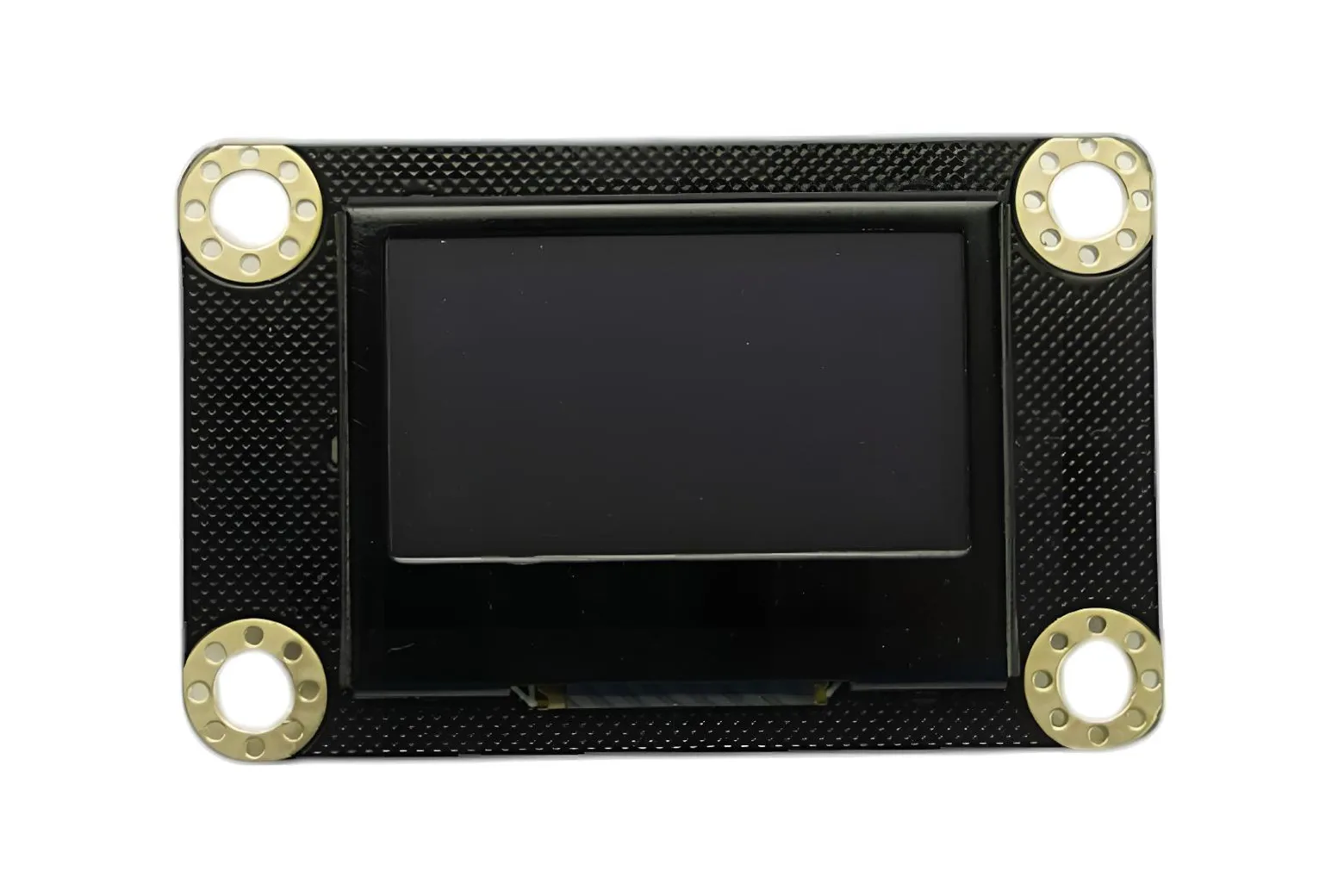

Wearable and compact mounting design

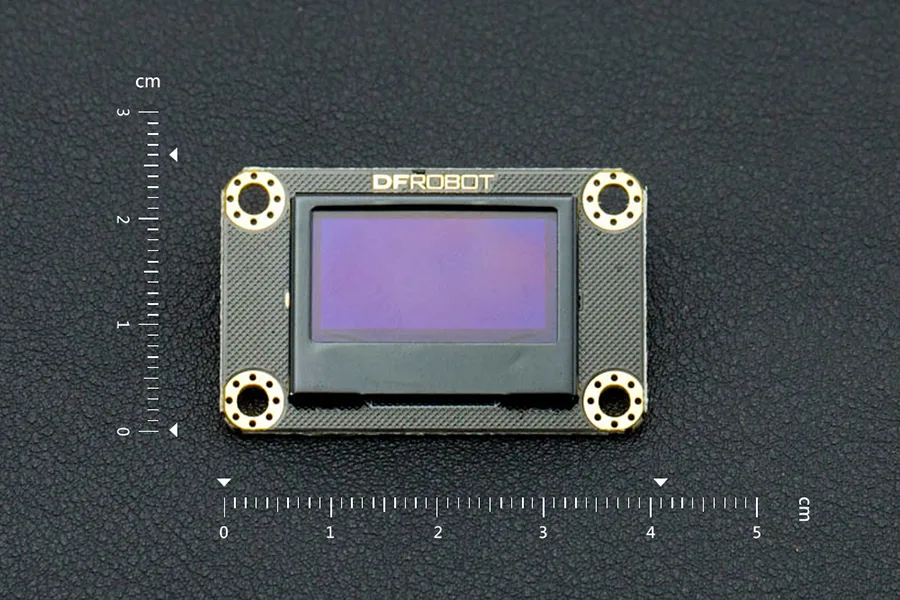

Measuring 41.20 x 26.20 mm and weighing only 15 g, the board integrates four M3 mounting holes spaced at 35 x 20 mm for easy installation into custom enclosures and wearable devices powered by compact controllers like the Beetle or CurieNano.

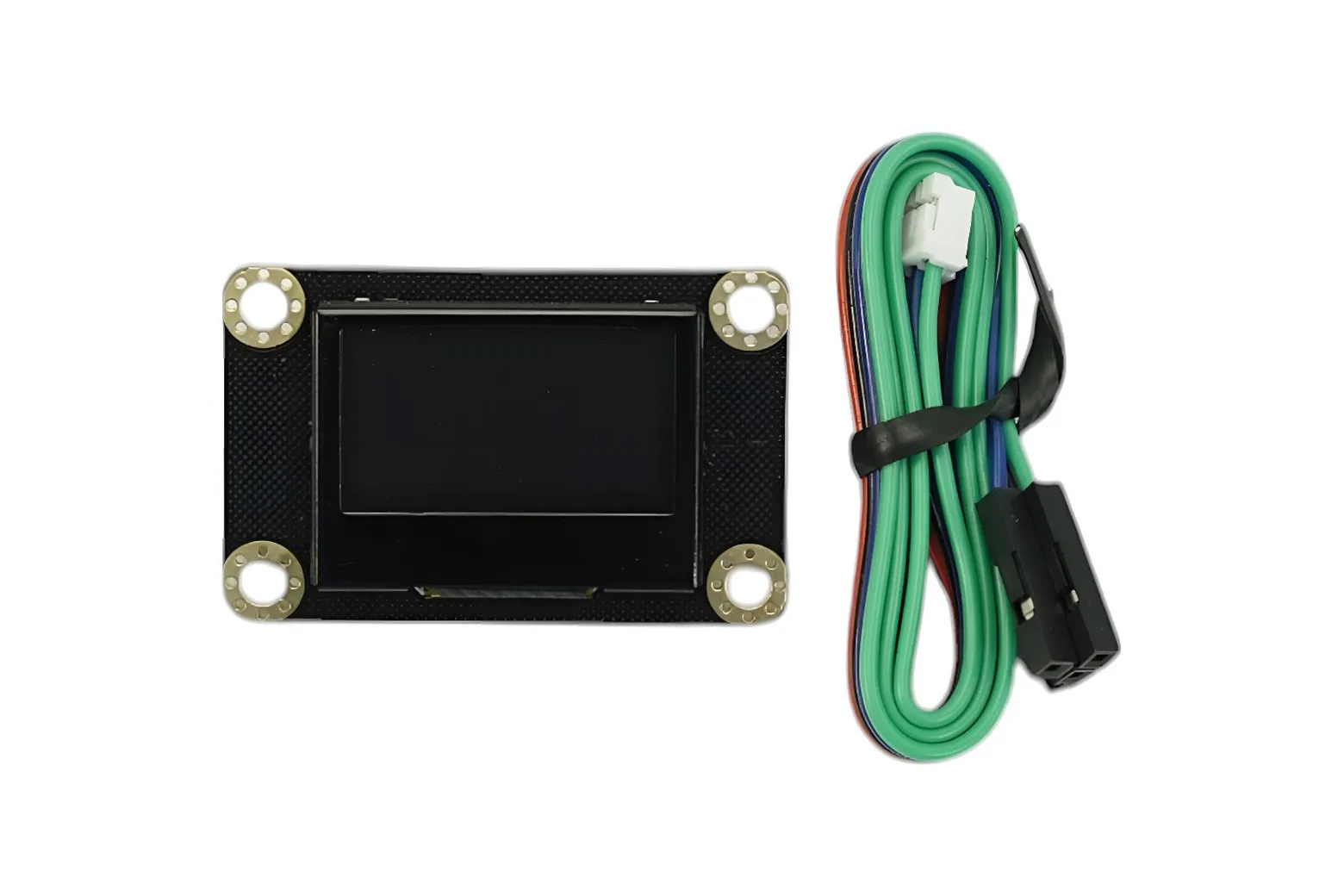

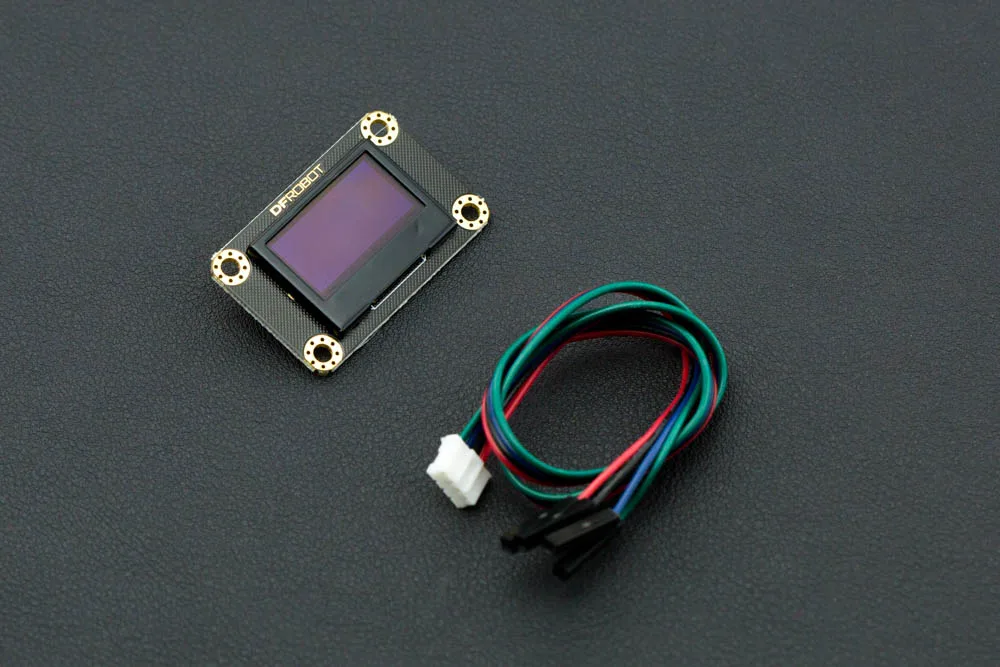

Included accessories and hardware
Each unit comes with one Gravity I2C OLED-128x64 display and one Gravity I2C PH2.0 4-pin cable ready for rapid assembly.
Downloads & documentation
Specifications
| Operating Voltage | 3.3V ~ 5V |
| Background Color | blue |
| Pixels | 128 columns X 64 Rows |
| Interface mode | Gravity-I2C |
| Scanning Rate | 60 fps |
| Brightness | 60 (Typ) cd / m2 |
| Full screen power consumption | 22.75mA Approx. |
| Working Temperature | -30 ℃ ~ +70 ℃ |
| Display Area | 21.744 × 10.864mm / 0.85 x 0.43” |
| Module Size | 41.20 × 26.20mm / 1.62 x 1.03” |
| Mounting Hole Size | 35 x 20 mm/ 1.38 x 0.78” |
| Module Weight | 15g |
In the box
| Gravity I2C OLED-2864 Display | 1 |
| Gravity I2C PH2.0-4P Cable | 1 |
