Description

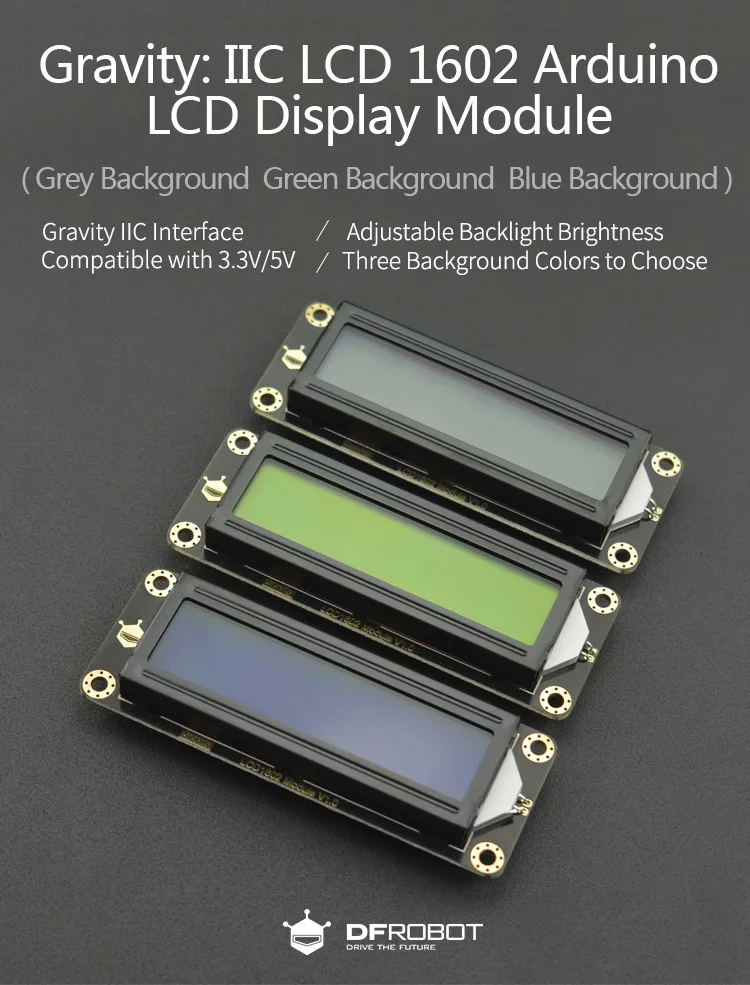

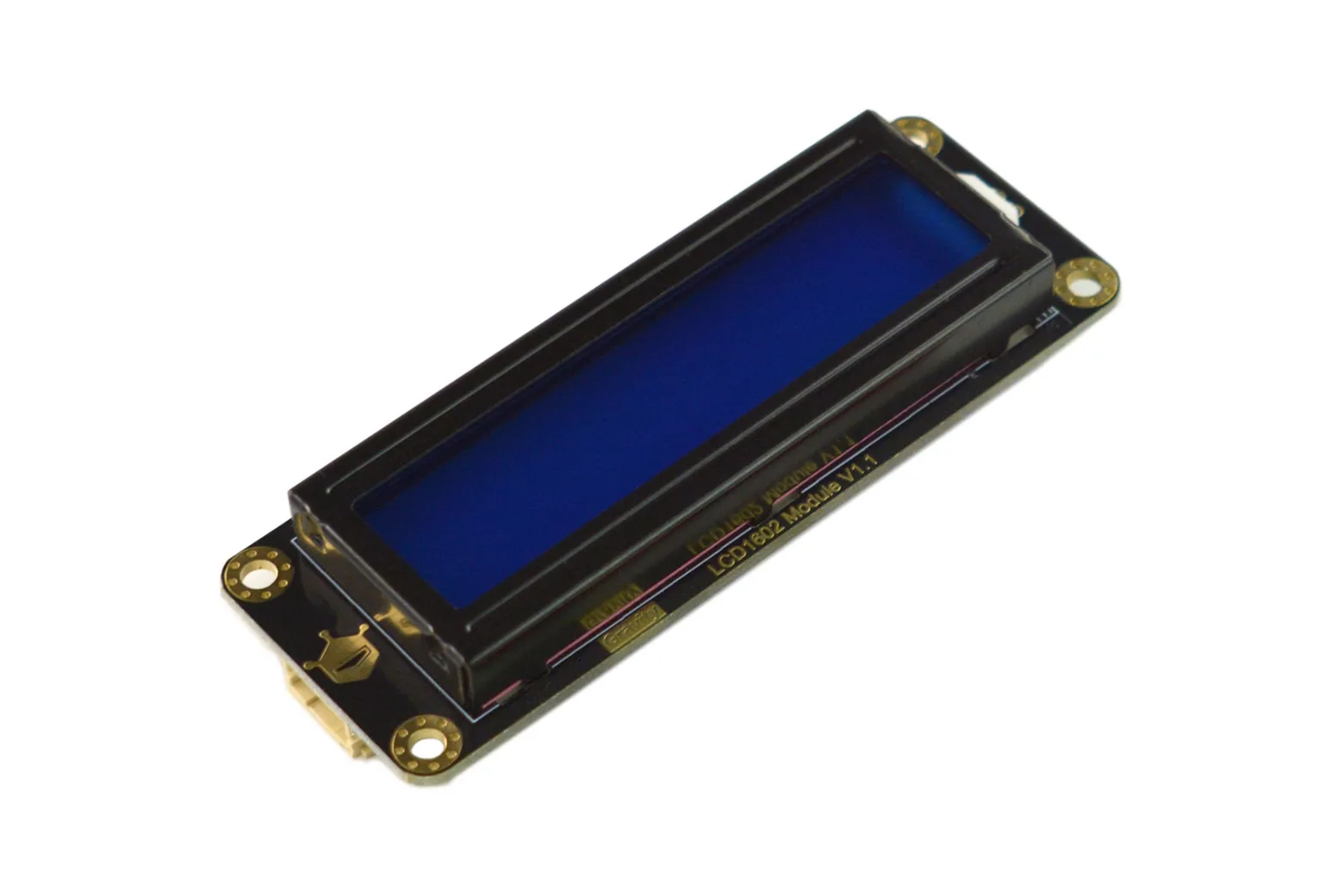

The Gravity: I2C LCD1602 Arduino LCD Display Module is a 16-character by 2-line blue backlit screen designed for straightforward data visualisation. It is ideal for students, educators, and hobbyists looking to add text readouts to microcontroller projects without complex wiring.
Gravity I2C interface

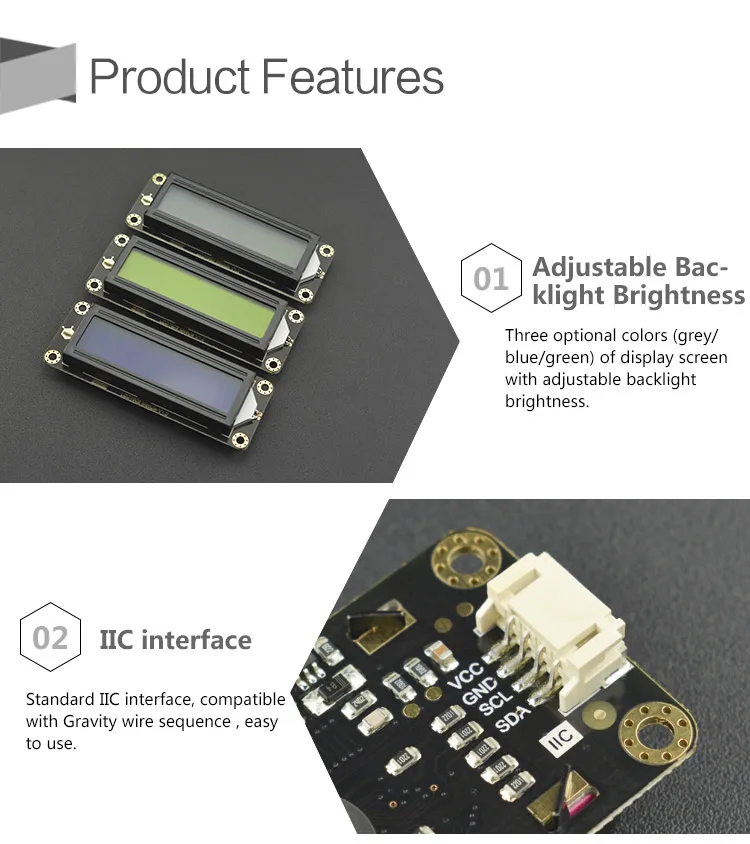

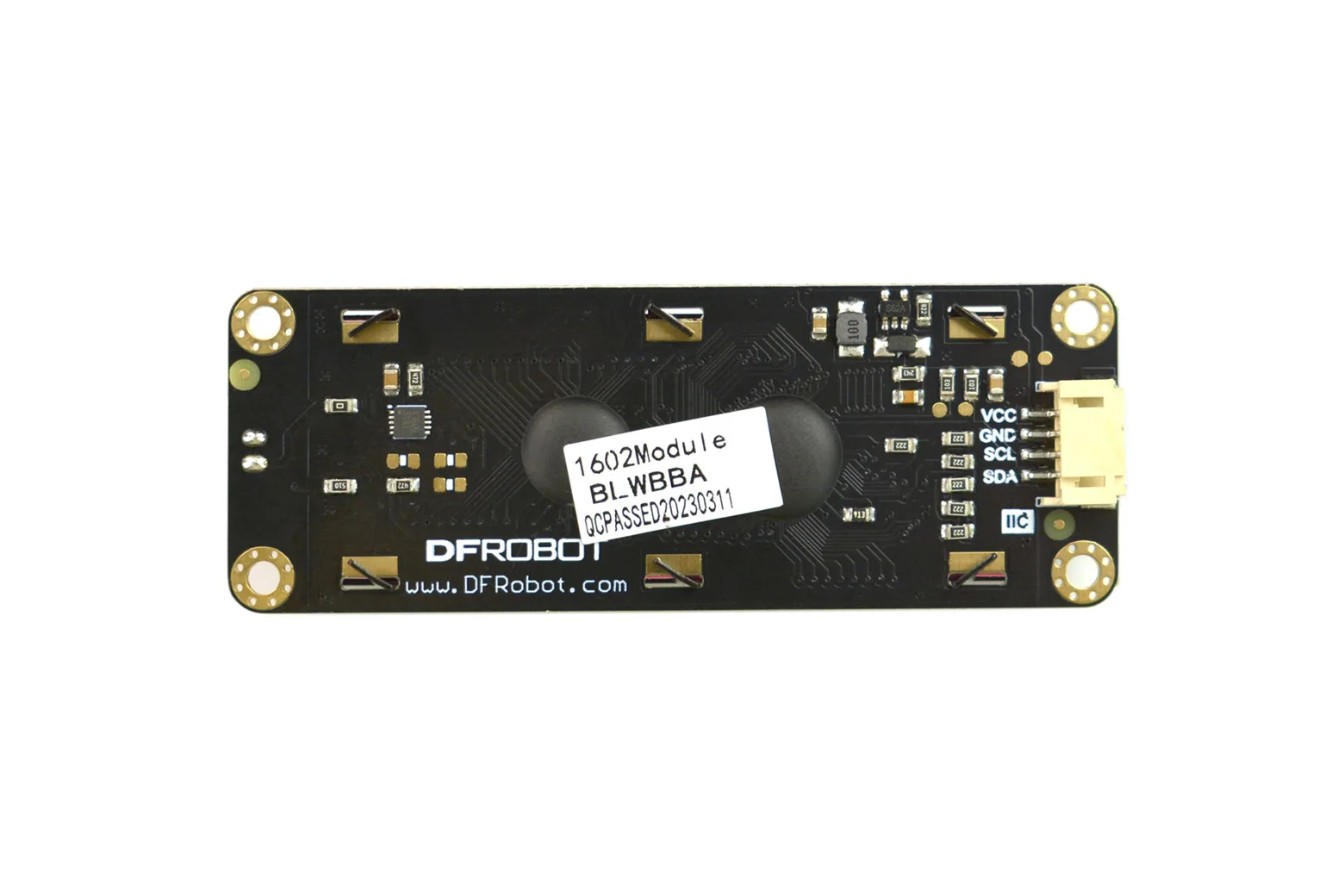

This module uses standard I2C communication via a dedicated Gravity port, eliminating the need for bulky pin headers and drastically reducing required microcontroller I/O pins.
Dual 3.3V and 5V compatibility
Operating across a voltage range of 3.3V to 5.0V with an operating current under 20mA, this display integrates easily with both 3.3V and 5V logic controllers.
Optimised contrast and controllable backlight

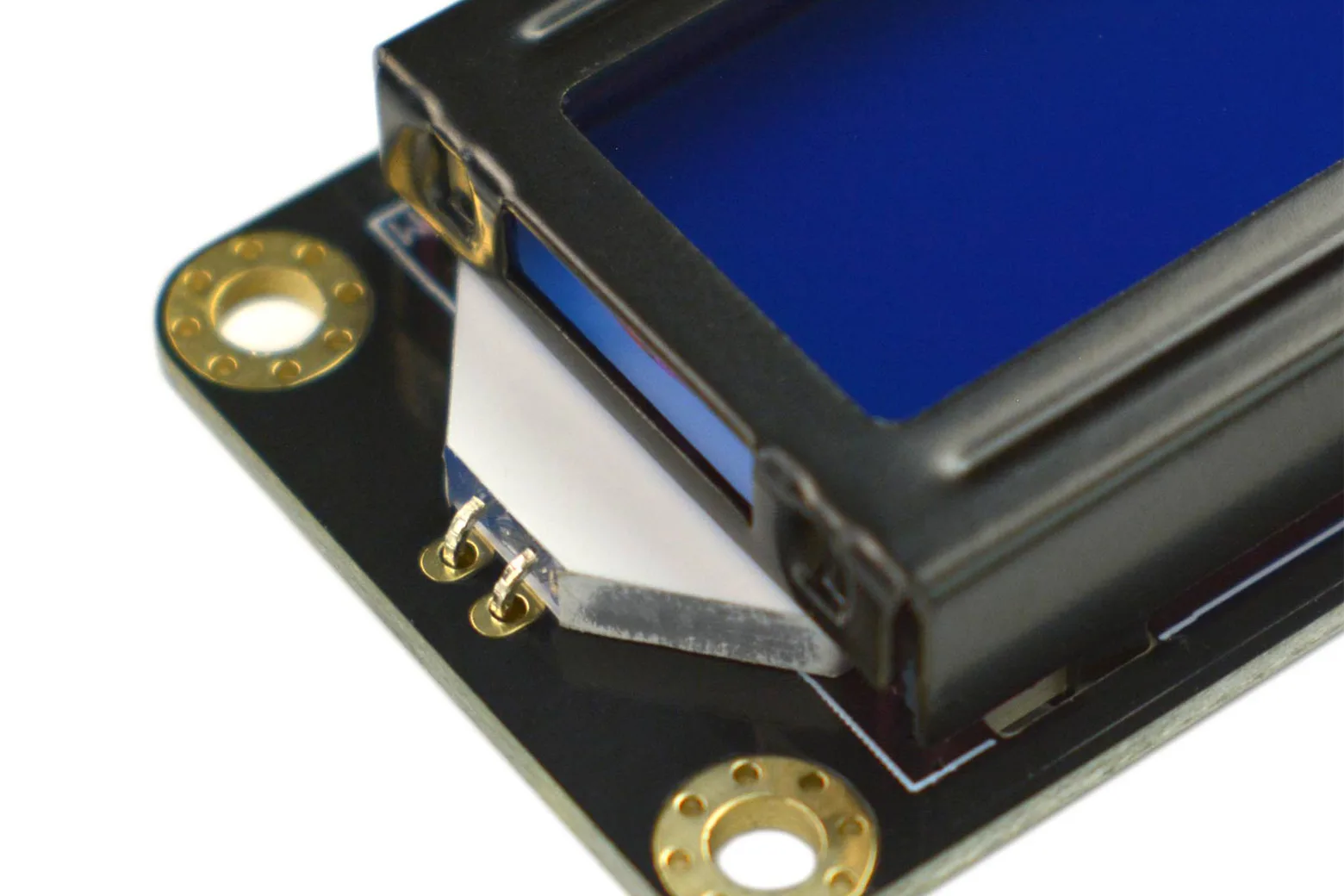

Contrast adjustment is handled automatically without manual potentiometer trimming, while the crisp blue backlight retains full programmatic on/off control.
Clear 16x2 character layout
The screen presents 16 characters across 2 rows, providing clear alphanumeric readouts for sensor metrics, system statuses, and project debugging.
Wide environmental tolerance
Engineered for reliable performance in varied environments, the unit functions across an operating temperature range of -20°C to +70°C and stores safely between -30°C and +80°C.
Compact form factor and accessories

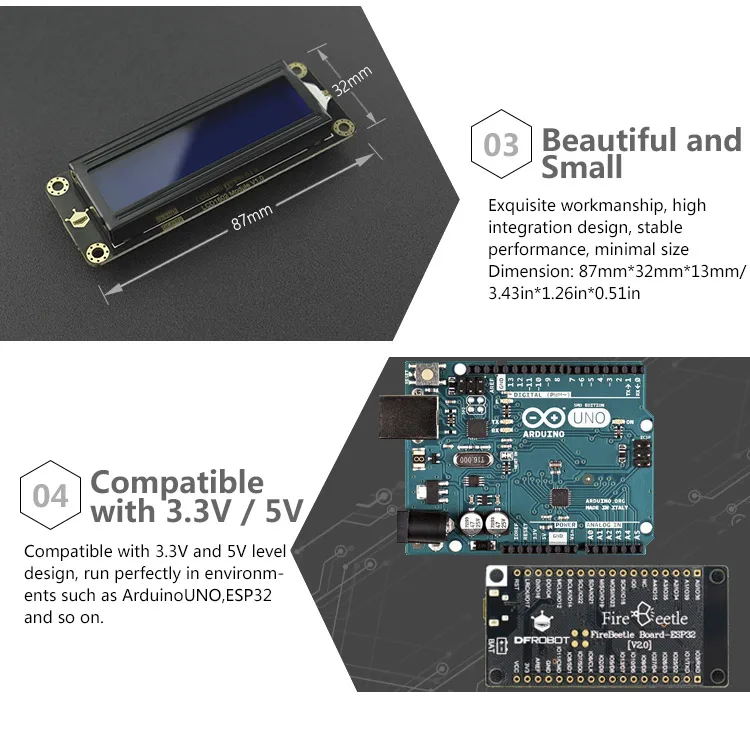

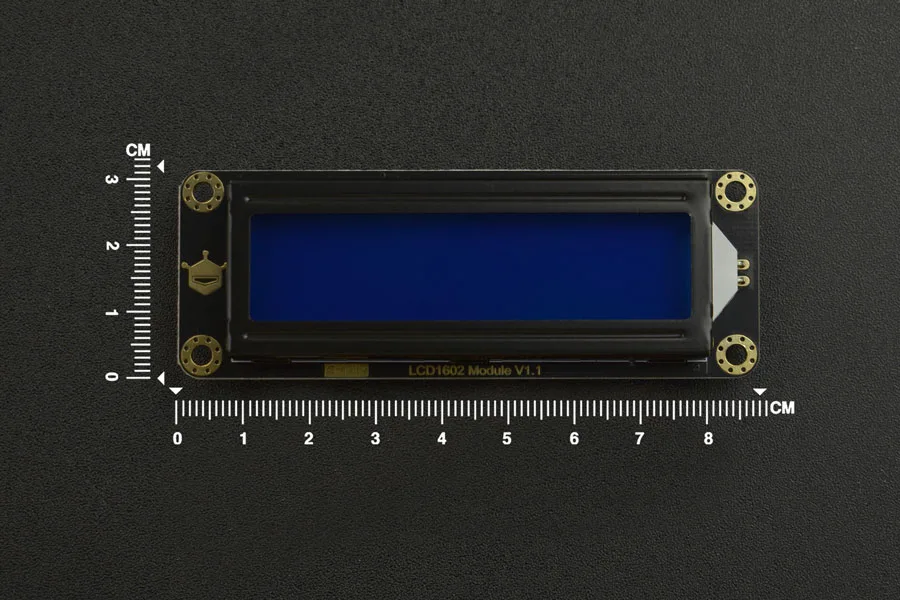

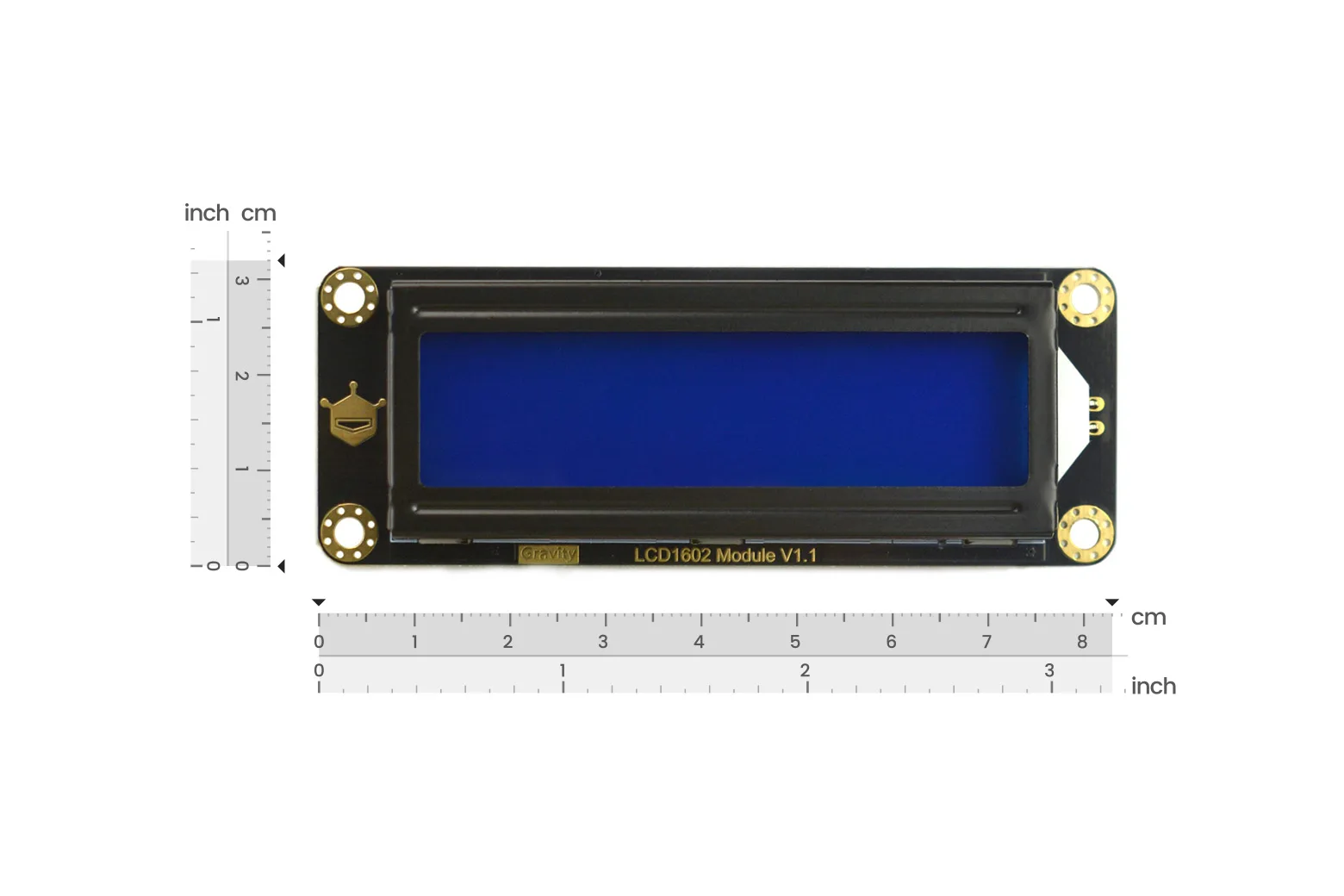

Measuring 87.0 x 32.0 x 13.0 mm, the module comes supplied with a compatible Gravity I2C/UART sensor cable for immediate plug-and-play wiring.
Downloads & documentation
Specifications
| Operating Voltage | 3.3V~5.0V |
| Operating Current | ≤20mA |
| Display Description | 16*2 |
| Communication Mode | I2C |
| Backlight | Blue |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -30 to +80°C |
| Dimension | 87.0*32.0*13.0mm/3.43*1.26*0.51in |

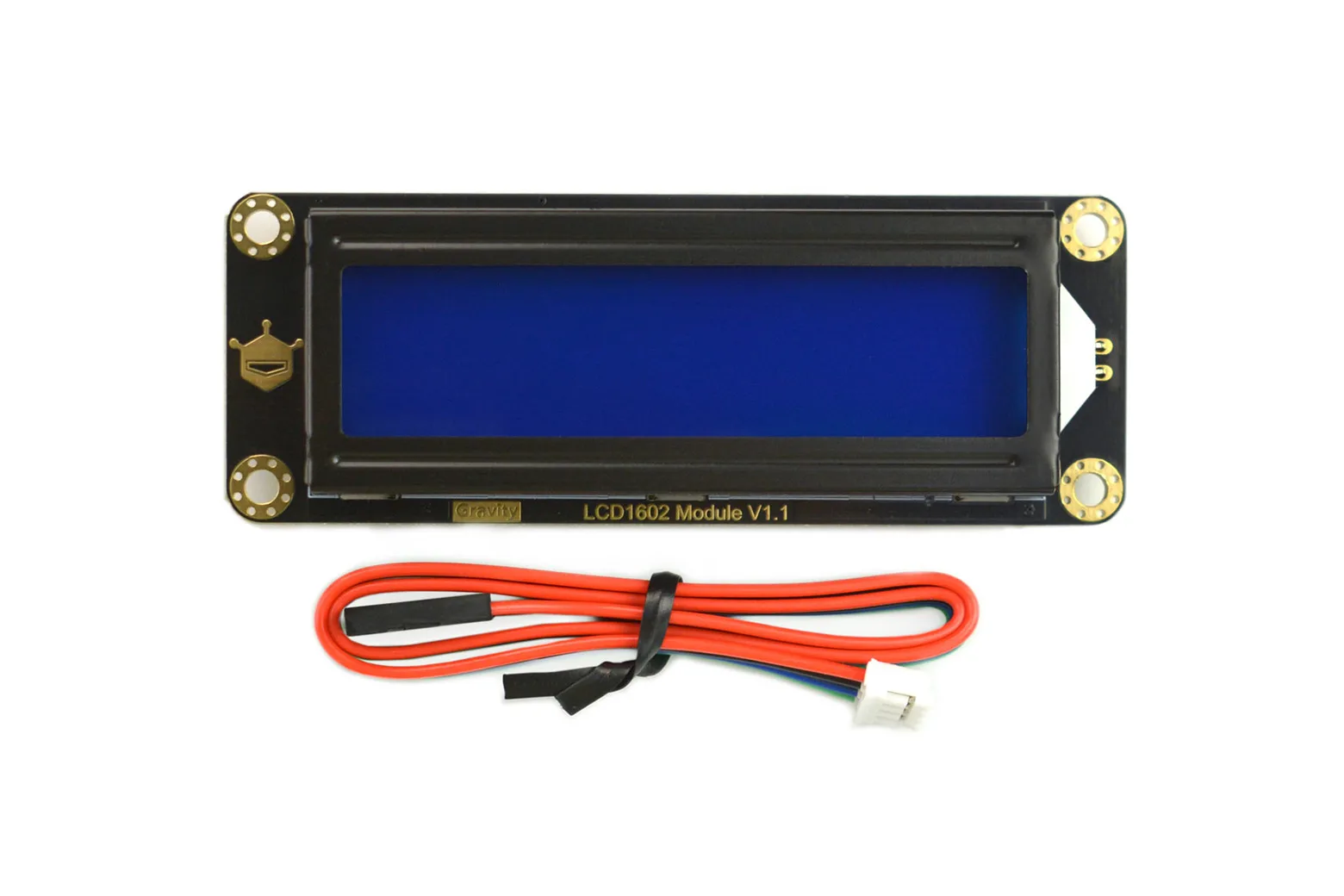

In the box
| Gravity: I2C LCD1602 Arduino LCD Display Module (Blue) | 1 |
| Gravity I2C/UART sensor cable | 1 |
