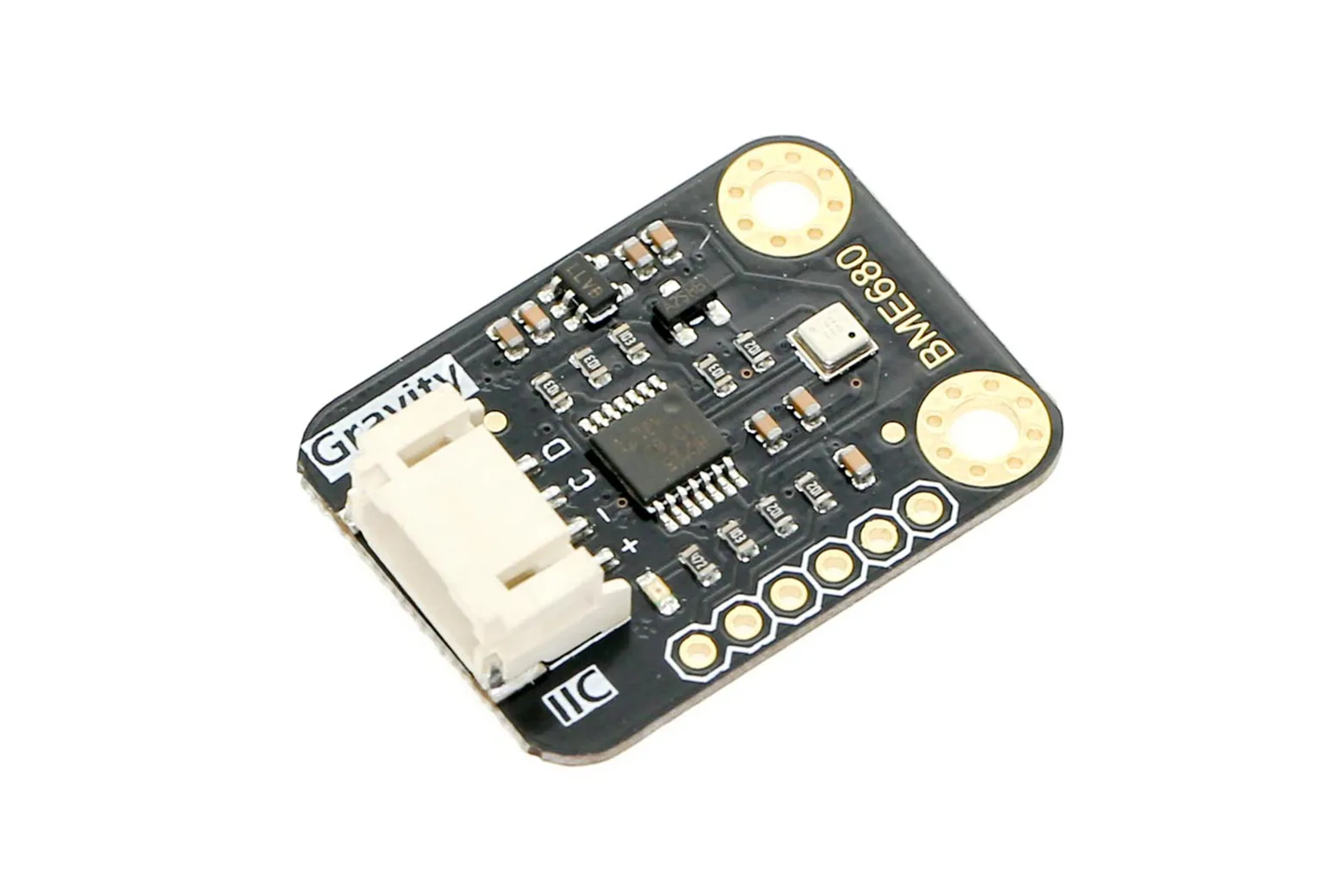

Gravity: I2C BME680 Environmental Sensor
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Gravity I2C BME680 Environmental Sensor is a compact 4-in-1 MEMS module that measures temperature, humidity, barometric pressure, and volatile organic compounds. Designed for plug-and-play prototyping, it is ideal for makers, students, and educators building smart home monitors, IoT environmental nodes, and wearable devices.
Four-in-one environmental sensing
Powered by the Bosch BME680 MEMS sensor, this module monitors temperature, relative humidity, atmospheric pressure, and VOC gas levels simultaneously. It delivers multi-parameter environmental data in a compact 30 by 22 mm footprint with low power consumption.
Dual 3.3V and 5V compatibility
Equipped with an onboard voltage regulator and level-translator IC, the board connects directly to 3.3V and 5V microcontrollers. It operates across an input voltage range of 3.3V to 5.0V, drawing 5mA during standard operation and 25mA during VOC measurements.
Gravity I2C and SPI interfaces

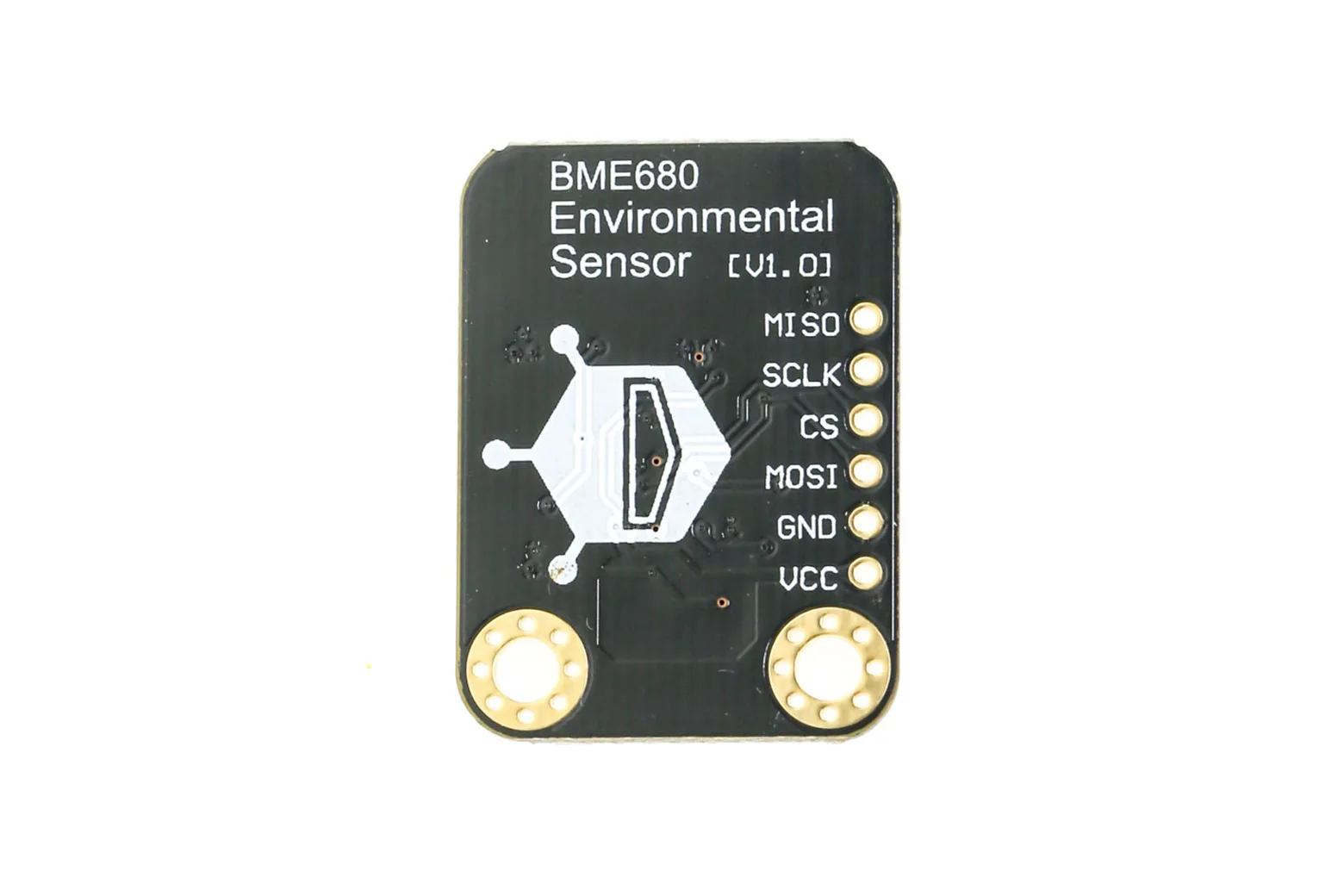

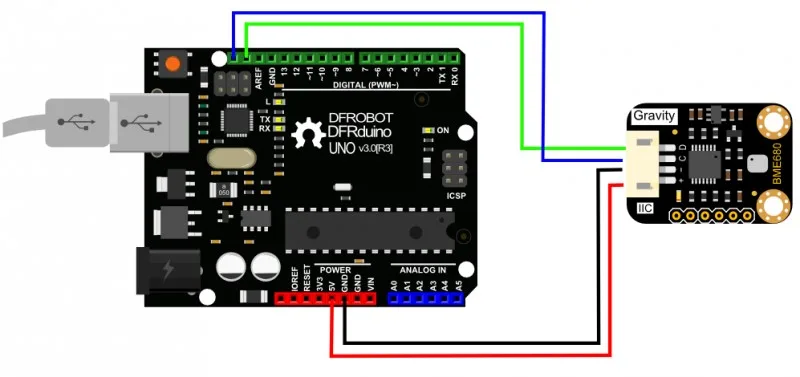

The sensor features a standard Gravity I2C connector for fast, solder-free wiring. An unpopulated XH2.54 SPI header layout is also reserved on the board for advanced connection requirements.
Broad measurement ranges
The device measures temperature from -40°C to +85°C, humidity from 0 to 100% r.H., and barometric pressure from 300 to 1100 hPa. It also outputs an Indoor Air Quality (IAQ) index from 0 to 500, with IAQ calculation specifically supported on FireBeetle ESP8266 microcontrollers.
Included accessories

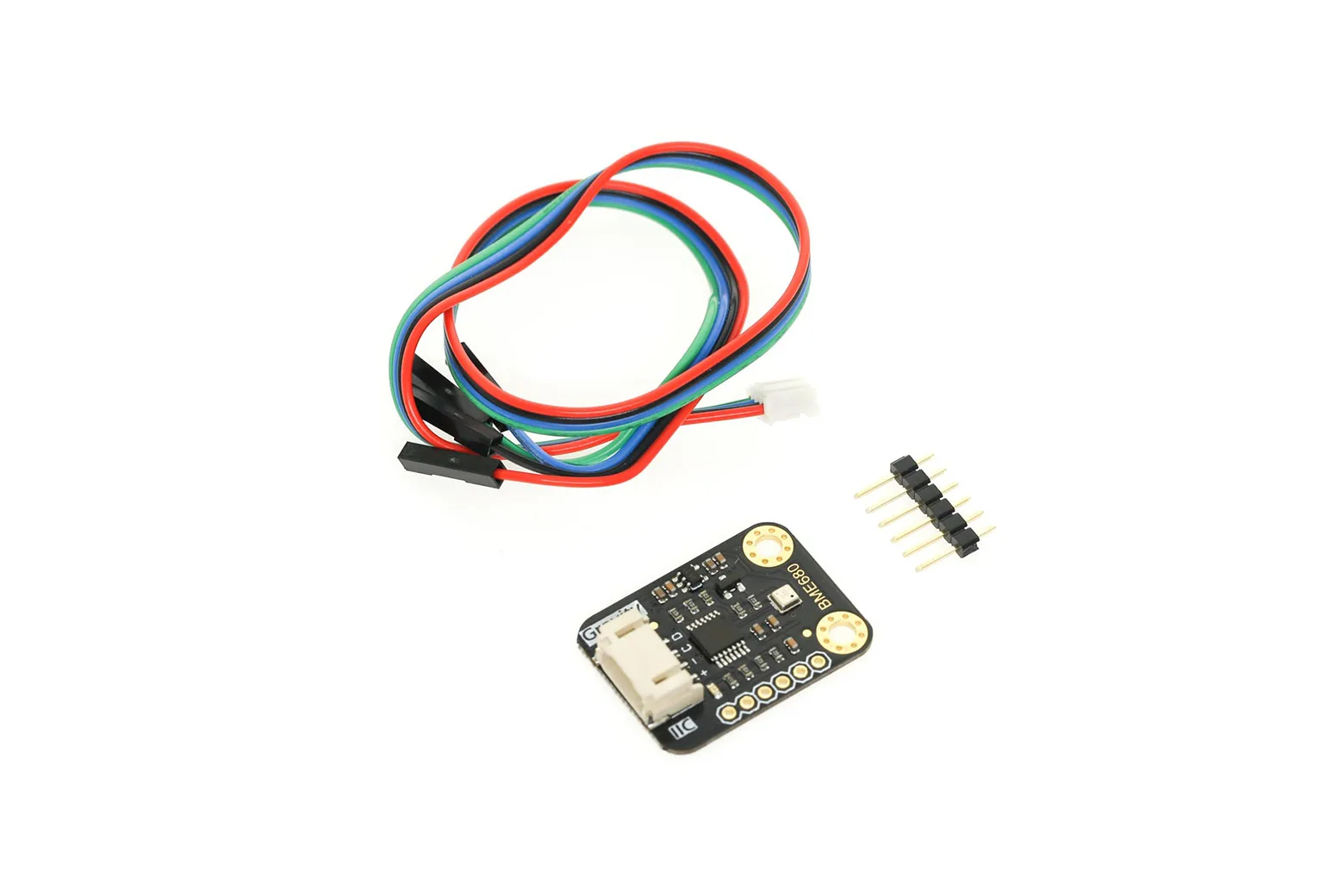

The kit includes one BME680 sensor module, an XH2.54 6-pin male header, and a Gravity 4-pin I2C/UART sensor cable. Everything required to connect the board to compatible development platforms is supplied out of the box.
Downloads & documentation
Specifications
| Input Voltage | 3.3V~5.0V |
| Operating Current | 5mA (25mA in VOC) |
| Wiring Connector | Gravity I2C |
| Connector in Reserve | SPI |
| Temperature Measurement Range | -40℃~+85℃ |
| Temperature Measurement Precision | ±1.0℃(0~65℃) |
| Humidity Measurement Range | 0-100%r.H. |
| Humidity Measurement Precision | ±3%r.H.(20-80% r.H.,25℃) |
| Atmospheric Pressure Measurement Range | 300-1100hPa |
| IAQ (Indoor Air Quality) Range | 0~500 (the larger the worse) |

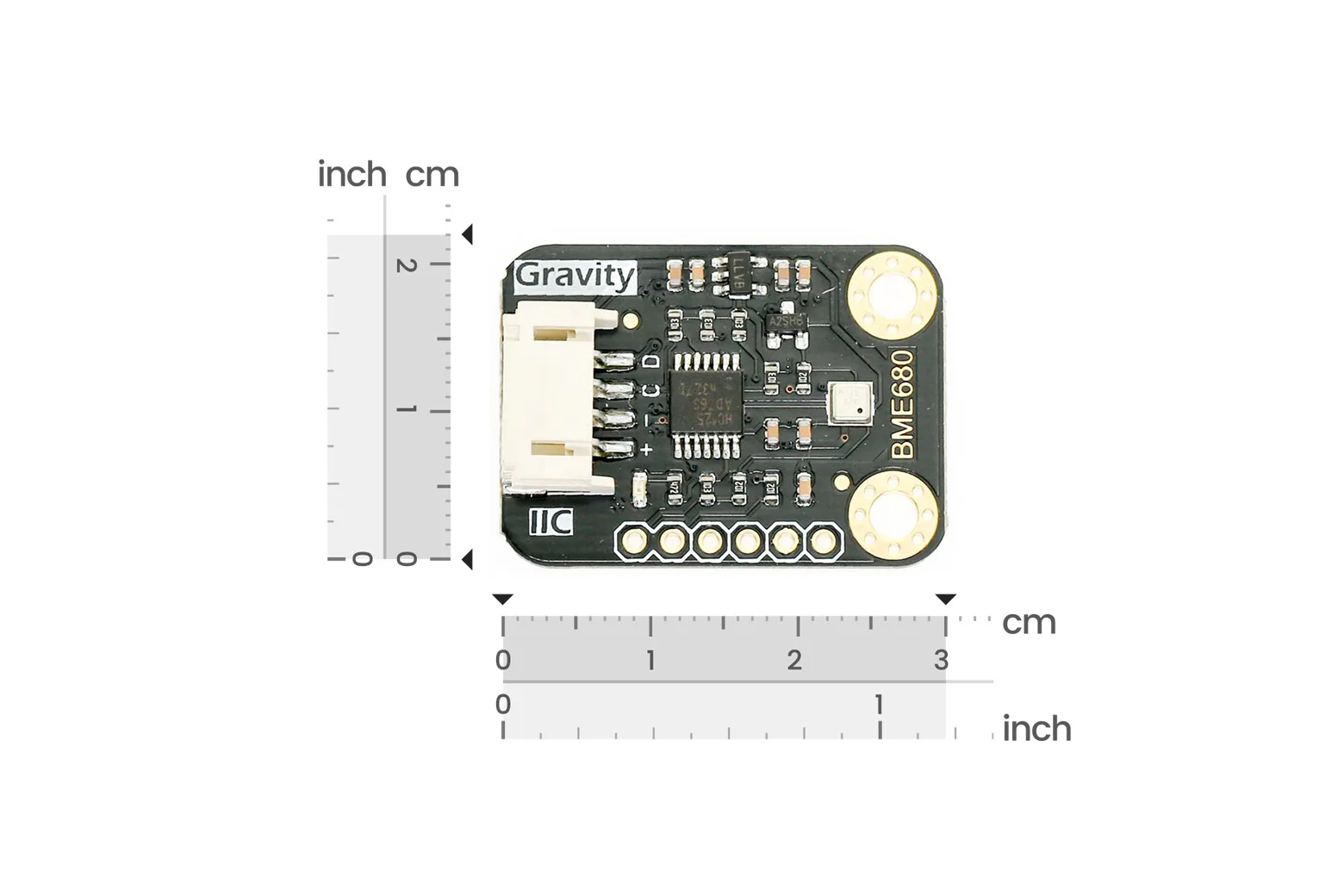

| Module Size | 30 × 22(mm) / 1.18 x0.87(inches) |
In the box
| Gravity: I2C BME680 Environmental Sensor | 1 |

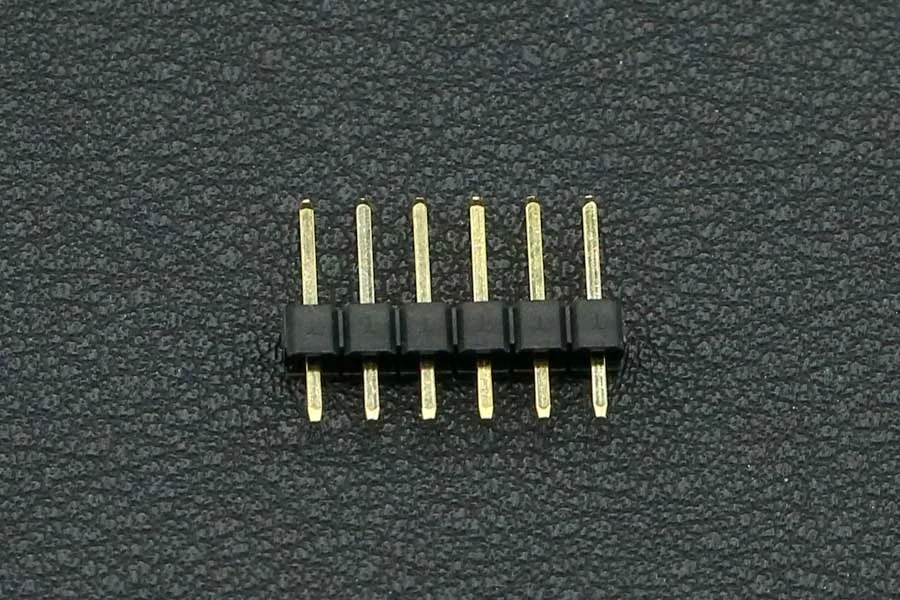

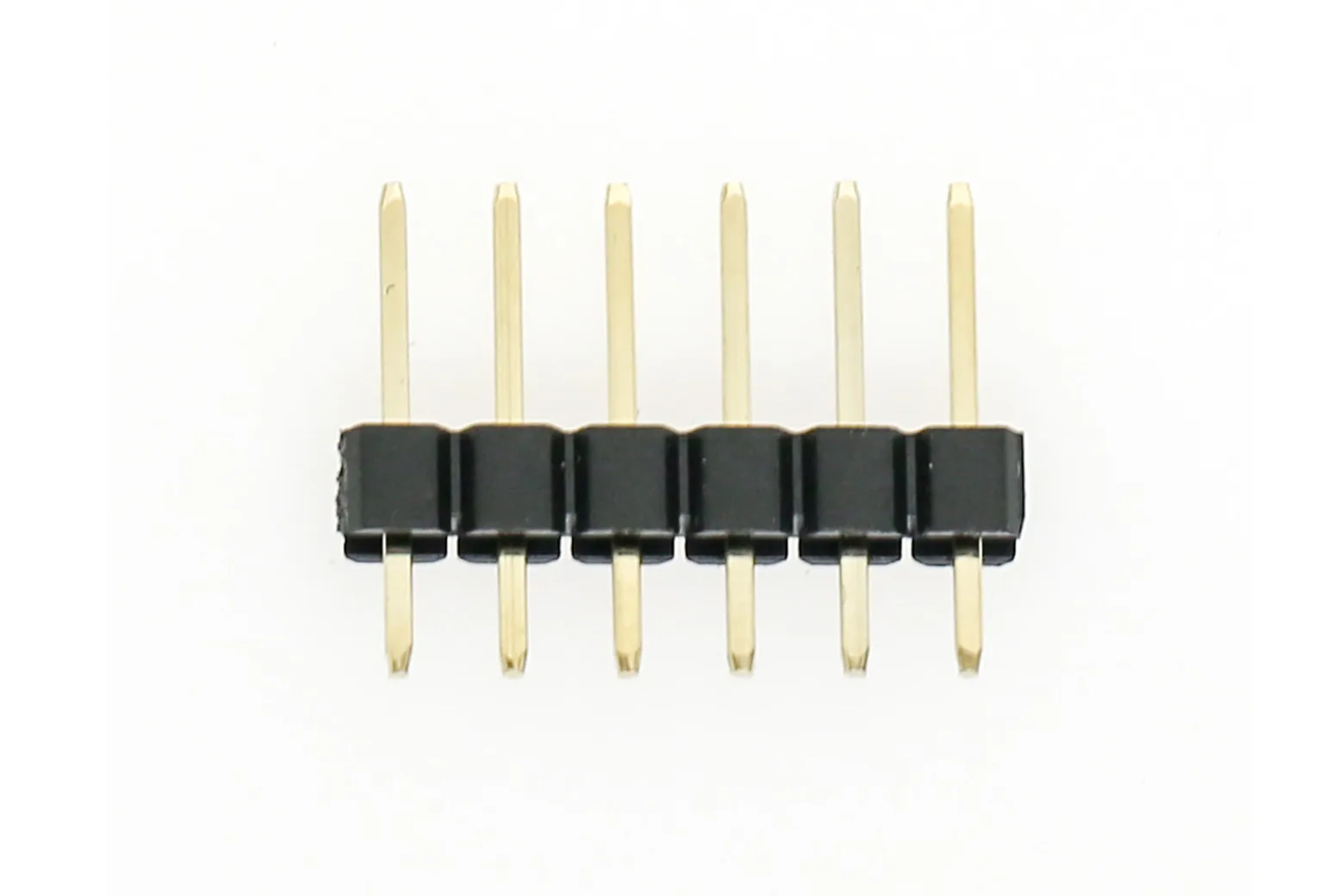

| XH2.54-6pin Header | 1 |

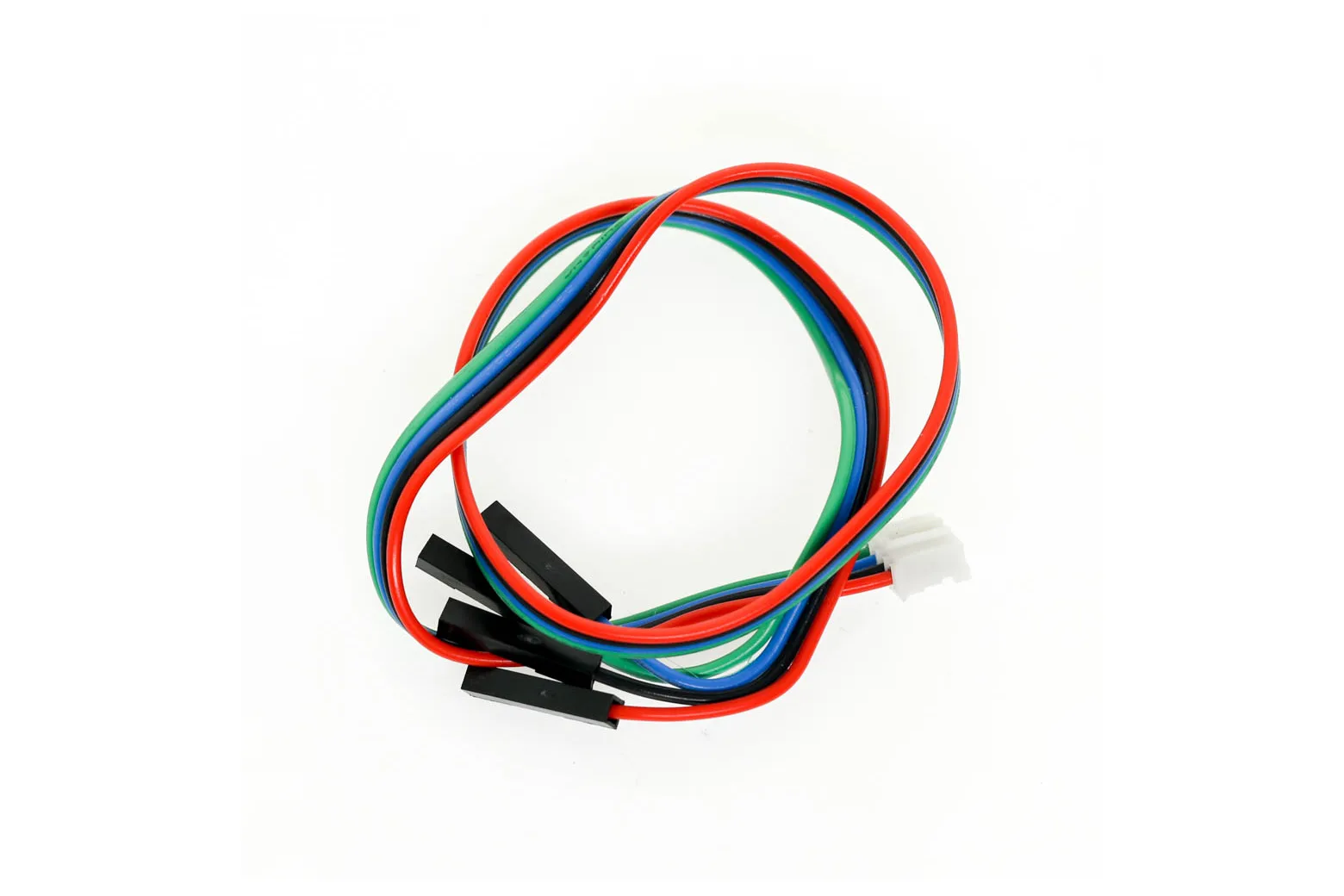

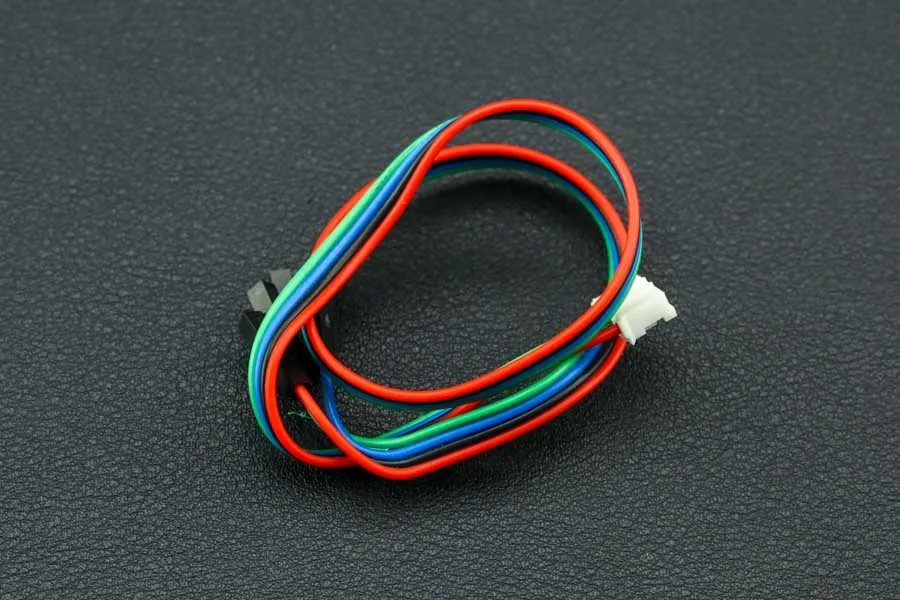

| Gravity-4P I2C/ UART Sensor Wire | 1 |
