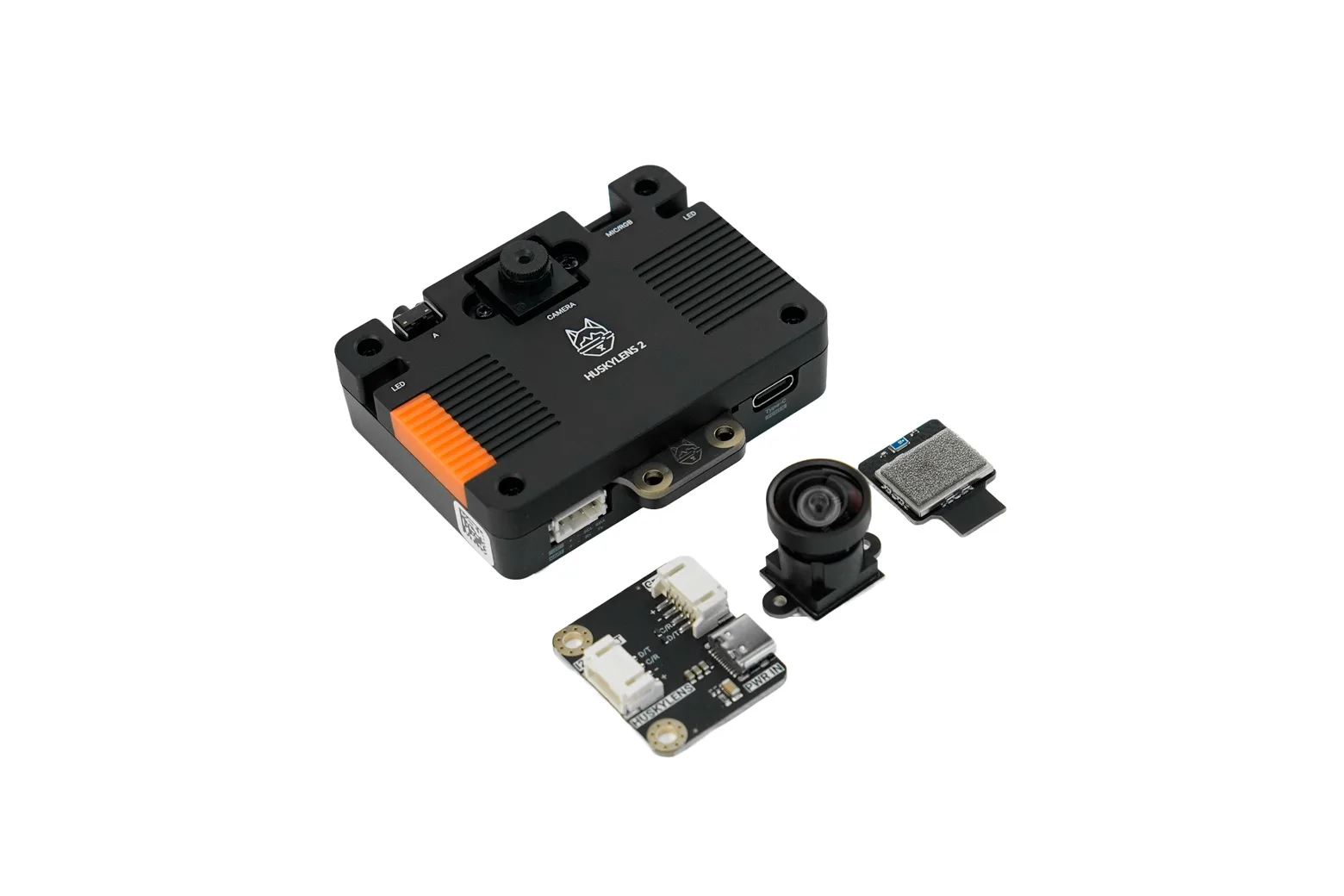

Gravity: HUSKYLENS 2 Plus Kit - Edge AI Vision Sensor with Wi-Fi 6 & Wide-Angle Camera

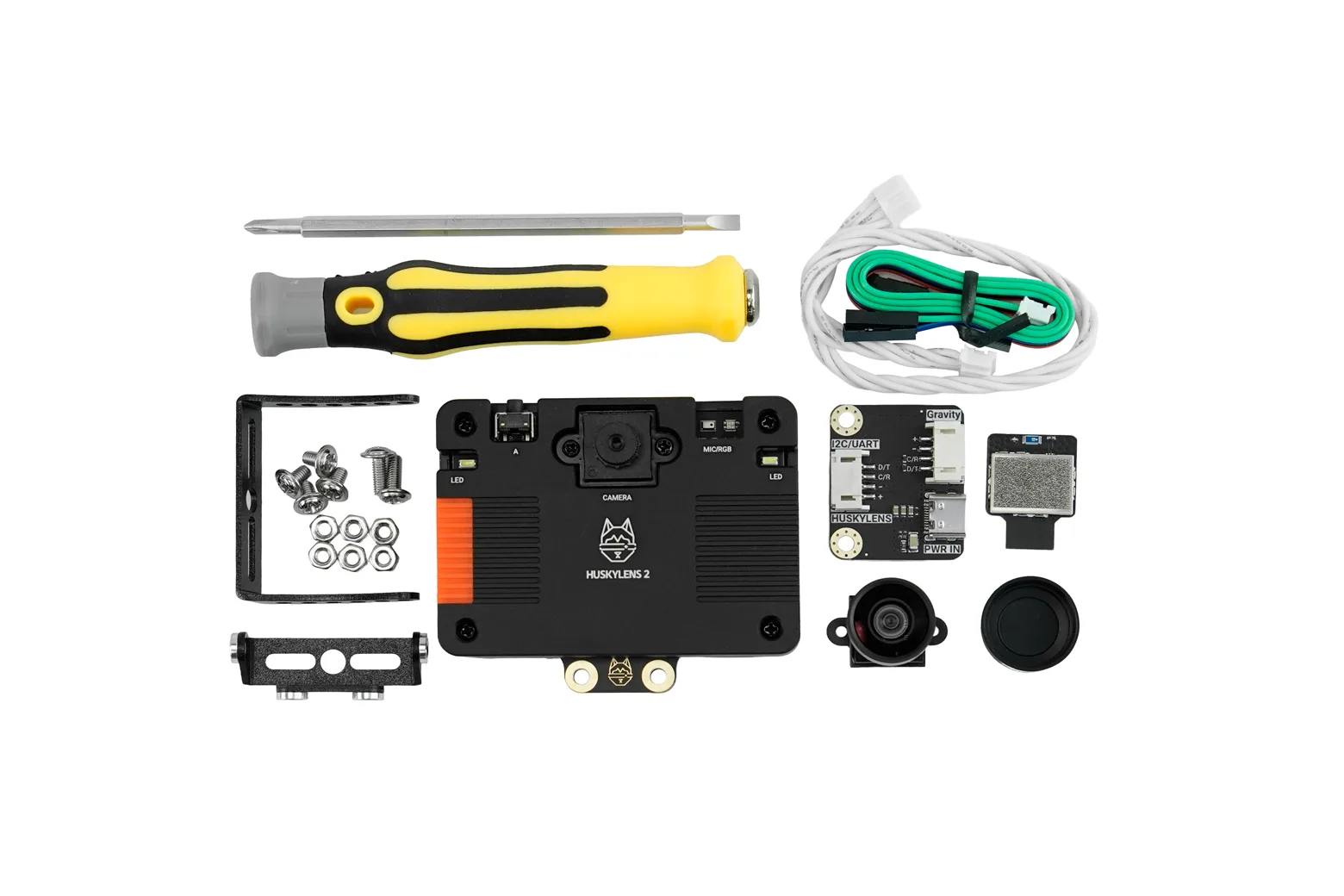

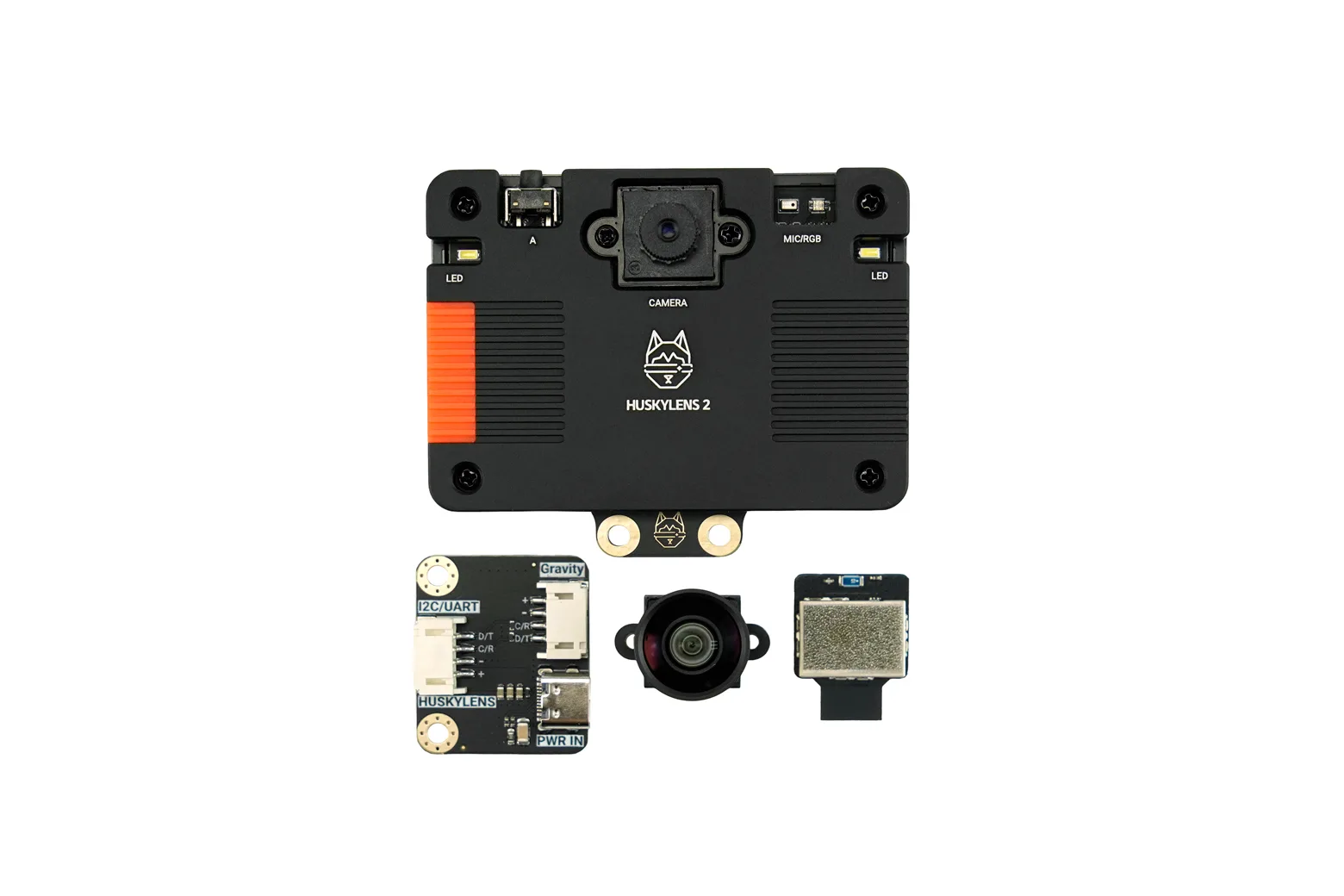

The Gravity: HUSKYLENS 2 Plus Kit is a 6 TOPS edge AI vision sensor bundled with a Wi-Fi 6 module and a 116.6-degree wide-angle camera. It provides ready-to-use visual recognition capabilities including object tracking, face recognition, and posture detection without requiring cloud infrastructure. This versatile kit is tailored for STEM education, maker lab prototyping, and competitive robotics.

High-performance edge AI processing

Powered by a dual-core 1.6GHz Kendryte K230 processor with 6 TOPS AI computing capability, HUSKYLENS 2 executes machine vision algorithms directly on-device. It features 1GB LPDDR4 memory and 8GB eMMC storage to deliver low-latency inference and reliable offline performance.

On-device vision recognition algorithms

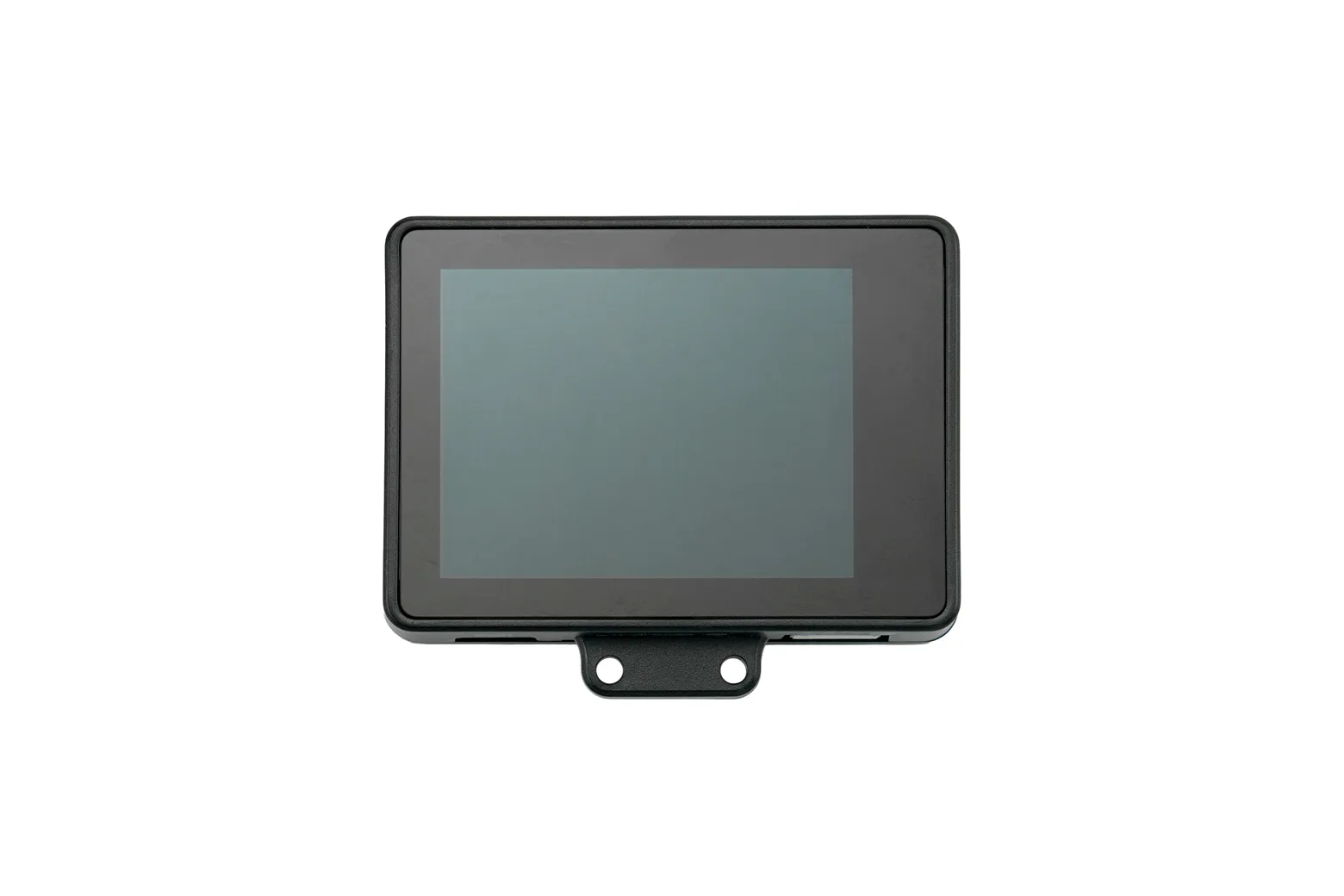

Built-in visual recognition algorithms handle object tracking, face recognition, gesture sensing, colour tracking, and posture detection. An interactive learn-and-use workflow enables users to train new targets directly using the integrated 2.4-inch IPS touchscreen.

Wi-Fi 6 wireless connectivity

The included 2.4GHz Wi-Fi 6 slot-in module supports wireless transmission rates of up to 286.8Mbps. It enables remote debugging, MCP communication, wireless image streaming, and over-the-air model downloads for cable-free robotics projects.

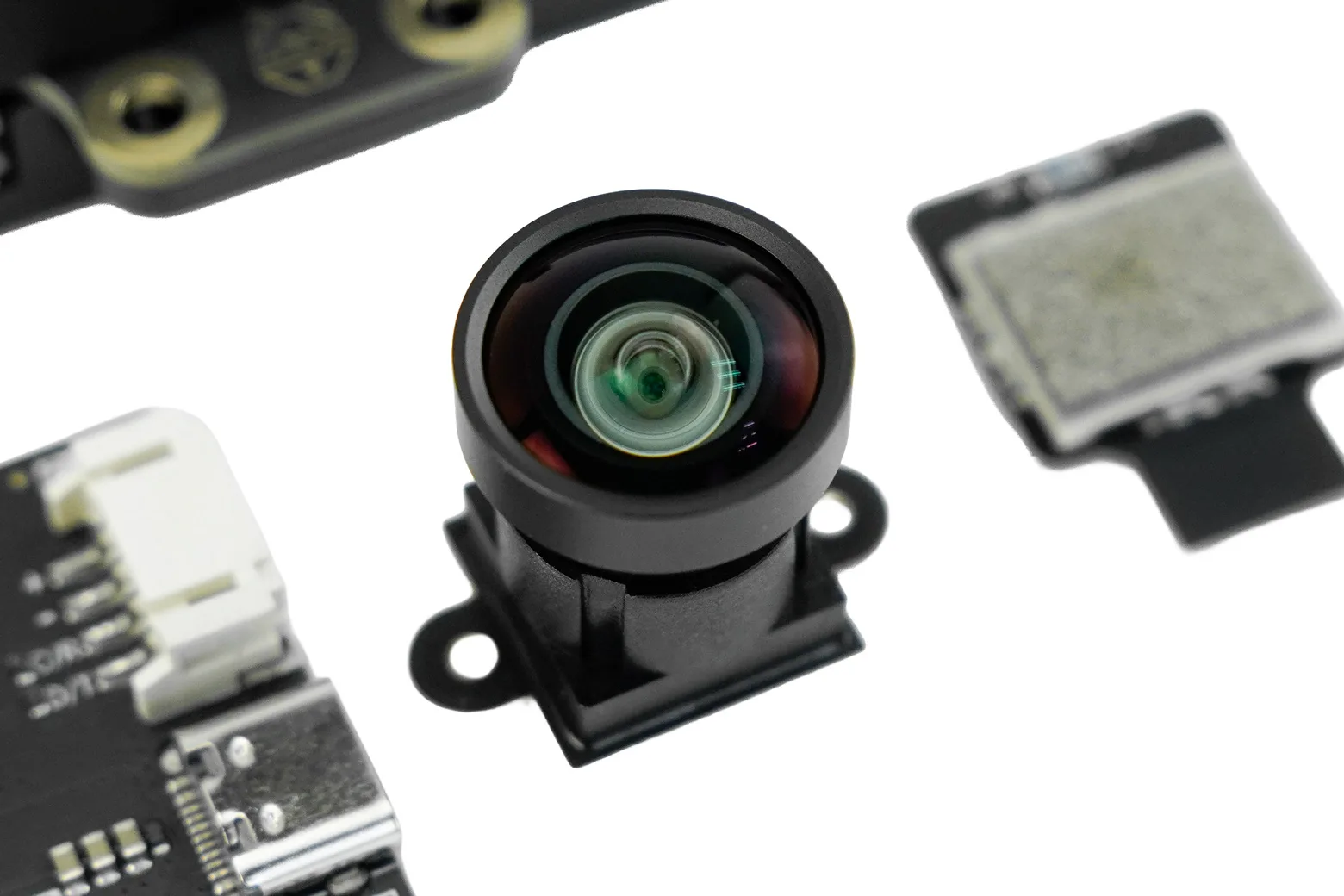

Ultra-wide field-of-view camera

The dedicated wide-angle camera module provides a 116.6-degree diagonal field of view with an effective capture range between 0.1 and 1.5 metres. The expanded angle reduces blind spots in mobile robot navigation, multi-target detection, and space monitoring applications.

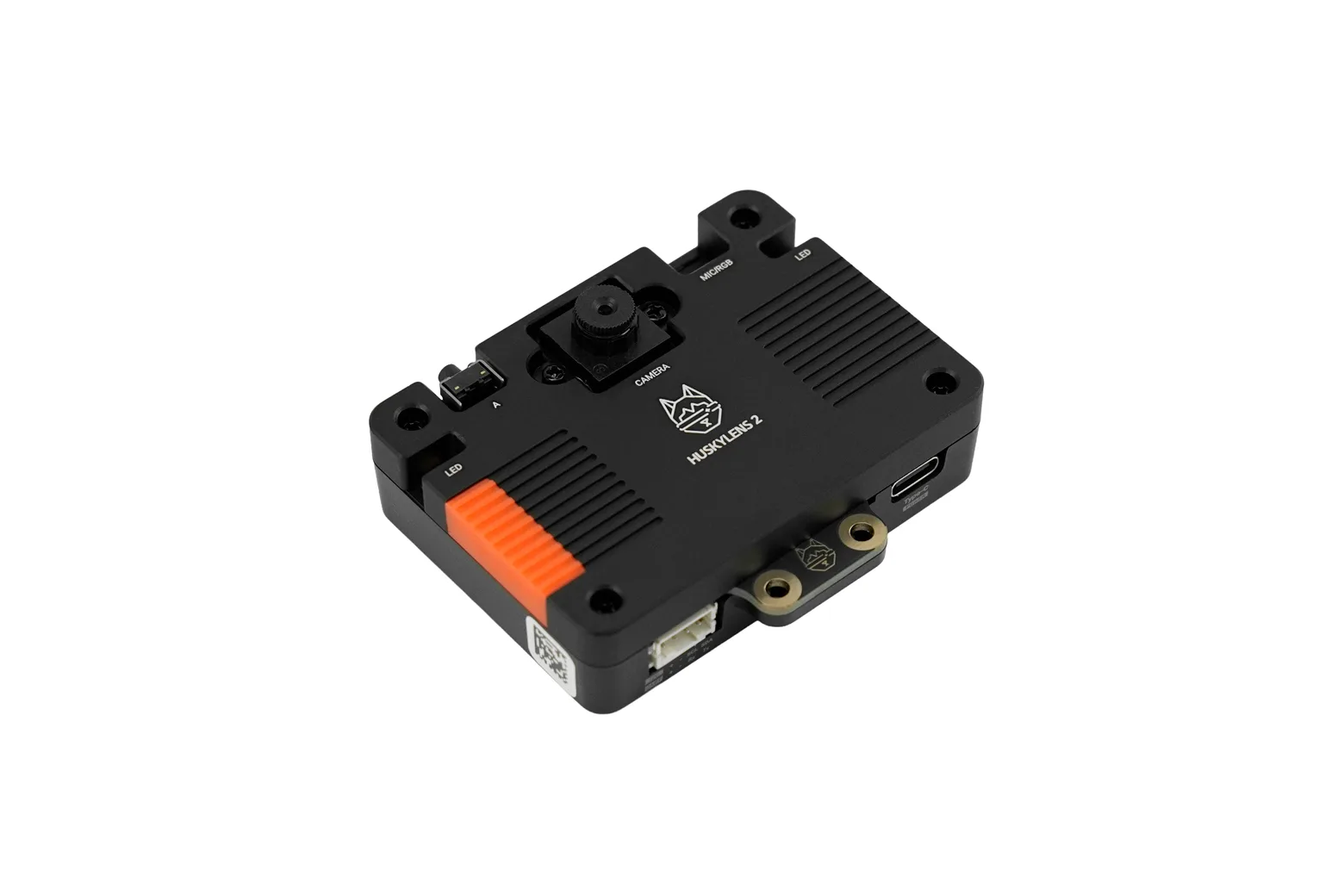

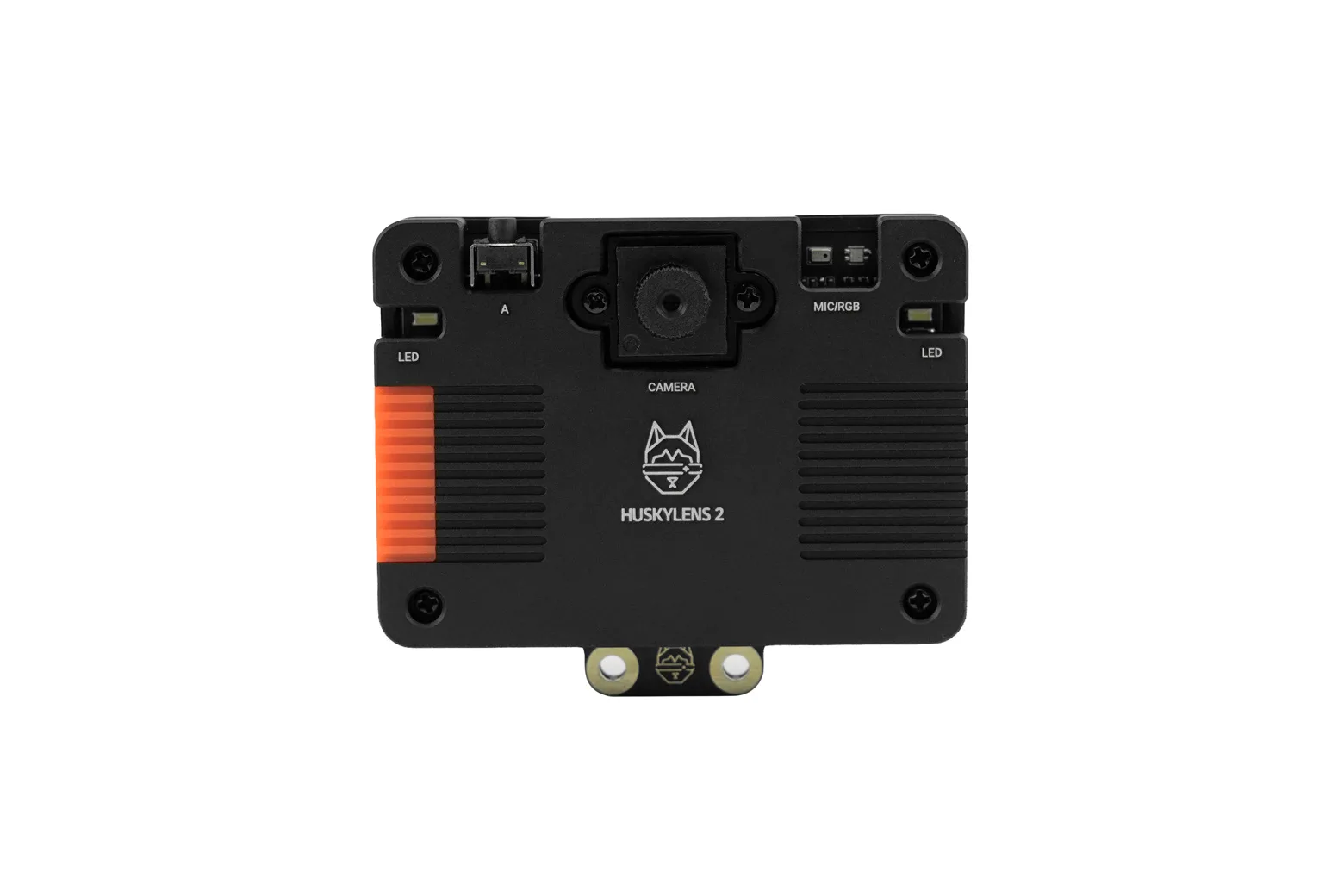

Versatile hardware and interfaces

The sensor integrates a 2MP 60FPS image sensor, dual fill LEDs, a capacitive microphone, a 1W speaker, and an RGB status indicator. Connectivity options include standard Gravity I2C and UART ports, USB-C, and a TF card expansion slot.

Downloads & documentation

• Product wiki (DFRobot)
