Gravity: High Accuracy Temperature, Humidity, Pressure, Ambient Light and UV Sensor - I2C/UART
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

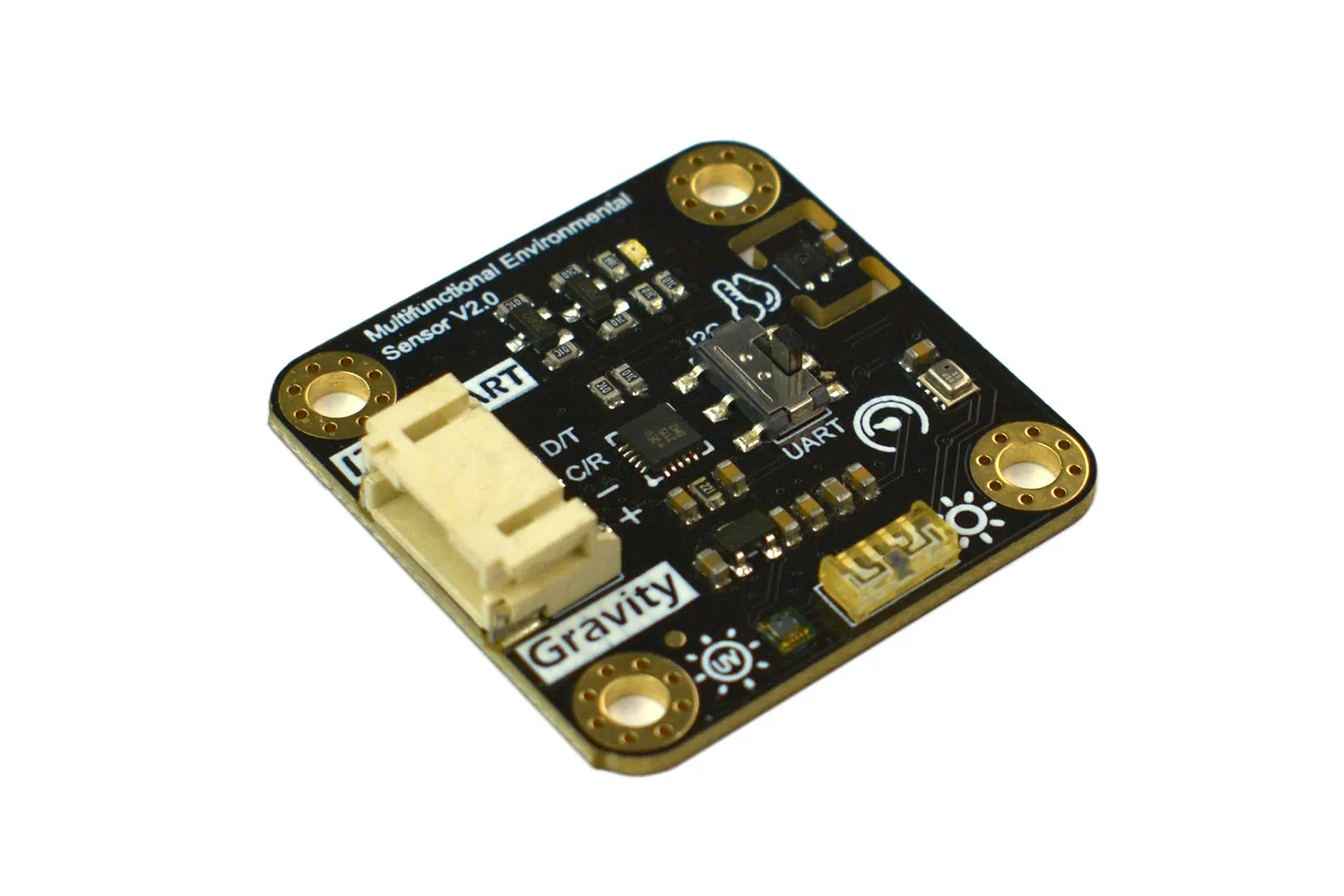

This multifunctional Gravity environmental sensor integrates five high-accuracy sensing elements into a single compact board to measure temperature, humidity, barometric pressure, ambient light, and ultraviolet intensity. Equipped with an onboard processing microcontroller, it converts raw data directly into standard engineering units. It is ideal for students, makers, and educators building indoor or outdoor weather monitoring stations without complex wiring.
Five environmental sensors in one

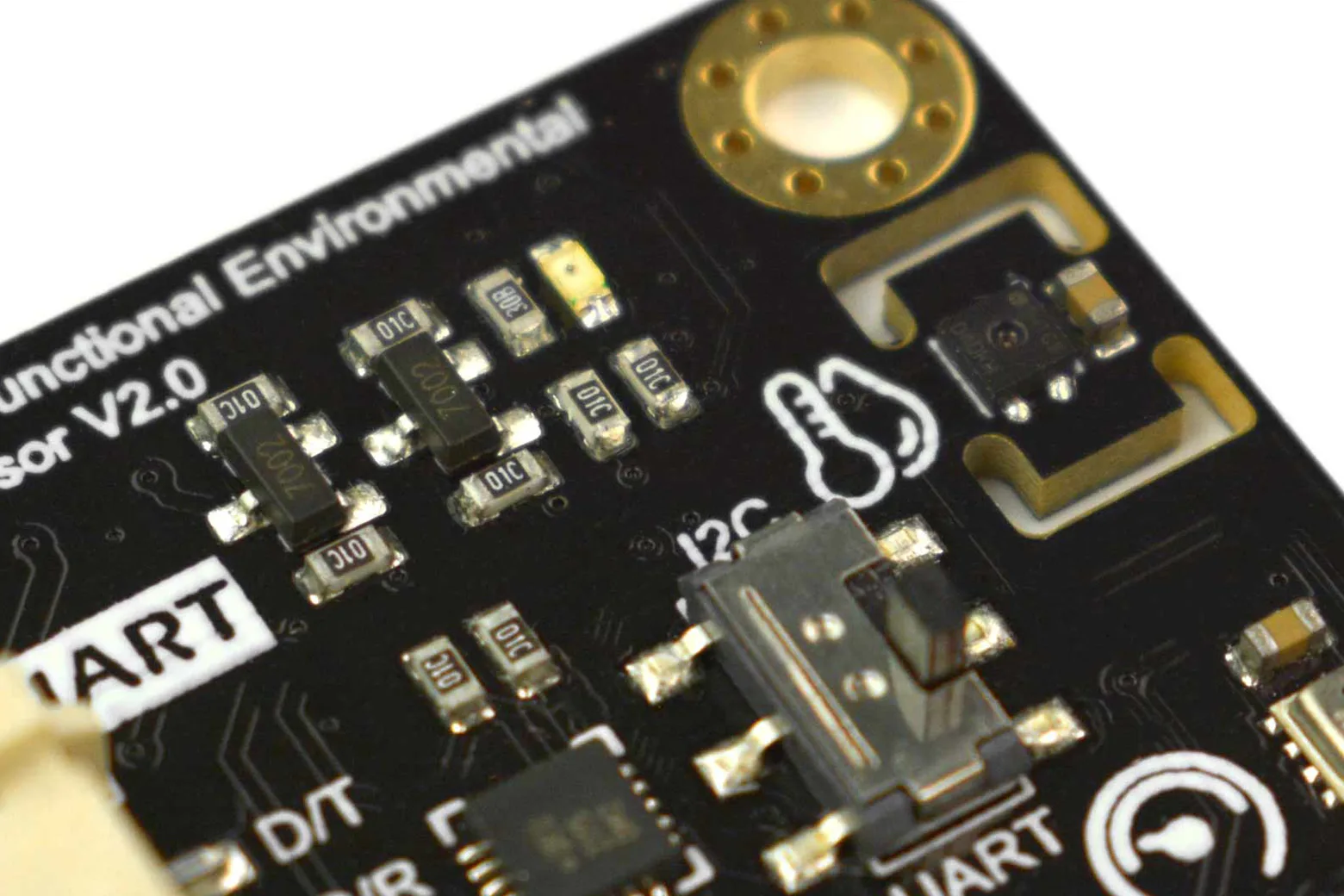

The module integrates an SHTC3 temperature and humidity sensor, BMP280 barometric pressure sensor, VEML7700 ambient light sensor, and an LTR390-UV-01 ultraviolet sensor. Each dedicated chip is positioned with thermal isolation in mind to maintain high measurement accuracy.
Onboard MCU data conversion
An integrated MCU chip processes raw sensor data directly into standard units such as degrees Celsius, percentage relative humidity, kilopascals, lux, and milliwatts per square centimetre. This pre-processing streamlines code development for microcontrollers.

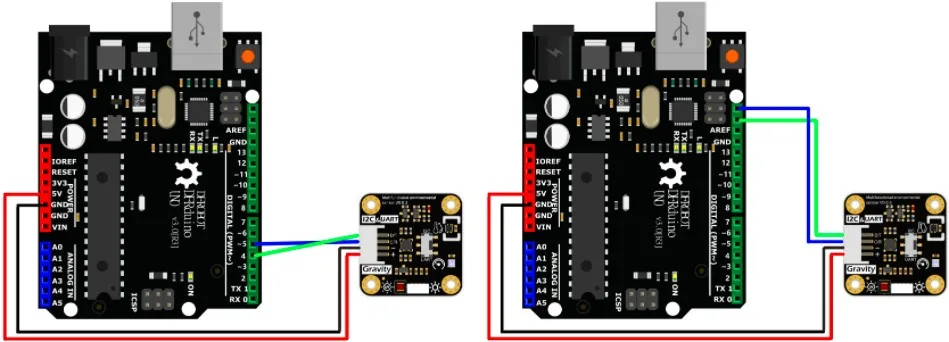

Flexible I2C and UART interfaces
The board supports both I2C and UART communication modes and uses a solderless Gravity 4-pin interface for plug-and-play prototyping. Complete Arduino and Python software libraries are available for fast integration.
Operating parameters and form factor

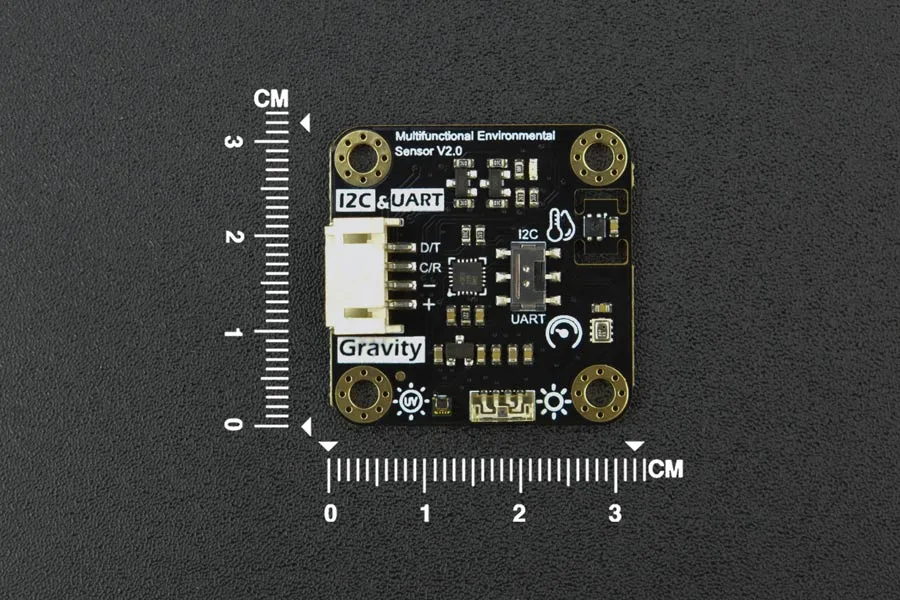

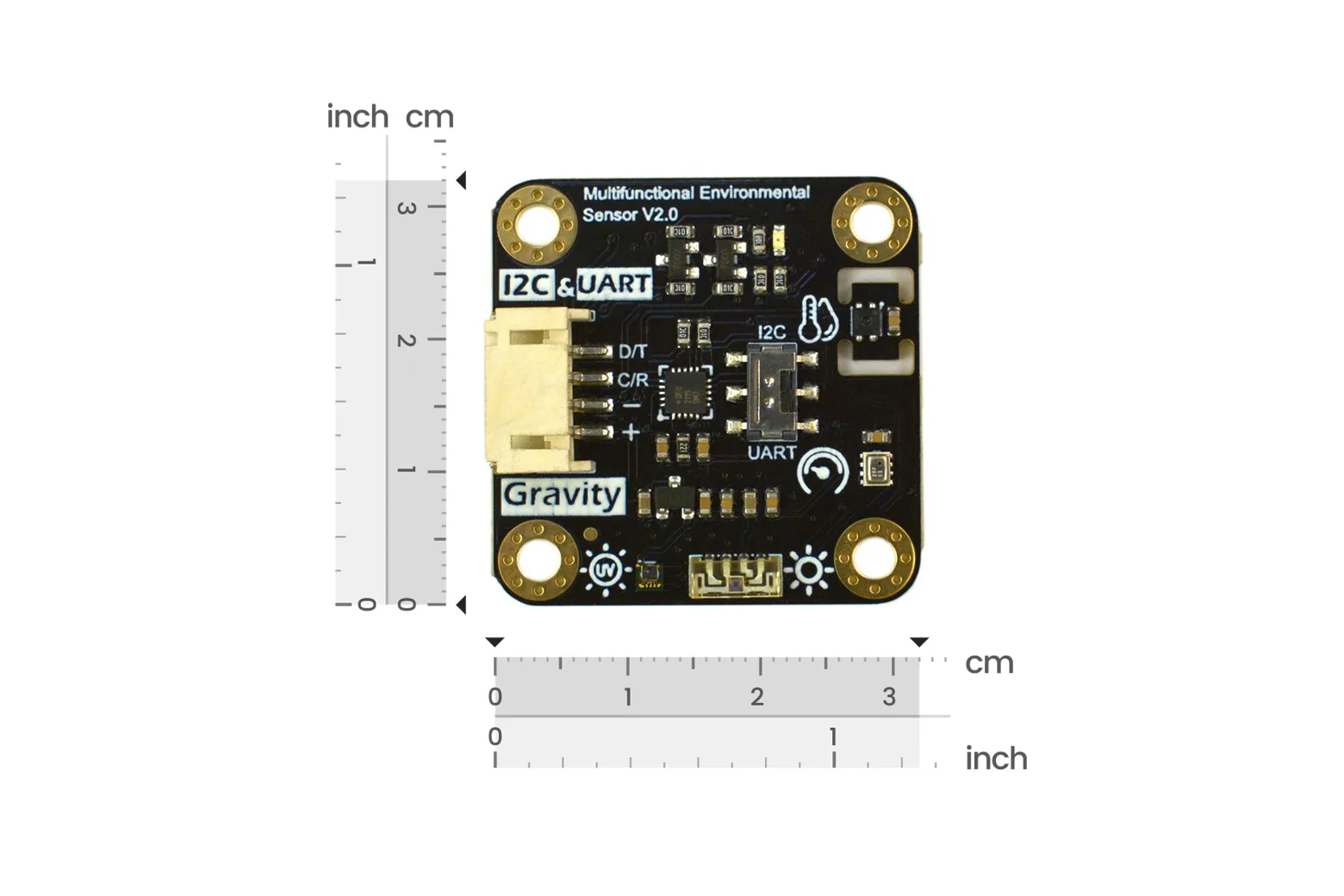

Operating from 3.3V to 5V DC with a typical current draw of roughly 4mA, the board measures 32mm by 32mm and functions across temperatures from -20 to 70 degrees Celsius. It includes standard M3 mounting holes spaced 25mm apart for easy enclosure installation.
Included package contents

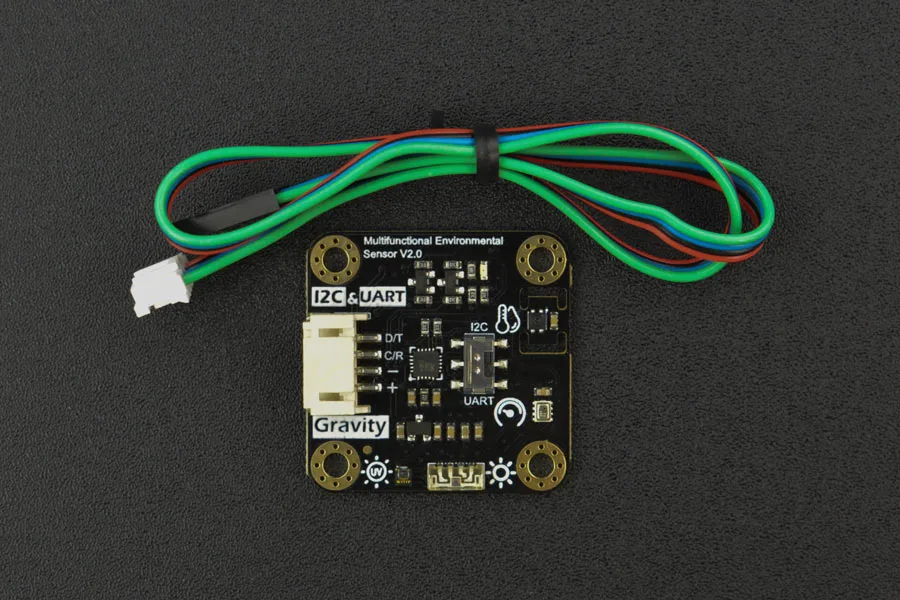

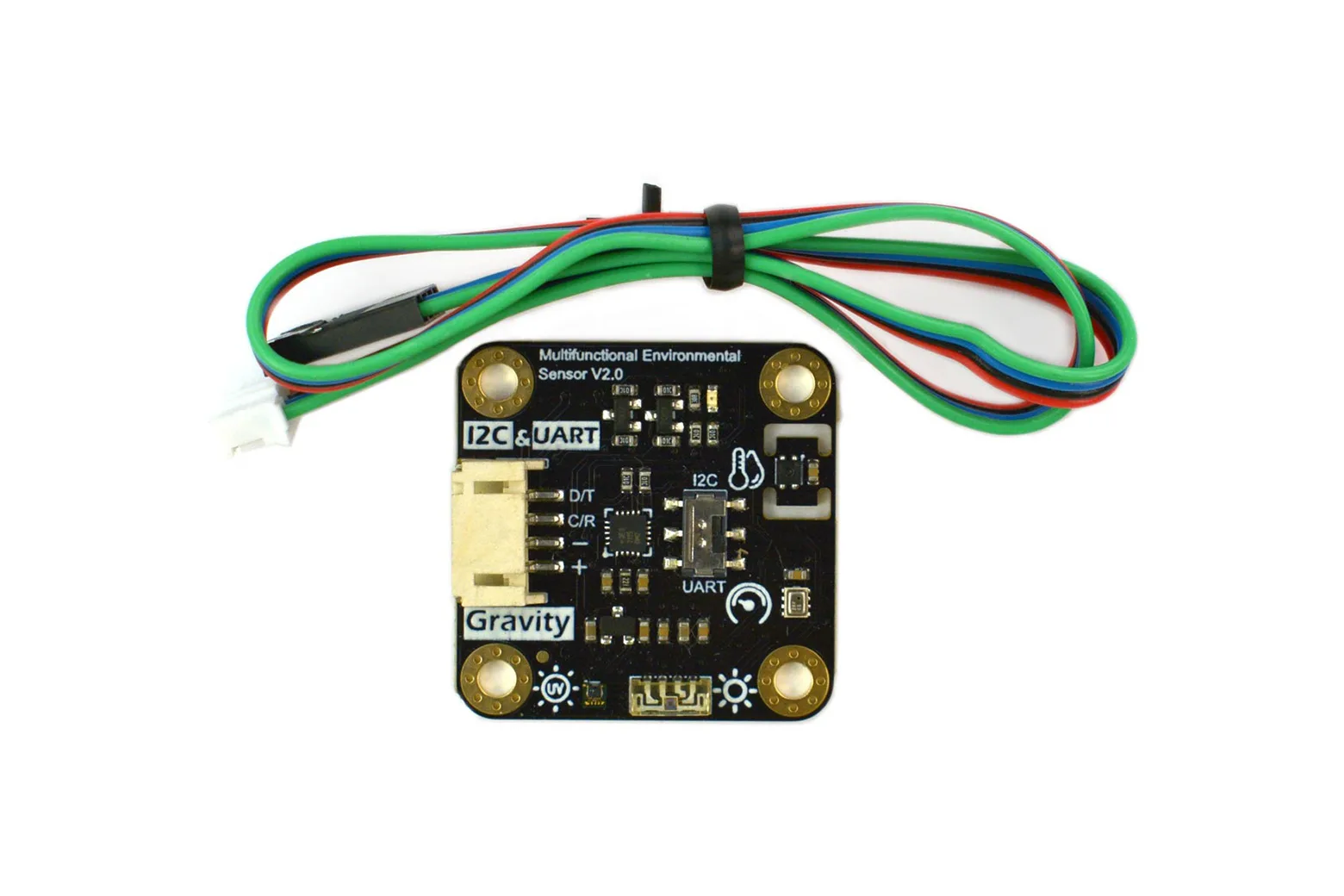

The kit includes one Gravity multifunctional environmental sensor module and one Gravity 4-pin connecting cable.
Downloads & documentation
Specifications
| Working Voltage | 3.3~5V DC |
| Working Current | about 4mA |
| Output Signal | I2C, UART |
| Working Temperature | -20~70℃ |
| Product Size | 32mm×32mm / 1.26×1.26 inch |
| Mounting Hole Size | M3 (diameter 3mm / 0.12 inch), the distance between the centers of the mounting holes is 25mm / 0.98 inch |
| Sensor Chip Model | BMP280 |
| Barometric Pressure Measurement Range | 300~1100 hPa |
| Relative Accuracy Of barometric Pressure | ±0.12 hPa |
| Absolute barometric Pressure Accuracy | ±1 hPa |
| Relative Humidity Accuracy | ±2%RH |
| Relative Humidity Resolution | 0.01%RH |
| Relative Humidity Measurement Range | 0~100 |
| Temperature Accuracy | ±0.2℃ |
| Temperature Resolution | 0.01℃ |
| Temperature Measurement Range | -40~125℃ |
| Ultraviolet Sensitive Wavelength | 280-430nm |
| Range of Measured Data | 13 Bit、16 Bit 、17 Bit、18 Bit、19 Bit、20 Bit |
| Measurement Rate | 25ms、50ms、100ms、200ms、500ms、1000ms |
| Adjustable Gain Multiple | 1、3、6、9、18 |
| Ambient Light Accuracy | 0.0036 lx/ct |
| Ambient Light Range | 0~120 klx |
In the box
| Gravity: High Accuracy Temperature, Humidity, Pressure, Ambient Light and UV Sensor - I2C/UART | 1 |
| Gravity 4P Connector | 1 |
