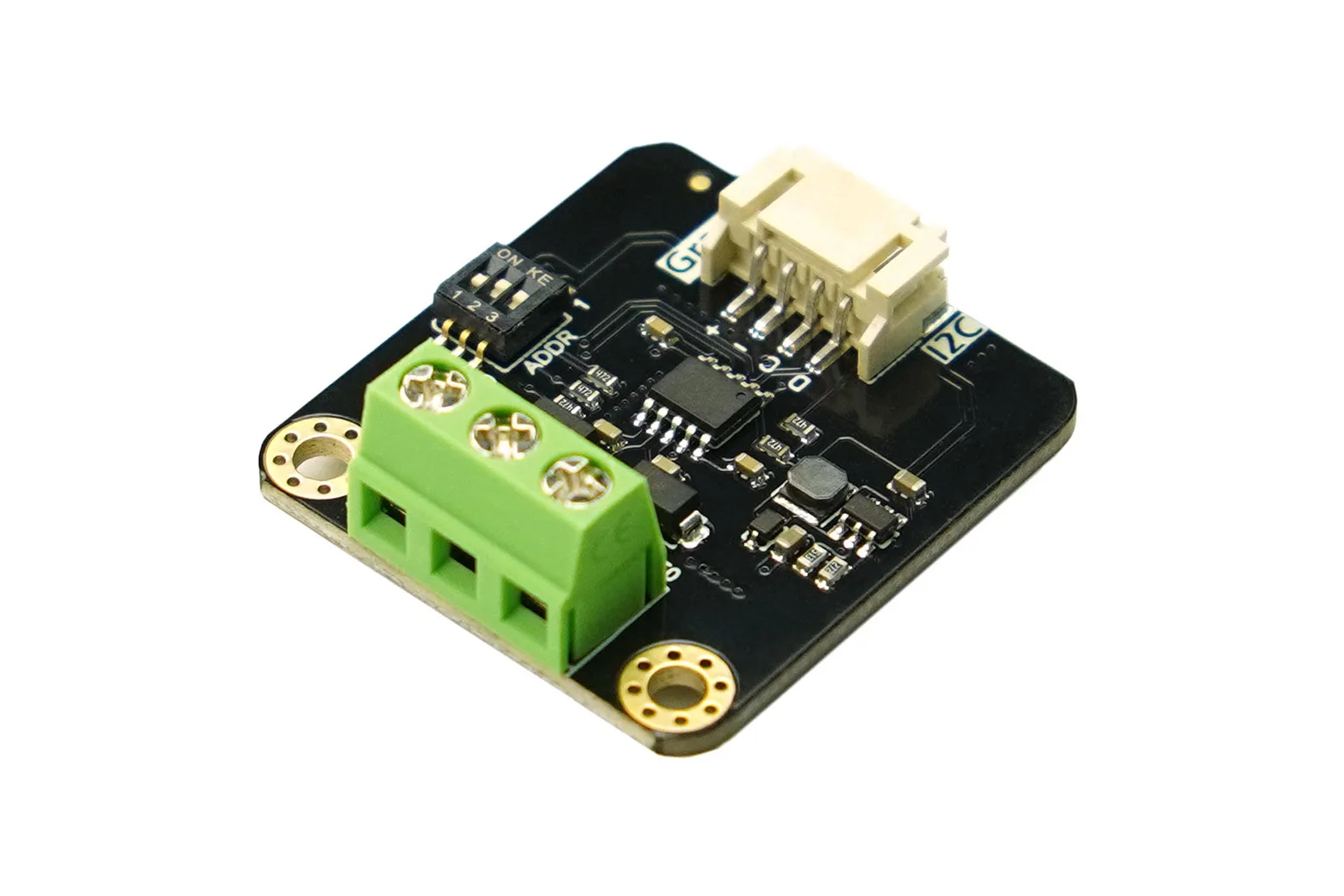

Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

The Gravity GP8413 is a dual-channel 15-bit digital-to-analogue converter module that provides standard 0-5V or 0-10V analogue voltage outputs over I2C. Operating from a 3.3V to 5V supply, it is ideal for makers, engineering students, and robotics enthusiasts interfacing microcontrollers with industrial equipment.

High-precision dual analogue outputs

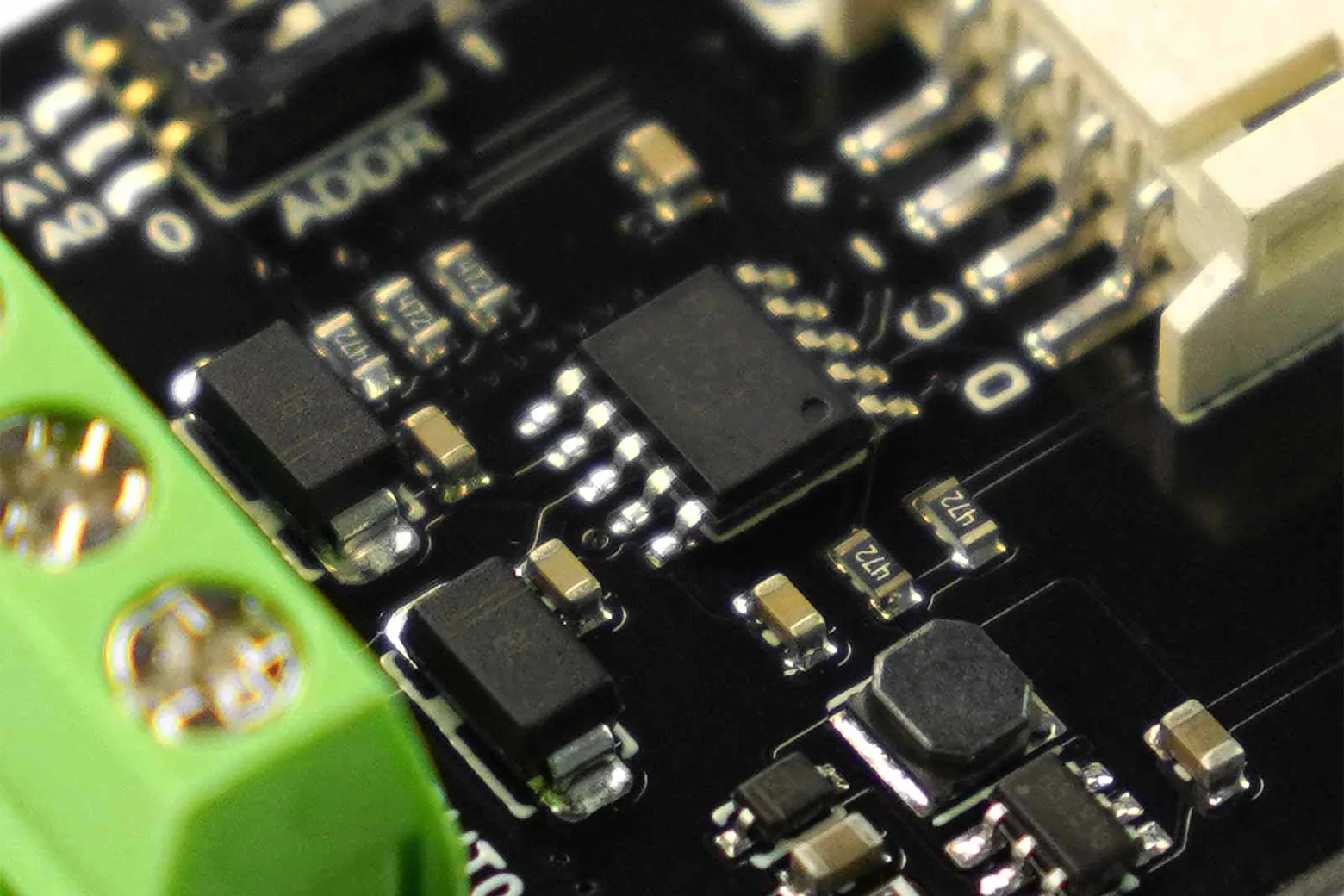

The onboard GP8413 chip delivers 15-bit resolution with an output value range of 0 to 32767 across two separate channels. It achieves high signal accuracy with an output voltage error below 0.2 percent and a linearity error of just 0.01 percent.

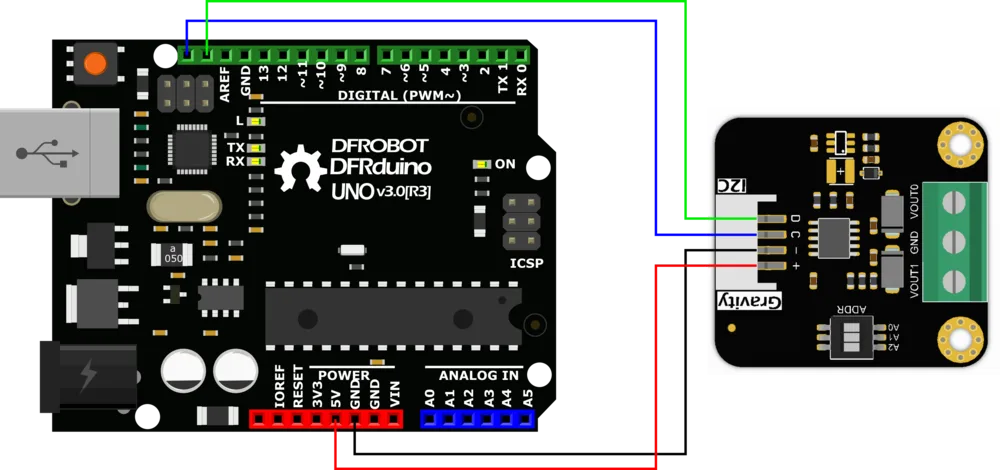

Straightforward Arduino wiring

Using a standard Gravity 4-pin I2C interface, this module connects directly to Arduino and other compatible microcontrollers operating at 3.3V or 5V. The included Gravity sensor cable ensures clean, solder-free wiring right out of the box.

Multi-channel I2C cascading

With 8 configurable I2C hardware addresses, multiple modules can be cascaded on a single bus to expand up to 16 output channels. This allows for centralised multi-device automation without overloading microcontroller pins.

Industrial equipment automation

The standard 0-5V and 0-10V driving ranges allow direct control over a wide variety of commercial devices. It is well suited for automated lighting adjustment, variable frequency drives (VFD), motorized valve regulation, and water pump management.

Package contents

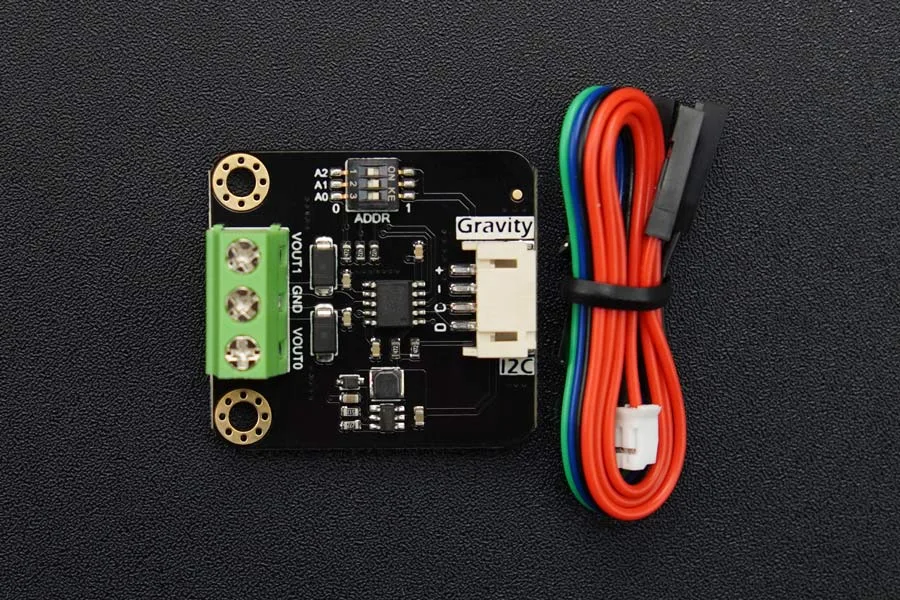

The kit includes one GP8413 2-channel 15-bit I2C to 0-5V/10V DAC module and one Gravity-4P I2C/UART sensor cable.

Downloads & documentation

• Product wiki (DFRobot)
