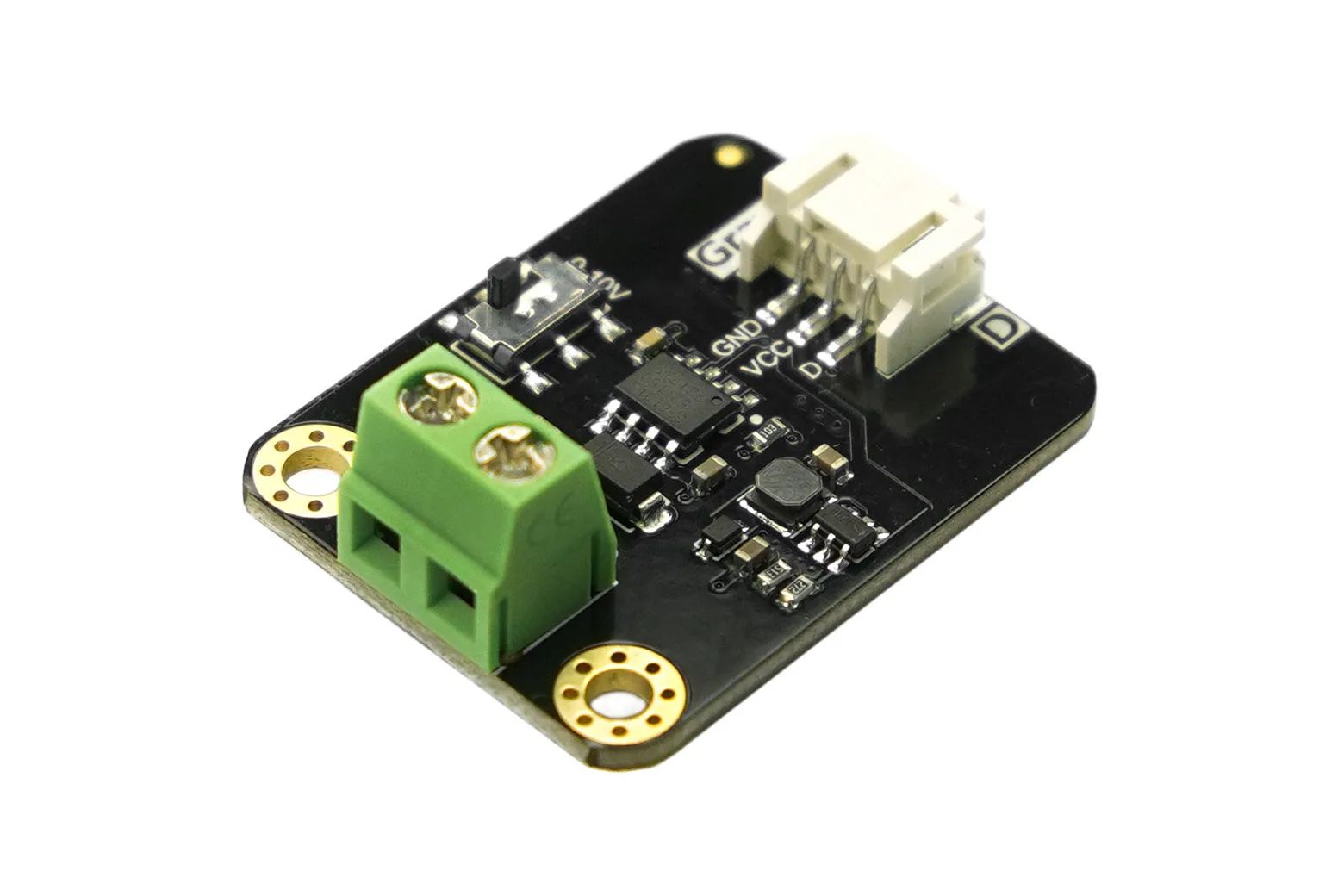

Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Gravity GP8101S 1-Channel DAC Module converts standard digital PWM signals from a microcontroller into an analog 0-5V or 0-10V output. Designed for makers, students, and automation engineers, it bridges low-voltage development boards with industrial-grade control hardware. It provides a simple and reliable method to drive equipment such as variable frequency drives, pumps, valves, and lighting controllers.
PWM to industrial analog conversion

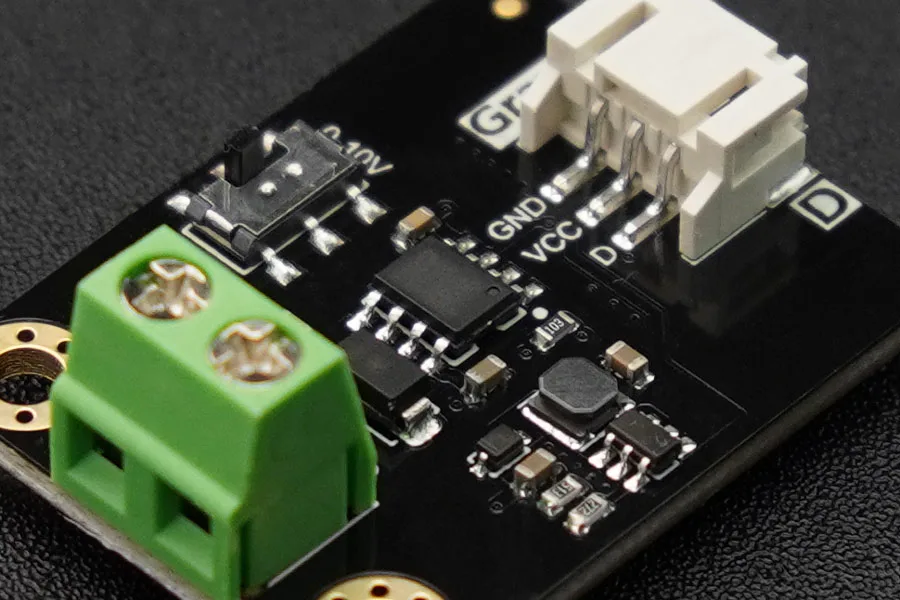

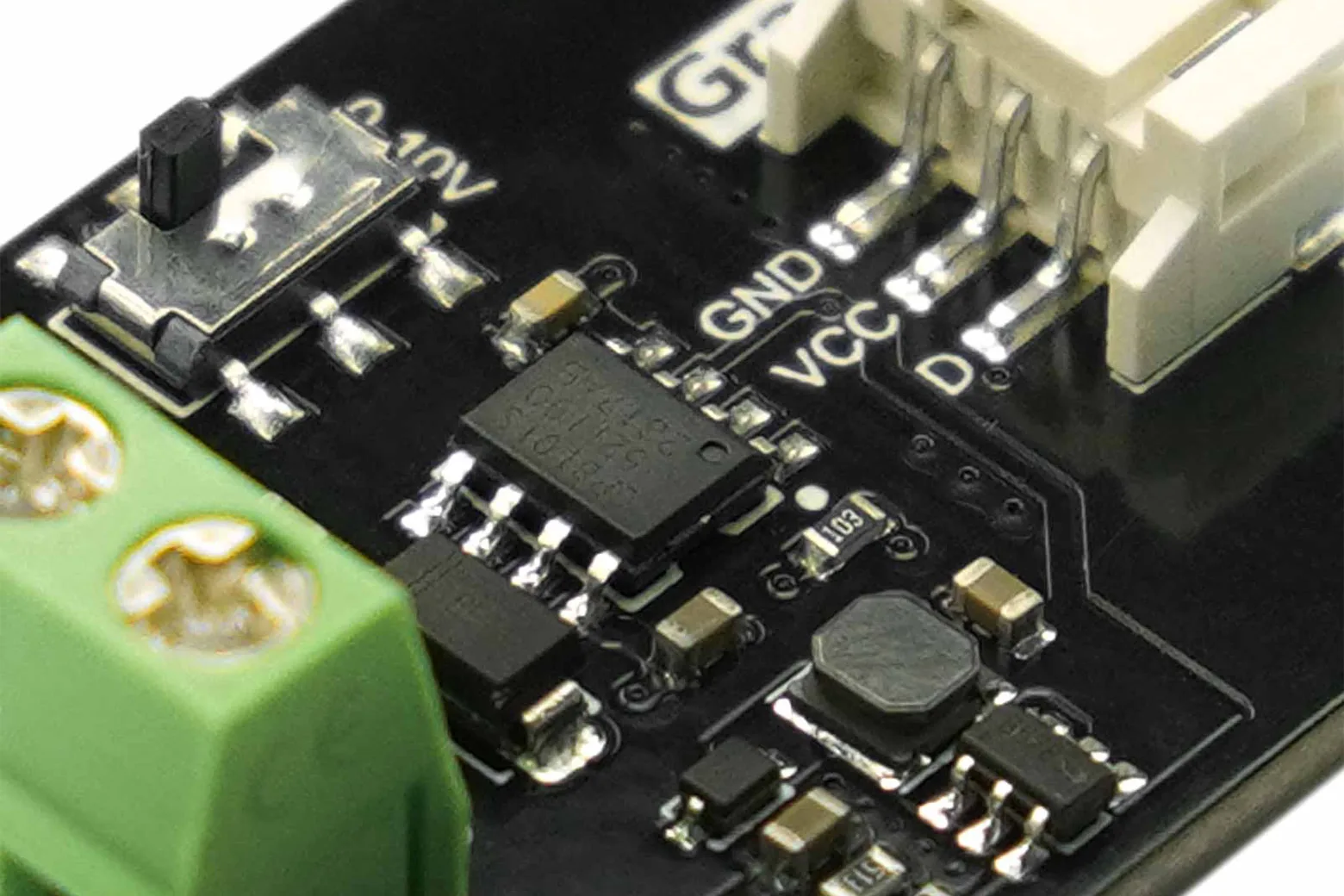

Powered by the GP8101S chip, this module transforms digital PWM signals directly into standard 0-5V or 0-10V analog voltage. This enables standard microcontrollers to control industrial equipment without requiring complex external digital-to-analogue circuitry.

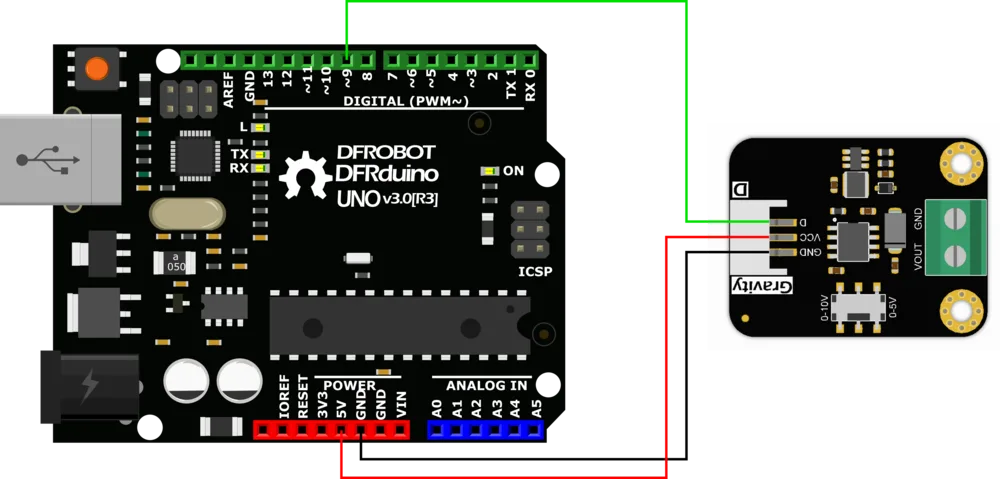

Seamless Arduino integration
Featuring a standard 3-pin Gravity interface, the board connects effortlessly to an Arduino UNO or compatible microcontrollers using digital I/O pins. The included Gravity cable provides a tidy, solderless connection for rapid prototyping.
Reliable 8-bit precision
The module offers 8-bit resolution, translating a 0-255 digital control range across your chosen voltage span. It maintains high accuracy with an output voltage error under 0.2% and a linearity error of just 0.1%.
Flexible supply voltage compatibility
Operating across a 3.3V to 5V supply range, the module interfaces smoothly with both modern 3.3V low-power boards and classic 5V microcontroller platforms.
Practical automation applications
The standard 0-5V and 0-10V output range makes this converter ideal for automatic lighting adjustments, variable frequency drive regulation, valve control, and automated water pump systems.
Package contents

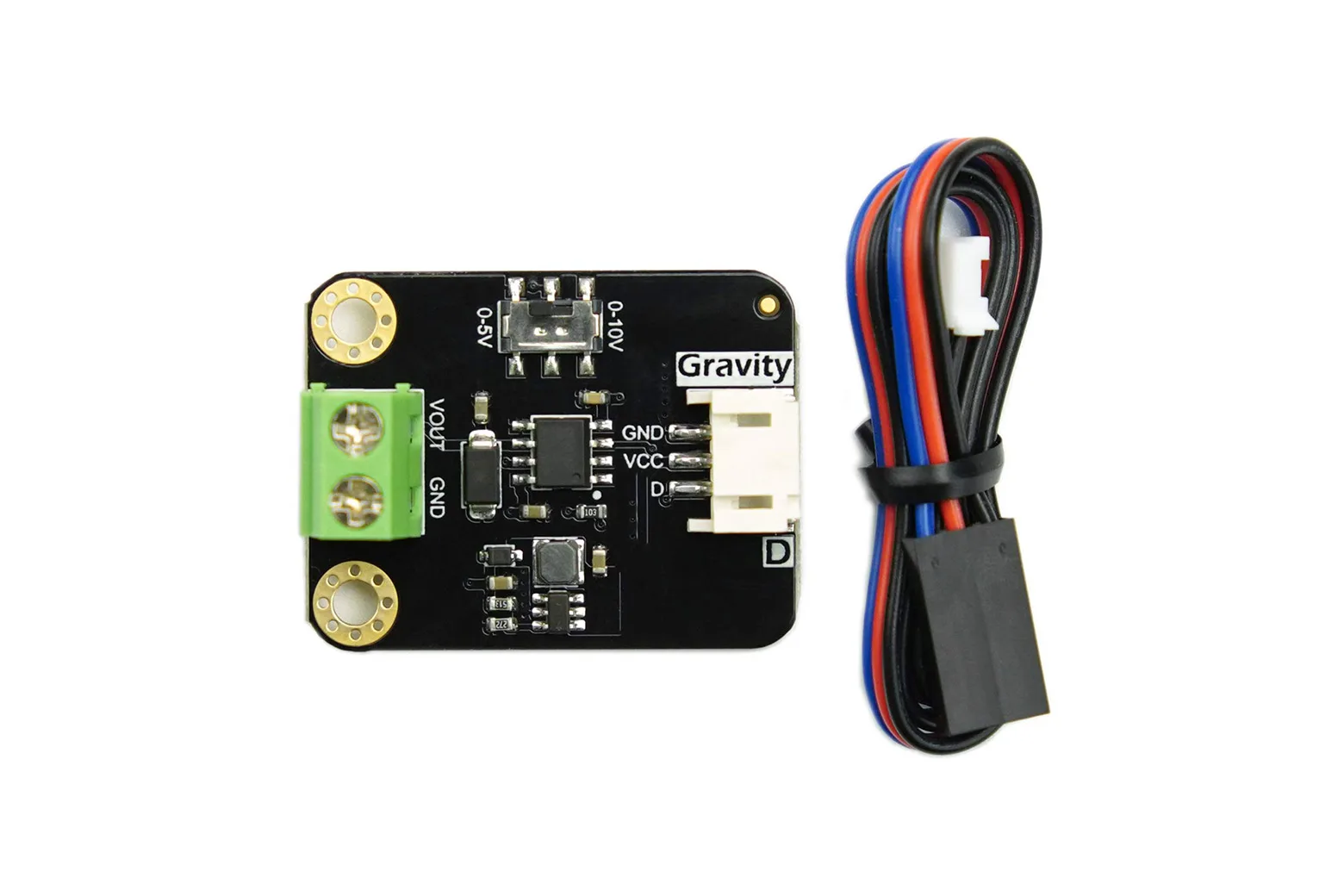

Each pack includes one GP8101S 1-channel PWM to 0-5V/10V DAC module and one Gravity 3-pin analog sensor cable.
Downloads & documentation
Specifications
| Operating voltage | 3.3V to 5V |
| Communication Method | PWM |
| Chip Type | GP8101S |
| Resolution | 8-bit |
| Output Voltage | 0-5V or 0-10V |
| Number of channels | 1 channel |
| Value Range | 0 - 255 corresponding to 0-5V or 0-10V |
| Output voltage linearity error | 0.1% |
In the box
| GP8101S: 1-Channel PWM to 0-5V/10V DAC Module ×1 | 1 |
| Gravity-3Pin Analog Sensor Cable ×1 | 1 |
