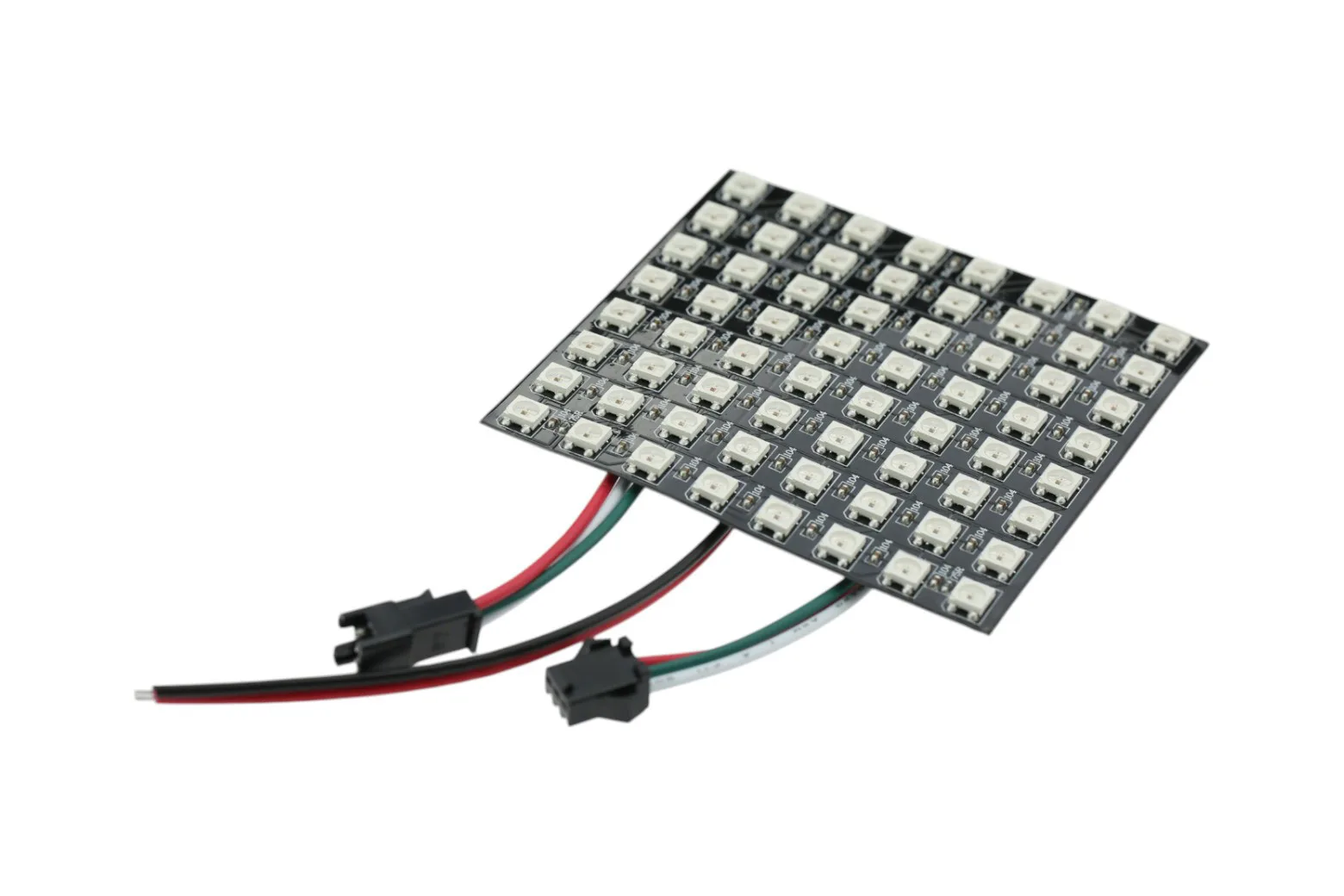

Gravity: Flexible 8x8 RGB LED Matrix

The Gravity: Flexible 8x8 RGB LED Matrix is a bendable visual display module featuring 64 individually addressable RGB LEDs. It is ideal for students, makers, and hobbyists building wearable electronics, curved displays, and embedded lighting projects.

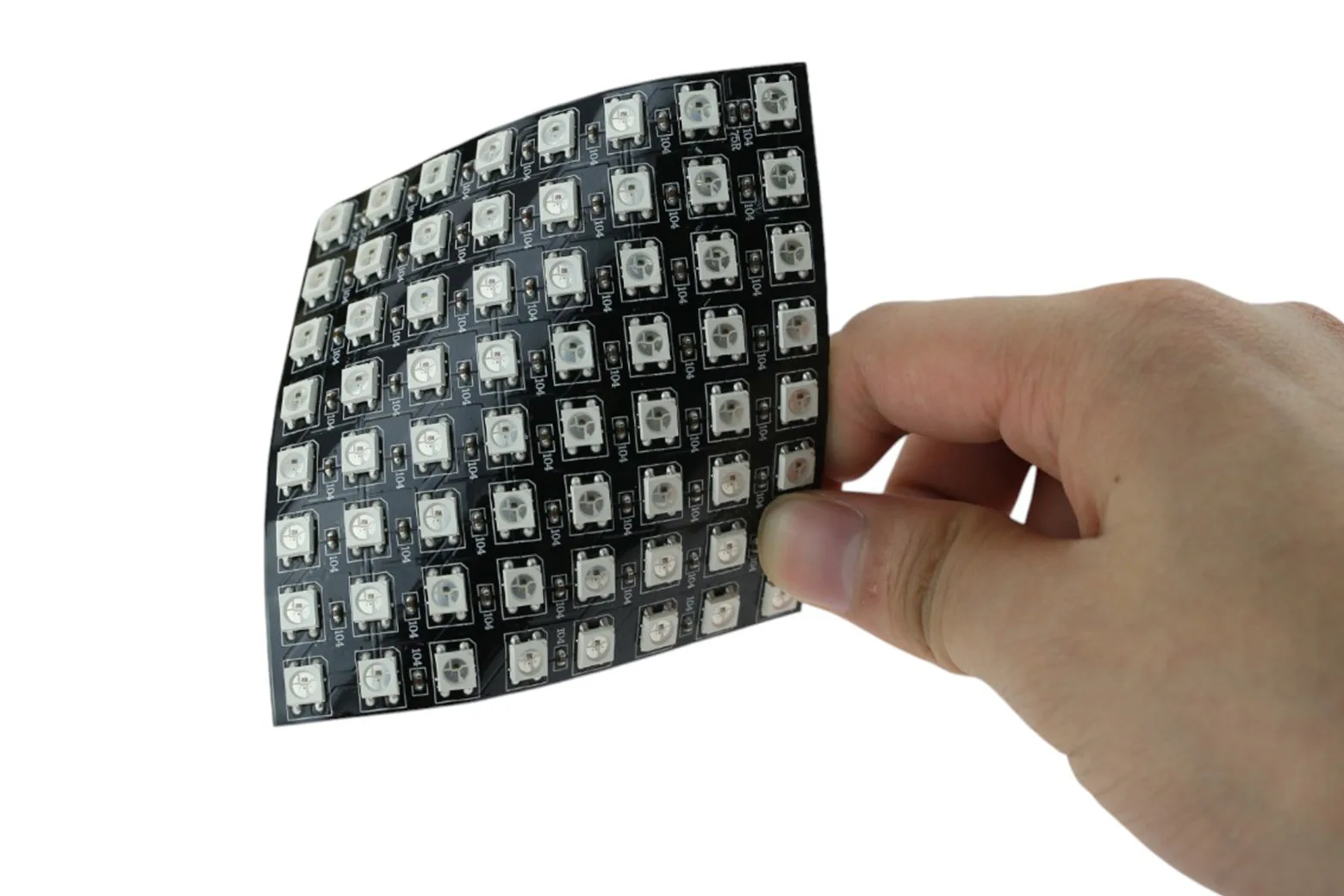

Flexible 8x8 panel design

The module features 64 RGB LEDs arranged in an 8x8 grid on a pliable backing. This flexible form factor allows the matrix to wrap around curved surfaces and fit non-flat enclosures.

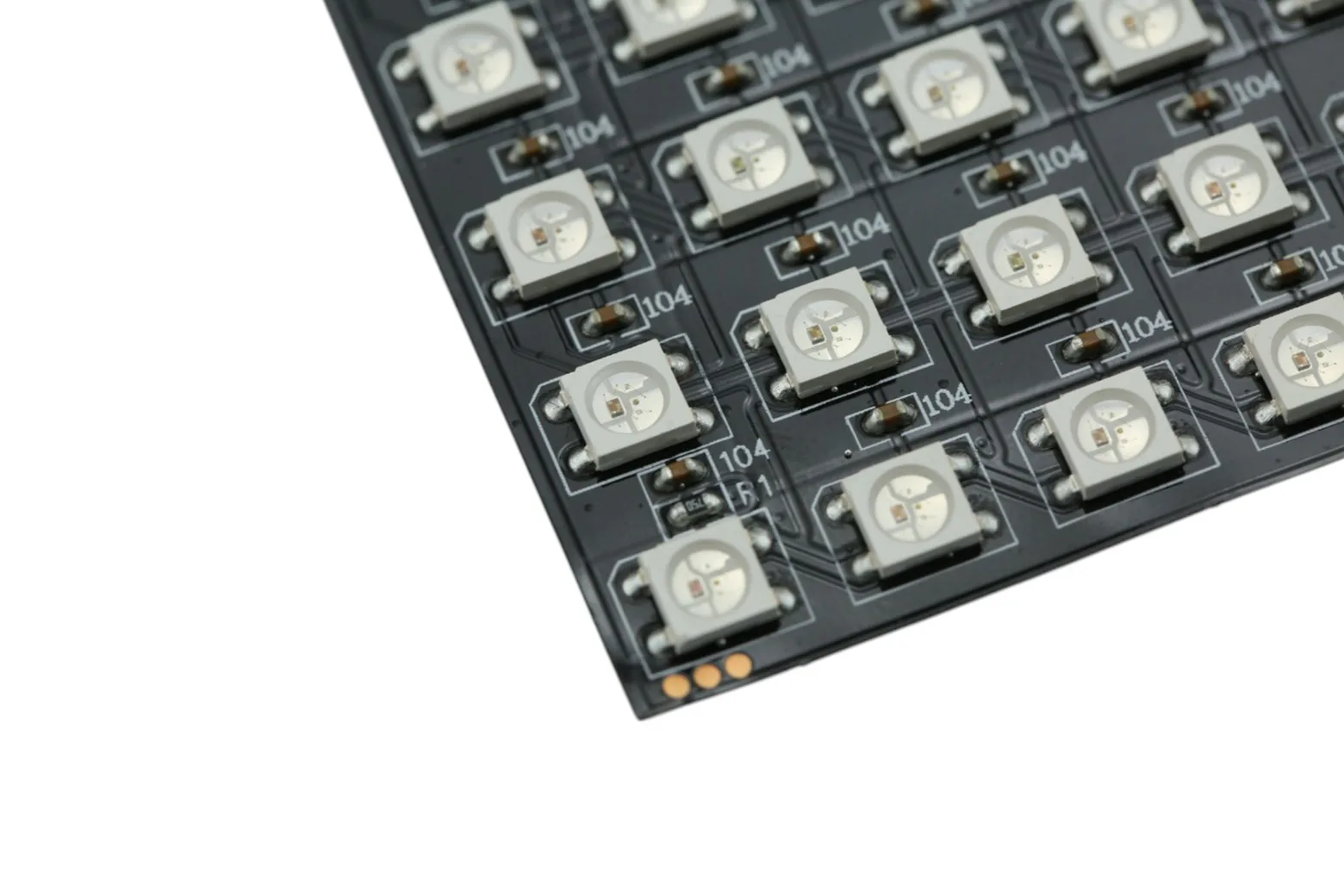

WS2812 and SK6812 addressable LEDs

Each pixel is powered by integrated WS2812 or SK6812 driver circuitry for full RGB colour reproduction. Individual addressability allows precise control over every LED in the grid via a single microcontroller data line.

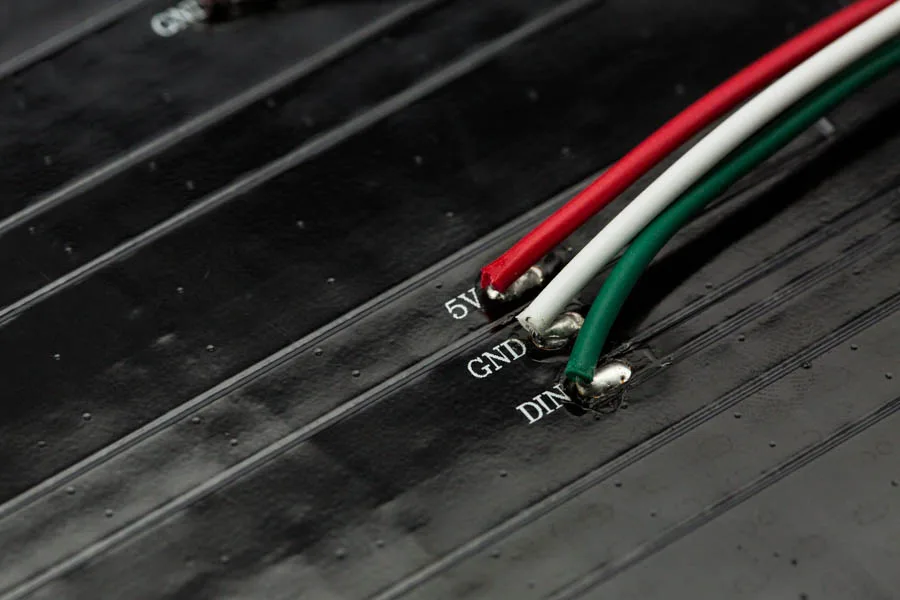

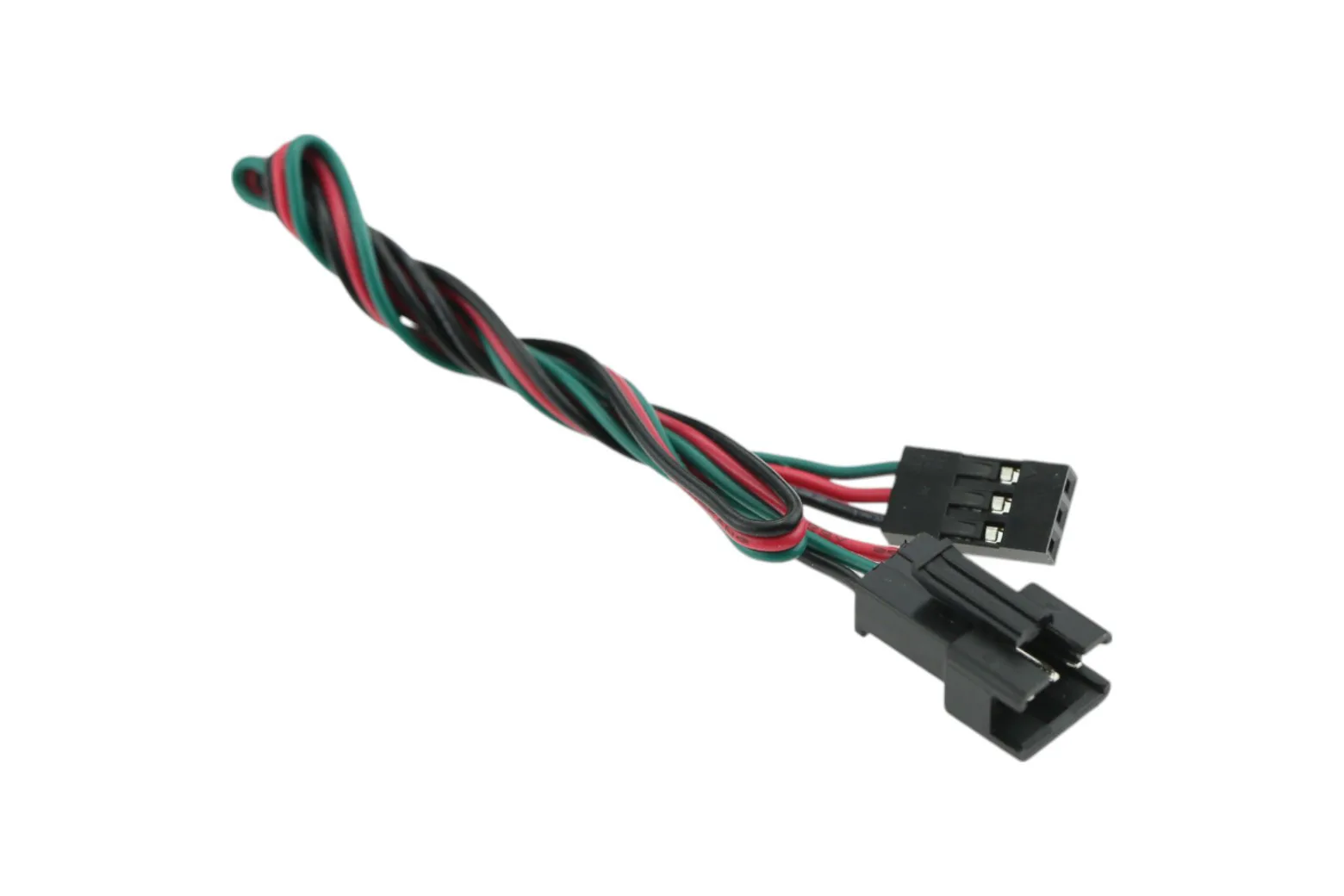

Gravity 3-pin interface

The matrix utilises a standard Gravity 3-pin interface for straightforward power and data connections. This ensures quick, plug-and-play wiring to compatible expansion shields and development boards.

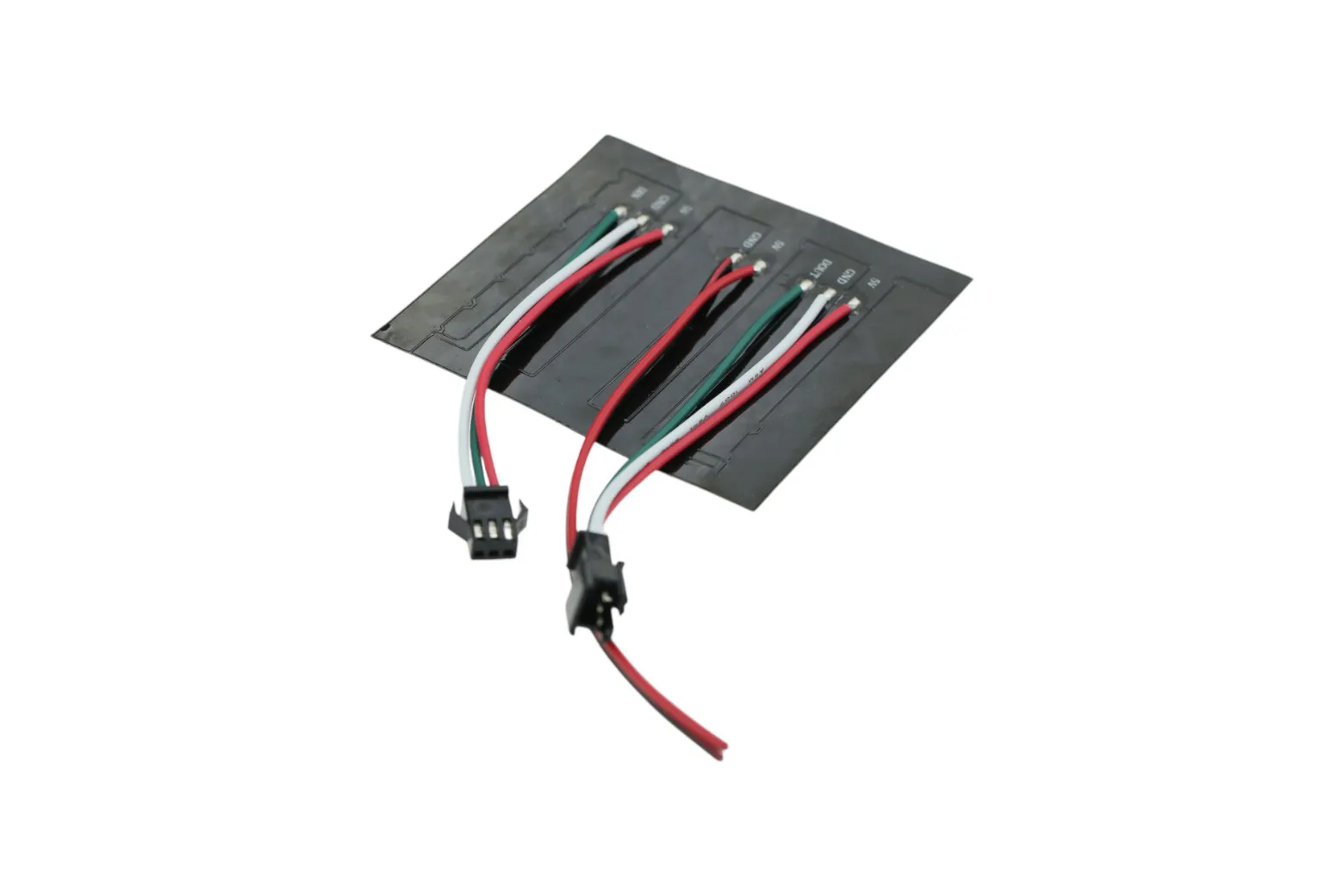

Cascade support for expansion

Built-in signal routing allows multiple matrices to be cascaded in series. You can chain several units together to build larger custom display screens and extended LED arrays.

High 400Hz+ refresh rate

With a refresh frequency exceeding 400Hz, the matrix delivers smooth animations and visual transitions. This makes it well suited for real-time graphics and flicker-free embedded displays.

Downloads & documentation

• Product wiki (DFRobot)
