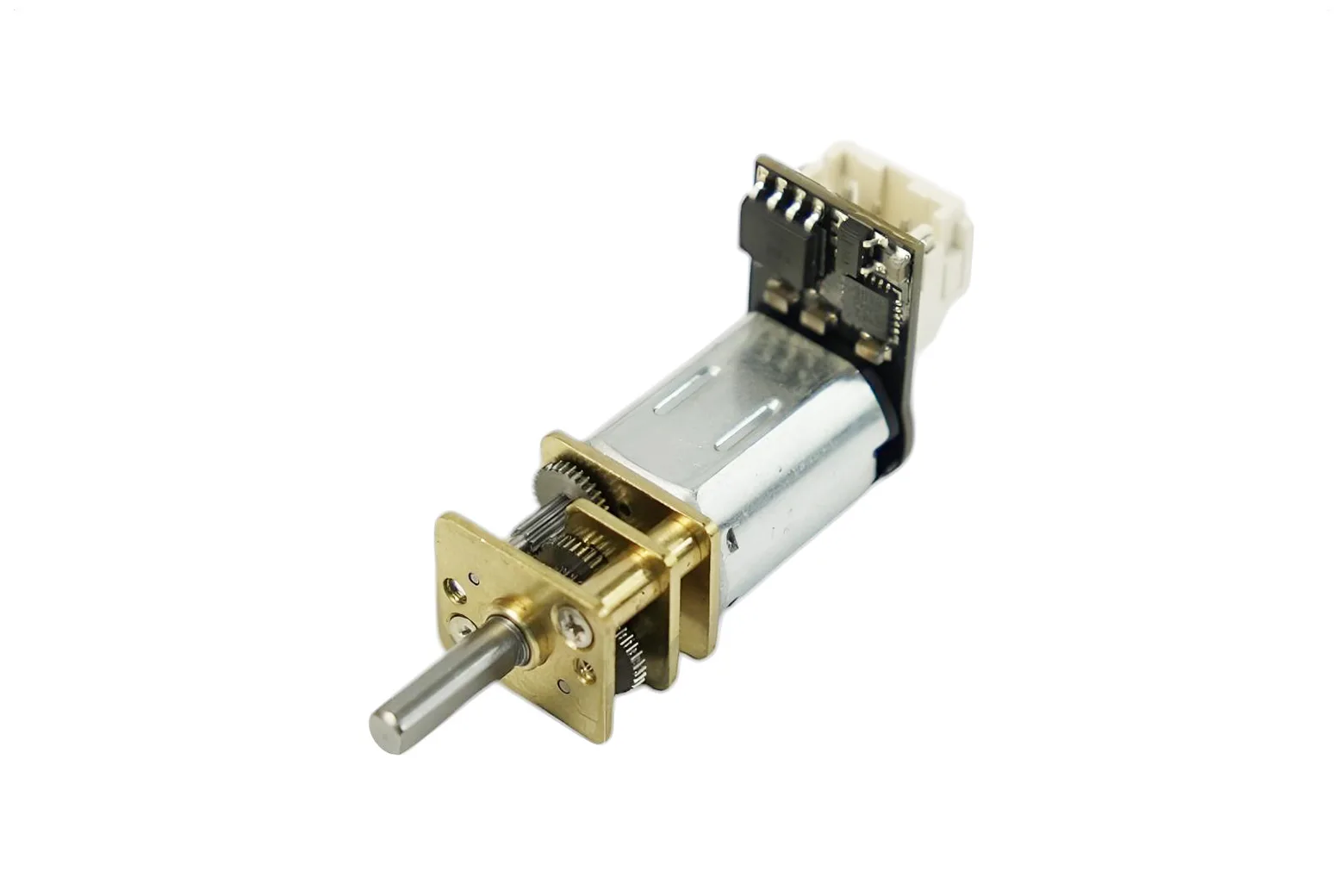

Gravity: DC Micro Metal Gear Motor with Driver (50:1)

The Gravity DC Micro Metal Gear Motor features a 50:1 metal gearbox and an integrated motor driver for compact robotic projects. It suits students, hobbyists, and makers who need reliable drive power without the clutter of external driver boards.

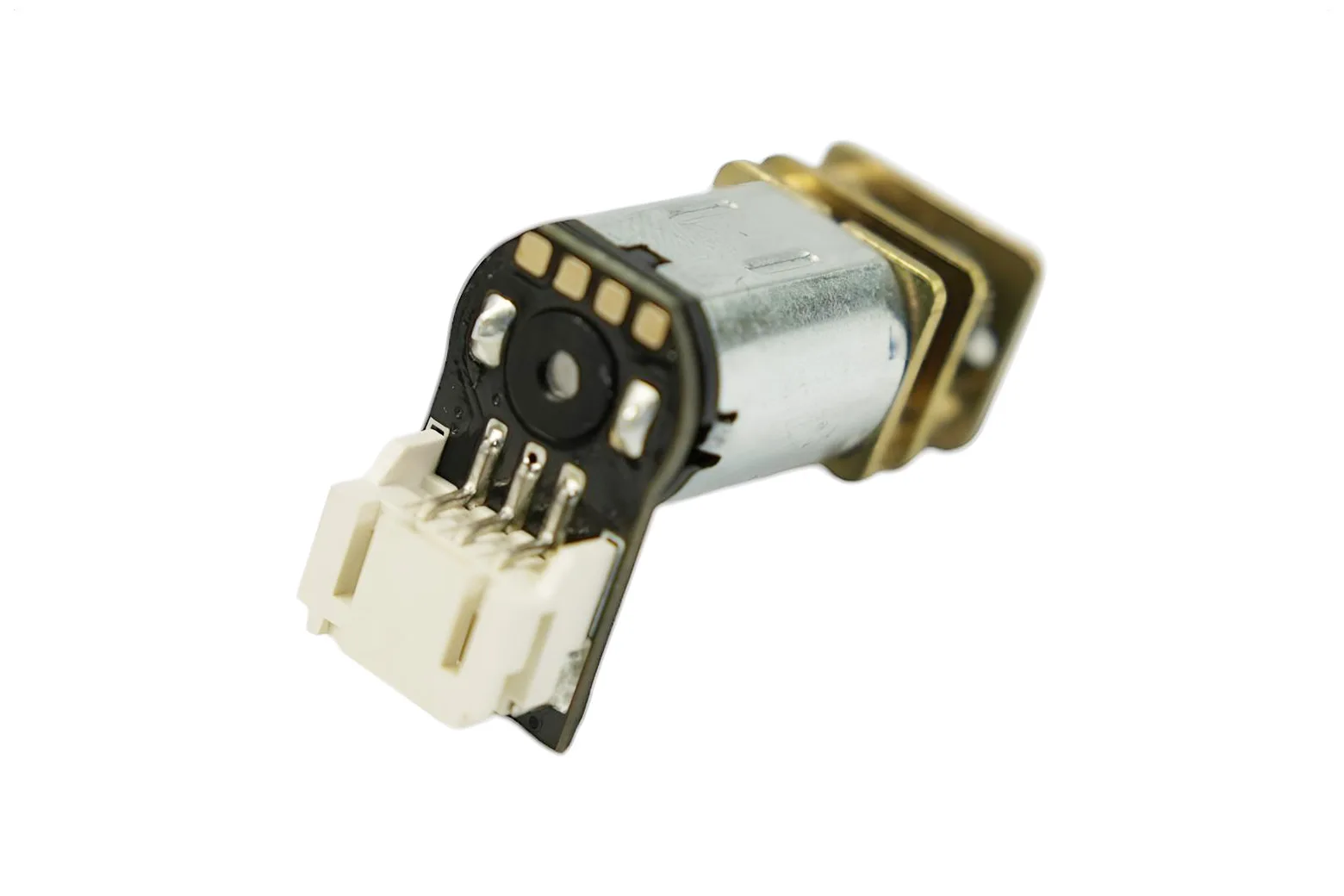

Integrated onboard motor driver

An onboard driver circuit eliminates the need for external motor shields or discrete H-bridge modules. This design simplifies wiring and conserves space within compact project enclosures.

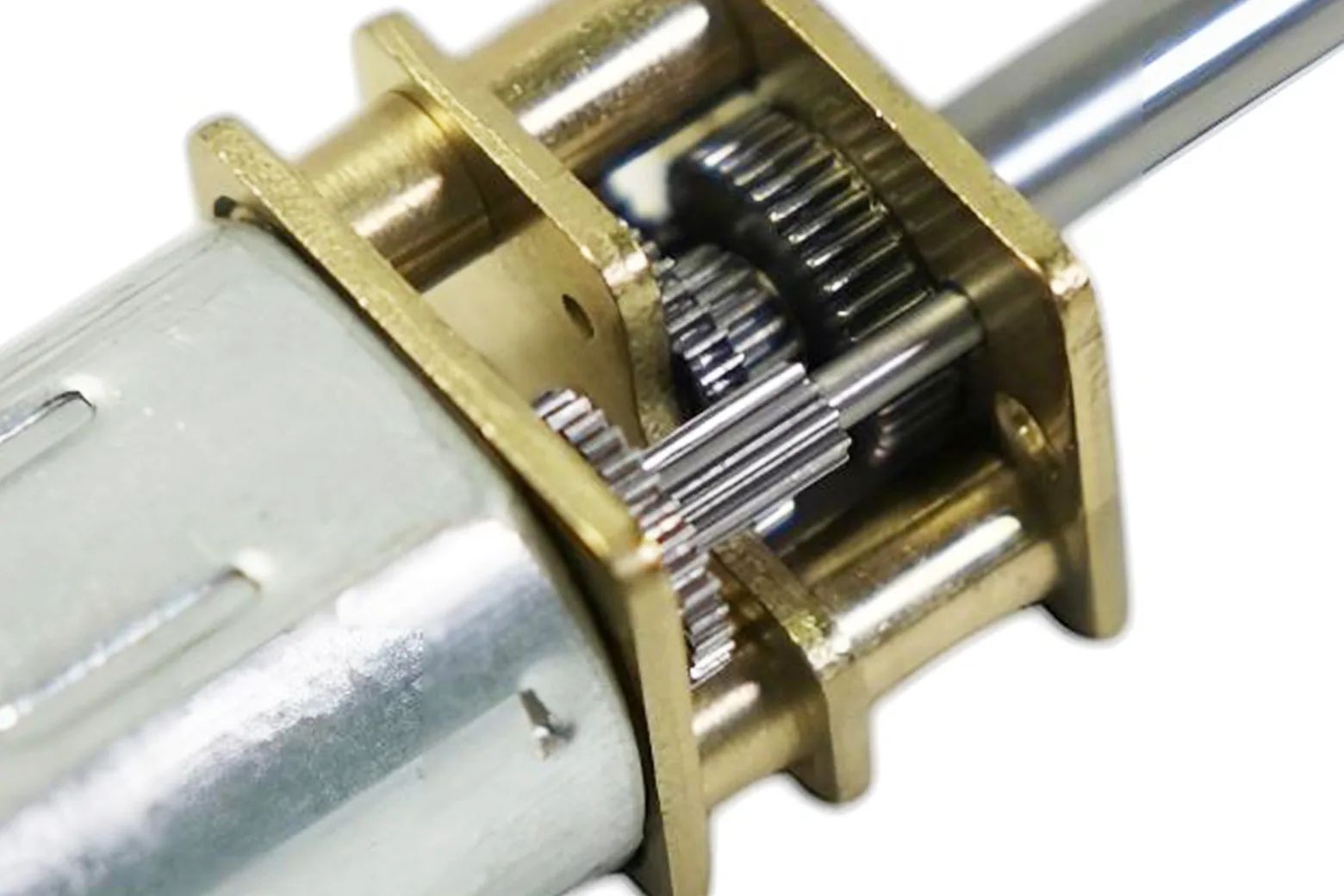

50:1 metal gear reduction

The built-in 50:1 metal gearbox provides increased torque output while maintaining a miniature footprint. The rugged metal gears ensure durability under continuous drive loads.

Flexible PWM and PPM control

The module accepts standard PWM and PPM signals to manage both rotational speed and direction. This enables direct drive from microcontroller output pins or standard RC receiver channels.

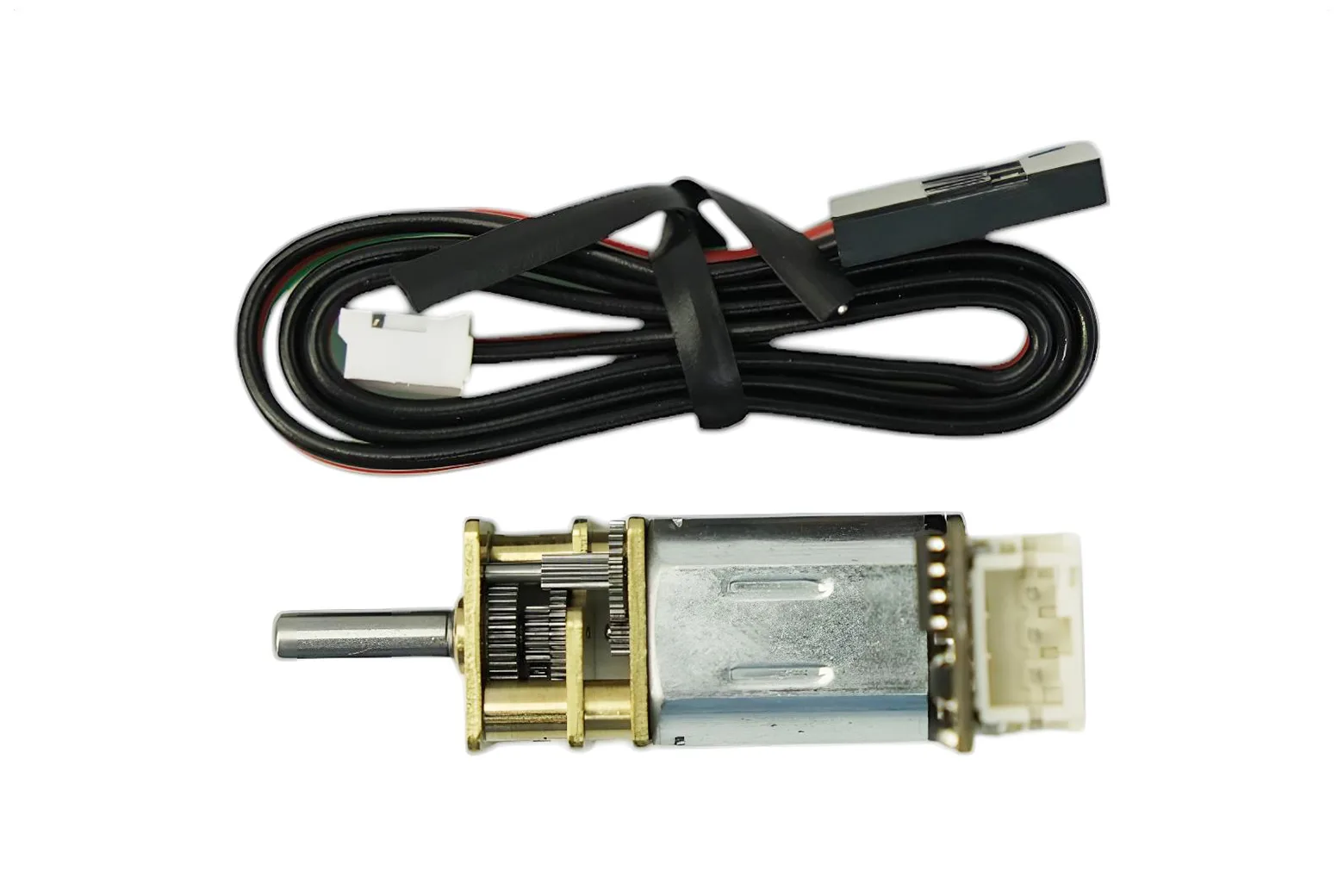

Standard Gravity 3-pin interface

Equipped with a Gravity 3-pin connector, the unit connects directly to compatible IO expansion shields and development boards. The plug-and-play connector reduces assembly time and prevents wiring errors.

Downloads & documentation

• Product wiki (DFRobot)
• Dimension
