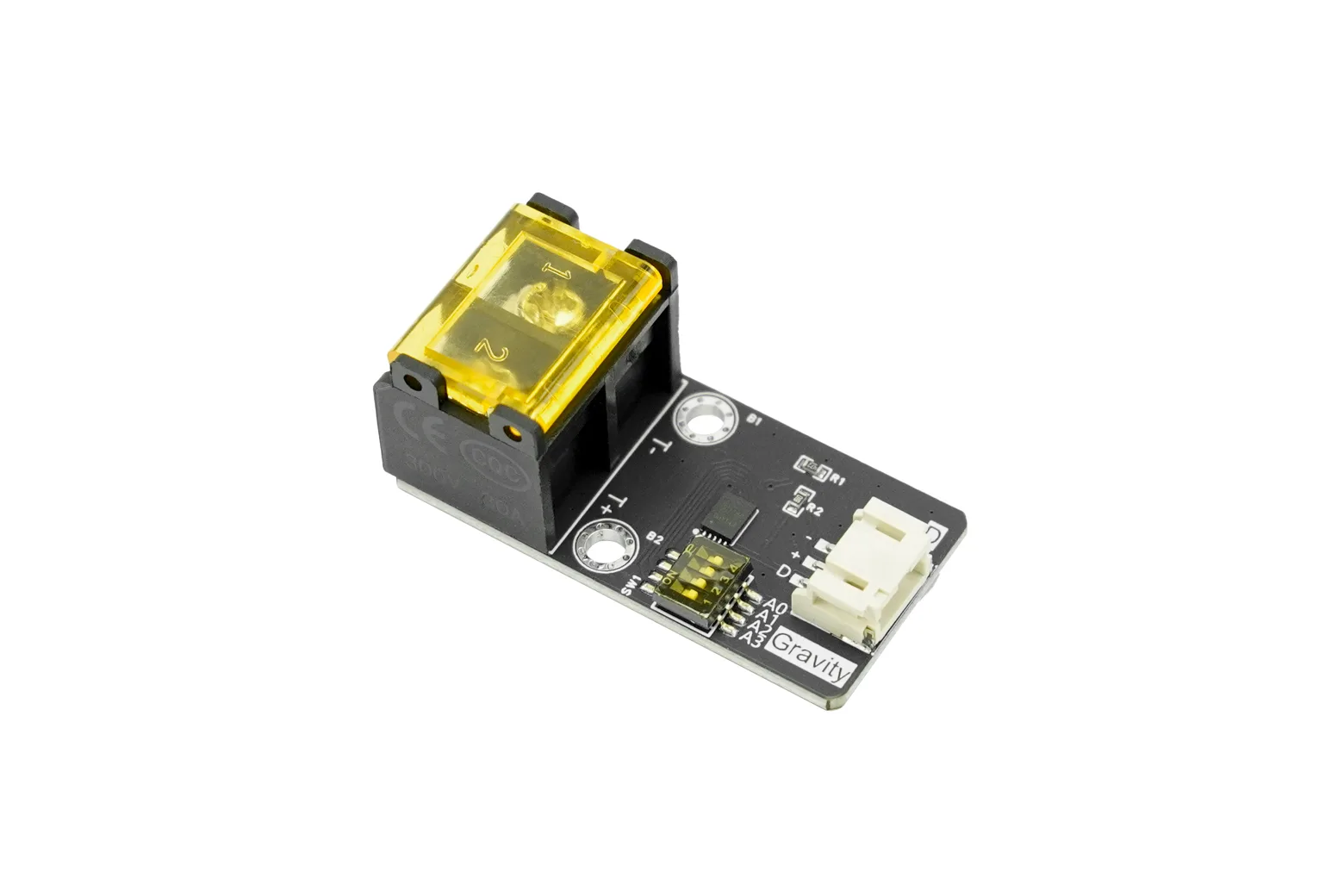

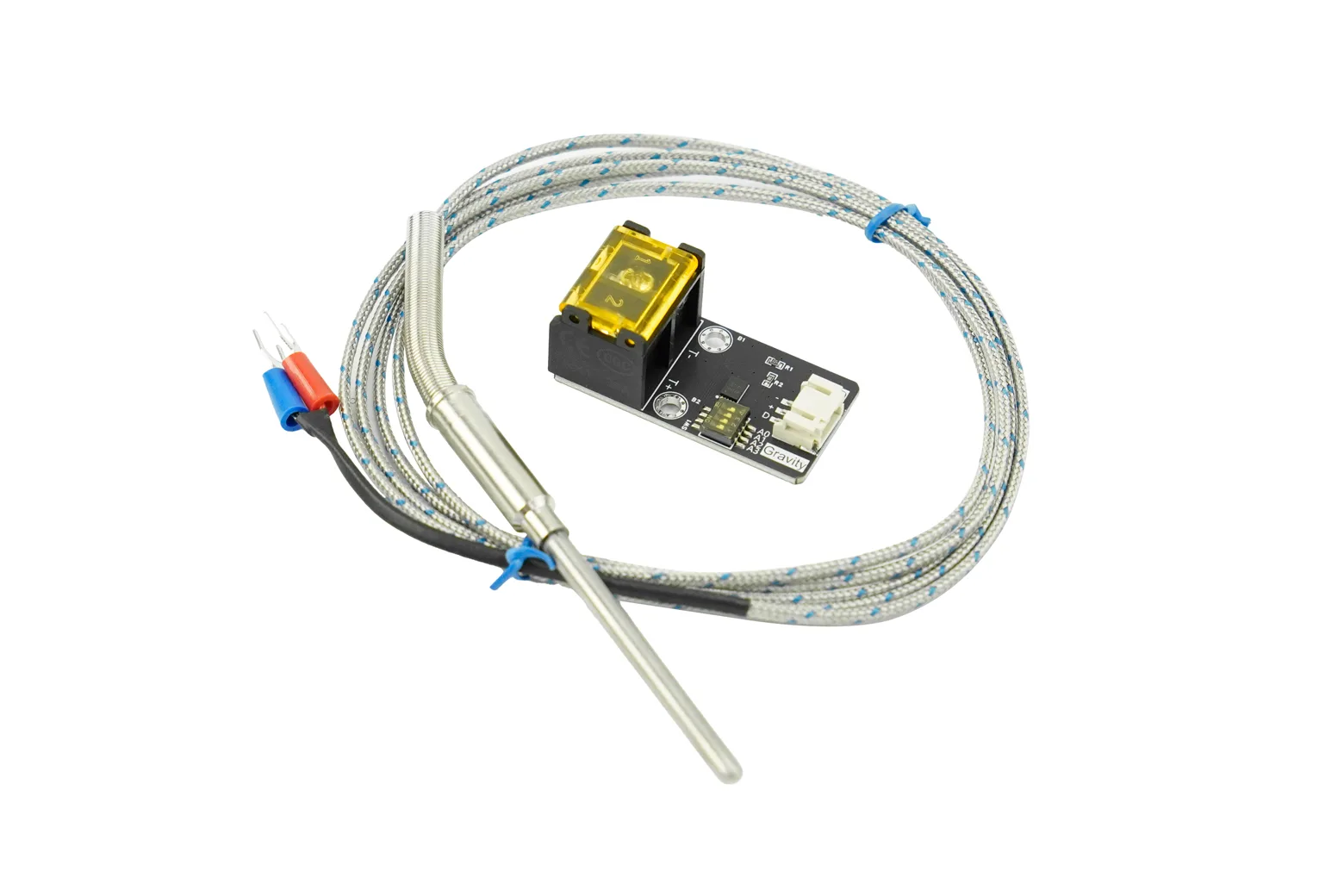

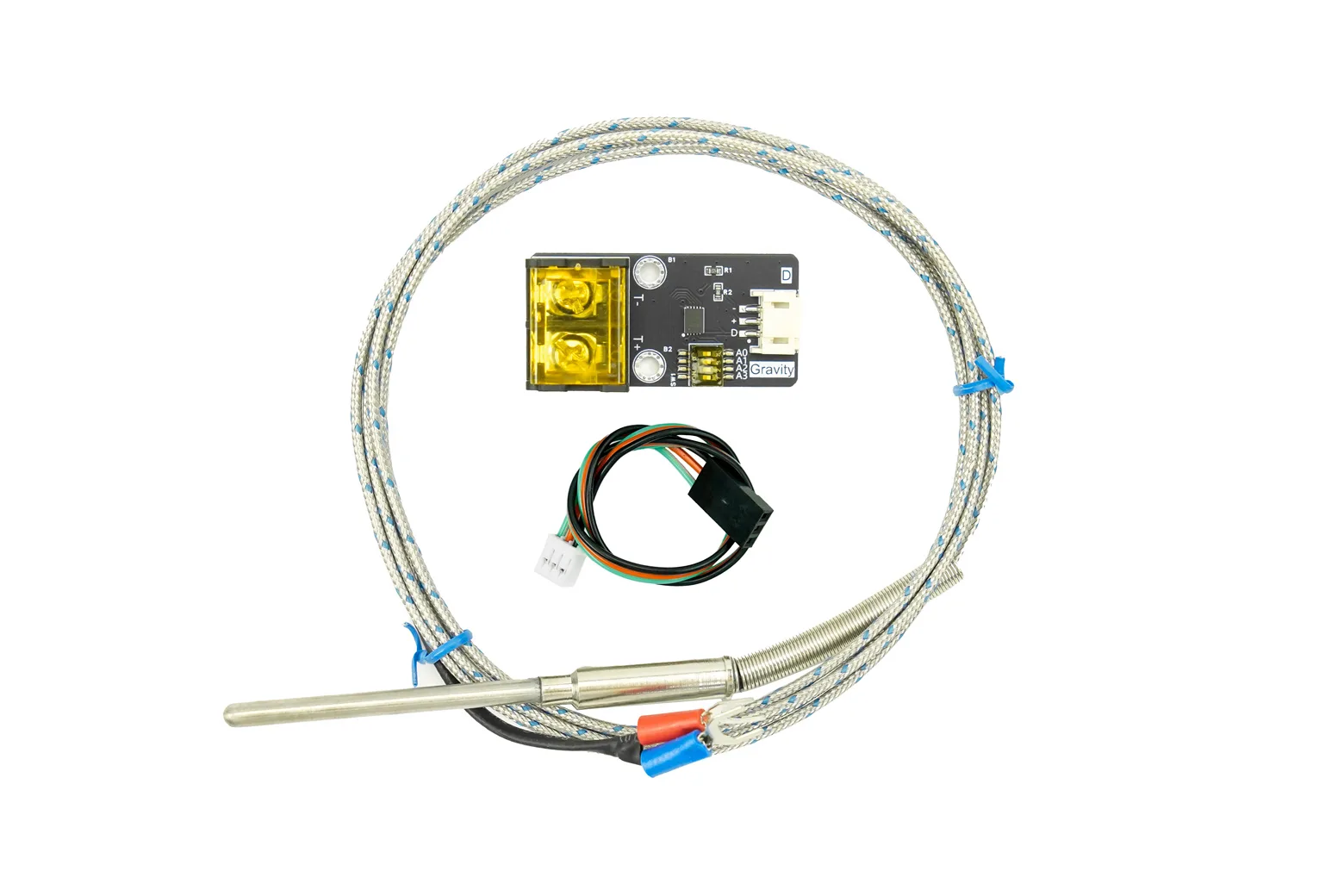

Gravity: CT1780 1-Wire K-Type Thermocouple Amplifier (-270℃ to +1372℃)

The Gravity: CT1780 1-Wire K-Type Thermocouple Amplifier is a high-range digital temperature measurement module designed for extreme thermal monitoring. It allows users to interface standard K-type thermocouples with microcontrollers using a streamlined single-wire connection. This module is well suited to students, makers, and educators working on scientific instrumentation, robotics, and industrial sensing projects.

Broad temperature sensing range

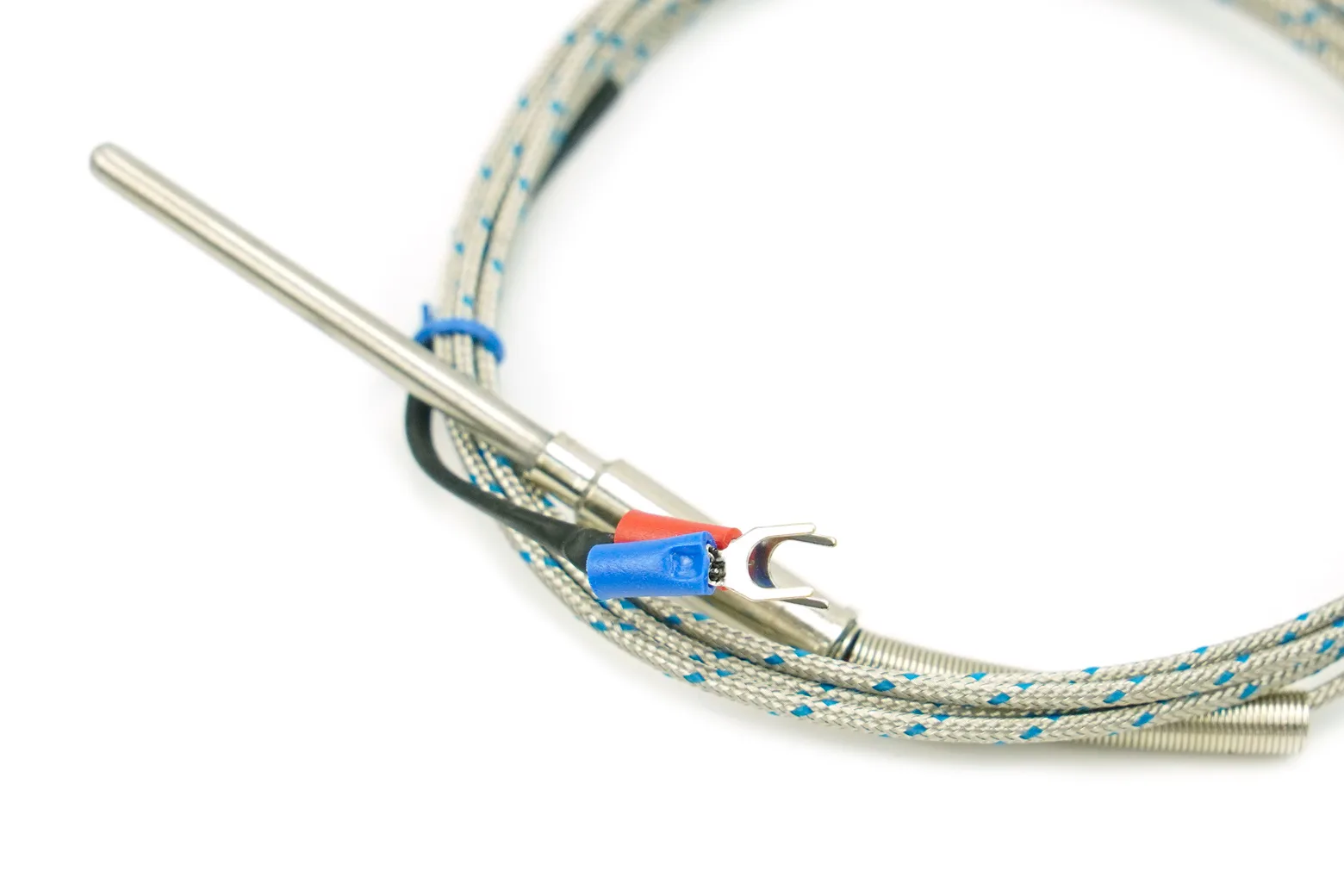

The module reads temperatures spanning from -270℃ up to +1372℃ using a compatible K-type thermocouple probe. This expansive range accommodates extreme cold environments as well as high-heat applications.

Accurate 14-bit digital resolution

It incorporates a 14-bit analogue-to-digital converter providing fine temperature increments of 0.25℃. This ensures detailed and reliable feedback for precise thermal tracking.

Single-pin 1-Wire communication

Data is transmitted using the 1-Wire communication protocol, reducing the number of microcontroller pins required for data transfer. This conserves vital input/output lines for other sensors and actuators.

Standard Gravity interface support

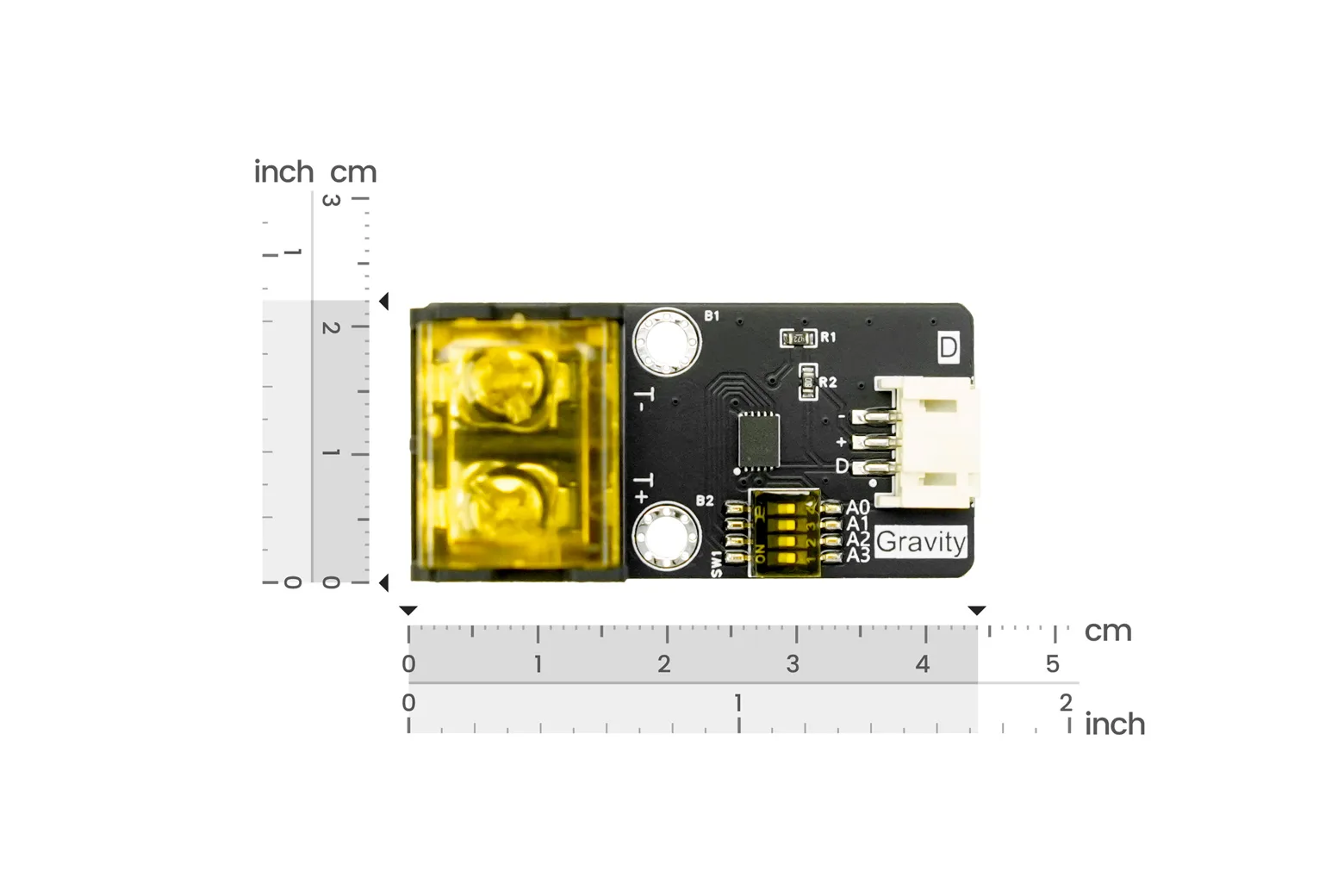

Featuring standard Gravity pinouts, this board connects cleanly to compatible expansion shields and development boards. It simplifies prototyping by eliminating messy point-to-point breadboard wiring.

Downloads & documentation

• Product wiki (DFRobot)
