Gravity: Analog AC Current Sensor (20A)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

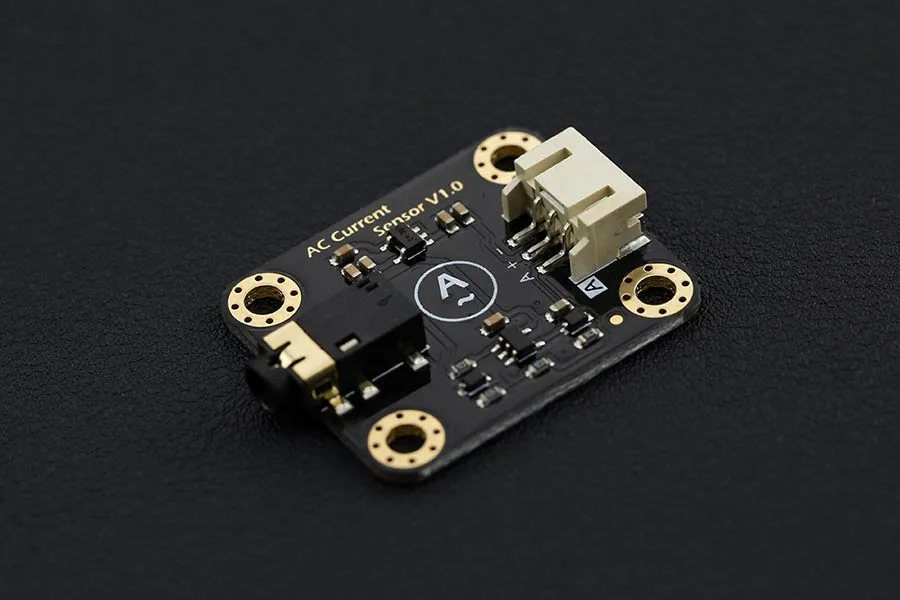

The Gravity: Analog AC Current Sensor (20A) provides safe, non-contact AC current measurement without cutting wires or modifying mains circuits. Designed for makers, students, and engineers, it allows straightforward monitoring of household appliances, motors, and lighting systems with standard microcontrollers.
Non-contact AC current measurement

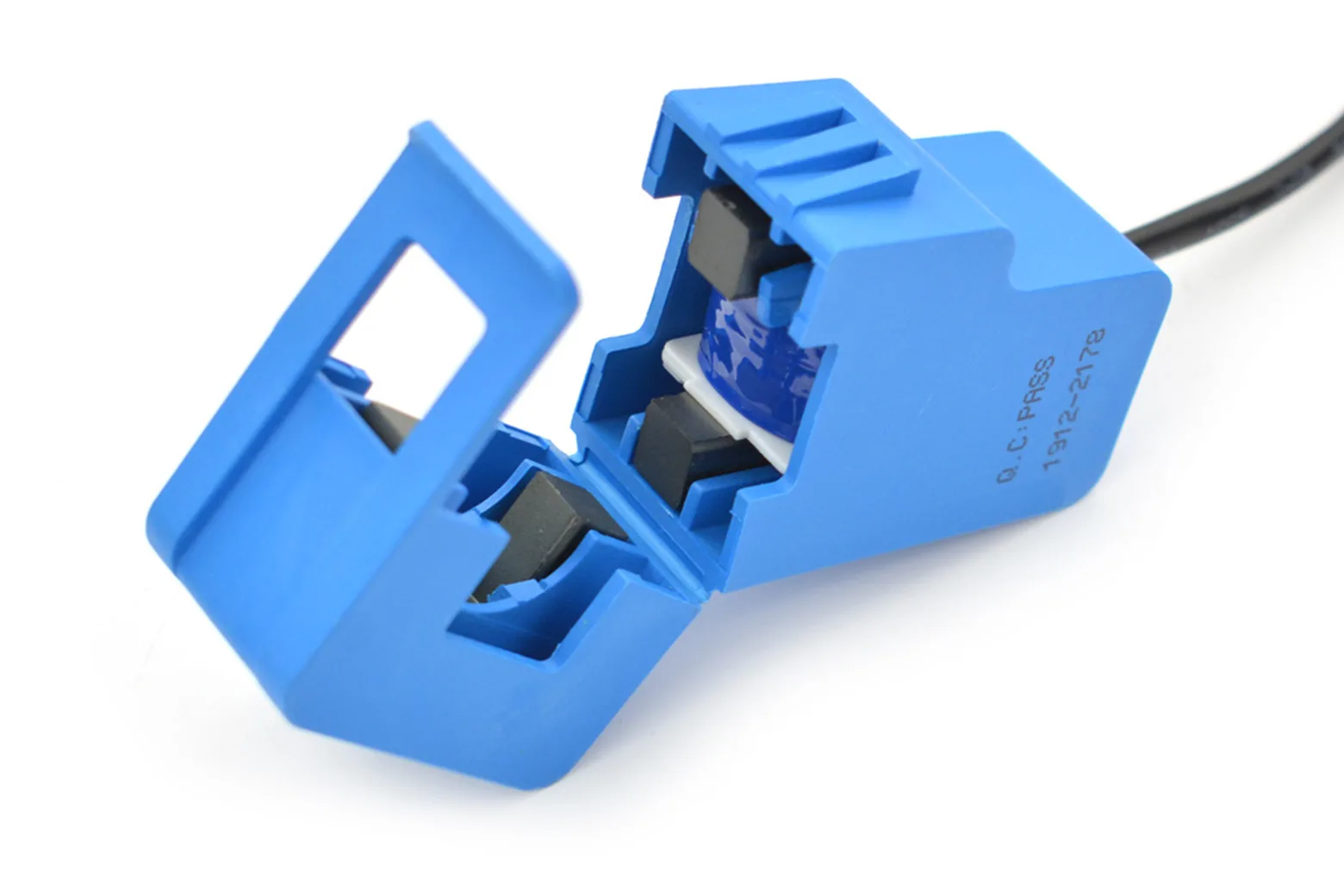

Measure AC currents up to 20A safely by clamping the open-type transformer probe over an AC line without cutting or soldering. The probe connects directly to the signal conversion module via a standard 3.5mm plug.

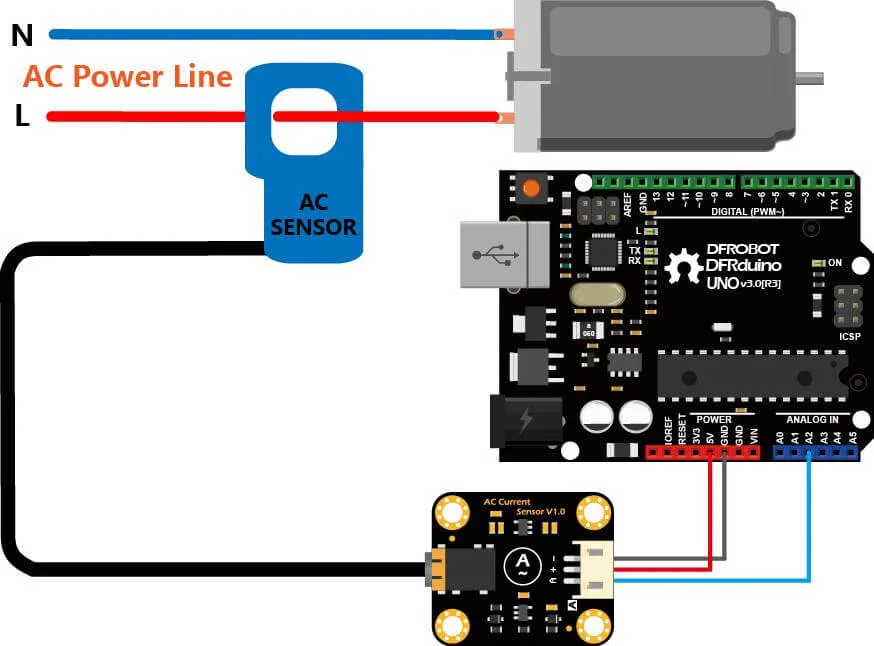

Microcontroller compatibility and connection
The conversion module operates on a 3.3V to 5.5V input voltage and outputs an analog DC voltage between 0.2V and 2.8V. It connects seamlessly to 3.3V and 5V microcontrollers like the Arduino UNO via the standard Gravity 3-pin interface.

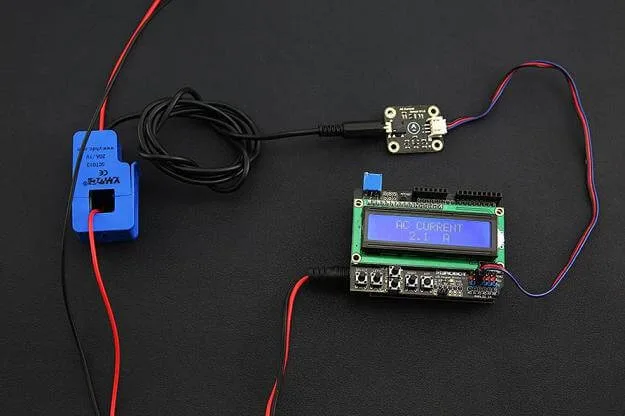

Appliance and motor monitoring
Ideal for building automated current monitors for AC motors, air compressors, and lighting setups. The sensor accurately handles AC frequencies ranging from 50Hz to 1kHz.
Transformer probe specifications

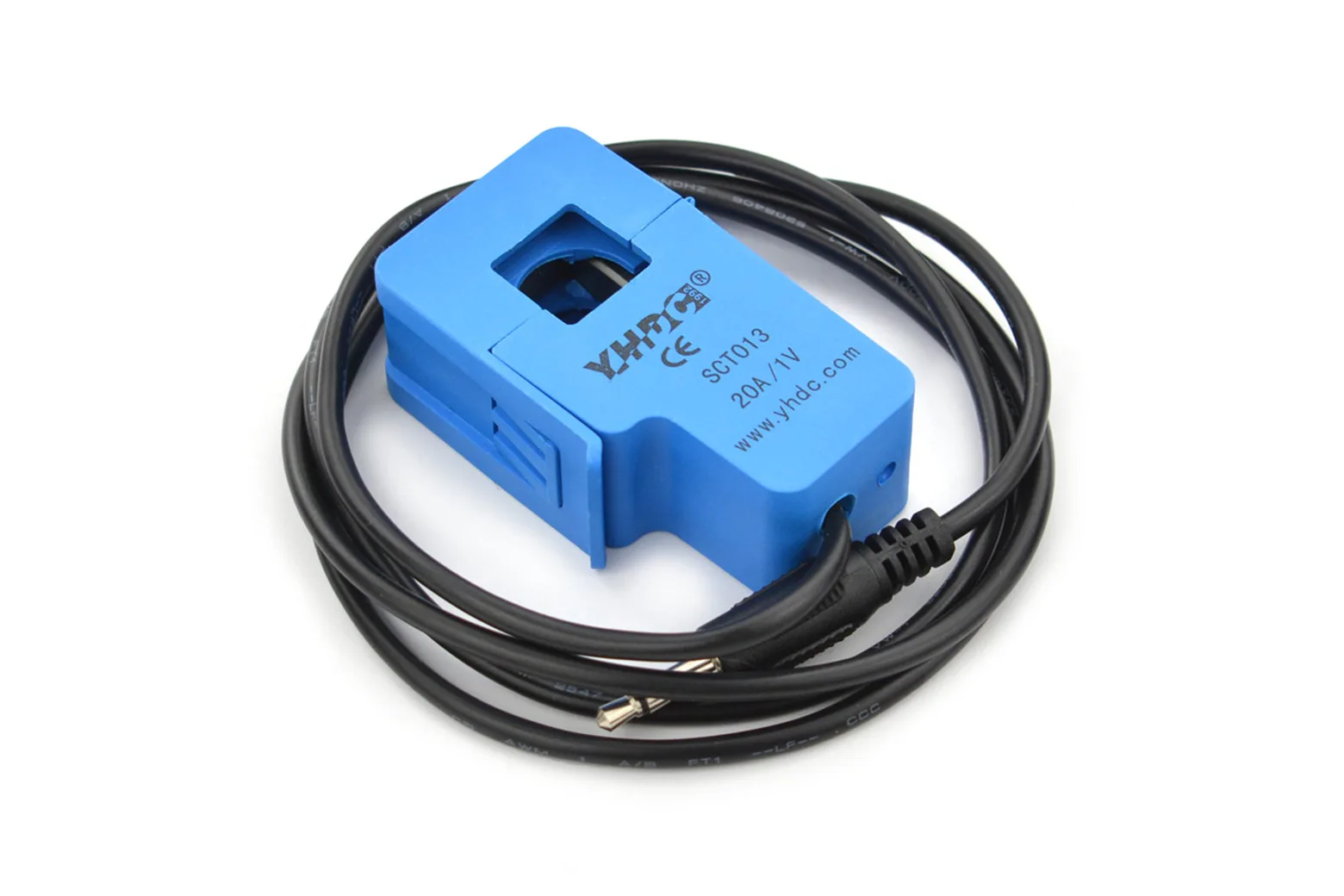

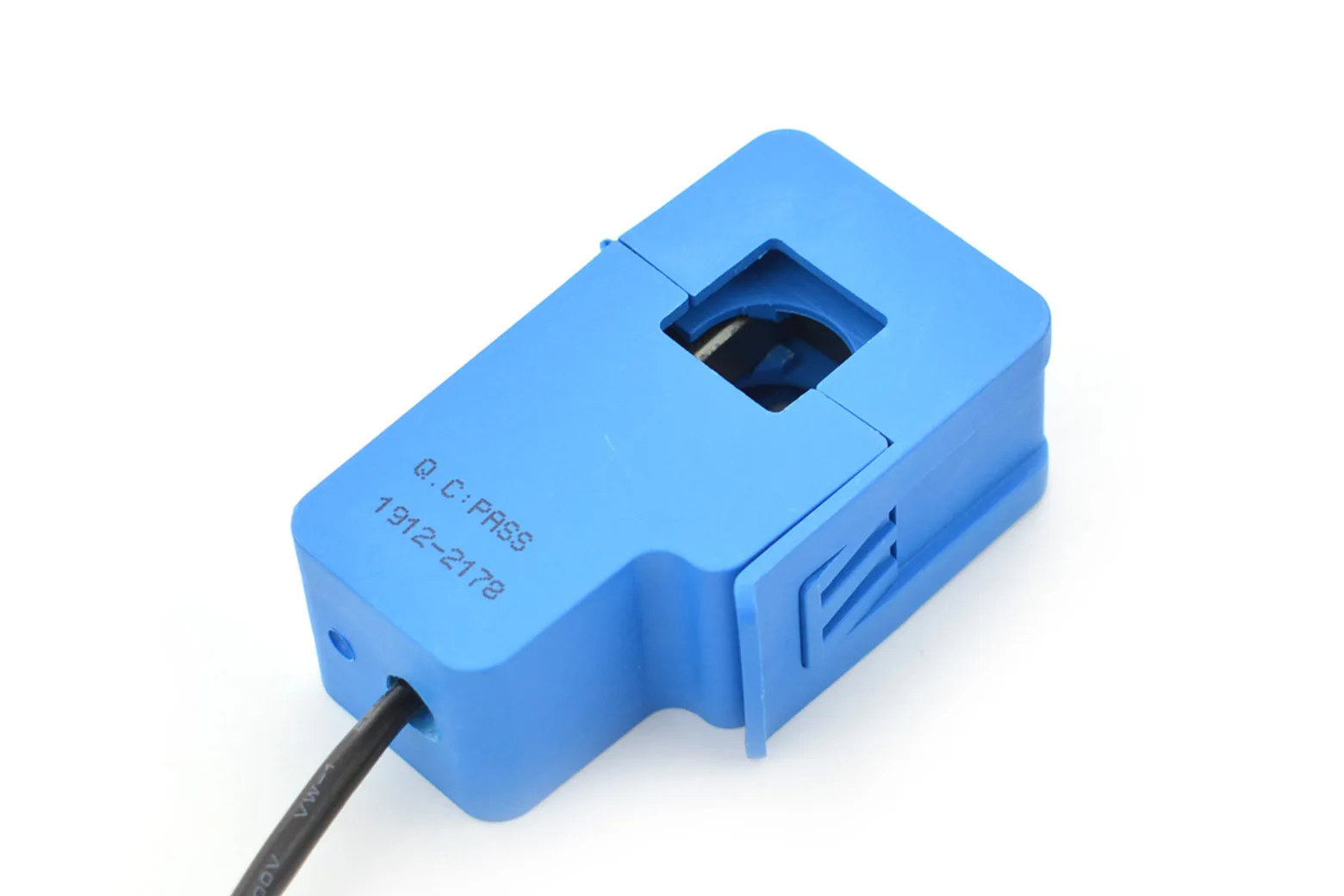

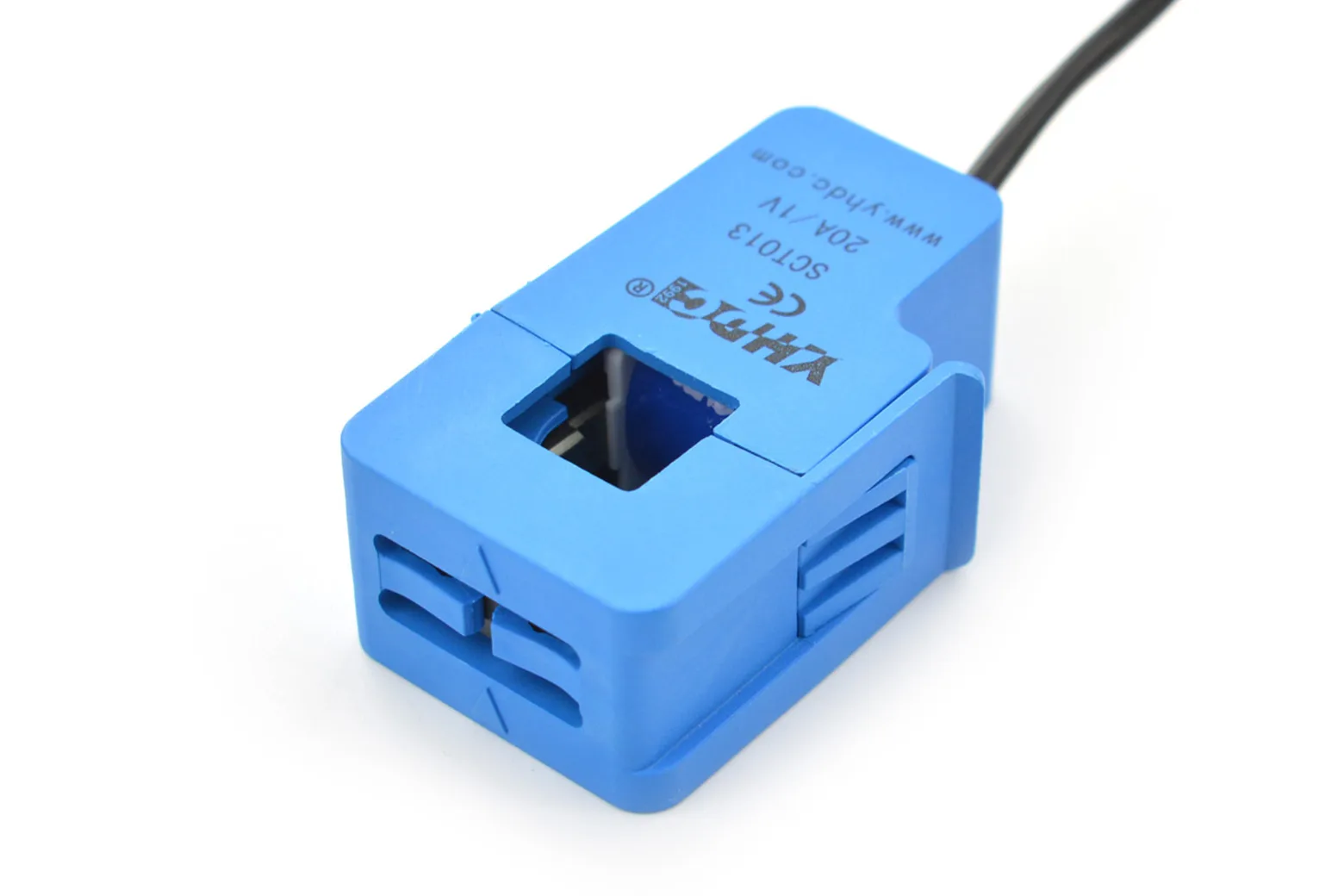

The probe features a 13x13 mm clamp opening, a 1-metre cable, and an operating temperature range of -25 °C to +70 °C. It provides 0 to 1V AC output with ±1% accuracy and non-linearity under ±0.2%.
Kit contents

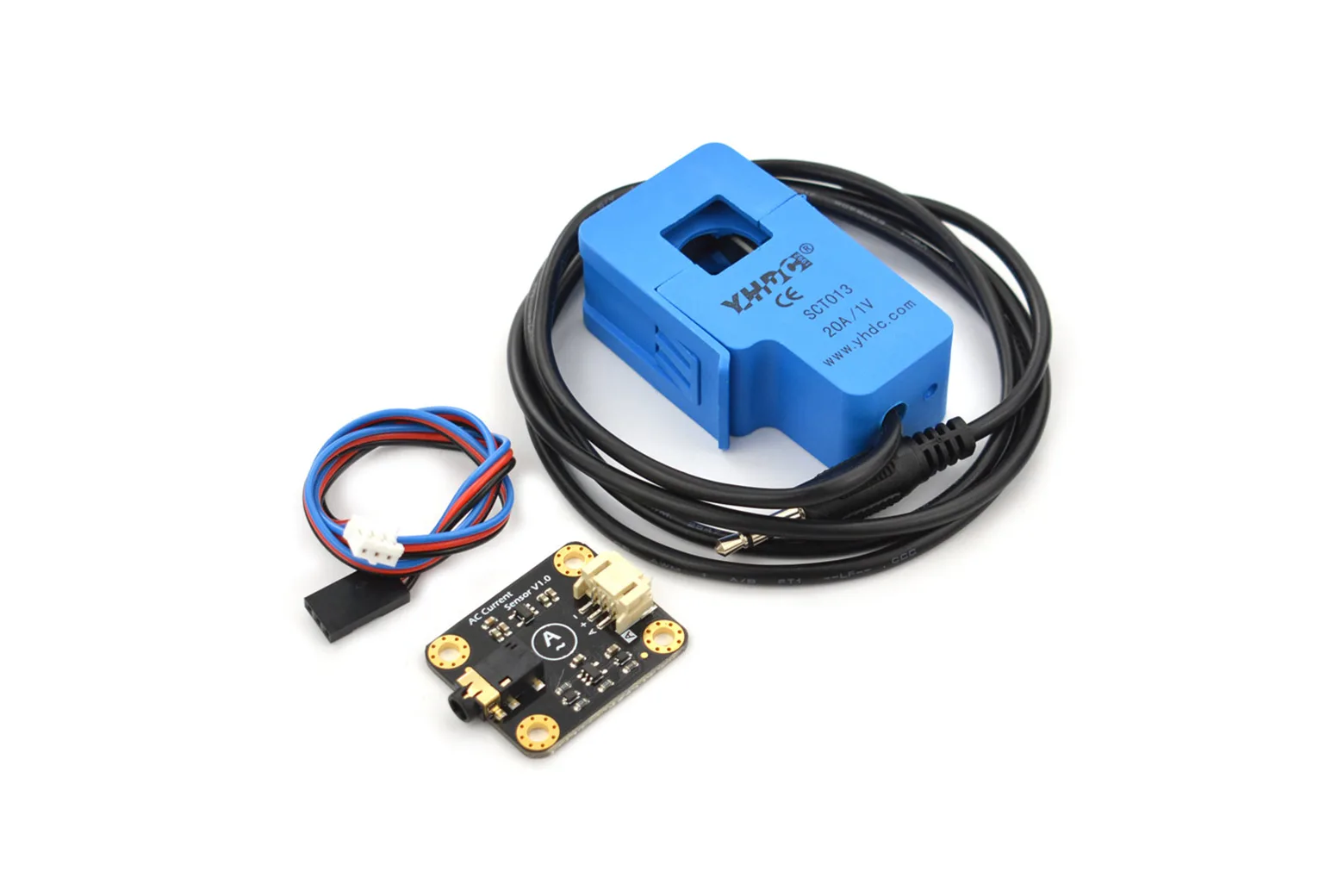

The pack includes one AC current signal conversion module, one 20A open-type AC transformer probe, and one Gravity 3-pin analog sensor cable.
Downloads & documentation
Specifications
| Input Voltage (VCC) | 3.3V-5.5V |
| Interface | Gravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC) |
| AC Voltage Input Range | 0-1V (AC RMS) |
| Relative Error | ±4% |

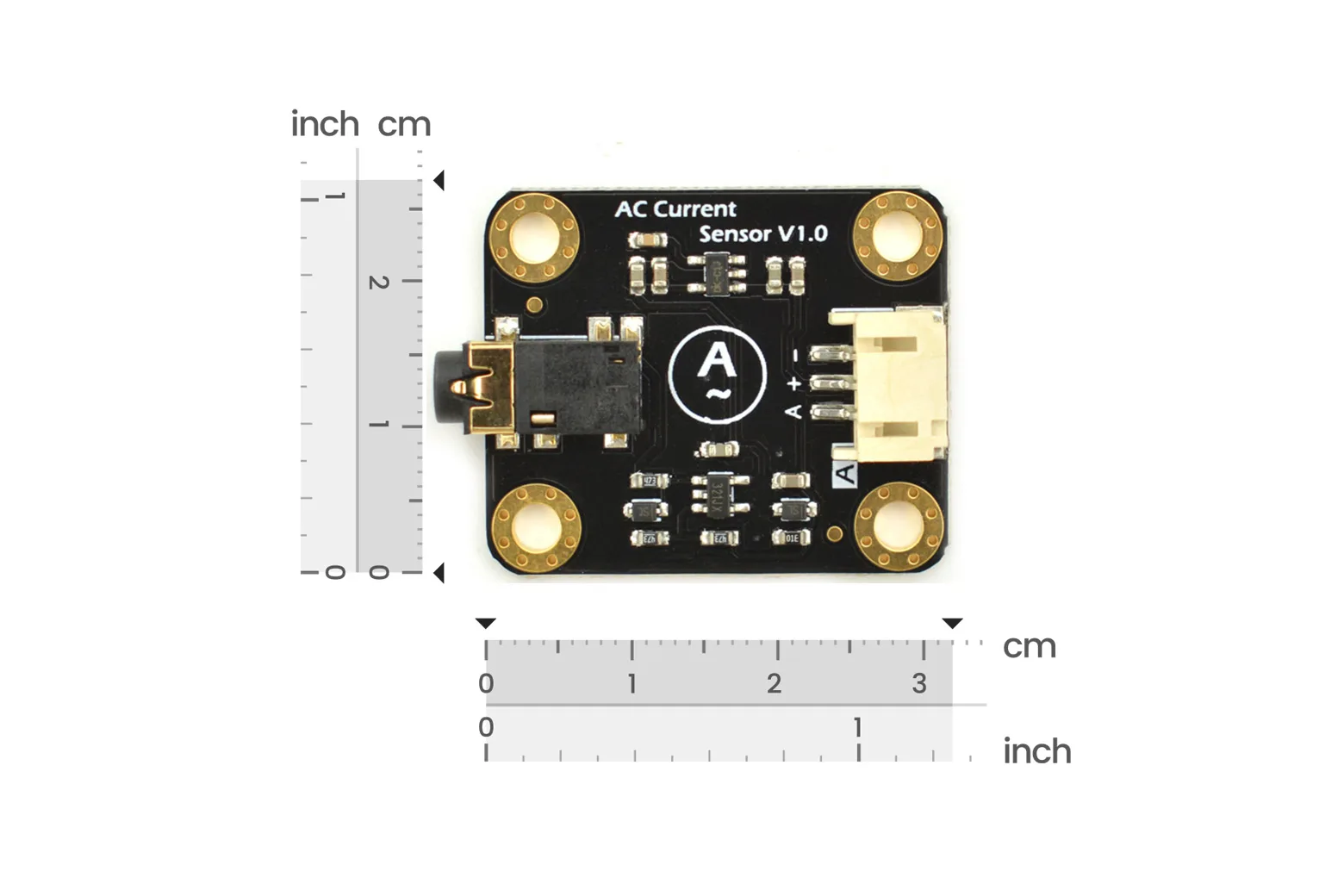

| Dimension | 32×27 mm /1.26×1.06 in |
| Weight | 5g |
| AC Current Range | 0-20A |
| Signal Output (standard Φ3.5mm 3P plug) | 0-1V AC voltage, linear corresponding range 0-20A |
| Accuracy | ±1% |
| Non-linearity | ≤±0.2% |
| Frequency Range | 50Hz~1kHz |
| Cable Length | 1m |
| Working Temperature | -25 ℃~+70 ℃ |
| Opening Size | 13×13 mm / 0.51×0.51 in |
In the box
| AC Current Signal Conversion Module | 1 |
| Open Type AC Transformer Probe (20A) | 1 |
| Gravity-3P Analog Sensor Cable | 1 |
