Description
The Gravity 4-Digital LED Segment Display Module provides a crisp green 4-digit readout designed for quick integration via standard I2C. Operating at 5V, it is ideal for students, makers, and hobbyists building digital clocks, counters, and sensor data displays.

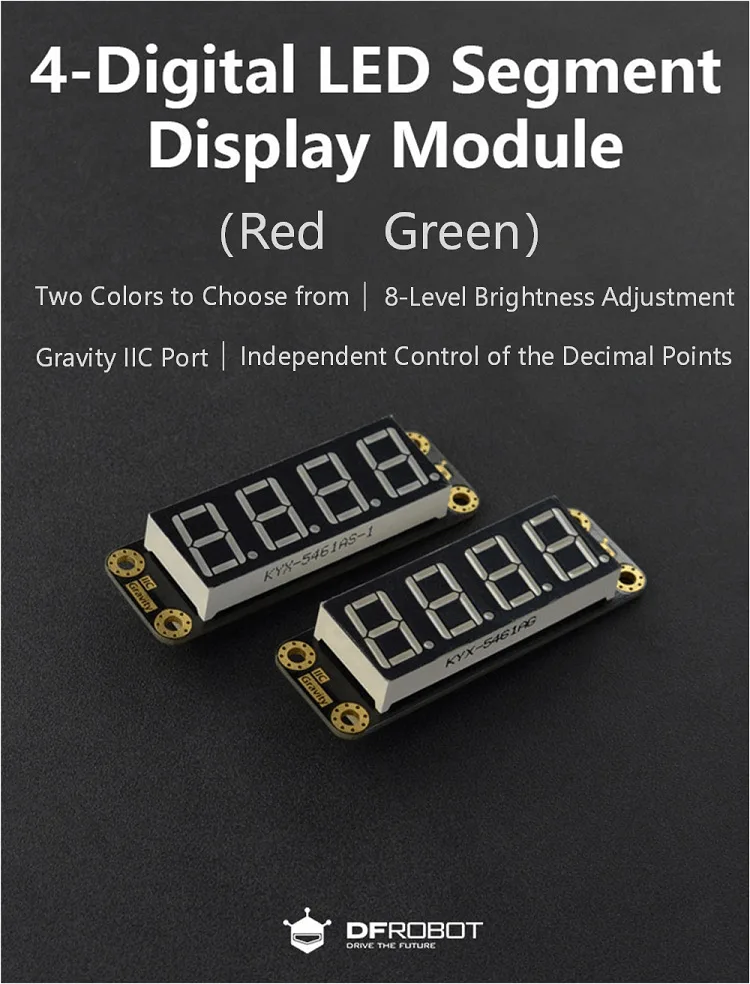

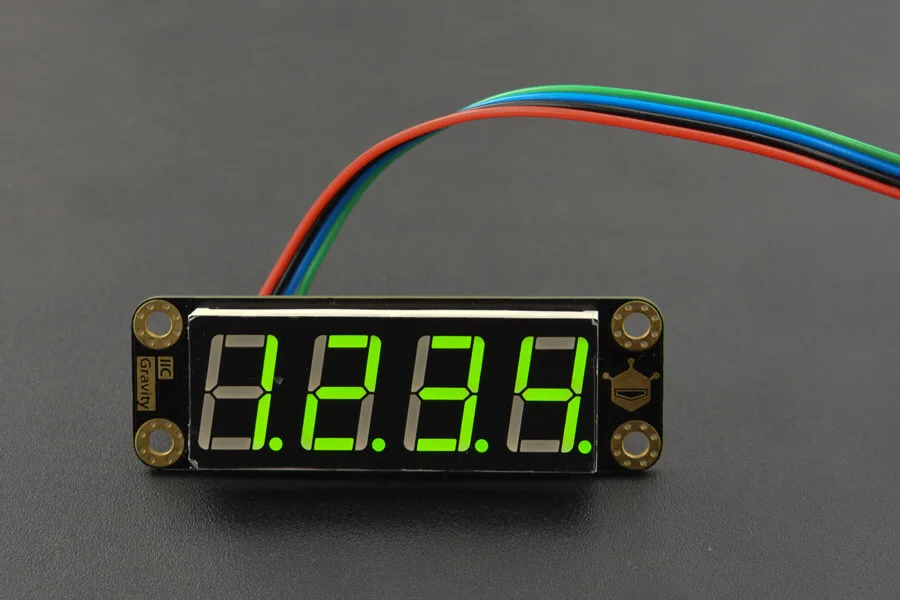

Clear green numeric readout
The module features an 8-segment by 4-digit green LED tube measuring 5.05 by 1.9 cm. It delivers clear numerical output for timers, counters, and sensor readings.

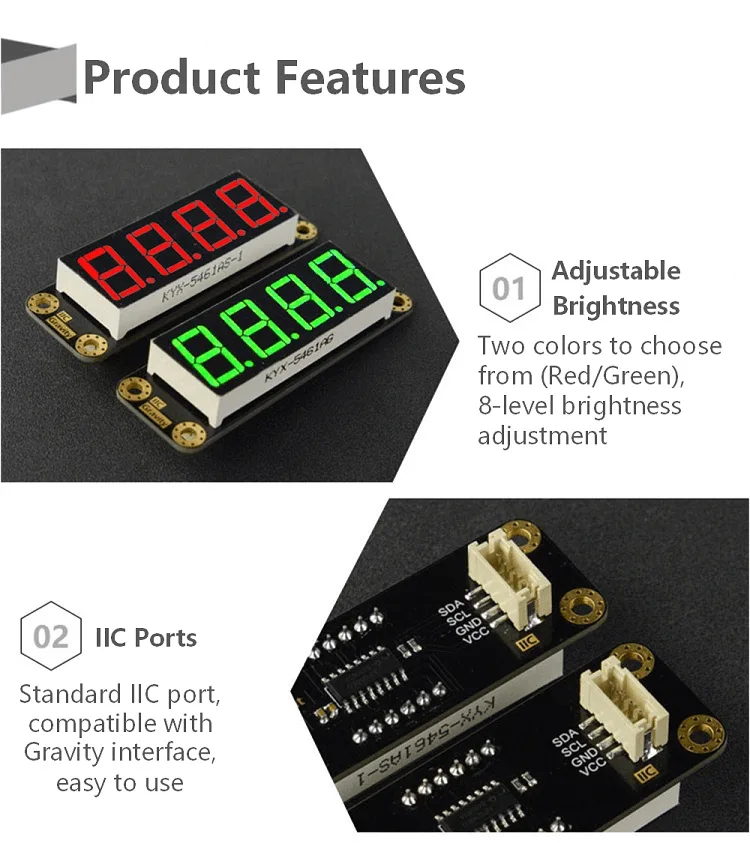

Gravity I2C interface

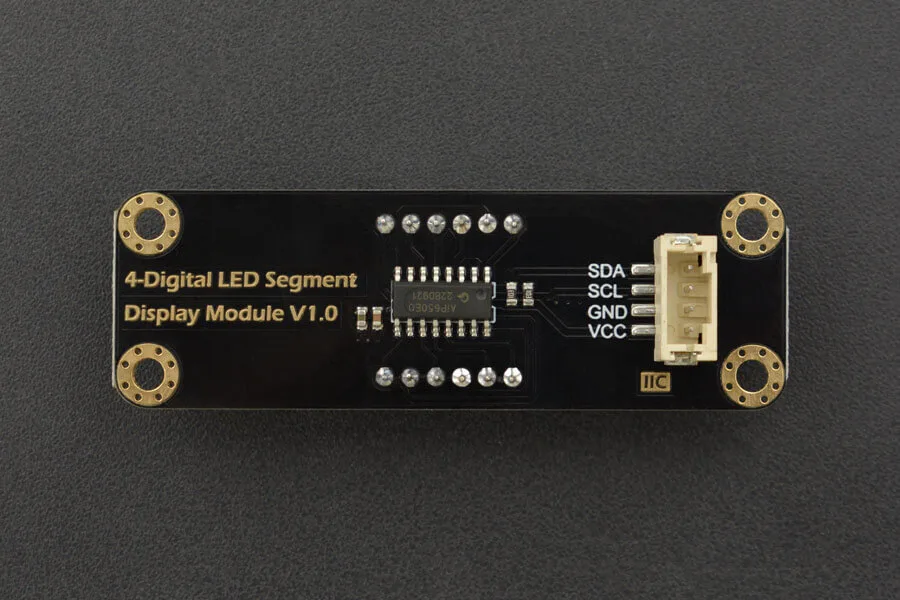

Using standard I2C communication, the display saves microcontroller pins and connects effortlessly using the Gravity interface standard.
Adjustable display brightness
Integrated 8-level brightness adjustment lets you configure the display output to suit different lighting environments and conserve power.
Durable 5V hardware design
The board operates on 5V DC across an operating temperature range of -40 ºC to +85 ºC, with an overall PCB footprint of 6.7 by 2.2 cm.
Included accessories

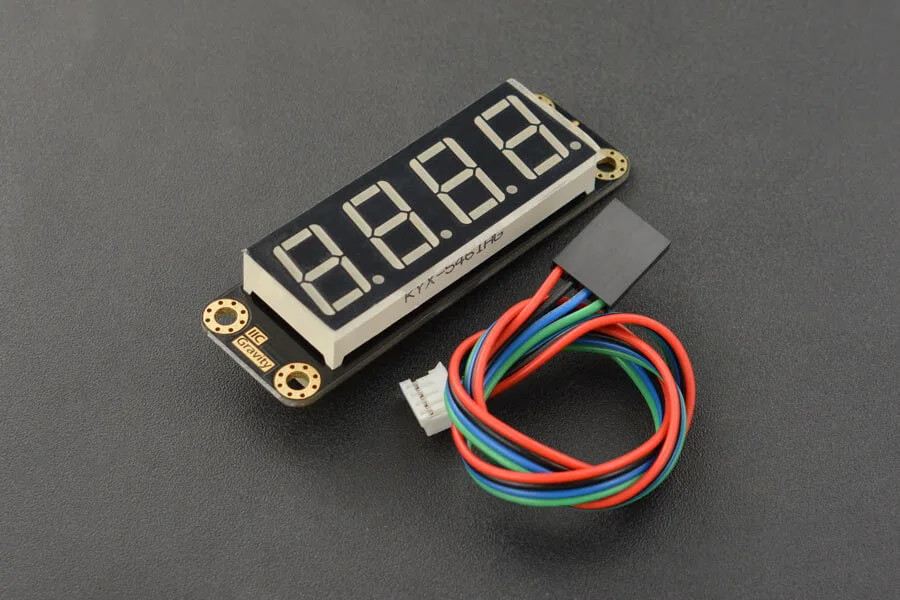

The package includes one green 4-digital LED segment display module and one Gravity 4-pin I2C connecting cable.
Downloads & documentation
Specifications
| Operating Voltage | DC 5V |
| Operating Temperature | -40 ºC ~ +85 ºC |
| Storage Temperature | -55 ºC ~ +125 ºC |

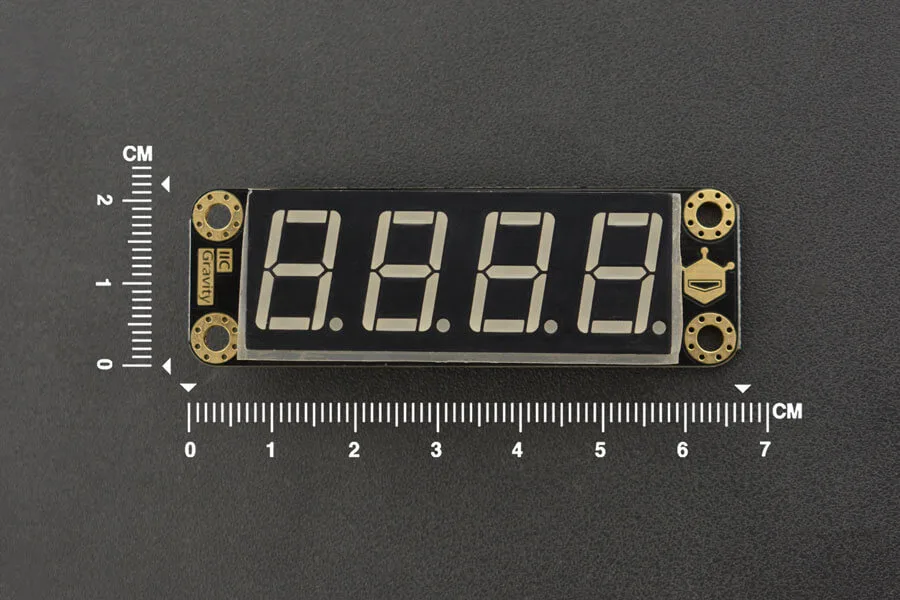

| Digital Tube Size | 5.05× 1.9cm/2.0×0.75” |

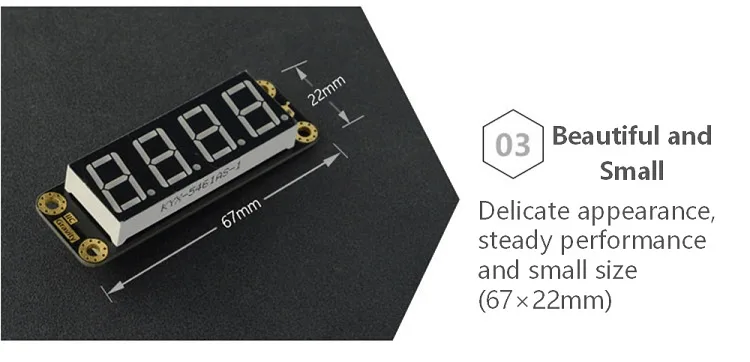

| PCB Size | 6.7×2.2 cm/2.64×0.87” |
In the box
| 4-Digital LED Segment Display Module (Green) | 1 |
| Gravity-4Pin I2C Connector | 1 |
