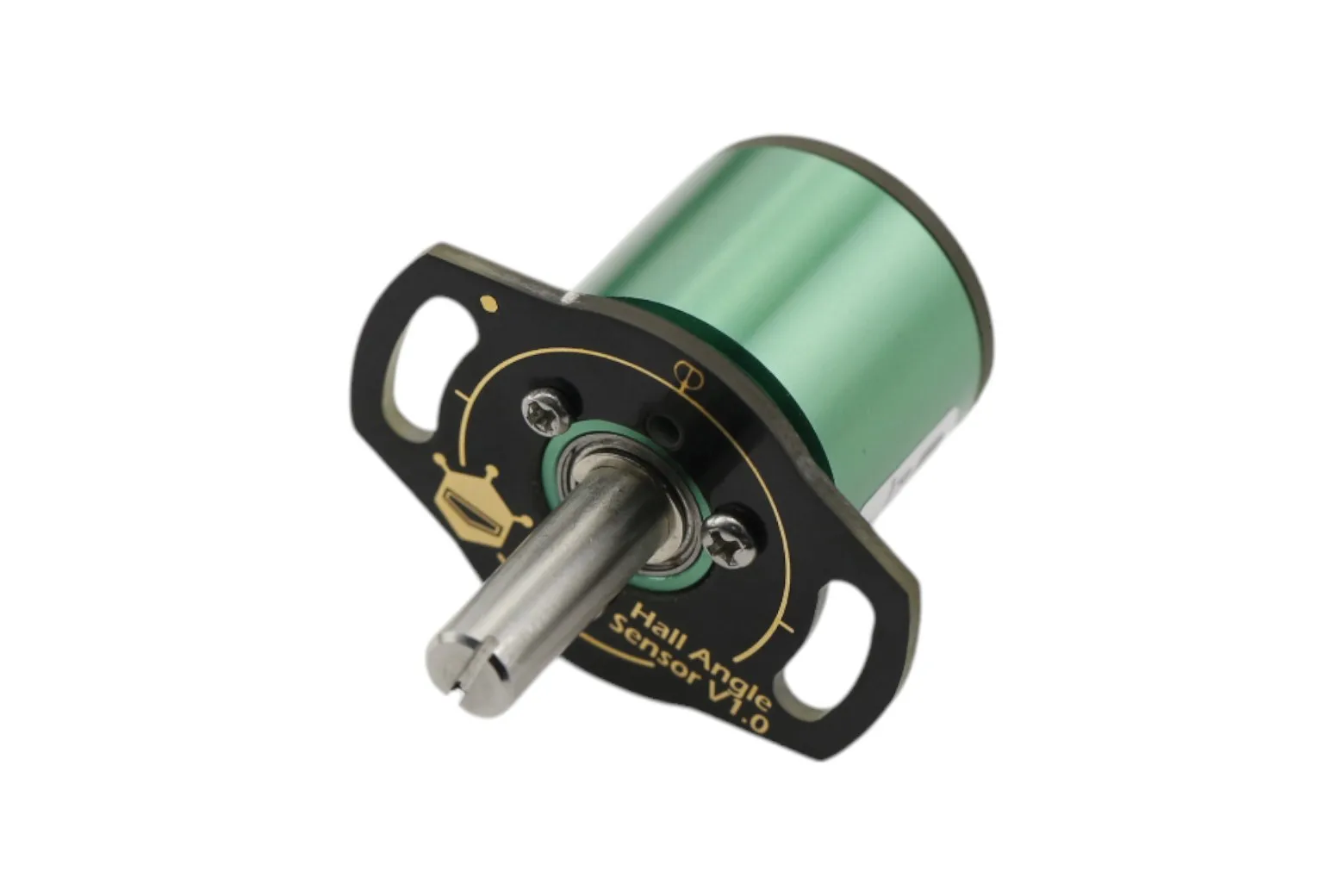

Gravity: 360 Degree Hall Angle Sensor (0-5V Analog Output)

The Gravity: 360 Degree Hall Angle Sensor provides non-contact, continuous rotary position tracking across a full circle. It is ideal for robotics builders, students, and makers needing precise angular feedback in joint and motor control projects.

Full continuous rotation tracking

The sensor measures rotation across a full 360 degrees without physical stops or dead zones. This enables smooth, uninterrupted angle monitoring for rotating mechanisms.

High resolution detection

Featuring a 0.088-degree resolution, this module captures minute rotational adjustments. It delivers dependable precision for delicate position sensing tasks.

Rapid 0.2ms refresh rate

With an ultra-fast 0.2ms refresh time, the sensor delivers real-time position updates to your microcontroller. This rapid response helps maintain tight closed-loop control in dynamic robotic systems.

Standard 0-5V analog output

The module outputs a straightforward 0-5V analog voltage proportional to the measured angle. This ensures simple integration with standard analog-to-digital converter pins on development boards.

Downloads & documentation

• Product wiki (DFRobot)
