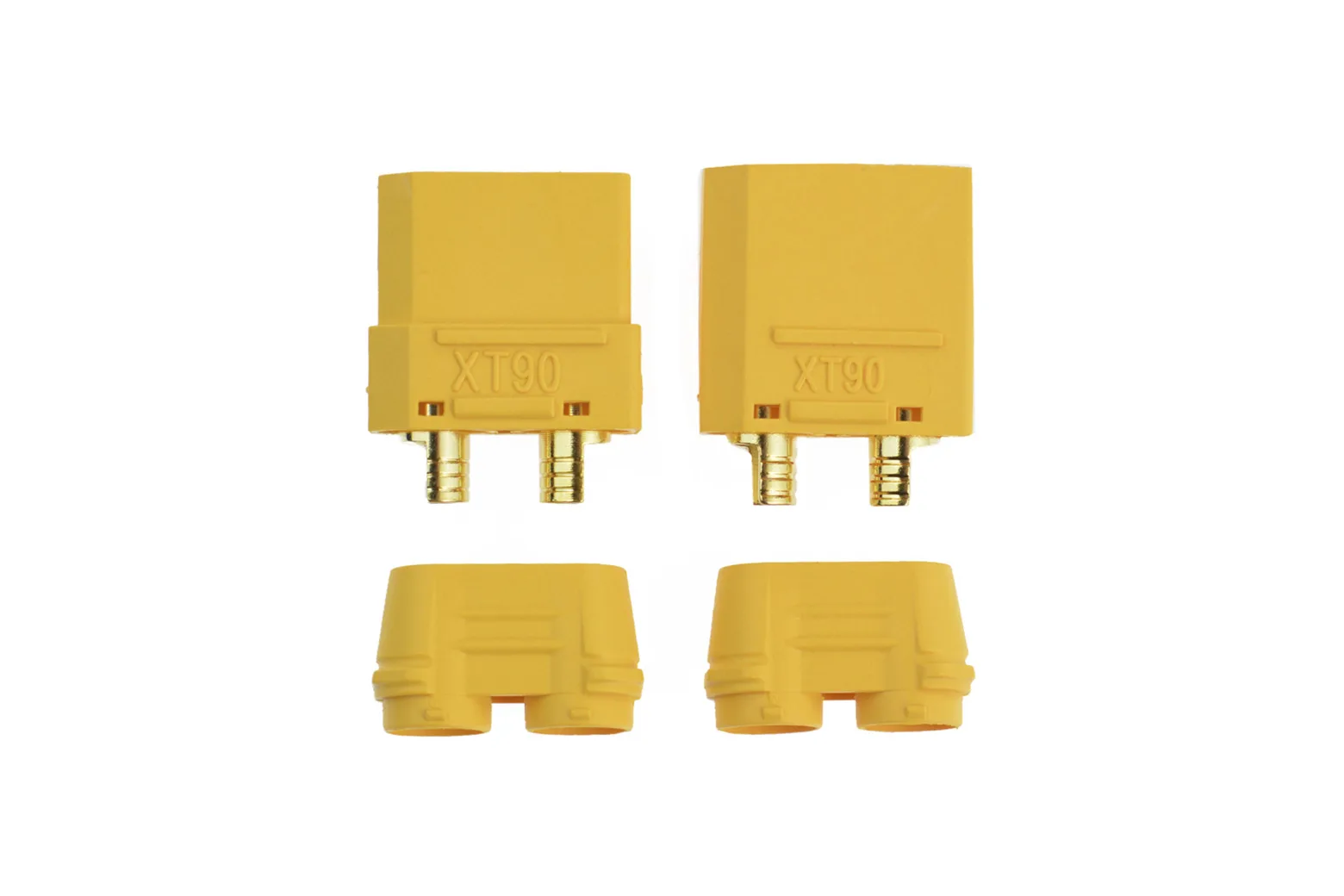

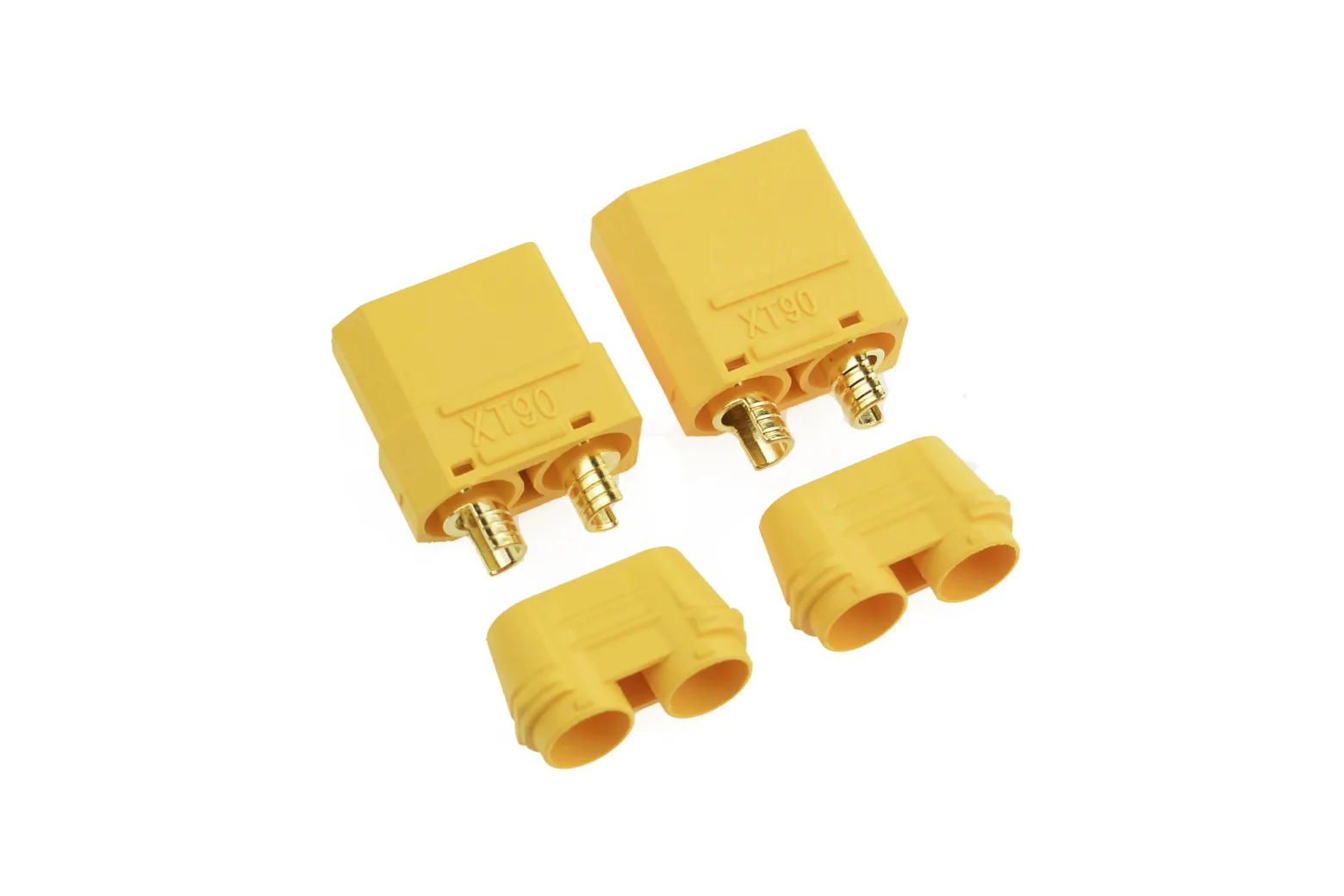

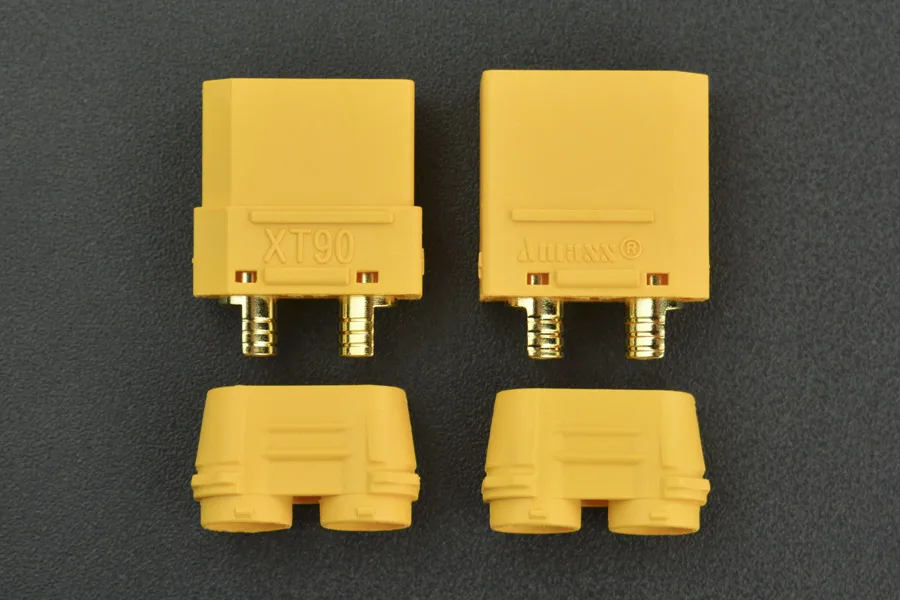

Gold Plated XT90 Male & Female Bullet Connector (40A/90A)

The Gold Plated XT90 Male and Female Bullet Connector set is a high-current DC power connector pair designed for reliable power distribution. It is well suited for makers, robotics teams, and RC hobbyists building high-drain battery-powered projects.

High-current power ratings

The connector pair supports a continuous current of 40A and can handle peak loads of up to 90A. This makes it ideal for demanding battery packs, motor controllers, and power distribution boards.

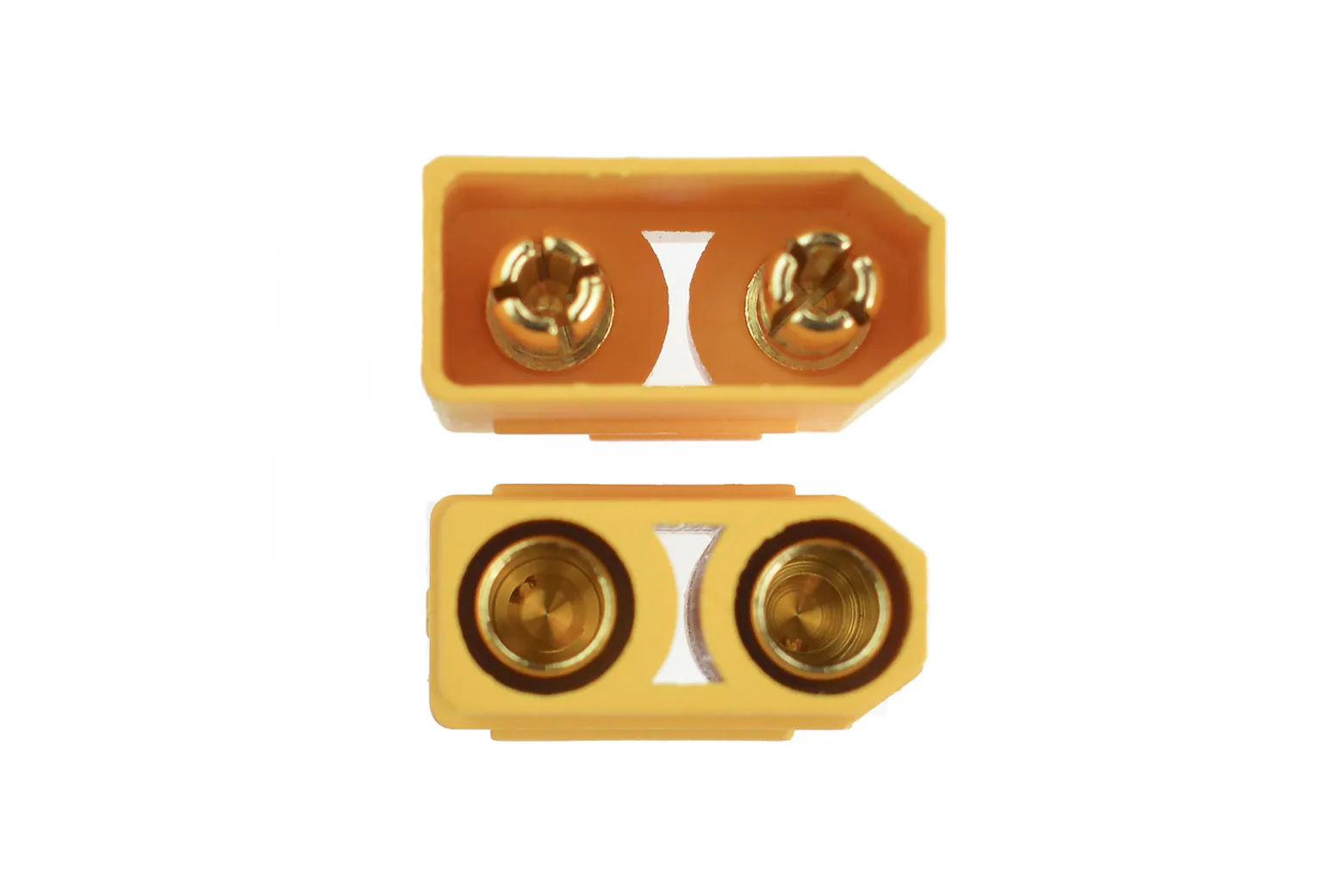

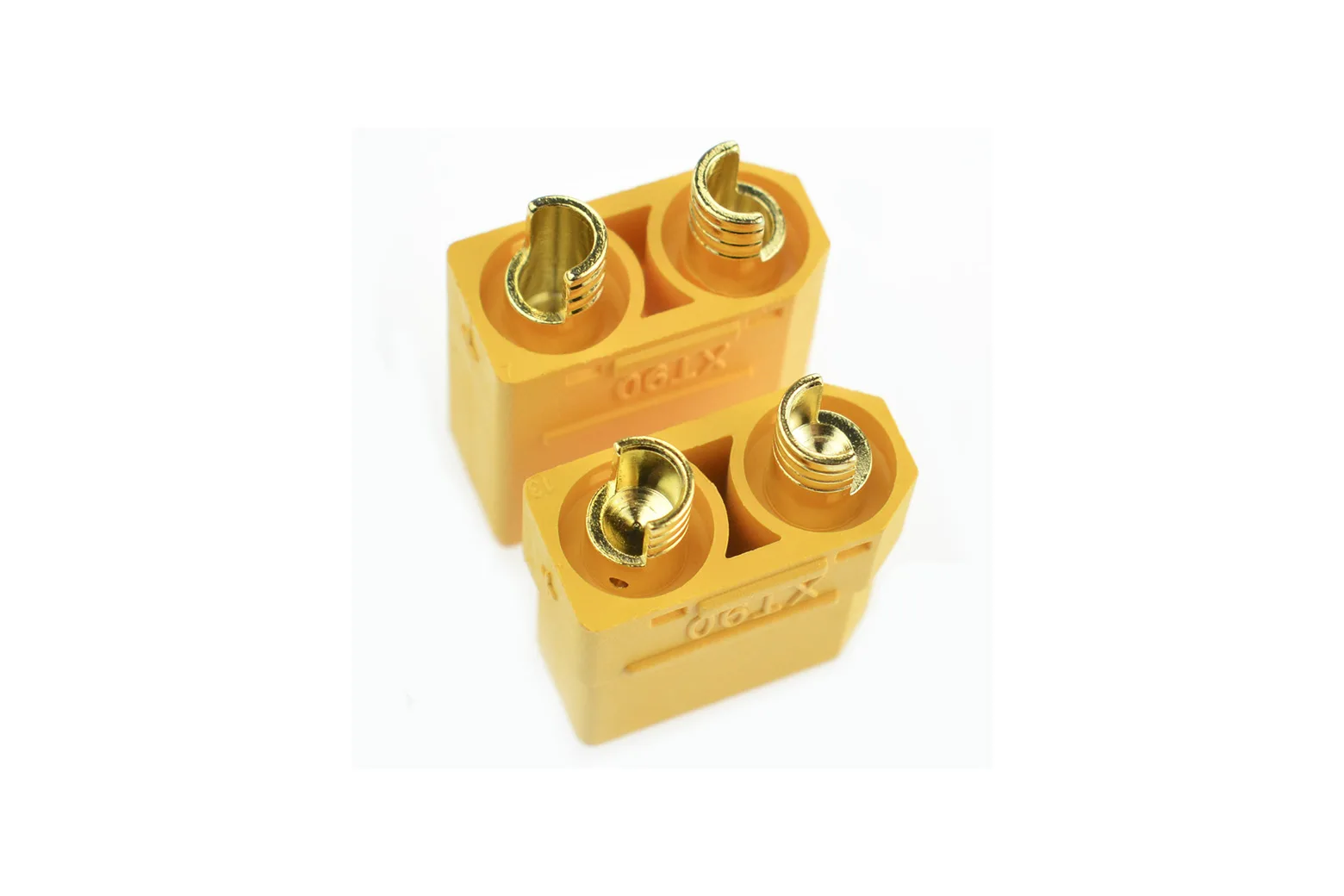

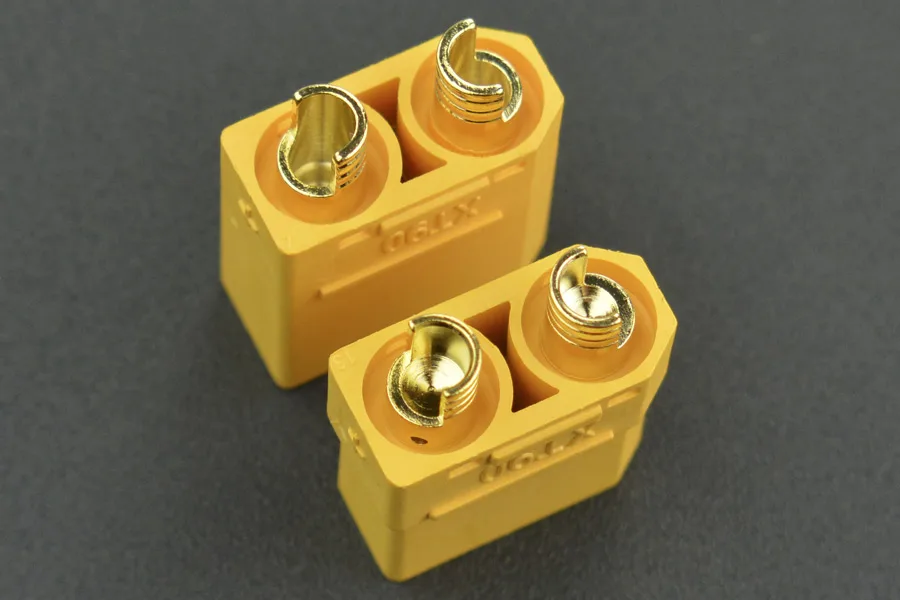

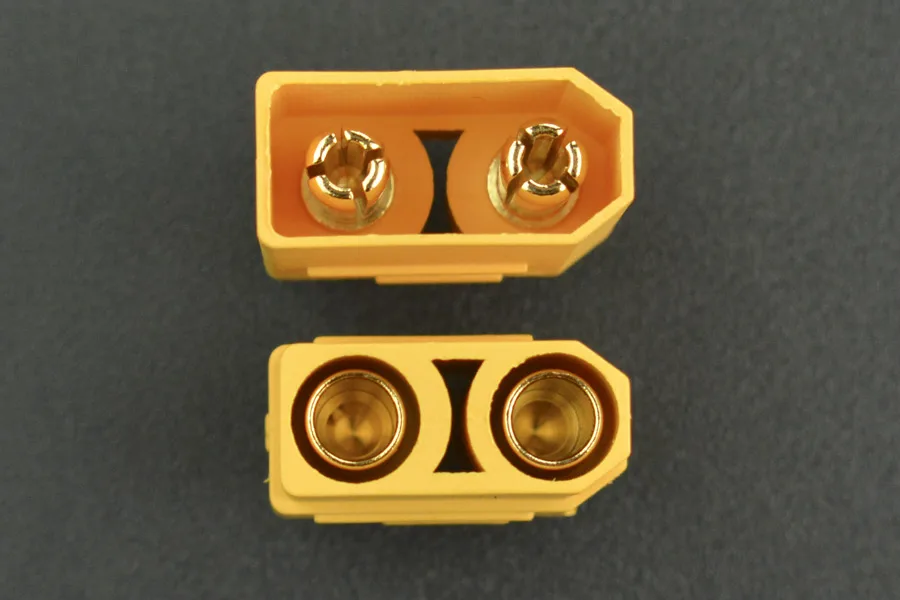

Gold-plated copper contacts

Equipped with gold-plated copper contacts that ensure low contact resistance and efficient conductivity. The gold plating also provides corrosion resistance across repeated connection cycles.

Flame-retardant insulation

The connector body is constructed with UL94 V0 rated insulating material. This ensures high thermal resistance and self-extinguishing safety in high-power electrical setups.

Thick gauge wire compatibility

The solder terminals are designed to accommodate heavy-duty wiring up to 10AWG. This allows clean, low-resistance solder joints to thick power leads.
