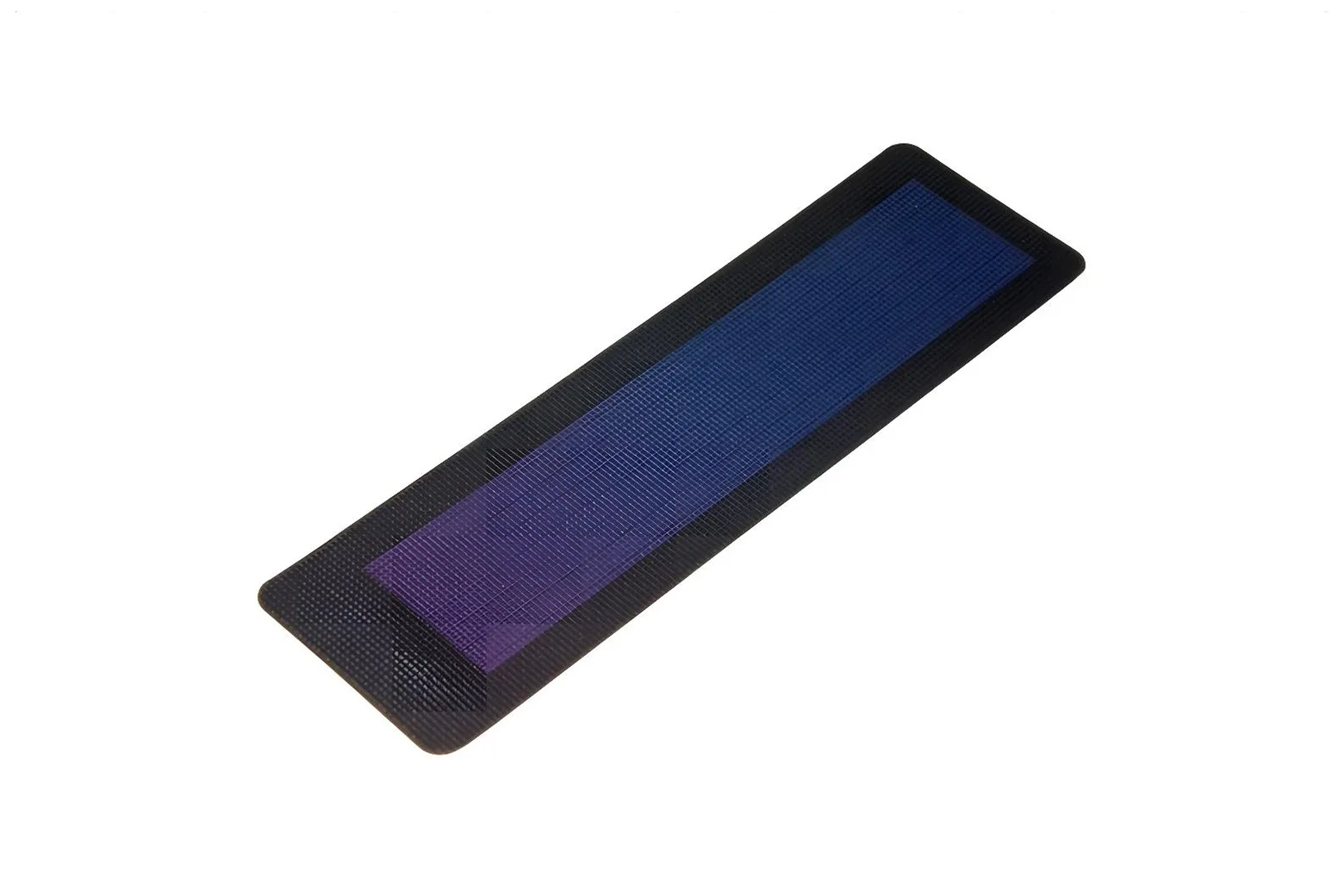

Flexible Solar Panel (1.5v 250mA)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This ultra-thin flexible solar panel delivers 1.5V at 250mA (0.5W) in a compact, bendable form factor. It is ideal for makers, wearable tech designers, and outdoor hobbyists seeking a lightweight clean power source for DIY electronics.
Truly flexible and wearable design

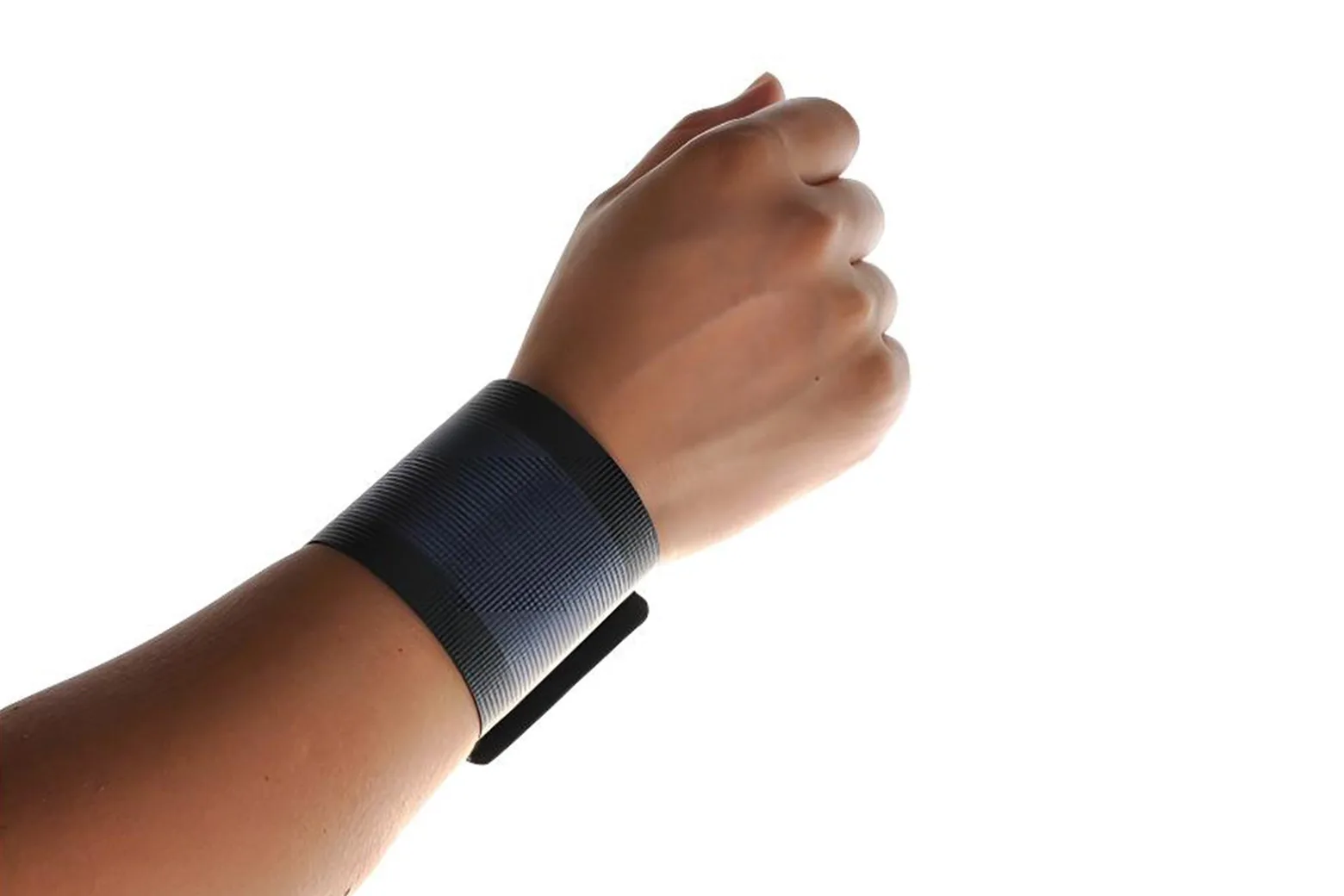

Built with flexible triple-junction amorphous silicon thin-film cells, this panel can be bent, sewn, or integrated directly into clothing and curved surfaces.
Power output and electrical performance
The panel produces an operating voltage of 1.5V at 250mA (0.5W peak), with an open-circuit voltage of 2.0V and short-circuit current of 420mA under standard test conditions.
Weatherproof and durable construction
Encapsulated in high-transmittance ETFE film and fast-curing EVA adhesive, the waterproof panel resists moisture and corrosion while operating across temperatures from -40 deg C to 80 deg C.
Customisable border and compact dimensions
Measuring 195mm by 58mm with a thickness of just 0.5mm, the panel weighs only 18g (plus or minus 2g) and features trimmable black edges that make sewing and mounting straightforward.
Versatile outdoor and mobile applications
Its rugged, low-profile footprint makes it well-suited for travel kits, outdoor camping gear, remote field sensors, and portable electronics.
What is included
Each pack includes one 1.5V 250mA flexible solar panel.
Specifications
| Operating Voltage | 1.5V |
| Operating Current | 250mA |
| Open circuit voltage | 2.0V |
| Short circuit current | 420mA |
| Power | 0.5W |
| Use of the environment | -40 ℃ ~ 80 ℃ |
| Performance | corrosion, moisture |
| Size | Length 165mm (plus black edges 195mm) X Width 38mm (plus black edges 58mm) X thickness 0.5mm. |
| Weight | 18 g ± 2 grams. |
| Packaging Material | durable, high transmittance ETFE film |
| Adhesive | weather, high transmittance fast curing EVA film |
| Battery Type | Flexible triple junction amorphous silicon thin film solar cells |
| Note | The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W / ㎡, spectrum AM1.5, cell temperature 25 ℃. |
In the box
| Flexible Solar Panel(1.5V 250mA) | 1 |
