Description

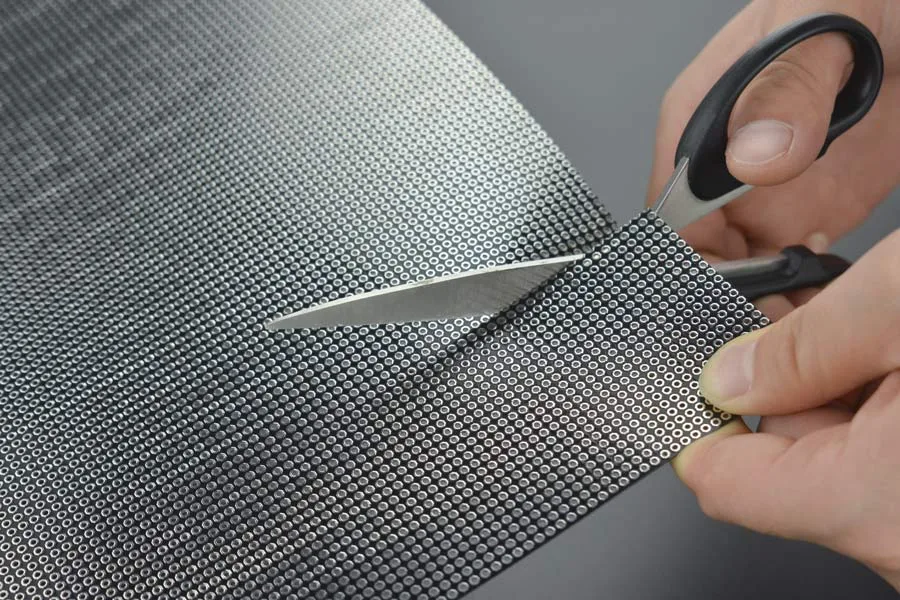

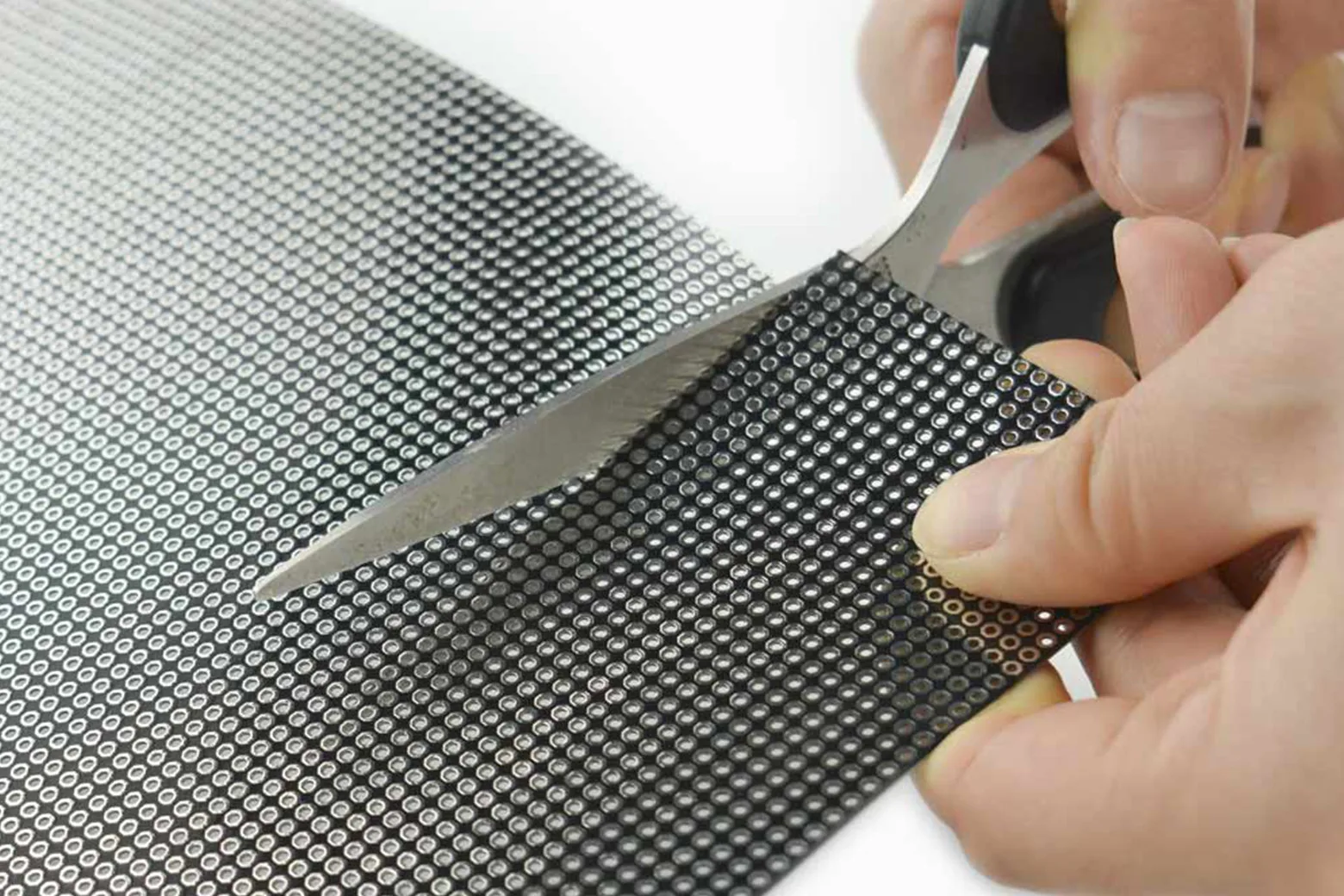

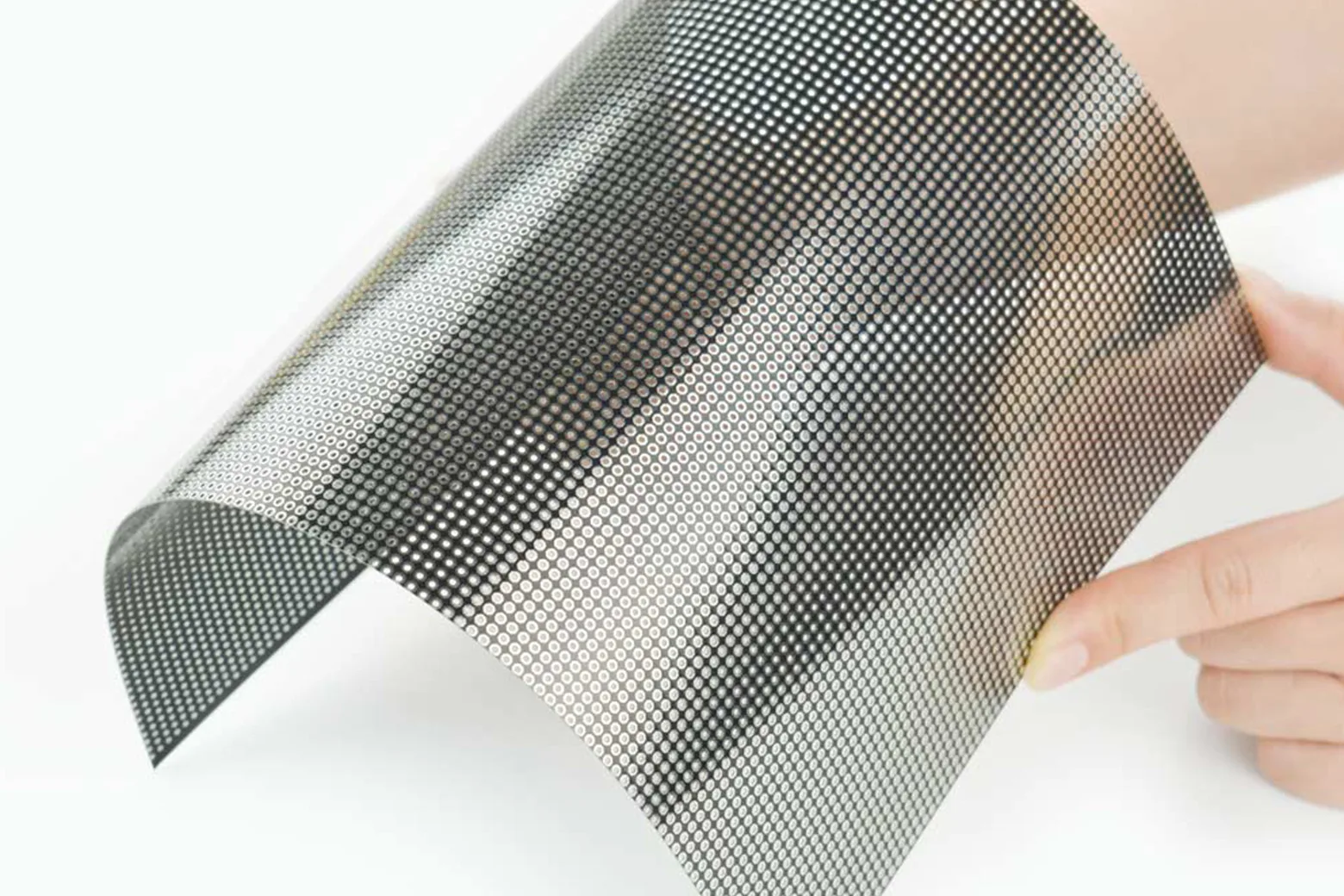

The Flexible Single Sided ProtoBoard (18x30cm) is an ultra-thin prototyping board designed for building custom circuits on curved surfaces or within compact enclosures. With its bendable construction and standard pitch layout, it suits makers, students, and engineers working on bespoke electronics projects.
Ultra-thin flexible FR-4 base

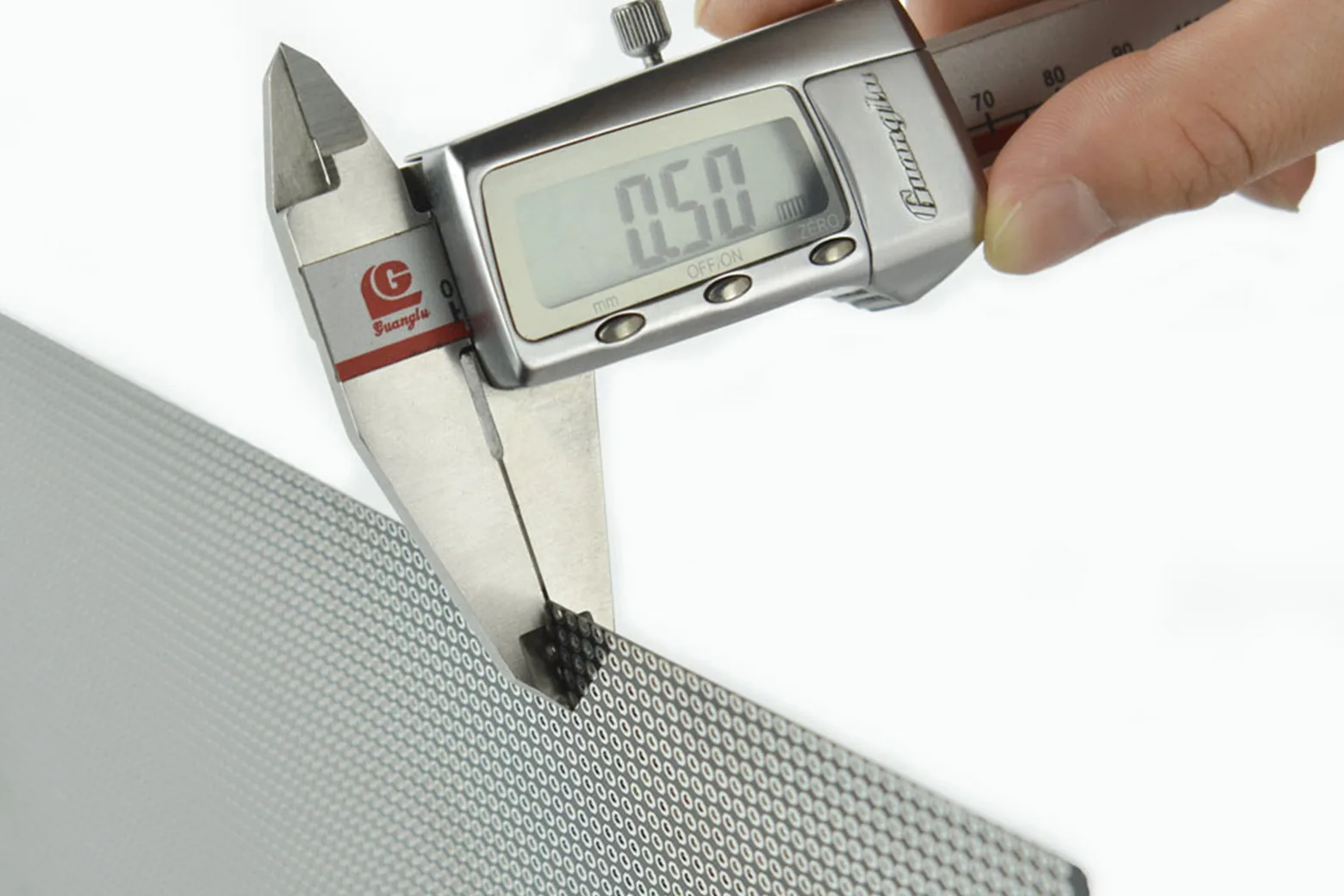

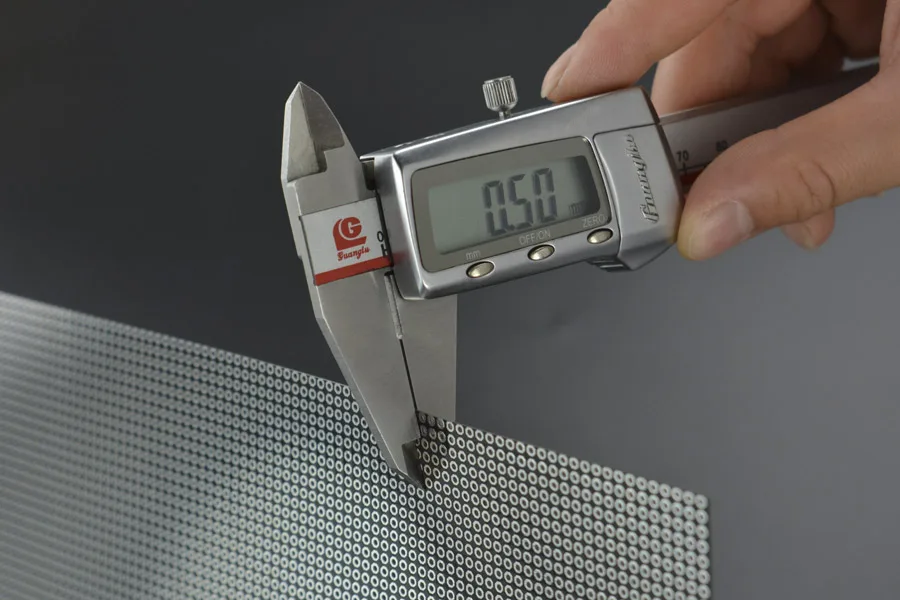

The board is constructed from 0.4mm ultra-thin FR-4 material, providing structural flexibility while retaining standard circuit board resilience.

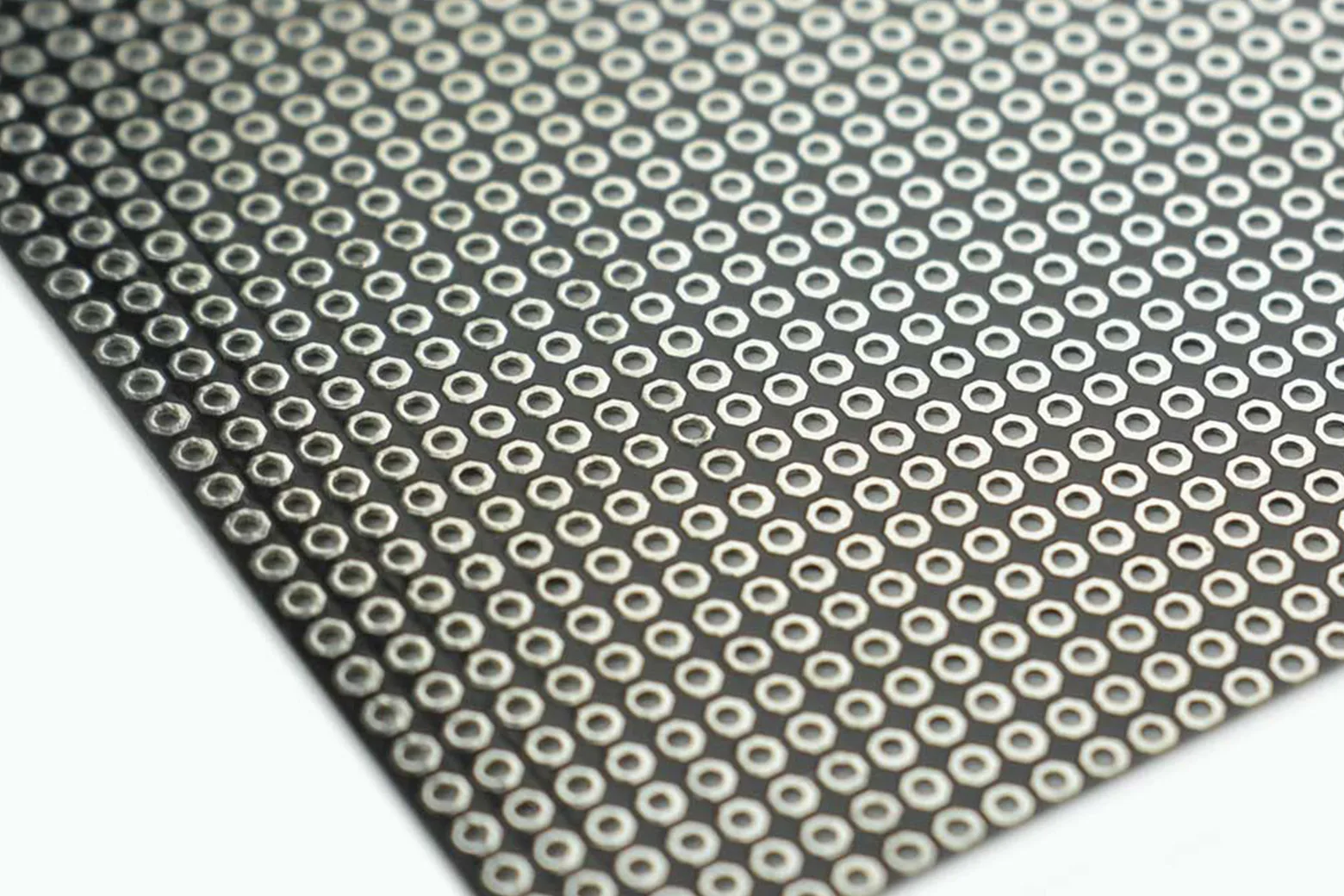

Standard 2.54mm hole pitch
A regular 2.54mm hole spacing ensures compatibility with common electronic components, connectors, and headers.

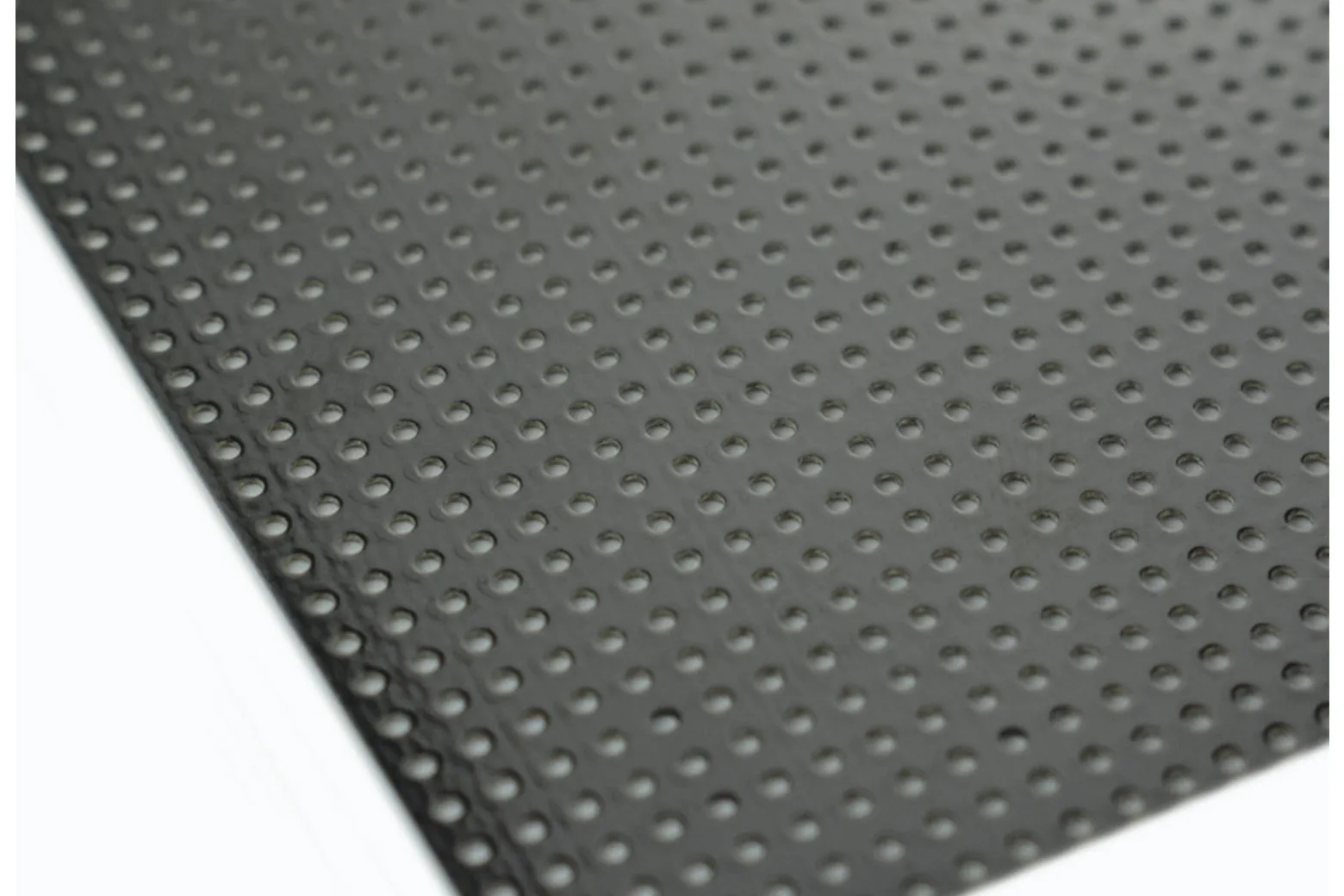

Optimised 1mm apertures
The 1mm aperture holes accommodate standard through-hole component leads and jumper wires for straightforward assembly.
DIP and SMD support

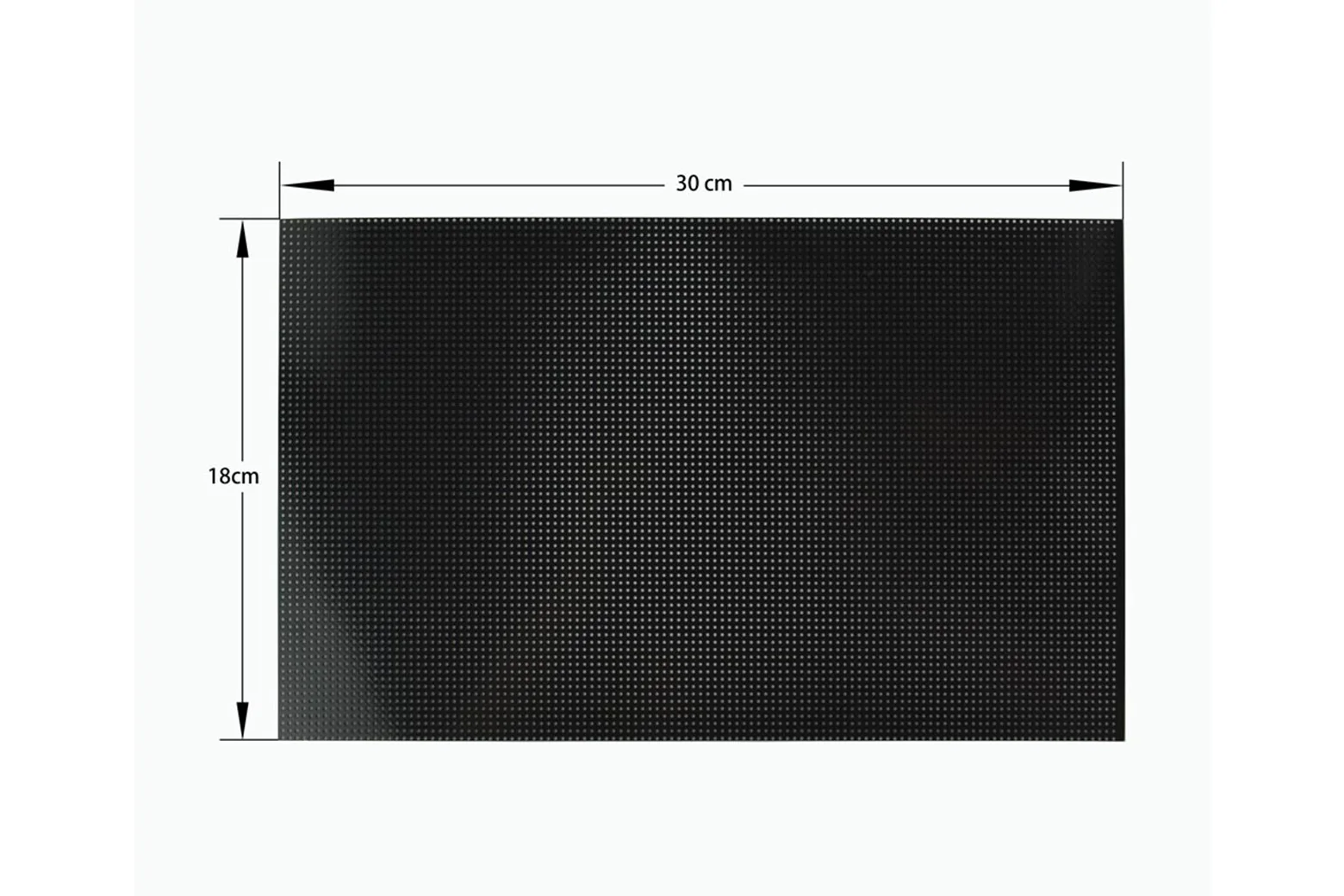

Designed for single-sided circuit development, the board supports prototyping with both DIP through-hole packages and SMD components across an 18x30cm area.
