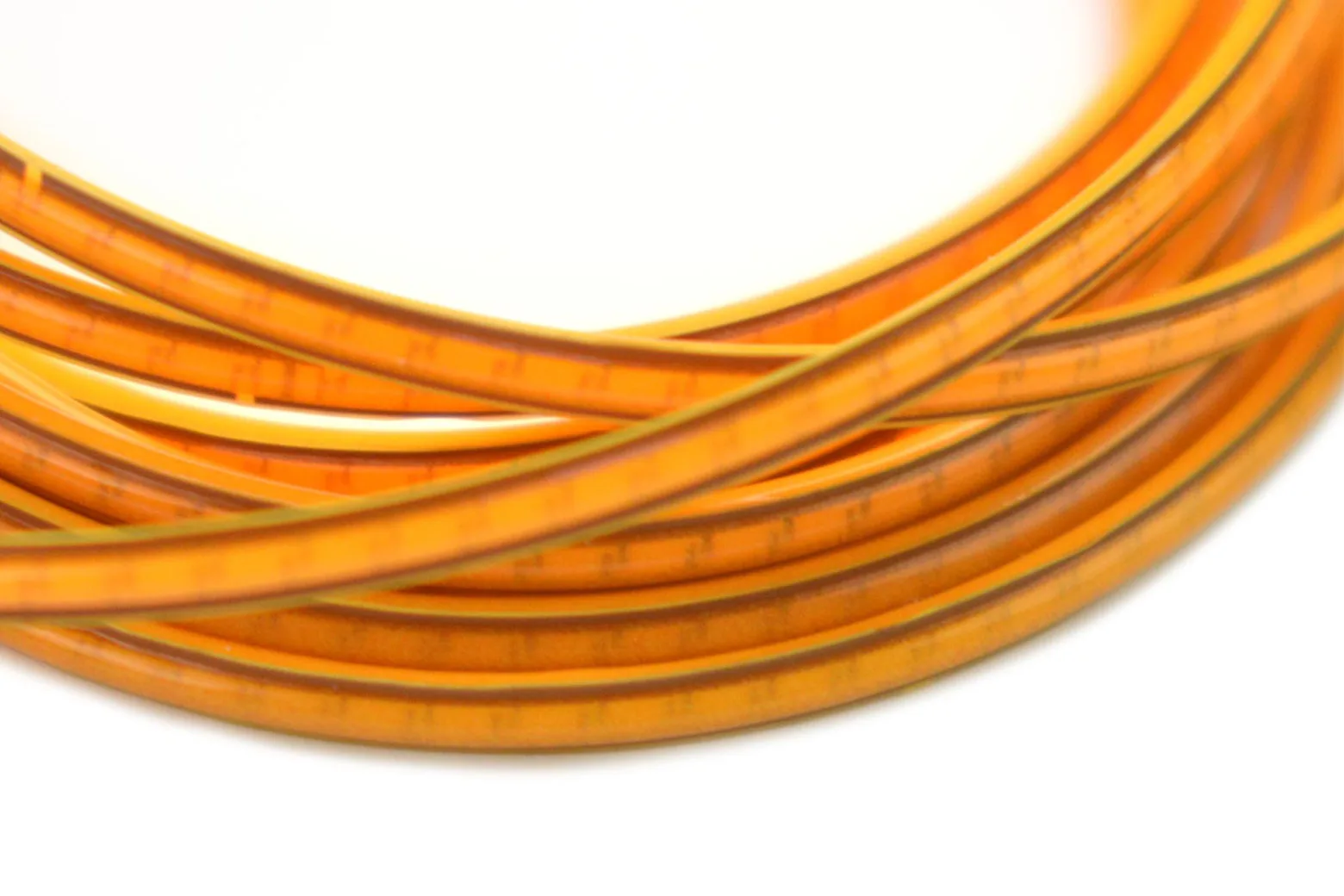

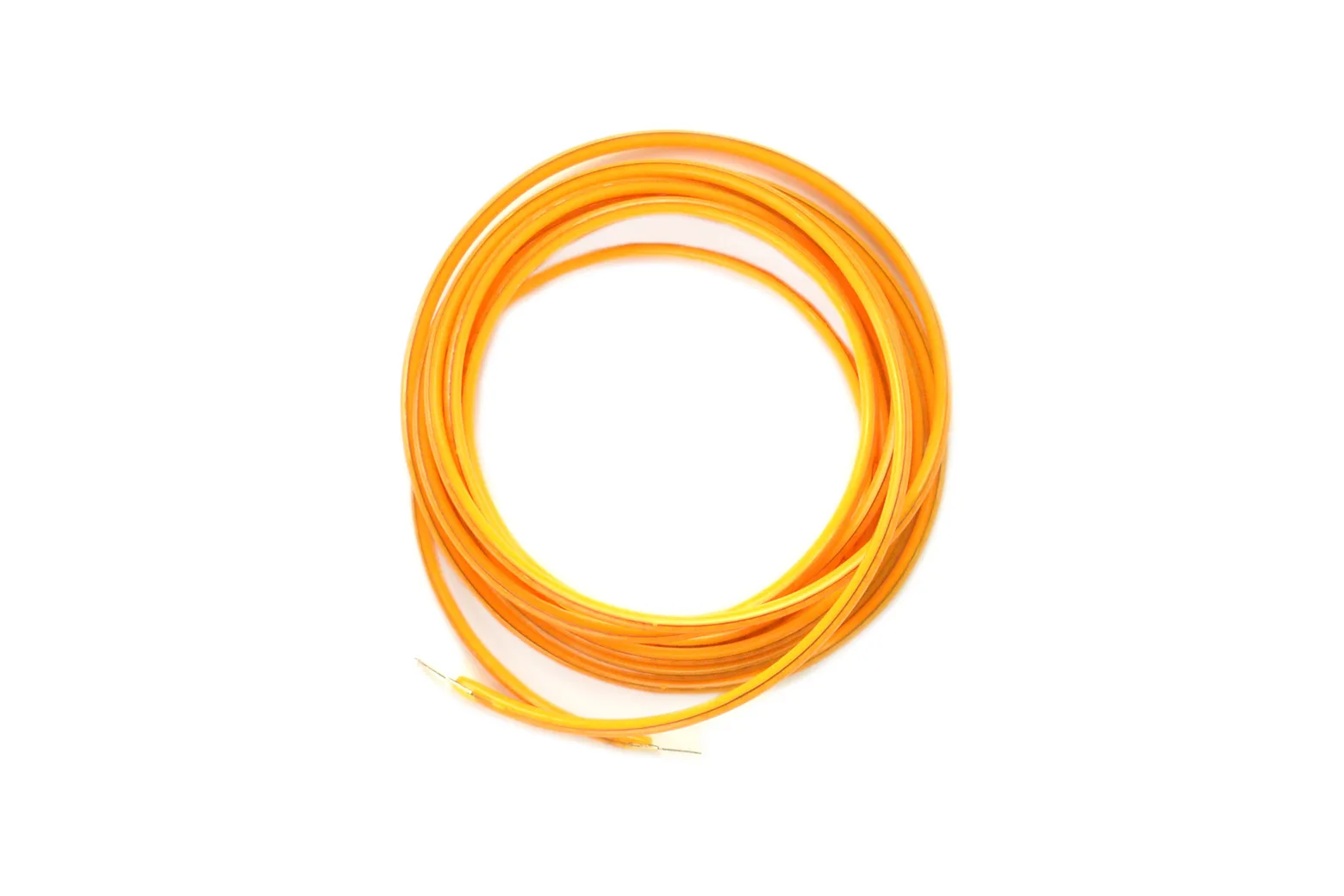

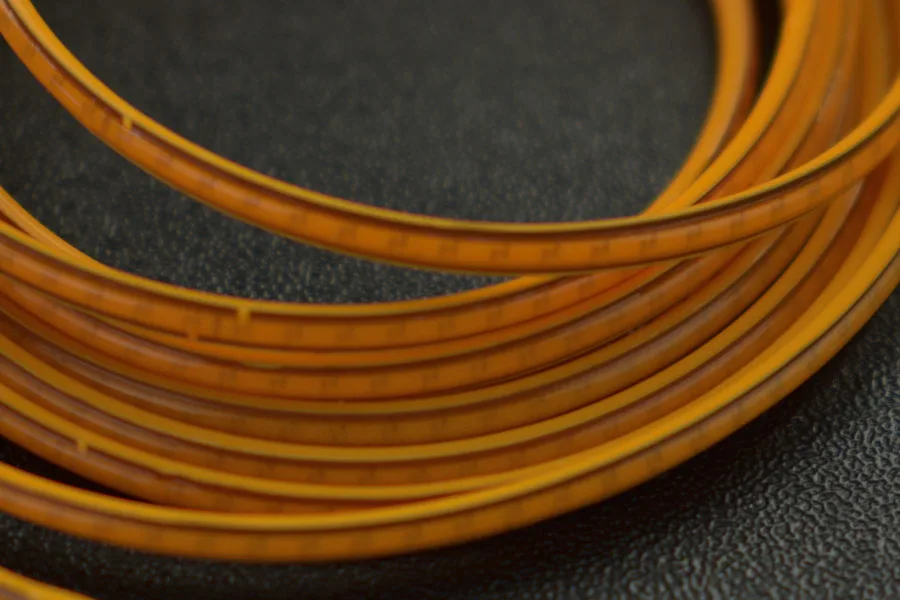

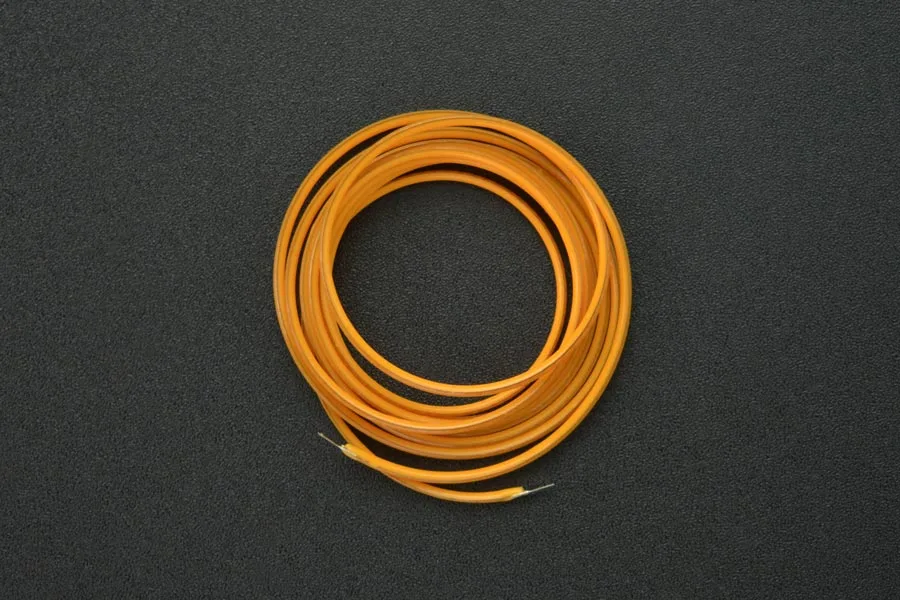

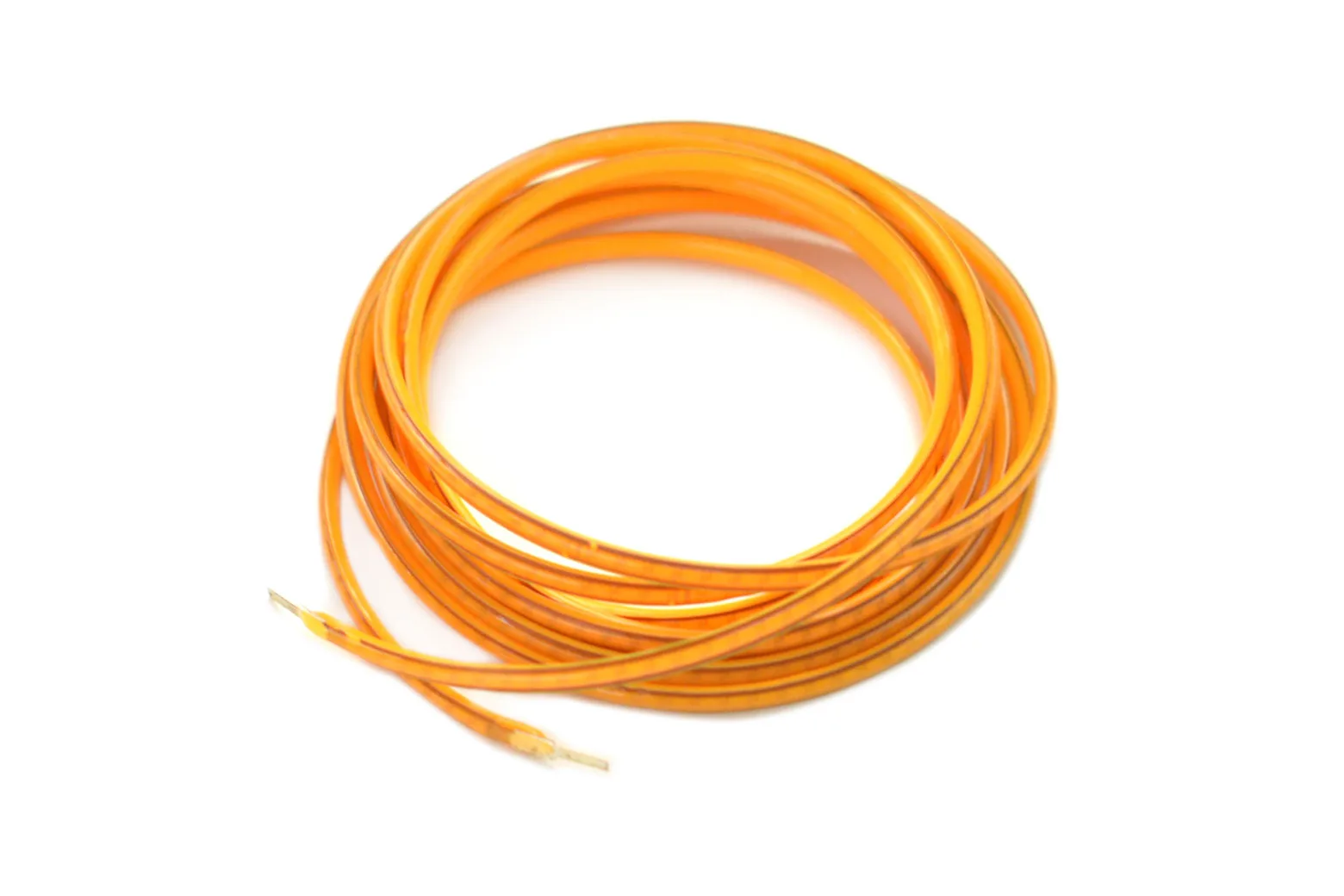

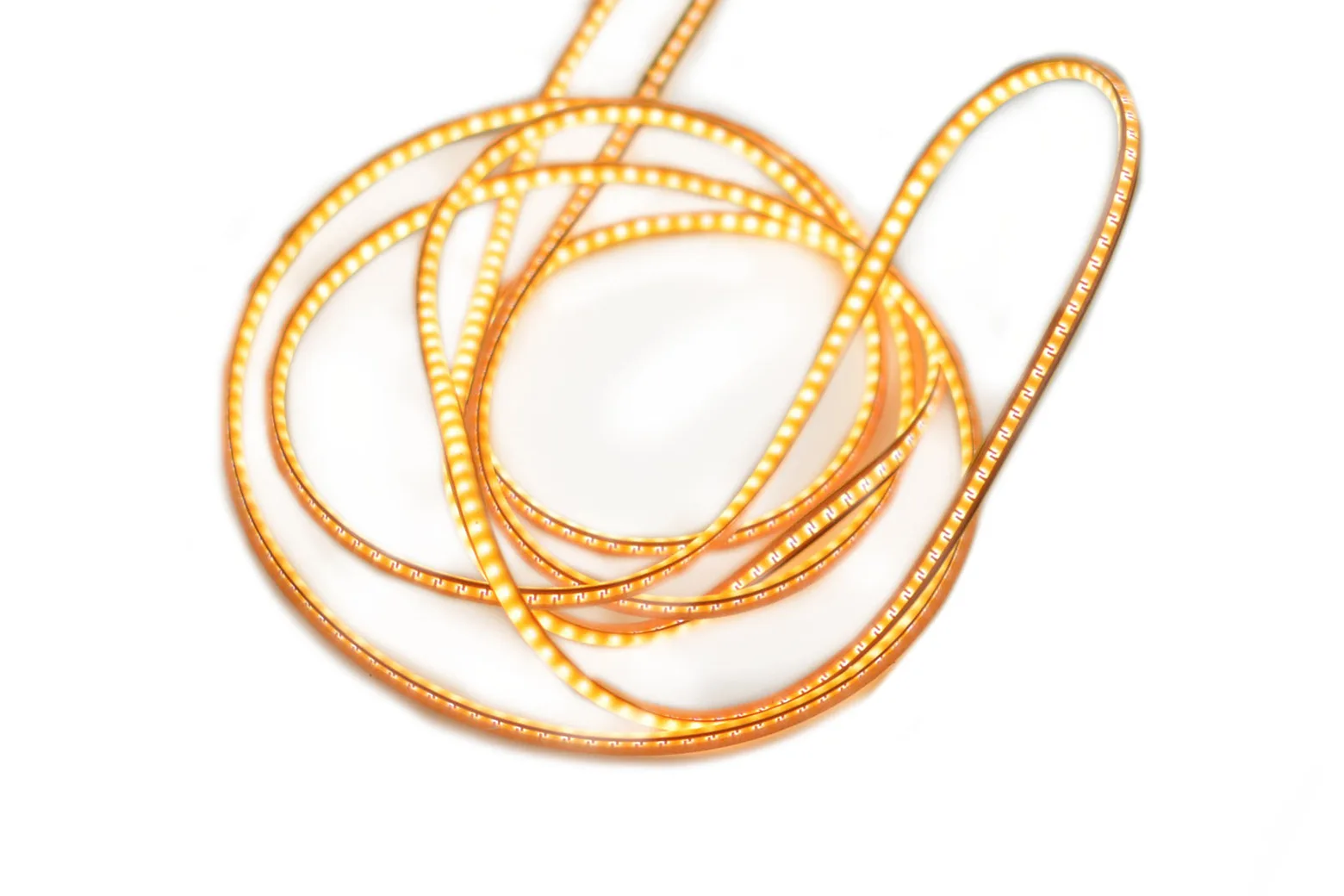

Flexible LED Filament (24V 1200mm, 2700K)

The Flexible LED Filament (24V 1200mm, 2700K) is a 1.2-metre bendable light element packed with 640 warm white LEDs delivering continuous 360-degree illumination. It is an ideal lighting component for makers, hobbyists, and designers creating custom light fixtures, decorative lamps, and e-textile projects.

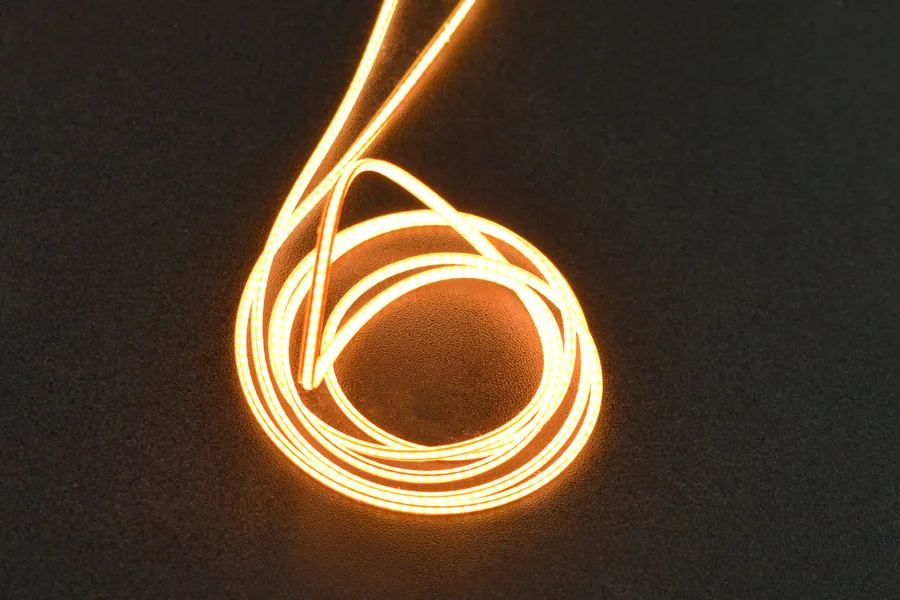

Full 360-degree warm illumination

Measuring 1200mm in length with a slim 2mm diameter, this filament houses 640 LEDs producing 500 lumens of 2700K warm white light with an 80 CRI rating. Its uniform light emission ensures bright, all-angle distribution without dark spots.

Bendable and foldable construction

The flexible structure allows the wire to be bent and folded into intricate curves, lettering, and vintage incandescent bulb styles. This flexibility also makes it well-suited for integration into wearable electronics and smart fabrics.

Voltage and thermal considerations

The filament operates across a 21V to 24V range with dimmable brightness control, consuming 6.6W at 300mA under 22V operation. For prolonged or continuous use, a supply voltage of 21V to 22V is recommended to minimise heat generation.

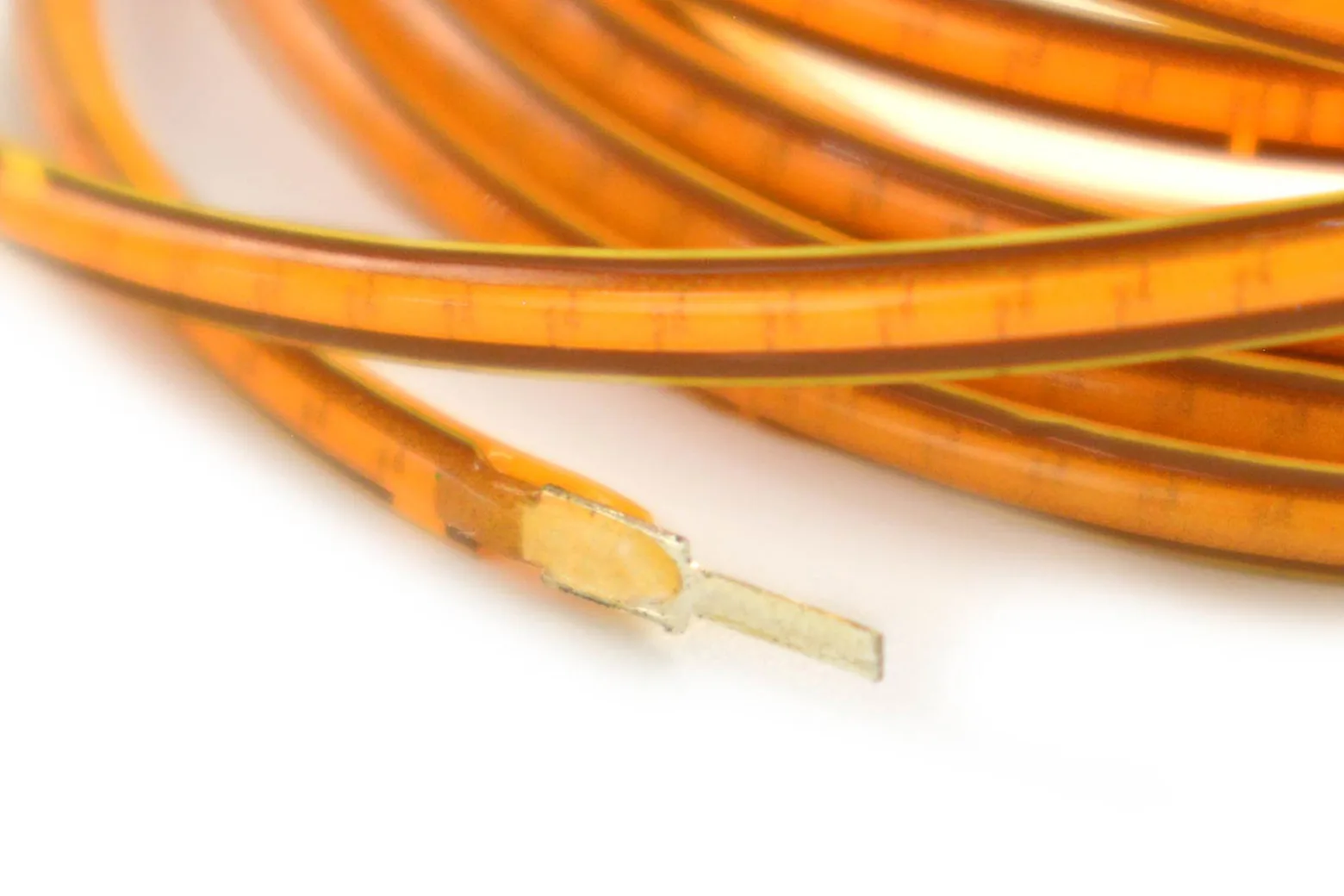

Clear polarity identification

Connection terminals are clearly distinguished to prevent wiring errors during assembly. The positive electrode is located at the end with the small round hole, while the negative electrode is situated at the non-porous end.

Reliable operating lifespan

Engineered for longevity, the filament offers a rated working lifespan of 5000 to 10000 hours. It is rated to operate in ambient temperatures ranging from -30°C to +55°C.
