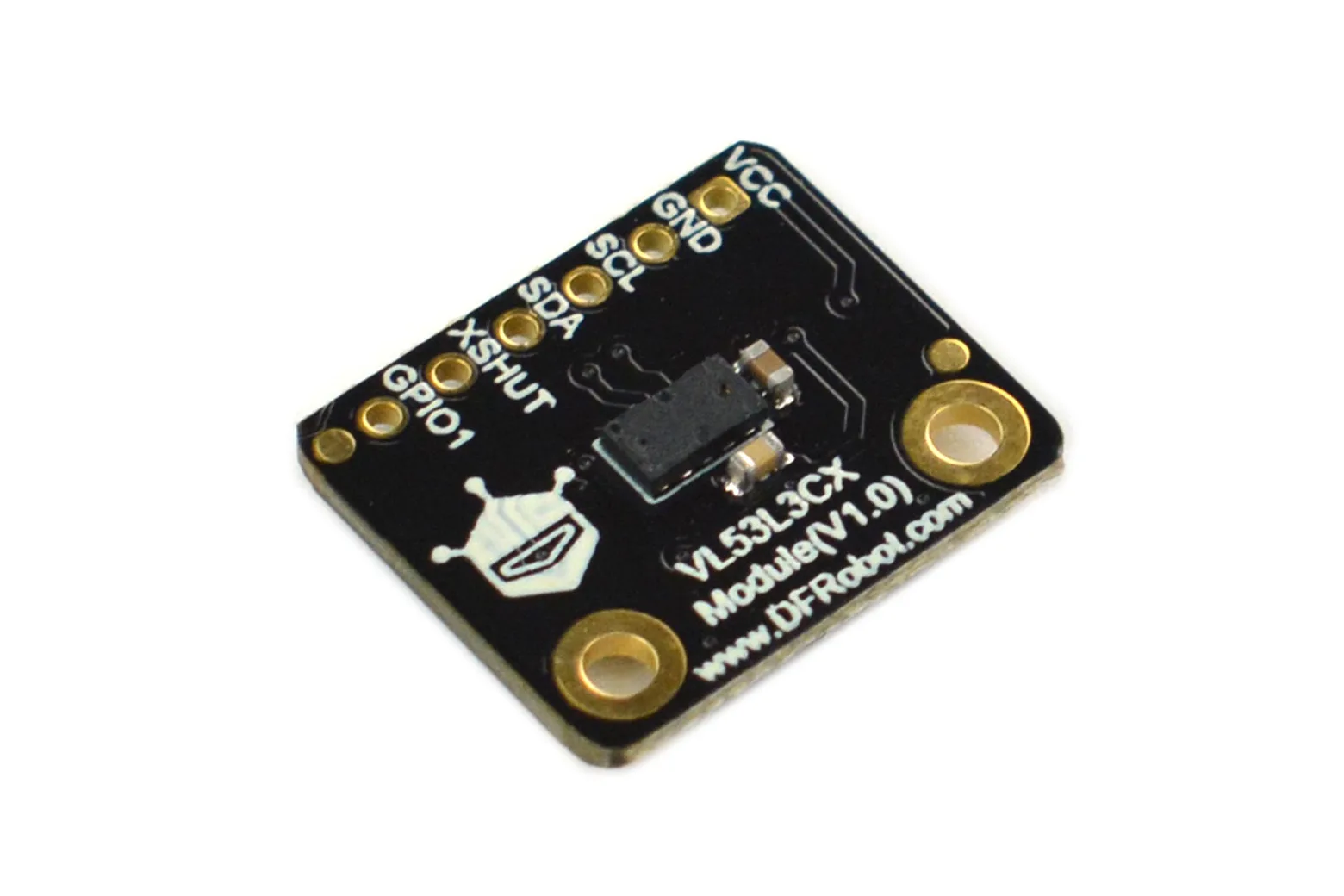

Fermion: VL53L3CX ToF Distance Ranging Sensor (25-3000mm) (Breakout)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

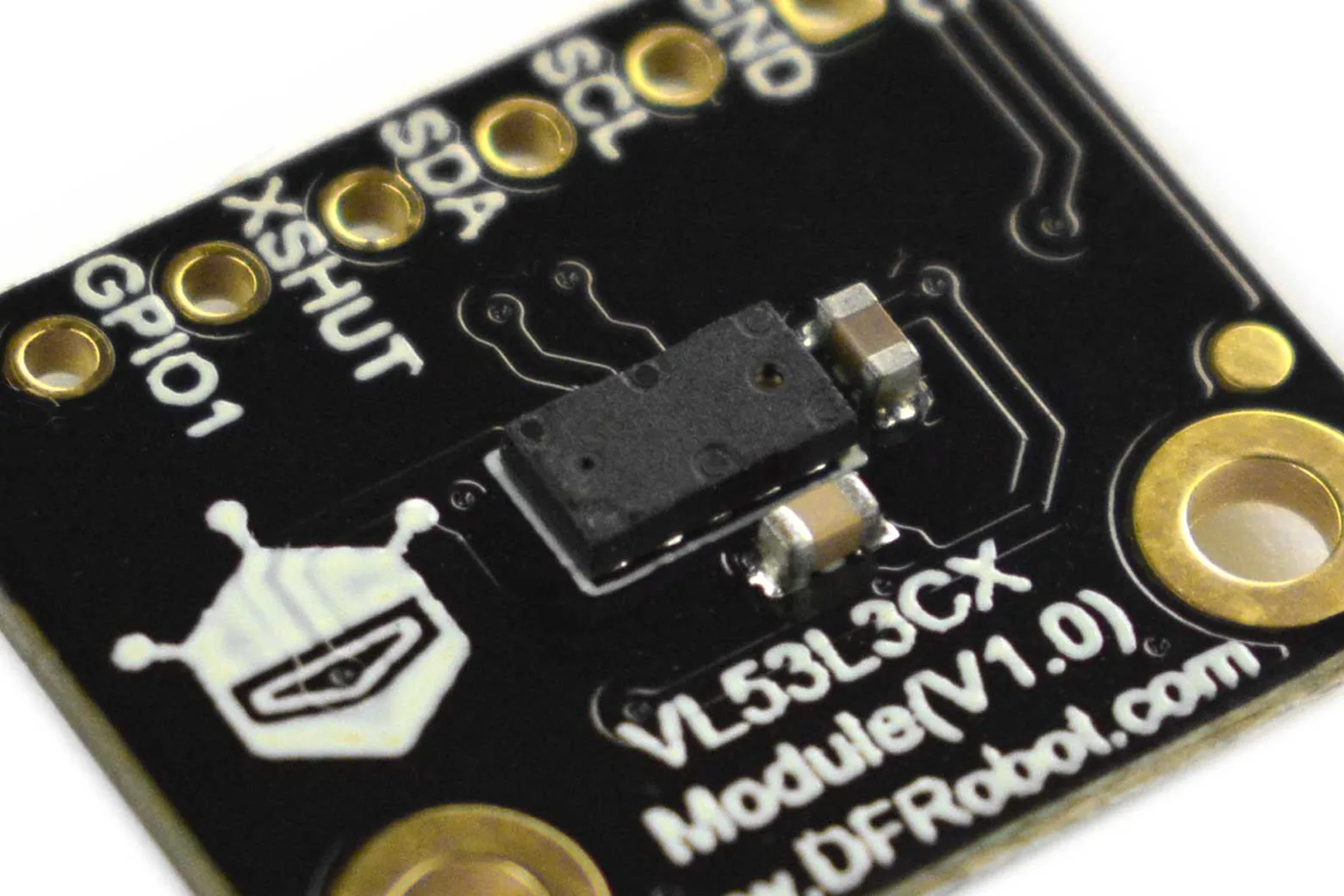

The Fermion VL53L3CX Time-of-Flight distance ranging breakout uses STMicroelectronics third-generation FlightSense technology to deliver accurate measurements from 25 mm to 3000 mm. Ideal for robotics enthusiasts, makers, and engineering students, it provides multi-target detection and depth understanding for advanced spatial awareness.
Third-generation FlightSense technology
Utilising a 940 nm invisible VCSEL emitter, the sensor delivers reliable distance ranging up to 300 cm across a typical 25-degree field of view.
Multi-target detection with depth understanding
Specialised algorithms and module construction enable the VL53L3CX to detect multiple objects within its field of view under supported conditions.
Smudge compensation and cross-talk immunity
The module features automatic smudge correction and glass cross-talk immunity, maintaining high measurement accuracy even through protective covers.

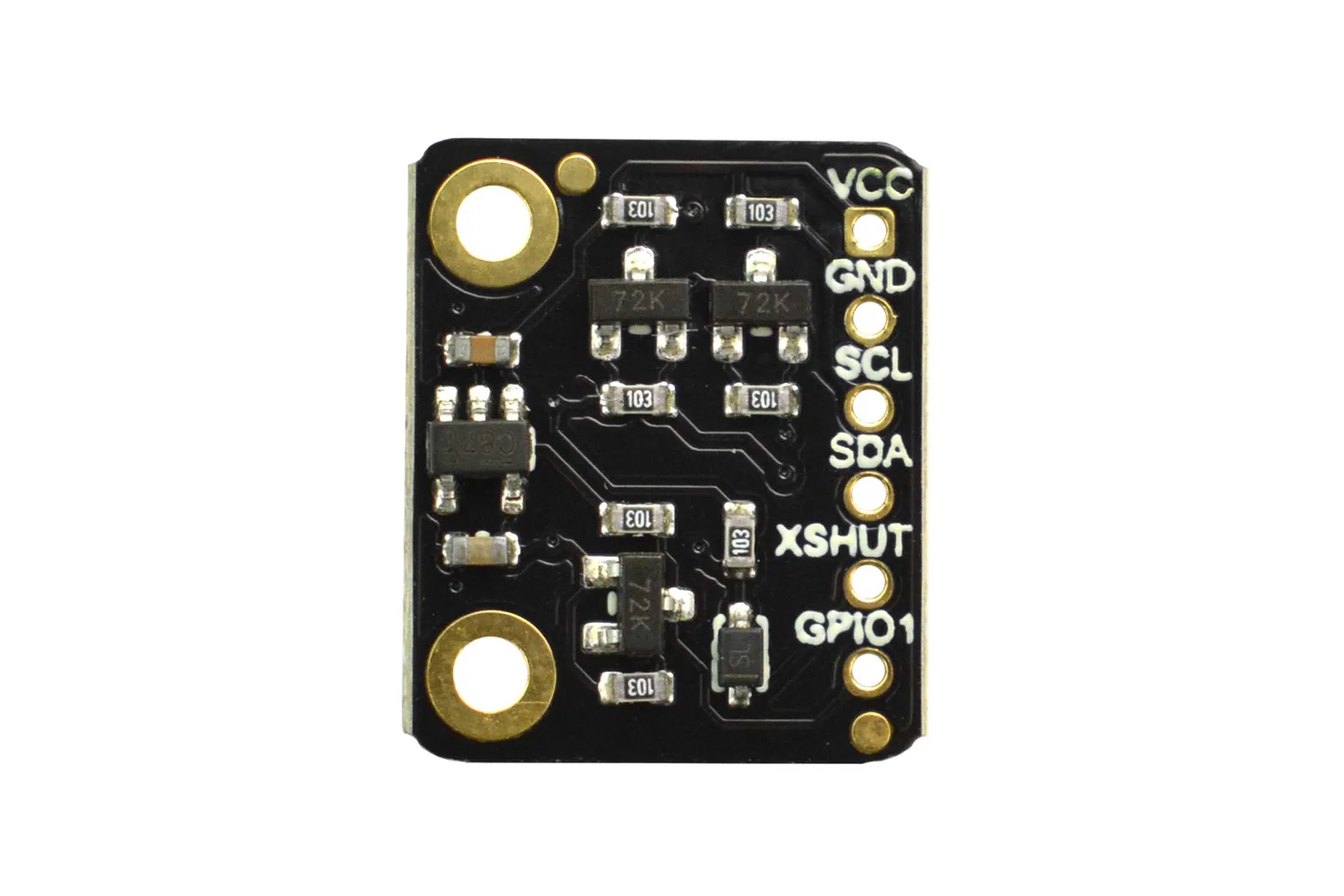

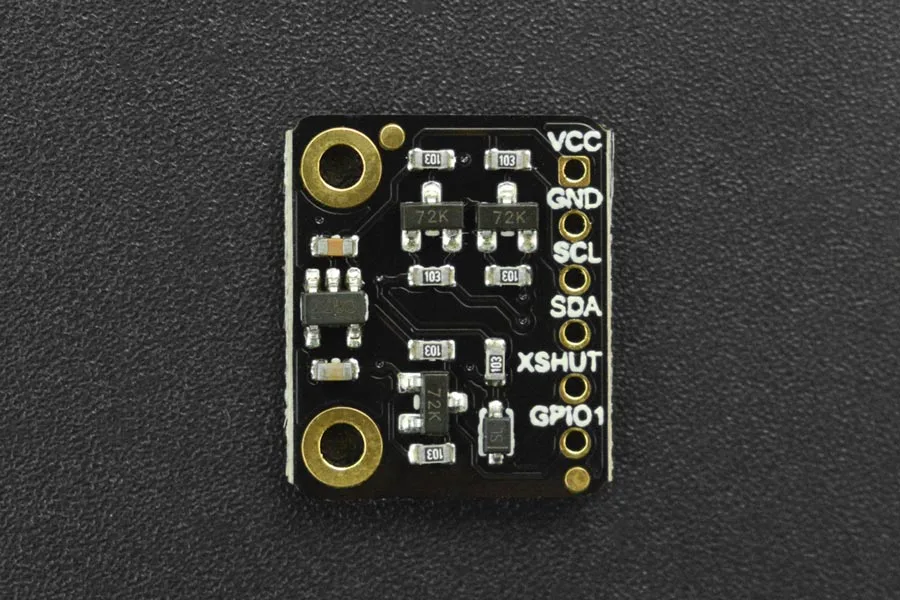

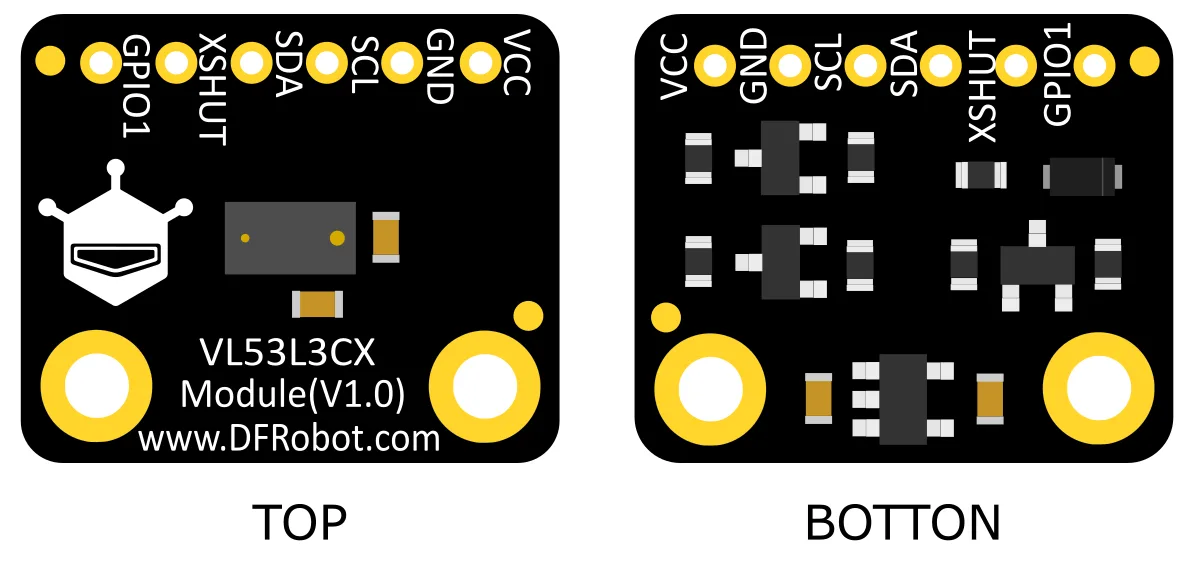

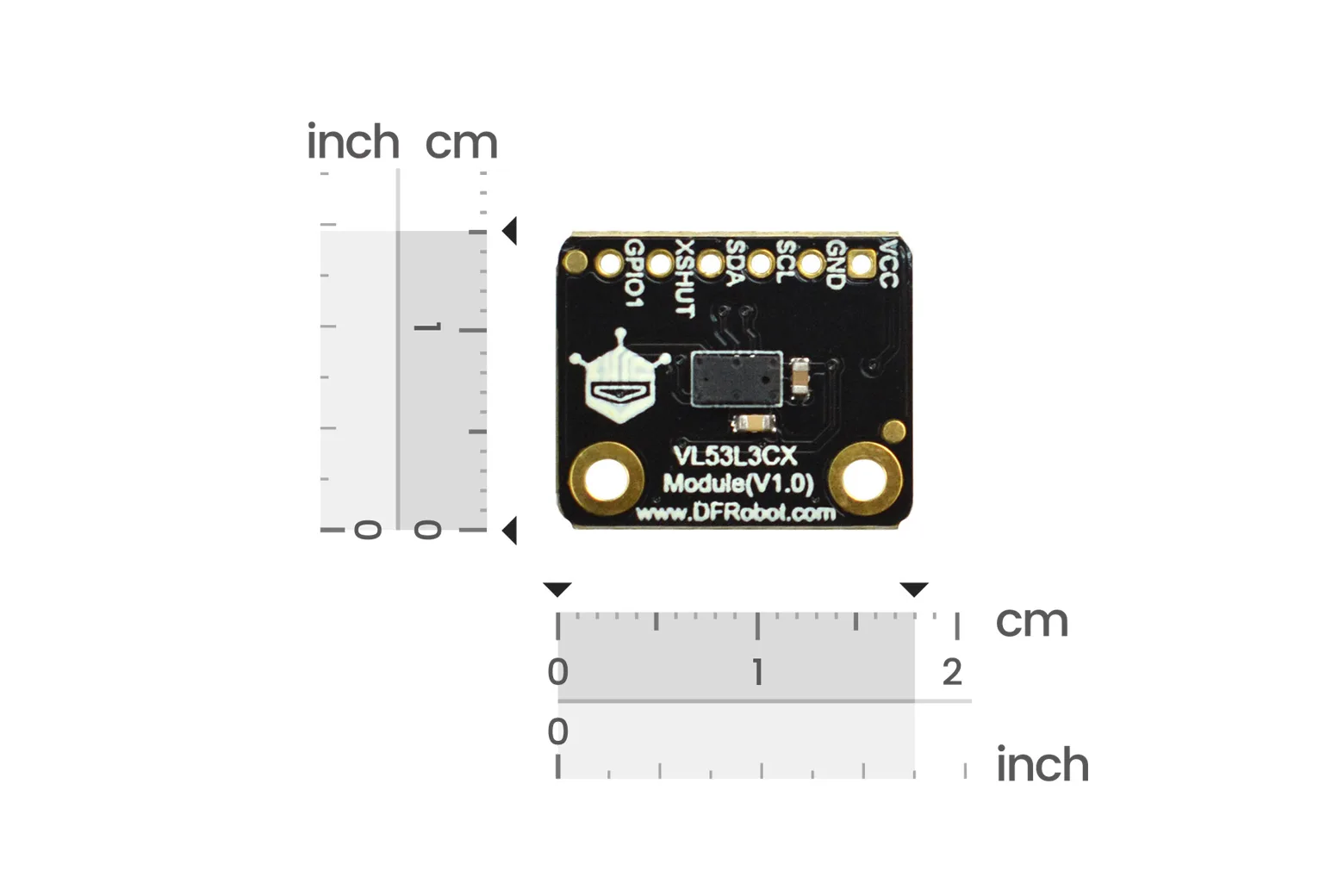

Compact board layout and electrical specifications

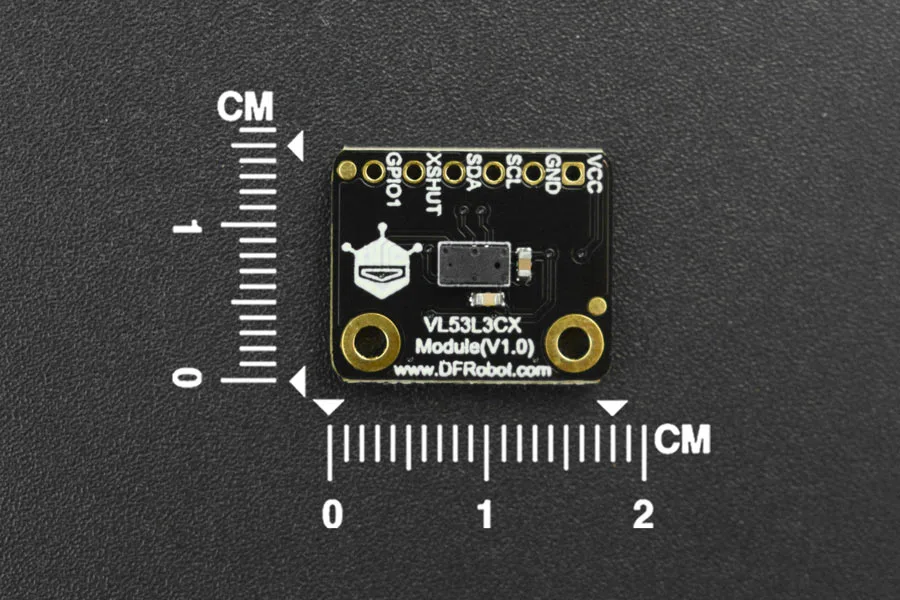

Measuring just 18 x 15 mm, the breakout operates on 3.3V to 5V DC at less than 20 mA, interfacing via I2C at address 0x29 across temperatures from -20°C to 85°C.
Microcontroller compatibility
Due to the memory footprint of the required algorithm files, the board is verified for use with M0 and ESP32 microcontrollers.

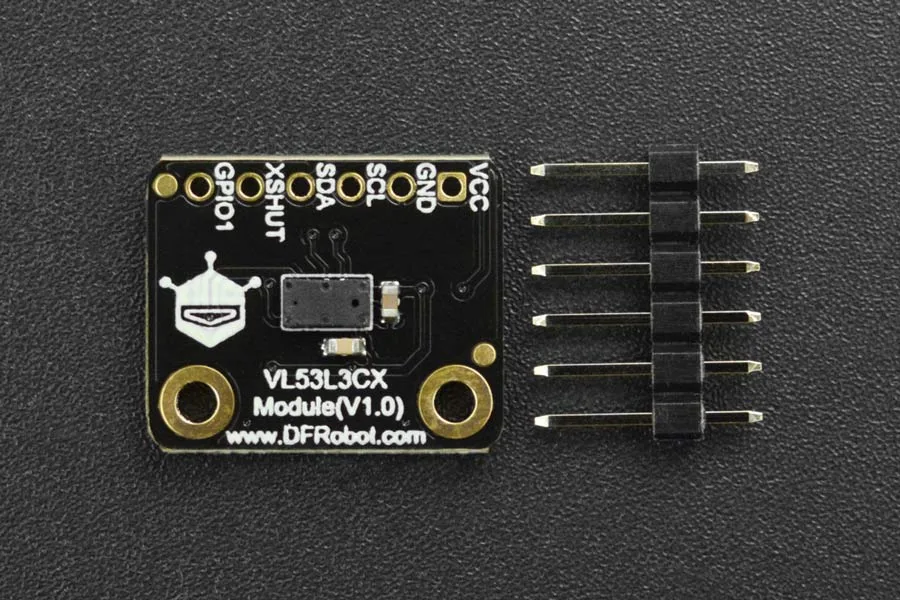

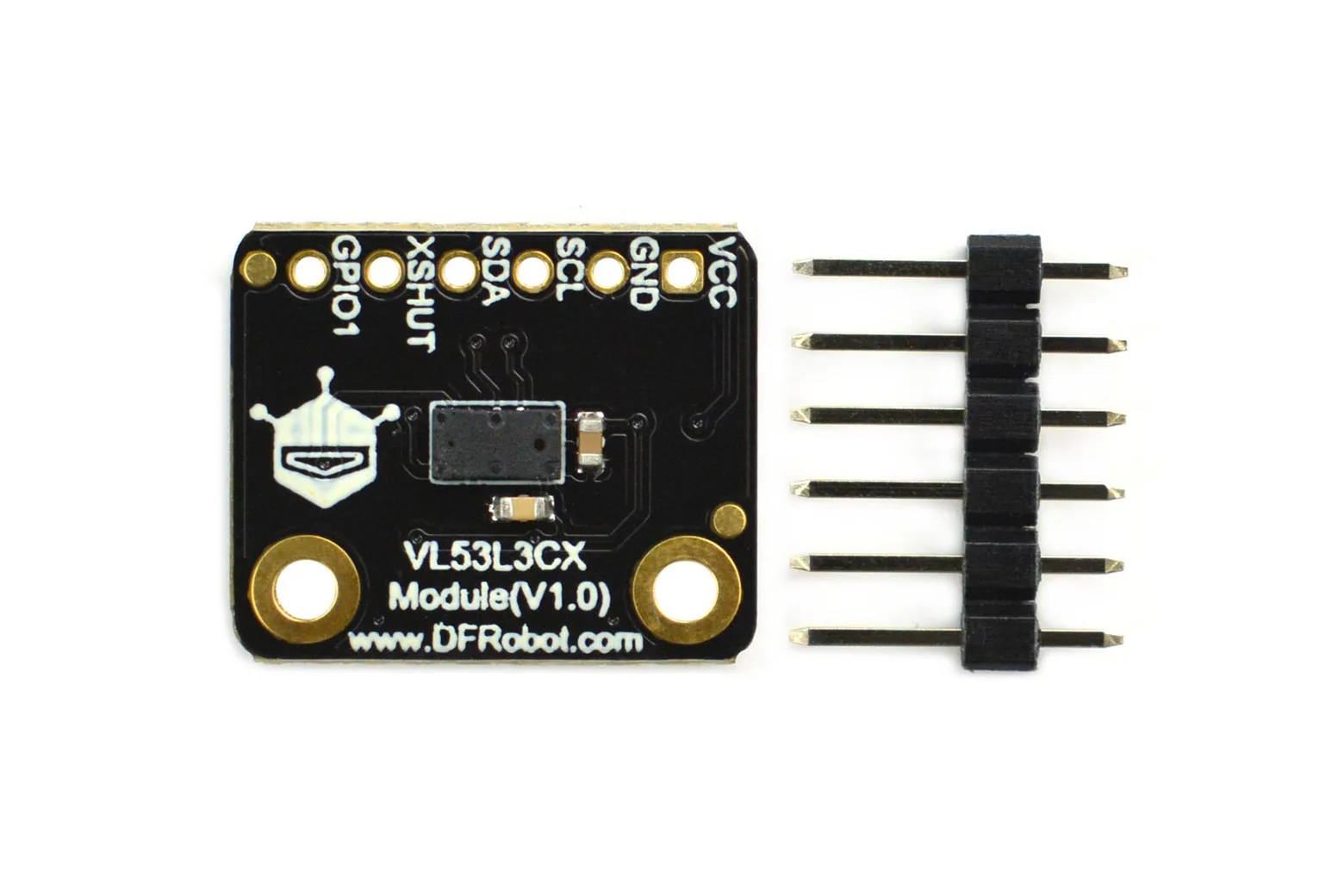

Included package contents
Each unit comes with one Fermion VL53L3CX ToF distance ranging sensor breakout board and one 2.54 mm 6-pin single-row header connector.
Downloads & documentation
Specifications
| Power Supply | 3.3V~5V |
| Operating Current | ＜20mA |
| Detection Range | 25-3000mm |
| Emitter | 940nm invisible laser(VCSEL) |
| FOV | 25° |
| I2C Address | 0x29 |
| Operating Temperature Range | -20℃~85℃ |
| Dimension | 18x15mm/0.71x0.59" |
In the box
| Fermion:VL53L3CX ToF Distance Ranging Sensor(Breakout) | 1 |
| 2.54-6P Black Single Row Connector | 1 |
