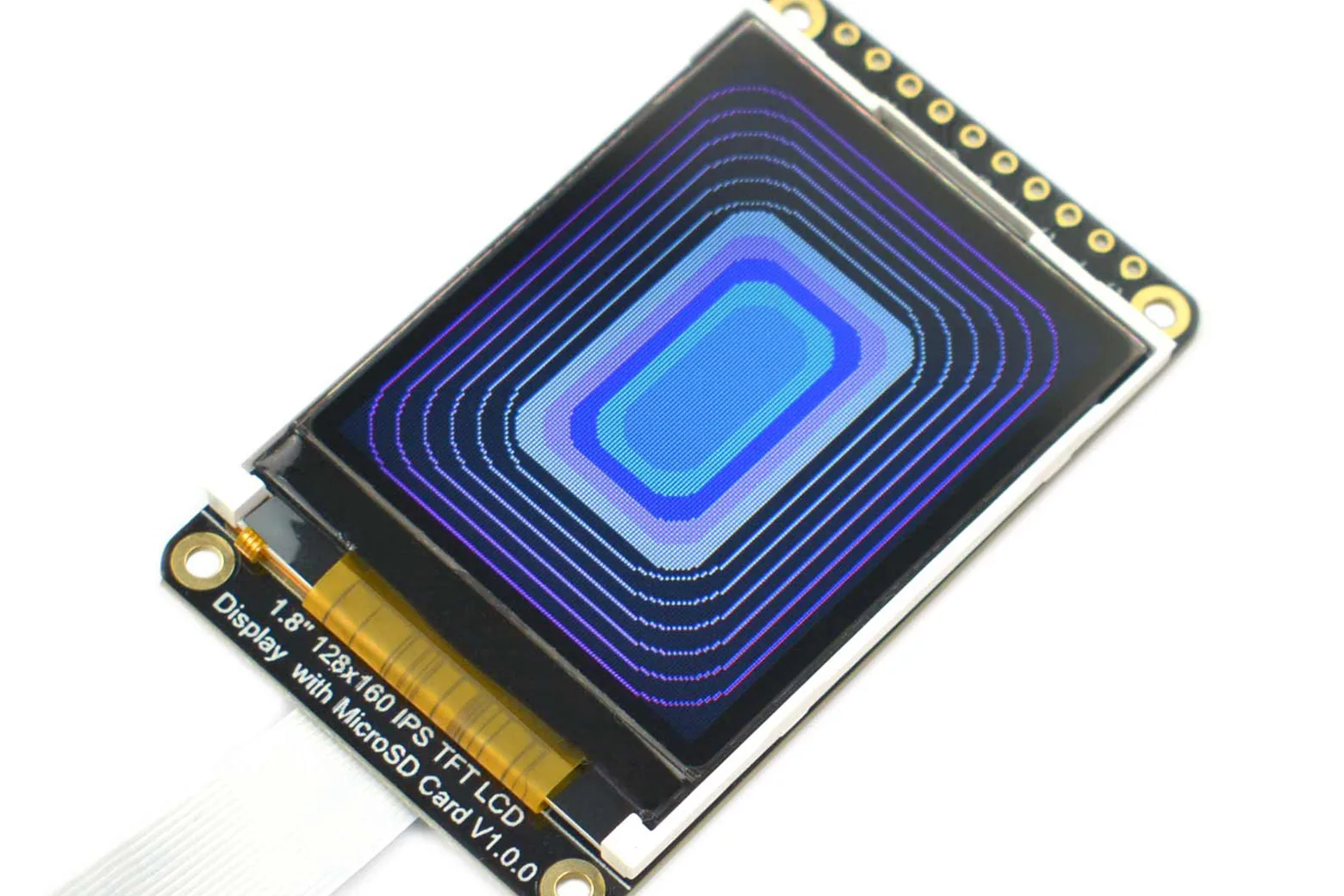

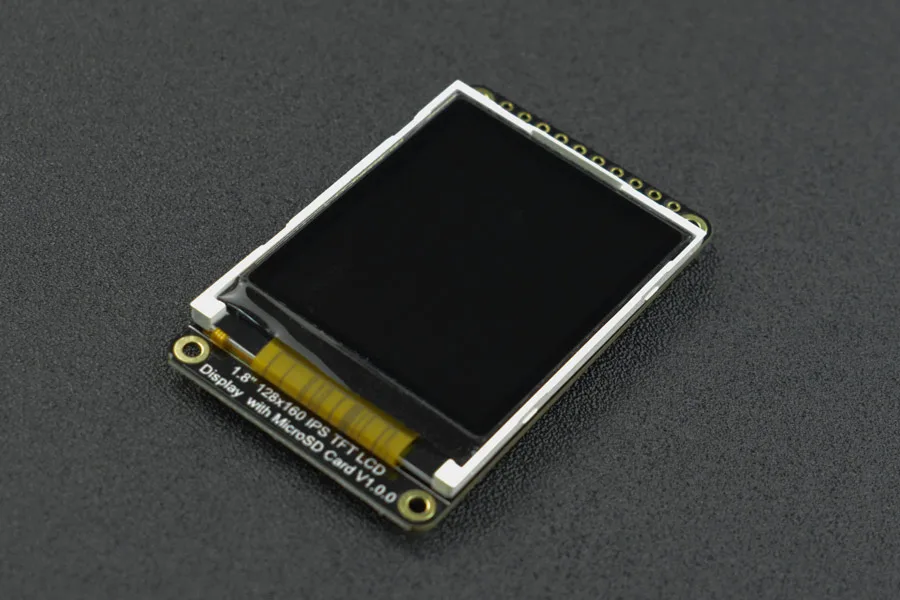

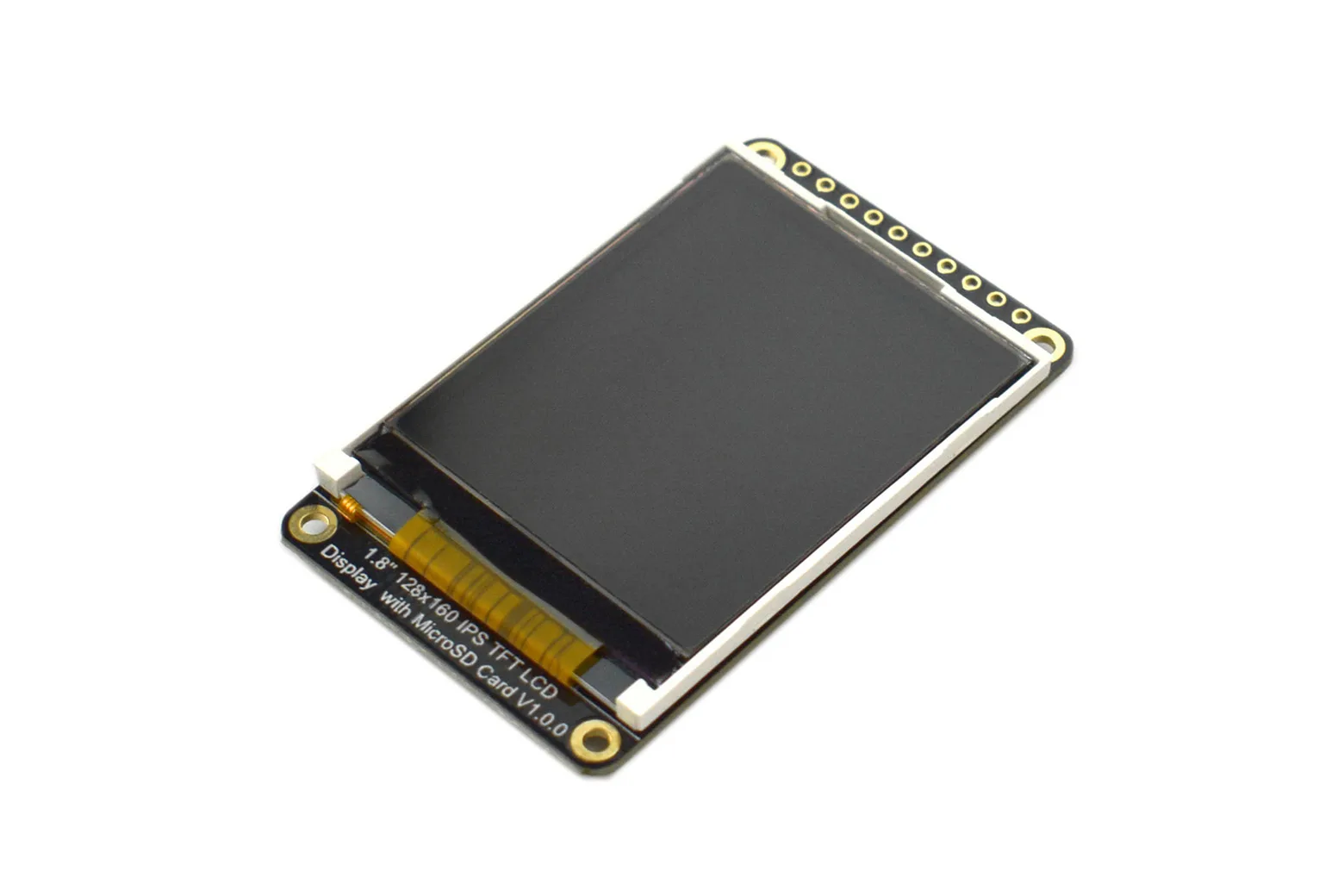

Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Fermion 1.8-inch TFT LCD breakout features a 128x160 resolution screen powered by the ST7735S driver chip and an integrated MicroSD card slot. It offers versatile 4-wire SPI communication alongside pin header and GDI wiring options. It is well suited for makers, educators, and electronics hobbyists looking to add visual feedback to embedded projects.

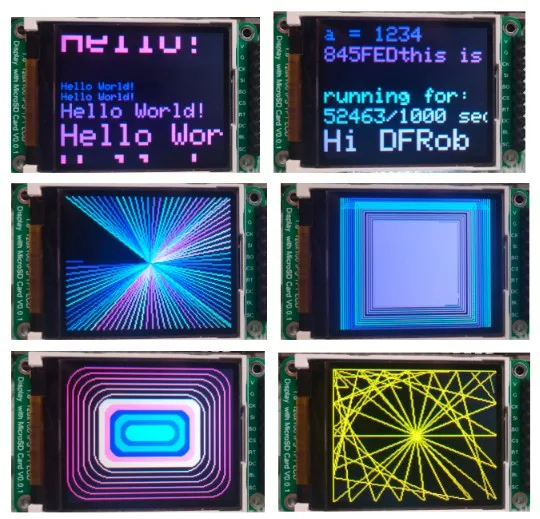

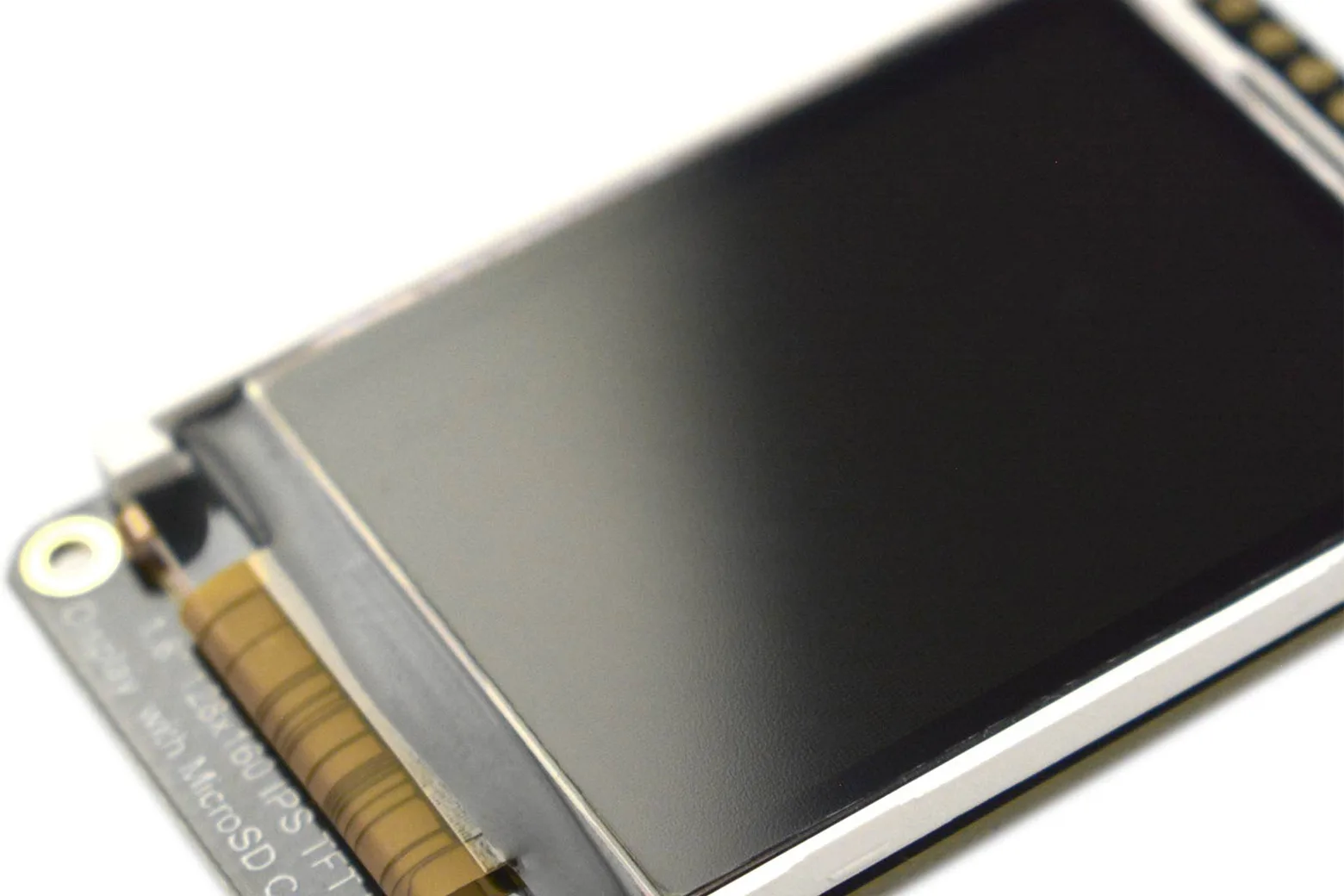

Clear colour display
The 1.8-inch screen offers a 128x160 resolution across a 26 mm by 35 mm active display area. It provides a 120-degree viewing angle with a full-screen power consumption of just 0.11 W.

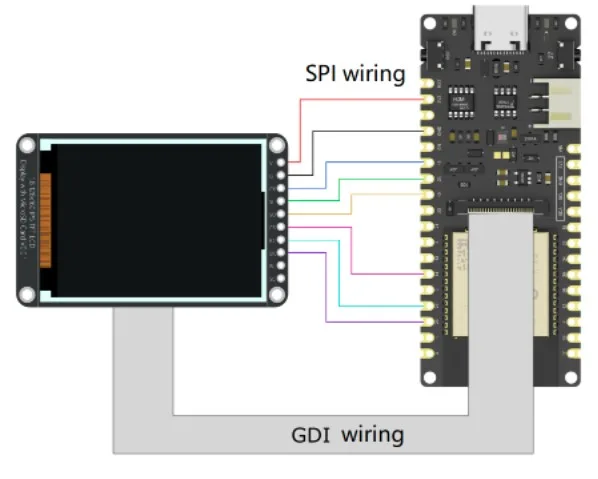

Dual interface wiring options

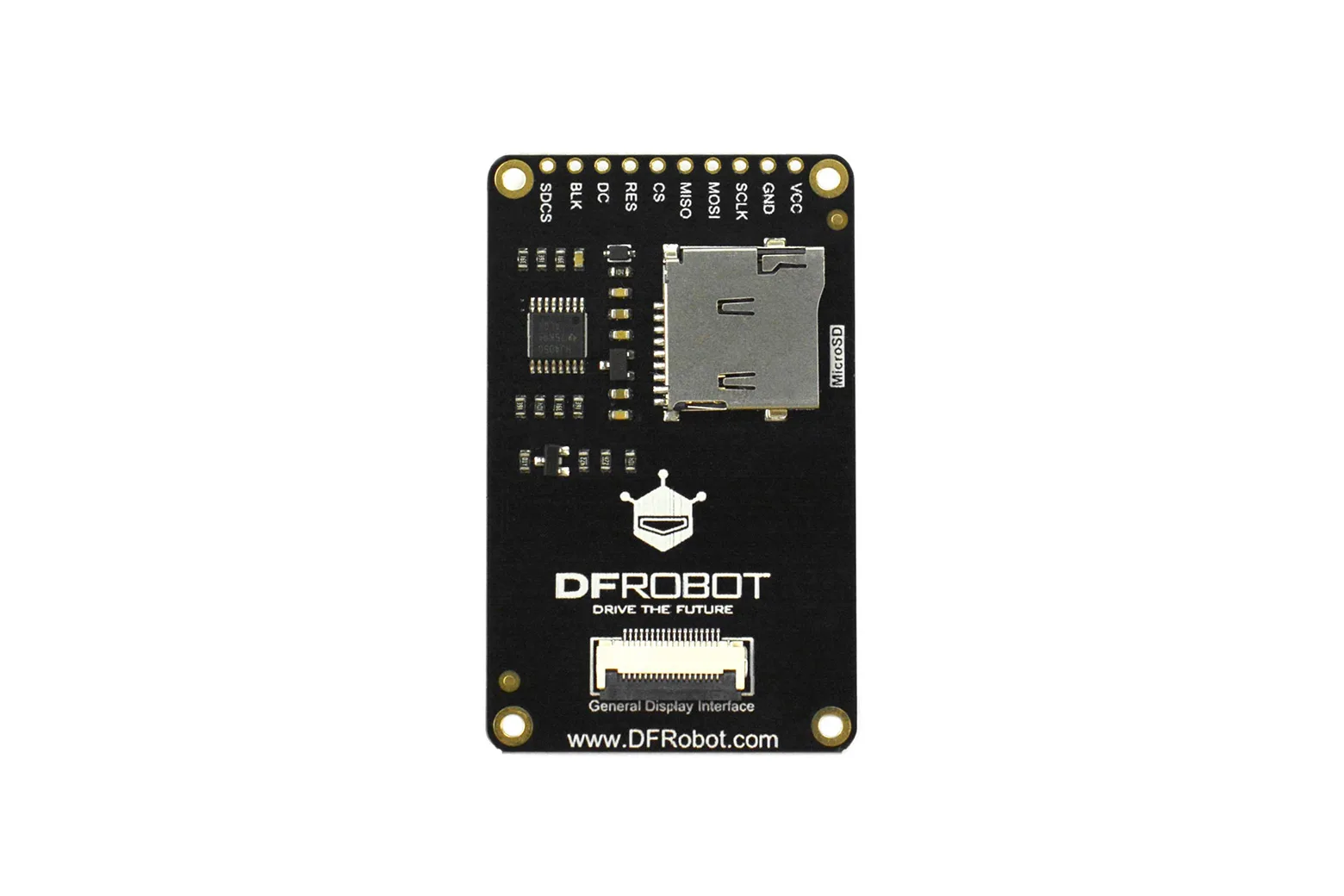

Communicate using standard 4-wire SPI via pin headers or plug directly into FireBeetle controllers using the General Display Interface (GDI). The display supports plug-and-play connection via the included GDI cable.
Integrated MicroSD card slot
An onboard MicroSD slot enables microcontrollers to easily read and render full-colour bitmap graphics. This allows projects to load UI elements, icons, and pictures directly from external storage.
Versatile embedded applications
Operating between 3.3 V and 5 V with an operating temperature range of -10 to +60 degrees Celsius, this display is built for broad microcontroller compatibility. Typical use cases include fan controllers, Arduino temperature monitors, and sensor alarms.
Compact board layout and accessories
The 34 mm by 55 mm board features 2 mm mounting holes positioned with 29 mm and 50 mm spacing. Each unit includes a GDI display cable and a 10-pin header connector for quick setup.
Downloads & documentation
Specifications
| Operating Voltage | 3.3 V - 5 V |
| TFT Viewing Angle | 120 degrees |
| Pixels | 128 columns x 160 rows |
| Communication | SPI |
| Interface Mode | GDI, pin header |
| Driver Chip | ST7735S |
| Full-screen Power Consumption | 0.11 W |
| Operating Temperature | -10℃ - +60℃ |
| Display Area | 26 mm x 35 mm/1.02x1.38" |

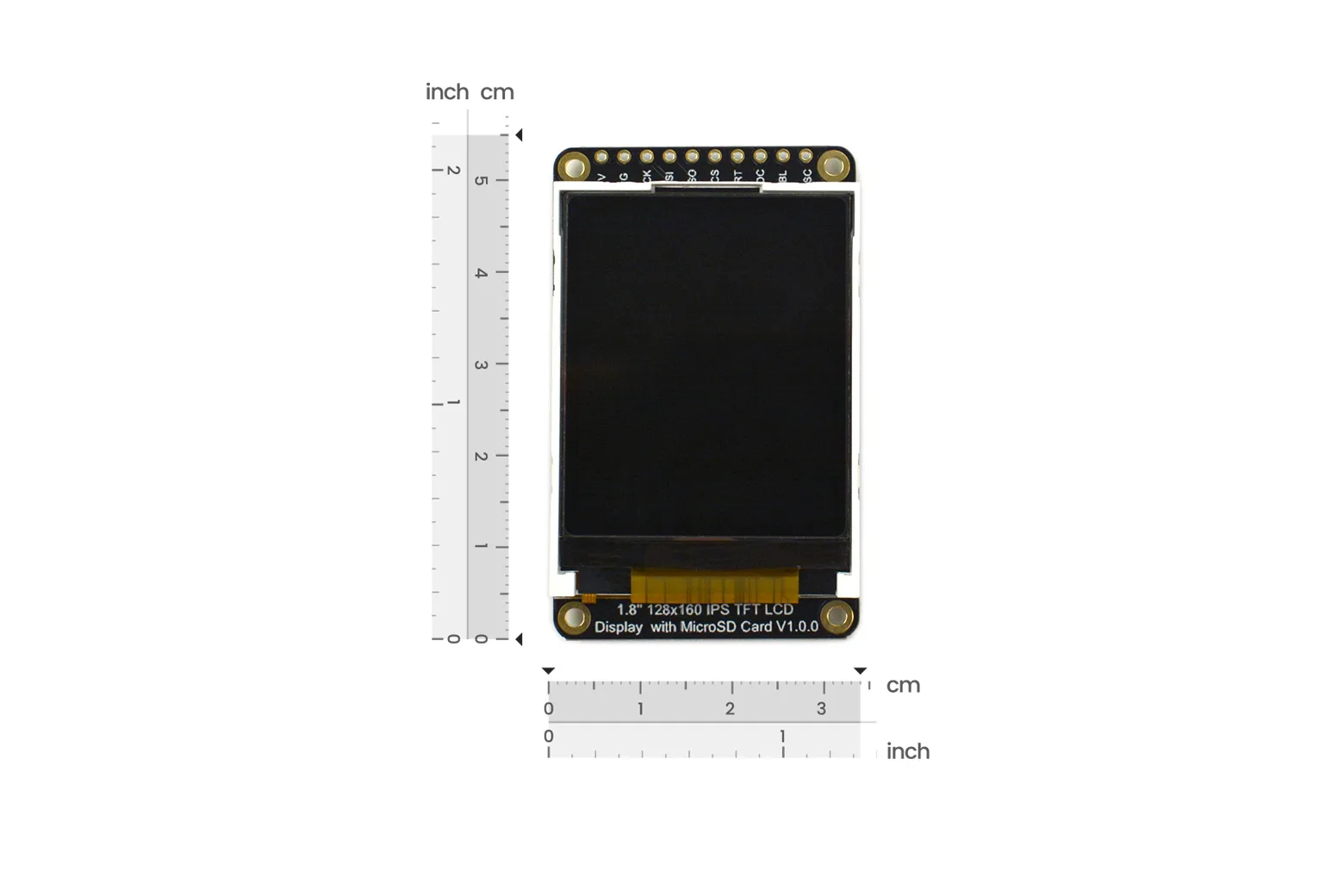

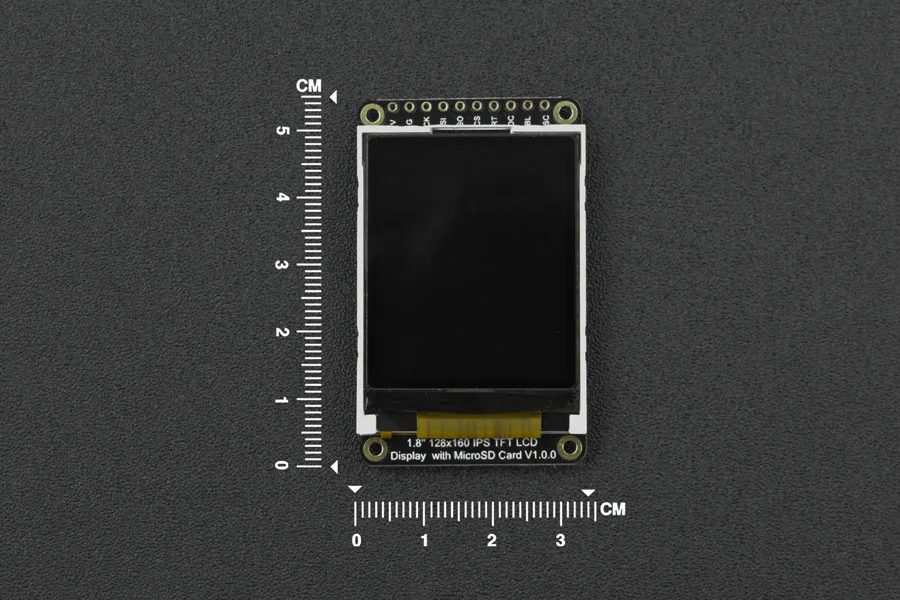

| Module Dimension | 34 mm x 55 mm/1.34x2.17" |
| Mounting Hole Pitch | 29 mm/1.14", 50 mm/1.97" |
| Mounting Hole Size | 2 mm/0.08" |

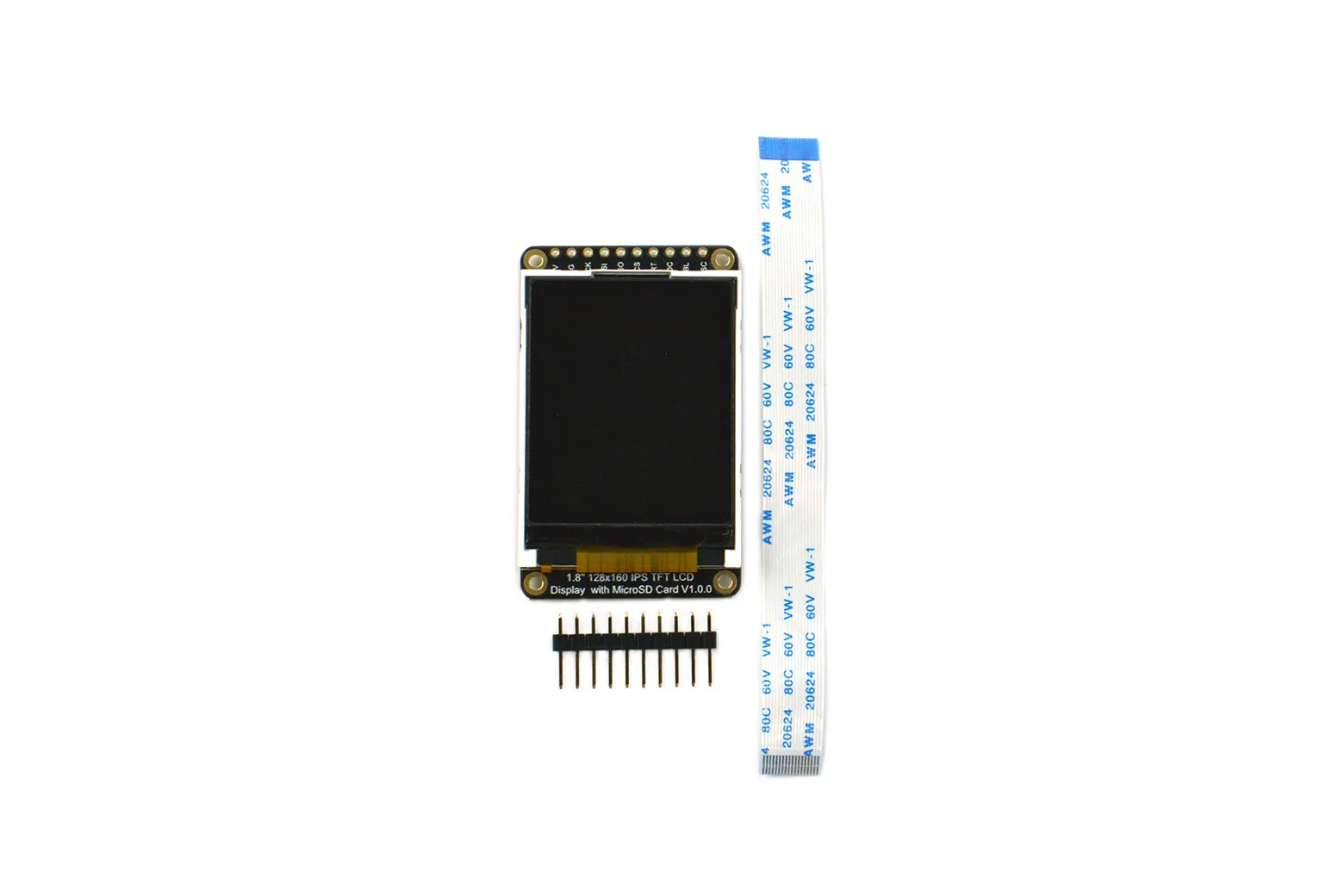

In the box
| Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout) | 1 |
| GDI Display Cable | 1 |
| 10P Pin Connector | 1 |
