Fermion: 1.51” OLED Transparent Display with Converter (Breakout)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

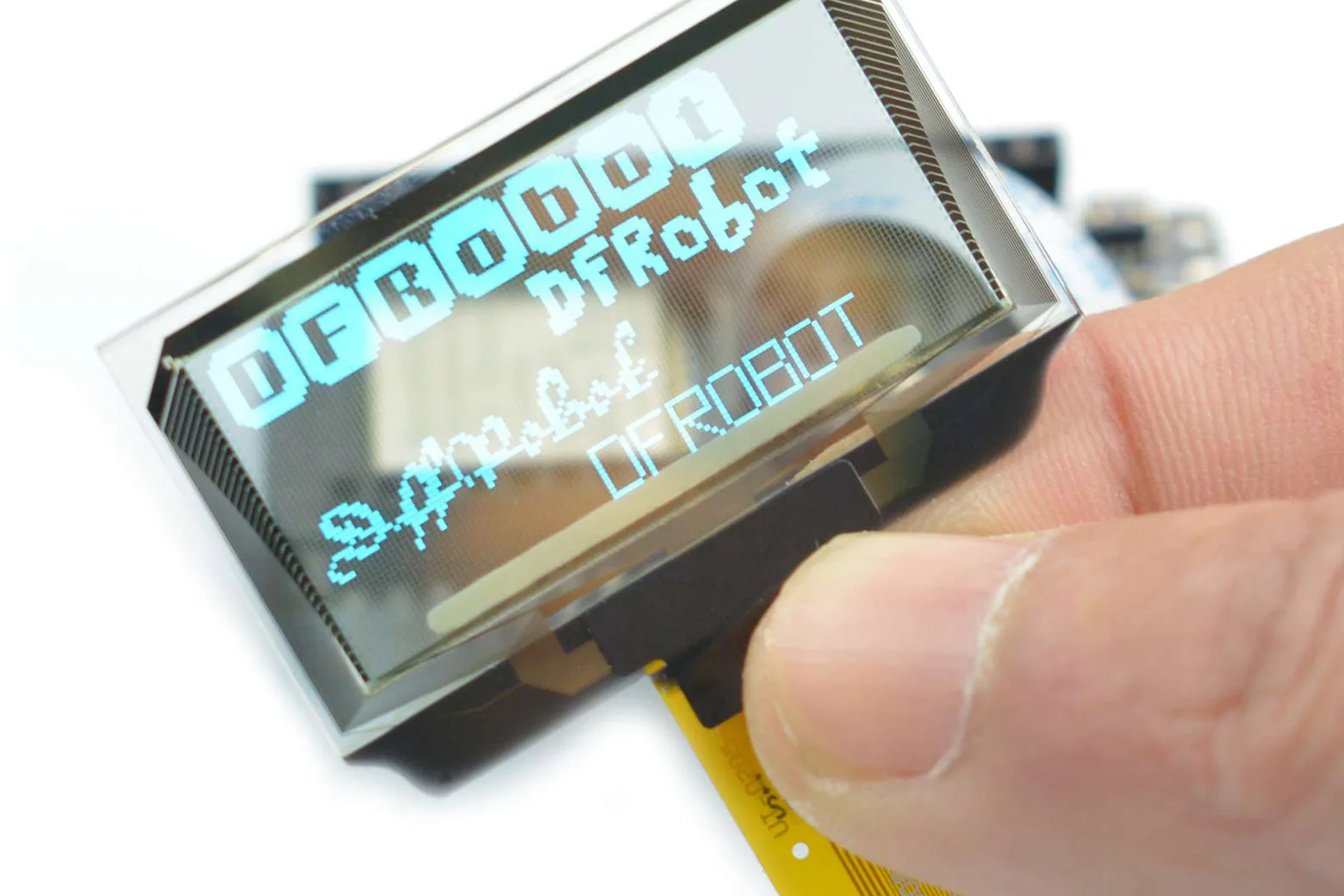

The Fermion 1.51-inch transparent monochrome OLED display module provides a futuristic see-through light blue visual readout powered by the SSD1309 driver chip. It is ideal for makers, students, and hobbyists building interactive desktop gadgets, smart home indicators, or layered 3D display setups. Operating at 3.3V, the kit includes a dedicated breakout converter board for easy integration with standard microcontrollers.
Dual SPI and GDI interface

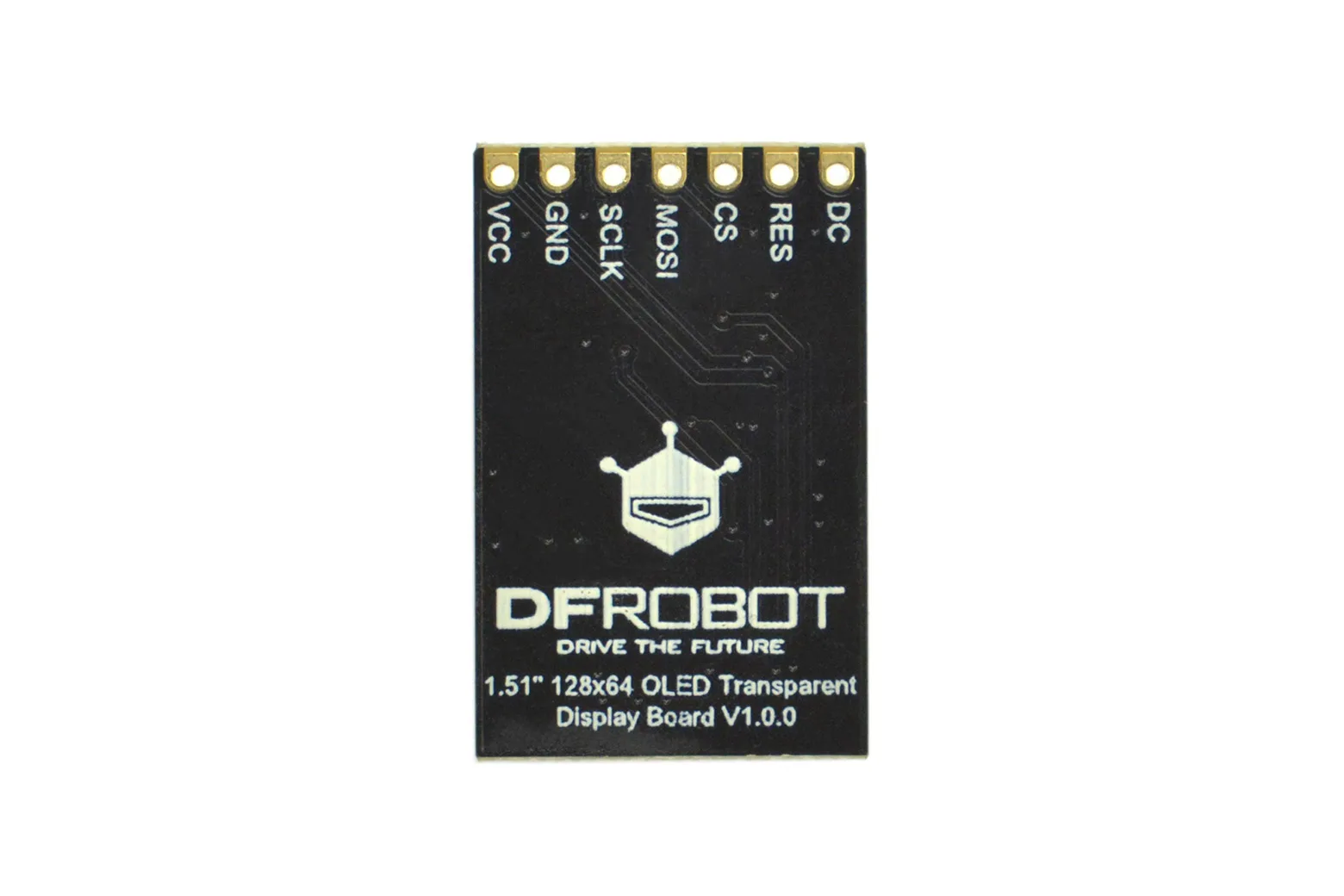

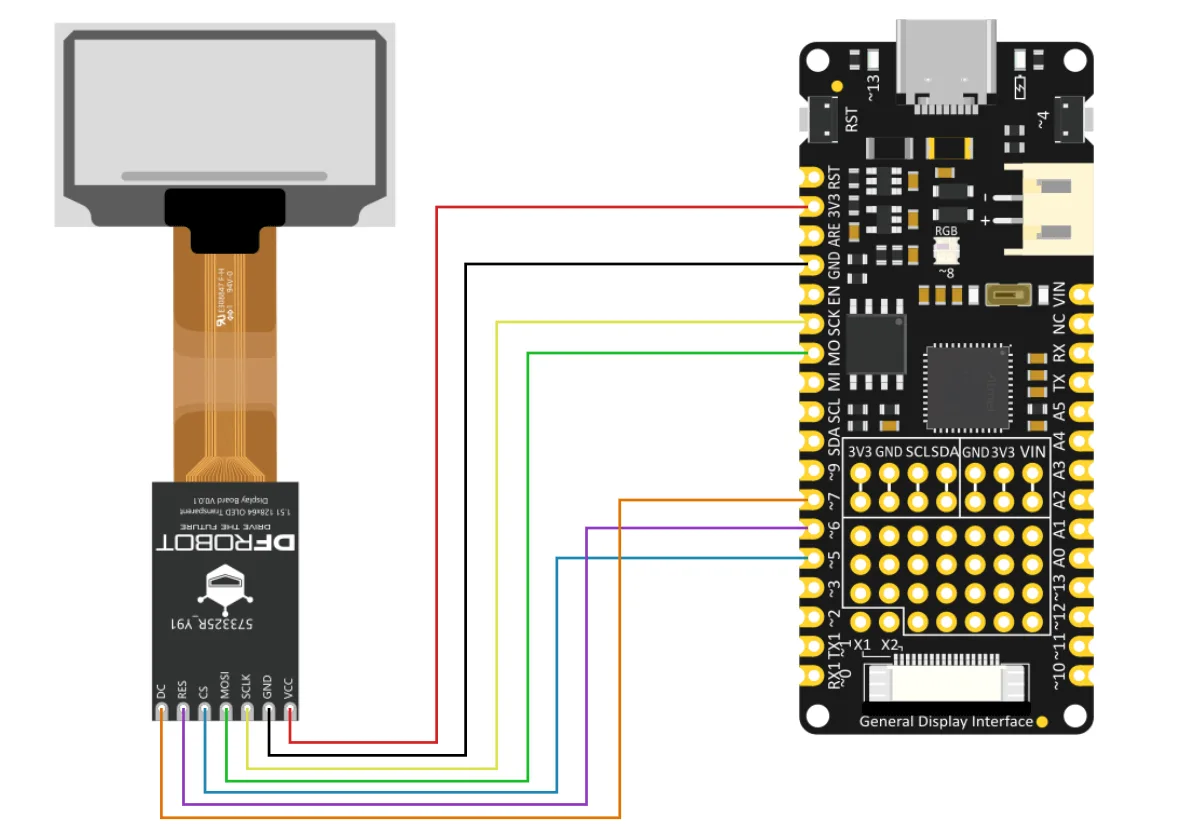

The compact 18 x 28 mm converter board supports both SPI and GDI wiring interfaces for straightforward microcontroller integration. Display code samples are available to assist with quick setup and graphics rendering.
Straightforward hardware connection

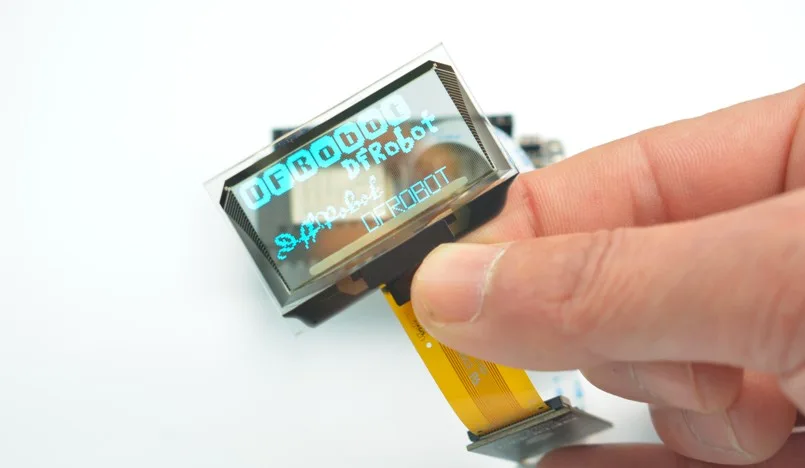

The breakout board connects cleanly to development hardware using the included 7-pin header and 18-pin reverse direction FPC cable. It operates reliably across a working temperature range of -40 to 70 degrees Celsius.
Transparent OLED screen specifications
The 1.51-inch light blue display provides a full viewing angle with a 0.274 x 0.274 mm pixel pitch. The panel measures 42 x 27 mm with a 128 x 64 resolution, offering 128 x 56 completely transparent pixels and a small non-transparent section near the pins.
Versatile project applications
The see-through design suits DIY desktop monitors, smart home status gauges, interactive exhibition booths, and 3D displays. Its 3.3V operating voltage aligns with standard modern microcontroller logic levels.
Complete kit contents

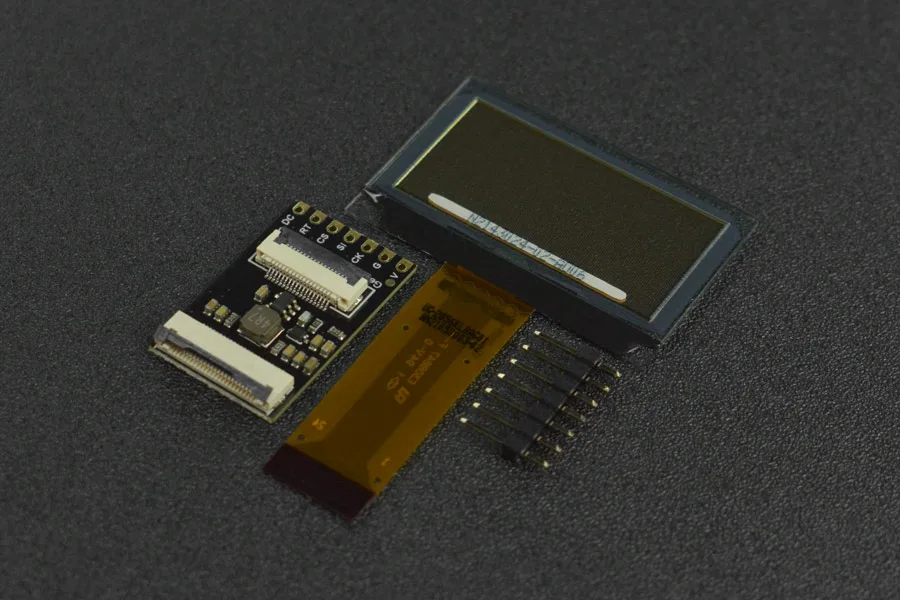

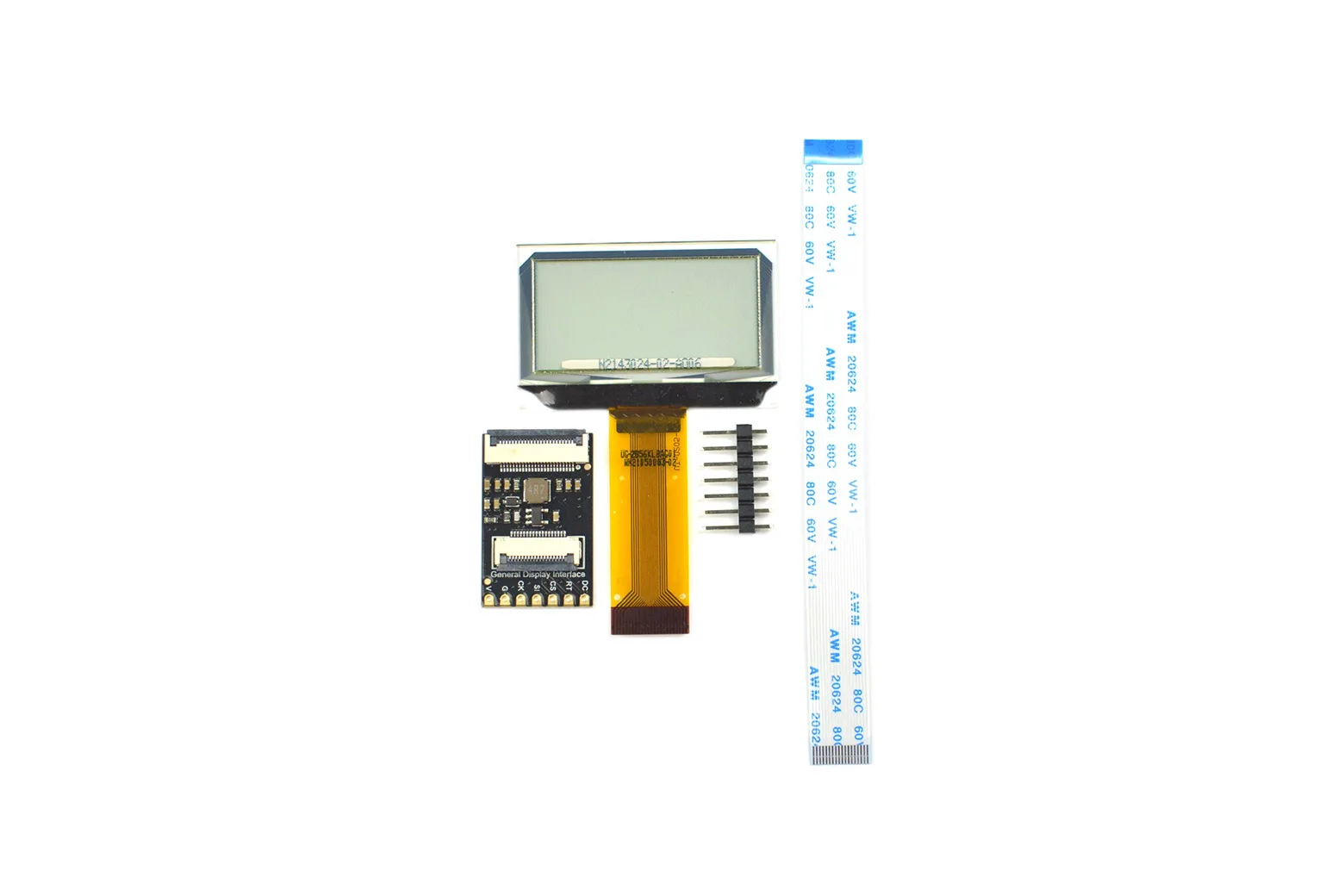

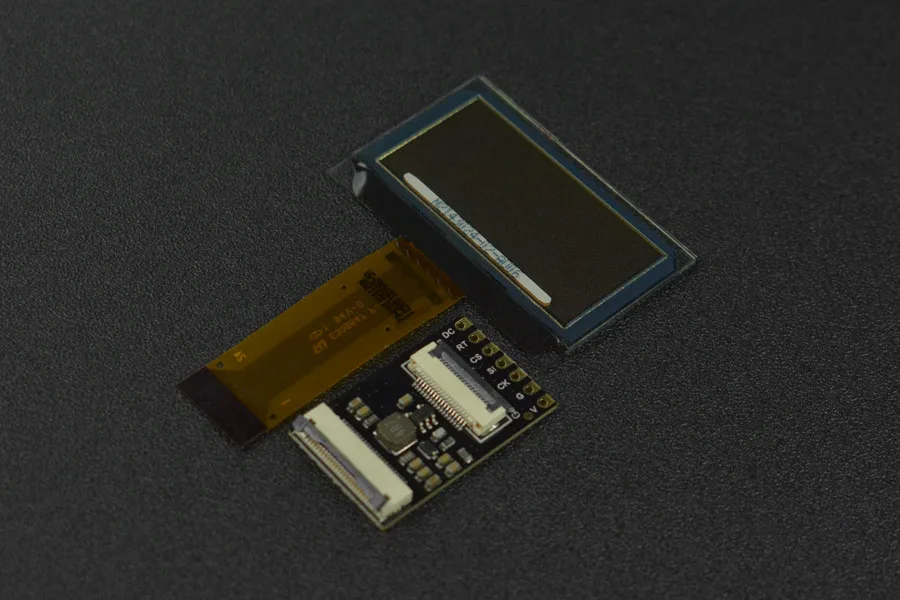

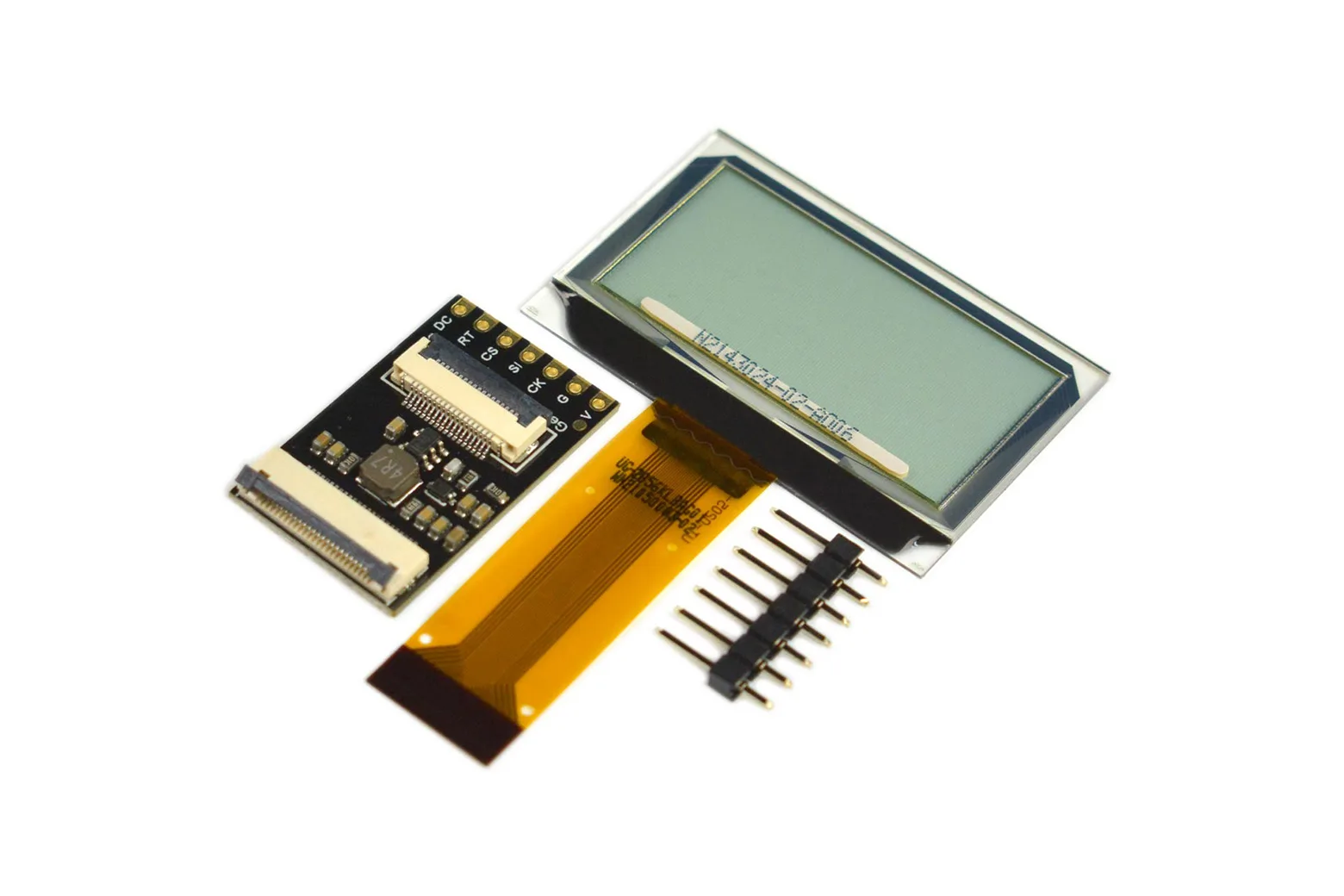

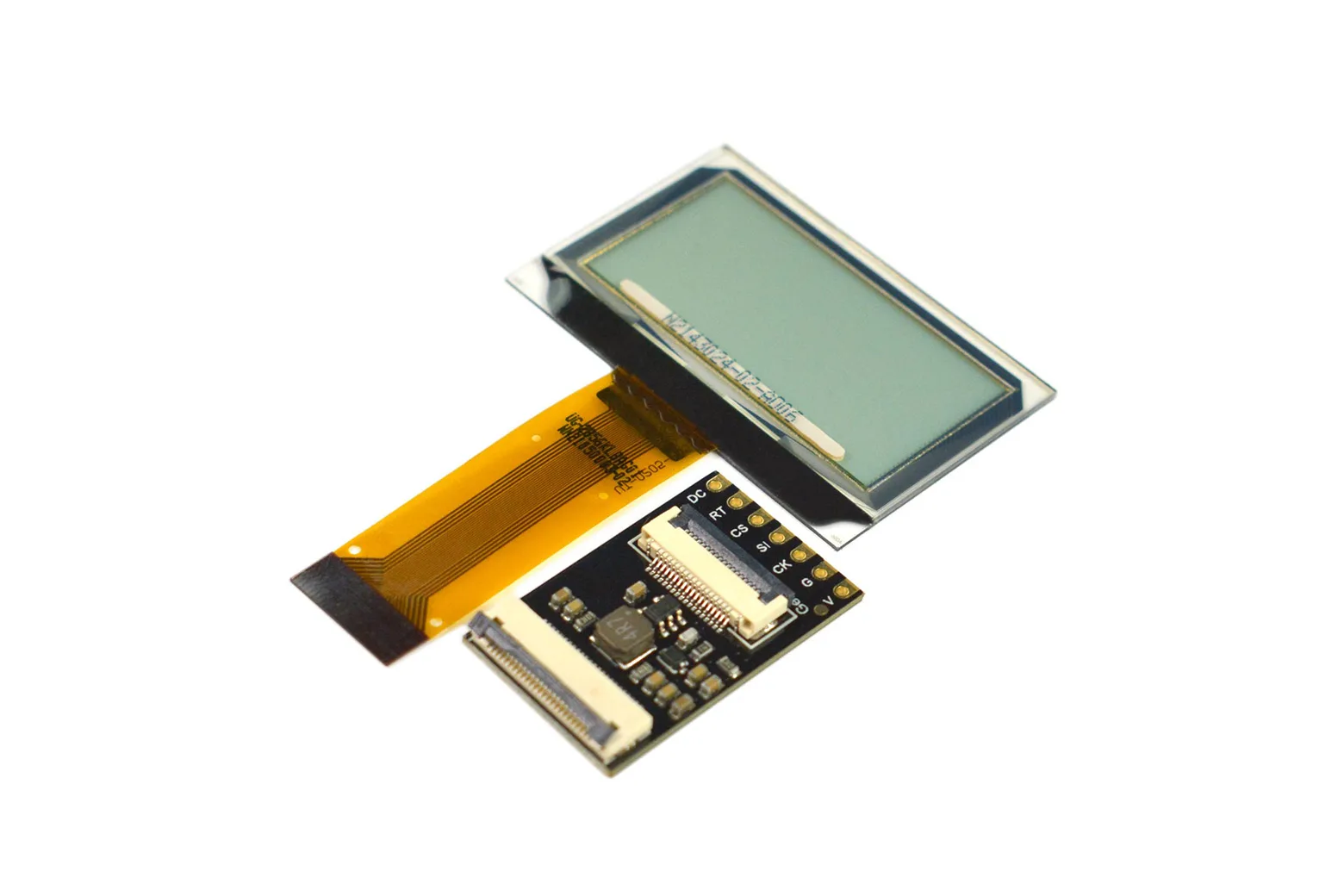

The package includes one 1.51-inch transparent OLED screen, one adapter converter board, a 2.54 mm 7-pin connector, and an FPC0.5 18-pin reverse direction cable.
Video
Downloads & documentation
Specifications
| Working Voltage | 3.3V |
| View Angle | Full view |
| Driver Chip | SSD1309 |
| Converter Interface | SPI and GDI |
| Adapter Size | 18 x 28mm/0.71 x 1.10inch |
| Display Area | 35.05 x 15.32 (mm)/1.40 x 0.60inch |
| Display Color | blue |
| Pixel Pitch | 0.274 x 0.274mm |
| Screen Size | 42x27mm/1.65 x 1.07inch |
| Working Temperature | -40~70 ℃ |
In the box
| 1.51" OLED Transparent Display | 1 |
| 1.51" OLED Transparent Display Converter | 1 |
| 2.54 Black Single-row 7Pin Connector | 1 |
| FPC0.5-18PIN Reverse Direction Cable | 1 |
