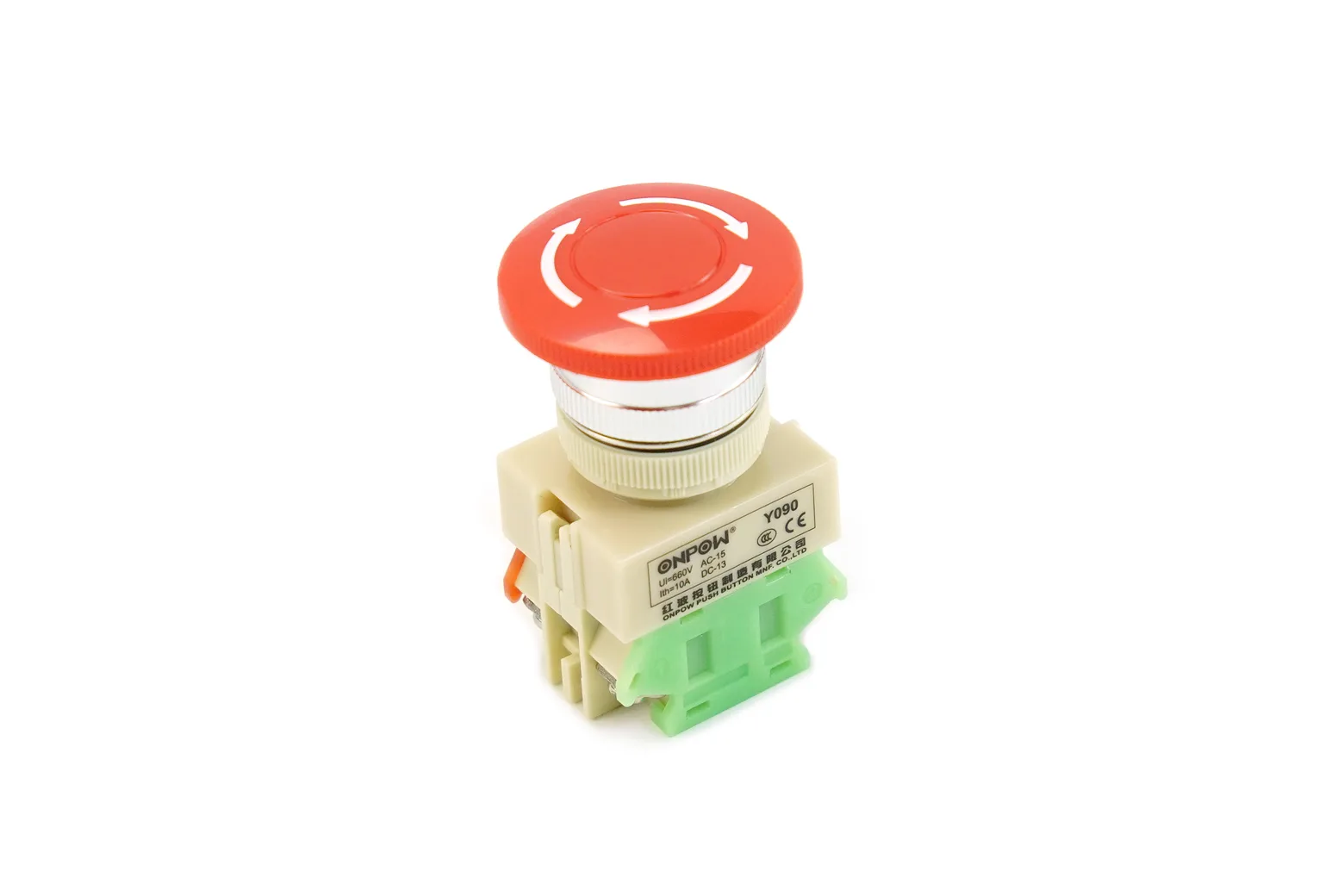

Emergency Stop Mushroom Push Button Switch

The Emergency Stop Mushroom Push Button Switch provides a prominent safety cutoff mechanism for maker projects, machinery interfaces, and custom control panels. Built with a distinctive 40mm red mushroom actuator, it suits students, educators, and hobbyists looking for an accessible manual stop switch. Its durable plastic and metal construction ensures dependable actuation in various workshop setups.

High-visibility mushroom actuator

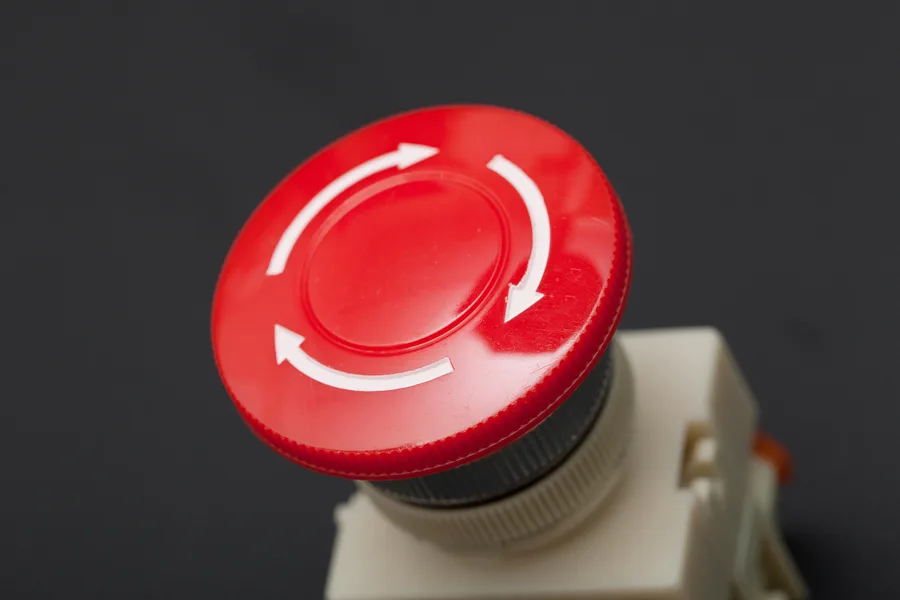

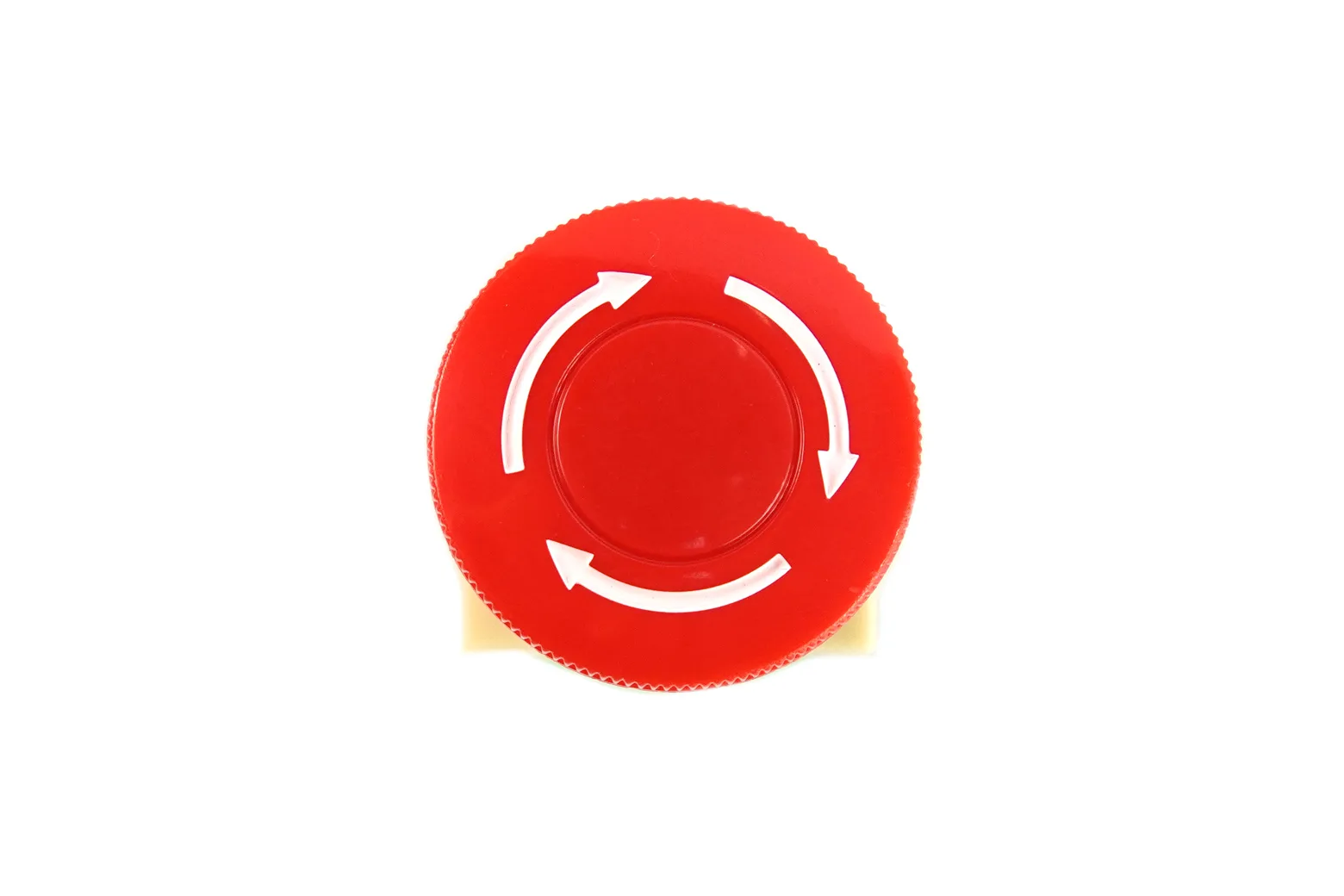

The switch features a 40mm red plastic mushroom head designed for rapid tactile location and actuation. Its prominent profile makes it ideal for safety panels and machine control interfaces.

Electrical ratings

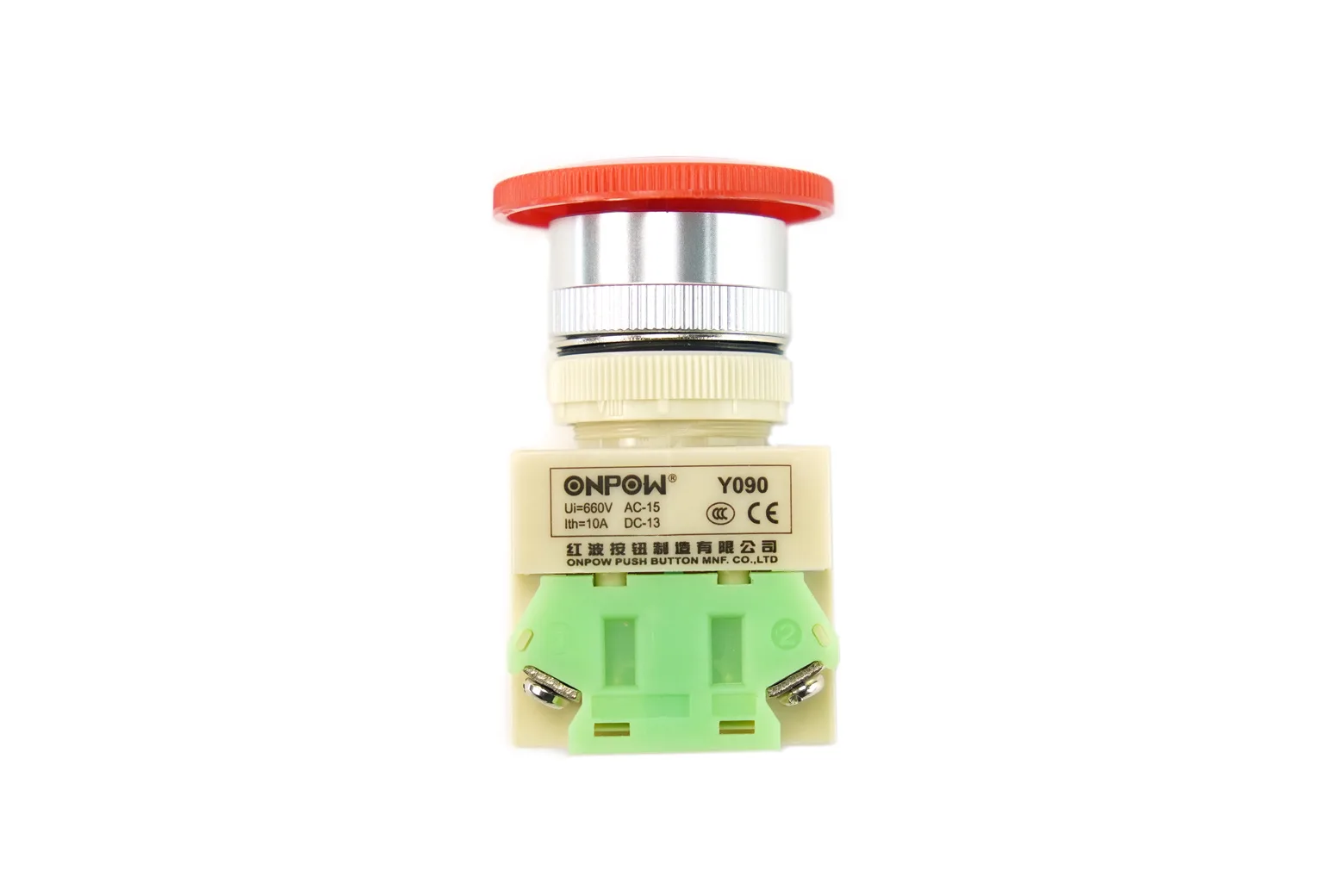

Rated for an insulation voltage of Ui 660V and a conventional thermal current of Ith 10A, the Y090 switch handles a wide range of switching demands. These ratings ensure safe operation within standard low-voltage control setups.

Standard 22mm panel mounting

The unit mounts into standard 22mm diameter panel holes for straightforward integration into project boxes and enclosures. The overall switch body measures 40mm by 40mm by 68mm.

Operating temperature range

Engineered to perform in ambient air temperatures from -25°C to +55°C, the switch functions reliably across diverse environments. It also supports relative air humidity levels between 45% and 85% RH.

Included in the box

The package includes one Emergency Stop Mushroom Push Button Switch ready for installation into your project enclosure.
