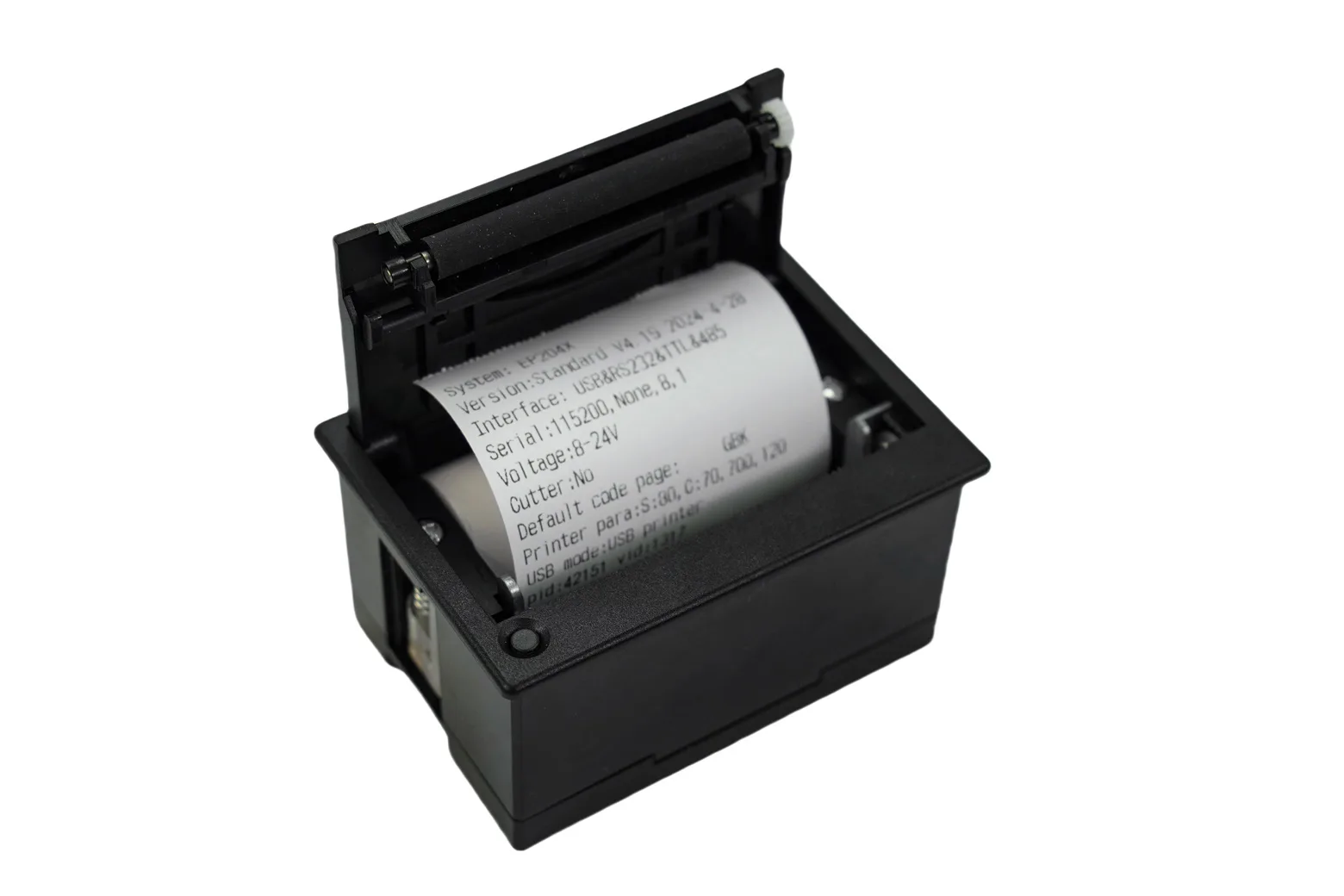

Embedded Thermal Printer V2.0
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

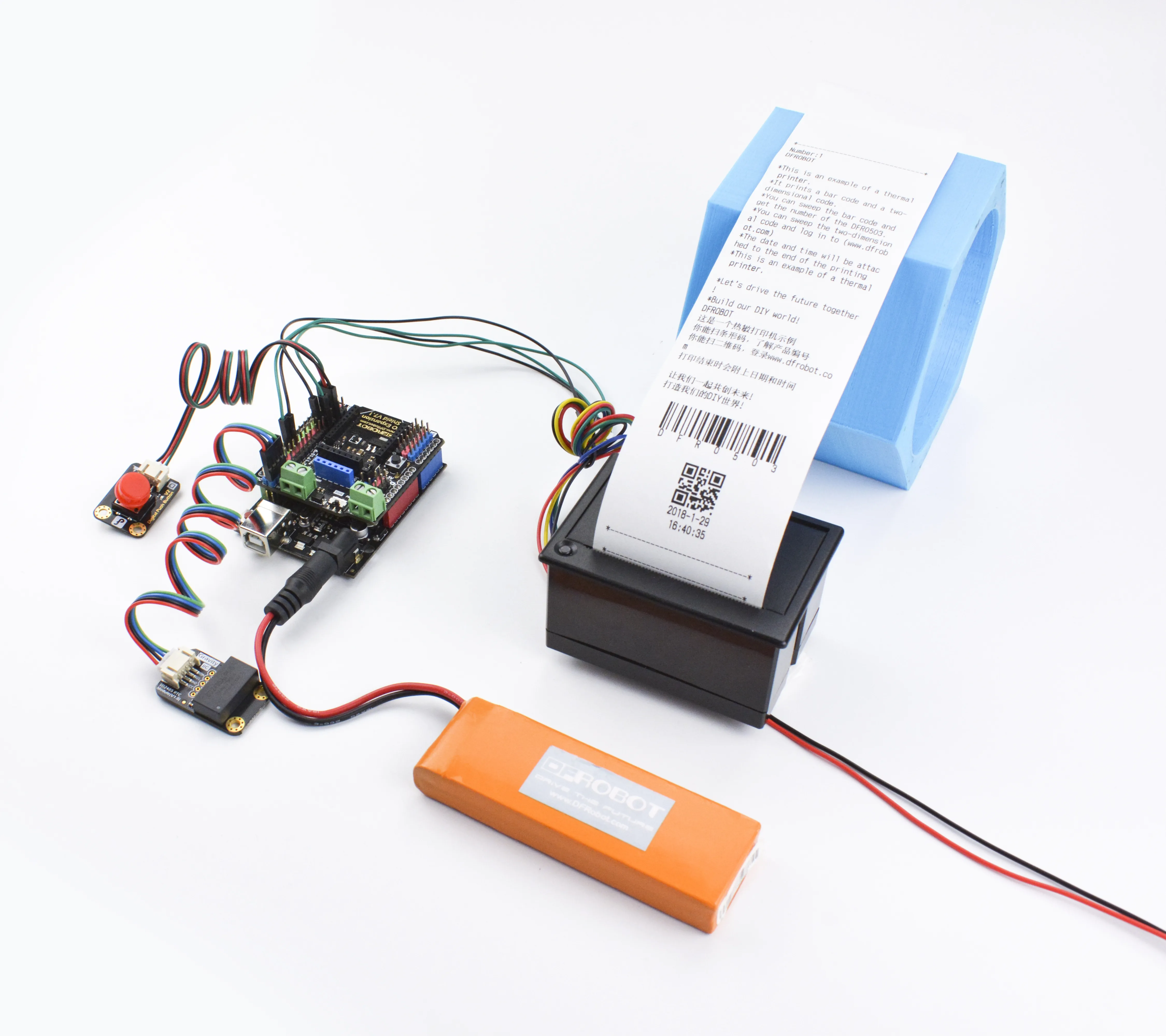

The Embedded Thermal Printer V2.0 is a compact, ink-free direct thermal printing module designed for integration into custom enclosures, POS systems, and automation projects. Operating across a wide 9V to 24V supply, it easily interfaces with Arduino, Raspberry Pi, and Windows systems via serial or USB. It is ideal for makers, educators, and engineers building receipt printers, smart lockers, data loggers, or instrumentation kiosks.
Versatile multi-interface connectivity

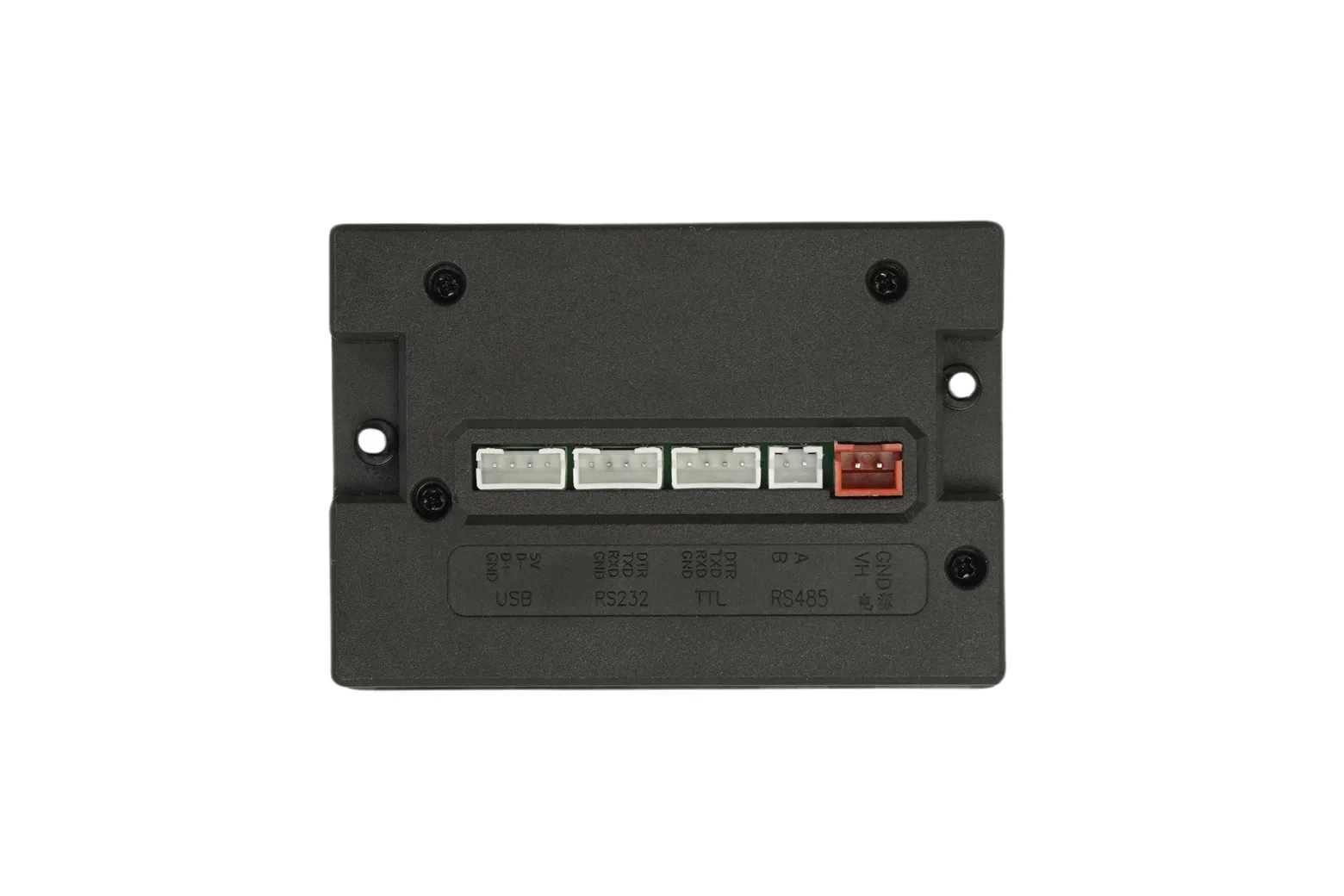

The module provides TTL, USB, RS485, and RS232 interfaces, allowing straightforward integration with microcontrollers, single-board computers, and industrial equipment. It supports standard serial commands as well as Windows driver-based printing.
Dual receipt and label modes
Switchable via software commands, the printer supports both continuous 58mm thermal receipt paper and thermal label rolls. This flexibility accommodates standard ticketing, point-of-sale transactions, and industrial labelling from a single unit.
Sharp, high-speed output
With a 203 DPI resolution (8 dots/mm) and print speeds reaching 70mm/s across a 48mm effective width, the module outputs crisp monochrome text, graphics, curves, barcodes, and QR codes. Text formatting options include built-in character enlargement up to four times.
Durable embedded design

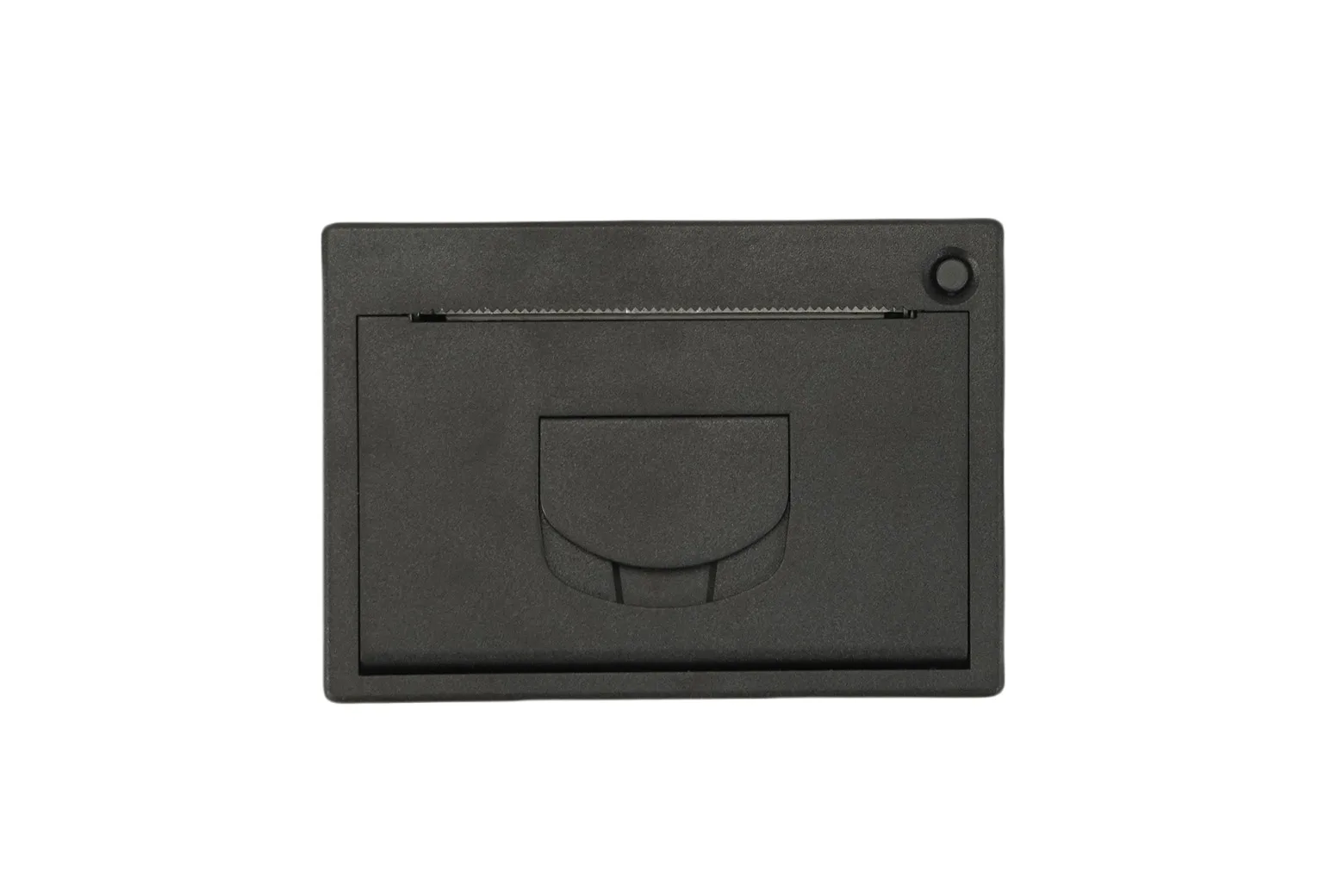

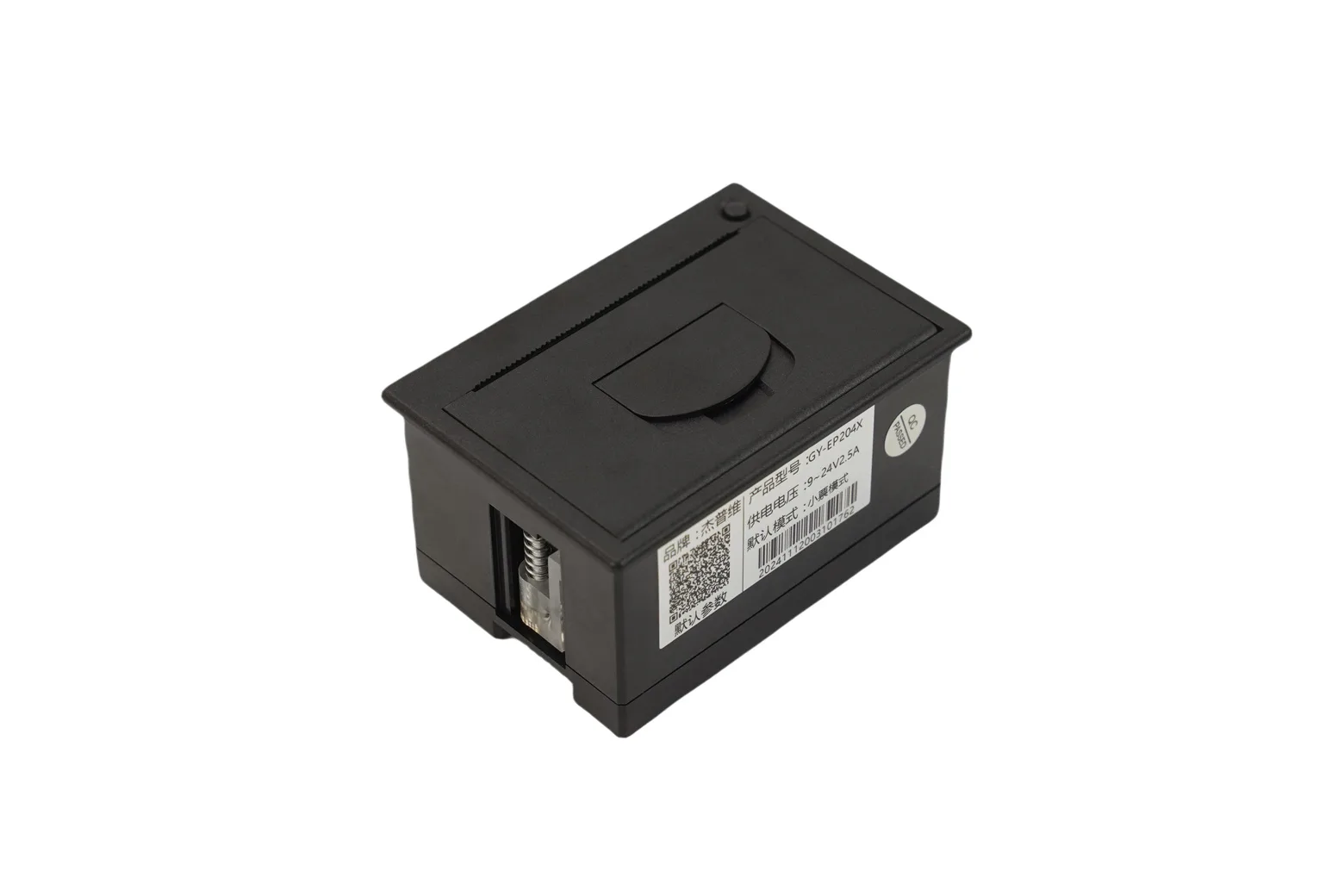

Rated for a 50-kilometre printing lifespan, the mechanism consumes just 0.02A on standby and operates from -5°C to 50°C. Its compact 82 x 58 x 44 mm housing fits standard 77 x 53 x 42 mm panel-mount cutouts for neat enclosure installations.
Flexible wide-voltage operation
The printer operates across a 9V to 24V DC input range with a working current of 0.5A to 2.5A, delivering darker, clearer printouts at higher voltage levels. A 2-pin power cable, communication cables, USB lead, and starter paper rolls are included in the box.
Downloads & documentation
Specifications
| Working voltage | DC9~24V |
| Working current | 0.5~2.5A |
| Standby current | 0.02A |
| Communication interface | TTL+USB+485+RS232 |
| Printing method | Line thermal printing |
| Printing mode | Receipt printing/label printing |
| Printing color | Black and white output |
| Resolution | 203DPI (8 dots/mm, 0.125mm/dot, 384 dots per line) |
| Consumables | Thermal receipt paper roll, thermal label paper roll |
| Paper roll specifications | Paper roll width (58mm±0.5mm), paper roll diameter (30mm) |
| Printing content | Support text , graphics, one-dimensional barcode, two-dimensional code, curve, etc. |
| Printing width | 48mm (effective printing width) |
| Printing life | 50 kilometers |
| Printing speed | 70mm/s |
| Printing characters | GB18030 Chinese character library (2424 international first and second level character library), 1224 standard ASCII code, and can enlarge Chinese characters and characters by 1-4 times |
| Working temperature | -5℃~50℃ |
| Working humidity | 25%~50%RH |
| Storage temperature | -20~70%°C |
| Storage humidity | 5~95%RH |
| Appearance size | 82*58*44 mm |
| Installation size | 77*53*42 mm |

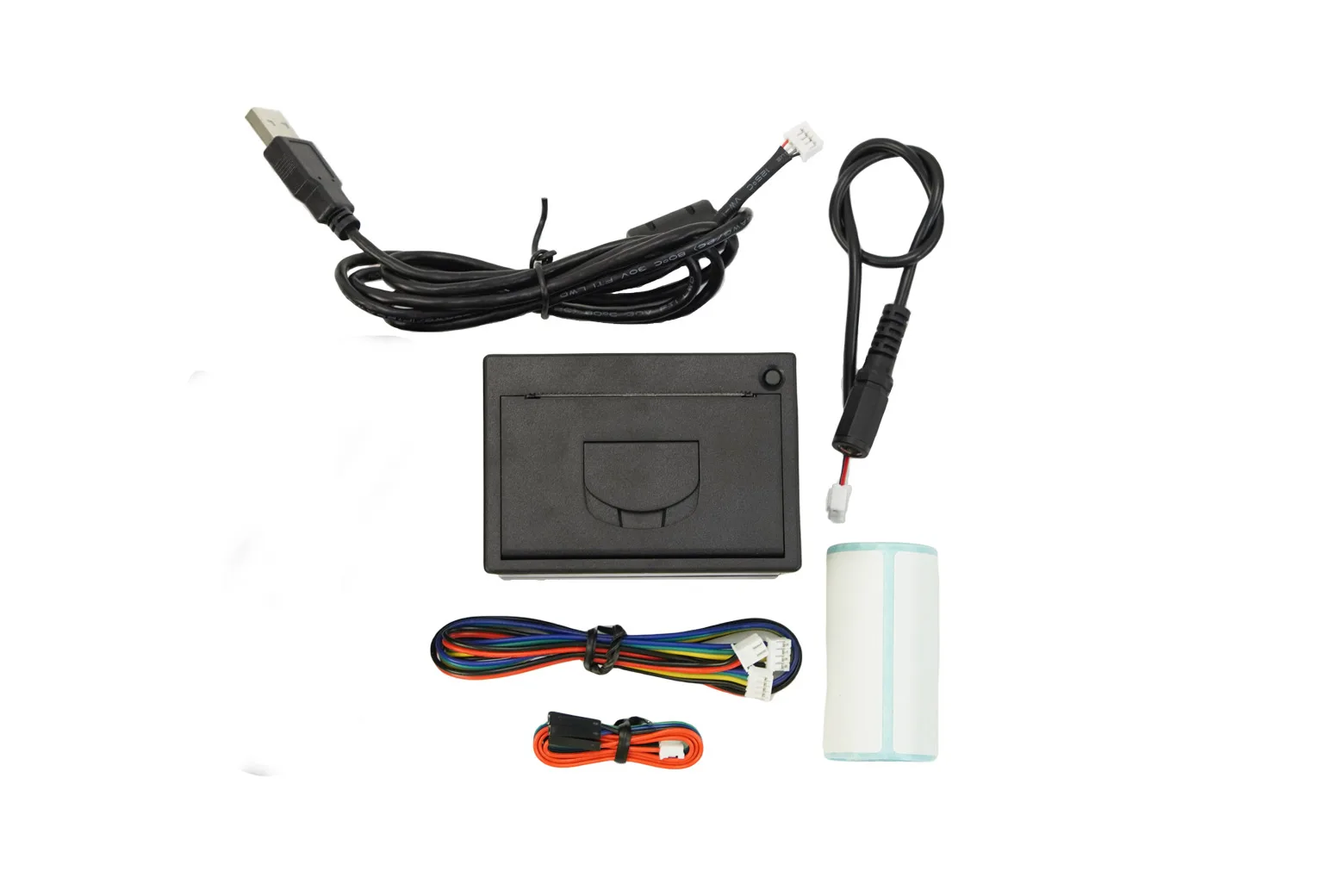

In the box
| Embedded thermal printer | 1 |
| 2PIN power cable | 1 |
| 4PIN communication cable | 1 |
| 4PIN USB data cable | 1 |
| Thermal receipt paper roll | 1 |
| Thermal label paper roll | 1 |
