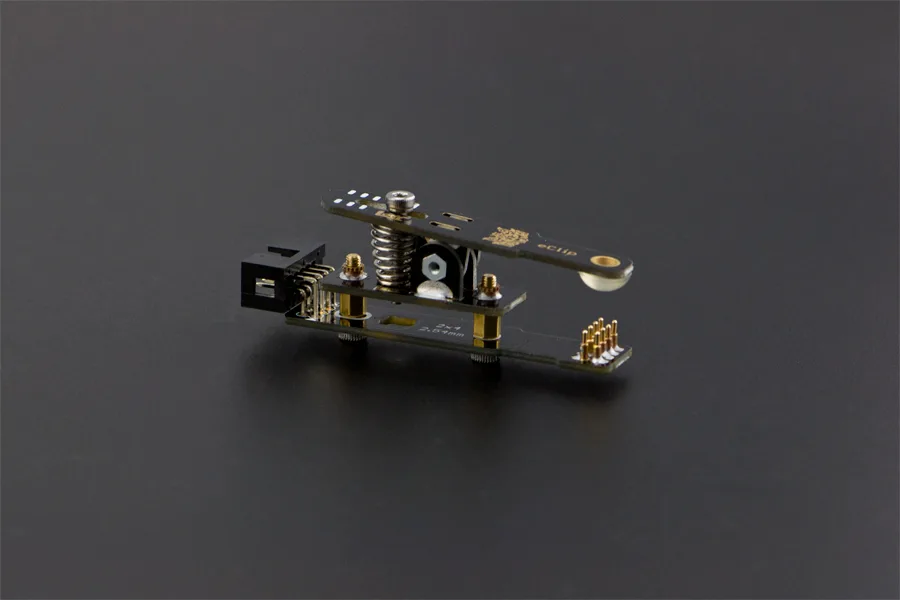

eClip Programming Fixture for Wearable Prototyping

The eClip Programming Fixture for Wearable Prototyping is a compact pogo-pin solution designed for flashing and testing compact hardware. It suits makers, students, and engineers working on wearable tech, embedded systems, and custom circuit boards.

Compact pogo-pin contact interface

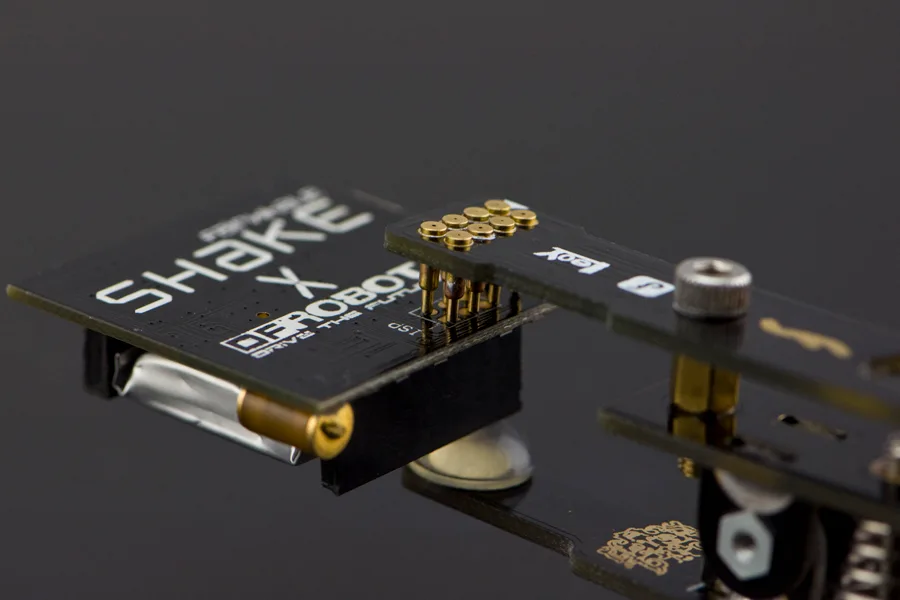

The fixture utilises spring-loaded pogo pins to establish temporary, solderless connections to target boards. Its compact form factor makes it easy to integrate into tight benchtop prototyping setups.

Dual ICSP and FTDI support

Equipped with support for standard 2x4 ICSP layouts as well as FTDI connections. This dual-interface capability allows for seamless communication and programming across various microcontroller architectures.

Wearable electronics prototyping

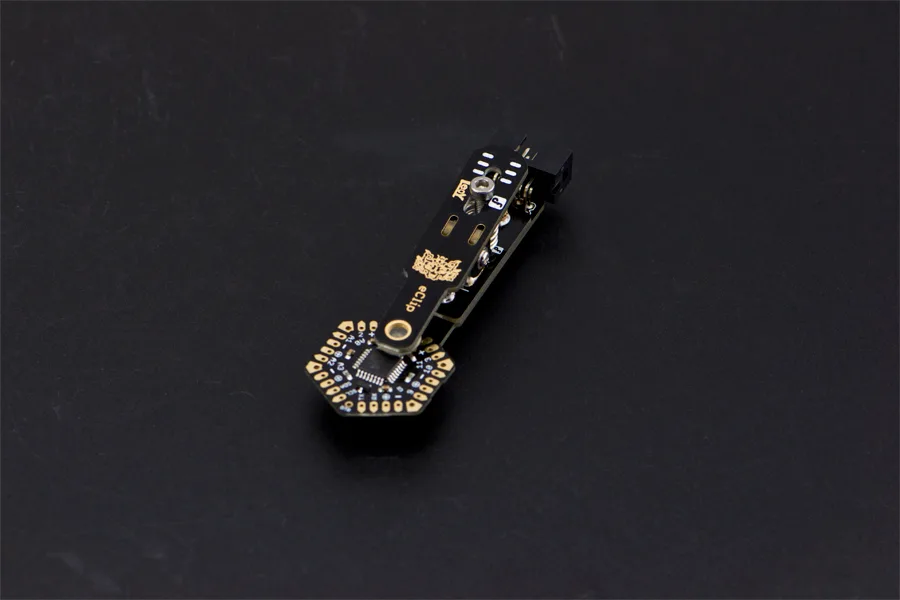

Engineered specifically to accommodate wearable projects where board space is limited and permanent headers are impractical. It facilitates rapid iteration without the need to solder temporary pin headers.

Firmware flashing and PCB debugging

Designed to streamline production and development workflows by providing reliable contacts during firmware flashing. It also serves as a practical diagnostic tap for real-time PCB debugging.

Downloads & documentation

• Product Handbook
