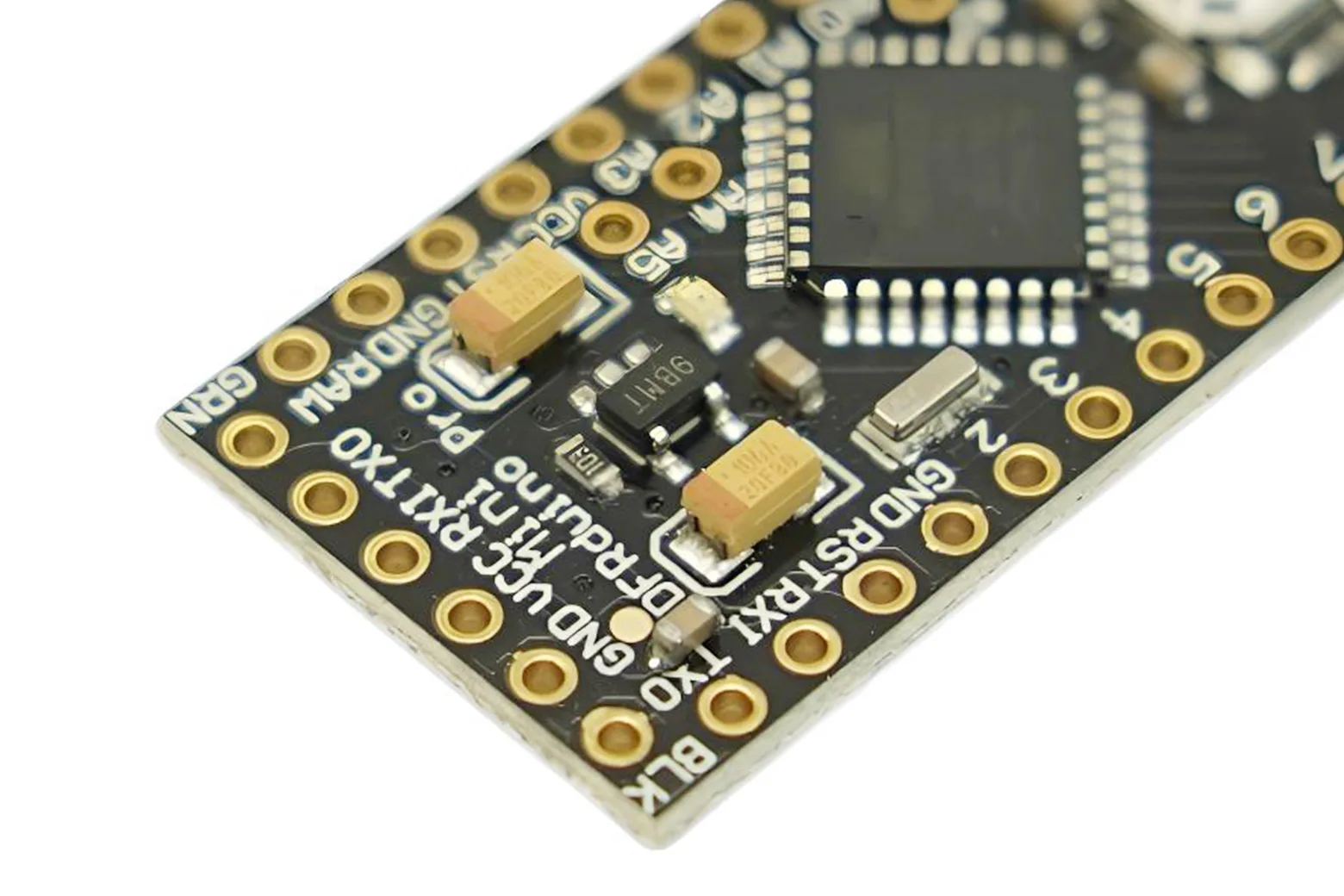

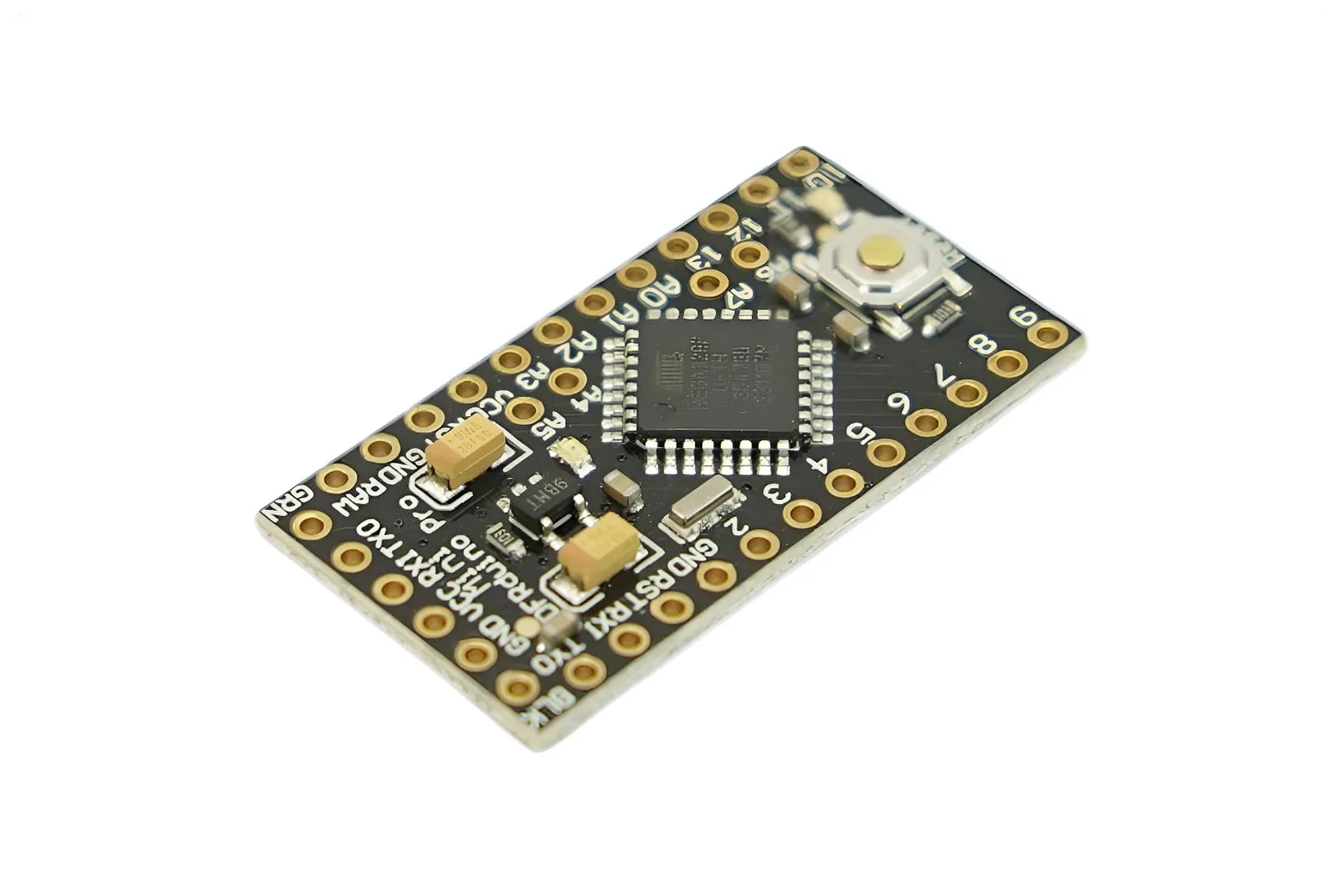

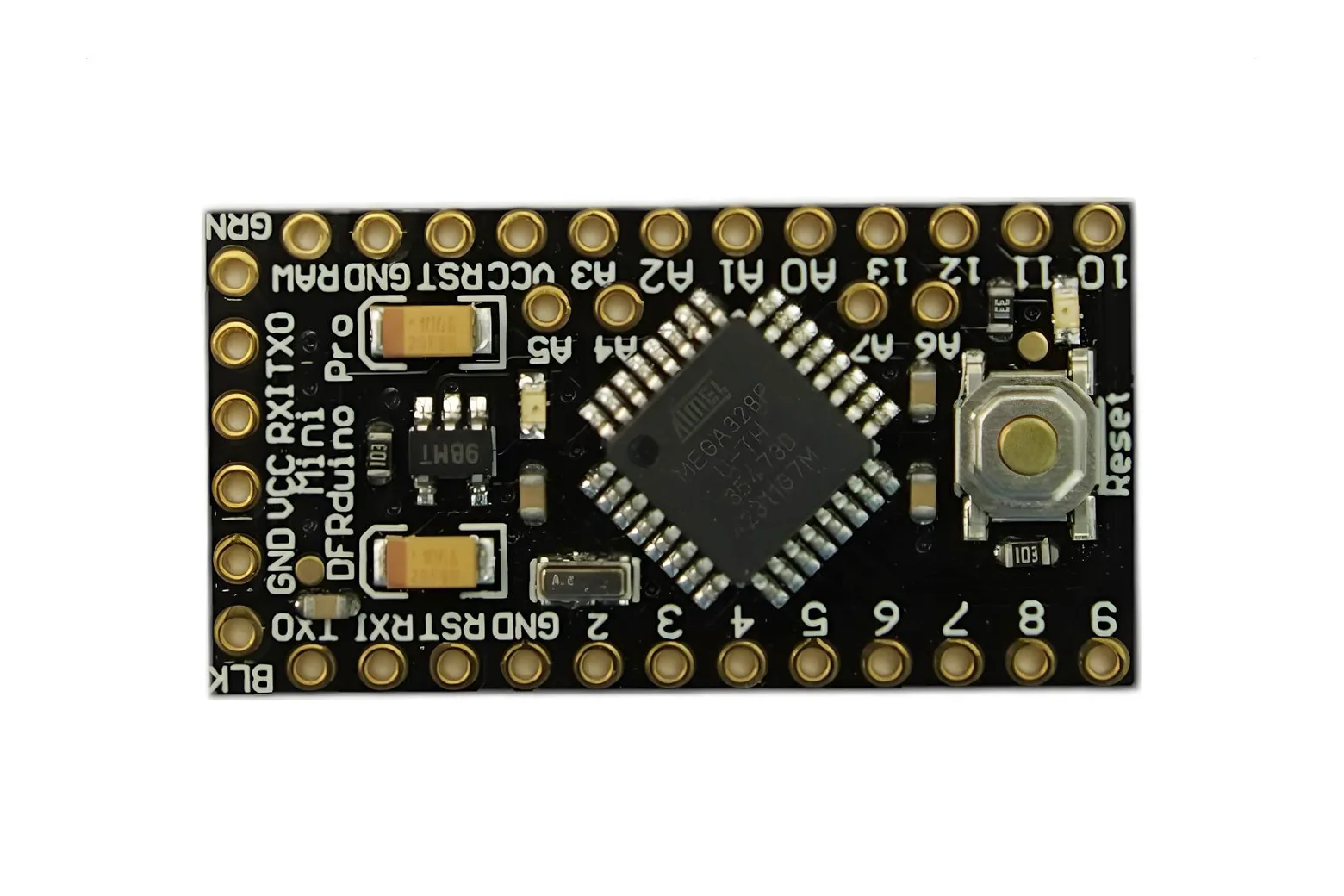

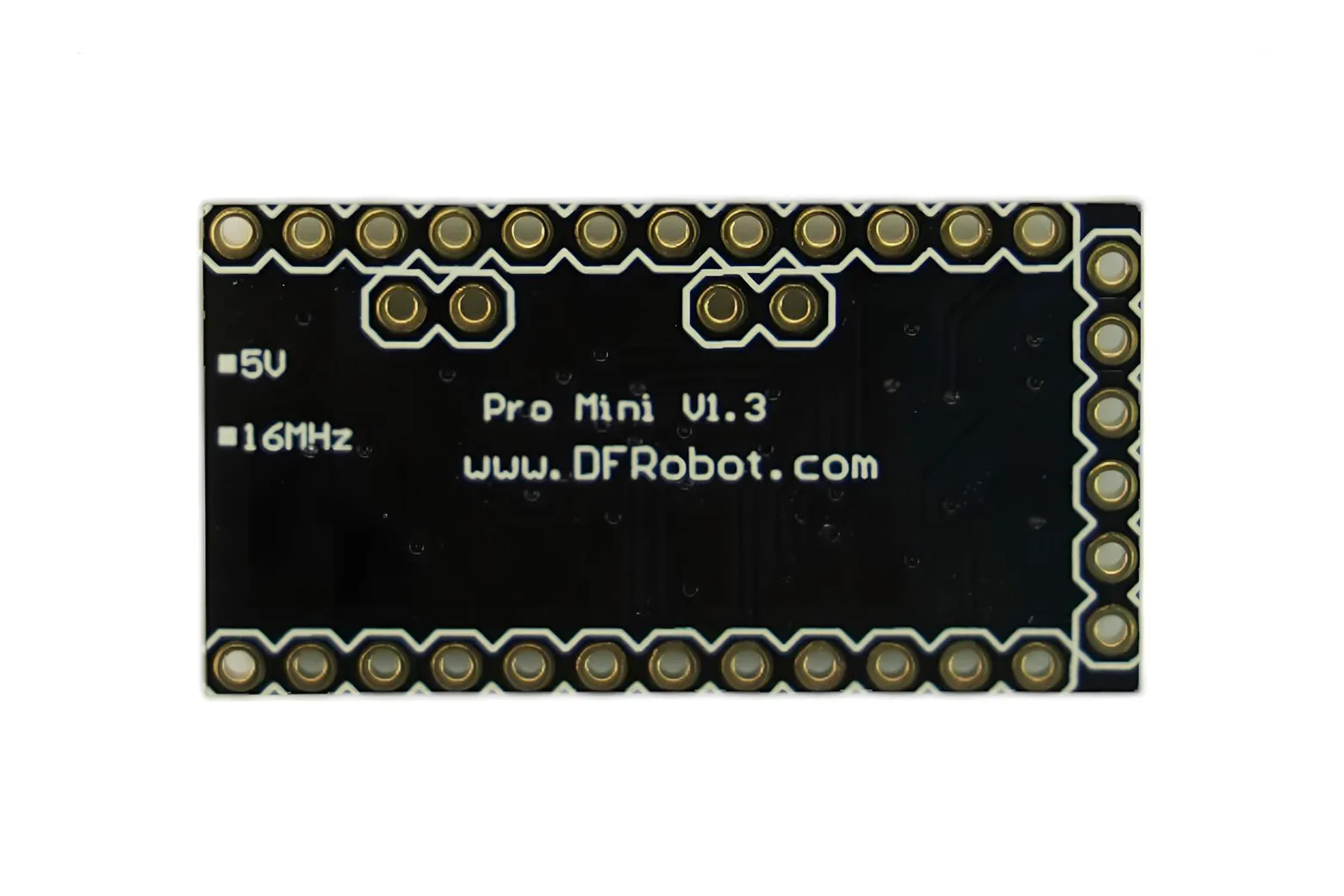

DFRduino Pro Mini V1.3 Development Board Compatible with Arduino Pro Mini (ATmega328, 16MHz, 5V)

The DFRduino Pro Mini V1.3 is a compact microcontroller board powered by the ATmega328 and fully compatible with the Arduino Pro Mini platform. Operating at 5V with a 16MHz clock, it is well suited to students, makers, and hobbyists building space-conscious embedded projects.

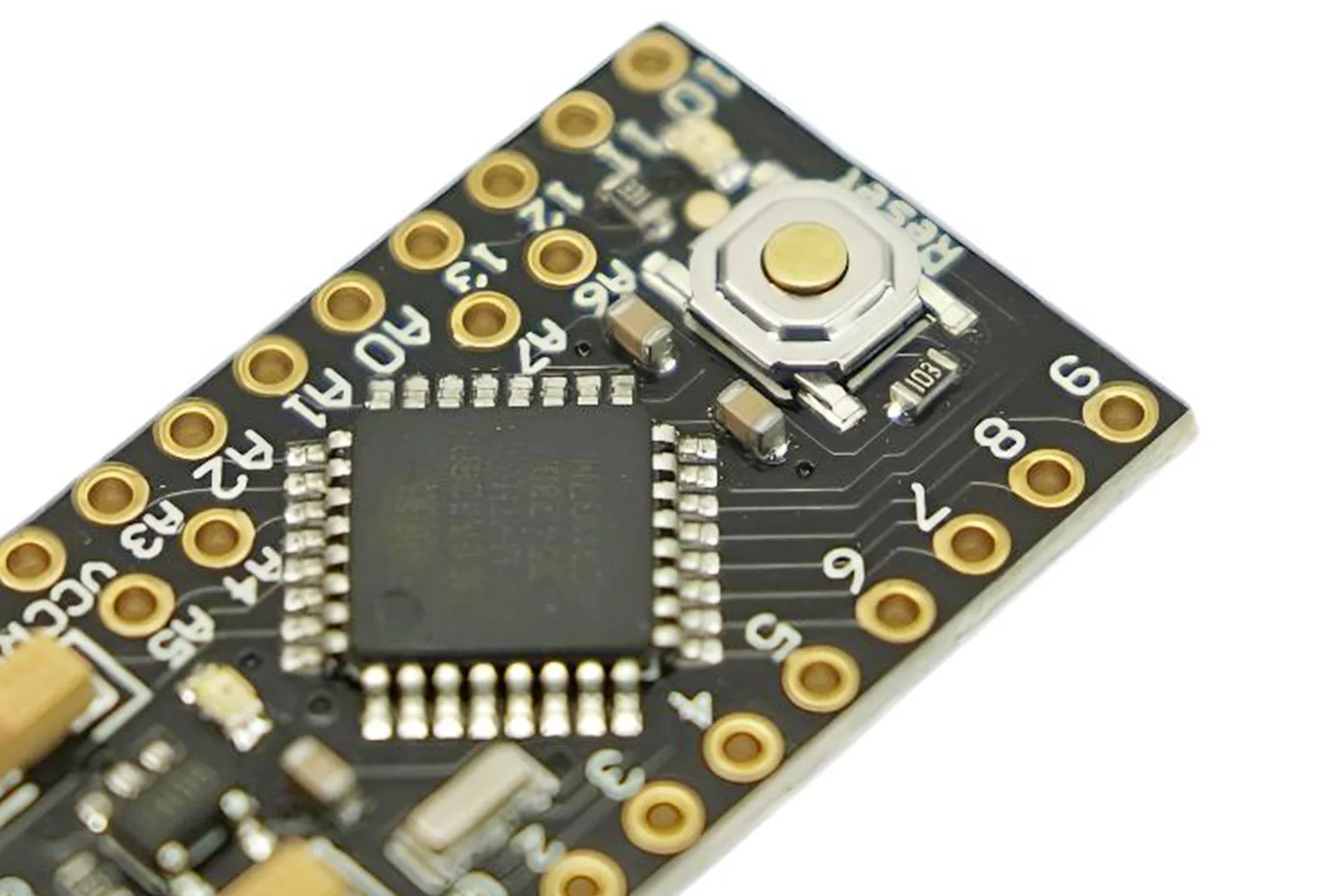

ATmega328 processing core

The board is driven by an ATmega328 microcontroller running at a 16MHz clock speed. It delivers dependable processing performance for a wide range of compact robotics and automation designs.

Standard 5V operation

Configured for 5V operation, this board interfaces effortlessly with standard 5V sensors, modules, and logic circuits. It offers a practical foundation for permanent installations and breadboard prototyping.

Arduino Pro Mini compatibility

Full hardware and pinout compatibility with the Arduino Pro Mini standard ensures easy integration with existing Arduino development environments. Users can quickly deploy standard sketches, libraries, and reference designs.

Digital and analogue interfacing

The board features 14 digital input/output pins alongside 8 analogue inputs for connecting various peripherals. This provides comprehensive I/O capability despite the board's compact footprint.

Downloads & documentation

• Protel Schematic
