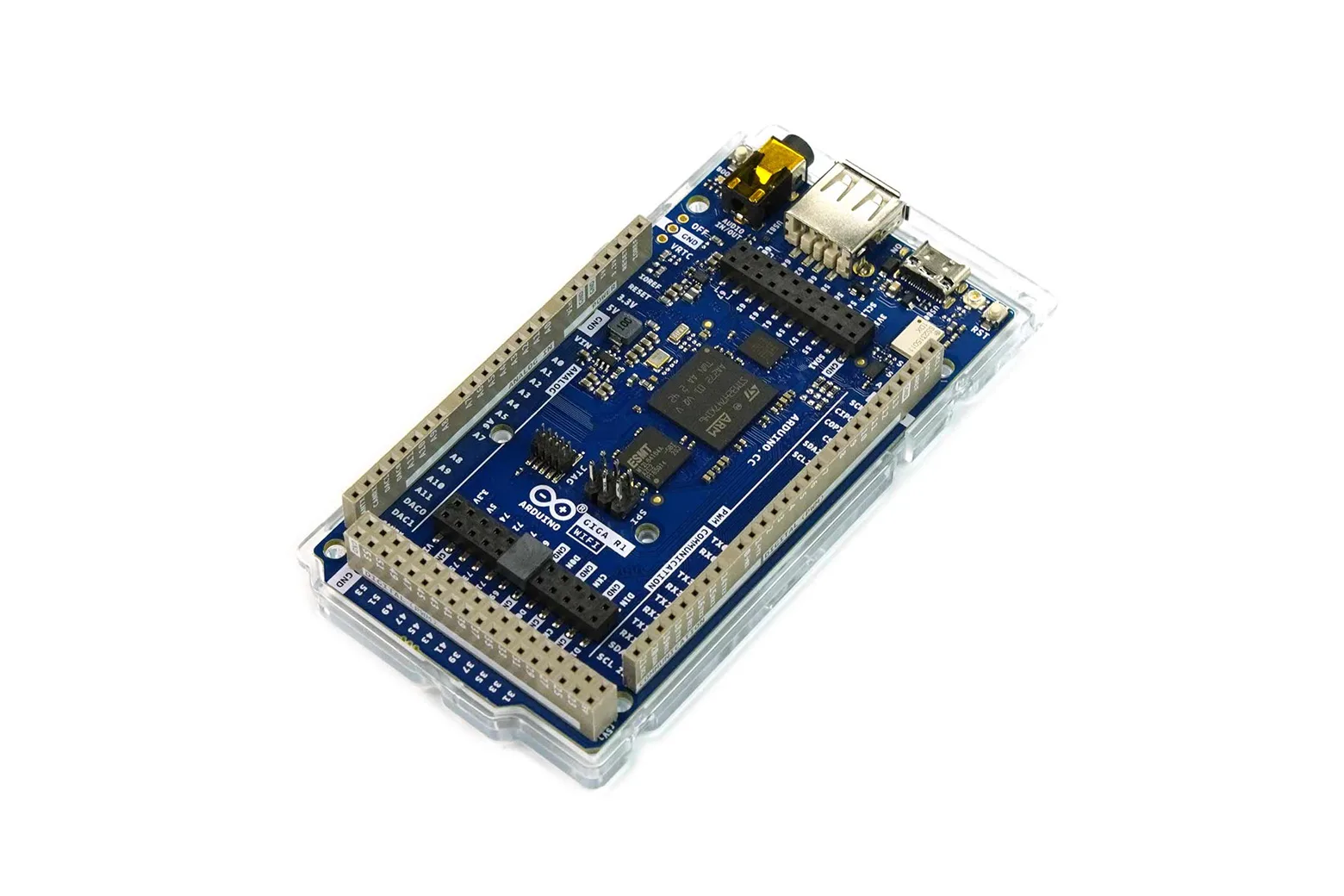

Arduino GIGA R1 WiFi Development Board
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

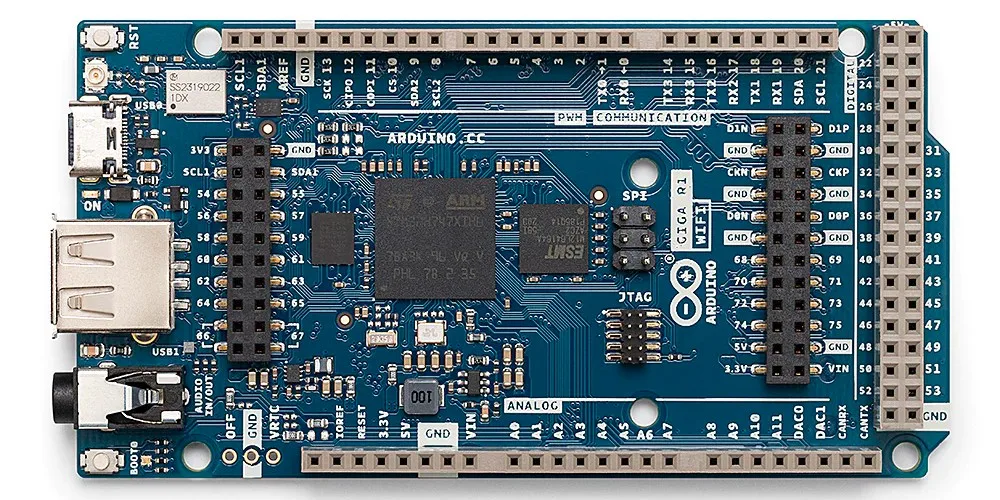

The Arduino GIGA R1 WiFi Development Board brings dual-core 32-bit processing power to the classic Mega and Due footprint. Designed for advanced makers, robotics engineers, and IoT developers, it delivers high-speed computing alongside extensive peripheral connectivity.
Dual-core 32-bit processing

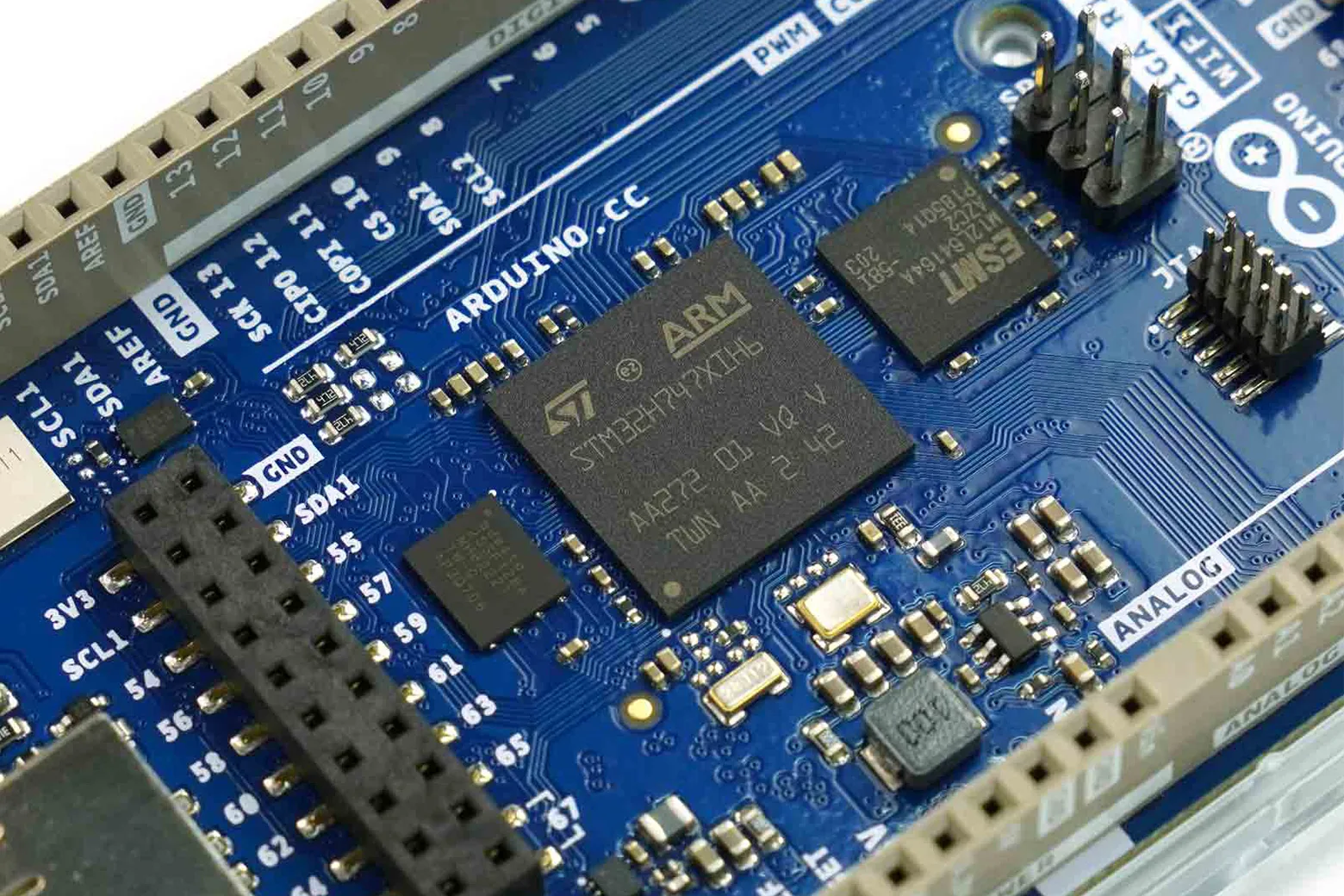

Powered by an STM32H747XI microcontroller pairing a 480 MHz Cortex-M7 with a Cortex-M4 core, the board can execute two tasks simultaneously, such as running MicroPython in parallel with Arduino code. It features 2MB dual-bank flash, 1MB SRAM, 8MB SDRAM, and 16MB QSPI NOR flash.
Built-in Wi-Fi and Bluetooth
Wireless communication is handled by an onboard Murata 1DX module supporting 2.4GHz Wi-Fi and Bluetooth 5.1 with an external antenna connector. This setup allows seamless integration with the Arduino IoT Cloud for secure remote control and monitoring.

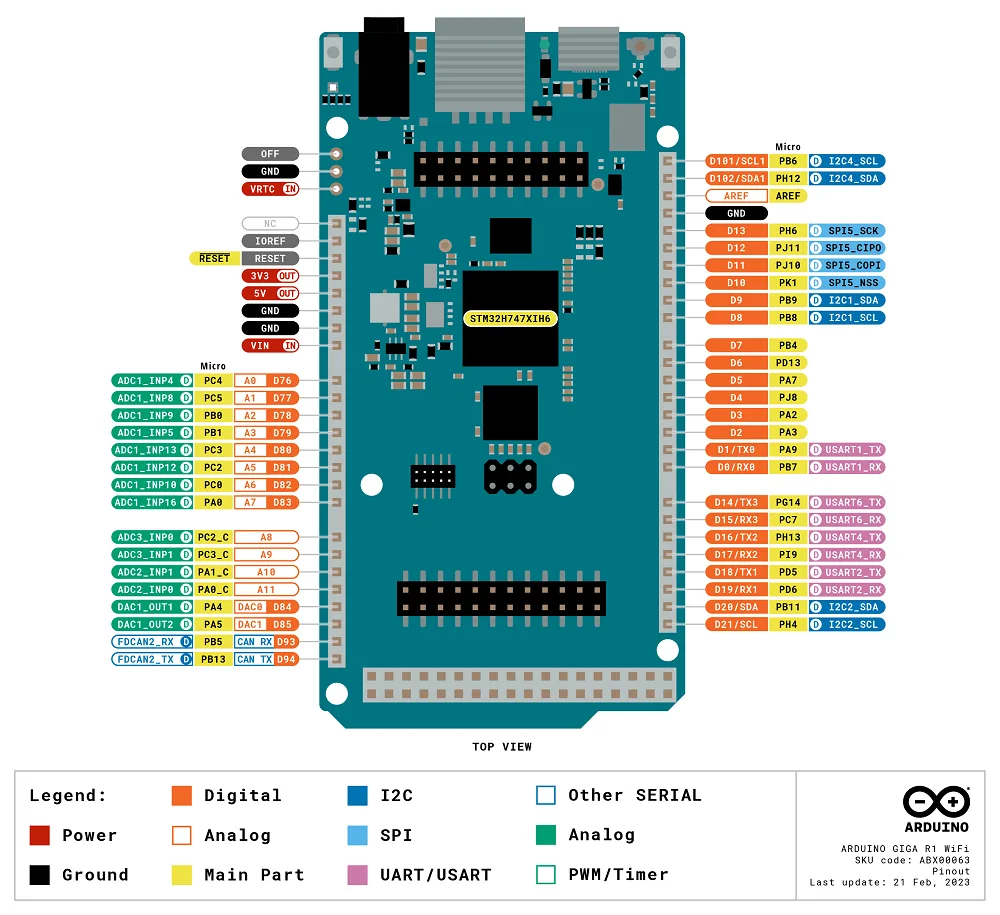

High-density pin layout
Maintaining the classic 101 x 53mm Mega footprint, the board breaks out 76 digital I/O pins operating at 3.3V. Peripheral options include 12 PWM outputs, 14 analog inputs, 2 DAC channels, 4 UARTs, 3 I2C buses, 2 SPI interfaces, and CAN bus support.

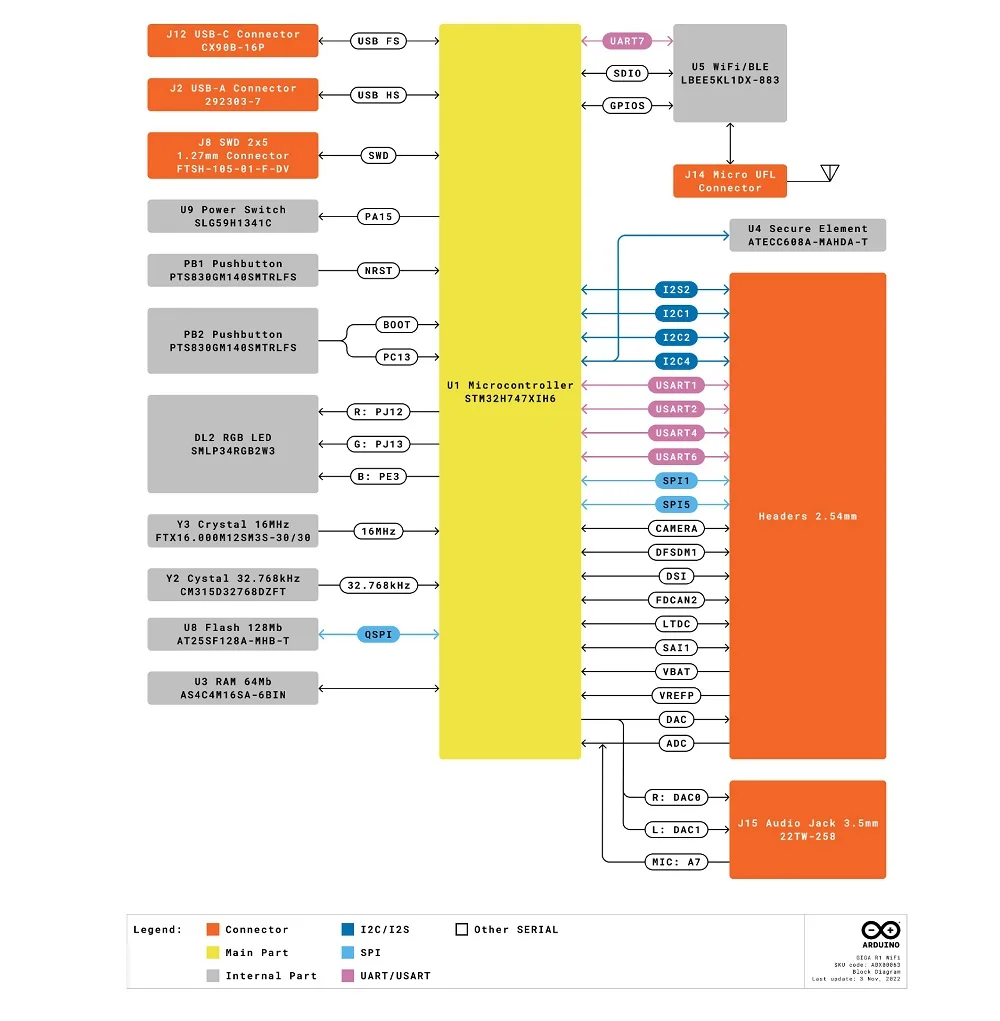

Hardware architecture and power
The system includes Chrom-ART graphical acceleration, a 2x5 1.27mm JTAG debugging connector, and wide-range input power handling from 6V up to 24V.
Dual USB and multimedia support
A USB-C port handles power, programming, and HID emulation for keyboard or mouse simulation, while a dedicated USB 2.0 Type-A host port supports mass storage devices. Additional multimedia features include a 3.5mm audio input/output jack and a 20-pin Arducam camera and display header.
Downloads & documentation
Specifications
| Microcontroller | STMicro STM32H747XI Cortex-M7 @ 480 MHz + M4 @ 200 MHz MCU with 2MB dual-bank Flash memory, 1 MB RAM, Chrom-ART graphical hardware accelerator |
| System Memory | 8MB SDRAM |
| Flash | 16MB QSPI NOR flash |
| Radio Module | 2.4GHz WiFi 802.11b/g/n up to 65 Mbps and Bluetooth 5.1 BR/EDR/LE via Murata 1DX module |
| Display | 20-pin header |
| Camera | 20-pin Arducam camera connector |
| Audio | 3.5mm audio jack |
| I/O | I/O pins (includes camera/display pins) × 76 |
| Operating Voltage | 3.3V |
| Current per I/O Pin | 8mA |
| Debugging | JTAG connector |
| Input Voltage | 6-24V |

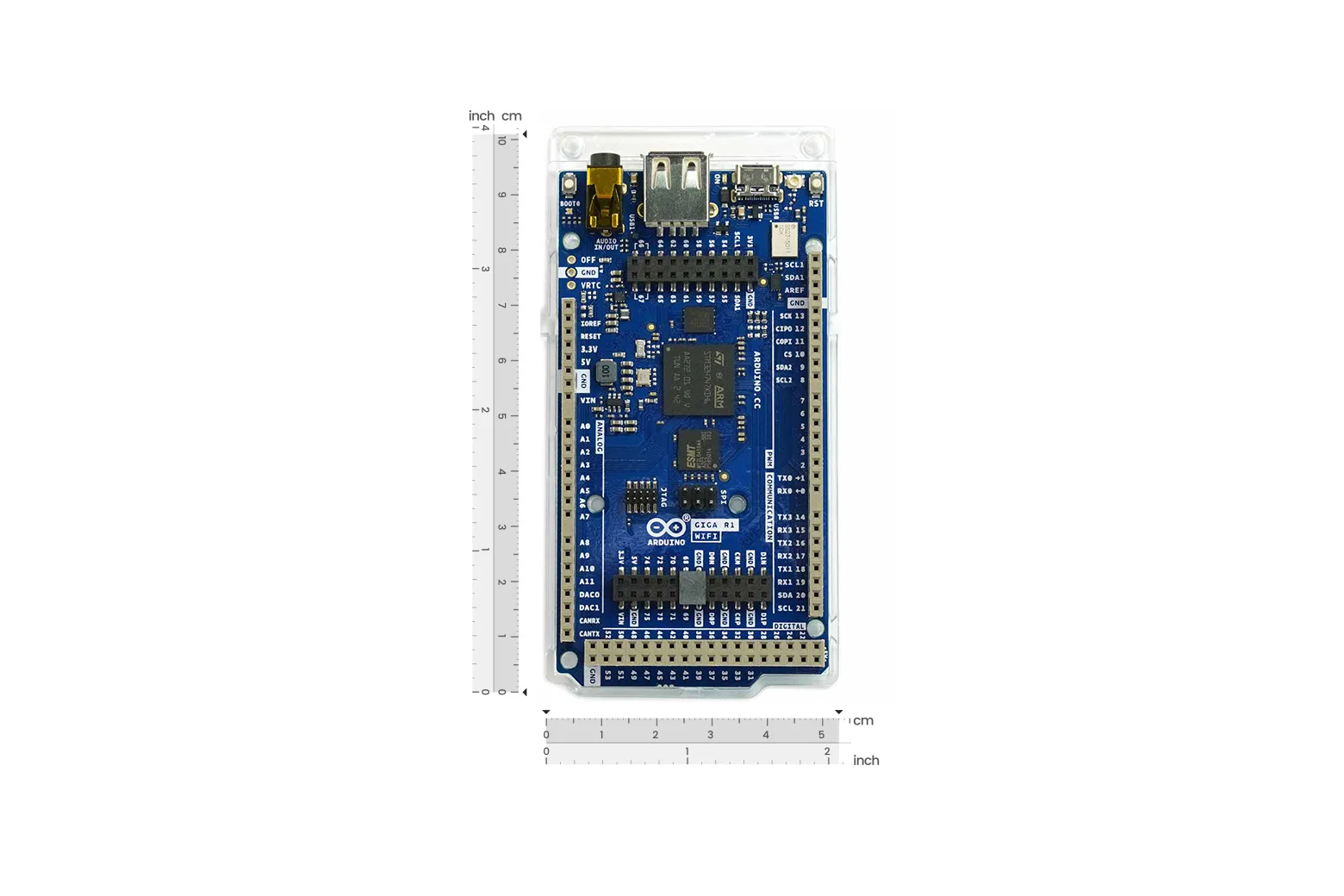

| Dimensions | about 101×53 mm/3.98×2.09" |

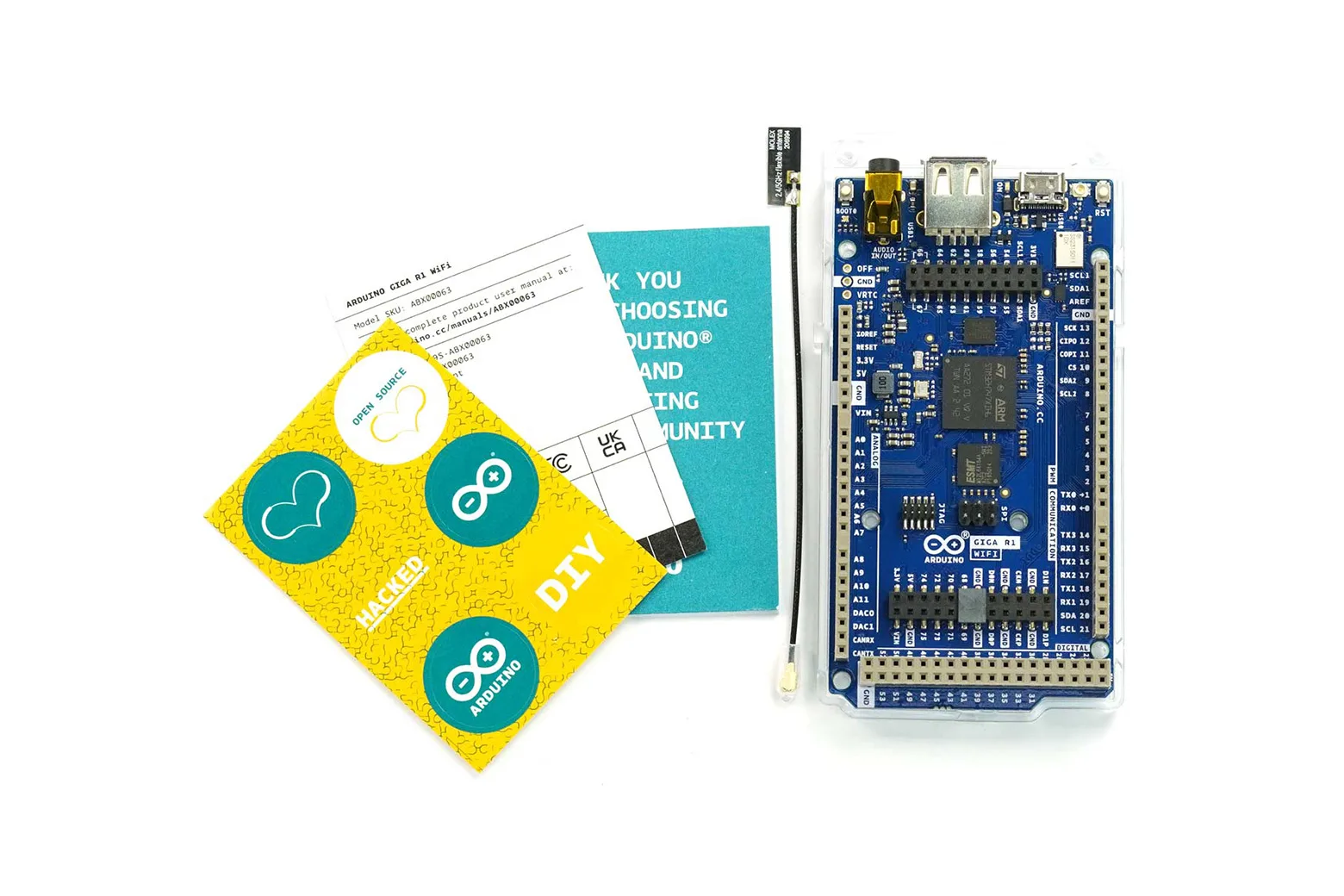

In the box
| Arduino GIGA R1 WiFi Development Board × 1 | 1 |
