Aluminum M.2 2280 SSD Heat Sink for LattePanda Sigma

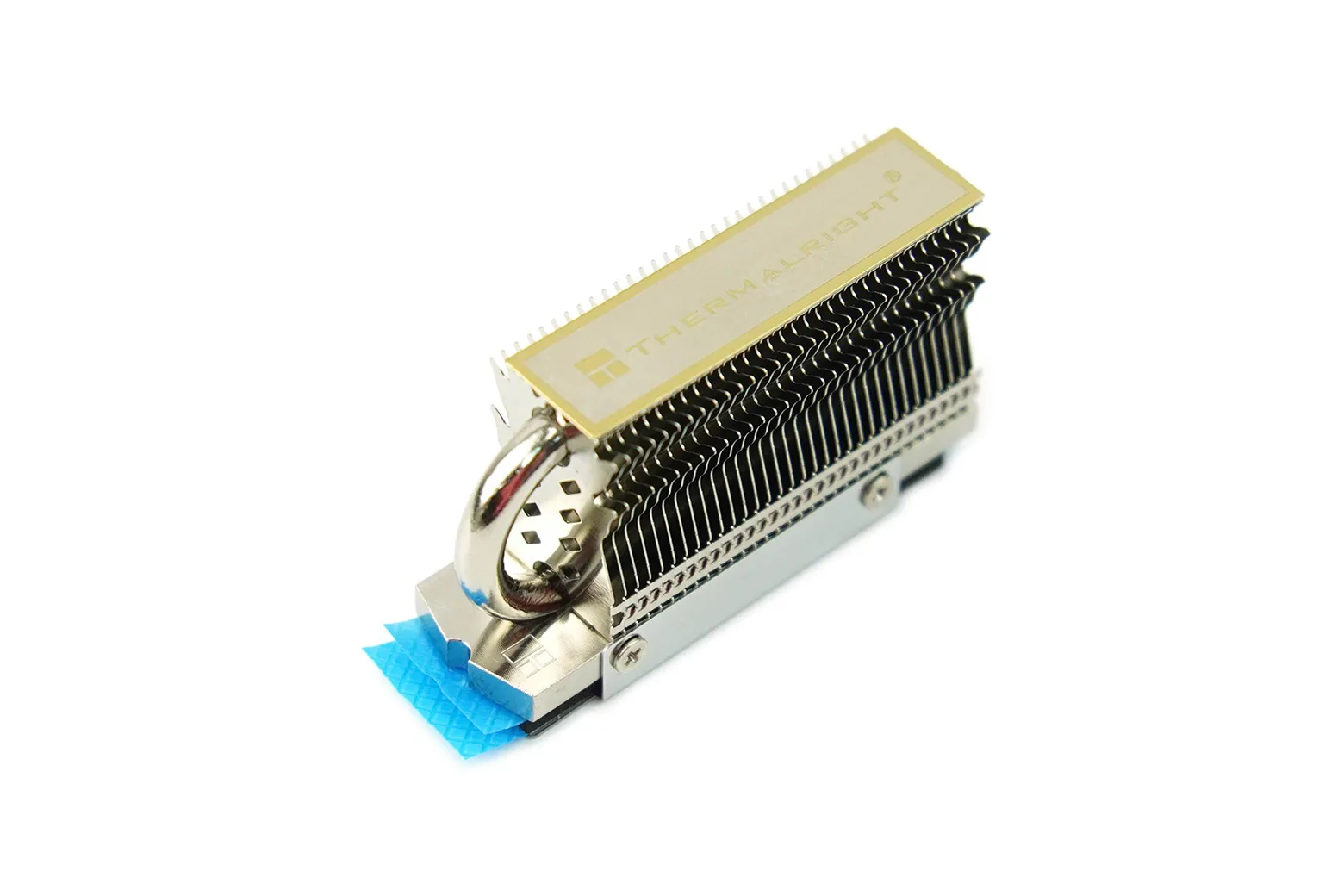

The Aluminum M.2 2280 SSD Heat Sink is a dedicated passive cooling solution designed specifically for LattePanda Sigma single-board computers. It provides reliable thermal management for M.2 2280 solid-state drives, making it ideal for makers, developers, and hobbyists running storage-intensive projects.

Tailored LattePanda Sigma compatibility

This heat sink is engineered to fit M.2 2280 form factor SSDs operating within LattePanda Sigma setups. It delivers effective passive thermal dissipation without requiring additional fans or power connections.

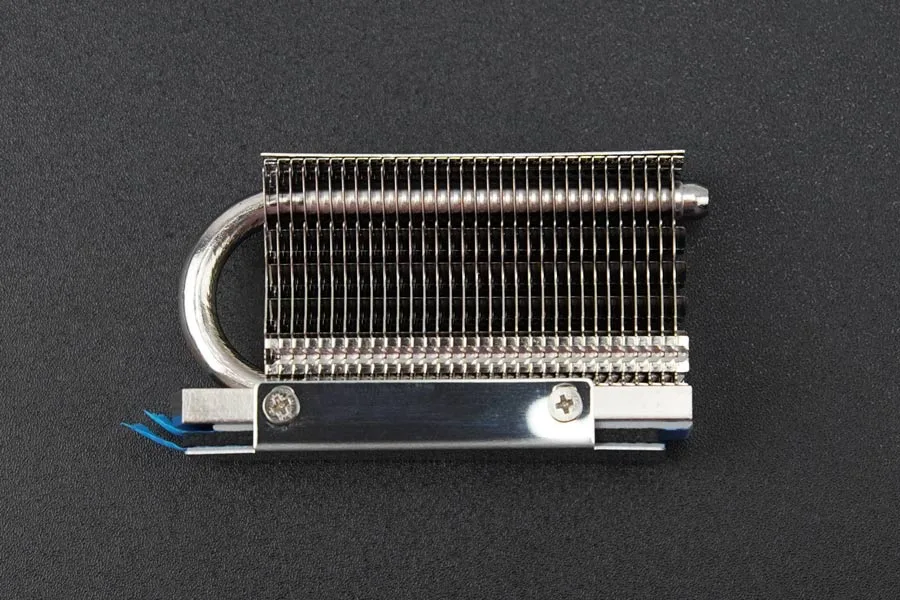

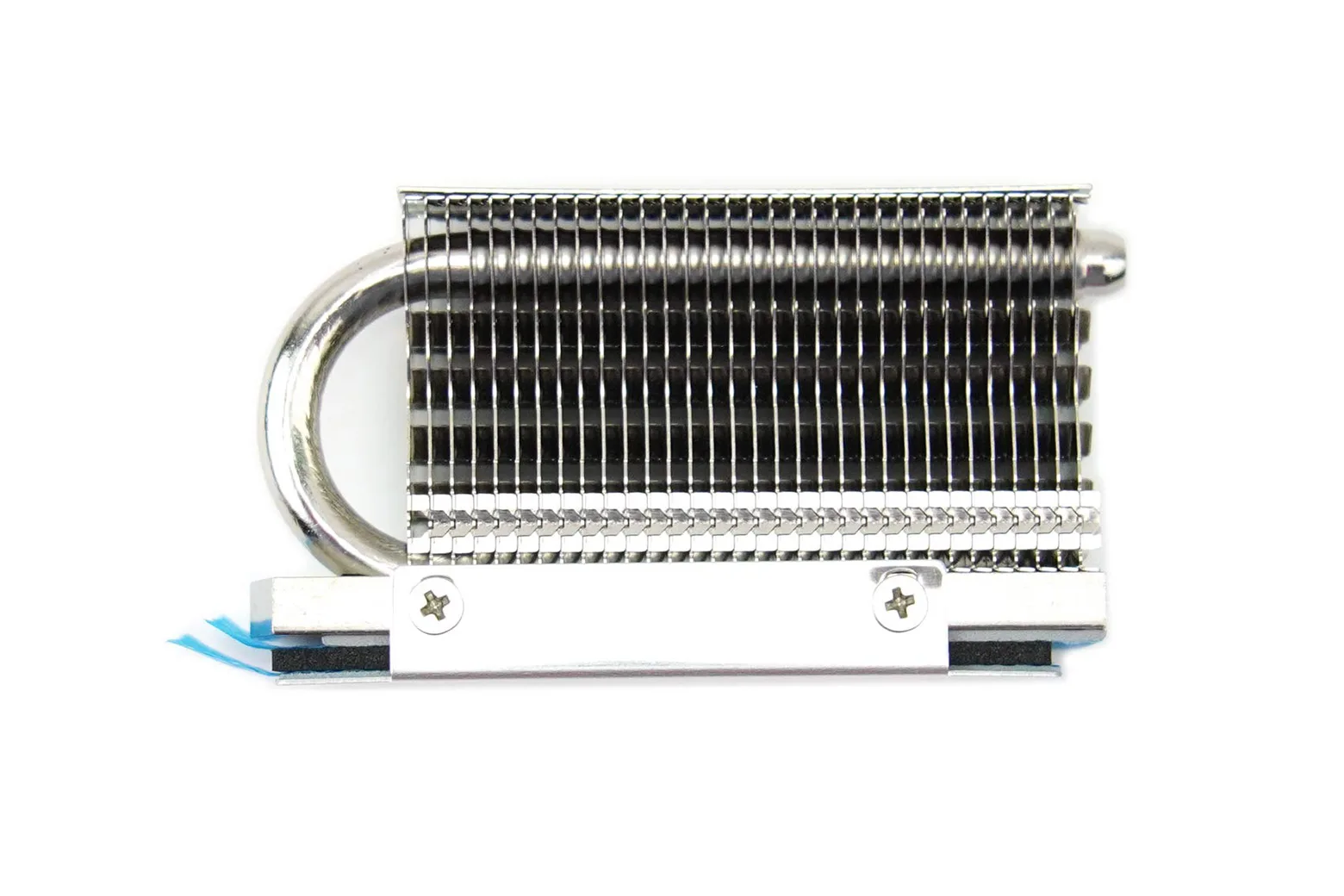

Integrated heat pipe design

The unit features a dedicated heat pipe that rapidly draws heat away from the drive controller and flash memory. This directs thermal energy directly into the cooling structure to maintain stable performance.

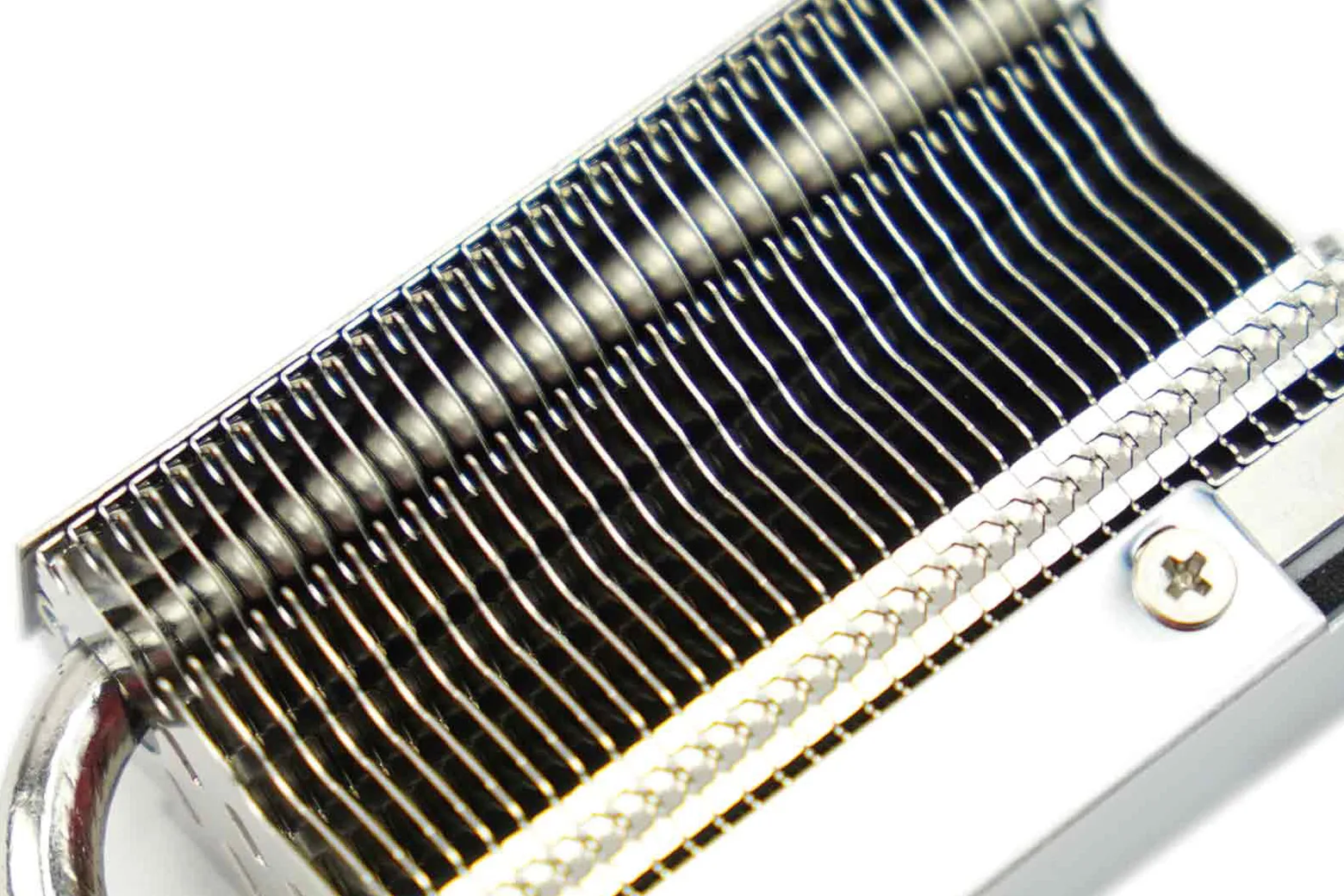

Aluminium fin array

An aluminium fin array maximises the available surface area for natural convection. This structure efficiently radiates heat into the surrounding air to help prevent thermal throttling during continuous drive operations.

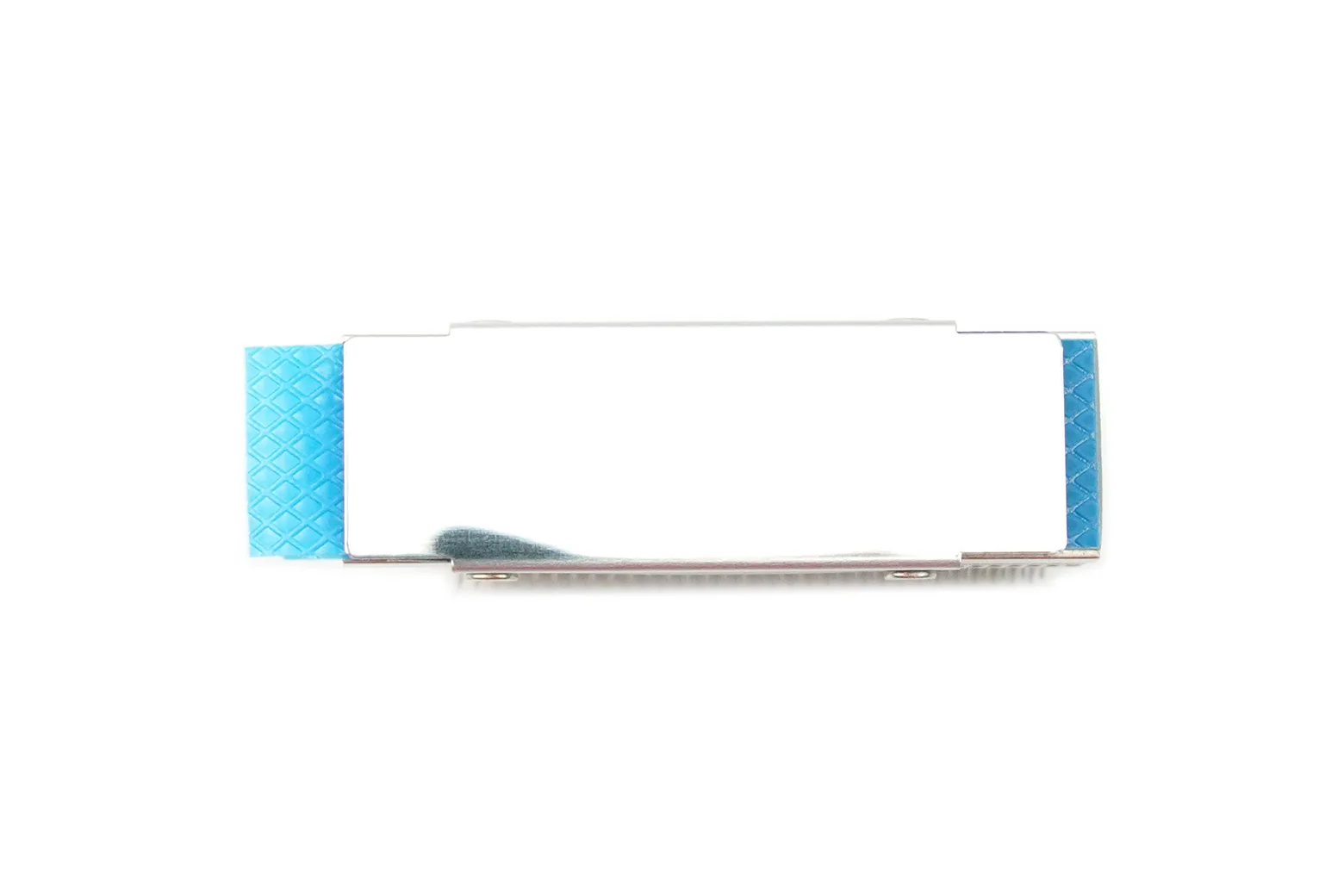

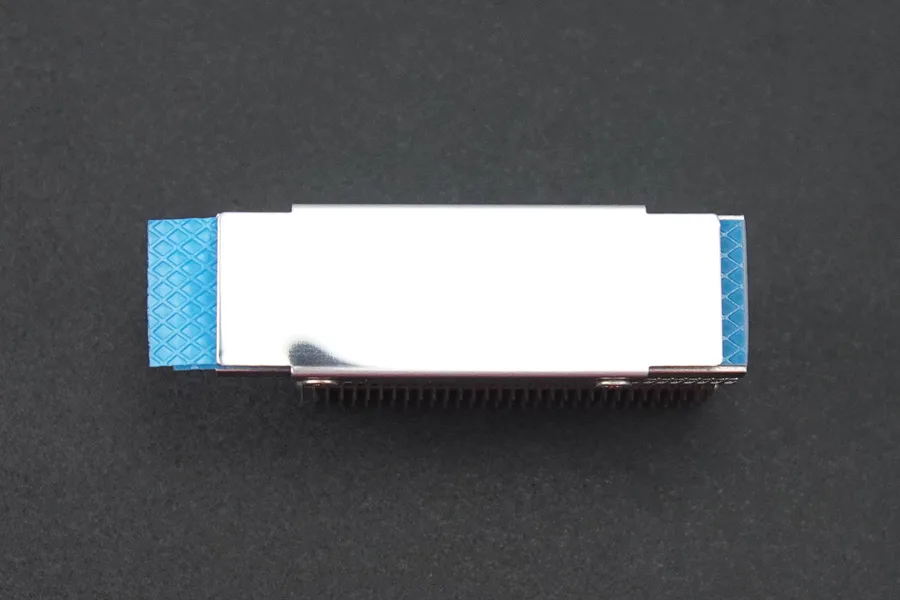

High-conductivity thermal pad

Included with the heat sink is a high-performance 14.8W/m·K thermal pad. It bridges the gap between the SSD components and the aluminium assembly to ensure efficient heat transfer across the entire surface.
