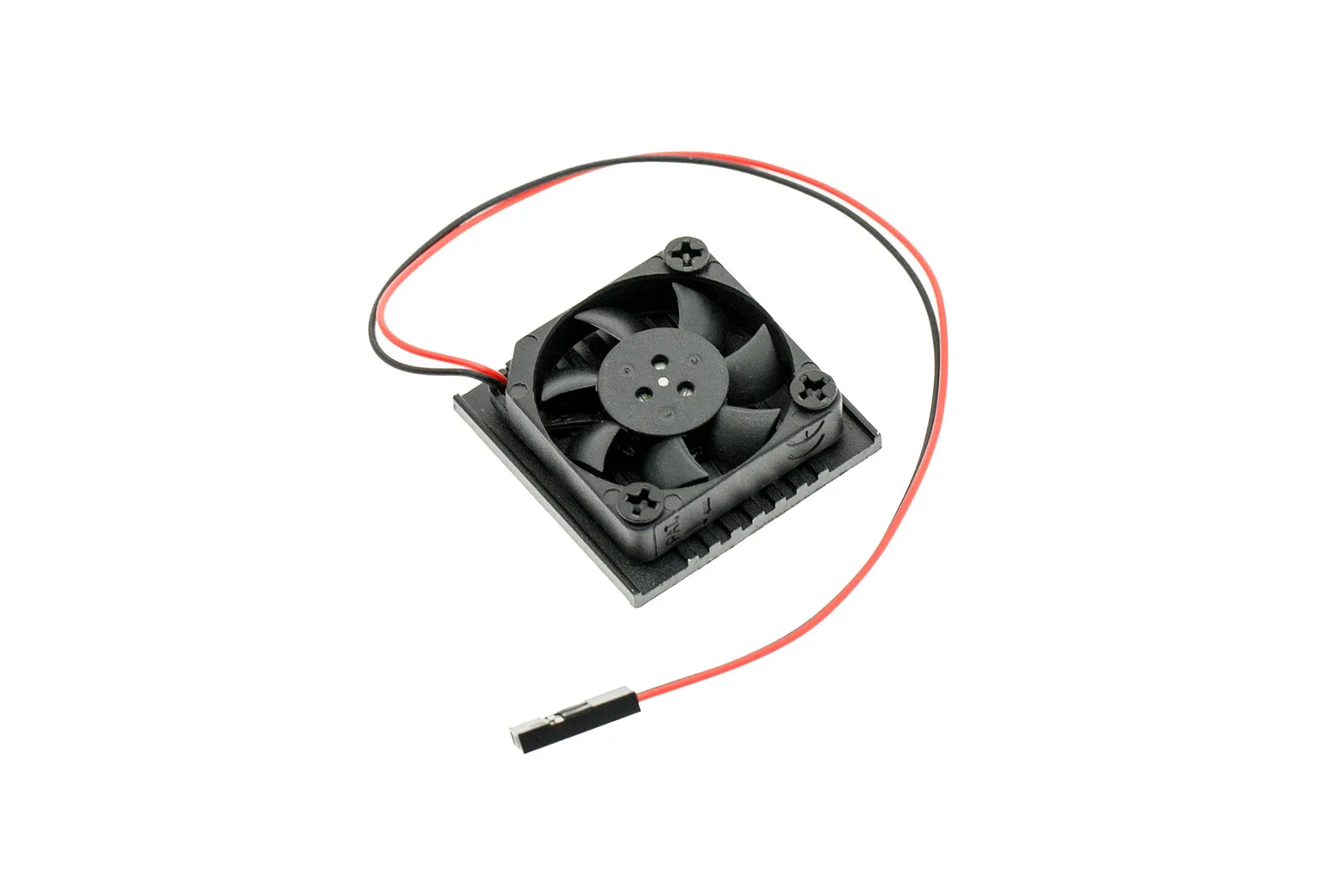

Aluminum Heatsink Cooling Fan for LattePanda V1

The Aluminium Heatsink Cooling Fan for LattePanda V1 is a low-profile, ultra-low-noise active cooling solution designed to keep your Windows 10 single-board computer running at stable temperatures. It is ideal for makers, students, and developers running processing-intensive workloads on their LattePanda V1.

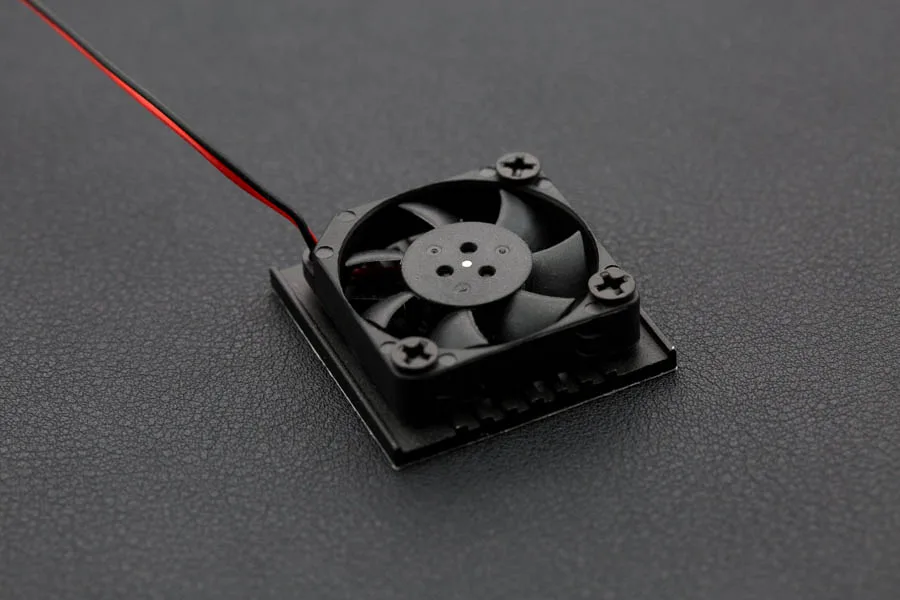

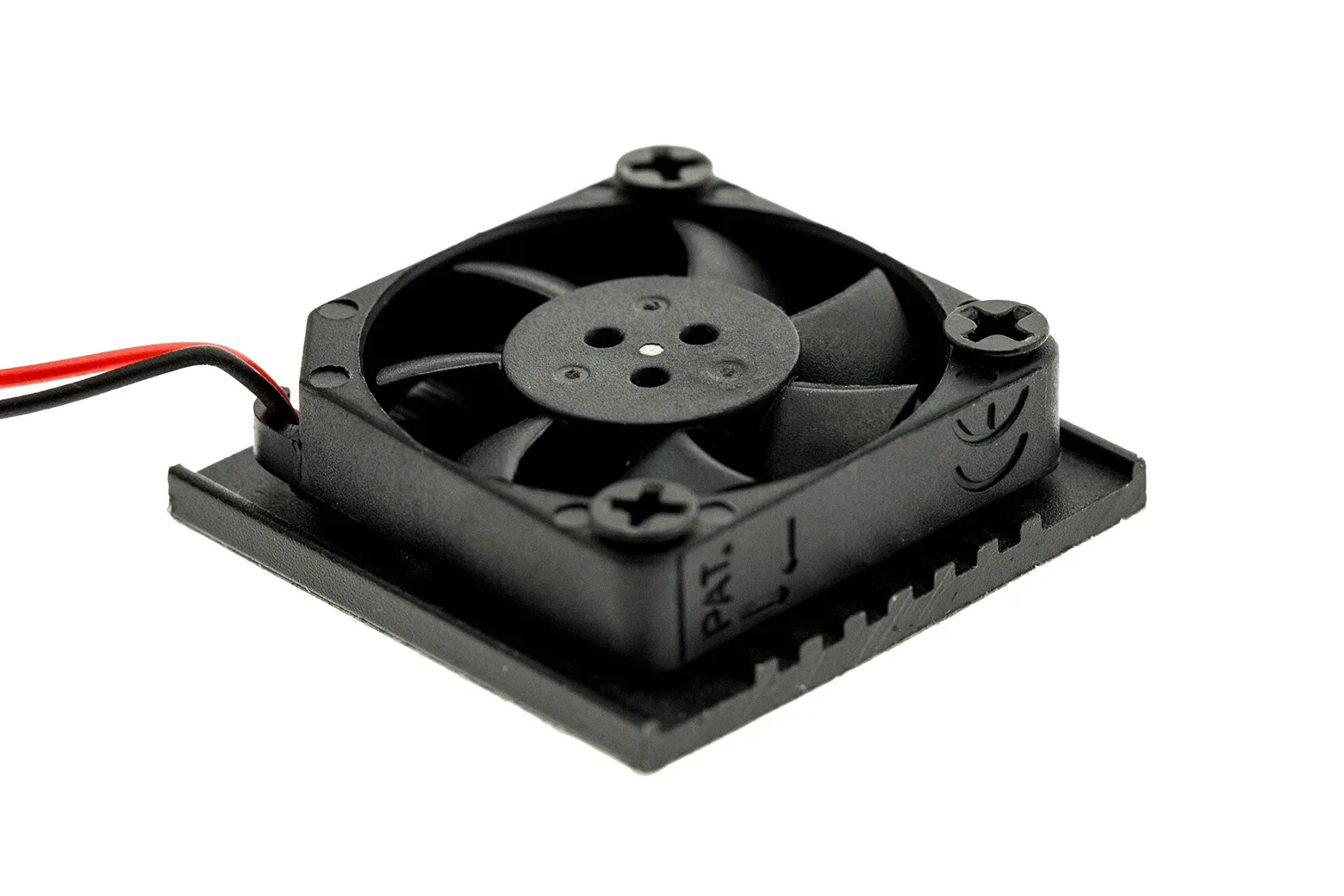

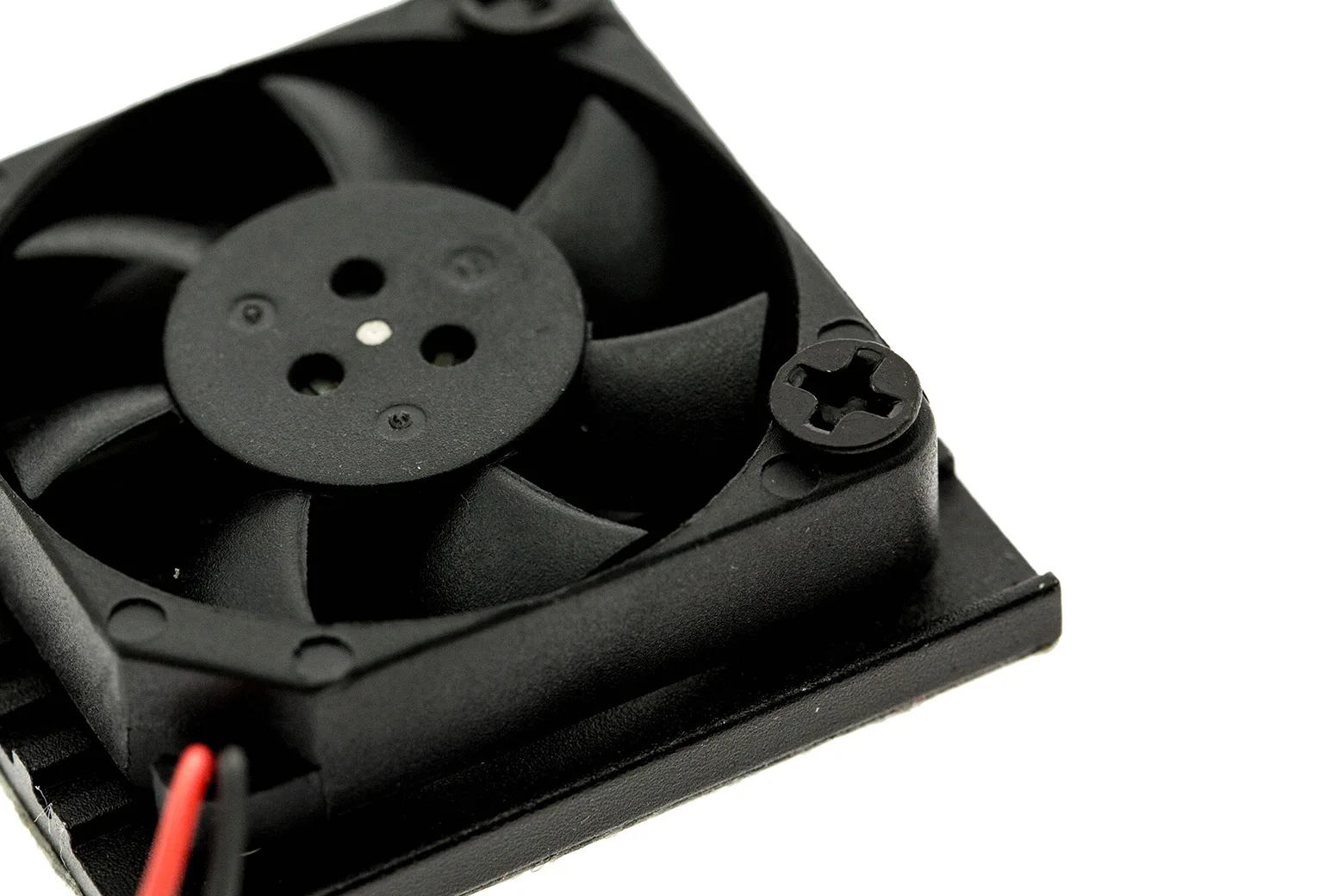

High-speed active aluminium cooling

An integrated aluminium heatsink rapidly draws heat away from the CPU, while the 7500 RPM fan provides quiet active airflow. Operating at 5V and 0.14A, it helps maintain optimal system performance under load.

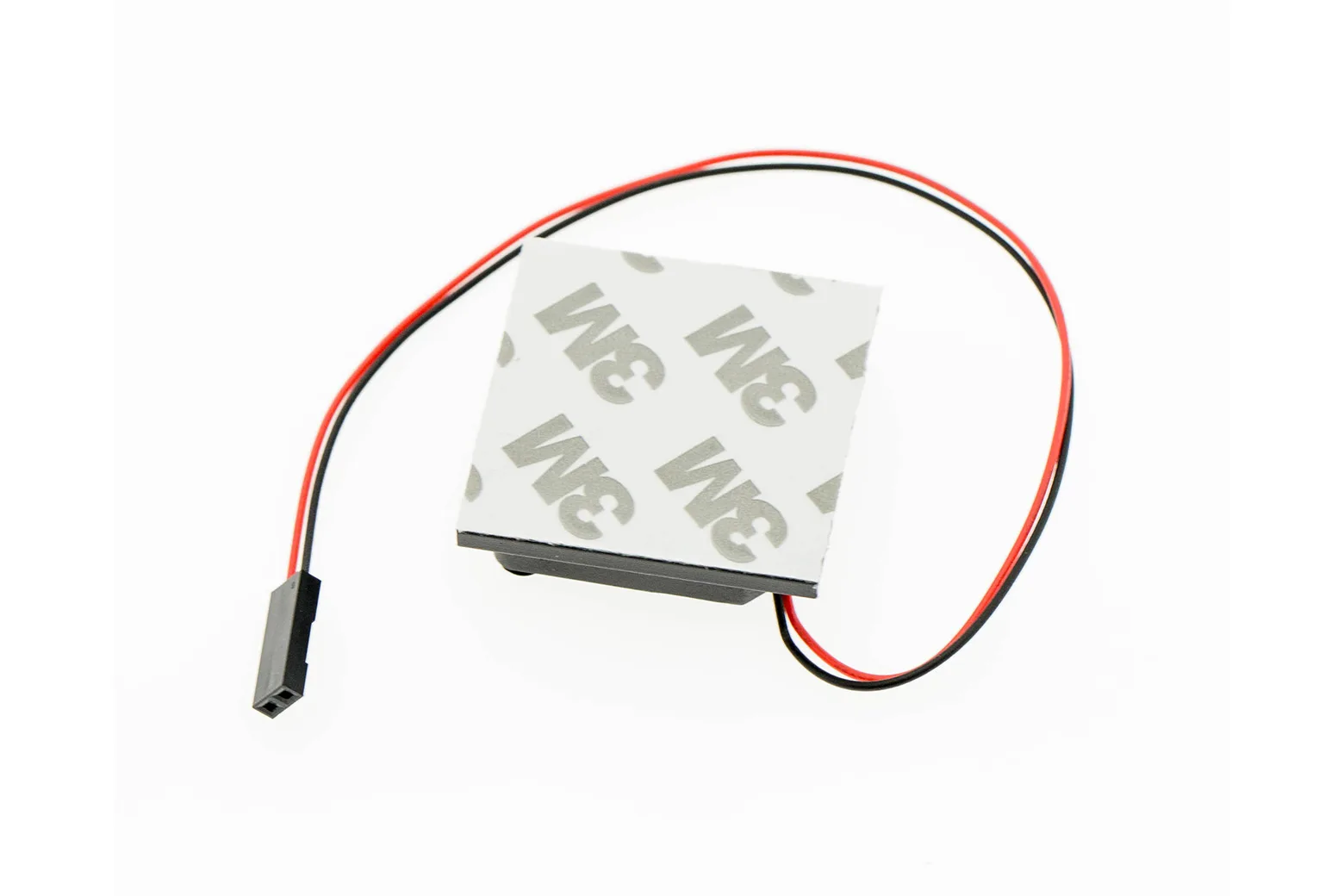

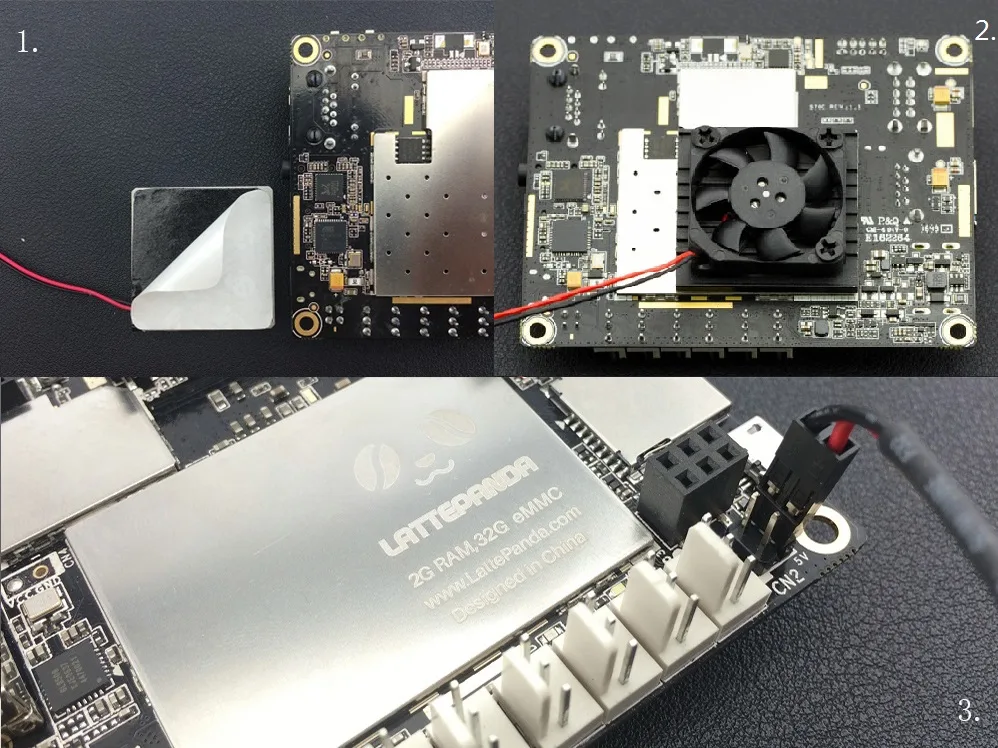

Thermal pad adhesive mounting

The heatsink features an adhesive thermal pad on the rear that adheres directly to the metal shield on the board. This creates direct thermal contact and a secure fit without needing additional mounting hardware.

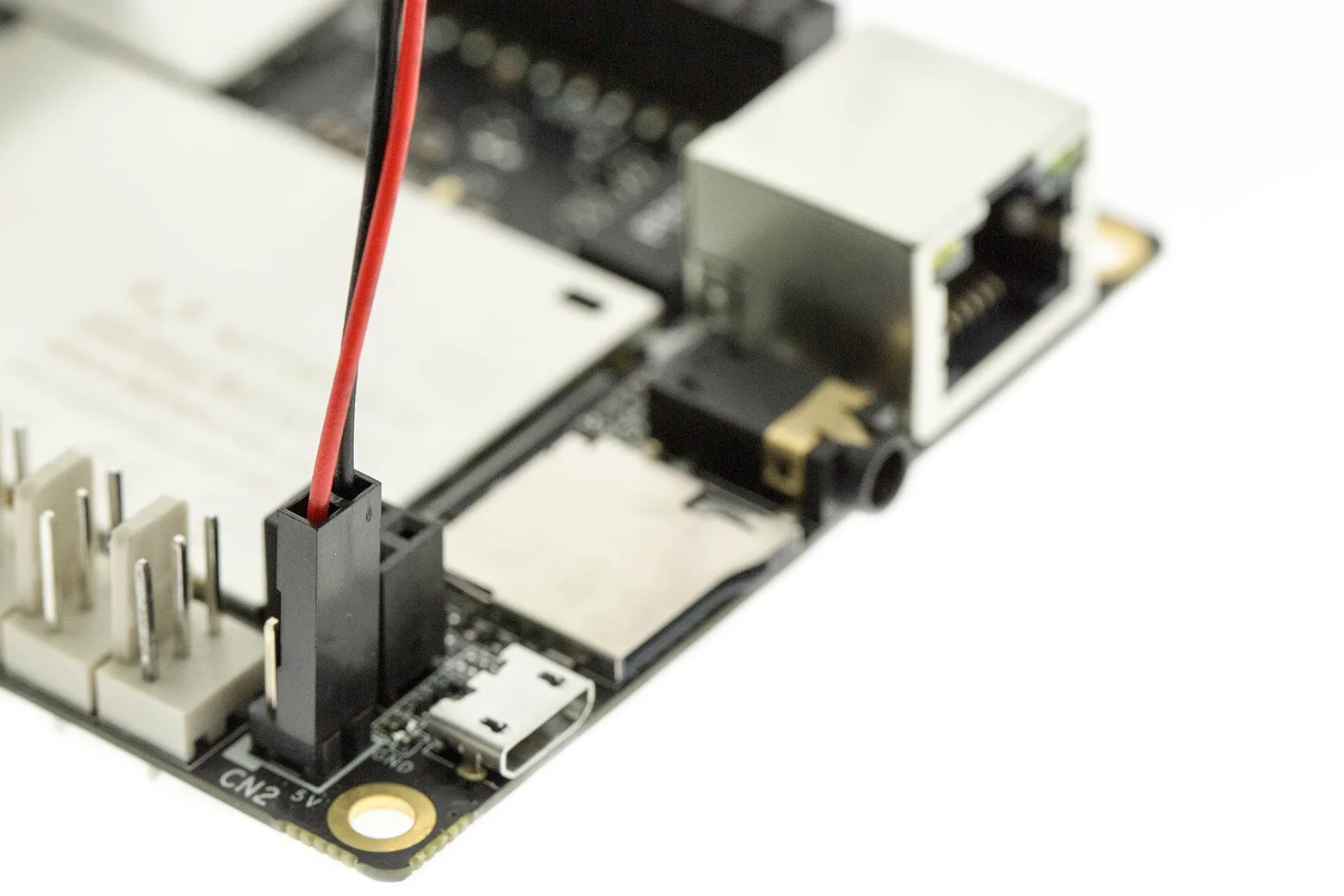

Direct board header connection

Power is supplied through an 18cm cable with a standard 2.54mm 2-pin DuPont female connector designed to plug into the board's CN2 headers. Please observe wire polarity during installation, connecting red to 5V and black to GND.

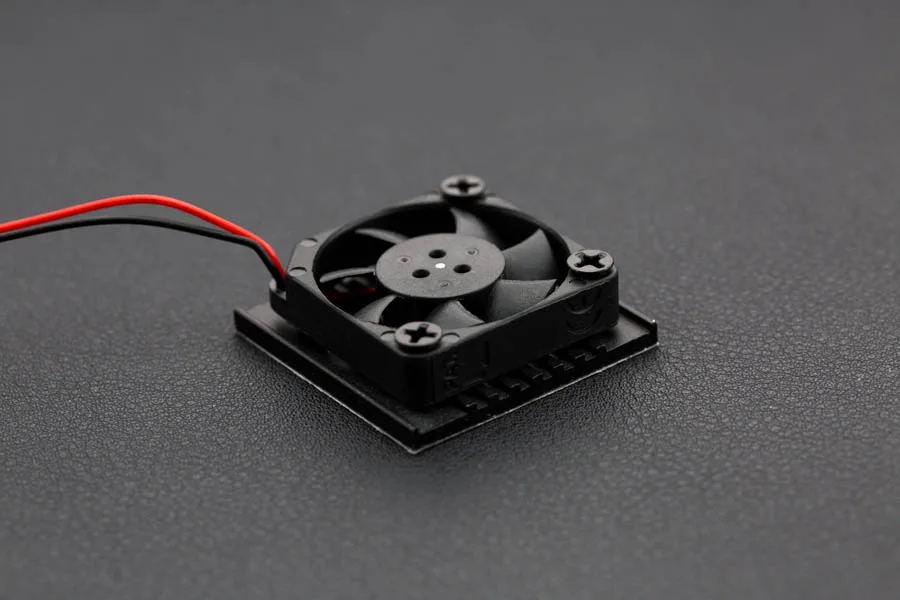

Compact lightweight footprint

Measuring 35 x 35 x 10 mm and weighing only 14g, the unit maintains a slim profile suited for enclosed builds. The embedded fan itself measures 30 x 30 x 7 mm.

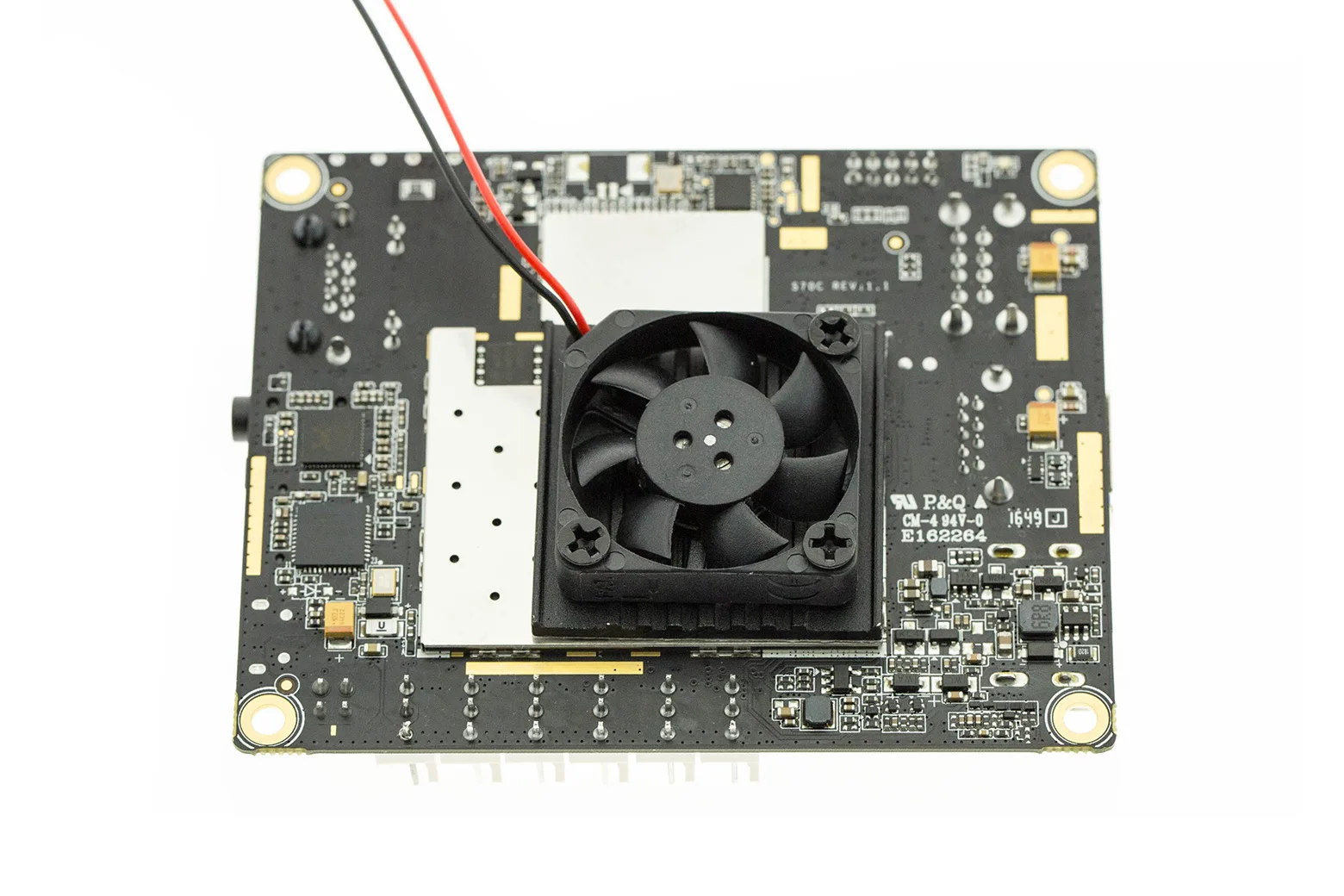

LattePanda hardware compatibility

This cooling assembly is tailored specifically for the LattePanda V1 single-board computer. It is not compatible with LattePanda Alpha or LattePanda Delta boards.
