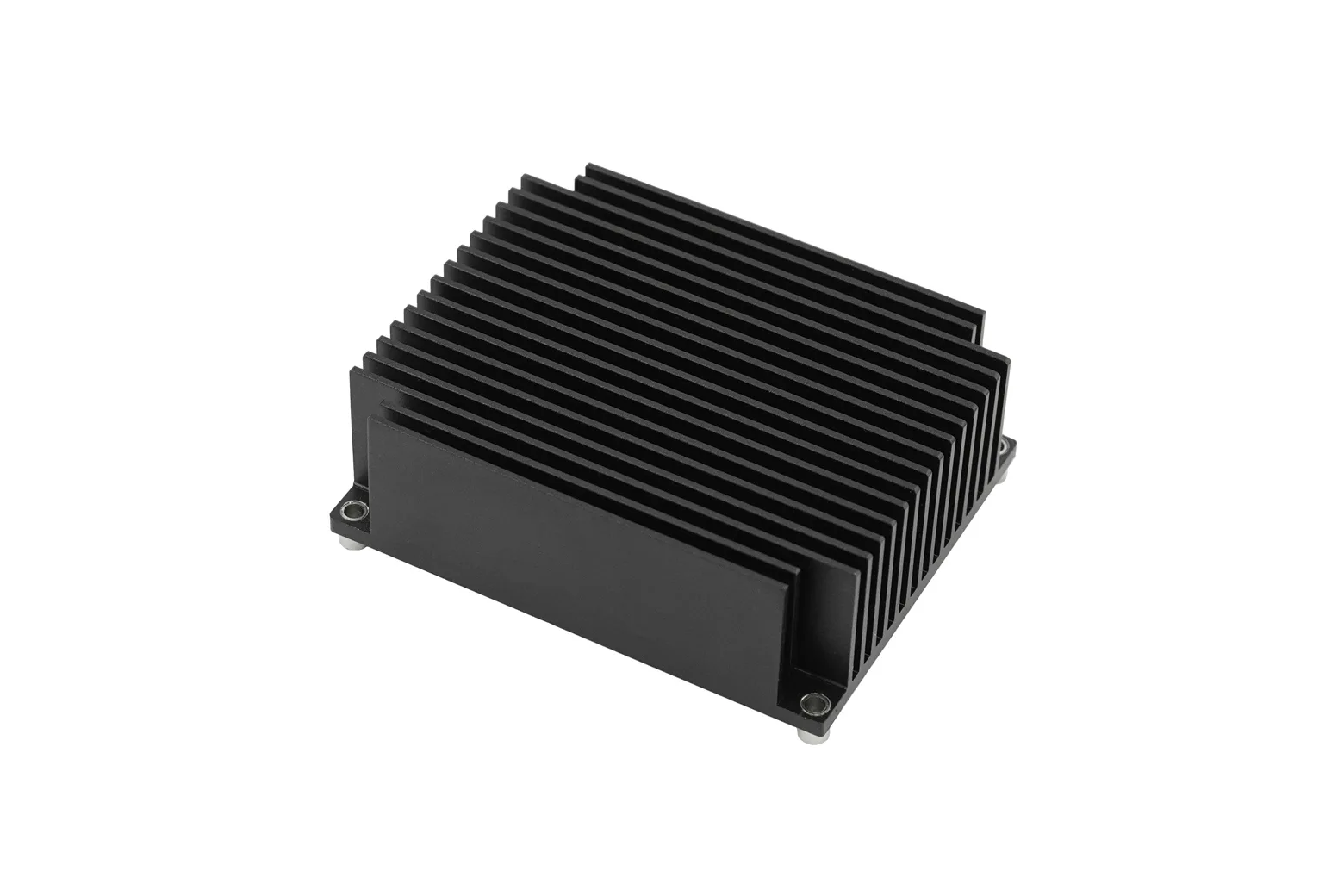

Aluminum Fanless Passive Heatsink for LattePanda IOTA

The Aluminum Fanless Passive Heatsink is a completely silent thermal management solution designed exclusively for the LattePanda IOTA single-board computer. Machined from thickened aluminium alloy, it delivers reliable heat dissipation during continuous high-load operation without generating fan noise. It suits makers, educators, and developers building zero-maintenance, quiet embedded systems.

Silent thermal management

The fully passive, zero-noise construction delivers reliable cooling stability during continuous high-performance operation. It provides a heat dissipation capacity rated for a 10W TDP, resulting in a 40°C heatsink temperature rise at an ambient temperature of 25°C.

Thickened aluminium alloy construction

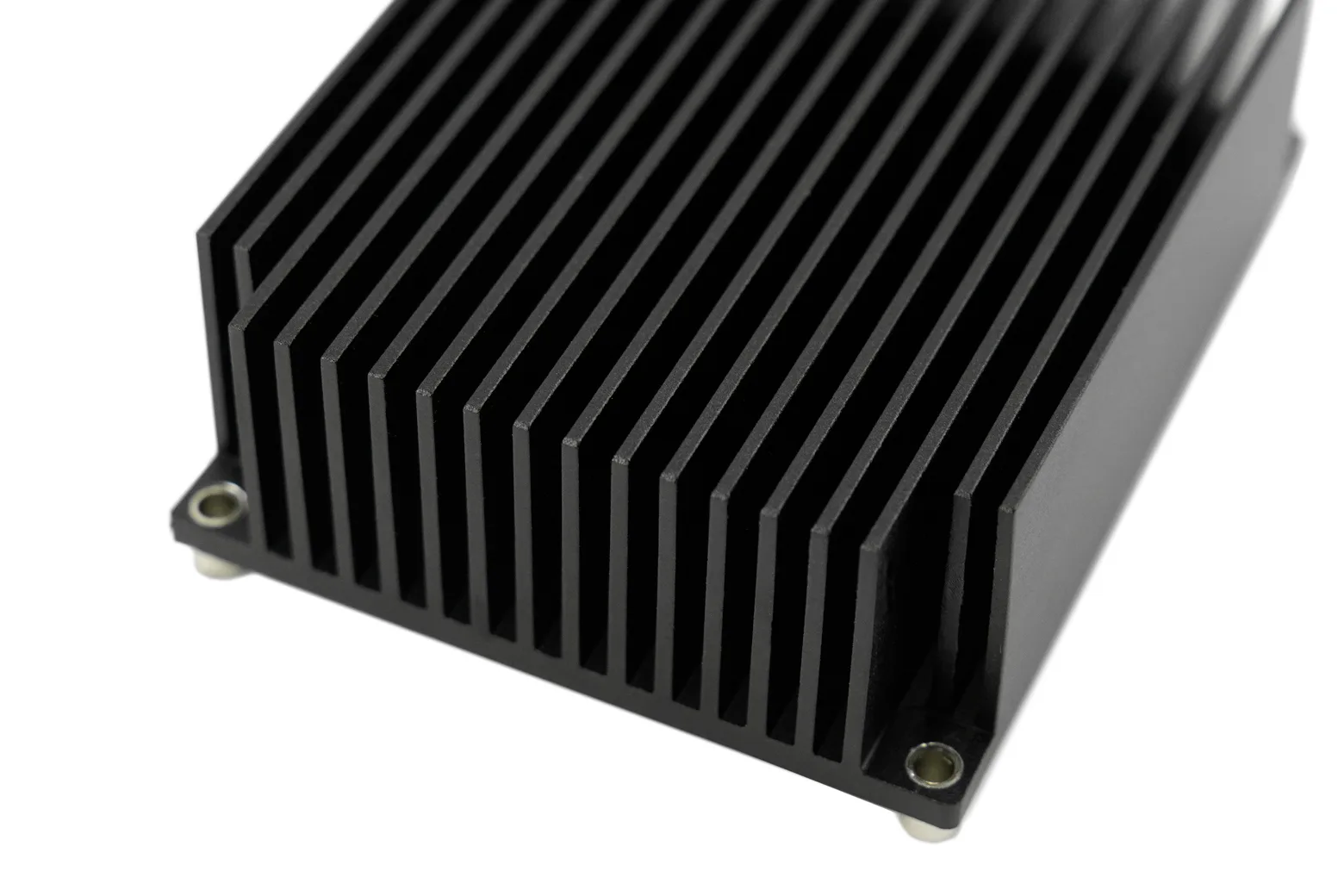

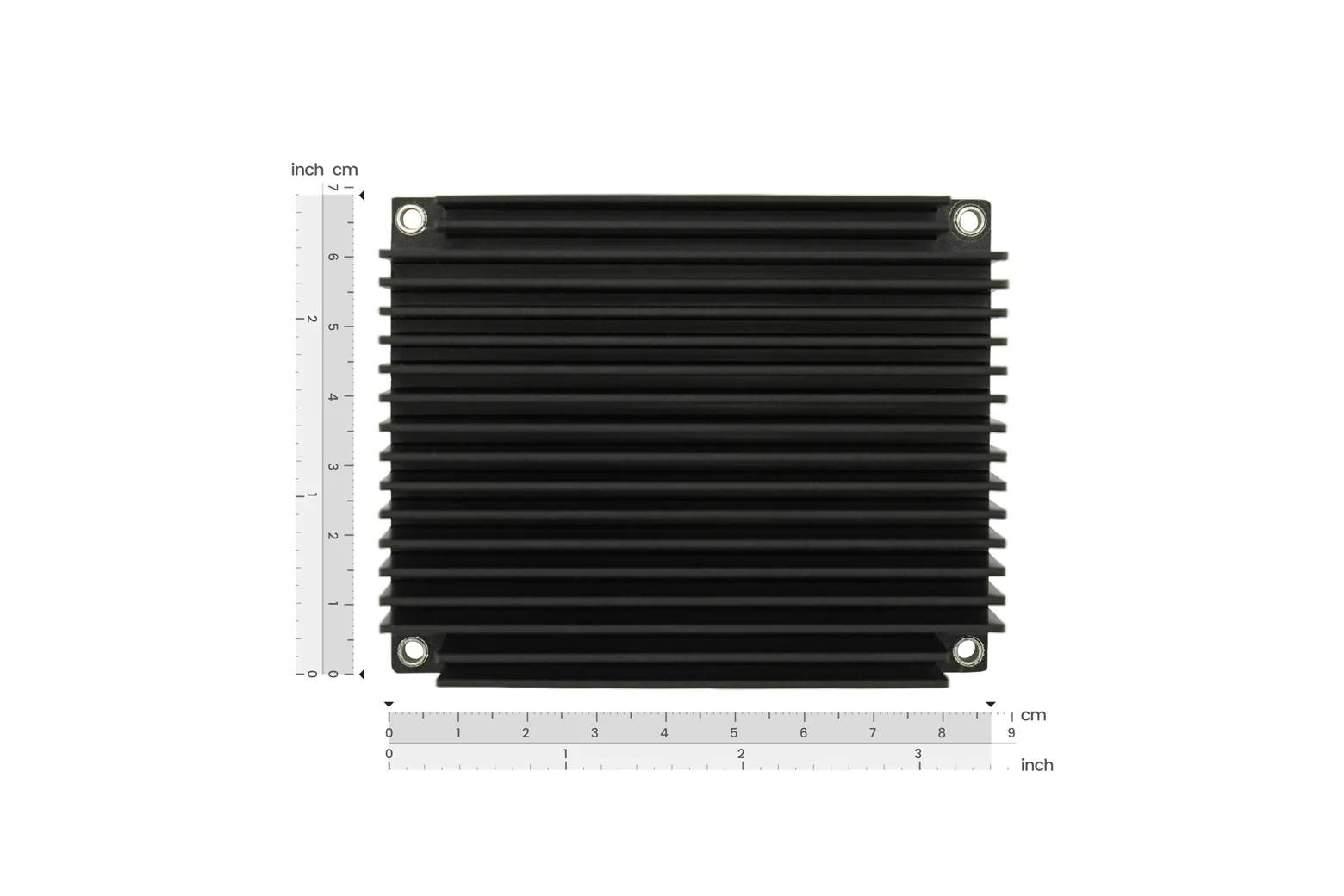

Crafted from aluminium alloy, the heatsink features an expanded volume and precision-machined fins that significantly enhance thermal capacity and heat dissipation surface area. The heatsink unit measures 87.0 x 69.4 x 31.5 mm and weighs 203 g.

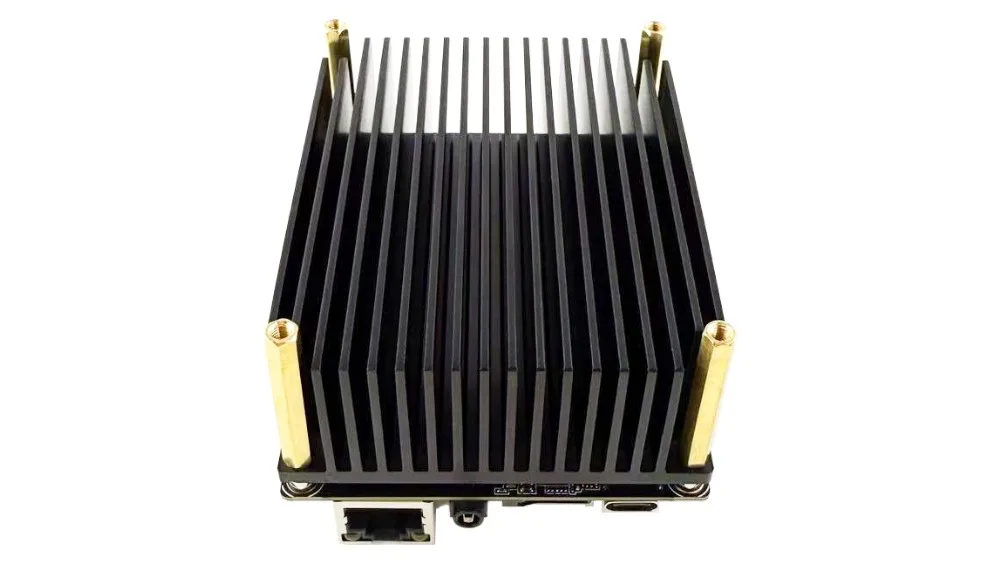

Secure backplate mounting

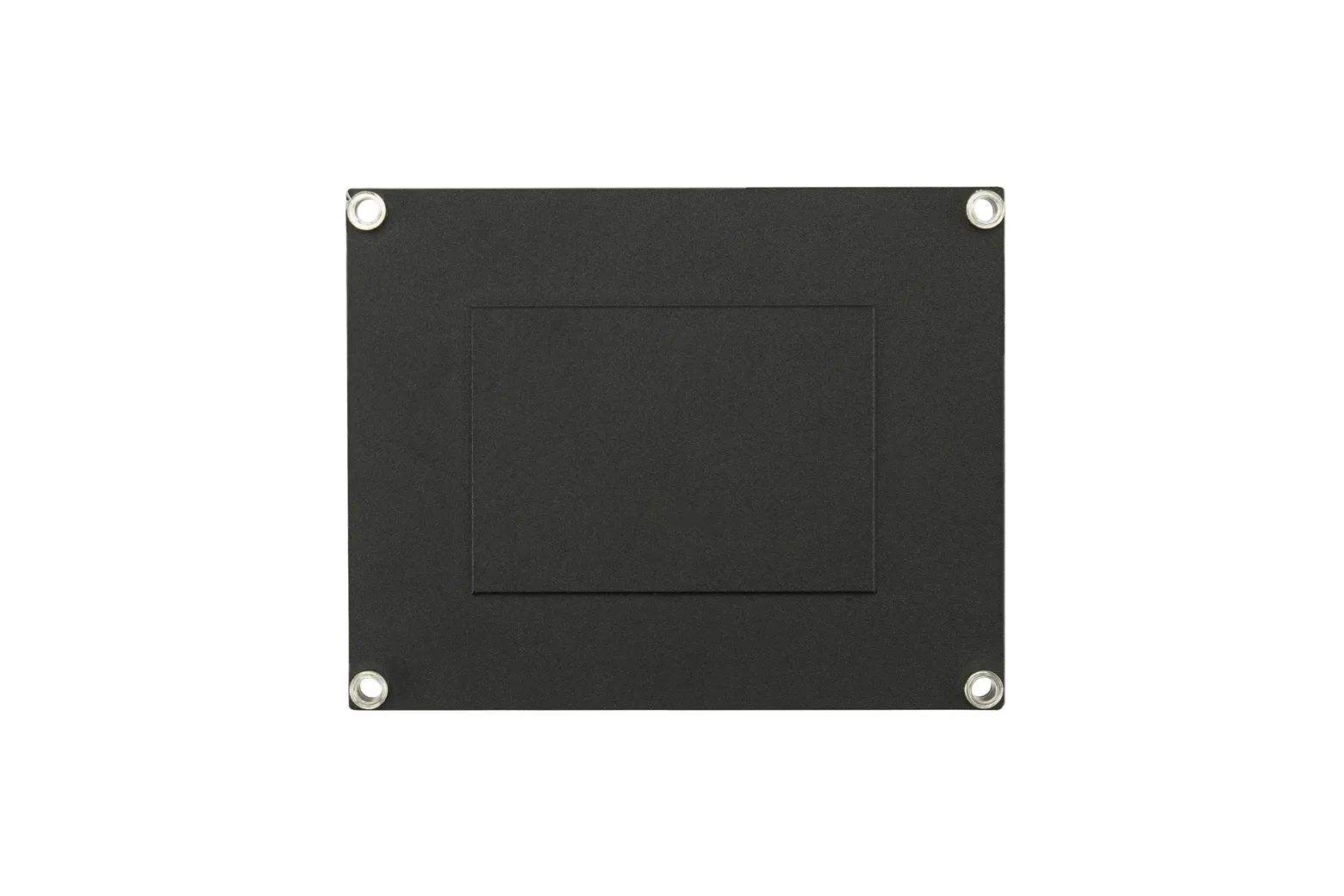

Installation involves applying an even layer of the supplied thermal paste to the processor, then mounting the heatsink to the back of the LattePanda board with screws and standoffs. This ensures efficient heat transfer from the processor and uniform distribution across the entire structure.

Safe operation and handling

The LattePanda IOTA must be powered off whenever the heatsink is being installed or removed. Because the metal absorbs and dissipates heat directly, avoid touching the heatsink with bare skin during use to prevent burns.

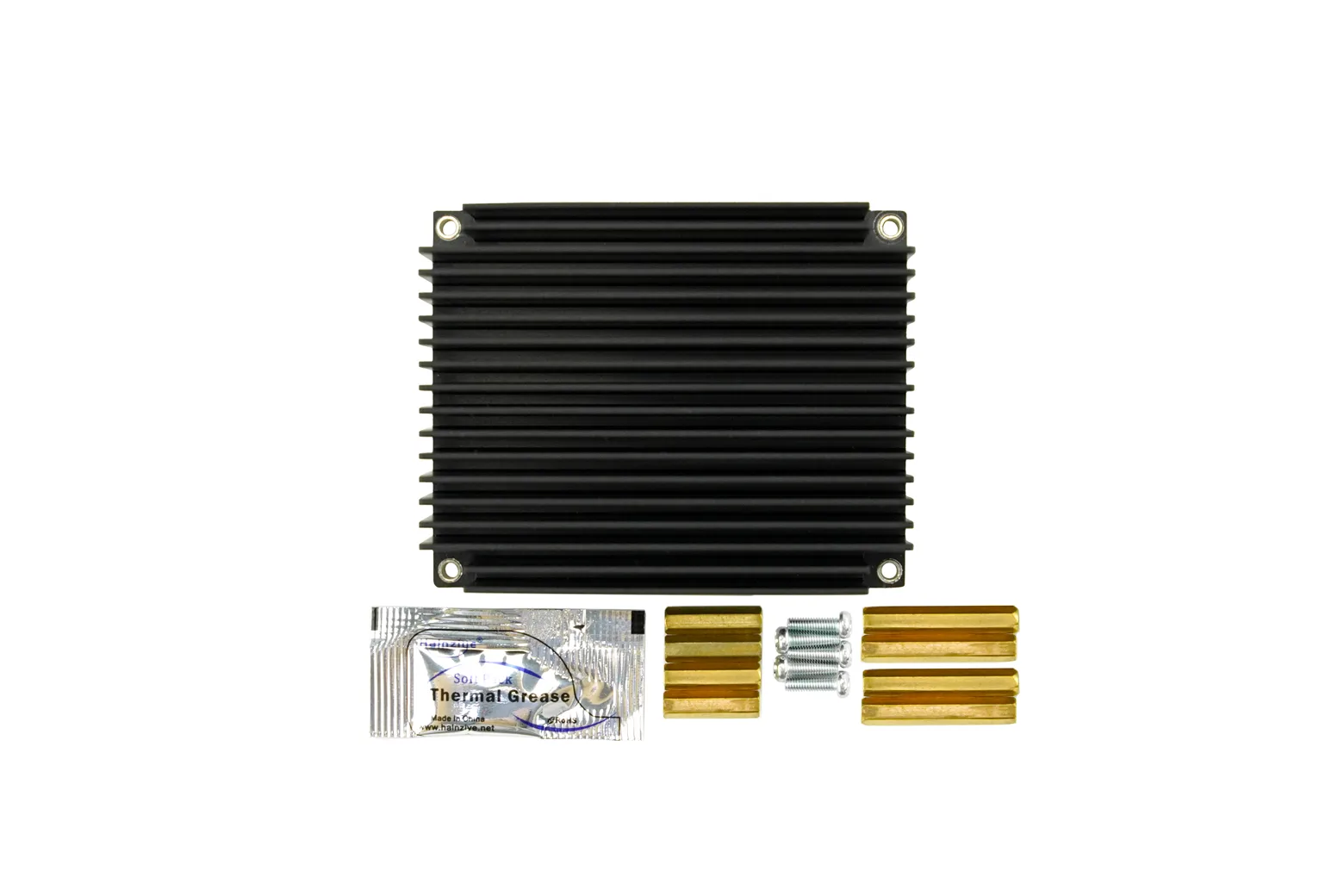

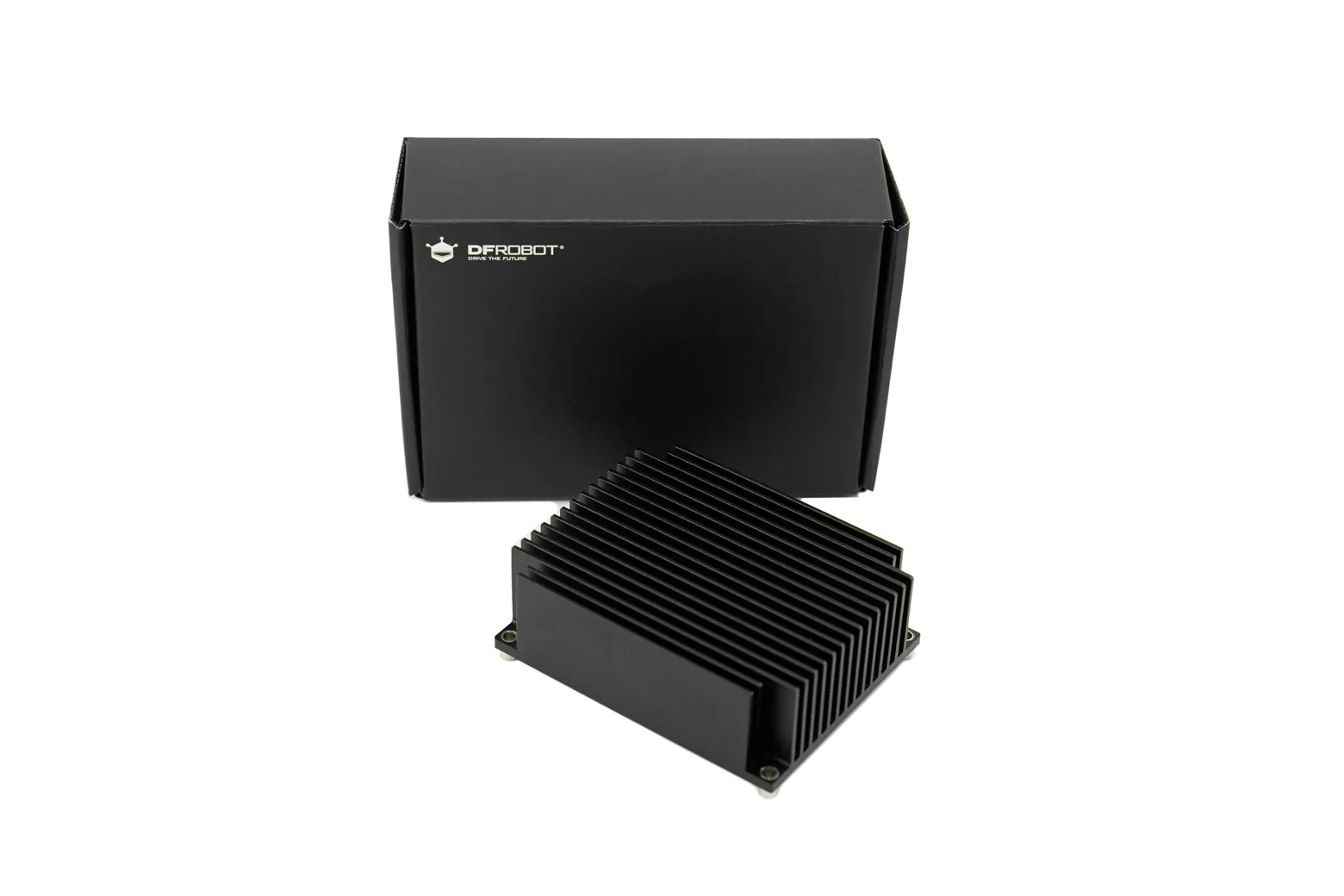

Package contents

The kit includes one LattePanda IOTA fanless heatsink alongside a dedicated heatsink accessory kit for mounting and thermal interface application.
