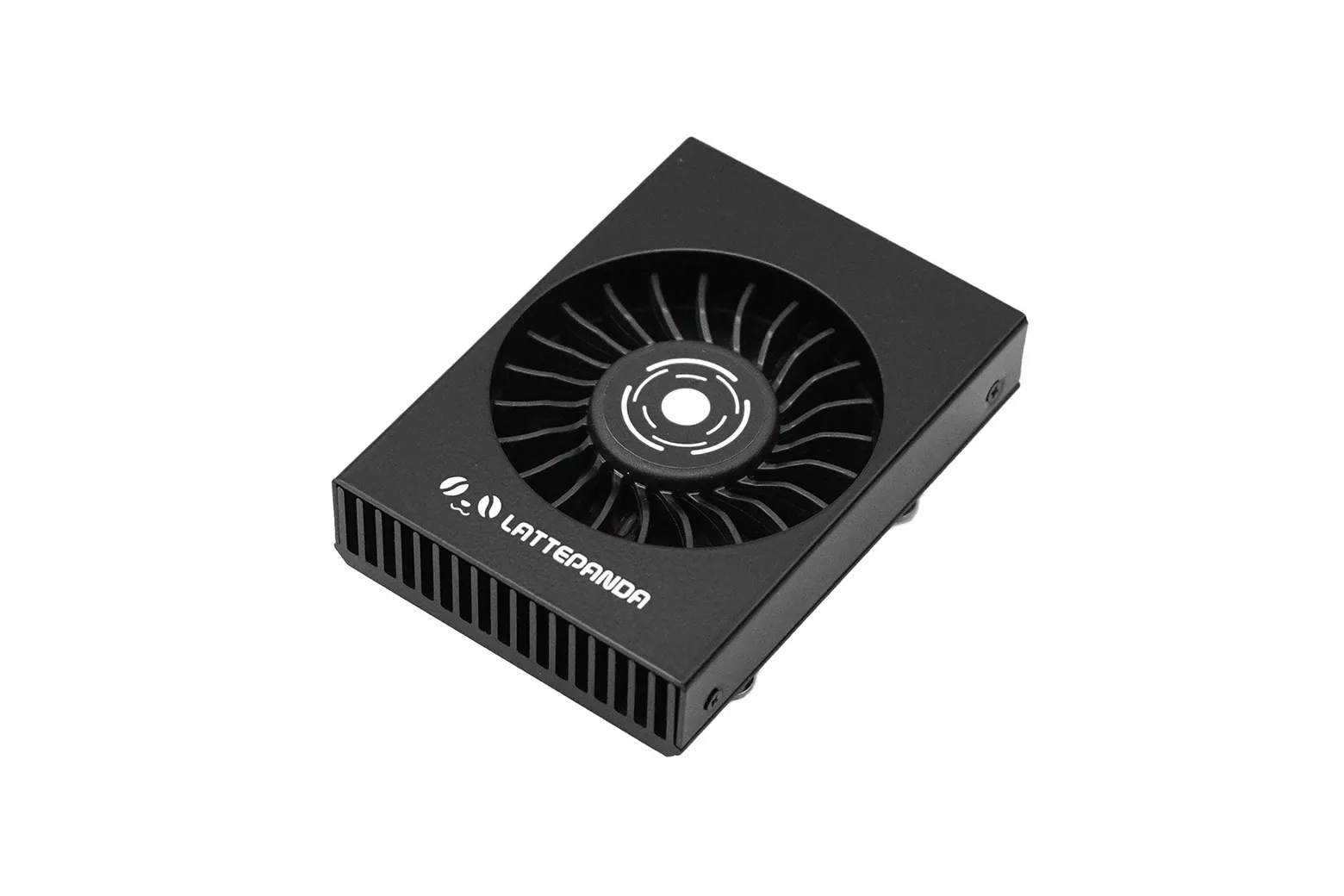

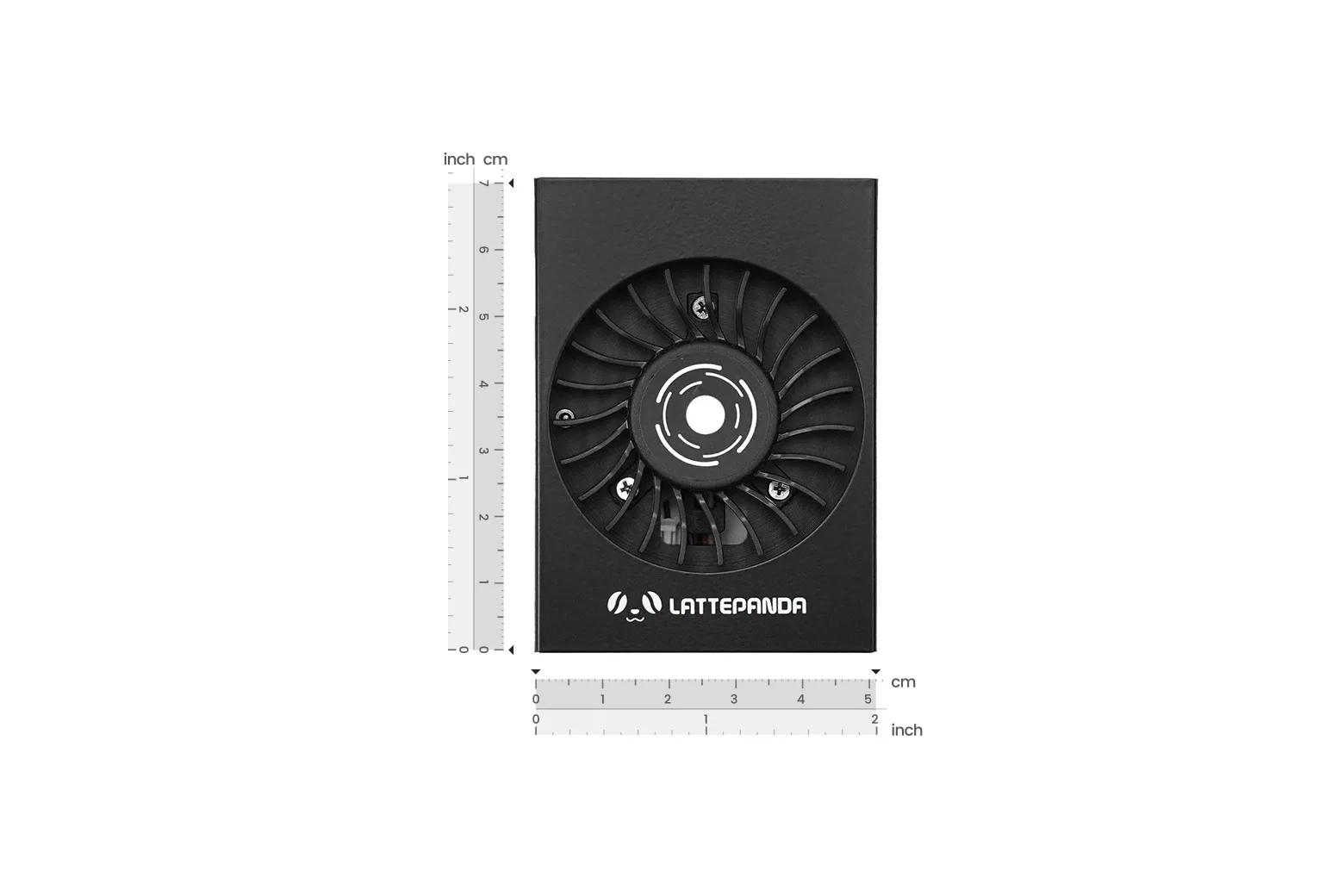

Aluminum Active Cooler for LattePanda Mu Compute Module

The Aluminium Active Cooler is a dedicated thermal management solution designed specifically for the LattePanda Mu compute module. Featuring an aluminium heatsink, a low-noise cooling fan, and pre-applied phase change thermal material, it provides reliable heat dissipation for makers, educators, and hobbyists building custom DIY carrier projects.

Efficient active thermal management

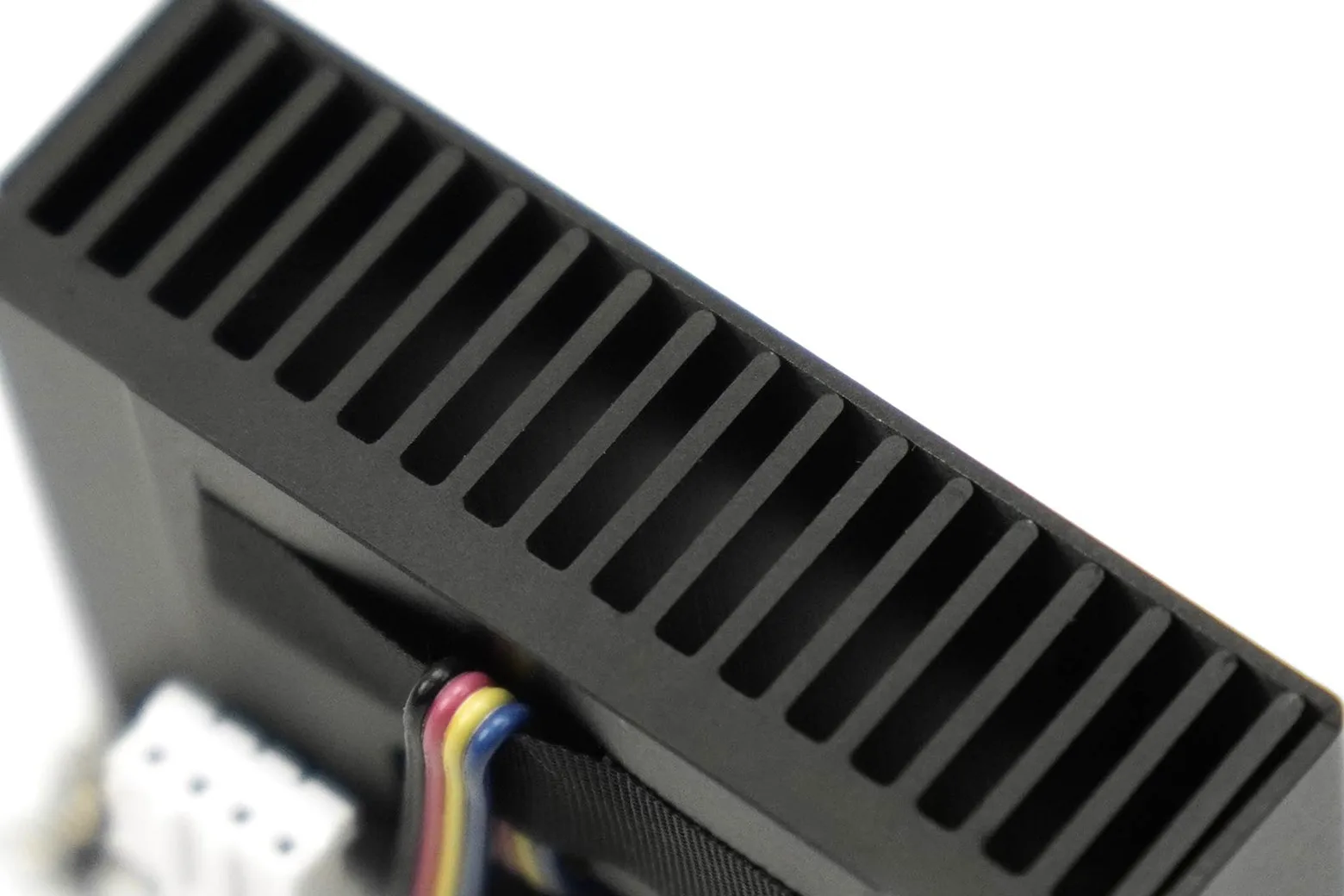

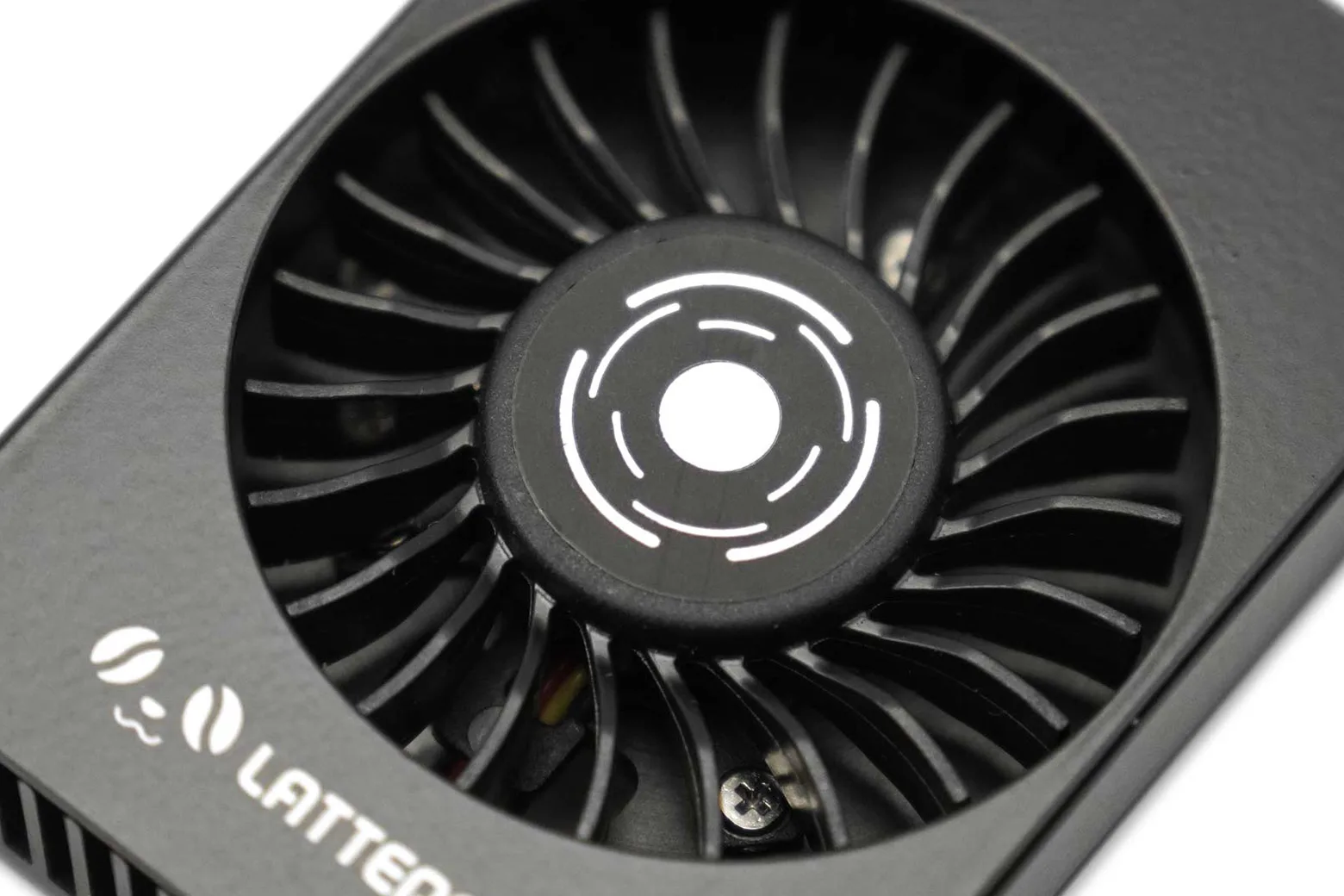

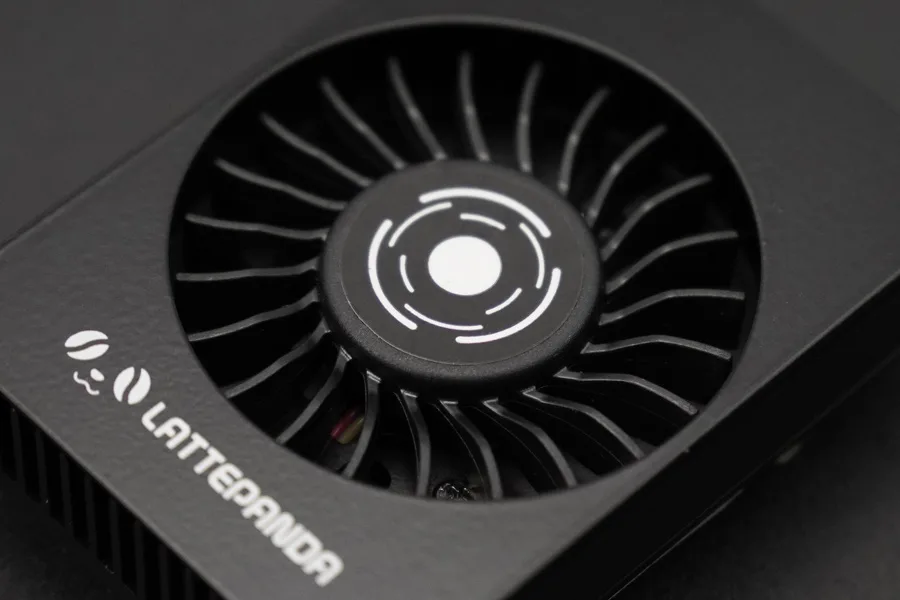

An aluminium alloy heatsink paired with dissipation fins quickly draws heat away from the processor. The integrated low-noise fan reaches speeds up to 4000 RPM to maintain stable operating temperatures under load.

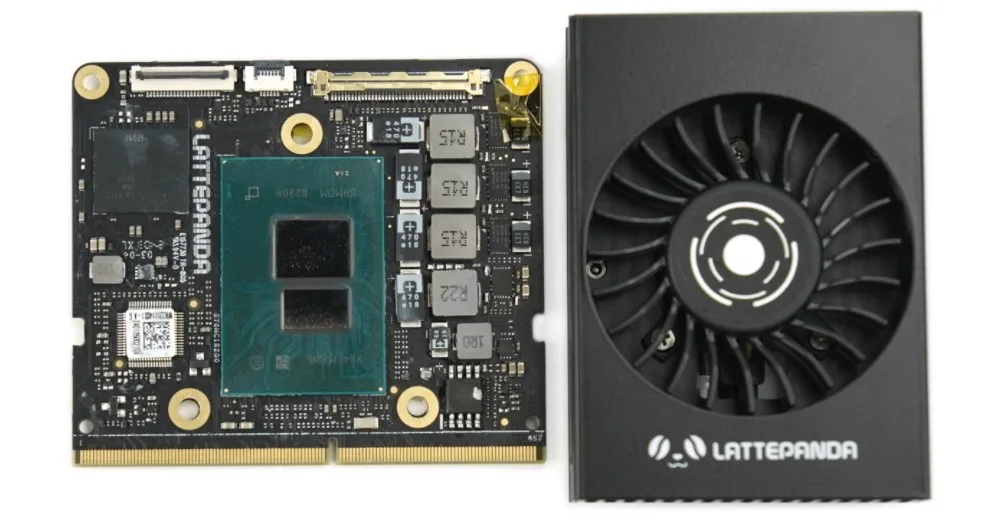

Durable all-metal construction

Built from corrosion-resistant aluminium alloy with a double ball bearing fan, this 69g cooler ensures long-term operational reliability and supports wall-mounted setups.

Optimised thermal interface

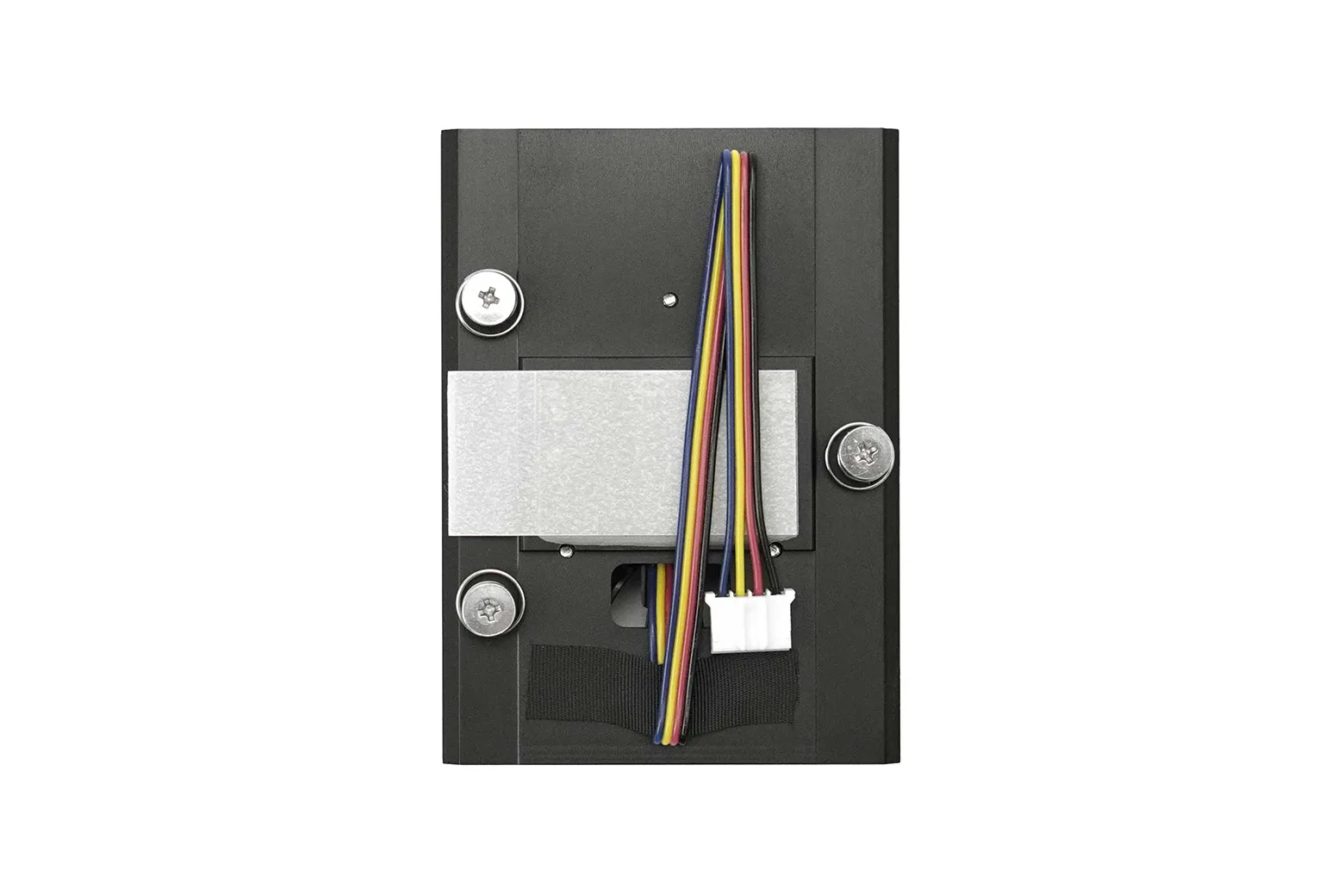

The cooler comes fitted with high-quality phase change material that maximises thermal conductivity between the LattePanda Mu CPU and the heatsink base.

Standard 4-pin electrical connection

Operating at 5V with a 0.35A current draw, the fan connects directly via a 105mm cable terminated with a PH2.0-4P interface.

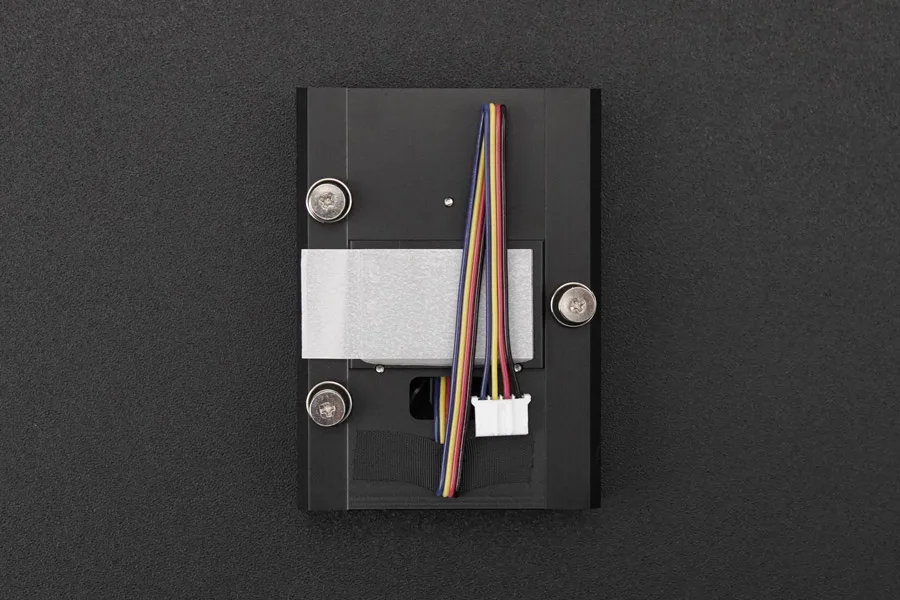

Spring-screw mounting procedure

Three spring-loaded screws secure the cooler to the module. Ensure power is off before installation and tighten the screws evenly in a circular sequence to prevent uneven pressure on the processor.
